[Support] deCONZ Community Official

[thecode]

Overview: Support for the deCONZ Community Official docker container

Docker: https://hub.docker.com/r/deconzcommunity/deconz

Github: https://github.com/deconz-community/deconz-docker



This is an unRAID template for the official deCONZ Community container which replaces the marthoc/deconz docker.

If you are migrating an existing marthoc/deconz install to deconzcommunity/deconz, Make sure you have the latest backup from Phoscon.

To use this container you need to have a a ConBee II USB stick



This template is set to run on a custom network and it is better to assign a fixed IP address, it is also possible to use host network with this template, but make sure to change the web ports



If you have just one device it will usually be found at:

/dev/ttyACM0

Which is the default device path for this template, however it is recommended to update the device path to use serial by id, which makes sure you point to the correct device even if multiple USB devices are plugged into the server or the USB mapping changes, to do it when the stick is plugged into the server run the following command in a terminal window;

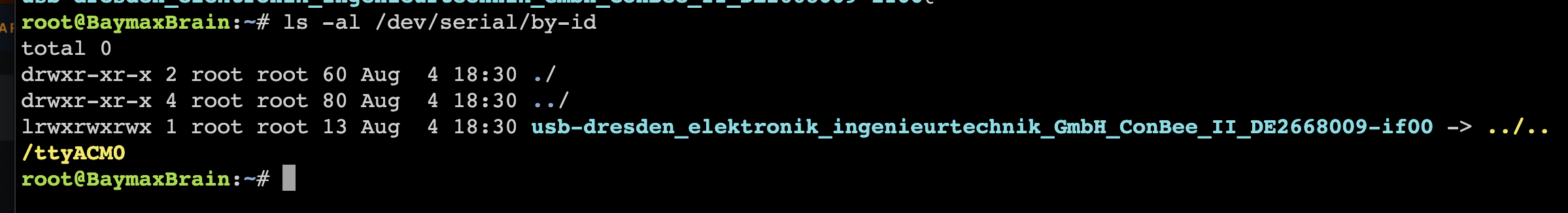

ls /dev/serial/by-id

Copy the id from the result and update the ConBee USB port in the template as follows:

/dev/serial/by-id/usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_[SN]-if00:/dev/ttyACM0

Replace the "usb-dresden---if00:" with the result from the "ls" command, keep the ":/dev/ttyACM0" even if the device is mapped to a different port. This will map the USB stick to "dev/ttyACM0" even if it is mapped to a different path on the host OS.



The template is set to install the latest stable release, you can modify the release tab by replacing the "stable" in the template repository, available tags:

• latest - Latest release of deCONZ, stable or beta

• stable - Stable releases of deCONZ only

• beta - Beta releases of deCONZ only

• version - Specific versions of deCONZ, use only if you wish to pin your version of deCONZ, eg 2.13.02



If you enable VNC mode (make sure to change the password), you can also access the deCONZ mesh app using noVNC:

http://IP:6080/vnc.html

Replace the "IP" with the container IP address



if you like my work, Buy me a beer!



Edited September 27, 2022 by thecode

[Mik3]

Hi, thanks for your work much appreciated.

Probably it's me but the docker is not working. Please find below all the details.

OS: Unraid 6.11-rc5

Fresh install of docker, no previous appdata.

I change the net to host, change the HTTP and WS port to something not used but when the container is pulled, it still shows port 80 and port 443  in the docker details in unraid.

192.168.1.2:443/TCP192.168.1.2:443
192.168.1.2:5900/TCP192.168.1.2:5900
192.168.1.2:6080/TCP192.168.1.2:6080
192.168.1.2:80/TCP192.168.1.2:80/opt/deCONZ/mnt/user/appdata/deconz

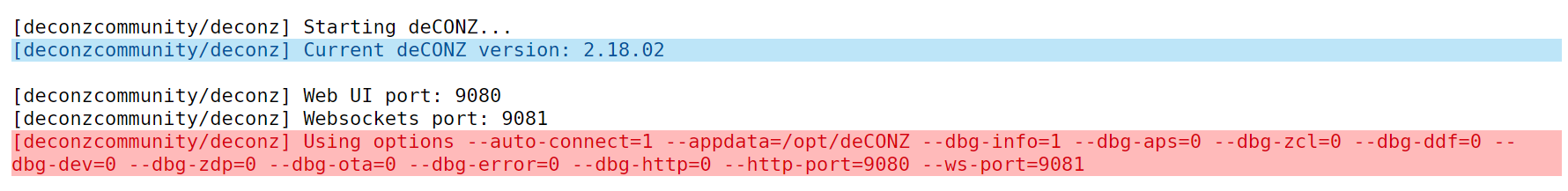

Docker logs shows in RED

[deconzcommunity/deconz] Using options .......... --http-port=808 --ws-port=4434



Same happens if using the custom network to br0. Even if I leave the standard configurations the red line is still showed in the docker logs.

What am I doing wrong?

[thecode]

8 hours ago, Mik3 said:

Hi, thanks for your work much appreciated.

Probably it's me but the docker is not working. Please find below all the details.

OS: Unraid 6.11-rc5

Fresh install of docker, no previous appdata.

I change the net to host, change the HTTP and WS port to something not used but when the container is pulled, it still shows port 80 and port 443  in the docker details in unraid.

192.168.1.2:443/TCP192.168.1.2:443
192.168.1.2:5900/TCP192.168.1.2:5900
192.168.1.2:6080/TCP192.168.1.2:6080
192.168.1.2:80/TCP192.168.1.2:80/opt/deCONZ/mnt/user/appdata/deconz

Docker logs shows in RED

[deconzcommunity/deconz] Using options .......... --http-port=808 --ws-port=4434



Same happens if using the custom network to br0. Even if I leave the standard configurations the red line is still showed in the docker logs.

What am I doing wrong?



Unless there is some copy paste error the last line looks strange:

192.168.1.2:80/TCP192.168.1.2:80/opt/deCONZ/mnt/user/appdata/deconz



I have tested again HOST mode for the docker and it does work, the only problem is that if you try to open the WebUI from unRAID it will try to open it on port 80 since it is hardcoded in the template, I will check if it is possible to fix it.



If you open the WebUI using the port you set it should work.

The RED line shows the correct ports that are used, I have moved 80 to 9080 and I can access the WebUI on my server like this:

http://server_ip:9080



Can you share a screenshot of your settings?



Can you share the output of the following in a terminal:

sof -i -P -n | grep deCONZ



[Mik3]

Sorry for the late reply I was busy at work. I tried to setup again using the host mode and changing the port to something else. Maybe he doesn't like 808 XD. Anyway now looks like it's working. I'll do more tests and if anything strange comes up I'll report back.



On 9/17/2022 at 9:22 PM, thecode said:

I have tested again HOST mode for the docker and it does work, the only problem is that if you try to open the WebUI from unRAID it will try to open it on port 80 since it is hardcoded in the template, I will check if it is possible to fix it.



To solve this just change the view from basic to advanced and modify the value "WebUI: http://[IP]:[PORT:80]/". Change 80 to the port you use..in your example 9080.



Thanks again for your time and help. Have a nice day!

[HansPeter]

Hi,

first of all I'd like to thank you for your work!



Unfortunatly I fail to run the network type host. I changed the ports as follows:







After saving it looks like this:



LogFile:



The Web UI doesn't work. Do you have any idea?



Greetings,

HansPeter

[thecode]

1 hour ago, HansPeter said:

Hi,

first of all I'd like to thank you for your work!



Unfortunatly I fail to run the network type host. I changed the ports as follows:

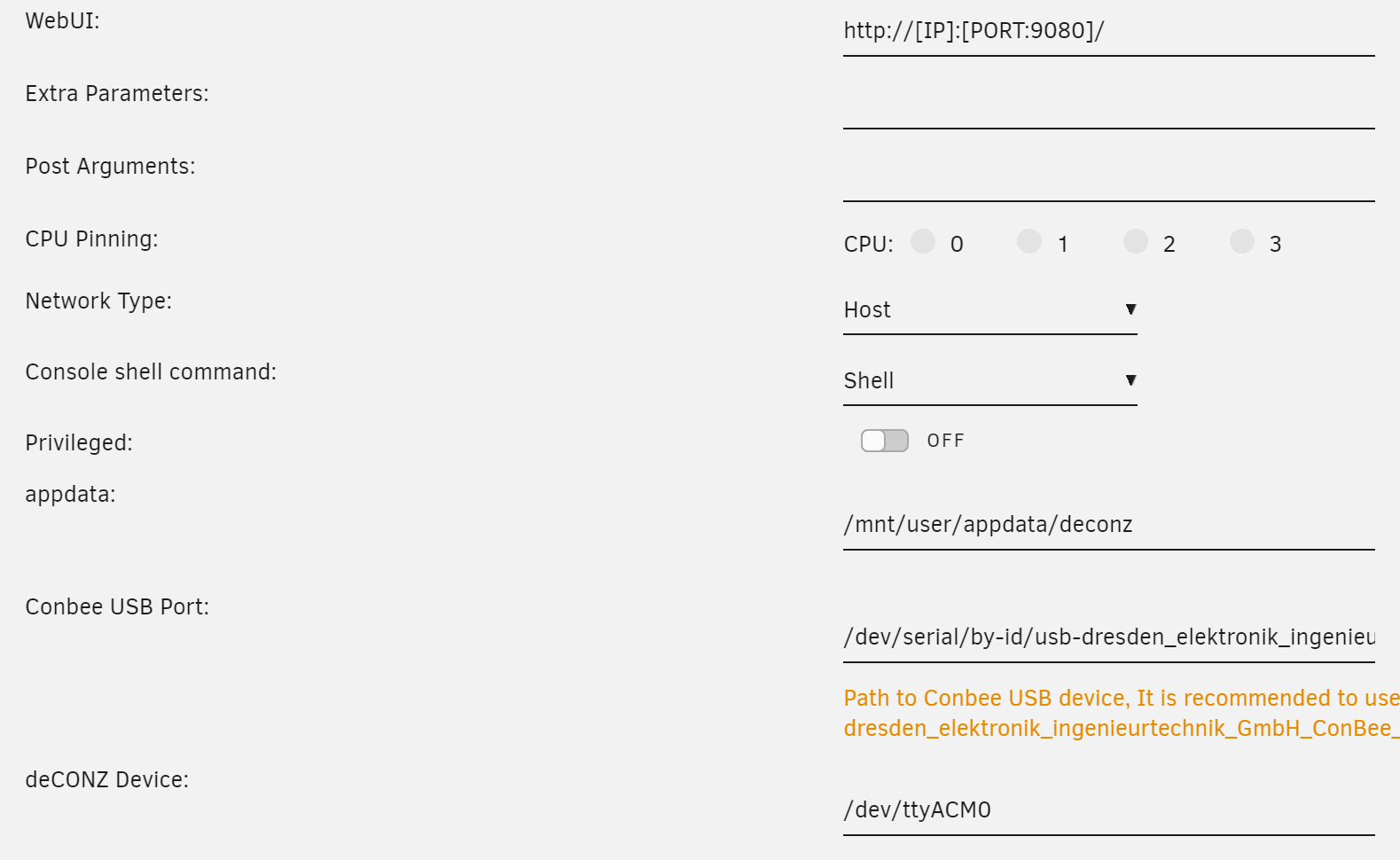

After saving it looks like this:



LogFile:



The Web UI doesn't work. Do you have any idea?



Greetings,

HansPeter



This usually happens if there is another app using this port. Can you try to change to a different port and check? what else do you see in the log? I have just tested using host network with port 9080 without issues on my test server.



[JonathanM]

23 hours ago, HansPeter said:

The Web UI doesn't work. Do you have any idea?

Where is the mapping for 9080?

23 hours ago, HansPeter said:

After saving it looks like this:



[Cupra-Bo]

Hi, I just wanted to update Deconz and came up with this version... Unfortunately nothing can be clicked in the web gui in the Gateway tab or the stick is not recognized either. Here are some pictures and the log



stat: cannot statx '/dev/serial/by-id/usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_DExxxxxx22-if00:/dev/ttyACM0': No such file or directory
stat: cannot statx '/dev/serial/by-id/usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_DExxxxxx22-if00:/dev/ttyACM0': No such file or directory
QStandardPaths: XDG_RUNTIME_DIR not set, defaulting to '/tmp/runtime-deconz'
libpng warning: iCCP: known incorrect sRGB profile
This plugin does not support propagateSizeHints()
This plugin does not support propagateSizeHints()
[deconzcommunity/deconz] Starting deCONZ...
[deconzcommunity/deconz] Current deCONZ version: 2.19.01
[deconzcommunity/deconz] Web UI port: 80
[deconzcommunity/deconz] Websockets port: 443
[deconzcommunity/deconz] Using options --auto-connect=1 --appdata=/opt/deCONZ --dbg-info=1 --dbg-aps=0 --dbg-zcl=0 --dbg-ddf=0 --dbg-dev=0 --dbg-zdp=0 --dbg-ota=0 --dbg-error=0 --dbg-http=0 --http-port=80 --ws-port=443
[deconzcommunity/deconz] Modifying user and group ID
[deconzcommunity/deconz] Checking device group ID
[deconzcommunity/deconz] VNC Disabled
16:43:47:808 HTTP Server listen on address 0.0.0.0, port: 80, root: /usr/share/deCONZ/webapp/
16:43:47:822 /opt/deCONZ/config.ini exists and is writeable
16:43:47:823 /opt/deCONZ/zll.db exists and is writeable
16:43:47:838 COM: use stable device path /dev/serial/by-id/usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_DExxxxx2-if00:/dev/ttyACM0
16:43:47:867 ZCLDB init file /opt/deCONZ/zcldb.txt
16:43:47:929 DDF enabled for Gold status
16:43:48:012 gw run mode: docker
16:43:48:012 GW sd-card image version file does not exist: /opt/deCONZ/gw-version
16:43:48:013 DB sqlite version 3.34.1
16:43:48:013 DB PRAGMA page_count: 50
16:43:48:013 DB PRAGMA page_size: 4096
16:43:48:013 DB PRAGMA freelist_count: 0
16:43:48:013 DB file size 204800 bytes, free pages 0
16:43:48:014 DB PRAGMA user_version: 9
16:43:48:014 DB cleanup
16:43:48:014 DB create temporary views
16:43:48:019 DB skip loading sensor BZ.Sensor.Temp 9, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor BZ.Sensor.Temp 8, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor BZ.Sensor.Temp 10, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor WZ.Sensor.Temp 12, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor WZ.Sensor.Temp 11, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor WZ.Sensor.Temp 13, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:021 Started websocket server on 0.0.0.0, port: 443
16:43:48:021 [INFO] - Found file containing button maps. Parsing data...
16:43:48:025 [INFO] - Button maps loaded.
16:43:48:026 found node plugin: libde_rest_plugin.so - REST API Plugin
16:43:48:027 found node plugin: libde_signal_plugin.so - Signal Monitor Plugin
16:43:48:031 found node plugin: libstd_otau_plugin.so - STD OTAU Plugin
16:43:48:044 LightNode 1: Configuration tool 1 added
16:43:48:064 LightNode 3: On/Off light 3 added
16:43:48:065 SensorNode 15 set node 0x00158d000276e4c7
16:43:48:066 SensorNode 7 set node 0x00158d000279579c
16:43:48:068 SensorNode 5 set node 0x00158d00045cf0c5
16:43:48:069 SensorNode 18 set node 0x00158d000271b763
16:43:48:069 SensorNode 17 set node 0xccccccfffef01e72
16:43:48:071 LightNode 2: Deko Standlampe added
16:43:48:072 SensorNode 6 set node 0x00158d0002770cc5
16:43:48:073 SensorNode 14 set node 0x00158d000276c14a
16:43:48:080 DEV no DDF for 0xCCCCCCFFFEF01E72, modelId: TRADFRI on/off switch
16:43:48:080 DEV create on-the-fly DDF for 0xCCCCCCFFFEF01E72
16:43:48:080 DEV no DDF for 0x00158D00045CF0C5, modelId: lumi.sensor_motion
16:43:48:080 DEV create on-the-fly DDF for 0x00158D00045CF0C5
16:43:48:080 DEV no DDF for 0x00158D0002770CC5, modelId: lumi.sensor_magnet.aq2
16:43:48:080 DEV create on-the-fly DDF for 0x00158D0002770CC5
16:43:48:080 DEV no DDF for 0x00158D000279579C, modelId: lumi.sensor_wleak.aq1
16:43:48:080 DEV create on-the-fly DDF for 0x00158D000279579C
16:43:48:080 DEV found DDF for 0x00158D000271B763, path:
16:43:48:080 DEV found DDF for 0x00158D000276C14A, path:
16:43:48:080 DEV found DDF for 0x00158D000276E4C7, path:
16:43:48:085 DEV found DDF for 0x00158D00027724CA, path: /usr/share/deCONZ/devices/xiaomi/xiaomi_wsdcgq11lm_temp_hum_press_sensor.json
16:43:48:085 DEV no DDF for 0xEC1BBDFFFEA04F5E, modelId: TRADFRI bulb E27 WW 806lm
16:43:48:085 DEV create on-the-fly DDF for 0xEC1BBDFFFEA04F5E
16:43:48:090 DEV found DDF for 0x00158D0002739BE2, path: /usr/share/deCONZ/devices/xiaomi/xiaomi_wsdcgq11lm_temp_hum_press_sensor.json
16:43:48:095 dlg action: Read binding table
16:43:50:019 New websocket 192.168.177.107:48320 (state: 3)
16:43:51:586 New websocket 192.168.177.3:61097 (state: 3)
16:43:52:867 Announced to internet https://phoscon.de/discover
16:43:52:867 discovery updated announce interval to 45 minutes
16:43:54:888 New websocket 192.168.177.3:61108 (state: 3)
16:43:55:621 DEV Tick.Init: booted after 8000 seconds
16:44:08:113 start reconnect to network
16:44:10:222 Websocket disconnected 192.168.177.3:61097, state: 0, close-code: 1001, reason:
16:44:13:364 failed to reconnect to network try=1
16:44:15:013 created username: 5159C37F23, devicetype: Phoscon#B2560x1218
16:44:16:166 New websocket 192.168.177.3:61123 (state: 3)
16:44:16:917 New websocket 192.168.177.13:35608 (state: 3)
16:44:18:090 Websocket disconnected 192.168.177.3:61123, state: 0, close-code: 1001, reason:
16:44:18:614 failed to reconnect to network try=2
16:44:19:168 New websocket 192.168.177.3:61125 (state: 3)
16:44:19:358 Websocket disconnected 192.168.177.3:61125, state: 0, close-code: 1001, reason:
16:44:20:502 New websocket 192.168.177.3:61129 (state: 3)
16:44:23:613 failed to reconnect to network try=3
16:44:28:614 failed to reconnect to network try=4
16:44:33:614 failed to reconnect to network try=5
16:44:38:613 failed to reconnect to network try=6
16:44:43:613 failed to reconnect to network try=7
16:44:48:614 failed to reconnect to network try=8
16:44:53:614 failed to reconnect to network try=9
16:44:58:614 failed to reconnect to network try=10
16:45:03:613 reconnect network failed, try later
16:45:04:140 start reconnect to network
16:45:09:390 failed to reconnect to network try=1
16:45:14:613 failed to reconnect to network try=2
16:45:16:918 Remove websocket 192.168.177.13:35608 after error Unknown error, close-code: 1000, reason:
16:45:16:919 New websocket 192.168.177.13:58800 (state: 3)
16:45:19:613 failed to reconnect to network try=3
16:45:24:614 failed to reconnect to network try=4
16:45:29:613 failed to reconnect to network try=5
16:45:34:614 failed to reconnect to network try=6
16:45:39:614 failed to reconnect to network try=7
16:45:44:614 failed to reconnect to network try=8
16:45:49:614 failed to reconnect to network try=9
16:45:54:614 failed to reconnect to network try=10
16:45:59:613 reconnect network failed, try later
16:46:00:141 start reconnect to network
16:46:05:392 failed to reconnect to network try=1
16:46:10:614 failed to reconnect to network try=2
16:46:15:614 failed to reconnect to network try=3
16:46:16:920 Remove websocket 192.168.177.13:58800 after error Unknown error, close-code: 1000, reason:
16:46:16:921 New websocket 192.168.177.13:49958 (state: 3)
16:46:20:614 failed to reconnect to network try=4
16:46:25:614 failed to reconnect to network try=5



Think something doesn't fit from the mount point here



My mount point on Conbee USB Port: /dev/serial/by-id/usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_DExxxxx22-if00:/dev/ttyACM0

and on deCONZ Device: same

[thecode]

1 hour ago, Cupra-Bo said:

Hi, I just wanted to update Deconz and came up with this version... Unfortunately nothing can be clicked in the web gui in the Gateway tab or the stick is not recognized either. Here are some pictures and the log



stat: cannot statx '/dev/serial/by-id/usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_DExxxxxx22-if00:/dev/ttyACM0': No such file or directory
stat: cannot statx '/dev/serial/by-id/usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_DExxxxxx22-if00:/dev/ttyACM0': No such file or directory
QStandardPaths: XDG_RUNTIME_DIR not set, defaulting to '/tmp/runtime-deconz'
libpng warning: iCCP: known incorrect sRGB profile
This plugin does not support propagateSizeHints()
This plugin does not support propagateSizeHints()
[deconzcommunity/deconz] Starting deCONZ...
[deconzcommunity/deconz] Current deCONZ version: 2.19.01
[deconzcommunity/deconz] Web UI port: 80
[deconzcommunity/deconz] Websockets port: 443
[deconzcommunity/deconz] Using options --auto-connect=1 --appdata=/opt/deCONZ --dbg-info=1 --dbg-aps=0 --dbg-zcl=0 --dbg-ddf=0 --dbg-dev=0 --dbg-zdp=0 --dbg-ota=0 --dbg-error=0 --dbg-http=0 --http-port=80 --ws-port=443
[deconzcommunity/deconz] Modifying user and group ID
[deconzcommunity/deconz] Checking device group ID
[deconzcommunity/deconz] VNC Disabled
16:43:47:808 HTTP Server listen on address 0.0.0.0, port: 80, root: /usr/share/deCONZ/webapp/
16:43:47:822 /opt/deCONZ/config.ini exists and is writeable
16:43:47:823 /opt/deCONZ/zll.db exists and is writeable
16:43:47:838 COM: use stable device path /dev/serial/by-id/usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_DExxxxx2-if00:/dev/ttyACM0
16:43:47:867 ZCLDB init file /opt/deCONZ/zcldb.txt
16:43:47:929 DDF enabled for Gold status
16:43:48:012 gw run mode: docker
16:43:48:012 GW sd-card image version file does not exist: /opt/deCONZ/gw-version
16:43:48:013 DB sqlite version 3.34.1
16:43:48:013 DB PRAGMA page_count: 50
16:43:48:013 DB PRAGMA page_size: 4096
16:43:48:013 DB PRAGMA freelist_count: 0
16:43:48:013 DB file size 204800 bytes, free pages 0
16:43:48:014 DB PRAGMA user_version: 9
16:43:48:014 DB cleanup
16:43:48:014 DB create temporary views
16:43:48:019 DB skip loading sensor BZ.Sensor.Temp 9, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor BZ.Sensor.Temp 8, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor BZ.Sensor.Temp 10, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor WZ.Sensor.Temp 12, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor WZ.Sensor.Temp 11, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:019 DB skip loading sensor WZ.Sensor.Temp 13, handled by DDF Aqara temp./hum./press. sensor WSDCGQ11LM
16:43:48:021 Started websocket server on 0.0.0.0, port: 443
16:43:48:021 [INFO] - Found file containing button maps. Parsing data...
16:43:48:025 [INFO] - Button maps loaded.
16:43:48:026 found node plugin: libde_rest_plugin.so - REST API Plugin
16:43:48:027 found node plugin: libde_signal_plugin.so - Signal Monitor Plugin
16:43:48:031 found node plugin: libstd_otau_plugin.so - STD OTAU Plugin
16:43:48:044 LightNode 1: Configuration tool 1 added
16:43:48:064 LightNode 3: On/Off light 3 added
16:43:48:065 SensorNode 15 set node 0x00158d000276e4c7
16:43:48:066 SensorNode 7 set node 0x00158d000279579c
16:43:48:068 SensorNode 5 set node 0x00158d00045cf0c5
16:43:48:069 SensorNode 18 set node 0x00158d000271b763
16:43:48:069 SensorNode 17 set node 0xccccccfffef01e72
16:43:48:071 LightNode 2: Deko Standlampe added
16:43:48:072 SensorNode 6 set node 0x00158d0002770cc5
16:43:48:073 SensorNode 14 set node 0x00158d000276c14a
16:43:48:080 DEV no DDF for 0xCCCCCCFFFEF01E72, modelId: TRADFRI on/off switch
16:43:48:080 DEV create on-the-fly DDF for 0xCCCCCCFFFEF01E72
16:43:48:080 DEV no DDF for 0x00158D00045CF0C5, modelId: lumi.sensor_motion
16:43:48:080 DEV create on-the-fly DDF for 0x00158D00045CF0C5
16:43:48:080 DEV no DDF for 0x00158D0002770CC5, modelId: lumi.sensor_magnet.aq2
16:43:48:080 DEV create on-the-fly DDF for 0x00158D0002770CC5
16:43:48:080 DEV no DDF for 0x00158D000279579C, modelId: lumi.sensor_wleak.aq1
16:43:48:080 DEV create on-the-fly DDF for 0x00158D000279579C
16:43:48:080 DEV found DDF for 0x00158D000271B763, path:
16:43:48:080 DEV found DDF for 0x00158D000276C14A, path:
16:43:48:080 DEV found DDF for 0x00158D000276E4C7, path:
16:43:48:085 DEV found DDF for 0x00158D00027724CA, path: /usr/share/deCONZ/devices/xiaomi/xiaomi_wsdcgq11lm_temp_hum_press_sensor.json
16:43:48:085 DEV no DDF for 0xEC1BBDFFFEA04F5E, modelId: TRADFRI bulb E27 WW 806lm
16:43:48:085 DEV create on-the-fly DDF for 0xEC1BBDFFFEA04F5E
16:43:48:090 DEV found DDF for 0x00158D0002739BE2, path: /usr/share/deCONZ/devices/xiaomi/xiaomi_wsdcgq11lm_temp_hum_press_sensor.json
16:43:48:095 dlg action: Read binding table
16:43:50:019 New websocket 192.168.177.107:48320 (state: 3)
16:43:51:586 New websocket 192.168.177.3:61097 (state: 3)
16:43:52:867 Announced to internet https://phoscon.de/discover
16:43:52:867 discovery updated announce interval to 45 minutes
16:43:54:888 New websocket 192.168.177.3:61108 (state: 3)
16:43:55:621 DEV Tick.Init: booted after 8000 seconds
16:44:08:113 start reconnect to network
16:44:10:222 Websocket disconnected 192.168.177.3:61097, state: 0, close-code: 1001, reason:
16:44:13:364 failed to reconnect to network try=1
16:44:15:013 created username: 5159C37F23, devicetype: Phoscon#B2560x1218
16:44:16:166 New websocket 192.168.177.3:61123 (state: 3)
16:44:16:917 New websocket 192.168.177.13:35608 (state: 3)
16:44:18:090 Websocket disconnected 192.168.177.3:61123, state: 0, close-code: 1001, reason:
16:44:18:614 failed to reconnect to network try=2
16:44:19:168 New websocket 192.168.177.3:61125 (state: 3)
16:44:19:358 Websocket disconnected 192.168.177.3:61125, state: 0, close-code: 1001, reason:
16:44:20:502 New websocket 192.168.177.3:61129 (state: 3)
16:44:23:613 failed to reconnect to network try=3
16:44:28:614 failed to reconnect to network try=4
16:44:33:614 failed to reconnect to network try=5
16:44:38:613 failed to reconnect to network try=6
16:44:43:613 failed to reconnect to network try=7
16:44:48:614 failed to reconnect to network try=8
16:44:53:614 failed to reconnect to network try=9
16:44:58:614 failed to reconnect to network try=10
16:45:03:613 reconnect network failed, try later
16:45:04:140 start reconnect to network
16:45:09:390 failed to reconnect to network try=1
16:45:14:613 failed to reconnect to network try=2
16:45:16:918 Remove websocket 192.168.177.13:35608 after error Unknown error, close-code: 1000, reason:
16:45:16:919 New websocket 192.168.177.13:58800 (state: 3)
16:45:19:613 failed to reconnect to network try=3
16:45:24:614 failed to reconnect to network try=4
16:45:29:613 failed to reconnect to network try=5
16:45:34:614 failed to reconnect to network try=6
16:45:39:614 failed to reconnect to network try=7
16:45:44:614 failed to reconnect to network try=8
16:45:49:614 failed to reconnect to network try=9
16:45:54:614 failed to reconnect to network try=10
16:45:59:613 reconnect network failed, try later
16:46:00:141 start reconnect to network
16:46:05:392 failed to reconnect to network try=1
16:46:10:614 failed to reconnect to network try=2
16:46:15:614 failed to reconnect to network try=3
16:46:16:920 Remove websocket 192.168.177.13:58800 after error Unknown error, close-code: 1000, reason:
16:46:16:921 New websocket 192.168.177.13:49958 (state: 3)
16:46:20:614 failed to reconnect to network try=4
16:46:25:614 failed to reconnect to network try=5



Think something doesn't fit from the mount point here



My mount point on Conbee USB Port: /dev/serial/by-id/usb-dresden_elektronik_ingenieurtechnik_GmbH_ConBee_II_DExxxxx22-if00:/dev/ttyACM0

and on deCONZ Device: same



The USB port is correct, however you need to keep the deCONZ device with /dev/ttyACM0



[Cupra-Bo]

okay Sensors etc react but on the web interface the buttons are not clickable when they are not working

and I still have an error in red in the log



[deconzcommunity/deconz] Using options --auto-connect=1 --appdata=/opt/deCONZ --dbg-info=1 --dbg-aps=0 --dbg-zcl=0 --dbg-ddf=0 --dbg-dev=0 --dbg-zdp=0 --dbg-ota=0 --dbg-error=0 --dbg-http=0 --http-port=80 --ws-port=443



[thecode]

That is not an error, it is just printed in red 🤷‍♂️



About the UI this happens when switching from older version to a newer version, it should be resolved by clearing the browser cache. If you use Chrome, press F12, right click the reload button and select "Empty Cache and Hard Reload"

[ub.privat]

the docker is running fine after installation.



Installation method:

sudo docker run -d \
--name=deconzgateway \
--net=host \
--restart=always \
-v /volume1/docker/deconz:/opt/deCONZ \
--device=/dev/ttyACM0 \
-e DECONZ_UID=0 \
-e DECONZ_GID=0 \
-e DECONZ_WEB_PORT=8085 \
-e DECONZ_WS_PORT=443 \
deconzcommunity/deconz:stable



Now I want to set the DECONZ_VNC_MODE =1 afterwards. I try this in the settings of the container.

This fails and Docker tries to restart all the time.

Where should I look for the error?



[thecode]

18 hours ago, ub.privat said:

the docker is running fine after installation.



Installation method:

sudo docker run -d \
--name=deconzgateway \
--net=host \
--restart=always \
-v /volume1/docker/deconz:/opt/deCONZ \
--device=/dev/ttyACM0 \
-e DECONZ_UID=0 \
-e DECONZ_GID=0 \
-e DECONZ_WEB_PORT=8085 \
-e DECONZ_WS_PORT=443 \
deconzcommunity/deconz:stable



Now I want to set the DECONZ_VNC_MODE =1 afterwards. I try this in the settings of the container.

This fails and Docker tries to restart all the time.

Where should I look for the error?



This is a support thread for the community app docker template, it doesn't look like you are using the template, the default options in the template has VNC mode already set, please first try it, otherwise try to ask for support in the https://github.com/deconz-community/deconz-docker repo

[c4coer]

hello I'm trying to switch from marthoc/deconz docker. (amd64 2.10.04) with a conbee2 dongle with firmware 26720700, but in fact recognizes it as an unknown hub, and when I connect to the dongle, I don't see its firmware, can you help me? FYI I tested several versions of the new docker nothing to do, I had to reactivate the old one.

for info when I connect to the key it asks me for the password again, like when it is blank, I tried your version 2.12.06, I can see the firmware and my devices, but I can't control anything because in the logs appear errors

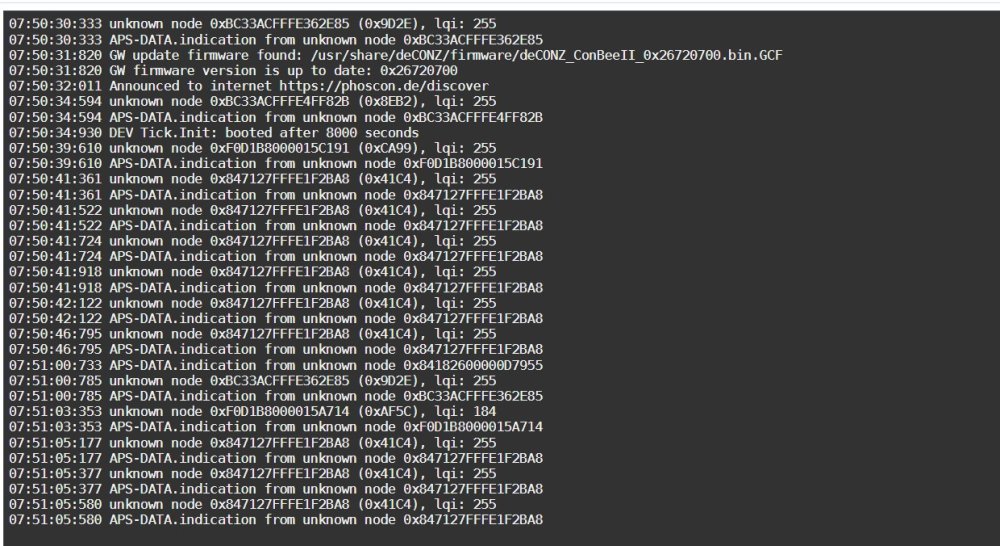

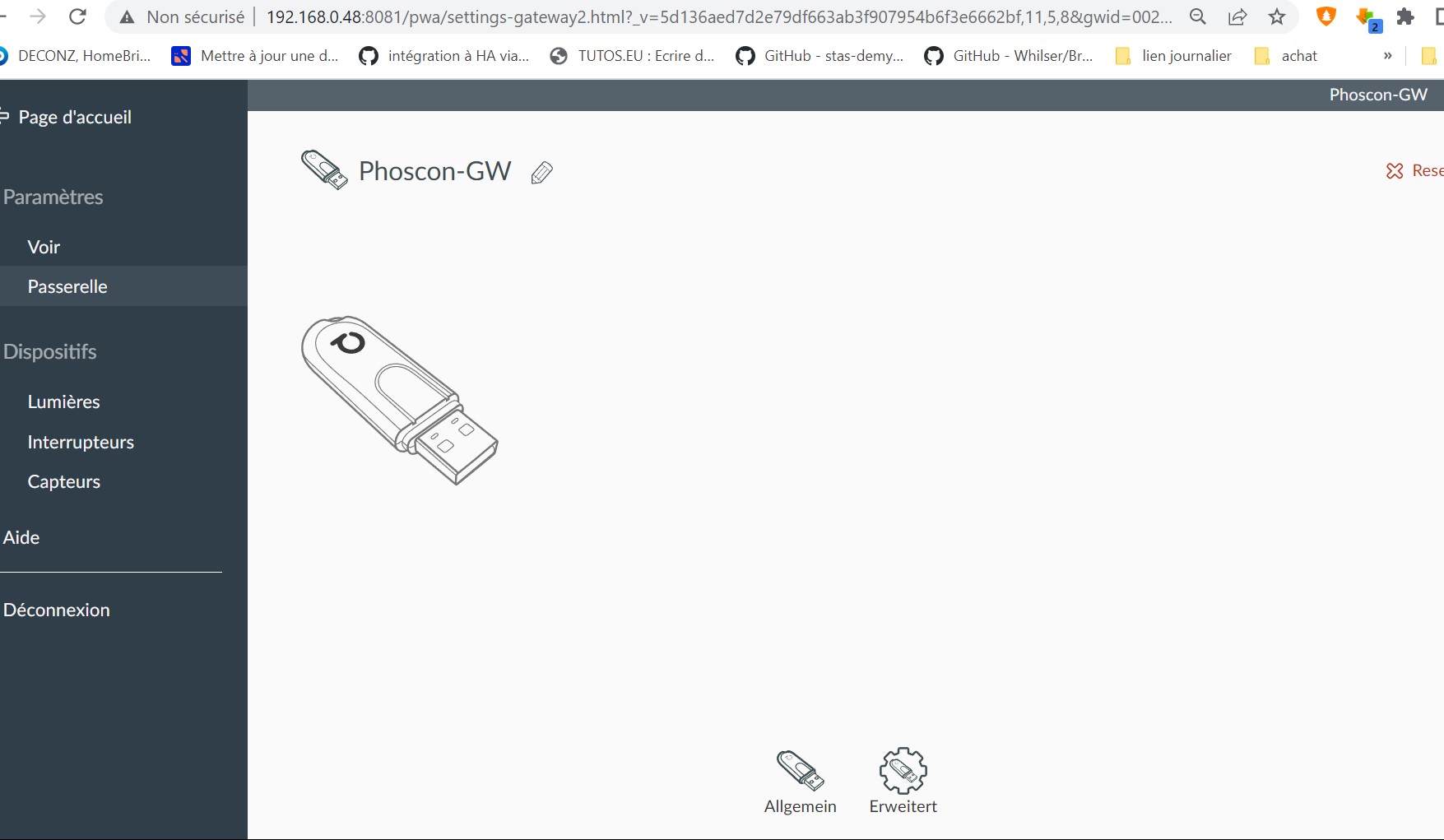

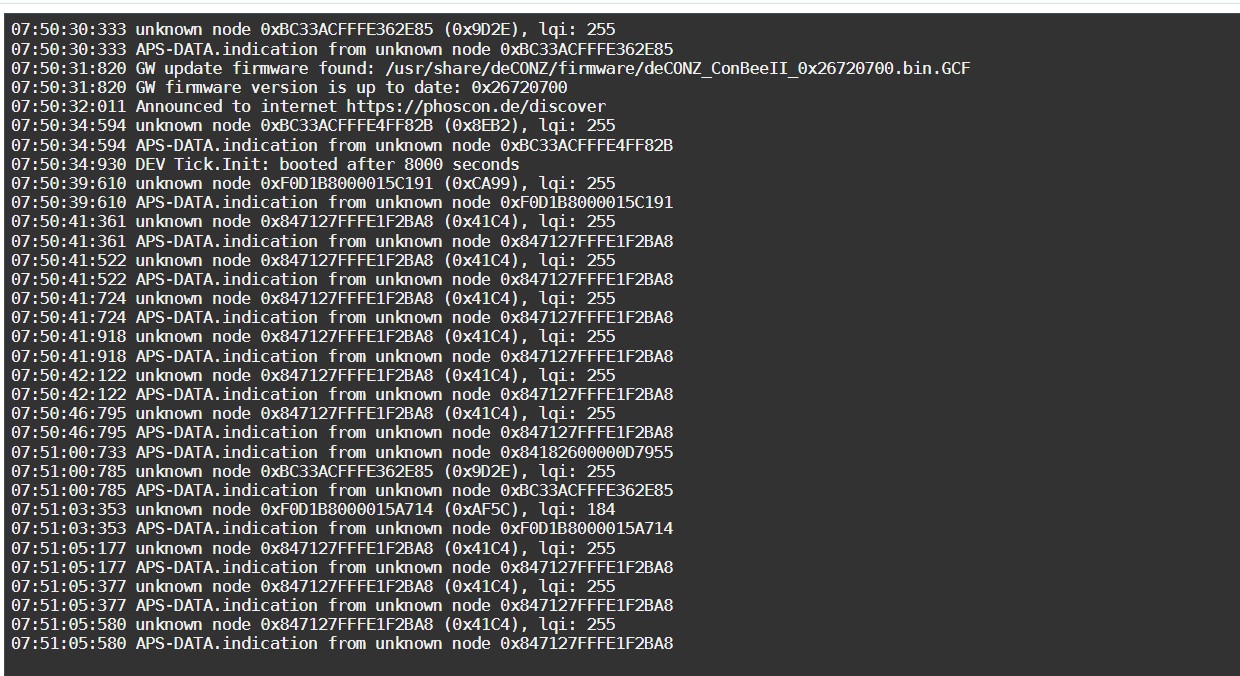

I attach the logs and a screenshot,

thanks you

and happy new year



deconzcommunity-deconz2.html

Edited December 30, 2022 by c4coer

[c4coer]

i have a solution, i had need driver (section 7 and 8 for me):
https://mariushosting.com/synology-how-to-add-usb-support-on-dsm-7/
it run, key conbee2 has  firmware connect.
lixee (zlinky tic) is connect to deconz, but i no see inside domoticz


[thecode]

1 hour ago, c4coer said:

i have a solution, i had need driver (section 7 and 8 for me):
https://mariushosting.com/synology-how-to-add-usb-support-on-dsm-7/
it run, key conbee2 has  firmware connect.
lixee (zlinky tic) is connect to deconz, but i no see inside domoticz


Thanks for updating back, I use Home Assistant but if you can reach the Phoscon UI the docker is working. I would try getting help in Domoticz forums

[RezzZ]

trying to get deconz to work but when using my custom network bridge I don't get an IP or ports assigned in unraid, and I can't access th gui/novpn.



when trying host mode I still see port 80 being assigned while I setup deconz to use a different port via the Web Port variable.

Any thoughts?



Deconz seems to have started when I check the logs but I can't get access.



edit: I used to run deconz in docker on a raspberry pi but wanted to migrate as my Pi keeps crashing due to recent added devices in deconz...

edit2: changed it back to bridge mode and added 3 port forwards,

80->185

443->1445

6080->6080

novnc is now accessible, webui / phoscon is still not available

Edited January 31 by RezzZ

[Coxeroni]

Is anybody else also having issues with updating deconz recently? The Unraid docker update check is giving me a version "not available" lately and I don't seem to be able to fix this. Help is appreaciated.

[SimonF]

13 minutes ago, Coxeroni said:

Is anybody else also having issues with updating deconz recently? The Unraid docker update check is giving me a version "not available" lately and I don't seem to be able to fix this. Help is appreaciated.

Have you installed



[Ancan]

Hi all,

After swapping my cache-drive for a larger one, I did reinstall of the Deconz container from "old apps" and restored appdata-folder from my backup. After this I've lost control over all my zigbee devices.



Checking the logs there's lots of "error ASSPDE-DATA.confirm: 0xE1 on task".



I've also noted that in the container, "DECONZ_DEVICE" is set to "0", but in the config screen it says "set same as device", which for me is /dev/ttyACM0. Is this expected?

It seems to find the USB-device, because it confirms that the firmware is up to date.

[Coxeroni]

On 2/25/2023 at 9:56 AM, SimonF said:

Have you installed

Indeed I have not. Sir you are great, as is this community as usual. Installed the patch and now I can update my container again. Cheers!
