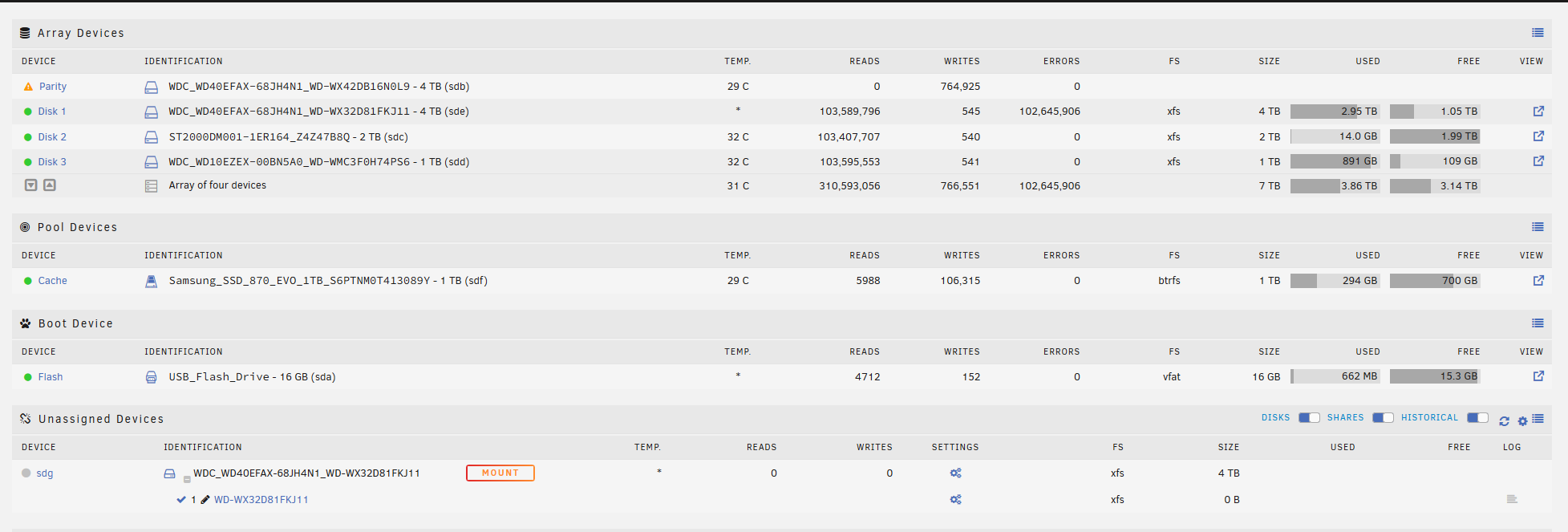

RedZephon Posted January 26, 2023 Share Posted January 26, 2023 I had some issues with my previous array so I've been in the process of redoing it. I currently have the following drive setup: 4TB parity 4TB disk 1 2TB disk 2 1TB disk 3 The parity is currently building My 4TB drive that has the majority of my data right now is showing a ton of errors, but I just checked and it now is showing as an unassigned device even though the array is running. My docker containers also refuse to start. Can anybody help? https://imgur.com/a/9n2jcyZ Quote Link to comment
trurl Posted January 26, 2023 Share Posted January 26, 2023 No point in continuing with parity build with that many disk1 errors attach diagnostics to your NEXT post in this thread Quote Link to comment
RedZephon Posted January 27, 2023 Author Share Posted January 27, 2023 Done homeserver-diagnostics-20230126-1657.zip Quote Link to comment
trurl Posted January 27, 2023 Share Posted January 27, 2023 You have completely filled log space with entries about the bad connection on disk1. Check connections, all disks, both ends, SATA and power, including splitters. Try again to build parity. You should see lots of reads of all array data disks, lots of writes to parity, zero errors on all disks. Quote Link to comment
RedZephon Posted January 27, 2023 Author Share Posted January 27, 2023 When I reboot the server, the parity drive shows as running correct and the errors are gone now. Quote Link to comment
JorgeB Posted January 27, 2023 Share Posted January 27, 2023 Run a correcting parity check. Quote Link to comment

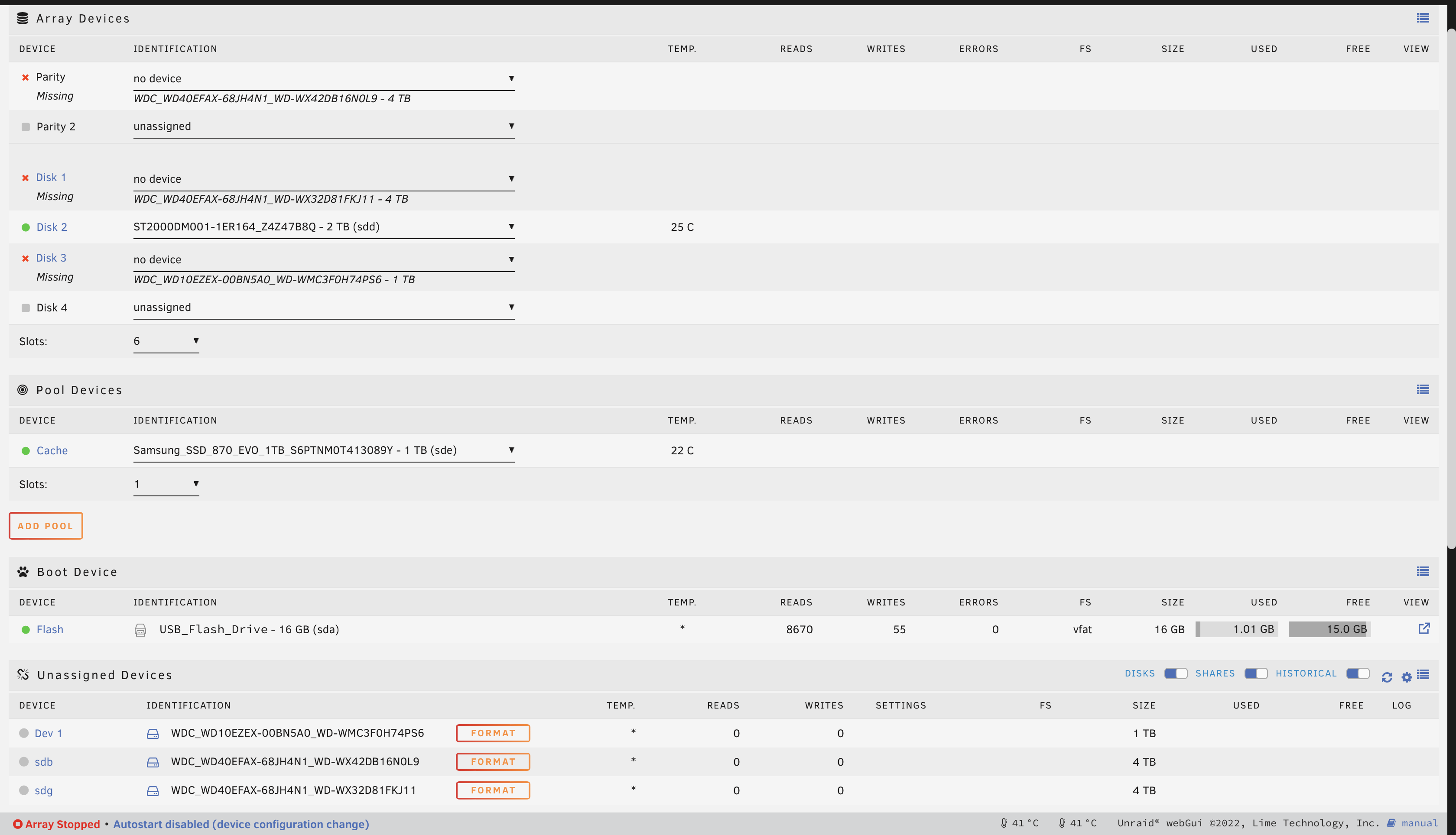

RedZephon Posted January 28, 2023 Author Share Posted January 28, 2023 So I started a parity check and it seemed to be going good. I could see it correcting errors. Then I had a brief power outage. What happens next has me totally stumped. First, the parity drive didnt show up in the array and was showing up as an unassigned device. Checked all connections and rebooted server. Then the parity drive plus 2 disks were showing as unassigned and missing from array. Shut down to try and check it again. Now the server won't even post to bios. If I disconnect all the hard drives, it posts. When I reconnect the drives, it doesnt post. I tried replacing cables but it still isnt posting. Quote Link to comment
RedZephon Posted January 28, 2023 Author Share Posted January 28, 2023 I got it to boot but the drives are not appearing again and I'm not sure why. If I go into BIOS I can see them all there. Quote Link to comment
trurl Posted January 28, 2023 Share Posted January 28, 2023 attach diagnostics to your NEXT post in this thread Quote Link to comment
RedZephon Posted January 28, 2023 Author Share Posted January 28, 2023 If I do a new config, every drive shows up as an option but then slowly become unavailable and return to unassigned devices. Diags coming in next post. Quote Link to comment
RedZephon Posted January 28, 2023 Author Share Posted January 28, 2023 Diagnostics homeserver-diagnostics-20230128-1348.zip Quote Link to comment

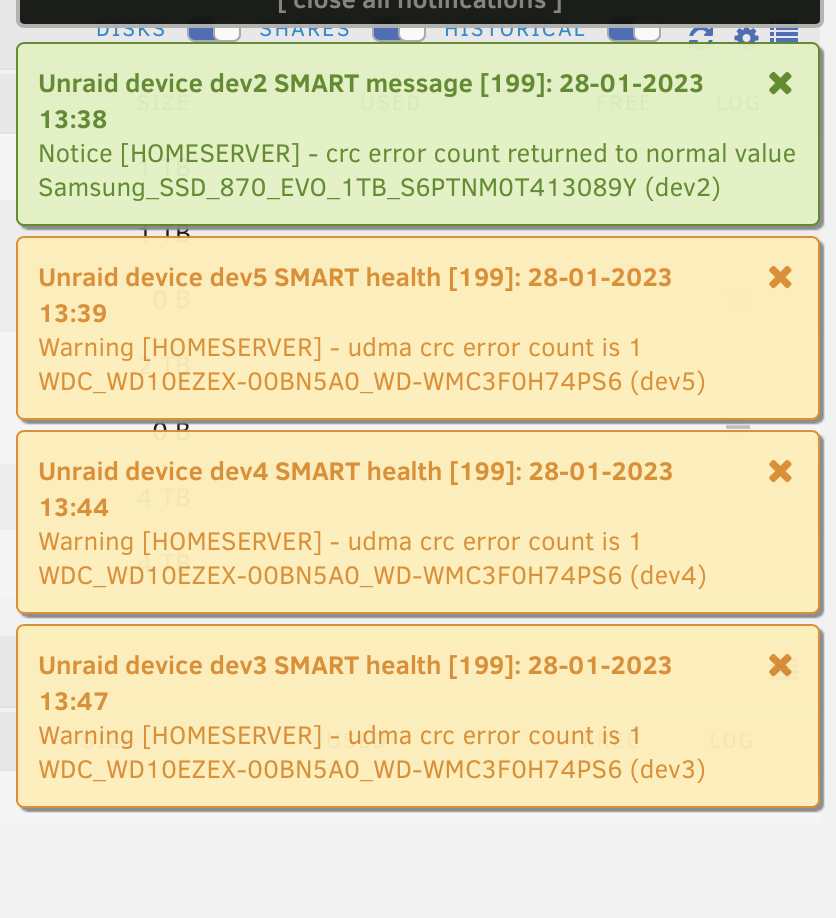

trurl Posted January 28, 2023 Share Posted January 28, 2023 Looks like problems communicating with all disks. Are you sure you don't have a power problem? Quote Link to comment
RedZephon Posted January 28, 2023 Author Share Posted January 28, 2023 I've quadrouple checked all the connections of all the drives so at this point if its still not working is it a power supply issue? Quote Link to comment
trurl Posted January 28, 2023 Share Posted January 28, 2023 Are all these disks on the same power cable? Quote Link to comment
RedZephon Posted January 28, 2023 Author Share Posted January 28, 2023 Yes with a splitter Quote Link to comment
trurl Posted January 29, 2023 Share Posted January 29, 2023 Crimped (not molded) MOLEX splitter preferred. Better if you don't try to put more than 4 disks on a single power cable. What is the exact model of your power supply? Quote Link to comment

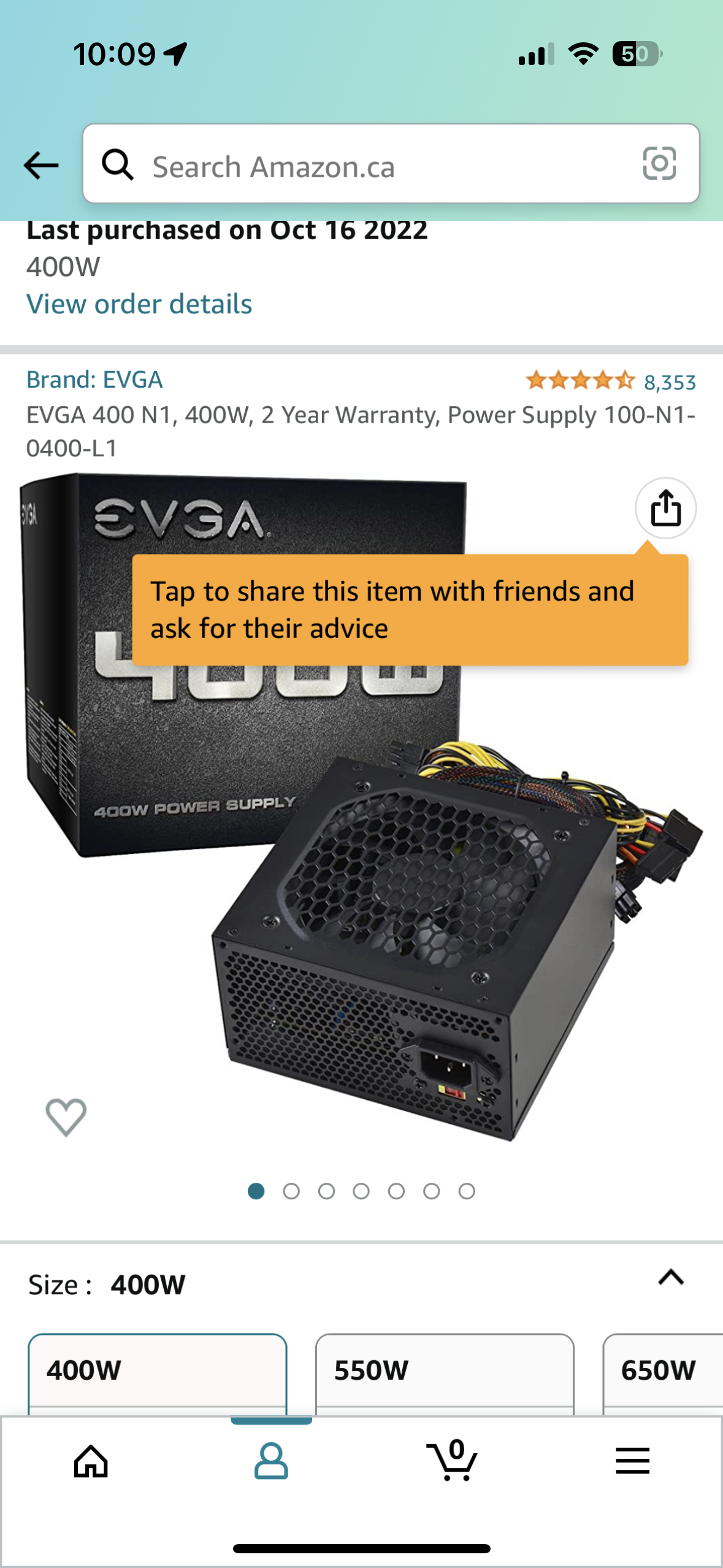

RedZephon Posted January 29, 2023 Author Share Posted January 29, 2023 Evga 400w 100-n1-0400-l1 Quote Link to comment
JorgeB Posted January 29, 2023 Share Posted January 29, 2023 Try a different power supply if available, if issues persist and you also replaced the cables it could be a bad board, though that's rare. Quote Link to comment

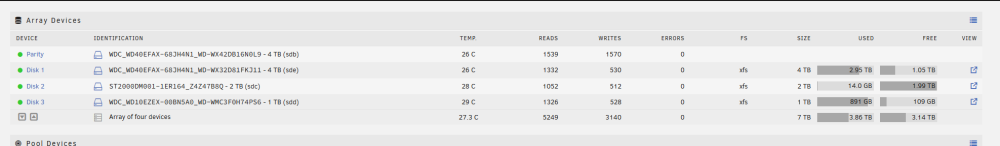

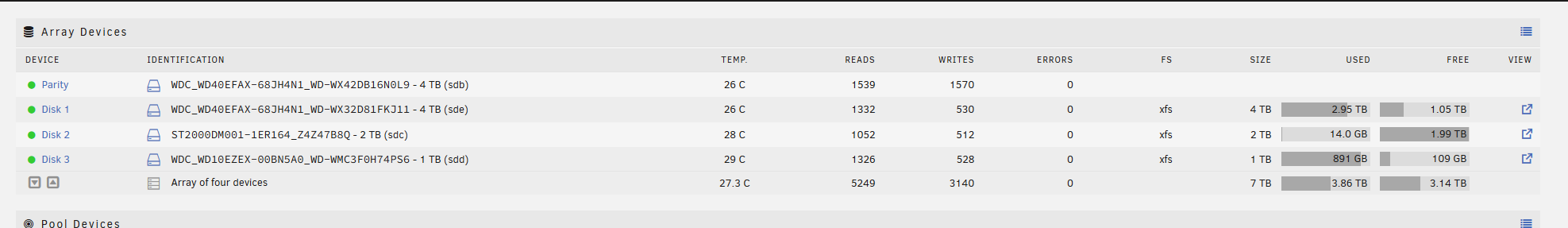

RedZephon Posted January 29, 2023 Author Share Posted January 29, 2023 Ok I swapped the power supply out for something better and all the drives immediately were recognized by unraid (including an immediate boot into unraid with no problems). I did a new config (because I had done one earlier and never got it working) and all the disks are working fine. The parity drive is showing disabled but I ran a parity check to see if it's just a rebuild issue. Unless theres something else im missing? Quote Link to comment
trurl Posted January 29, 2023 Share Posted January 29, 2023 4 minutes ago, RedZephon said: The parity drive is showing disabled but I ran a parity check to see if it's just a rebuild issue. Unless theres something else im missing? Unless you have dual parity you can't check parity with it disabled, you can only do a pointless read check. And you have to rebuild parity to get it in sync and enabled again. Post new diagnostics if you need more advice. Quote Link to comment
RedZephon Posted January 29, 2023 Author Share Posted January 29, 2023 homeserver-diagnostics-20230129-1414.zip Quote Link to comment
trurl Posted January 29, 2023 Share Posted January 29, 2023 40 minutes ago, RedZephon said: did a new config Did you let it rebuild parity after the New Config? 40 minutes ago, RedZephon said: parity drive is showing disabled It got disabled because it couldn't write parity. I guess it doesn't matter whether you let it rebuild, since you need to rebuild it now. On 1/26/2023 at 10:07 PM, trurl said: Check connections, all disks, both ends, SATA and power, including splitters. Try again to build parity. You should see lots of reads of all array data disks, lots of writes to parity, zero errors on all disks. https://wiki.unraid.net/Manual/Storage_Management#Rebuilding_a_drive_onto_itself Quote Link to comment
RedZephon Posted January 29, 2023 Author Share Posted January 29, 2023 Tried to rebuild and now its in unassigned devices again Quote Link to comment

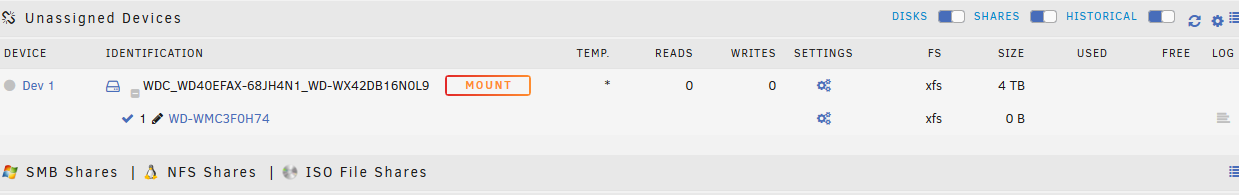

RedZephon Posted January 30, 2023 Author Share Posted January 30, 2023 Ok so I've tried a few things and the drive is just stuck in a "format" state in unassigned devices. Formatting it fails. I can reboot the server and get it to show back in as an assignable device but when I try to assign it, it goes back to an unassigned device. Im now starting to think that this drive is dead? Quote Link to comment
trurl Posted January 30, 2023 Share Posted January 30, 2023 post new diagnostics Quote Link to comment
