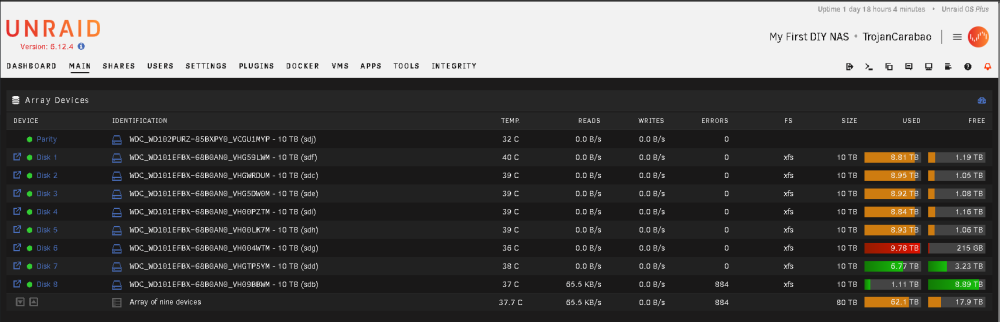

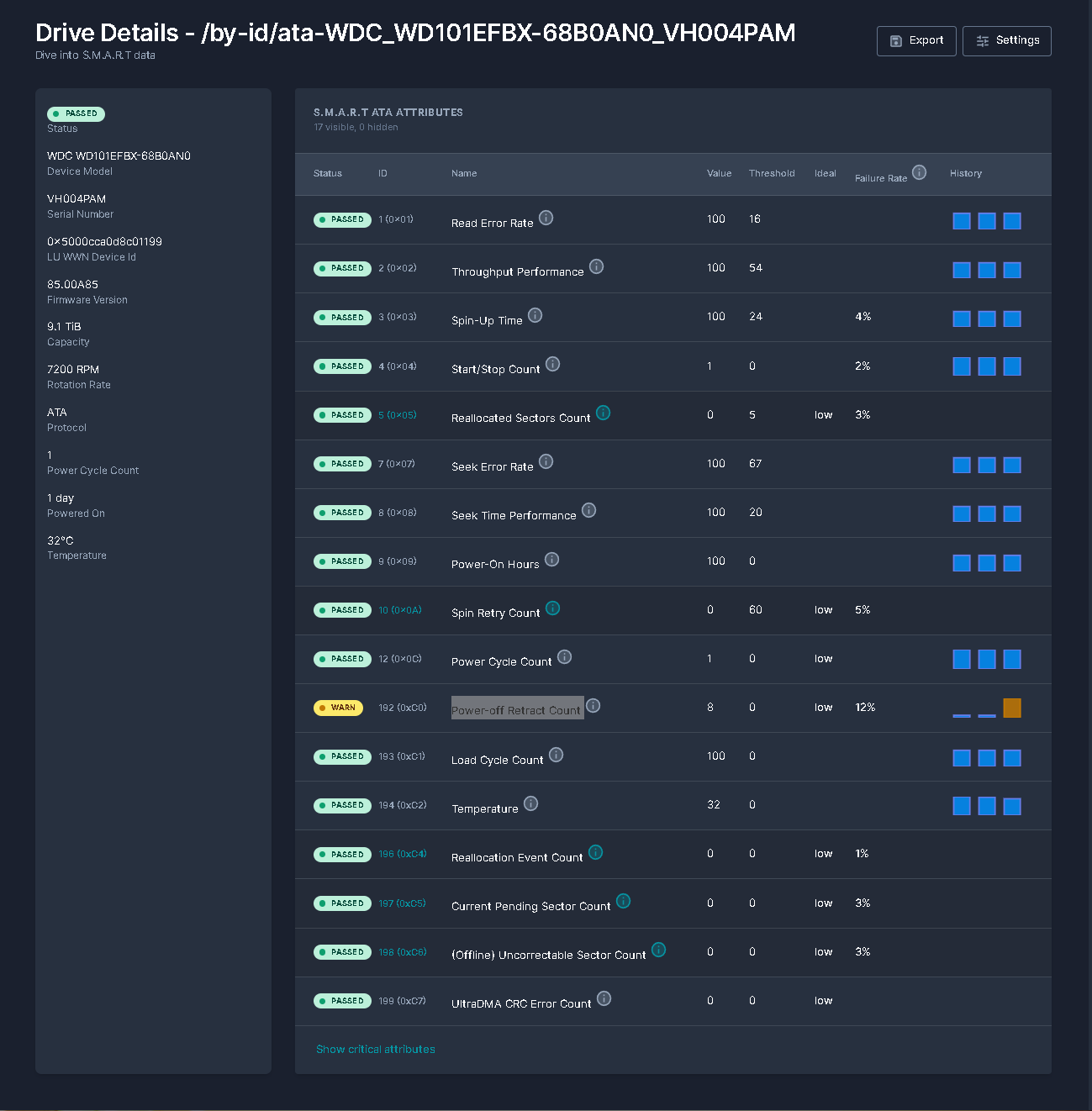

Nanuk_ Posted July 18, 2023 Share Posted July 18, 2023 So I replaced a WD Red HDD in my unraid setup after a HDD went bad and had to be RMA'd. I left the system doing the Unraid Data-Rebuild and went to sleep. When I woke up the next day it seems that halfway (55.8%) through the rebuild it stopped and the new drive had the status "Device Disabled, Content's Emulated". Since this was the status of the new HDD(68B0AN0_VH004PAM) that I was replacing with the new drive I checked Alerts/Warnings/Notices and found this under warning: Event - Unraid array errors Disk 2 - WDC_WD101EFBX-68B0AN0_VH004PAM (sdf) (errors 1024) Subject - Warning [TROJANCARABAO] - Description - array has errorsArray has 1 disk with read errors Importance - warning Also I check Scrutiny which I had running and it said that the HDD was throwing this Power-off Retract Count 12% I tried checking running as short SMART Self Test on the HDD but it wouldn't start. Since the error was Power-off Retract Count I tried replugging the SATA power (sorry was panicking at this point). This allowed the new HDD to show up on the Unassigned Devices "68B0AN0_VH004PAM" but clicking the mount button would spin it up. I'd hear the drive start to spin up, but then fail to start and the mount button would refresh to the mount state. I'm currently at a loss as my Data Rebuild can't continue at this rate and I've never had to to a restart, etc. during a Data rebuild or do a Data Rebuild for that matter this is my first time. Total size:10 TB Elapsed time:21 minutes (paused) Current position:5.58 TB (55.8 %) Estimated speed:--- Estimated finish:Unknown Read errors corrected:0 Since I can't do a SMART self test I'll attach my Diagnostics and the screenshot of the drive stats from scrutiny and then just pray someone replies soon. trojancarabao-diagnostics-20230718-1218.zip Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 I don't know if this helps, but I recently upgraded my PSU to a RM1000x SHIFT 80 PLUS Gold Fully Modular ATX Power which uses those smaller Type 5 SATA cables. should I not run as many HDDs on one SATA power cable with those? Quote Link to comment
cYnIx Posted July 18, 2023 Share Posted July 18, 2023 Do you have the preclear devices plugin? That is a great way to test your new HDD and its sata cable to make sure it can handle all your data. Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 (edited) Yes, I do. Should I stop the data rebuild and run the preclear first? Usually it does but for some reason it didn't this time. I assumed it was because the data rebuild initiated right away. Also if I stop the data rebuild to do the preclear can I restart it after? Also where can I go to do that? Sorry, I'm in mid freak out over here. 10TB HDD are expensive here in the Philippines and every time my NAS freaks out I feel like I've just set a whole bunch on money on fire. How do I do the preclear? I can't even mount the drive anymore from unassigned devices. Edited July 18, 2023 by Nanuk_ Quote Link to comment
JorgeB Posted July 18, 2023 Share Posted July 18, 2023 There are multiple issues, replace cables for cache1 and run a correcting scrub on the pool, check filesystem on disk2, post new diags after array start. Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 (edited) I can't seem to stop the array or cancel the data rebuild. I tried the reboot button but it errored out. The Spin Down button doesn't work either. Should I just hard reset the NAS? Ah yes the cache, sorry about that. This is my first NAS and I spent most of the budget on the HDDs. The cache was supposed to be a bunch of SDDs I had lying around but they got bricked. I'm starting to thing the HBA I'm using is the culprit. Finding a reliable source of HBA vendors over here in the PH has been difficult for me. Edited July 18, 2023 by Nanuk_ Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 Looks like shutdown worked. I'll replace the cache cables and restart and try to get to maintenance mode like the walkthrough you linked suggested. Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 Here you go. I may have accidentally clicked update OS though. Scrub didn't finish though. trojancarabao-diagnostics-20230718-2156.zip Quote Link to comment
JorgeB Posted July 18, 2023 Share Posted July 18, 2023 Jul 18 14:46:27 TrojanCarabao kernel: XFS (md2p1): Unmount and run xfs_repair Disk2 filesystem is still corrupt, did you run xfs_repair? Also still errors on cache1, assuming cables were replaced run an extended SMART test and post the results. Quote Link to comment

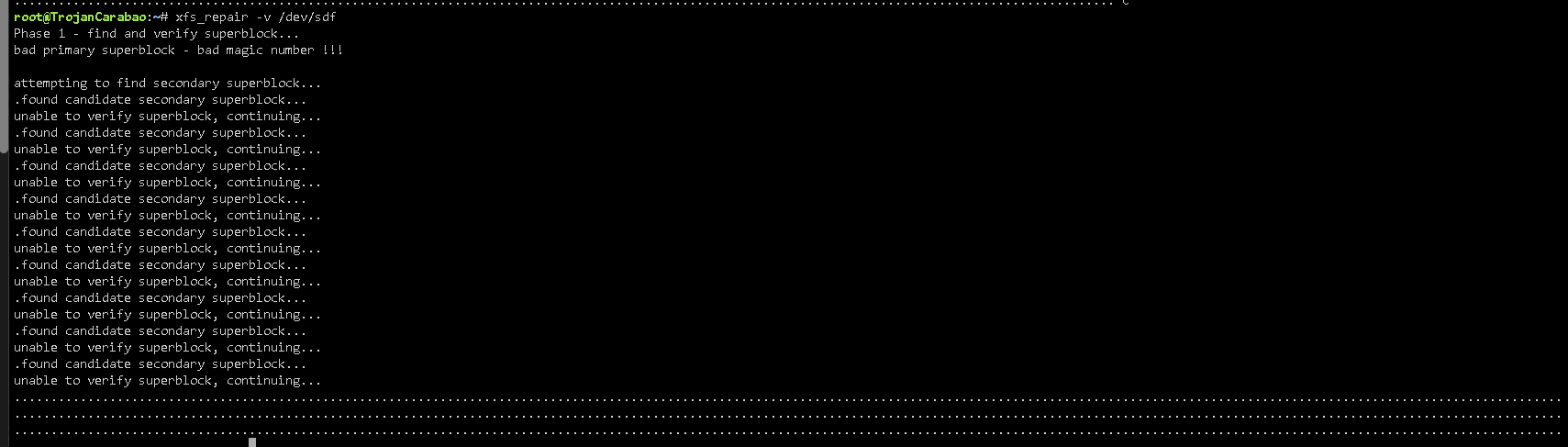

Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 This is the new HDD Disk 2 WDC_WD101EFBX-68B0AN0_VH004PAM - 10 TB (sdf) Is this the correct syntax? xfs_repair -v /dev/sdf Quote Link to comment

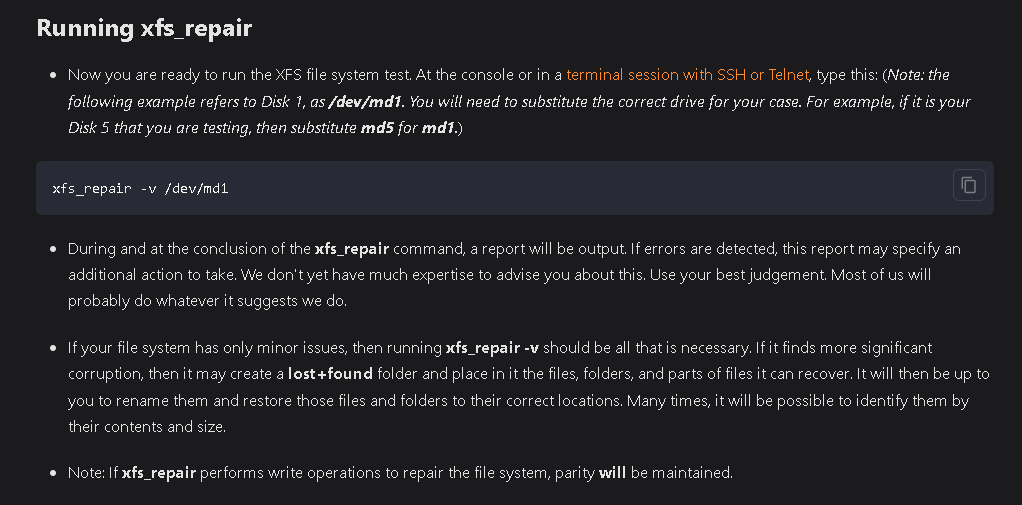

JorgeB Posted July 18, 2023 Share Posted July 18, 2023 5 minutes ago, Nanuk_ said: Is this the correct syntax? No see the link: check filesystem. Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 (edited) That is on the link. So it's not possible to substitute it with the sdf at the end of the drive name? xfs_repair -v /dev/sdf Unless I have to us that "md1" system. I have no clue to to look that up in my system. I tried it but it didn't work. Can you help a brother out? xfs_repair -v /dev/md2 Can you help me out please? Edited July 18, 2023 by Nanuk_ Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 It was a new HDD and in the middle of doing a data-rebuild. Is just reformatting it and preclearing it then trying a data-rebuild an option? Quote Link to comment
itimpi Posted July 18, 2023 Share Posted July 18, 2023 5 minutes ago, Nanuk_ said: That is on the link. So it's not possible to substitute it with the sdf at the end of the drive name? xfs_repair -v /dev/sdf Unless I have to us that "md1" system. I have no clue to to look that up in my system. I tried it but it didn't work. Can you help a brother out? xfs_repair -v /dev/md2 Can you help me out please? Normally one would run this from the GUI so you do not select the wrong device name by clicking on the drive on the Main tab. With the 6.12.x releases you now have to include the partition number even with the ‘md’ devices (e.g. /dev/md2p1). The documentation on running via the CLI needs updating to reflect this. Quote Link to comment
itimpi Posted July 18, 2023 Share Posted July 18, 2023 3 minutes ago, Nanuk_ said: It was a new HDD and in the middle of doing a data-rebuild. Is just reformatting it and preclearing it then trying a data-rebuild an option? No. A data rebuild overwrites every sector so any format or Preclear done outside the array is irrelevant. If you try to format the drive while it is being emulated then you wipe its contents and update parity to reflect this do the contents are lost. Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 See there in lies my problem that was a new HDD to replace one that I had to RMA and halfway through the data rebuild it crapped out. So the rebuild didn't even finish. So do I let the xfs_repair which apparently I am using wrong finish then figure out how to restart the data-rebuild? Are those my next steps. xfs_repair -v /dev/sdf Sorry if I sound irrate, thanks for the help. I'm just having a monumentally bad month. Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 Can I ask how I can look up the partition number even with the ‘md’ devices (e.g. /dev/md2p1)? Quote Link to comment
JorgeB Posted July 18, 2023 Share Posted July 18, 2023 It's always p1, mdX refers to disk number, so for example disk 10 would be md10p1 Quote Link to comment

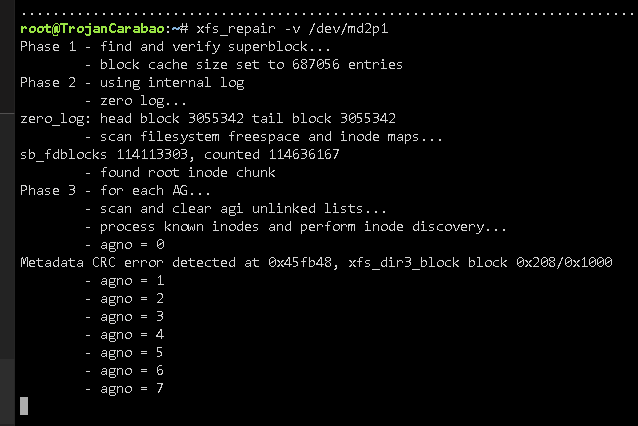

Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 Thank you so much @JorgeB! That worked for me! I ran xfs_repair -v /dev/md2p1 Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 Oh wow it finished right away. I'm gonna post the diag now. trojancarabao-diagnostics-20230719-0028.zip Quote Link to comment
itimpi Posted July 18, 2023 Share Posted July 18, 2023 38 minutes ago, Nanuk_ said: Can I ask how I can look up the partition number even with the ‘md’ devices (e.g. /dev/md2p1)? It is always partition 1 in current Unraid releases. I think the addition of the p1 to the md devices in the current 6.12 releases is in preparation for allowing other partition numbers, particularly with ZFS where such file systems created on other systems are often on partition 2. Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 Cool! Thanks for the insight! Quote Link to comment
itimpi Posted July 18, 2023 Share Posted July 18, 2023 25 minutes ago, Nanuk_ said: Oh wow it finished right away. I'm gonna post the diag now. trojancarabao-diagnostics-20230719-0028.zip 134.05 kB · 1 download I think you will find it now mounts fine when you restart the array in normal mode. Quote Link to comment
Nanuk_ Posted July 18, 2023 Author Share Posted July 18, 2023 Cool! Thanks for the update I'll try that! By the way how to I restart the partition rebuild though? I was halfway through when this drive threw a monkey wrench into the whole process. Quote Link to comment
itimpi Posted July 18, 2023 Share Posted July 18, 2023 3 minutes ago, Nanuk_ said: Cool! Thanks for the update I'll try that! By the way how to I restart the partition rebuild though? I was halfway through when this drive threw a monkey wrench into the whole process. Stop array Unassign drive Start array to make Unraid 'forget' assignment Stop array Assign drive Start array to initiate the rebuild Quote Link to comment
