Data Volume Monitor (DVM) for UNRAID

"A plugin that lets you monitor and act on your consumed data volume utilizing vnStat."







With much pride I'd like to present my latest project - the Data Volume Monitor (DVM).

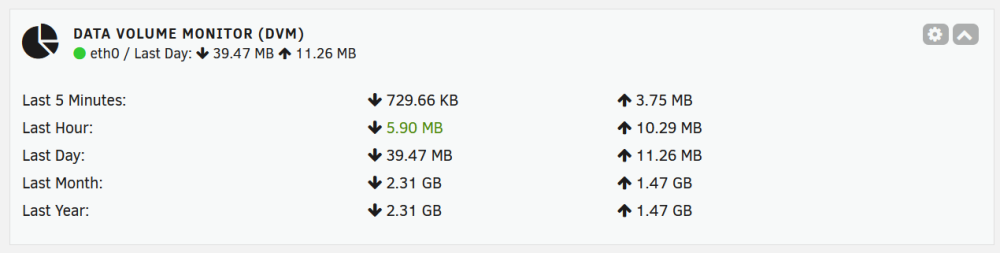

Dashboards, footer information, notifications, user actions (on VMs/Docker containers) and custom scripting.

These are a few of the features being offered - all centred around the data volume consumption of your server.



Don't want to your Syncthing container to pull in more than 50 GB a day?

No problem, DVM will stop and restart the container for you within those limits.



Running a few data intensive VMs and want to pull the plug when it's been too much?

No problem, DVM will disconnect and reconnect specific VMs from/to the network.



Want to move around some files and folders when you've pulled in too much data?

No problem, set up a custom script and DVM will execute it for you when it's time.



Please report back if you are experiencing any problems!

This plugin was developed with older machines in mind - it's been tested on 6.8.3 and above.



Edited March 18, 20242 yr by Rysz

This is really great. Was looking for a way to keep certain *arrs from running wild and downloading too many very high quality linux ISO downloads daily. Was trying to do this in sabnzbd as it isn't native in most of the *arr apps. This might be the ticket. Thanks

i try to install but i see this wanring :

Installation already in progress

Another plugin installation or update is already in progress, and this one cannot start. Wait until the current installation or update is completed and try again

!

Not valid!



but nothing is installing or upgrading

26 minutes ago, stefan marton said:

i try to install but i see this wanring :







but nothing is installing or upgrading



Hello, I just tried it from two different servers and it works just fine here.

Maybe something got stuck in Community Apps, I found this post about the warning with a solution:





Edited March 18, 20242 yr by Rysz

I'm new to virtual interfaces, how can I determine which vethXXXXX interfaces goes to which of my docker containers? Any thoughts on adding a "Friendly Name" feature for interfaces?

6 minutes ago, nolan879 said:

I'm new to virtual interfaces, how can I determine which vethXXXXX interfaces goes to which of my docker containers? Any thoughts on adding a "Friendly Name" feature for interfaces?



I've wanted to add this feature, but to my knowledge it's not possible without executing a command inside each Docker container and that's a boundary I'm not willing to cross also for privacy concerns.



Here's a guide how to find out:

https://superuser.com/questions/1183454/finding-out-the-veth-interface-of-a-docker-container



Another possibility would be stopping all Dockers and then bring them up one by one and look at the interface table in between starts which new virtual interface appears when which Docker is started.

Much appreciated! I'll have to make a list of which interface is for which container in the mean time. Hope to see a custom "Friendly name" feature in the future.

4 hours ago, Rysz said:



rm /tmp/plugins/pluginPending/*







thanks work great

Great work, i've installed it directly to all of my servers. Thanks for the work!

11 hours ago, nolan879 said:

Much appreciated! I'll have to make a list of which interface is for which container in the mean time. Hope to see a custom "Friendly name" feature in the future.



I've figured out a way to implement the feature without interacting with the Docker containers and VMs themselves.

I've just pushed an update with the new setting (disabled by default), so please let me know if it works for you... 🙂



Works like a charm for me, thanks again!

On 3/18/2024 at 1:04 PM, stefan marton said:

!

Not valid!

Did that "!   Not valid!" actually show up in the popup within CA?

Thanks for the feedback everyone - glad everything seems to be running as it should. 🙂

Just a note... Make sure to uninstall network stats plugin before installing this one. I had it installed and tried installing it. It didn't show any warnings or errors just blank installation window.

35 minutes ago, shadowd1000 said:

Just a note... Make sure to uninstall network stats plugin before installing this one. I had it installed and tried installing it. It didn't show any warnings or errors just blank installation window.

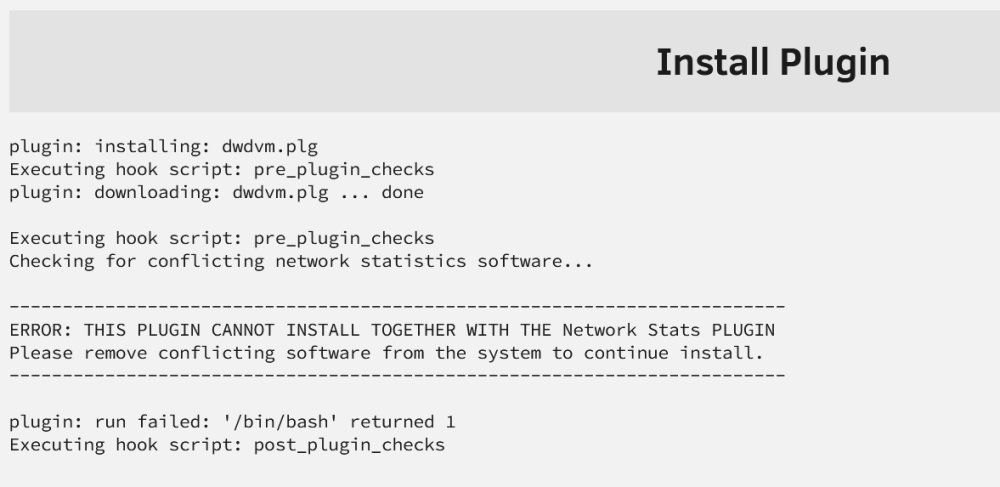

Weird, it should show an error that it's not compatible in the installation window:





Edited March 22, 20242 yr by Rysz

Is it possible, that your plugin spammed my syslog with something like this:



Apr 15 07:01:16 Unraid-1 lldpd[9825]: unable to bind to raw socket for interface veth052f133: No such device
Apr 15 07:01:16 Unraid-1 lldpd[9827]: unable to initialize veth052f133
Apr 15 07:01:16 Unraid-1 lldpd[9825]: unable to bind to raw socket for interface vetha376979: No such device
Apr 15 07:01:16 Unraid-1 lldpd[9827]: unable to initialize vetha376979



even when the Start DVM service is stopped?

i got after i restarted the Docker Service (not the whole server).



Also this, after i unistalled the plugin:



Apr 15 07:20:44 Unraid-1 nginx: 2024/04/15 07:20:44 [error] 16158#16158: *1736042 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:21:15 Unraid-1 nginx: 2024/04/15 07:21:15 [error] 16158#16158: *1736043 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:22:03 Unraid-1 nginx: 2024/04/15 07:22:03 [error] 16158#16158: *1736043 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:23:03 Unraid-1 nginx: 2024/04/15 07:23:03 [error] 16158#16158: *1736720 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:24:03 Unraid-1 nginx: 2024/04/15 07:24:03 [error] 16158#16158: *1736998 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:24:33 Unraid-1 nginx: 2024/04/15 07:24:33 [error] 16158#16158: *1736998 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"

Diagnostic ist attached

unraid-1-diagnostics-20240415-0732.zip

13 minutes ago, sonic6 said:

Is it possible, that your plugin spammed my syslog with something like this:



Apr 15 07:01:16 Unraid-1 lldpd[9825]: unable to bind to raw socket for interface veth052f133: No such device
Apr 15 07:01:16 Unraid-1 lldpd[9827]: unable to initialize veth052f133
Apr 15 07:01:16 Unraid-1 lldpd[9825]: unable to bind to raw socket for interface vetha376979: No such device
Apr 15 07:01:16 Unraid-1 lldpd[9827]: unable to initialize vetha376979



even when the Start DVM service is stopped?

i got after i restarted the Docker Service (not the whole server).



Also this, after i unistalled the plugin:



Apr 15 07:20:44 Unraid-1 nginx: 2024/04/15 07:20:44 [error] 16158#16158: *1736042 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:21:15 Unraid-1 nginx: 2024/04/15 07:21:15 [error] 16158#16158: *1736043 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:22:03 Unraid-1 nginx: 2024/04/15 07:22:03 [error] 16158#16158: *1736043 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:23:03 Unraid-1 nginx: 2024/04/15 07:23:03 [error] 16158#16158: *1736720 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:24:03 Unraid-1 nginx: 2024/04/15 07:24:03 [error] 16158#16158: *1736998 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"
Apr 15 07:24:33 Unraid-1 nginx: 2024/04/15 07:24:33 [error] 16158#16158: *1736998 FastCGI sent in stderr: "Primary script unknown" while reading response header from upstream, client: 192.168.0.6, server: , request: "GET /plugins/dwdvm/include/dwdvm_report.php?mode=footer HTTP/1.1", upstream: "fastcgi://unix:/var/run/php5-fpm.sock:", host: "192.168.0.50:50080", referrer: "http://192.168.0.50:50080/Plugins"

Diagnostic ist attached

unraid-1-diagnostics-20240415-0732.zip 330.21 kB · 0 downloads



No, the first message actually seems to come from the LLDP plugin which tries to send LLDP beacons from virtual interfaces (which doesn't work). That's actually useful information because that needs fixing (will push an update ASAP), so that it only does it from physical interfaces. The second message is normal after uninstallation and will only occur until the page is reloaded because after uninstallation the client side JS footer code is still there and looking for a no longer existing script until you reload the browser page at which point the code will be completely gone.

3 minutes ago, Rysz said:

actually seems to come from the LLDP plugin

damn, totaly missed that plugin in my mind  but good that you are also the dev of this plugin



3 minutes ago, Rysz said:

will only occur until the page is reloaded

ahh okay. it is gone.



thank you!

8 minutes ago, sonic6 said:

damn, totaly missed that plugin in my mind  but good that you are also the dev of this plugin



ahh okay. it is gone.



thank you!



Just updated it, should be fixed with the new update. 🙂

I'm only seeing the specific docker containers when they are running on the Unraid host IP. Using a dedicated IP from a VLAN does not seem to show the separate container traffic. Is that as expected?

1 hour ago, Kaizac said:

I'm only seeing the specific docker containers when they are running on the Unraid host IP. Using a dedicated IP from a VLAN does not seem to show the separate container traffic. Is that as expected?



I'm not sure I understand your setup, how do you set up dedicated IPs from VLANs for your Dockers?

And do you still see the veth interfaces (just not matched to any Docker container names) or nothing at all?

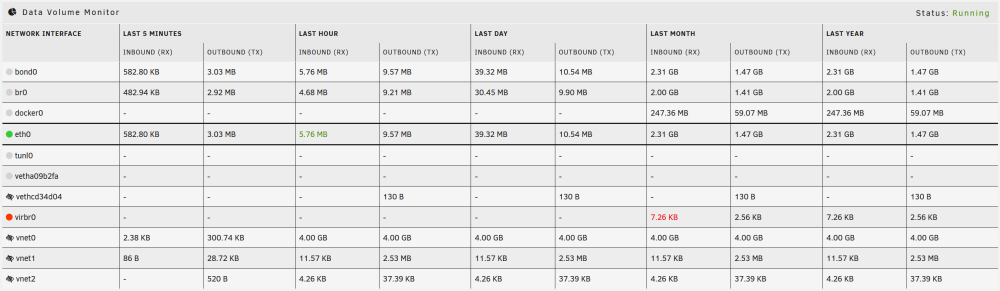

Can you provide a screenshot of your interfaces table (inside Data Volume Monitor), if possible?



What Primary Network Interface should i use if have bond0 , eth0 or bond0 ?

2 minutes ago, Masterwishx said:

What Primary Network Interface should i use if have bond0 , eth0 or bond0 ?



I'd use bond0 as default interface, eth0 is kind of legacy and bond0 should be a better default.

Is it possible to have the dashboard show multiple/all of the interfaces that have been set/made active.  ?

I have multiple interfaces setup across a number of containers and vms which are tied to various vlans on the network. The user intact shows all the interfaces and breaks down the data stats for each one but I'm not sure how (if possible) to create threshold rules for each interface to send notifications on a per interface basis. Is this possible ?

Edited August 15, 20241 yr by JNZ
added further context

22 hours ago, JNZ said:

Is it possible to have the dashboard show multiple/all of the interfaces that have been set/made active.  ?

I have multiple interfaces setup across a number of containers and vms which are tied to various vlans on the network. The user intact shows all the interfaces and breaks down the data stats for each one but I'm not sure how (if possible) to create threshold rules for each interface to send notifications on a per interface basis. Is this possible ?



The front-page dashboard and footer only shows the primary network interface at the moment.

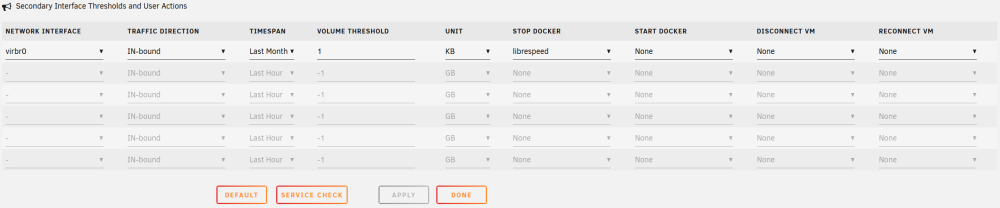

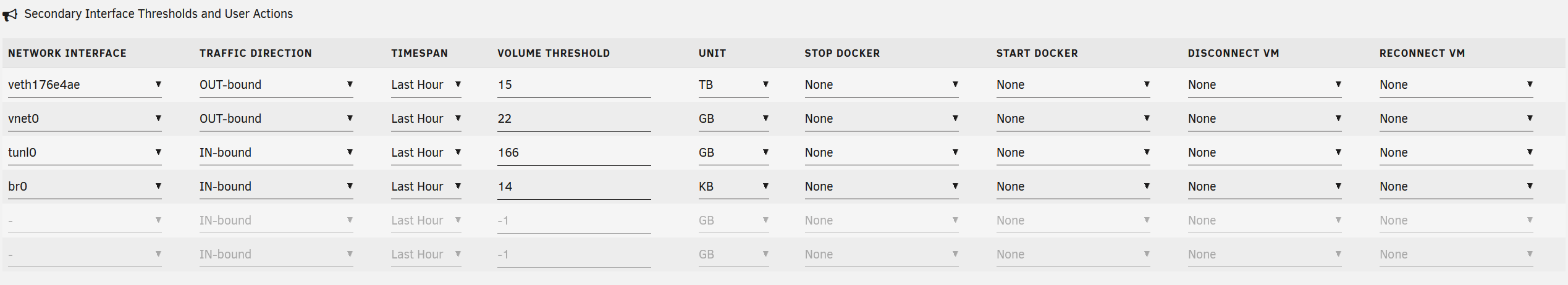

But you can already set limits and notifications for up to 6 other network interfaces in this section of DVM settings (see example):

In this case you will get notifications for each defined interface when the respective limit is exceeded/returned to normal.

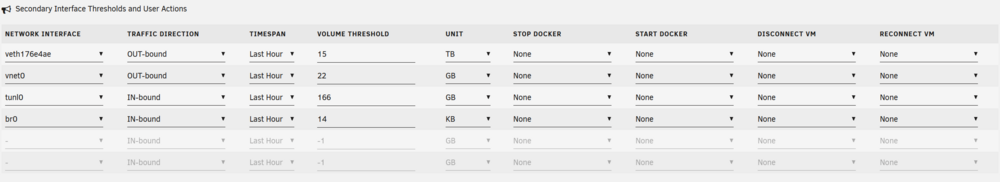

Be aware these settings also control receiving notifications or executing user actions on the defined "secondary interfaces":
