1 Disk keep Unmountable and Parity Drive take a long time to sync

jolma · March 26

Hello, I need help and I am a newbie in unraid, already tried after reading in forum, but the problem keep appear so I am gonna ask anyway.

1. I have 4 drive, one 4TB Drive as parity drive, 2 1 TB drive and one 2 TB drive, decided to upgrade, my parity drive from 4TB Drive to 10 TB drive, building parity take a relative short time. Then I replace one of 1TB drive with another 10TB drive and it worked flawlessly,

2. I add 4tb drive previously as parity drive to array. already preclear before adding it to array. so now I have array with 10TB as an array drive, and 4 drive consist of each one 2TB drive as disk 1, 10TB as disk 2, 1TB as disk 3, and 4TB as disk 4.

3. Then the problem comes, after preclear, 4TB drive (disk4) showed as unmountable, so I formatted it and it shows fine.

4. les than 24 hours, suddenly the 10TB array (disk2) showing that unmountable no supported drive or no system files, and parity drive showed yellow triangle acclamation mark (Array is Started, but Parity is invalid.)

5. Tried this https://docs.unraid.net/unraid-os/manual/storage-management/#drive-shows-as-unmountable, but I confused so tried this https://www.youtube.com/watch?v=JVjB0ROdLBA and it worked.

6. then parity drive started to sync because of acclamation mark and it took a very long time, (first time 100mb/s (first install), but every time a started to parity sync, it speed only 500ish Kb/s it estimates around 200-300 days, stop the sync, change all sata cable and restarted, all is fine, but then suddenly all 4 drive unmountable.

7. reboot the array, all drive except 10tb (disk2) keep showing unmountable.
here is the diagnostic

Thanks for all the help

tower-diagnostics-20240326-1747.zip

JorgeB · March 26

ATA errors on disk2, check/replace cables then post new diags after array start.

jolma · March 26

Thank you, replacing the sata cables with a different and work cable

here is the diagnostics
disk2 still unmountable

tower-diagnostics-20240326-2101.zip

trurl · March 26

Check filesystem on disk2 from the webUI. Capture the output and post it.

jolma · March 26

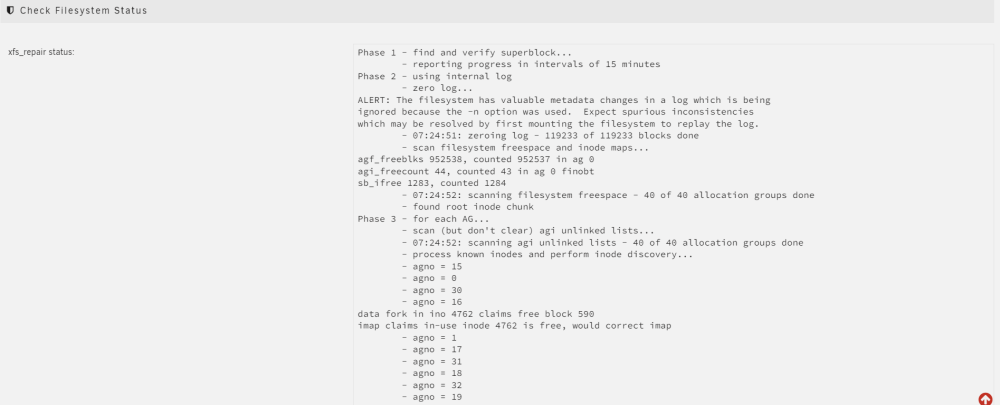

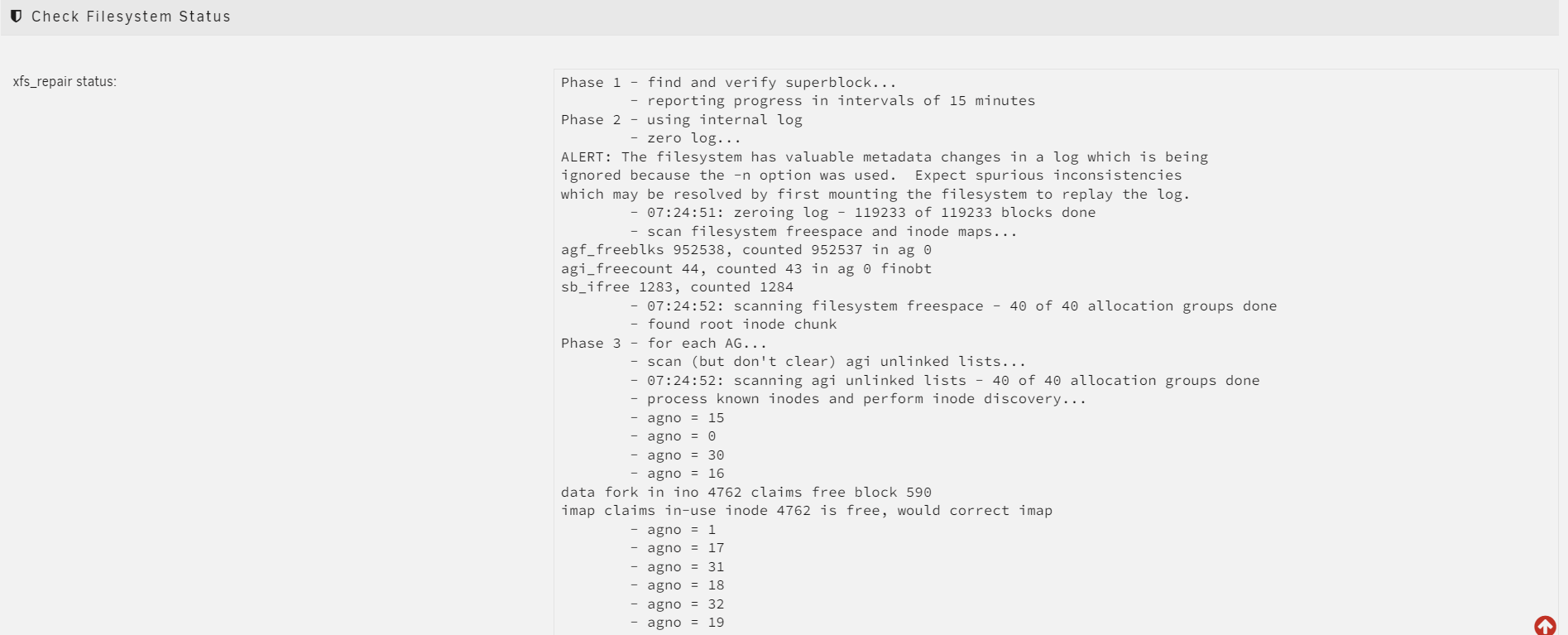

Phase 1 - find and verify superblock...
        - reporting progress in intervals of 15 minutes
Phase 2 - using internal log
        - zero log...
ALERT: The filesystem has valuable metadata changes in a log which is being
ignored because the -n option was used.  Expect spurious inconsistencies
which may be resolved by first mounting the filesystem to replay the log.
        - 07:24:51: zeroing log - 119233 of 119233 blocks done
        - scan filesystem freespace and inode maps...
agf_freeblks 952538, counted 952537 in ag 0
agi_freecount 44, counted 43 in ag 0 finobt
sb_ifree 1283, counted 1284
        - 07:24:52: scanning filesystem freespace - 40 of 40 allocation groups done
        - found root inode chunk
Phase 3 - for each AG...
        - scan (but don't clear) agi unlinked lists...
        - 07:24:52: scanning agi unlinked lists - 40 of 40 allocation groups done
        - process known inodes and perform inode discovery...
        - agno = 15
        - agno = 0
        - agno = 30
        - agno = 16
data fork in ino 4762 claims free block 590
imap claims in-use inode 4762 is free, would correct imap
        - agno = 1
        - agno = 17
        - agno = 31
        - agno = 18
        - agno = 32
        - agno = 19
        - agno = 20
        - agno = 33
        - agno = 34
        - agno = 35
        - agno = 21
        - agno = 22
        - agno = 36
        - agno = 2
        - agno = 37
        - agno = 23
        - agno = 3
        - agno = 38
        - agno = 24
        - agno = 25
        - agno = 26
        - agno = 39
        - agno = 27
        - agno = 28
        - agno = 29
        - agno = 4
        - agno = 5
        - agno = 6
        - agno = 7
        - agno = 8
        - agno = 9
        - agno = 10
        - agno = 11
        - agno = 12
        - agno = 13
        - agno = 14
        - 07:24:55: process known inodes and inode discovery - 49984 of 49984 inodes done
        - process newly discovered inodes...
        - 07:24:55: process newly discovered inodes - 40 of 40 allocation groups done
Phase 4 - check for duplicate blocks...
        - setting up duplicate extent list...
        - 07:24:55: setting up duplicate extent list - 40 of 40 allocation groups done
        - check for inodes claiming duplicate blocks...
        - agno = 0
        - agno = 1
        - agno = 3
        - agno = 2
        - agno = 4
        - agno = 5
        - agno = 6
        - agno = 7
        - agno = 8
        - agno = 9
        - agno = 10
        - agno = 11
        - agno = 12
        - agno = 13
        - agno = 14
        - agno = 15
        - agno = 16
        - agno = 17
        - agno = 18
        - agno = 19
        - agno = 20
        - agno = 21
        - agno = 22
        - agno = 23
        - agno = 24
        - agno = 25
        - agno = 26
        - agno = 27
        - agno = 28
        - agno = 29
        - agno = 30
        - agno = 31
        - agno = 32
        - agno = 33
        - agno = 34
        - agno = 35
        - agno = 36
        - agno = 37
        - agno = 38
        - agno = 39
        - 07:24:55: check for inodes claiming duplicate blocks - 49984 of 49984 inodes done
No modify flag set, skipping phase 5
Inode allocation btrees are too corrupted, skipping phases 6 and 7
No modify flag set, skipping filesystem flush and exiting.

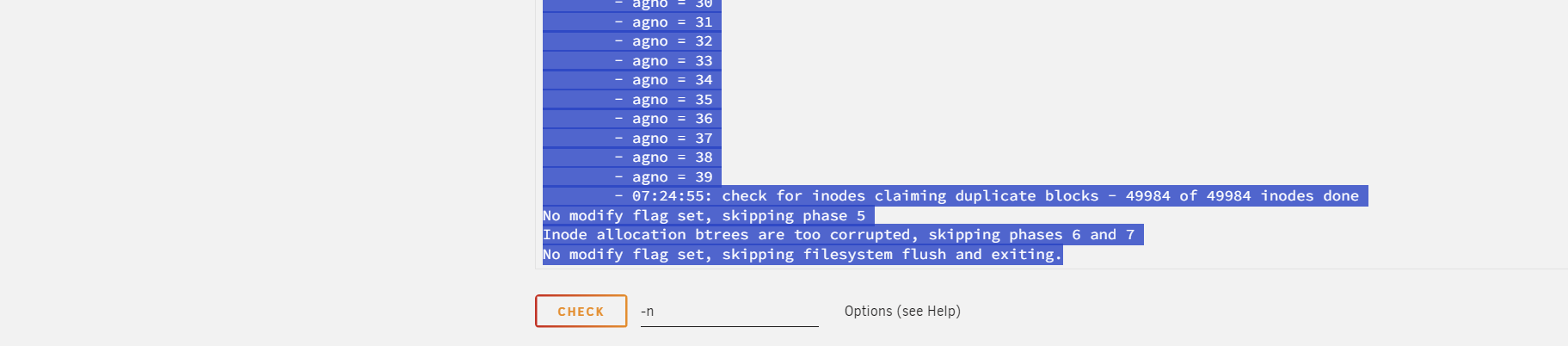

here is the command after I put -n command

for the next step please tell me what is the command, Thanks

Edited March 26 by jolma
typo

trurl · March 26

Do you have another copy of anything important and irreplaceable?

jolma · March 26

No, anything is a video file, if I trying to save it, can i copied first to another computer?

trurl · March 26

Probably anything corrupt won't copy anyway but you can try before going on to...

Check filesystem on disk2 from the webUI without -n. If it asks for it use -L. Capture the output and post it.

jolma · March 26

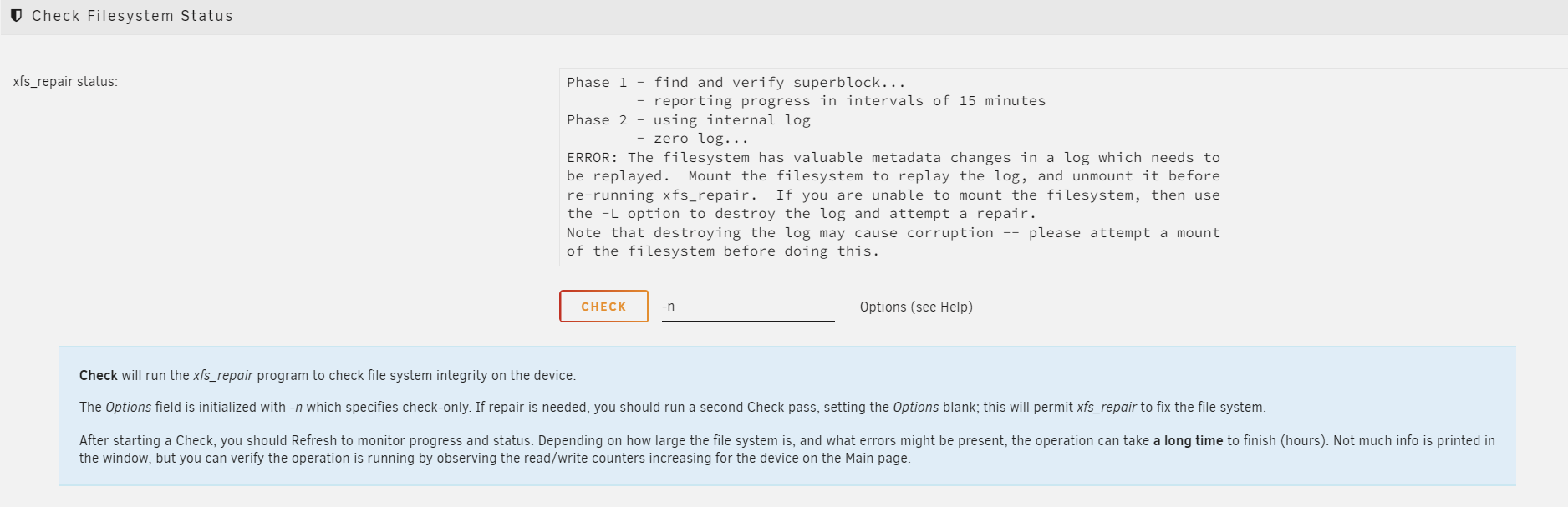

attached check without -n asks for -L command
this is the code after run -L

Phase 1 - find and verify superblock...
        - reporting progress in intervals of 15 minutes
Phase 2 - using internal log
        - zero log...
ALERT: The filesystem has valuable metadata changes in a log which is being
destroyed because the -L option was used.
        - 09:20:41: zeroing log - 119233 of 119233 blocks done
        - scan filesystem freespace and inode maps...
clearing needsrepair flag and regenerating metadata
agf_freeblks 952538, counted 952537 in ag 0
agi_freecount 44, counted 43 in ag 0 finobt
sb_ifree 1283, counted 1284
        - 09:20:42: scanning filesystem freespace - 40 of 40 allocation groups done
        - found root inode chunk
Phase 3 - for each AG...
        - scan and clear agi unlinked lists...
        - 09:20:42: scanning agi unlinked lists - 40 of 40 allocation groups done
        - process known inodes and perform inode discovery...
        - agno = 0
        - agno = 30
        - agno = 15
        - agno = 16
data fork in ino 4762 claims free block 590
correcting imap
        - agno = 1
        - agno = 17
        - agno = 18
        - agno = 19
        - agno = 20
        - agno = 21
        - agno = 31
        - agno = 22
        - agno = 23
        - agno = 24
        - agno = 25
        - agno = 32
        - agno = 33
        - agno = 26
        - agno = 34
        - agno = 27
        - agno = 28
        - agno = 29
        - agno = 35
        - agno = 36
        - agno = 2
        - agno = 3
        - agno = 37
        - agno = 38
        - agno = 39
        - agno = 4
        - agno = 5
        - agno = 6
        - agno = 7
        - agno = 8
        - agno = 9
        - agno = 10
        - agno = 11
        - agno = 12
        - agno = 13
        - agno = 14
        - 09:20:45: process known inodes and inode discovery - 49984 of 49984 inodes done
        - process newly discovered inodes...
        - 09:20:45: process newly discovered inodes - 40 of 40 allocation groups done
Phase 4 - check for duplicate blocks...
        - setting up duplicate extent list...
        - 09:20:45: setting up duplicate extent list - 40 of 40 allocation groups done
        - check for inodes claiming duplicate blocks...
        - agno = 0
        - agno = 1
        - agno = 2
        - agno = 3
        - agno = 4
        - agno = 5
        - agno = 6
        - agno = 7
        - agno = 8
        - agno = 9
        - agno = 10
        - agno = 11
        - agno = 12
        - agno = 13
        - agno = 14
        - agno = 15
        - agno = 16
        - agno = 17
        - agno = 18
        - agno = 19
        - agno = 20
        - agno = 21
        - agno = 22
        - agno = 23
        - agno = 24
        - agno = 25
        - agno = 26
        - agno = 27
        - agno = 28
        - agno = 29
        - agno = 30
        - agno = 31
        - agno = 32
        - agno = 33
        - agno = 34
        - agno = 35
        - agno = 36
        - agno = 37
        - agno = 38
        - agno = 39
        - 09:20:45: check for inodes claiming duplicate blocks - 49984 of 49984 inodes done
Phase 5 - rebuild AG headers and trees...
        - 09:20:47: rebuild AG headers and trees - 40 of 40 allocation groups done
        - reset superblock...
Phase 6 - check inode connectivity...
        - resetting contents of realtime bitmap and summary inodes
        - traversing filesystem ...
        - traversal finished ...
        - moving disconnected inodes to lost+found ...
disconnected dir inode 4762, moving to lost+found
Phase 7 - verify and correct link counts...
resetting inode 4761 nlinks from 2 to 3
        - 09:20:50: verify and correct link counts - 40 of 40 allocation groups done
Maximum metadata LSN (1969582969:78) is ahead of log (1:2).
Format log to cycle 1969582972.
done

trurl · March 26

Start the array in normal (not maintenance) mode and post new diagnostics.

jolma · March 26

The new diagnostics, all drive detected

tower-diagnostics-20240326-2348.zip

trurl · March 26

Check filesystem has created a lost+found share on disk2 for the things that it couldn't figure out.

What do you get from command line with this?

ls -lah /mnt/disk2/lost+found

jolma · March 27

sorry it is middle of the night last night

here is the result from command above

root@Tower:~# ls -lah /mnt/disk2/lost+found
total 47M
drwxrwxrwx  3 nobody     users 4.0K Mar 23 04:19 ./
drwxrwxrwx 10 nobody     users  171 Mar 21 10:15 ../
drwxrwxrwx  2 player_one users 4.0K Mar 26 01:31 4762/
-rw-r--r--  1 nobody     users  94K Mar 21 19:30 6506306976
-rw-r--r--  1 nobody     users  112 Mar 21 19:30 6506306977
-rw-r--r--  1 nobody     users 4.4M Mar 21 19:30 6506306978
-rw-r--r--  1 nobody     users 187K Mar 21 19:30 6506306979
-rw-r--r--  1 nobody     users  111 Mar 21 19:30 6506306980
-rw-r--r--  1 nobody     users   83 Mar 21 19:30 6506306981
-rw-r--r--  1 nobody     users 4.8M Mar 21 19:30 6506306982
-rw-r--r--  1 nobody     users 135K Mar 21 19:30 6506306983
-rw-r--r--  1 nobody     users  107 Mar 21 19:30 6506306984
-rw-r--r--  1 nobody     users 5.1M Mar 21 19:30 6506306985
-rw-r--r--  1 nobody     users 169K Mar 21 19:30 6506306986
-rw-r--r--  1 nobody     users   70 Mar 21 19:30 6506306987
-rw-r--r--  1 nobody     users   94 Mar 21 19:30 6506306988
-rw-r--r--  1 nobody     users 4.4M Mar 21 19:30 6506306989
-rw-r--r--  1 nobody     users 129K Mar 21 19:30 6506306990
-rw-r--r--  1 nobody     users   84 Mar 21 19:30 6506306991
-rw-r--r--  1 nobody     users 6.6M Mar 21 19:30 6506306992
-rw-r--r--  1 nobody     users 169K Mar 21 19:30 6506306993
-rw-r--r--  1 nobody     users   79 Mar 21 19:30 6506306994
-rw-r--r--  1 nobody     users   93 Mar 21 19:30 6506306995
-rw-r--r--  1 nobody     users 4.4M Mar 21 19:30 6506306996
-rw-r--r--  1 nobody     users 176K Mar 21 19:30 6506306997
-rw-r--r--  1 nobody     users   84 Mar 21 19:30 6506306998
-rw-r--r--  1 nobody     users   65 Mar 21 19:30 6506306999
-rw-r--r--  1 nobody     users 4.9M Mar 21 19:30 6506307000
-rw-r--r--  1 nobody     users 286K Mar 21 19:30 6506307001
-rw-r--r--  1 nobody     users  117 Mar 21 19:30 6506307002
-rw-r--r--  1 nobody     users 4.0M Mar 21 19:30 6506307003
-rw-r--r--  1 nobody     users 326K Mar 21 19:30 6506307004
-rw-r--r--  1 nobody     users 6.0M Mar 21 19:30 6506307005
-rw-r--r--  1 nobody     users 251K Mar 21 19:30 6506307006
-rw-r--r--  1 nobody     users  114 Mar 21 19:30 6506307007

Thanks

Edited March 27 by jolma
typo

trurl · March 27

What do you get with this?

du -h -d 1 /mnt/disk2/lost+found

jolma · March 27

1 hour ago, trurl said:
What do you get with this?
du -h -d 1 /mnt/disk2/lost+found

root@Tower:~# du -h -d 1 /mnt/disk2/lost+found
1.3G    /mnt/disk2/lost+found/4762
1.4G    /mnt/disk2/lost+found

Here is the code, Thank you

I think everything is okay now, all drive green, parity sync speeds are relatively fast 100Mb/s now

Edited March 27 by jolma
adding additional info

trurl · March 27

If you want to try to sort out those lost+found files, Linux 'file' command can help detect what kind of data is in a file so you can try to open it.
