Very nice looking case => looks like you got the new backplane and fans, which is a very nice improvement.





Share this post


Link to post

My backup UnRAID server is finally on it's way.  Will update with actual pics when everything arrives this week/weekend but for now I'll post a pic of the case I'm using and my build list :D.



Components:



SuperMicro A1SAi-2550F Mini-ITX board / Quad-core Avaton CPU SoC

4GB DDR3-1600 ECC RAM

6 x 3TB WD Reds (same as main UnRAID server)

Seasonic 350w 1U PSU

U-NAS NSC-800 Mini-ITX case






Any Feedback on the Avaton SoC and this Board? Setup is really nice!  Also, what do you use to backup your main Unraid to this unas Unraid?  Script? Plugin? Docker?



Share this post


Link to post

Threw in some other pictures. Noctua makes some very quiet 80mm fans, which I may replace the ones in the back but to be honest they aren't very loud. I do like the fact that each of them is 3000rpm and having two of them is pretty much pulling all the air out of the case. If I put a piece of paper on the front of the case it will stick there. Great air flow ans pressure in there. If you have a lot of drives and will continue to have lots of drives coming from a mid tower case I do recommend this beast. I had the room and available area, so I was good there.



Thanks for moving into the hardware area.







unRaid 4224 Server Build













Share this post


Link to post

One mighty case you have, I like the cabling too... very neat!



Share this post


Link to post

One mighty case you have, I like the cabling too... very neat!



Just be careful lifting it with drives installed!




Share this post


Link to post

Here you go ... :)



ROFL!



My mid-tower case I had with three HD cages wasn't really any lighter. Just a smaller package. At least this case lays nicely on the little stand I had. Put a couple fake plants around it and you wouldn't even know it is there. I don't plan on moving it! I have an entire room dedicated to my bitcoin miners and didn't want to stick it in there because of the heat. Would of been the most practical place for it, but just too hot. Surprisingly very quiet.



Share this post


Link to post

My backup UnRAID server is finally on it's way.  Will update with actual pics when everything arrives this week/weekend but for now I'll post a pic of the case I'm using and my build list :D.



Components:



SuperMicro A1SAi-2550F Mini-ITX board / Quad-core Avaton CPU SoC

4GB DDR3-1600 ECC RAM

6 x 3TB WD Reds (same as main UnRAID server)

Seasonic 350w 1U PSU

U-NAS NSC-800 Mini-ITX case






Any Feedback on the Avaton SoC and this Board? Setup is really nice!  Also, what do you use to backup your main Unraid to this unas Unraid?  Script? Plugin? Docker?



I actually wound up swapping the Avaton board for a different SuperMicro board with a Celeron J1900 on it instead.  First because the celeron is more than enough for a backup server and secondly because the PCI-E slot on the Avaton boards don't fit the expansion adapter that goes with the U-NAS case because the PCI-E slot on the Avaton boards do not have an open end.



But all in all I absolutely love the case and the server has worked wonderfully as a backup.  I used the free utility Syncback (garycase recommended it) to do the full transfer of 11TB from my main server to this backup and it worked wonderfully.

Share this post


Link to post

... I actually wound up swapping the Avaton board for a different SuperMicro board ... because the PCI-E slot on the Avaton boards don't fit the expansion adapter that goes with the U-NAS case because the PCI-E slot on the Avaton boards do not have an open end.



Just noticed this comment and am curious about exactly what the issue is.  I'm thinking of ordering the U-NAS case, but am not sure what adapter you're referring to.



Share this post


Link to post

... I actually wound up swapping the Avaton board for a different SuperMicro board ... because the PCI-E slot on the Avaton boards don't fit the expansion adapter that goes with the U-NAS case because the PCI-E slot on the Avaton boards do not have an open end.



Just noticed this comment and am curious about exactly what the issue is.  I'm thinking of ordering the U-NAS case, but am not sure what adapter you're referring to.



There isn't one.  Just that the PCI-E expander cable they include with the case was x16 and the Avaton board I had only had a PCI-E x8 slot that wasn't open ended so I couldn't fit the expander cable into it for my M1015 HBA.  I could have just purchased a x8 expander cable but I decided I didn't need that much power for a backup server (or the quad NICs) so I decided to sell the board and get the cheaper J1900 board.

Share this post


Link to post

There isn't one.  Just that the PCI-E expander cable they include with the case was x16 and the Avaton board I had only had a PCI-E x8 slot that wasn't open ended ...



... sounds like a CAREFUL job for a Dremel  :)



Share this post


Link to post

There isn't one.  Just that the PCI-E expander cable they include with the case was x16 and the Avaton board I had only had a PCI-E x8 slot that wasn't open ended ...



... sounds like a CAREFUL job for a Dremel  :)



Or heat gun to avoid plastic shrapnel everywhere!

Share this post


Link to post

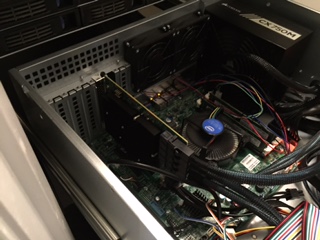

New to unraid wanted to share my specs. Seen it on Linus Tech Tips thought it was a good product



Mobo Supermicro X10sll-f

CPU Intel Xeon E3-1231

Ram 16GB of ECC DDR3

HDD 6 WD Red 4TB

SSD 4 Kingston V300 120GB

HBA LSI SAS 9300-16i

Share this post


Link to post

New to unraid wanted to share my specs. Seen it on Linus Tech Tips thought it was a good product



Mobo Supermicro X10sll-f

CPU Intel Xeon E3-1231

Ram 16GB of ECC DDR3

HDD 6 WD Red 4TB

SSD 4 Kingston V300 120GB

HBA LSI SAS 9300-16i



Why such an expensive controller? Could of grabbed two 4 port controllers for less then what one of those cost, unless you didn't have the slot for it. Seems to be a nice fast card. Hard to tell what case you are using, but keep on trucking!



Share this post


Link to post

The mainboard does have 2 PCI-E slots, had the room for two controllers to handle 16 drives. It was just out of curiosity on why that card was chosen. I think switching over to a Norco style case was one of the best upgrades I did. Physical drive management is a breeze, no messing around with cables, drive identification is very easy and cooling is top notch. I have yet to put it in the closet, but it's quiet enough there is really no need. A couple fake plants from Walmart will help. :)



Share this post


Link to post

If you wanted to save a little bit of money you could buy a 2 port HBA + SAS expander to connect 16 drives for about half the price.  That's what I've got in my server.



Share this post


Link to post

If you wanted to save a little bit of money you could buy a 2 port HBA + SAS expander to connect 16 drives for about half the price.  That's what I've got in my server.



I picked up 3x Supermicro SAS2LP-MV8 cards for US$200 off eBay.  I see no difference in performance compared to my LSI card, and the Supermicros use less power.

Share this post


Link to post

If you wanted to save a little bit of money you could buy a 2 port HBA + SAS expander to connect 16 drives for about half the price.  That's what I've got in my server.



I picked up 3x Supermicro SAS2LP-MV8 cards for US$200 off eBay.  I see no difference in performance compared to my LSI card, and the Supermicros use less power.



You shouldn't see any difference in performance, except maybe when doing a parity check. I know there has been progress in adding more fine-tune settings to disk settings but don't remember if it entirely has been resolved with those drivers.

I didn't realize your mainboard had three PCI-E slots.

Share this post


Link to post

After moving to 8TB drives I found myself with lots of leftover 4TB drives.  And having lots of spare enclosures/rackmount chassis/SAS cards/etc. I realized with just a few more 4TB drives I could build a 24-drive backup server that would accommodate two copies of my primary server data, including dual parity.

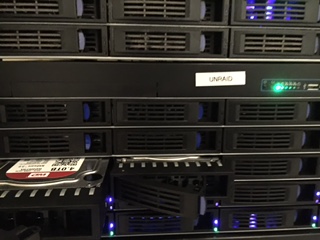

It all fits in six rack units.  Since my pictures are close to 192KB in size, I can only attach one per post, so I'll be making a couple more posts to get them all in.

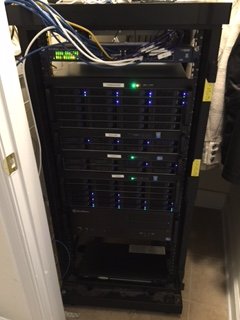

First one shows the 12U rack it lives in, taking up the bottom half.


Share this post


Link to post

Other than a few more 4TB drives (all the same model, the Seagate Desktop model), this was built out of parts I had laying around:



2x Xtore 12-bay SAS enclosures: http://www.scsi4me.com/product_info.php?products_id=1637

Supermicro 2U chassis/PSU, unknown model numbers

2x LSI SAS9207-8e HBAs



Even though those enclosures are only SAS1 (3Gb/s X 4), it works to make a second connection, to the SAS daisy-chain output, to double the throughput.



EDIT: In searching for a better link to those enclosures, I see that the second connection I'm making is to a second SAS input (not the SAS output).  Although I think I've tried connecting to the SAS output also, with the same result (increased throughput).



http://www.rackmountnet.com/rackmount-storage-chassis-sassata-hotswap-bays-depth-single-module-with-expander-460w-hotswap-redundant-p-1649.html


Share this post


Link to post
