Docker Crashing unRaid

SSMI

By SSMI
in General Support

Recommended Posts

SSMI Rookie

SSMI

Posted
Posted

On my system docker seems to be crashing unraid.  I can't tell why it seems to be happening.  My unraid runs fine for at least a couple of weeks if I have no Docker containers running.  Once I start one running my unraid will crash in the next few days.  Sometimes it is one day sometimes about four.  When it crashes the computer still has power but the WebUI, Samba shares and telnet all become unresponsive.  To recover I have to cut the power and start it back up.  When I do so neither of the dockers will run again.  This didn't used to happen back on one of the RCs I was running.



Once think are back up and running the docker images wont run again. Nothing else is corrupted or missing though.



Here is my general config.



Parity 3GB WD HDD

Data 2x3GB WD HDD

Cache 256GB Crucial SSD

Flash 8GB



Shares

appdata - no cache - no nfs - yes smb

SSMI - yes cache - no nfs - yes smb

Media - no cache - yes nfs - yes smb

docker (autogenerated) - no cache - no nfs - no smb



Docker Settings

version: 1.6.2

image: /mnt/cache/docker.img

size: 10GB



Common Dockers

MariaDB

owncloud

deluge



If there is some other  data I need to get let me know and tell me how to get it.



Thank you for the help.

Link to comment
SSMI Rookie

SSMI

Posted
  • Author
Posted

I don't have it setup with those attached.  It would take at least a few days to do so.  Anything else I should try and get when I do the memtest?



Docker shouldn't be able to crash unraid should it?  From what I understand it is similar to a virtual machine.  Could the docker install on my box be corrupted somehow?

Link to comment
trurl Grand Master

trurl

Posted
Posted

I don't have it setup with those attached.  It would take at least a few days to do so.  Anything else I should try and get when I do the memtest?



Docker shouldn't be able to crash unraid should it?  From what I understand it is similar to a virtual machine.  Could the docker install on my box be corrupted somehow?

The word docker is sometimes used in different ways and it might help to clarify what we mean.



There is docker that is built in to unRAID to manage the docker containers. This is very unlikely to be corrupt since all of the unRAID OS is unpacked fresh on each boot.



There is the docker img file, a "virtual disk" where the code and "internals" of all the docker containers are stored. While this might become corrupted, I think the most likely result would be dockers not starting, rather than things working OK for a while.



There are the files used by specific containers, such as the config data, that is mapped to unRAID storage such as the cache drive. Corruption there would be most likely to affect specific dockers.



What we are missing is any sort of diagnostic information from the time of the crash. Maybe you could keep the syslog up on the screen updating until it happens and then get a copy of that. Also see either of the help links in my sig for other ideas about capturing this.

Link to comment
Squid Grand Master

Squid

Posted
Posted

I'm also wondering if the docker.img file isn't filling completely up due to wrong settings within the containers.  You say you have to start over again the containers from scratch.  Does changing the size of the .img file from 10Gig to say 20Gig prolong the life of the system before it crashes?

Link to comment
trurl Grand Master

trurl

Posted
Posted

I'm also wondering if the docker.img file isn't filling completely up due to wrong settings within the containers.  You say you have to start over again the containers from scratch.  Does changing the size of the .img file from 10Gig to say 20Gig prolong the life of the system before it crashes?

Yes, it might be useful to know what the volume mappings of all the containers are. If some things are not being mapped to unRAID storage like they should then they will be consuming space in docker img.
Link to comment
Squid Grand Master

Squid

Posted
Posted

I'm also wondering if the docker.img file isn't filling completely up due to wrong settings within the containers.  You say you have to start over again the containers from scratch.  Does changing the size of the .img file from 10Gig to say 20Gig prolong the life of the system before it crashes?

Yes, it might be useful to know what the volume mappings of all the containers are. If some things are not being mapped to unRAID storage like they should then they will be consuming space in docker img.

I don't think knowing the mappings alone will be able to tell that.  You're talking about the settings within each container operating.



@SSMI  If, for example you tell deluge to store its incomplete downloads at /incomplete, but you have not mapped /incomplete to an unRaid share then its going to store the incomplete files within the docker.img file.  And that file is only 10G.

Link to comment
SSMI Rookie

SSMI

Posted
  • Author
Posted

There are a couple of containers I like to be able to access all the shares.  Do I need to do something special to allow this?  Right not I am just including /mnt/user/ (I might have that wrong as I'm at work) as a volume mapping.



Edit:

I do put those types of storage on volume mappings.  When I set everything up again I will try a lager img size as well.

Link to comment
Squid Grand Master

Squid

Posted
Posted

That mapping is fine.  But (and I'm not saying this is the case), but if you tell deluge for example to store its incomplete downloads somewhere other than within the mapping for /mnt/user, then it winds up storing within the docker.img file which will cause you some issues.



I'm going down this road because its a fairly common mistake, and the size of the img file is only 10G  (which if everything is set up correctly is plenty)



Link to comment
SSMI Rookie

SSMI

Posted
  • Author
Posted

I understand.  For deluge everything is outside of the docker.img.  I am pretty sure MariaDB is as well.  I need to double check owncloud because that one is new for me but I was using a template from here on the forum so it was probably setup correctly as well.



I will double check them though because maybe I was missing something.

Link to comment
SSMI Rookie

SSMI

Posted
  • Author
Posted

Alright.  Set everything up again with owncloud and MriaDB.  Evefrything worked like it was fupposed to for between one and a half and two days.  Then it crashed again.



I had a monitor and keyboard plugged in.  I left it at the login screen.  After the crash I can't access the web ui.  On the physical device the login screen is gone.  I will copy what was left as best I can.



[<ffffffff8111b671>] ? pin_re,pve+0x15/0xae
[<ffffffff8111b671>] drop_mountpoint +0x1a/0x2a
[<ffffffff8111b671>] pin_kill +0x6a/0xec
[<ffffffff8111b671>] ? wait_woken+0x7d/0x7d
[<ffffffff8111b671>] mnt_pin_kill+0x2e/0x30
[<ffffffff8111b671>] cleanup_mnt+0x39/0x74
[<ffffffff8111b671>] __cleanup_mnt+0xd/0xf
[<ffffffff8111b671>] task_work_run+0x93/0xae
[<ffffffff8111b671>] do_notify_resume+0x40/0x4e
[<ffffffff8111b671>] int_signal+0x12/0x17
---[ end trace 163b45793ad5a3d0 ]---
mdcmd (44): spindown 2
mdcmd (45): spindown 0
mdcmd (46): spindown 1
mdcmd (47): spindown 0
mdcmd (48): spindown 1
mdcmd (49): spindown 0
mdcmd (50): spindown 1
mdcmd (51): spindown 0
mdcmd (52): spindown 1
mdcmd (53): spindown 0
mdcmd (54): spindown 1



I entered that by hand so there may be an error or two there.  Escape doesn't do anything and enter scrolls a blank line.  Any ideas what is causing this?

Link to comment
SSMI Rookie

SSMI

Posted
  • Author
Posted

No one else is having this problem?



Since it doesn't ever crash when docker isn't running could the docker on the USB be messed up somehow?



Is there any way to 'clean install' like on windows without losing my data disks?

Link to comment
  • 2 weeks later...
SSMI Rookie

SSMI

Posted
  • Author
Posted

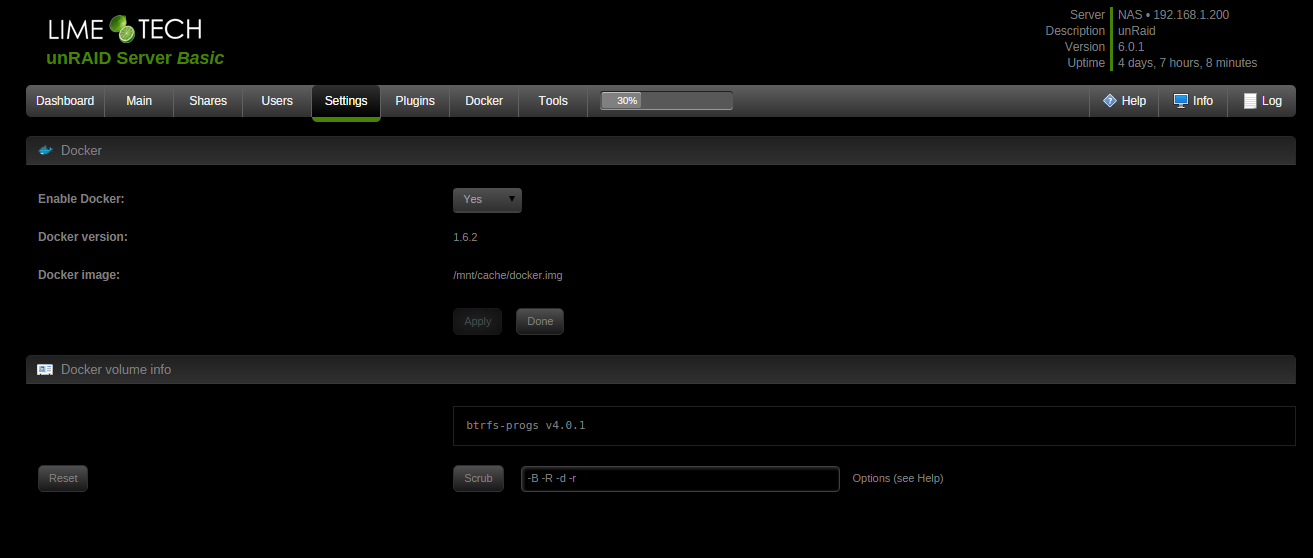

So I'm am finishing up setup but I completly cleared my unraid box and started over from scratch.  Now it shows the following under Docker



Label: none  uuid: 8fd80e0f-fde6-4b81-8bbd-4acbabe2df41
Total devices 1 FS bytes used 627.23MiB
devid    1 size 20.00GiB used 3.04GiB path /dev/loop0

btrfs-progs v4.0.1



I think that has fixed things.  I will post again after a week or so of uptime.

Link to comment
