34 minutes ago, Jcloud said:

Thank you Sir for the tip, and my desk thanks you for less dents caused from my forehead.I'm curious, do you know which distro's that feature is prime for?

AFAIK, any that use smb/cifs with fstab files. So, most to pretty much all of them? I haven't kept up with all the thousands of varieties, but I think you could take the base example and tweak it for any linux.



BTW, if you plan on mounting a shared calibre library, it requires nobrl as another comma delimited parameter after the cifs part. I can't remember off the top of my head why, I just remember head banging the desk for a short while until I figured it out.xD

Link to post
  • Replies 114
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

For those keeping score at home, I just seen there is a new BIOS revision for the motherboard     Version 0601  -  2018/05/02      Update AGESA 1.0.0.5     recommend to keep C-State [en

Info update: Installed new Asus August BIOS update for TR2, thinking I would check the IOMMU groupings etc and see if I could take off the ACS patch   ACS patch OFF (2 USB controllers passab

I actually have the 1950x and x399-a prime also (taichi was out of stock).   Rock solid after cstate disable.   I'm even overclocked too.   I'll post my bios info this weekend when I can go back offli

Posted Images

25 minutes ago, jonathanm said:
1 hour ago, Jcloud said:

Thank you Sir for the tip, and my desk thanks you for less dents caused from my forehead.I'm curious, do you know which distro's that feature is prime for?

AFAIK, any that use smb/cifs with fstab files.

Sorry I meant the webui feature, not the fstab line, which I'm experiencing problems with presently -- I think my unRAID needs some tweaking. Linux sees my server with nfs and sftp, but when I go to Windows networks it's blank.  My Windows VM's had the same issue but with them I could mount drives and go to them directly via \\hydra.local\ . Same sort of things I've skimmed over in the forums. Looks like it's time to read them.



That iSCSCI post in the features requested area is looking rather nice at the moment.  *Snarkbit=1* Inner-voice, "Wait your SAMBA is borked and you want to jump on iSCSI having never touched it?" Forked inner-voice, "Well, yeah."

Link to post
13 hours ago, Jcloud said:

I think my unRAID needs some tweaking. Linux sees my server with nfs and sftp, but when I go to Windows networks it's blank.

I found what was doing this on my unRAID server; commented out of my smb.conf

min protocol=SMB2

I know that was added for wannaCry and such, but that seems to be the pain of samba users over the webs. It also appears SMB2 is actually shorthand for SMB2_ and there are about six or eight SMB2 versions.



Once that was removed @jonathanm fstab line worked like a charm - thanks again for the tip, I need to toss that into my personal notes/wiki.



Link to post
  • 2 weeks later...

For those keeping score at home, I just seen there is a new BIOS revision for the motherboard

    Version 0601  -  2018/05/02

    Update AGESA 1.0.0.5

    recommend to keep C-State [enabled]

Woot now that's a bios revision I'll jump on, I know what I'm going to do tonight! Any issues, I'll update this post with more data.



EDIT:  There was one issue on flash. I don't know if this was from version level, or the fact that I skipped a bios generation, but all settings in the bios were reset to factory defaults. So, be sure to take note of any custom changes you make in your BIOS, prior to flashing. ;)



Also, worth noting, per the website's recommendation, I kept C-states enabled (again, didn't seem to be an issue before), and deleted the line out of my go file - syslinux and go are basically stock at this point.



Edited by Jcloud
Link to post
On 5/3/2018 at 2:38 PM, Jcloud said:

all settings in the bios were reset to factory defaults. So, be sure to take note of any custom changes you make in your BIOS, prior to flashing.

That's actually the recommendation of pretty much every BIOS update I've ever seen. The docs usually tell you to manually apply factory defaults, save, then make any changes you want. I suspect it's because of situations precisely like yours, where the BIOS changes make some settings act differently.



Similar to limetech telling people to be sure their reported problem exists in safe mode, to eliminate as many variables as possible when testing new things.

Link to post
4 hours ago, jonathanm said:

That's actually the recommendation of pretty much every BIOS update I've ever seen.

Yeah I've seen that in the manuals too. I admit, I typically ignore that part - usually because I'm building a computer for some one else so: I haven't setup setting yet, and I won't be seeing the box again until the customer brings it back in for repairs.



Link to post
On 4/20/2018 at 4:27 AM, Jcloud said:



Re the BIOS s/shots, are ALL of these values changed from default?



No Zenstates or C states needed now with later BIOS.



Still need the ACS Over-ride?



surely you have to stub USB controllers to pass them through?

Link to post
2 hours ago, methanoid said:

Re the BIOS s/shots, are ALL of these values changed from default?



No Zenstates or C states needed now with later BIOS.



Still need the ACS Over-ride?



Of my screen shots, everything I highlighted, is a setting I changed from their defaults.

Correct I haven't changed Zenstates for C-states.

Yes, I'm still using ACS override.

2 hours ago, methanoid said:

surely you have to stub USB controllers to pass them through?

What do you mean? Blacklist on kernel? I'm drawing blank on what you're referring to (although I've seen this referred to in other posts).
Literally all I do to pass through the USB controller is what I outlined here:

LOL am I suppose to be doing more/other things for this to work? :D

If want screen shoots of anything LMK.



Edited by Jcloud
Link to post

Thanks... I'm having small issues (like fans slicing my fingers!) and not in the best mood...   The lack of Zenstates causing unRAID to keep telling me about it (FixCommonProblems) so I guess I have to tell it to stop doing so....

Link to post
1 minute ago, methanoid said:

 The lack of Zenstates causing unRAID to keep telling me about it (FixCommonProblems) so I guess I have to tell it to stop doing so....

Yeah I think that's why I turned it on in the first place, but didn't need to before.  I think I had decided on, personally, to disable zen-states at that time; but after this last bios update I haven't bothered to redo that. Also guessing that FixCommonProblems doesn't distinguish from Ryzen's and the Threadripper's (since TR is a sub-class I believe).

Link to post

@Jcloud



My IOMMU is very different to yours



You have

IOMMU group 14: [1022:43ba] 01:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset USB 3.1 xHCI Controller (rev 02) IOMMU group 24: [1b21:2142] 08:00.0 USB controller: ASMedia Technology Inc. Device 2142 IOMMU group 30: [1022:145c] 0b:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller IOMMU group 33: [1022:1457] 0c:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) HD Audio Controller IOMMU group 47: [1022:145c] 42:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller



I have

IOMMU group 0:	[1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 1:	[1022:1453] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 2:	[1022:1453] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 3:	[1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 4:	[1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 5:	[1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 6:	[1022:1453] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 7:	[1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 8:	[1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 9:	[1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 10:	[1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 11:	[1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 12:	[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59)
[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
IOMMU group 13:	[1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0
[1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1
[1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2
[1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3
[1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4
[1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5
[1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 6
[1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7
IOMMU group 14:	[1022:1460] 00:19.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0
[1022:1461] 00:19.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1
[1022:1462] 00:19.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2
[1022:1463] 00:19.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3
[1022:1464] 00:19.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4
[1022:1465] 00:19.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5
[1022:1466] 00:19.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 6
[1022:1467] 00:19.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7
IOMMU group 15:	[1022:43ba] 01:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset USB 3.1 xHCI Controller (rev 02)
[1022:43b6] 01:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset SATA Controller (rev 02)
[1022:43b1] 01:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset PCIe Bridge (rev 02)
[1022:43b4] 02:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[1022:43b4] 02:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
[8086:1539] 05:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
[1b21:1080] 06:00.0 PCI bridge: ASMedia Technology Inc. ASM1083/1085 PCIe to PCI Bridge (rev 03)
[13f6:0111] 07:00.0 Multimedia audio controller: C-Media Electronics Inc CMI8738/CMI8768 PCI Audio (rev 10)
[1b21:2142] 09:00.0 USB controller: ASMedia Technology Inc. Device 2142
IOMMU group 16:	[144d:a804] 0a:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961
IOMMU group 17:	[10de:1c82] 0b:00.0 VGA compatible controller: NVIDIA Corporation GP107 [GeForce GTX 1050 Ti] (rev a1)
[10de:0fb9] 0b:00.1 Audio device: NVIDIA Corporation GP107GL High Definition Audio Controller (rev a1)
IOMMU group 18:	[10de:1049] 0c:00.0 VGA compatible controller: NVIDIA Corporation GF119 [GeForce GT 620 OEM] (rev a1)
[10de:0e08] 0c:00.1 Audio device: NVIDIA Corporation GF119 HDMI Audio Controller (rev a1)
IOMMU group 19:	[1022:145a] 0d:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a
[1022:1456] 0d:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor
[1022:145c] 0d:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller
IOMMU group 20:	[1022:1455] 0e:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455
[1022:7901] 0e:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
[1022:1457] 0e:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) HD Audio Controller
IOMMU group 21:	[1022:1452] 40:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 22:	[1022:1453] 40:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 23:	[1022:1452] 40:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 24:	[1022:1452] 40:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 25:	[1022:1453] 40:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 26:	[1022:1452] 40:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 27:	[1022:1452] 40:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 28:	[1022:1454] 40:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 29:	[1022:1452] 40:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 30:	[1022:1454] 40:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 31:	[1000:0086] 41:00.0 Serial Attached SCSI controller: LSI Logic / Symbios Logic SAS2308 PCI-Express Fusion-MPT SAS-2 (rev 05)
IOMMU group 32:	[10de:1c03] 42:00.0 VGA compatible controller: NVIDIA Corporation GP106 [GeForce GTX 1060 6GB] (rev a1)
[10de:10f1] 42:00.1 Audio device: NVIDIA Corporation GP106 High Definition Audio Controller (rev a1)
IOMMU group 33:	[1022:145a] 43:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a
[1022:1456] 43:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor
[1022:145c] 43:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller
IOMMU group 34:	[1022:1455] 44:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455
[1022:7901] 44:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
I have 34 groups.. you have 47 (even though I have many more devices)... I wonder if you have some other IOMMU settings in BIOS different to me....

My USB controllers are not separate (Waaaaah!)
My group 15 also contains my x1 slot card so that bones passing that thru..

Half the reason for buying this board was cos you got good separation.   I'm on latest BIOS!

Any helpful ideas?

Link to post
5 hours ago, methanoid said:

Half the reason for buying this board was cos you got good separation. I'm on latest BIOS! Any helpful ideas?

Oh that sucks, I know half the reason you bought that board was from my data/setup.  Lets see. . .



I'm just going to go down my list:

  1.  BIOS\Adavanced\AMD PBS  ---> "Enuerate all IOMMU in IVRS is "ENABLED"
  2.  BIOS\Advanced\CPU Configuration  -->  "NX Mode" and "SVM Mode" are "ENABLED"
  3.  BIOS\Advanced\AMD CBS\NBIO Common Options\NB Configuration -->   "IOMMU" is "ENABLED"
  4.  syslinux.cfg  :
    root@HYDRA:/boot/syslinux# cat syslinux.cfg
    default menu.c32
    menu title Lime Technology, Inc.
    prompt 0
    timeout 50
    label unRAID OS
      menu default
      kernel /bzimage
      append pcie_acs_override=downstream,multifunction initrd=/bzroot
    label unRAID OS GUI Mode
      kernel /bzimage
      append pcie_acs_override=downstream,multifunction initrd=/bzroot,/bzroot-gui
    label unRAID OS Safe Mode (no plugins, no GUI)
      kernel /bzimage
      append pcie_acs_override=downstream initrd=/bzroot unraidsafemode
    label unRAID OS GUI Safe Mode (no plugins)
      kernel /bzimage
      append pcie_acs_override=downstream initrd=/bzroot,/bzroot-gui unraidsafemode
    label Memtest86+
      kernel /memtest



Going to reboot after posting and look for a board revision number, for comparison.

I'm sorry dude, I feel like I let you down or I've misreported something (although I honestly don't know what that would be).


Edited by Jcloud
Link to post

@Jcloud  not at all bud.. you've been a great help all along and great source of info...



FYI, my BIOS settings were same already but the only change needed was the pcie_acs_override=downstream,multifunction



Never even heard of that but it did the trick! Not even possible to be MORE separated now!! ?  Thanks



IOMMU group 0:	[1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 1:	[1022:1453] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 2:	[1022:1453] 00:01.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 3:	[1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 4:	[1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 5:	[1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 6:	[1022:1453] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 7:	[1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 8:	[1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 9:	[1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 10:	[1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 11:	[1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 12:	[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59)
[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
IOMMU group 13:	[1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0
[1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1
[1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2
[1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3
[1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4
[1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5
[1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 6
[1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7
IOMMU group 14:	[1022:1460] 00:19.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 0
[1022:1461] 00:19.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 1
[1022:1462] 00:19.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 2
[1022:1463] 00:19.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 3
[1022:1464] 00:19.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 4
[1022:1465] 00:19.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 5
[1022:1466] 00:19.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 6
[1022:1467] 00:19.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Data Fabric: Device 18h; Function 7
IOMMU group 15:	[1022:43ba] 01:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset USB 3.1 xHCI Controller (rev 02)
IOMMU group 16:	[1022:43b6] 01:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset SATA Controller (rev 02)
IOMMU group 17:	[1022:43b1] 01:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset PCIe Bridge (rev 02)
IOMMU group 18:	[1022:43b4] 02:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
IOMMU group 19:	[1022:43b4] 02:01.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
IOMMU group 20:	[1022:43b4] 02:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
IOMMU group 21:	[1022:43b4] 02:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
IOMMU group 22:	[1022:43b4] 02:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
IOMMU group 23:	[1022:43b4] 02:09.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] 300 Series Chipset PCIe Port (rev 02)
IOMMU group 24:	[8086:1539] 05:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
IOMMU group 25:	[1b21:1080] 06:00.0 PCI bridge: ASMedia Technology Inc. ASM1083/1085 PCIe to PCI Bridge (rev 03)
[13f6:0111] 07:00.0 Multimedia audio controller: C-Media Electronics Inc CMI8738/CMI8768 PCI Audio (rev 10)
IOMMU group 26:	[1b21:2142] 09:00.0 USB controller: ASMedia Technology Inc. Device 2142
IOMMU group 27:	[144d:a804] 0a:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961
IOMMU group 28:	[10de:1c82] 0b:00.0 VGA compatible controller: NVIDIA Corporation GP107 [GeForce GTX 1050 Ti] (rev a1)
IOMMU group 29:	[10de:0fb9] 0b:00.1 Audio device: NVIDIA Corporation GP107GL High Definition Audio Controller (rev a1)
IOMMU group 30:	[10de:1049] 0c:00.0 VGA compatible controller: NVIDIA Corporation GF119 [GeForce GT 620 OEM] (rev a1)
IOMMU group 31:	[10de:0e08] 0c:00.1 Audio device: NVIDIA Corporation GF119 HDMI Audio Controller (rev a1)
IOMMU group 32:	[1022:145a] 0d:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a
IOMMU group 33:	[1022:1456] 0d:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor
IOMMU group 34:	[1022:145c] 0d:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller
IOMMU group 35:	[1022:1455] 0e:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455
IOMMU group 36:	[1022:7901] 0e:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 37:	[1022:1457] 0e:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) HD Audio Controller
IOMMU group 38:	[1022:1452] 40:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 39:	[1022:1453] 40:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 40:	[1022:1452] 40:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 41:	[1022:1452] 40:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 42:	[1022:1453] 40:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe GPP Bridge
IOMMU group 43:	[1022:1452] 40:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 44:	[1022:1452] 40:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 45:	[1022:1454] 40:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 46:	[1022:1452] 40:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) PCIe Dummy Host Bridge
IOMMU group 47:	[1022:1454] 40:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Internal PCIe GPP Bridge 0 to Bus B
IOMMU group 48:	[1000:0086] 41:00.0 Serial Attached SCSI controller: LSI Logic / Symbios Logic SAS2308 PCI-Express Fusion-MPT SAS-2 (rev 05)
IOMMU group 49:	[10de:1c03] 42:00.0 VGA compatible controller: NVIDIA Corporation GP106 [GeForce GTX 1060 6GB] (rev a1)
IOMMU group 50:	[10de:10f1] 42:00.1 Audio device: NVIDIA Corporation GP106 High Definition Audio Controller (rev a1)
IOMMU group 51:	[1022:145a] 43:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a
IOMMU group 52:	[1022:1456] 43:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) Platform Security Processor
IOMMU group 53:	[1022:145c] 43:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller
IOMMU group 54:	[1022:1455] 44:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455
IOMMU group 55:	[1022:7901] 44:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)



I note my 6 SATA ports are even now split into 3 controllers.. I wonder if that means I could pass 2 ports to a VM direct?!? ?

Edited by methanoid
Link to post

With thanks to @Jcloud and @fmp4m  I am running fine now.. in silence with 4 GHz OC TR1950x, 3 USB controllers stubbed for VMs



4(8) cores dedicated for unRAID, 4(8) cores shared unRAID/low priority VMs and 8(16) cores for a beefy Windows VM



Now I can play with VMs for a good long time (after my exams finish!)



Link to post
4 hours ago, methanoid said:

I note my 6 SATA ports are even now split into 3 controllers.. I wonder if that means I could pass 2 ports to a VM direct?!? ?

I don't know but that sounds like something fun to try! ;)  I'm stoked for you dude, I'm somewhere between relieved and happy that it was just a missing setting for you.



Now, put this s*%& away and go study for your mentioned exams, and good luck with said exams. ?





Link to post
  • 1 month later...

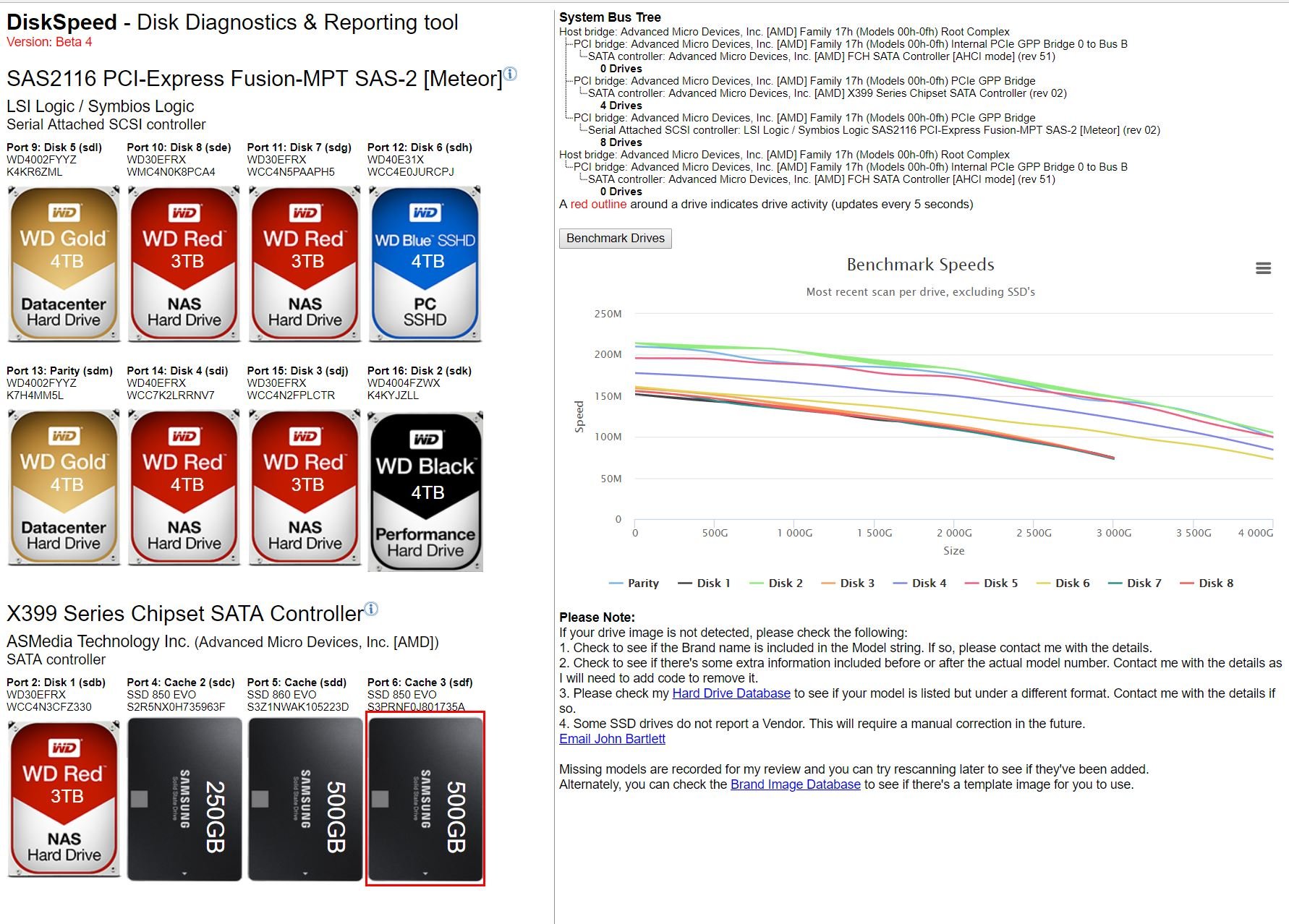

Recently tried @jbartlett DiskSpeed Docker, nifty little tool and graph.  I think it's fair to say Mr. Bartlett put in a fair amount of work into this project.

"Let's give Dr. Klahn a great big hand!" drivebenchmark_hydra.thumb.JPG.43cb5a2a99f29c2f0d821f78b7625315.JPG

Measured in 10% chunks.

Edited by Jcloud
Link to post
19 minutes ago, jbartlett said:

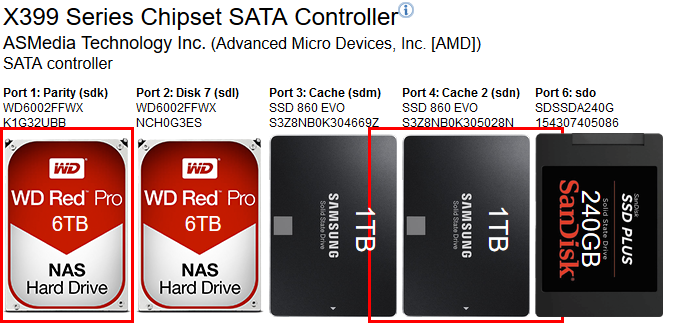

What browser are you using?

Google Chrome Version 67.0.3396.87 (Win)

extensions:

Disconnect 5.18.23

uBlock Origin 1.16.10



Edit: Ah yes our own Acid3 test.

Looks the same in incognito-mode (no extensions).

Edited by Jcloud
Link to post
  • 4 weeks later...

Hey @Jcloud: some questions please

  1. What are the "quirks" you currently have (or not) with the build?
  2. Do you have a cheapo dedicated GPU for unRAID?
  3. What GPUs do you have for the VMs?
  4. Can you shutdown and then restart the VM without having to restart the host? <-- this was a massive inconvenience last time I dipped my toe in this passthrough thingie.

With the upcoming 2990X, I am very much interested in merging my server and workstation into 1 machine now. :D

Edited by testdasi
Link to post
11 hours ago, testdasi said:
  • Do you have a cheapo dedicated GPU for unRAID?

Nope it's basically head-less. I admin the box either from a VM, or a device on  my LAN. Works for me about 90% of the time - 10% is usually an annoyance.



11 hours ago, testdasi said:

What are the "quirks" you currently have (or not) with the build?

For "quirks" on cold-boots the system spins up, then shuts off, rests for about .5 second, spins up and it might do this another time or it might POST - that's the main "quirk." Otherwise I would say read over my entire post to see if anything sticks out to you.  Not TR related, but I wouldn't recommend my 3x5 drive bays to others; I think there are better products out there.   Another edit:  Come to think of it, @methanoid pointed out from his build (which I customized, and missed reporting) was adding:

 pcie_acs_override=downstream,multifunction

to syslinux file.





11 hours ago, testdasi said:

 What GPUs do you have for the VMs?

The two I've listed in this thread, an EVGA GTX1070sc and an EVGA GTX1050. (Edit# lost count) My HTC vive has been working great the GTX1070 and through passed through USB3 controller.



11 hours ago, testdasi said:

Can you shutdown and then restart the VM without having to restart the host?

Yeah absolutely, I can reboot the same VM a number of times. If I shut down one VM and restart into another VM, which uses some of the same hardware this can sometimes cause unstable behavior which reboot fixes (like 4-6++ cycles, between two or three different VMs which all use the same hardware before this happens).  Rebooting the same VM over and over, doesn't cause any instability.



Also for FYI, I'm on unRAID 6.5.3, runs great! As of last weekend, my array setup has changed - my two WD Golds are both parity drives now. I liked the idea of duel-parity, and presently I didn't need the extra 4TB of space, so I reconfigured and rebuilt my array.

Edited by Jcloud
gramar
Link to post

@Jcloud   Could I ask you to test something else for me...    I suspect there is an issue passing USB 3.1 controllers to VMs.



If I pass my AMD 3.1 controller it shows up but devices connected to it do not... and you can't hotplug

If I pass my Asmedia 3.1 controller I get continually looping connect/disconnects



If I pass my AMD 3.0 controllers all fine...



But that means max of 2 controllers to pass which is bad for 3 VMs!

Link to post
11 hours ago, methanoid said:

Could I ask you to test something else for me...    I suspect there is an issue passing USB 3.1 controllers to VMs.



If I pass my AMD 3.1 controller it shows up but devices connected to it do not... and you can't hotplug

If I pass my Asmedia 3.1 controller I get continually looping connect/disconnects



If I pass my AMD 3.0 controllers all fine...



But that means max of 2 controllers to pass which is bad for 3 VMs!

I'm only able to pass one controller through, presently - that's different. Well shoot, I wonder WTH happened there? Looking into that, I'll edit post when I know more (probably be couple of days, schedule is a bit busy).

Link to post
On 7/15/2018 at 2:02 PM, Jcloud said:

I'm only able to pass one controller through, presently - that's different. Well shoot, I wonder WTH happened there? Looking into that, I'll edit post when I know more (probably be couple of days, schedule is a bit busy).

@testdasi you asked about quirks well I got one! @methanoid you're probably not going to like this one, or maybe you will, I currently have three of the controllers passed through on three separate and simultaneously running VMs.



First off, I know what I'm about to write will sound contradictory to last night's post.  I was able to look at my box tonight; I wasn't so sure last night. Anyways....

My regular VM client is a Windows gamer setup; with razor keyboard, mouse, and a Logitech F11 gamepad; and one USB controller for VR gear.  I have a secondary gaming VM which uses GTX1050, MS keyboard, and a naga mouse.  Last night, if I added a USB controller, the symptom I WAS getting:  when starting the VM it all USB attached devices disconnected all local hardware was unresponsive. The unRAID USB was no exception, when I loaded the webui the CSS style changed from "night" to "day" themes,  my custom banner was lost and the default banner was in place.  Luckily my system responded OK to a reboot, everything was went back to normal - but unRAID started a parity check (guessing it counted as a dirty shutdown).



I duplicated this error behavior three times. In one iteration I broke VM settings, had to point it at my ISOs folder. Afterwards I made last night's post.   Let my system run parity, and left it be.  Today after work, I verified parity finished and was OK.  I rebooted and looked at BIOS settings, USB settings  -- system FROZE! Okay, WTF?! Reset switch. Back into BIOS, no issues. Booted unRAID normal.  In webui, for the secondary gaming VM, I unchecked the keyboard and mouse, saved. Then I added XML for another usb controller, saved. Edited the VM settings once more, changed back to "form view," saved. Started the VM -- IT WORKS!  . . . Wait it works? WTF?  Shut off VM, add KB and mouse, start it -- IT WORKS.



root@HYDRA:~# lspci | grep USB
01:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset USB 3.1 xHCI Controller (rev 02)
08:00.0 USB controller: ASMedia Technology Inc. Device 2142
0b:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller
42:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller

So at this point @methanoid from two VM's I had the 0b:00.3 and 42:00.3 controllers running at same time. I've since changed, on the secondary VM (gtx1050), over to 08:00.0 controller.  I don't have three GPU's so for the third VM it has VNC setup,  which I gave it 0b:00.3 controller.  To test the controllers I took a USB thumb drive and plugged it through all the ports and watch it go from one screen onto the next.



So what did I do to make it work, other than curse at the computer screen, or reboot the system? IDK, and that bugs me.

Here is the XML of the running VMs and a screen shot of the webui. Short of making a video, not sure what counts for, "proof, I did it." ;)



EDIT1:  I just tried to pass, " 01:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset USB 3.1 xHCI Controller" that must have been what I tried to pass last night, because everything I wrote about last night just happened.

<domain type='kvm' id='3'>
  <name>Alison</name>
  <uuid>317c41ad-5b77-9fa8-12b0-2a03a94704e8</uuid>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>16777216</memory>
  <currentMemory unit='KiB'>16777216</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>8</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='4'/>
    <vcpupin vcpu='1' cpuset='20'/>
    <vcpupin vcpu='2' cpuset='5'/>
    <vcpupin vcpu='3' cpuset='21'/>
    <vcpupin vcpu='4' cpuset='6'/>
    <vcpupin vcpu='5' cpuset='22'/>
    <vcpupin vcpu='6' cpuset='7'/>
    <vcpupin vcpu='7' cpuset='23'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-i440fx-2.11'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/317c41ad-5b77-9fa8-12b0-2a03a94704e8_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='8' threads='1'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/Alison/vdisk1.img'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/ISOs/Windows10old.iso'/>
      <backingStore/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <alias name='sata0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/ISOs/virtio-win-0.1.141.iso'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='nec-xhci' ports='15'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'>
      <alias name='pci.0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='sata0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:a9:d7:37'/>
      <source bridge='br0'/>
      <target dev='vnet1'/>
      <model type='virtio'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/1'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/1'>
      <source path='/dev/pts/1'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-3-Alison/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='disconnected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='mouse' bus='ps2'>
      <alias name='input0'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input1'/>
    </input>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x09' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x09' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x08' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x045e'/>
        <product id='0x07b9'/>
        <address bus='1' device='8'/>
      </source>
      <alias name='hostdev3'/>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0015'/>
        <address bus='1' device='9'/>
      </source>
      <alias name='hostdev4'/>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <memballoon model='virtio'>
      <alias name='balloon0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/>
    </memballoon>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>
<domain type='kvm' id='4'>
  <name>BigBrother</name>
  <uuid>255a84cc-28fe-f08f-cb2d-d4d43866879f</uuid>
  <description>Blue Iris VM - test1</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>8912896</memory>
  <currentMemory unit='KiB'>8912896</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>4</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='2'/>
    <vcpupin vcpu='1' cpuset='18'/>
    <vcpupin vcpu='2' cpuset='3'/>
    <vcpupin vcpu='3' cpuset='19'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-i440fx-2.11'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/255a84cc-28fe-f08f-cb2d-d4d43866879f_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='4' threads='1'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/user/domains/BigBrother/vdisk1.img'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/ISOs/Windows_1803_Eng_x64.iso'/>
      <backingStore/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <alias name='sata0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/ISOs/virtio-win-0.1.141.iso'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='ich9-ehci1'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <alias name='usb'/>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci2'>
      <alias name='usb'/>
      <master startport='2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci3'>
      <alias name='usb'/>
      <master startport='4'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'>
      <alias name='pci.0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='sata0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:21:e5:84'/>
      <source bridge='br0'/>
      <target dev='vnet2'/>
      <model type='virtio'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/3'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/3'>
      <source path='/dev/pts/3'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-4-BigBrother/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='connected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='tablet' bus='usb'>
      <alias name='input0'/>
      <address type='usb' bus='0' port='1'/>
    </input>
    <input type='mouse' bus='ps2'>
      <alias name='input1'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input2'/>
    </input>
    <graphics type='vnc' port='5900' autoport='yes' websocket='5700' listen='0.0.0.0' keymap='en-us'>
      <listen type='address' address='0.0.0.0'/>
    </graphics>
    <video>
      <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
      <alias name='video0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </video>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x0b' slot='0x00' function='0x3'/>
      </source>
      <alias name='hostdev0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </hostdev>
    <memballoon model='virtio'>
      <alias name='balloon0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </memballoon>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>
<domain type='kvm' id='1'>
  <name>Pickle Rick</name>
  <uuid>1d261129-563c-42e0-ad09-02cea4bc2598</uuid>
  <description>Im a PICKLE</description>
  <metadata>
    <vmtemplate xmlns="unraid" name="Windows 10" icon="windows.png" os="windows10"/>
  </metadata>
  <memory unit='KiB'>37748736</memory>
  <currentMemory unit='KiB'>37748736</currentMemory>
  <memoryBacking>
    <nosharepages/>
  </memoryBacking>
  <vcpu placement='static'>12</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='10'/>
    <vcpupin vcpu='1' cpuset='26'/>
    <vcpupin vcpu='2' cpuset='11'/>
    <vcpupin vcpu='3' cpuset='27'/>
    <vcpupin vcpu='4' cpuset='12'/>
    <vcpupin vcpu='5' cpuset='28'/>
    <vcpupin vcpu='6' cpuset='13'/>
    <vcpupin vcpu='7' cpuset='29'/>
    <vcpupin vcpu='8' cpuset='14'/>
    <vcpupin vcpu='9' cpuset='30'/>
    <vcpupin vcpu='10' cpuset='15'/>
    <vcpupin vcpu='11' cpuset='31'/>
  </cputune>
  <resource>
    <partition>/machine</partition>
  </resource>
  <os>
    <type arch='x86_64' machine='pc-i440fx-2.11'>hvm</type>
    <loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
    <nvram>/etc/libvirt/qemu/nvram/1d261129-563c-42e0-ad09-02cea4bc2598_VARS-pure-efi.fd</nvram>
  </os>
  <features>
    <acpi/>
    <apic/>
    <hyperv>
      <relaxed state='on'/>
      <vapic state='on'/>
      <spinlocks state='on' retries='8191'/>
      <vendor_id state='on' value='none'/>
    </hyperv>
  </features>
  <cpu mode='host-passthrough' check='none'>
    <topology sockets='1' cores='12' threads='1'/>
  </cpu>
  <clock offset='localtime'>
    <timer name='hypervclock' present='yes'/>
    <timer name='hpet' present='no'/>
  </clock>
  <on_poweroff>destroy</on_poweroff>
  <on_reboot>restart</on_reboot>
  <on_crash>restart</on_crash>
  <devices>
    <emulator>/usr/local/sbin/qemu</emulator>
    <disk type='file' device='disk'>
      <driver name='qemu' type='raw' cache='writeback'/>
      <source file='/mnt/cache/domains/PickleRick/vdisk1.img'/>
      <backingStore/>
      <target dev='hdc' bus='virtio'/>
      <boot order='1'/>
      <alias name='virtio-disk2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/ISOs/Windows10.iso'/>
      <backingStore/>
      <target dev='hda' bus='sata'/>
      <readonly/>
      <boot order='2'/>
      <alias name='sata0-0-0'/>
      <address type='drive' controller='0' bus='0' target='0' unit='0'/>
    </disk>
    <disk type='file' device='cdrom'>
      <driver name='qemu' type='raw'/>
      <source file='/mnt/user/ISOs/virtio-win-0.1.141.iso'/>
      <backingStore/>
      <target dev='hdb' bus='sata'/>
      <readonly/>
      <alias name='sata0-0-1'/>
      <address type='drive' controller='0' bus='0' target='0' unit='1'/>
    </disk>
    <controller type='usb' index='0' model='nec-xhci' ports='15'>
      <alias name='usb'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0'/>
    </controller>
    <controller type='pci' index='0' model='pci-root'>
      <alias name='pci.0'/>
    </controller>
    <controller type='sata' index='0'>
      <alias name='sata0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
    </controller>
    <controller type='virtio-serial' index='0'>
      <alias name='virtio-serial0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
    </controller>
    <interface type='bridge'>
      <mac address='52:54:00:e2:02:c9'/>
      <source bridge='br0'/>
      <target dev='vnet0'/>
      <model type='virtio'/>
      <alias name='net0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
    </interface>
    <serial type='pty'>
      <source path='/dev/pts/0'/>
      <target type='isa-serial' port='0'>
        <model name='isa-serial'/>
      </target>
      <alias name='serial0'/>
    </serial>
    <console type='pty' tty='/dev/pts/0'>
      <source path='/dev/pts/0'/>
      <target type='serial' port='0'/>
      <alias name='serial0'/>
    </console>
    <channel type='unix'>
      <source mode='bind' path='/var/lib/libvirt/qemu/channel/target/domain-1-Pickle Rick/org.qemu.guest_agent.0'/>
      <target type='virtio' name='org.qemu.guest_agent.0' state='connected'/>
      <alias name='channel0'/>
      <address type='virtio-serial' controller='0' bus='0' port='1'/>
    </channel>
    <input type='mouse' bus='ps2'>
      <alias name='input0'/>
    </input>
    <input type='keyboard' bus='ps2'>
      <alias name='input1'/>
    </input>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x41' slot='0x00' function='0x0'/>
      </source>
      <alias name='hostdev0'/>
      <rom file='/mnt/cache/domains/gtx1070.dump'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x41' slot='0x00' function='0x1'/>
      </source>
      <alias name='hostdev1'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x08' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x42' slot='0x00' function='0x3'/>
      </source>
      <alias name='hostdev2'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x09' function='0x0'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x046d'/>
        <product id='0xc21d'/>
        <address bus='1' device='2'/>
      </source>
      <alias name='hostdev3'/>
      <address type='usb' bus='0' port='1'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x0040'/>
        <address bus='1' device='7'/>
      </source>
      <alias name='hostdev4'/>
      <address type='usb' bus='0' port='2'/>
    </hostdev>
    <hostdev mode='subsystem' type='usb' managed='no'>
      <source>
        <vendor id='0x1532'/>
        <product id='0x011a'/>
        <address bus='1' device='6'/>
      </source>
      <alias name='hostdev5'/>
      <address type='usb' bus='0' port='3'/>
    </hostdev>
    <memballoon model='virtio'>
      <alias name='balloon0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x0a' function='0x0'/>
    </memballoon>
  </devices>
  <seclabel type='dynamic' model='dac' relabel='yes'>
    <label>+0:+100</label>
    <imagelabel>+0:+100</imagelabel>
  </seclabel>
</domain>

Presently, I have yet to try the fourth USB controller at 01: or the USB3.1 -- this was odd enough finding, I figured I should post while details are still fresh.

In summary of the following controllers:

  • 01:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] X399 Series Chipset USB 3.1 xHCI Controller (rev 02)  ---> FAILS!
  • 08:00.0 USB controller: ASMedia Technology Inc. Device 2142   ---->   WORKS!
  • 0b:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller   ---->   WORKS!
  • 42:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Family 17h (Models 00h-0fh) USB 3.0 Host Controller   ---->   WORKS!



3USB controllers.JPG

Edited by Jcloud
it improves the grammar or else it gets the hose again.
Link to post

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
