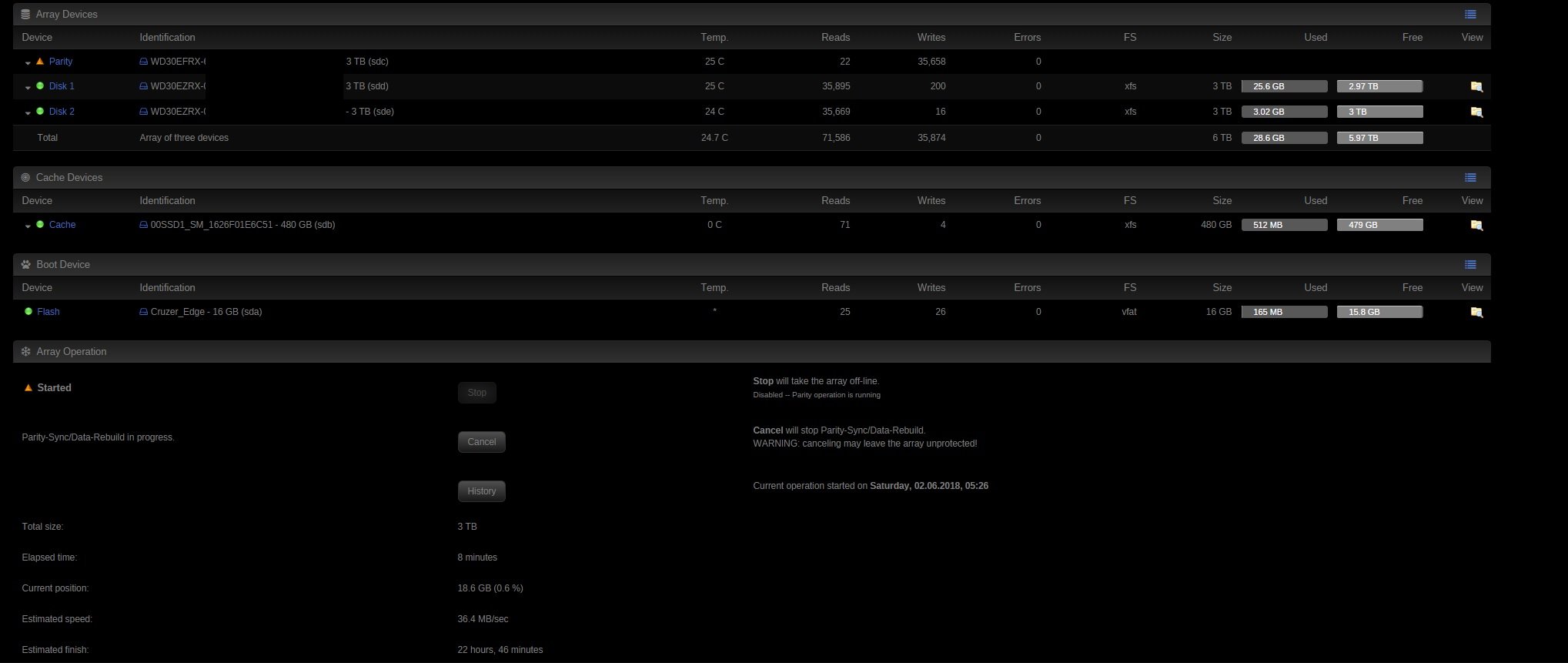

BlackHawk3000 Posted June 2, 2018 Share Posted June 2, 2018 Hello guys,  i know, this topic is very often here in the forum. But i think i tried a many things.  I only have 36MB/s at the sync with four HDDs. If i put one out, the speed goes up to 140MB/s and thats ok i think. But why the speed drop down, if i use more HDDs?  Motherboard is ok, i switched this with CPU. x2065A-R6 is ok too, i think  i5 2500k Z68 Extreme 3 Gen3 with newest bios update 2x PCIe 16x (one x2065 / one LAN-Card) DS4243 Disk Shelf  I hope you can help guys. Nice Weekend  Link to comment
JorgeB Posted June 2, 2018 Share Posted June 2, 2018 Please post your diagnostics: Tools -> Diagnostics Link to comment
BlackHawk3000 Posted June 2, 2018 Author Share Posted June 2, 2018 Here it is. Â Â bigboy-diagnostics-20180602-0609.zip Link to comment
JorgeB Posted June 2, 2018 Share Posted June 2, 2018 Problem is very likely the controller you're using, try using the onboard SATA ports and it should perform much better, if you need an HBA get an LSI instead. Link to comment
BlackHawk3000 Posted June 2, 2018 Author Share Posted June 2, 2018 Onboard SATA use with the DS4243 isnt possible. Do you know a LSI HBA with QSFP. because the DS has only QSFP ports?  Or can i try something like, other drivers...? Link to comment
JorgeB Posted June 2, 2018 Share Posted June 2, 2018 4 minutes ago, BlackHawk3000 said: Do you know a LSI HBA with QSFP No, but I believe you can get QSFP to MiniSAS cables Link to comment
BlackHawk3000 Posted June 2, 2018 Author Share Posted June 2, 2018 Which HBA card you prefer? Is an DELL H200E enough? Link to comment
JorgeB Posted June 2, 2018 Share Posted June 2, 2018 5 minutes ago, BlackHawk3000 said: Is an DELL H200E enough? Yes, any LSI with a SAS2008/2308/3008 chipset in IT mode, e.g., 9201-8i, 9211-8i, 9207-8i, 9300-8i, etc and clones, like the Dell H200/H310 and IBM M1015, these latter ones need to be crossflashed. Link to comment
BlackHawk3000 Posted June 2, 2018 Author Share Posted June 2, 2018 Ok, i hope thats the problem, I orderd now a H200E and an QSFP to SFF 8088 Cable. New feedback at the next weekend.  If somebody has other tips, please tell me    Link to comment
Zonediver Posted June 2, 2018 Share Posted June 2, 2018 FYI: All LSI-Cards which have a "0" on the 3rd possition, come with IT-Mode (Doc from Broadcom). Example: 9207-8i The 9211-8i come with IR-mode. Link to comment
BlackHawk3000 Posted June 7, 2018 Author Share Posted June 7, 2018 Hello Guys,  I have the same issue with my new H200E. 80Euro for nothing What can i do now?   bigboy-diagnostics-20180607-0850.zip Link to comment
JorgeB Posted June 7, 2018 Share Posted June 7, 2018 If it's not the HBA it's most likely the disk shelf, sorry I have no experience with that model, maybe someone else does. Link to comment
Vr2Io Posted June 8, 2018 Share Posted June 8, 2018 Does DS4243 with IOM6 or IOM3 ? I haven't those shelf. Link to comment
BlackHawk3000 Posted June 15, 2018 Author Share Posted June 15, 2018 Somebody, has other tips? Link to comment
