Move disk from Array to Parity

[louij2]

Hi



How can I move the empty disk from my Array to my Parity.



Thanks

[Squid]

Yes, just do a Tools - New Config, and reassign the drives accordingly on the Main Tab

[louij2]

1 minute ago, Squid said:

Yes, just do a Tools - New Config, and reassign the drives accordingly on the Main Tab

I just select Keep Data to keep my data?

[Squid]

New config doesn't actually do anything other than let you re-assign your drives.  Your data will be safe on everything (except of course whatever you assign to the parity slot)

[louij2]

Just now, Squid said:

New config doesn't actually do anything other than let you re-assign your drives.  Your data will be safe on everything (except of course whatever you assign to the parity slot)

I selected keep data last time and all my docker disappeared could that be cos it was stored on my cache?

Edited December 8, 2019 by louij2
aaa

[Squid]

If you didn't reassign your cache drive, then yeah that will happen.

[louij2]

Got it thanks

[louij2]

1 hour ago, Squid said:

If you didn't reassign your cache drive, then yeah that will happen.

Hi it now says that the parity is invalid I added one 4TB drive do I need more and that my drives are unmountable and that I need to wipe them to add???

[Squid]

8 minutes ago, louij2 said:

Hi it now says that the parity is invalid

Yeah, you didn't have a parity disk to begin with and since it hasn't been built yet from the data drives still remaining, then it is invalid.

9 minutes ago, louij2 said:

that my drives are unmountable and that I need to wipe them to add???

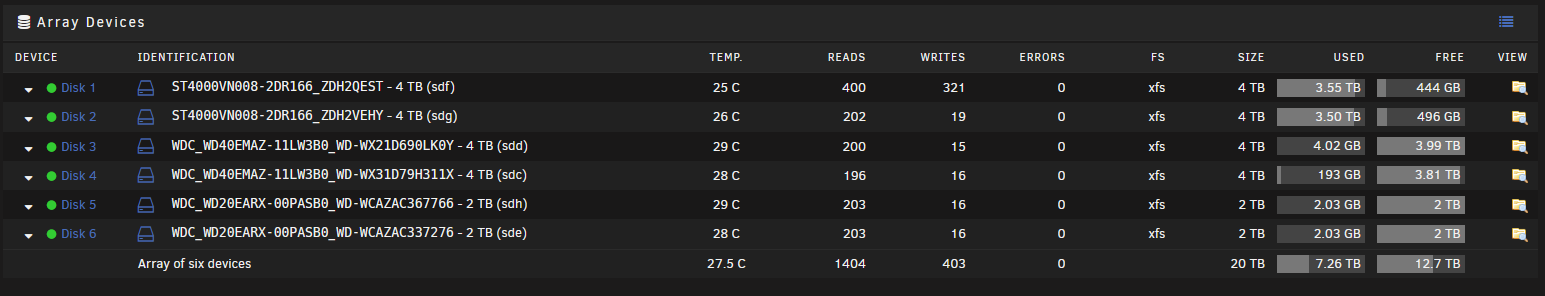

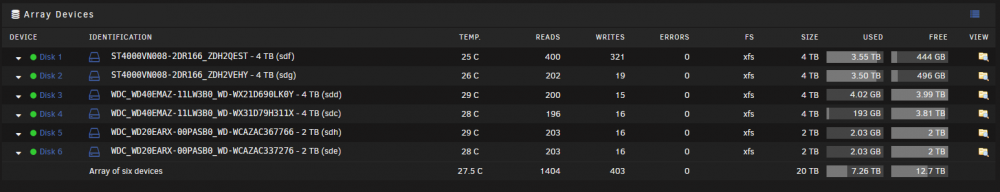

Post a screen shot

[louij2]

Just now, Squid said:

Yeah, you didn't have a parity disk to begin with and since it hasn't been built yet from the data drives still remaining, then it is invalid.

Post a screen shot

[Squid]

Post your diagnostics before you do anything

[louij2]

Just now, Squid said:

Post your diagnostics before you do anything



tower-diagnostics-20191208-1653.zip

[Squid]

Dec  8 07:34:58 Tower kernel: XFS (md5): Filesystem has duplicate UUID a129fa57-6a2f-4e07-b89d-9c5a5c68e54a - can't mount

Wait for @johnnie.black to look at this.  Don't touch anything

[louij2]

2 minutes ago, Squid said:

Dec  8 07:34:58 Tower kernel: XFS (md5): Filesystem has duplicate UUID a129fa57-6a2f-4e07-b89d-9c5a5c68e54a - can't mount

Wait for @johnnie.black to look at this.  Don't touch anything

Cheers

[louij2]

2 hours ago, Squid said:

Dec  8 07:34:58 Tower kernel: XFS (md5): Filesystem has duplicate UUID a129fa57-6a2f-4e07-b89d-9c5a5c68e54a - can't mount

Wait for @johnnie.black to look at this.  Don't touch anything

Same post

[louij2]

Just now, louij2 said:

Same post

Can I backup files I need then just wipe everything? or should I follow that

[Squid]

Except that you didn't do a rebuild and then attempt to mount the old drive.  You issued a new config, and every drive now thinks it has a duplicate UUID, and is now unmountable.  Due to the potential of loss of data, I'm bowing out until the filesystem expert can have a gander at this and advise accordingly.  A new config in and by itself should not make every disk unmountable.





[louij2]

2 minutes ago, Squid said:

Except that you didn't do a rebuild and then attempt to mount the old drive.  You issued a new config, and every drive now thinks it has a duplicate UUID, and is now unmountable.  Due to the potential of loss of data, I'm bowing out until the filesystem expert can have a gander at this and advise accordingly.  A new config in and by itself should not make every disk unmountable.





Okay thanks

[louij2]

51 minutes ago, Squid said:

Except that you didn't do a rebuild and then attempt to mount the old drive.  You issued a new config, and every drive now thinks it has a duplicate UUID, and is now unmountable.  Due to the potential of loss of data, I'm bowing out until the filesystem expert can have a gander at this and advise accordingly.  A new config in and by itself should not make every disk unmountable.





Can I just shut the NAS down?

[Squid]

Sure.  That won't make a difference either way.

[JorgeB]

Rebooting should fix it, if it doesn't please post new diags.

[louij2]

14 hours ago, Squid said:

Sure.  That won't make a difference either way.

3 hours ago, johnnie.black said:

Rebooting should fix it, if it doesn't please post new diags.

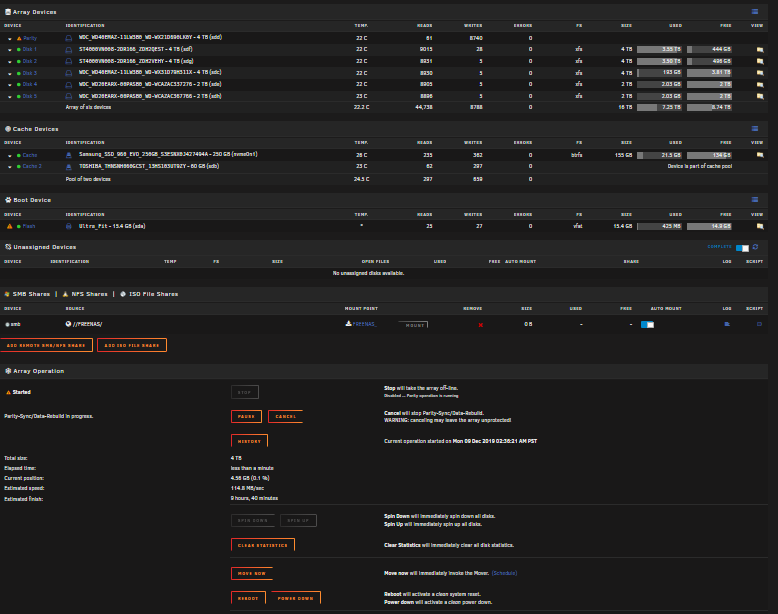

Thanks for your help I think it is Rebuilding parity now.

Edited December 9, 2019 by louij2

[JorgeB]

Looks good.
