Gunny

If you're able to control each fan individually via the IPMI-RAW commands, then yes you can create a separate profile for each. Reading this comment by me might help you get it working by building a custom config out with the plugin installed, the executable ipmi-raw should be on your path and so you should be able to send raw ipmi commands from your terminal

You'll have to reach out to Gigabyte support and ask them for the IPMI commands to control the fans on the system and what their values are if that is not already documented in their manual. Once you get that, then yeah you can get this plugin to work.

@H2O_King89 if you're still getting this, it looks like its a docker container OOM error, so one of your containers has an nginx process, and that container hit its memory limit so the system started killing the process with the largest memory usage in that container, you your case its nginx. You can tell because of the gfp_mask, it has value GFP_NOFAIL

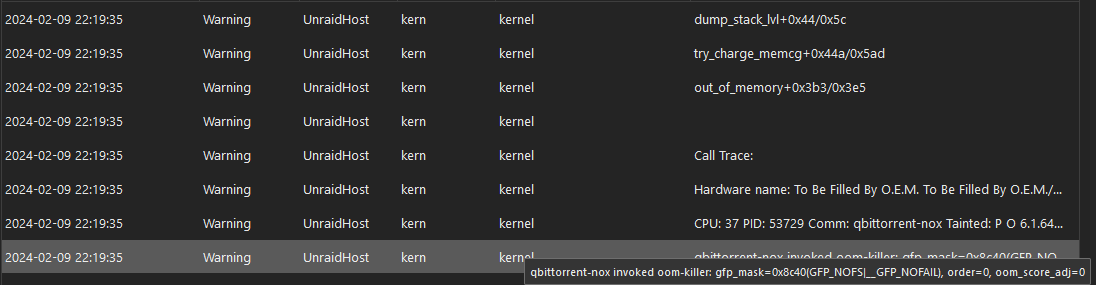

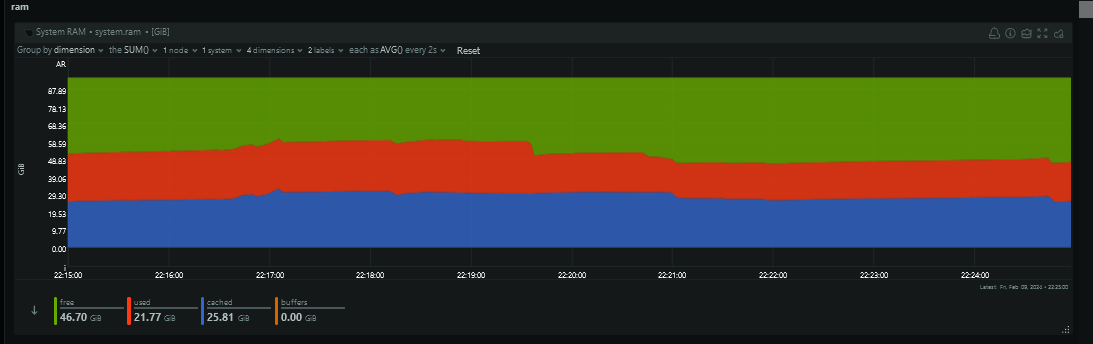

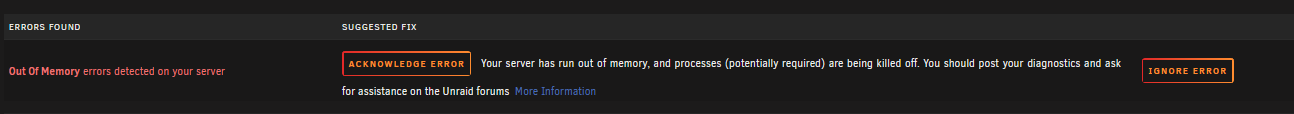

It looks like when you assign a docker container a memory limit and it violates that limit, FCP sees that as an OOM error for the entire system, which is incorrect. I would like to see system level OOM errors be a separate alert from container limit violation OOM error with the docker limit set to be a warning and system level remain as an error as it currently is. Plenty of memory available during the timeframe of the issue it looks like a difference you can key off of is the gfp_mask, it has NOFAIL for docker kills, but total system OOM gives something like GFP_KERNEL

No, this is primarily a tool to control fan speed via IPMI. It does install some ipmi functions onto the path, but you could do the same thing with nerdtools. https://www.intel.com/content/www/us/en/support/articles/000055688/server-products.html https://www.servethehome.com/reset-supermicro-ipmi-password-default-lost-login/

https://blog.chaospixel.com/linux/2016/09/Fan-control-on-Asrock-C2750D4I-C2550D4I-board.html seems to have ipmi-raw commands for your motherboard. based on that, this json file might work for you: { "ASRock": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 00 00", "fans": { "CPU_FAN1": "01", "CPU_FAN2": "01", "REAR_FAN1": "01", "REAR_FAN2": "01", "FRNT_FAN1": "01", "FRNT_FAN2": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } } Just in case that blog article ever gets removed, here is the pertinent information: ipmitool raw 0x3a 0x01 AA BB CC DD EE FF 0x00 0x00 Each block must be replaced with the requested fan control value. AA : CPU_FAN1 BB : CPU_FAN2 CC : REAR_FAN1 DD : REAR_FAN2 EE : FRNT_FAN1 FF : FRNT_FAN2 The control value is one of the following: 0x00 Smart fan (Duty cycle setting from BIOS) 0x04 min. RPM value …. increase RPM value 0x64 max. RPM value

root@UnraidHost:~# /usr/bin/lscpu | grep 'Socket(s):' | awk '{print $2}' 2 Which is expected since its a dual socket motherboard. Just the IPMI fan setup for the board only needs 1 IPMI command to set all fans. I guess other boards split the fans by socket?

Something I ran into today was that "Comma seperated list of file types:" doesn't match just the end of the filepath (i.e. just the extension/type) it also matches anywhere in the file path. So if you are trying to not move a file that ends in .part, that will also match files with .part elsewhere in the path. e.g. /mnt/user/tv/show1/s1/episode1.part1.mkv and /mnt/user/tv/the.partition.showname/s1/episode1.mkv will match.

Looking at the line that threw the error, I was able to fake it out by adding a 2nd board with no fans on it: { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "01 64 64 64 64 64 00 00", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FAN_POS4": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } }, "fake": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "01 64 64 64 64 64 00 00", "fans": { } } } I think the issue is fundamentally the code makes assumptions about board functionality in the code itself, and doesn't utilize the config files as the source of truth for what to do. Like in the ipmi_settings_fan.php where $cmd_count gets set, instead of counting the sections in the board.json to determine how many ipmi commands need to get run, it assumes it needs to send a command for each cpu socket on ASRock boards.

Ah, I was wondering if there was a place for php logs thanks for the tip [06-Dec-2023 18:52:40 America/New_York] PHP Fatal error: Uncaught TypeError: array_key_exists(): Argument #2 ($array) must be of type array, null given in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php:377 Stack trace: #0 /usr/local/emhttp/plugins/dynamix/include/DefaultPageLayout.php(709) : eval()'d code(153): get_fanctrl_options() #1 /usr/local/emhttp/plugins/dynamix/include/DefaultPageLayout.php(709): eval() #2 /usr/local/emhttp/plugins/dynamix/template.php(82): require_once('/usr/local/emht...') #3 {main} thrown in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 377 Section 2_ATX+5VSB ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 4.710000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 4.230000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 5.550000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 5.610000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 3_+3.3VSB ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 2.820000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 2.780000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 3.660000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 3.680000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 4_CPU1_VIN ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.260000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 1.240000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 2.090000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 2.100000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 5_VCCM_AB ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.080000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.020000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.960000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.320000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.440000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 6_+1.05_PCH ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 0.900000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.870000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.220000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.250000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 7_+1.50_PCH ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.350000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.270000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 1.200000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.650000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.720000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.800000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 8_BAT ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 2.500000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 2.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 3.580000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 3.680000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 9_CPU1_FAN1 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 10_CPU2_FAN1 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 11_REAR_FAN1 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 12_FRNT_FAN1 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 13_FRNT_FAN2 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 14_FRNT_FAN3 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 15_FRNT_FAN4 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 16_+3.3V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 2.820000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 2.780000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 3.660000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 3.680000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 17_+12V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 10.300000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 10.100000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 13.300000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 13.400000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 18_+5V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 4.710000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 4.230000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 5.550000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 5.610000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 20_CPU1_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 91.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 21_CPU2_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 91.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 22_CPU2_VIN ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.260000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 1.240000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 2.090000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 2.100000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 23_VCCM_CD ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.080000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.020000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.960000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.320000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.440000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 24_VCCM_EF ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.080000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.020000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.960000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.320000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.440000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 25_VCCM_GH ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.080000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.020000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.960000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.320000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.440000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 26_Case_Open ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_General_Chassis_Intrusion Yes ## Possible values: Yes/No Enable_Deassertion_Event_General_Chassis_Intrusion Yes EndSection Section 27_CPU1_PROCHOT ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 28_CPU2_PROCHOT ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 29_CPU1_THERMTRIP ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_FRB1_BIST_failure Yes ## Possible values: Yes/No Enable_Assertion_Event_FRB3_Processor_Startup_Initialization_Failure Yes ## Possible values: Yes/No Enable_Assertion_Event_Configuration_Error Yes EndSection Section 30_CPU2_THERMTRIP ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_FRB1_BIST_failure Yes ## Possible values: Yes/No Enable_Assertion_Event_FRB3_Processor_Startup_Initialization_Failure Yes ## Possible values: Yes/No Enable_Assertion_Event_Configuration_Error Yes EndSection Section 31_MB_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 50.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 32_Card_Side_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 33_TR1_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 34_PS1_Status ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 35_PS2_Status ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 44_DDR4_E_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 45_DDR4_C_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 46_DDR4_D_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 47_DDR4_H_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 48_DDR4_A_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 49_DDR4_G_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 50_DDR4_B_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 51_DDR4_F_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 52_PSU1_AC_Lost ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 53_PSU2_AC_Lost ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection

hmm, I updated to 12.06 and the fan control still works with my existing config files, but the settings page is broken now and I can't see or modify anything. Clicking on the buttons causes a new tab to be opened. If I remove my board.json config, the settings page starts to work again, but restoring it causes it to break { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "01 64 64 64 64 64 00 00", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FAN_POS4": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } }

@SimonFonly thing I can think of would be to add the json files to the config editor dropdown so people less technically inclined can still see/adjust those files if necessary.

This is the working file (EP2C612 WS), { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "NOT_AVAILABLE": "01", "FRNT_FAN1": "01", "FRNT_FAN2": "01", "FRNT_FAN3": "01", "FRNT_FAN4": "01" } } } FAN_POS4 seems to be an unused value for this board, but it is necessary to be part of the command. It could be named anything in the json file though, it was just named that by the previous iteration of the ipmi tool. I'm honestly not sure if its worth it to put in the fix to the ipmi2json tool as with a manually fixed json file, the tool runs fine with the ipmifan changes. And I'm not sure how common this board is at this point, and if someone searches for that board model number they'll find my posts about it here.

Through testing the ipmi data section for this motherboard goes to: 00 00 00 00 00 00 00 00 ^CPU1_FAN1 ^CPU2_FAN1 ^REAR_FAN1 ^N/A ^FRNT_FAN1 ^FRNT_FAN2 ^FRNT_FAN3 ^FRNT_FAN4 00 00 00 00 00 00 00 00 ^CPU1_FAN1 ^CPU2_FAN1 ^REAR_FAN1 ^N/A ^FRNT_FAN1 ^FRNT_FAN2 ^FRNT_FAN3 ^FRNT_FAN4 Manually re-adding in "FAN_POS4": "01" to my board.json representing the N/A word yields a ipmi-raw command with the correct number of fan words in the ipmi data section { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FAN_POS4": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } }

With the above change, it outputs this for the board.json { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } } But that causes the ipmifan script run output this ipmi-raw command ipmi-raw 00 3a 0116 16 17 12 00 00 00 2>&1; which is missing the space between 3a 01 and the fan section, and only has 7 elements instead of the necessary 8. running that ipmi-raw command manually (without the redirect of output) yields: root@UnraidHost:~# ipmi-raw 00 3a 0116 16 17 12 00 00 00 invalid hex byte argument adding the needed space yields: root@UnraidHost:~# ipmi-raw 00 3a 01 16 16 17 12 00 00 00 rcvd: 01 C7 which is an error code turning off fan control runs this ipmi-raw command: ipmi-raw 00 3a 01 00 00 00 00 00 00 00 00 2>&1 >/dev/null & which does have the correct layout and 8 00's in the data section of the command The reason why its missing a space between the raw and hex section is because the $cmd_str concatentation line for asrock/asrockrack is missing a space switch($board) { case "ASRock": case "ASRockRack": //compare last value to new value for Asrock boards if($board_model == "EP2C612 WS"){ $hex = ltrim($hex); } $cmd_str = "ipmi-raw $raw$hex $fanopts 2>&1; "; it should be $raw $hex not $raw$hex
