[PLUGIN] IPMI for 6.11+

[SimonF]

IPMI plugin for unRAID 6.11+ Includes 6.12 support will run pre 6.11



This plugin is for viewing the local or remote sensors and event logs of a motherboard with ipmi. Sensors can be viewed in basic or advanced mode. Sensor reading color will be green if between non critical, yellow for critical and red for non recoverable. Event Log can clear all or individual events. Sensors page will refresh every 10 sec while viewing it. You can turn on  event notification warnings and remote lan monitoring from the settings page.



Load from CA manual option below.



1. Copy the plugin url:

https://raw.githubusercontent.com/SimonFair/IPMI-unRAID/master/plugin/ipmi.plg



2. Paste url into install plugin text input and click install



Edited March 2, 2023 by SimonF

[SimonF]

Original plugin path



Edited March 12, 2023 by SimonF

[SimonF]

Reserved

[Iceman24]

For switching from the now deprecated version, how exactly do we migrate over to it?

[SimonF]

26 minutes ago, Iceman24 said:

For switching from the now deprecated version, how exactly do we migrate over to it?

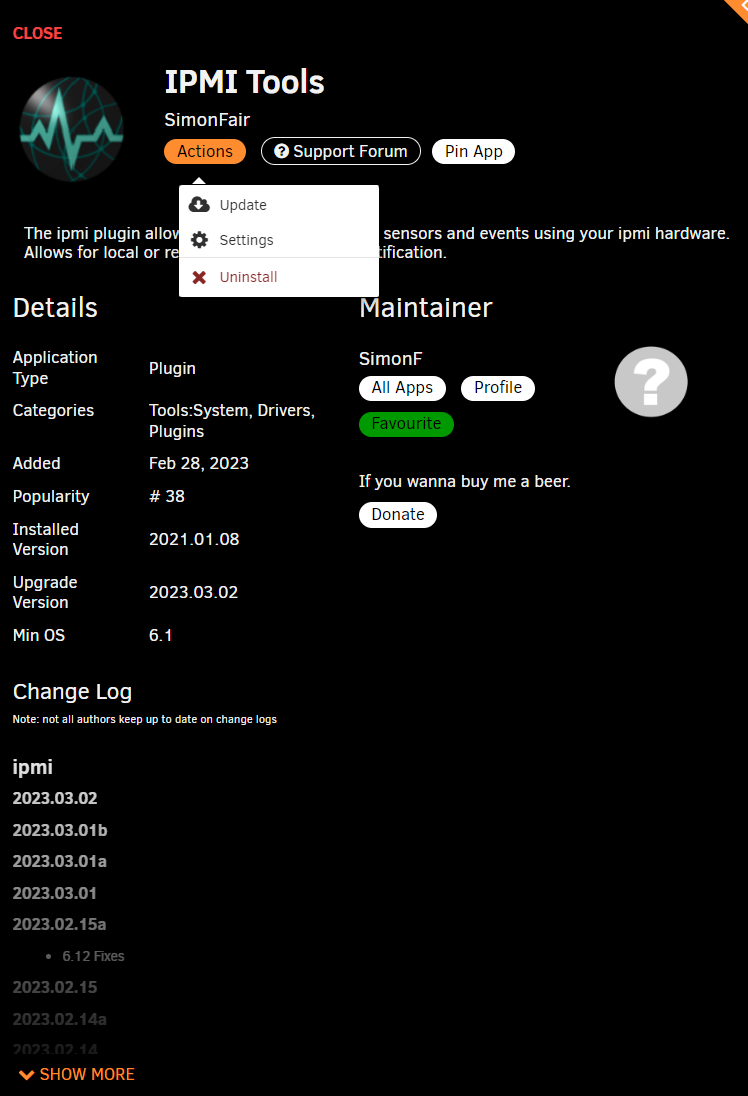

If you click info on my IPMI entry in CA you should see this and click action to update.



[Iceman24]

4 hours ago, SimonF said:

If you click info on my IPMI entry in CA you should see this and click action to update.



Thanks. It shows as if both versions are installed though, but only lists the old one in the plugins tab. It seems to work okay though.

[ChatNoir]

I replaced the old addon but yours Simon.

It seems to have recovered the old settings and quieted the server back to it's normal behavior.



I have one issue though. I can't seem to enable the Network connection as it was before.

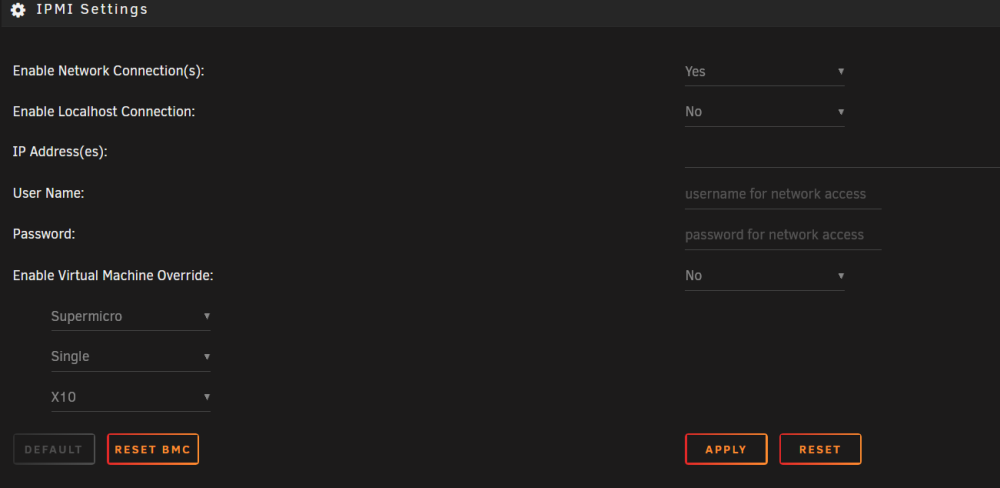

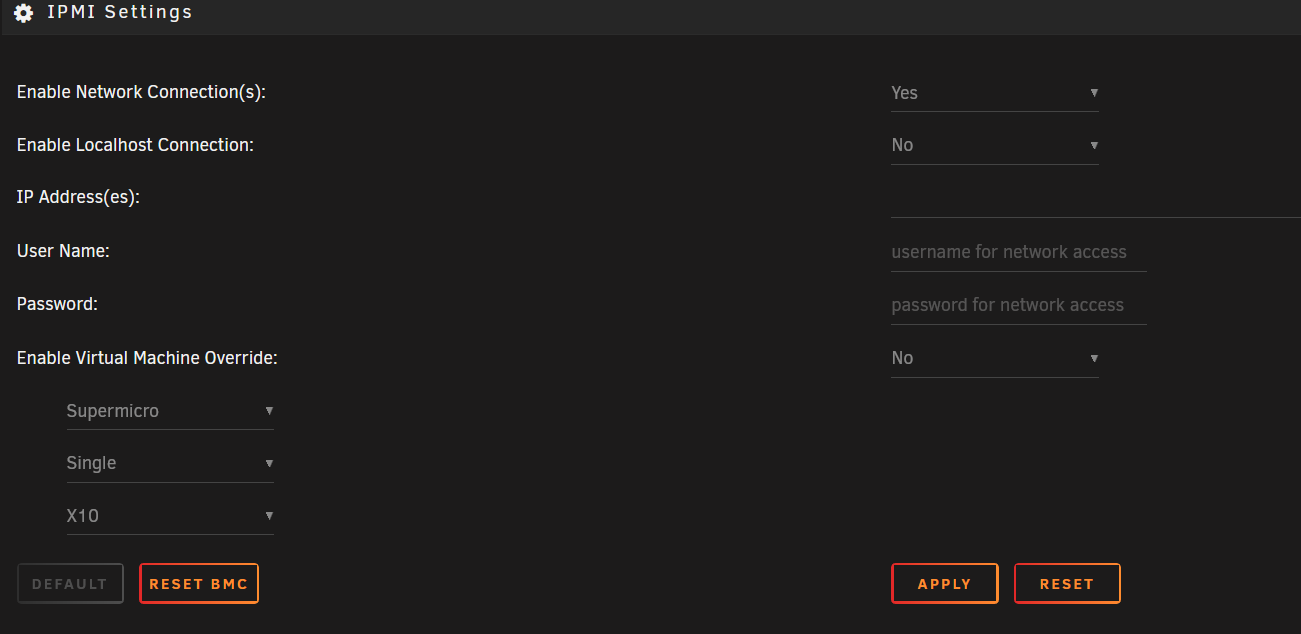

When I select Yes,

the fields are greyed out and not active (the MB is properly detected).



When I try to apply, I get back to the 'No' setting and never have the possibility to enter the IP address, login and password.

[SimonF]

13 minutes ago, ChatNoir said:

I replaced the old addon but yours Simon.

It seems to have recovered the old settings and quieted the server back to it's normal behavior.



I have one issue though. I can't seem to enable the Network connection as it was before.

When I select Yes,

the fields are greyed out and not active (the MB is properly detected).



When I try to apply, I get back to the 'No' setting and never have the possibility to enter the IP address, login and password.

Thanks for the report will look into it. Its not active on my Primary machine. Will have to check on one of my test machines.



cat /boot/config/plugins/ipmi/ipmi.cfg does it look ok, I have removed the password.



Does IPMISELD="disable"
IPMIPOLL="180"
NETWORK="disable"
LOCAL="disable"
IPADDR="192.168.1.241"
USER="ADMIN"
DISP_SENSOR1="4"
DISP_SENSOR2="71"
LOADCFG="disable"
IGNORE=""
DIGNORE=""
DASH="enable"
DEVIGNORE="CT500MX500SSD1_"
DEVS="enable"
OVERRIDE="disable"
OBOARD="Supermicro"
OCOUNT="0"
OMODEL="9"
DISP_SENSOR3="205"
DISP_SENSOR4="99"

Edited March 4, 2023 by SimonF

[ChatNoir]

Here is the content of the file

The IPADDR, USER and PASSWORD are empty

IPMISELD="enable"
IPMIPOLL="30"
NETWORK="disable"
LOCAL="disable"
IPADDR=""
USER=""
PASSWORD=""
DISP_SENSOR1="4"
DISP_SENSOR2="1009"
LOADCFG="enable"
IGNORE="540,674,808,942,1344,1411,1478,1545,1612,1746,1813,1880,1947"
DIGNORE="205,339,406,540,674,808,942,1344,1411,1478,1545,1612,1746,1813,1880,1947"
DASH="enable"
DEVIGNORE=""
DEVS="enable"
OVERRIDE="disable"
OBOARD="Supermicro"
OCOUNT="0"
OMODEL="10"
DISP_SENSOR3="1143"
DISP_SENSOR4="99"



[SimonF]

10 hours ago, ChatNoir said:

Here is the content of the file

The IPADDR, USER and PASSWORD are empty

IPMISELD="enable"
IPMIPOLL="30"
NETWORK="disable"
LOCAL="disable"
IPADDR=""
USER=""
PASSWORD=""
DISP_SENSOR1="4"
DISP_SENSOR2="1009"
LOADCFG="enable"
IGNORE="540,674,808,942,1344,1411,1478,1545,1612,1746,1813,1880,1947"
DIGNORE="205,339,406,540,674,808,942,1344,1411,1478,1545,1612,1746,1813,1880,1947"
DASH="enable"
DEVIGNORE=""
DEVS="enable"
OVERRIDE="disable"
OBOARD="Supermicro"
OCOUNT="0"
OMODEL="10"
DISP_SENSOR3="1143"
DISP_SENSOR4="99"



Do you have either of these enabled.



Enable monitoring of IPMI sensors and events through the network. Notifications and Fan Control must be stopped to change settings

[ChatNoir]

Ok, disabling both allowed me access to the greyed out fields. I cannot connect for some reason though.

Anyway, it's not super important for me, I am really using the plugin for the fan control and that works without being connected.

[SimonF]

15 minutes ago, ChatNoir said:

Ok, disabling both allowed me access to the greyed out fields. I cannot connect for some reason though.

Anyway, it's not super important for me, I am really using the plugin for the fan control and that works without being connected.

Thanks for the feedback, but will look into why its not working.

[ChatNoir]

Ping me if you need some additional information or need me to do some tests.

A message saying that you need to have both the notifications and the fan control OFF to set up the connection would be nice.

[JorgeB]

13 hours ago, ChatNoir said:

I have one issue though. I can't seem to enable the Network connection as it was before.

What's the purpose of this setting? Never used it because don't know what it does.

[SimonF]

7 minutes ago, JorgeB said:

What's the purpose of this setting? Never used it because don't know what it does.

Connects to BMC via the network.

[trott]

Is this new plugin able to control the fan speed?

[JorgeB]

57 minutes ago, trott said:

Is this new plugin able to control the fan speed?

Yes, at least for Supermicro boards that support incremental fan control, like most X10/X11/H11 models.

[ChatNoir]

2 hours ago, trott said:

Is this new plugin able to control the fan speed?

Works for me.

[SimonF]

2 hours ago, trott said:

Is this new plugin able to control the fan speed?

It should function the same as original, just updates required to support 6.12.

[trott]

22 minutes ago, SimonF said:

It should function the same as original, just updates required to support 6.12.

great， thanks

[wgstarks]

On 3/2/2023 at 4:17 PM, SimonF said:

If you click info on my IPMI entry in CA you should see this and click action to update.





I didn't see an "Update" option under actions for the new plugin, only "Settings" and "Uninstall". Same for the old plugin. Uninstalled the old plugin and then installed the new one. Everything seems to be functioning correctly. Fans stayed steady and all sensors are showing. SuperMicro X10 SLL-F

[ephdisk]

I really loved this plugin. I had a X8 motherboard with limited IPMI controls but it could read sensors very well.  I just recently upgraded my motherboard/cpu to a H12 series but it picked right up when I had the same username/password as the old controller.



Everything was working under the older plugin.  I saw the notice about migrating to the newer version and upgraded immediately had the IPMI account locked.  I retyped the password and it worked for a brief second then locked the account out again.



I have tried creating another user to specifically assign to unRAID.  That also is locked out immediately.



There are no retry setting or notifications from within unRAID IPMI plugin settings aside from "Connection Failed"



It appears to be hammering the login credentials and ignoring the custom password.







I have turned off the Notifications and Fan Control, defaulted the settings and tried to start fresh.  All with the same results.  Please let me know if I can provide any other information.  Thank you for this wonderful plugin and I hope to get it working again soon.

[SimonF]

On 3/6/2023 at 1:39 AM, ephdisk said:

I really loved this plugin. I had a X8 motherboard with limited IPMI controls but it could read sensors very well.  I just recently upgraded my motherboard/cpu to a H12 series but it picked right up when I had the same username/password as the old controller.



Everything was working under the older plugin.  I saw the notice about migrating to the newer version and upgraded immediately had the IPMI account locked.  I retyped the password and it worked for a brief second then locked the account out again.



I have tried creating another user to specifically assign to unRAID.  That also is locked out immediately.



There are no retry setting or notifications from within unRAID IPMI plugin settings aside from "Connection Failed"



It appears to be hammering the login credentials and ignoring the custom password.







I have turned off the Notifications and Fan Control, defaulted the settings and tried to start fresh.  All with the same results.  Please let me know if I can provide any other information.  Thank you for this wonderful plugin and I hope to get it working again soon.

This should be fixed in release 2023.03.10 please test.

[ephdisk]

@SimonF

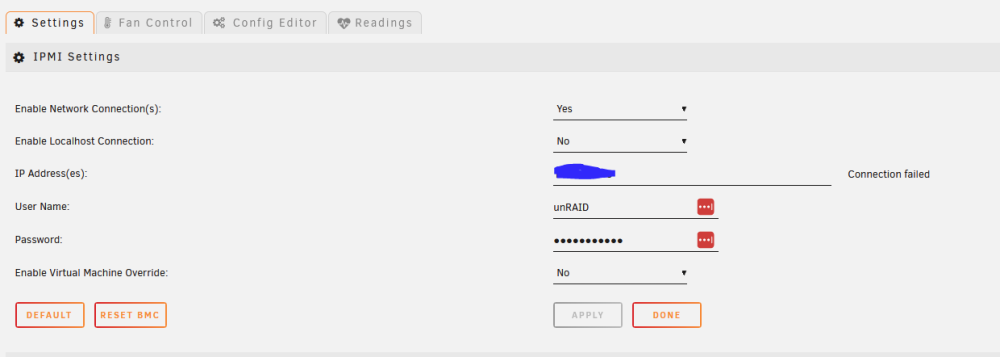

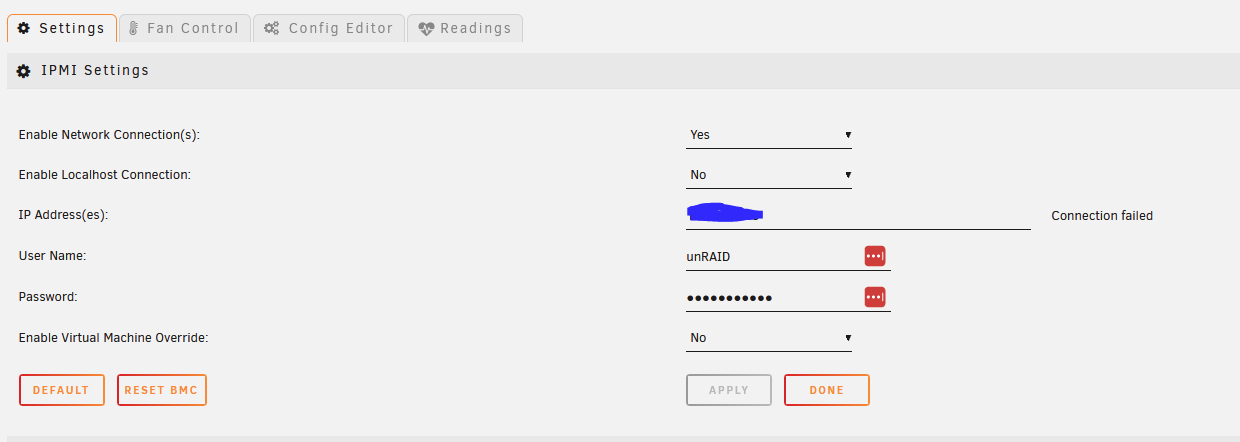

Just installed your latest plugin.  It seems to run as "anonymous" just fine and read stats but now is immediately rejecting my "unRAID" user account for BMC.



The unRAID log doesn't show any activity.  Is there a log that I can help parse and provide to you?

The BMC log doesn't show any activity from user "unRAID" attempting to log in.



Thank you again! I am more than happy to help you test this in any way I can.

Edited March 11, 2023 by ephdisk

[SimonF]

5 hours ago, ephdisk said:

@SimonF

Just installed your latest plugin.  It seems to run as "anonymous" just fine and read stats but now is immediately rejecting my "unRAID" user account for BMC.



The unRAID log doesn't show any activity.  Is there a log that I can help parse and provide to you?

The BMC log doesn't show any activity from user "unRAID" attempting to log in.



Thank you again! I am more than happy to help you test this in any way I can.

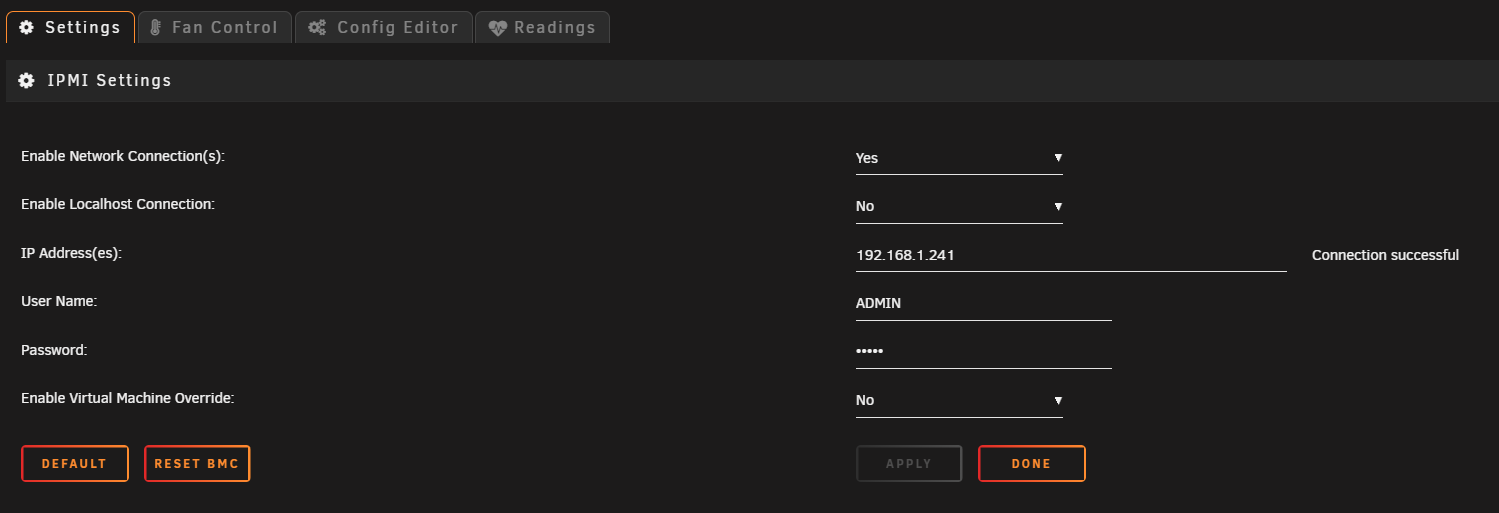

Are you able to post some screen prints, also which options are you looking at? Have you re-entered the user and password?



Do you get connection successful? Also on the readings tab should show the IP address.
