[PLUGIN] IPMI for 6.11+

sPaCeMoNk3y · August 16, 2023

15 minutes ago, SimonF said:

The plugin users ipmisensors, where would the Power Consumption come from as does not appear in my output.

Well, I don't have insight about the available API, been using the IPMI web gui until now, there's a tab for power consumption, so I thought that might be avail. to query as well.

Quick googeling reveiled

ipmitool dcmi power reading

Works for me on the command line so should be avail to query that info. Maybe not supported for all, but some would def. benefit.

Edited August 16, 2023 by sPaCeMoNk3y

SimonF · August 16, 2023

19 minutes ago, sPaCeMoNk3y said:
Well, I don't have insight about the available API, been using the IPMI web gui until now, there's a tab for power consumption, so I thought that might be avail. to query as well.

Quick googeling reveiled
ipmitool dcmi power reading
Works for me on the command line so should be avail to query that info. Maybe not supported for all, but some would def. benefit.

Ok will look into but the plugin uses freeipmi which does not include ipmitools have you install a separate package?

sPaCeMoNk3y · August 16, 2023

42 minutes ago, SimonF said:

Ok will look into but the plugin uses freeipmi which does not include ipmitools have you install a separate package?

Yes, I installed ipmitool from NerdTools.

I see that https://www.gnu.org/software/freeipmi/ also comes with ipmi-dcmi, just needs to be packaged.

Edited August 16, 2023 by sPaCeMoNk3y

jlficken1 · August 25, 2023

I set up a system with a Supermicro X9SRL-F, however, it doesn't appear that this plugin is actually adjusting the fan speeds.

Here are some of the log entries where it shows the fan speed should be changing, however, the speeds never change.

The fan sensors are all populated in the Readings tab as well.

ETA: I also discovered that if I change the Fan Control setting to No, save, and then change it back to Yes it does indeed change the fan speeds...to Full Speed (100%) which I find odd.

ETA 2: They system is a completely stock Supermicro CSE-826 chassis.

2023-08-25 14:17:43 fan control config file updated, reloading settings
2023-08-25 14:17:43 Fan:Temp, FAN1234(100%):CPU Temp(33°C)
2023-08-25 14:19:20 Stopping Fan Control
2023-08-25 14:19:20 Setting fans to auto
2023-08-25 14:19:50 Starting Fan Control
2023-08-25 14:19:50 Setting fans to full speed
2023-08-25 14:20:00 Fan:Temp, FAN1234(100%):CPU Temp(37°C)
2023-08-25 14:21:52 Stopping Fan Control
2023-08-25 14:21:52 Setting fans to auto
2023-08-25 14:26:54 Starting Fan Control
2023-08-25 14:26:54 Setting fans to full speed
2023-08-25 14:27:05 Fan:Temp, FAN1234(34%):CPU Temp(37°C)
2023-08-25 14:27:35 Fan:Temp, FAN1234(32%):CPU Temp(36°C)
2023-08-25 14:27:45 fan control config file updated, reloading settings
2023-08-25 14:27:45 Fan:Temp, FAN1234(54%):CPU Temp(36°C)
2023-08-25 14:28:15 fan control config file updated, reloading settings
2023-08-25 14:28:15 Fan:Temp, FAN1234(80%):CPU Temp(36°C)
2023-08-25 14:28:45 fan control config file updated, reloading settings
2023-08-25 14:28:45 Fan:Temp, FAN1234(30%):CPU Temp(35°C)
2023-08-25 14:29:15 Fan:Temp, FAN1234(32%):CPU Temp(36°C)
2023-08-25 14:30:45 Fan:Temp, FAN1234(34%):CPU Temp(37°C)
2023-08-25 14:31:15 Fan:Temp, FAN1234(26%):CPU Temp(33°C)
2023-08-25 14:33:15 Fan:Temp, FAN1234(24%):CPU Temp(32°C)
2023-08-25 14:33:45 Fan:Temp, FAN1234(42%):CPU Temp(41°C)
2023-08-25 14:34:15 Fan:Temp, FAN1234(30%):CPU Temp(35°C)

I'm using this on 4 other Supermicro servers with X10 motherboards so is this motherboard just too old? Is there anything that I can do to troubleshoot?

Edited August 25, 2023 by jlficken1

JorgeB · August 26, 2023

13 hours ago, jlficken1 said:

so is this motherboard just too old?

AFAIK X9 series cannot adjust in steps like X10 or newer.

BerettA · August 26, 2023

Hey SimonF. I love this plugin. But I met some troubles now. Would you please have a look and try to help?

I changed my motherboard from Supermicro X11 to Tyan S8030. Then my IPMI setting was broken.

I can't replace the IP address even the user and password. The button"RESET BMC" is useless for me.

I tried to give some information from ipmi.cfg

here is

Quote

Linux 6.1.38-Unraid.
root@UNRAID:~# cat /boot/config/plugins/ipmi/ipmi.cfg
IPMISELD="disable"
IPMIPOLL="300"
NETWORK="enable"
LOCAL="disable"
IPADDR="192.168.31.248"
USER="wenghaha"
PASSWORD="MTk5NjEwMjAsWG16"
DISP_SENSOR1="3232243704_4"
DISP_SENSOR2="3232243704_71"
LOADCFG="disable"
IGNORE="205,272,339,540,607,674,741,875,1009,1076,1143,1210,1277,1344,1411,1478,1545,1612,1679,1746,99"
DIGNORE="205,272,339,540,607,674,741,875,1009,1076,1143,1210,1277,1344,1411,1478,1545,1612,1679,1746,99"
DASH="enable"
DEVIGNORE=""
DEVS="enable"
OVERRIDE="enable"
OBOARD="Supermicro"
OCOUNT="0"
OMODEL="11"
DISP_SENSOR3="3232243704_406"
DISP_SENSOR4="3232243704_473"

Thanks.

SimonF · August 26, 2023

4 minutes ago, BerettA said:

Hey SimonF. I love this plugin. But I met some troubles now. Would you please have a look and try to help?

I changed my motherboard from Supermicro X11 to Tyan S8030. Then my IPMI setting was broken.

I can't replace the IP address even the user and password. The button"RESET BMC" is useless for me.

I tried to give some information from ipmi.cfg

here is

Thanks.

Currently the plugin Supports Supermicros/ASUS and Dell partially.

What does dmidecode -t 2 | grep 'Manufacturer' | awk -F 'r:' '{print $2}' | awk '{print $1}' provide as a result.

I am looking at additional requirements for Dell as I have to some hardware to test with.

Are you just looking for readings and/or fan control? The later would be a long term fix.

BerettA · August 27, 2023

YES I only look for the temperature and fans. And now my request is just for this.

dmidecode -t 2 | grep 'Manufacturer' | awk -F 'r:' '{print $2}' | awk  '{print $1}'

The result is "Tyan". I tried to use the plugin at a new UNRAID server. Fortunately it worked.

SimonF · August 28, 2023

On 8/27/2023 at 2:25 AM, BerettA said:
YES I only look for the temperature and fans. And now my request is just for this.
dmidecode -t 2 | grep 'Manufacturer' | awk -F 'r:' '{print $2}' | awk  '{print $1}'
The result is "Tyan". I tried to use the plugin at a new UNRAID server. Fortunately it worked.

did you try renaming ipmi.cfg to a different name?

Does ipmisensors provide any output when your run from terminal?

jlficken1 · August 28, 2023

On 8/26/2023 at 3:49 AM, JorgeB said:

AFAIK X9 series cannot adjust in steps like X10 or newer.

What do you mean by “steps”?

My original server used an X9 board and it adjusted the fans based on CPU temp with the plug-in. I used it through 6.11.5 I believe.

I turned off the Fan Control part of the plug-in, set the IPMI to “Optimal”, and the fans are spinning up and down now while the server is performing a parity check. It’s just changing the fan speeds every few seconds rather than the 60 seconds I had the plug-in set to which is kind of annoying when it’s a foot away.

https://support.siliconmechanics.com/portal/en/kb/articles/changing-fan-speeds-for-x9-x10-series-boards

Edited August 28, 2023 by jlficken1

Gunny · September 12, 2023

I finally upgraded to 6.12 so I'm now using your version, I had written a patch while on 6.9 to support the Asrock ep2c612ws and opened a draft PR for your review: https://github.com/SimonFair/IPMI-unRAID/pull/5

Edited September 12, 2023 by Gunny

JimmyGerms · September 18, 2023

@SimonF would it be possible to get the ASUSTeK Pro WS W680-ACE IPMI board supported? I'm looking at the code on github and I'm not quite sure where to start to get it implemented. How do you obtain all these raw values...if that's even the first step?

Is there a way to provide our own fan.cfg setup and have the plugin go off that? I see there's an override setting for the Fan tab but I can't get it to detect any fans correctly after that.

Edited September 18, 2023 by JimmyGerms

SimonF · September 18, 2023

11 minutes ago, JimmyGerms said:

@SimonF would it be possible to get the ASUSTeK Pro WS W680-ACE IPMI board supported? I'm looking at the code on github and I'm not quite sure where to start to get it implemented. How do you obtain all these raw values...if that's even the first step?

Is there a way to provide our own fan.cfg setup and have the plugin go off that? I see there's an override setting for the Fan tab but I can't get it to detect any fans correctly after that.

Values come from here.

oot@computenode:~# ipmisensors
ID | Name | Type | Reading | Units | Event
4 | CPU1 Temp | Temperature | 47.00 | C | 'OK'
71 | CPU2 Temp | Temperature | 59.00 | C | 'OK'
138 | System Temp | Temperature | 54.00 | C | 'OK'
205 | Peripheral Temp | Temperature | 44.00 | C | 'OK'
272 | PCH Temp | Temperature | 65.00 | C | 'OK'
339 | P1-DIMMA1 TEMP | Temperature | N/A | C | N/A
406 | P1-DIMMA2 TEMP | Temperature | N/A | C | N/A
473 | P1-DIMMB1 TEMP | Temperature | 52.00 | C | 'OK'
540 | P1-DIMMB2 TEMP | Temperature | 50.00 | C | 'OK'
607 | P1-DIMMC1 TEMP | Temperature | 55.00 | C | 'OK'
674 | P1-DIMMC2 TEMP | Temperature | 55.00 | C | 'OK'
741 | P1-DIMMD1 TEMP | Temperature | 55.00 | C | 'OK'
808 | P1-DIMMD2 TEMP | Temperature | 53.00 | C | 'OK'
875 | P2-DIMME1 TEMP | Temperature | 53.00 | C | 'OK'
942 | P2-DIMME2 TEMP | Temperature | 52.00 | C | 'OK'
1009 | P2-DIMMF1 TEMP | Temperature | 52.00 | C | 'OK'
1076 | P2-DIMMF2 TEMP | Temperature | 52.00 | C | 'OK'
1143 | P2-DIMMG1 TEMP | Temperature | N/A | C | N/A
1210 | P2-DIMMG2 TEMP | Temperature | N/A | C | N/A
1277 | P2-DIMMH1 TEMP | Temperature | 56.00 | C | 'OK'
1344 | P2-DIMMH2 TEMP | Temperature | 56.00 | C | 'OK'
1411 | FAN1 | Fan | N/A | RPM | N/A
1478 | FAN2 | Fan | 825.00 | RPM | 'OK'
1545 | FAN3 | Fan | 825.00 | RPM | 'OK'
1612 | FAN4 | Fan | 1125.00 | RPM | 'OK'
1679 | FAN5 | Fan | 825.00 | RPM | 'OK'
1746 | FAN6 | Fan | 825.00 | RPM | 'OK'
1813 | FANA | Fan | 750.00 | RPM | 'OK'
1880 | FANB | Fan | 825.00 | RPM | 'OK'
1947 | VTT | Voltage | 0.99 | V | 'OK'
2014 | CPU1 Vcore | Voltage | 1.06 | V | 'OK'
2081 | CPU2 Vcore | Voltage | 1.04 | V | 'OK'
2148 | VDIMM AB | Voltage | 1.33 | V | 'OK'
2215 | VDIMM CD | Voltage | 1.34 | V | 'OK'
2282 | VDIMM EF | Voltage | 1.34 | V | 'OK'
2349 | VDIMM GH | Voltage | 1.33 | V | 'OK'
2416 | +1.1 V | Voltage | 1.09 | V | 'OK'
2483 | +1.5 V | Voltage | 1.49 | V | 'OK'
2550 | 3.3V | Voltage | 3.22 | V | 'OK'
2617 | +3.3VSB | Voltage | 3.36 | V | 'OK'
2684 | 5V | Voltage | 4.99 | V | 'OK'
2751 | +5VSB | Voltage | 4.93 | V | 'OK'
2818 | 12V | Voltage | 11.98 | V | 'OK'
2885 | VBAT | Voltage | 3.22 | V | 'OK'
2952 | HDD Status | Drive Slot | N/A | N/A | N/A
3019 | Chassis Intru | Physical Security | N/A | N/A | 'OK'
root@computenode:~#

But only specific motherboard types are support, mainly Supermicro and ASRock.

#############################################
# ASRock
# ipmi-raw 00 3a 01 00 00 00 00 00 00 00 00
# ipmi-raw 00 3a 01 AA BB CC DD EE FF GG HH
# 00 = smartfan mode
# 01 - 64 = 1% - 100%
#############################################

#############################################
# ASRock Dual Socket
# ipmi-raw 00 3a 01 CPU_1_OVERRIDE CPU_1 REAR_1 FRONT_1 FRONT_2 FRONT_3
# ipmi-raw 00 3a 11 CPU_2_OVERRIDE CPU_2 REAR_2 FRONT_4
# ipmi-raw 00 3a 01 00 AA BB CC DD EE
# ipmi-raw 00 3a 11 00 AA BB CC
#############################################

#############################################
# Supermicro X10/X11
# ipmi-raw 00 30 70 66 01 00 64
# ipmi-raw 00 30 70 66 AA BB CC
#
# AA
# 00 - Get value
# 01 - Set value
#
# BB
# 00 - FAN 1/2/3/4 or CPU_FAN1/2
# 01 - FAN A or SYS_FAN1/2/3
#
# CC
# 00 to 64 - Set Speed (0-64)
#############################################

#############################################
# Supermicro X9
# ipmi-raw 00 30 91 5A 3 00 FF
# ipmi-raw 00 30 91 5A 3 BB CC
#
# BB
# 10 - FAN 1/2/3/4
# 11 - FAN A
#
# CC
# 00 to FF - Set Speed (0-255)
#############################################

##############################
###### FUNCTION SECTION ######
##############################

JimmyGerms · September 18, 2023

45 minutes ago, SimonF said:

Values come from here.

oot@computenode:~# ipmisensors
ID | Name | Type | Reading | Units | Event
4 | CPU1 Temp | Temperature | 47.00 | C | 'OK'
71 | CPU2 Temp | Temperature | 59.00 | C | 'OK'
138 | System Temp | Temperature | 54.00 | C | 'OK'
205 | Peripheral Temp | Temperature | 44.00 | C | 'OK'
272 | PCH Temp | Temperature | 65.00 | C | 'OK'
339 | P1-DIMMA1 TEMP | Temperature | N/A | C | N/A
406 | P1-DIMMA2 TEMP | Temperature | N/A | C | N/A
473 | P1-DIMMB1 TEMP | Temperature | 52.00 | C | 'OK'
540 | P1-DIMMB2 TEMP | Temperature | 50.00 | C | 'OK'
607 | P1-DIMMC1 TEMP | Temperature | 55.00 | C | 'OK'
674 | P1-DIMMC2 TEMP | Temperature | 55.00 | C | 'OK'
741 | P1-DIMMD1 TEMP | Temperature | 55.00 | C | 'OK'
808 | P1-DIMMD2 TEMP | Temperature | 53.00 | C | 'OK'
875 | P2-DIMME1 TEMP | Temperature | 53.00 | C | 'OK'
942 | P2-DIMME2 TEMP | Temperature | 52.00 | C | 'OK'
1009 | P2-DIMMF1 TEMP | Temperature | 52.00 | C | 'OK'
1076 | P2-DIMMF2 TEMP | Temperature | 52.00 | C | 'OK'
1143 | P2-DIMMG1 TEMP | Temperature | N/A | C | N/A
1210 | P2-DIMMG2 TEMP | Temperature | N/A | C | N/A
1277 | P2-DIMMH1 TEMP | Temperature | 56.00 | C | 'OK'
1344 | P2-DIMMH2 TEMP | Temperature | 56.00 | C | 'OK'
1411 | FAN1 | Fan | N/A | RPM | N/A
1478 | FAN2 | Fan | 825.00 | RPM | 'OK'
1545 | FAN3 | Fan | 825.00 | RPM | 'OK'
1612 | FAN4 | Fan | 1125.00 | RPM | 'OK'
1679 | FAN5 | Fan | 825.00 | RPM | 'OK'
1746 | FAN6 | Fan | 825.00 | RPM | 'OK'
1813 | FANA | Fan | 750.00 | RPM | 'OK'
1880 | FANB | Fan | 825.00 | RPM | 'OK'
1947 | VTT | Voltage | 0.99 | V | 'OK'
2014 | CPU1 Vcore | Voltage | 1.06 | V | 'OK'
2081 | CPU2 Vcore | Voltage | 1.04 | V | 'OK'
2148 | VDIMM AB | Voltage | 1.33 | V | 'OK'
2215 | VDIMM CD | Voltage | 1.34 | V | 'OK'
2282 | VDIMM EF | Voltage | 1.34 | V | 'OK'
2349 | VDIMM GH | Voltage | 1.33 | V | 'OK'
2416 | +1.1 V | Voltage | 1.09 | V | 'OK'
2483 | +1.5 V | Voltage | 1.49 | V | 'OK'
2550 | 3.3V | Voltage | 3.22 | V | 'OK'
2617 | +3.3VSB | Voltage | 3.36 | V | 'OK'
2684 | 5V | Voltage | 4.99 | V | 'OK'
2751 | +5VSB | Voltage | 4.93 | V | 'OK'
2818 | 12V | Voltage | 11.98 | V | 'OK'
2885 | VBAT | Voltage | 3.22 | V | 'OK'
2952 | HDD Status | Drive Slot | N/A | N/A | N/A
3019 | Chassis Intru | Physical Security | N/A | N/A | 'OK'
root@computenode:~#

But only specific motherboard types are support, mainly Supermicro and ASRock.

#############################################
# ASRock
# ipmi-raw 00 3a 01 00 00 00 00 00 00 00 00
# ipmi-raw 00 3a 01 AA BB CC DD EE FF GG HH
# 00 = smartfan mode
# 01 - 64 = 1% - 100%
#############################################

#############################################
# ASRock Dual Socket
# ipmi-raw 00 3a 01 CPU_1_OVERRIDE CPU_1 REAR_1 FRONT_1 FRONT_2 FRONT_3
# ipmi-raw 00 3a 11 CPU_2_OVERRIDE CPU_2 REAR_2 FRONT_4
# ipmi-raw 00 3a 01 00 AA BB CC DD EE
# ipmi-raw 00 3a 11 00 AA BB CC
#############################################

#############################################
# Supermicro X10/X11
# ipmi-raw 00 30 70 66 01 00 64
# ipmi-raw 00 30 70 66 AA BB CC
#
# AA
# 00 - Get value
# 01 - Set value
#
# BB
# 00 - FAN 1/2/3/4 or CPU_FAN1/2
# 01 - FAN A or SYS_FAN1/2/3
#
# CC
# 00 to 64 - Set Speed (0-64)
#############################################

#############################################
# Supermicro X9
# ipmi-raw 00 30 91 5A 3 00 FF
# ipmi-raw 00 30 91 5A 3 BB CC
#
# BB
# 10 - FAN 1/2/3/4
# 11 - FAN A
#
# CC
# 00 to FF - Set Speed (0-255)
#############################################

##############################
###### FUNCTION SECTION ######
##############################

Yup, totally see those and I see that in the code. Is there a way to expand or add a board if I figure out the values or is it more complicated then that?

One downside to this board is I cannot control the front side fans (only testing this setup with 2 fans so far) with the temps of the HDDs and I'm lookin to work that in.

root@Sandrock:/# ipmisensors
ID | Name             | Type           | Reading    | Units | Event
32 | CPU_FAN          | Fan            | 600.00     | RPM   | 'OK'
33 | CPU_OPT_FAN      | Fan            | N/A        | RPM   | N/A
34 | MB_CHA_FAN1      | Fan            | N/A        | RPM   | N/A
35 | MB_CHA_FAN2      | Fan            | N/A        | RPM   | N/A
36 | MB_CHA_FAN3      | Fan            | N/A        | RPM   | N/A
37 | MB_CHA_FAN4      | Fan            | N/A        | RPM   | N/A
38 | MB_CHA_FAN5      | Fan            | N/A        | RPM   | N/A
43 | MB_AIO_PUMP      | Fan            | N/A        | RPM   | N/A
44 | CHA_FAN1         | Fan            | 960.00     | RPM   | 'OK'
45 | CHA_FAN2         | Fan            | N/A        | RPM   | N/A
46 | CHA_FAN3         | Fan            | N/A        | RPM   | N/A
47 | CHA_FAN4         | Fan            | N/A        | RPM   | N/A
48 | CHA_FAN5         | Fan            | N/A        | RPM   | N/A
49 | CHA_FAN6         | Fan            | N/A        | RPM   | N/A
50 | CHA_FAN7         | Fan            | N/A        | RPM   | N/A
51 | CHA_FAN8         | Fan            | N/A        | RPM   | N/A

SimonF · September 18, 2023

10 minutes ago, JimmyGerms said:

Yup, totally see those and I see that in the code. Is there a way to expand or add a board if I figure out the values or is it more complicated then that?

One downside to this board is I cannot control the front side fans (only testing this setup with 2 fans so far) with the temps of the HDDs and I'm lookin to work that in.

root@Sandrock:/# ipmisensors
ID | Name             | Type           | Reading    | Units | Event
32 | CPU_FAN          | Fan            | 600.00     | RPM   | 'OK'
33 | CPU_OPT_FAN      | Fan            | N/A        | RPM   | N/A
34 | MB_CHA_FAN1      | Fan            | N/A        | RPM   | N/A
35 | MB_CHA_FAN2      | Fan            | N/A        | RPM   | N/A
36 | MB_CHA_FAN3      | Fan            | N/A        | RPM   | N/A
37 | MB_CHA_FAN4      | Fan            | N/A        | RPM   | N/A
38 | MB_CHA_FAN5      | Fan            | N/A        | RPM   | N/A
43 | MB_AIO_PUMP      | Fan            | N/A        | RPM   | N/A
44 | CHA_FAN1         | Fan            | 960.00     | RPM   | 'OK'
45 | CHA_FAN2         | Fan            | N/A        | RPM   | N/A
46 | CHA_FAN3         | Fan            | N/A        | RPM   | N/A
47 | CHA_FAN4         | Fan            | N/A        | RPM   | N/A
48 | CHA_FAN5         | Fan            | N/A        | RPM   | N/A
49 | CHA_FAN6         | Fan            | N/A        | RPM   | N/A
50 | CHA_FAN7         | Fan            | N/A        | RPM   | N/A
51 | CHA_FAN8         | Fan            | N/A        | RPM   | N/A

It should be possible to add other boards, I will be looking at dell servers at some point. Do you know the ipmi commands to change speeds?

JimmyGerms · September 18, 2023

8 minutes ago, SimonF said:

It should be possible to add other boards, I will be looking at dell servers at some point. Do you know the ipmi commands to change speeds?

Not a clue currently, working to figure that out. Not much documentation out there yet for the Asus-w680-ace-ipmi. Any tips on where to start? Doesn't look like there's a simple command to print or anything to trace in the logs so far.

SimonF · September 18, 2023

Not read yet.

https://dlcdnets.asus.com/pub/ASUS/mb/Add-on_card/IPMI_Expansion_Card_EM_WEB_EN.pdf?model=IPMI EXPANSION CARD

JimmyGerms · September 18, 2023

11 minutes ago, SimonF said:

Not read yet.

https://dlcdnets.asus.com/pub/ASUS/mb/Add-on_card/IPMI_Expansion_Card_EM_WEB_EN.pdf?model=IPMI EXPANSION CARD

Haha yup! Currently reading that. Also, I'd love to donate to your time if you set out on this journey, let me know how I can help. Take it to DM maybe?

EDIT:

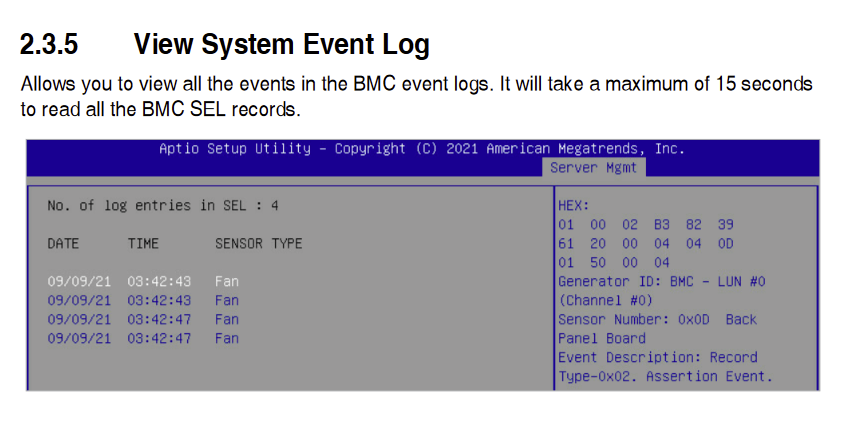

Oh boy, I think it's going to be a bit of trial and error...I'll have to reboot to bios and see if I can get some logs to spew out. The web interface doesn't provide the hex and other details like this screenshot. image.png.f236ce0bdc06fcee5a87113dac01923e.png

Edited September 18, 2023 by JimmyGerms

SimonF · September 18, 2023

59 minutes ago, JimmyGerms said:

Haha yup! Currently reading that. Also, I'd love to donate to your time if you set out on this journey, let me know how I can help. Take it to DM maybe?

EDIT:

Oh boy, I think it's going to be a bit of trial and error...I'll have to reboot to bios and see if I can get some logs to spew out. The web interface doesn't provide the hex and other details like this screenshot.

Might be quicker to contact asus support to see if they have different docs.

bpl294 · September 20, 2023

I'm running unRaid 6.12.4 on a supermicro H12 series motherboard. In the fan control settings it is only able to control fans 1,2,3 and 4 and then fans A and B. There is another fan called Fan5. I was wondering if there is a way i could add this to the first group to be controlled by those same settings. Ideally i would like FAN1,2,3,4,5 controlled by the same sensor then FANA,B controlled together.

thanks in advance.

mikeyosm · September 24, 2023

I might have found a bug in the plugin.

I have 3 x HDDs in total ( 1 x SSD and 2 x NVME)

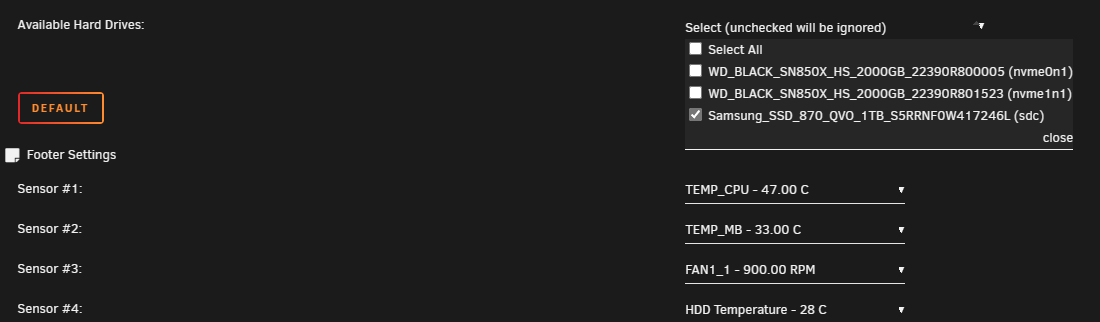

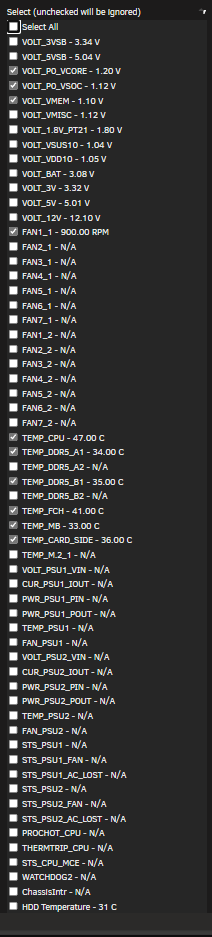

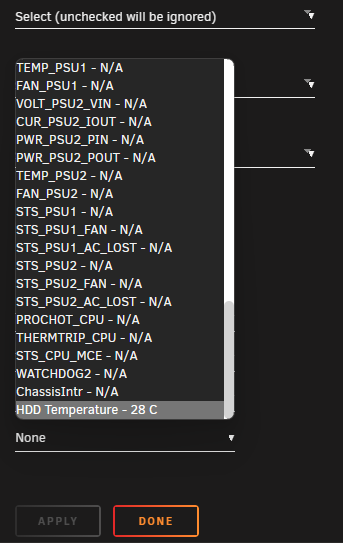

The plugin settings only shows 1 HDD Temperature that I am able to select to add to the footer/dashboard, I expect to select 3?

Edited September 24, 2023 by mikeyosm

SimonF · September 24, 2023

5 hours ago, mikeyosm said:

I might have found a bug in the plugin.

I have 3 x HDDs in total ( 1 x SSD and 2 x NVME)

The plugin settings only shows 1 HDD Temperature that I am able to select to add to the footer/dashboard, I expect to select 3?

The HDD value is calculated based om the highest drive temp of all drives.

mikeyosm · September 24, 2023

2 hours ago, SimonF said:

The HDD value is calculated based om the highest drive temp of all drives.

Oh I see. Is it possible to show more than one drive?

SimonF · September 24, 2023

2 hours ago, mikeyosm said:

Oh I see. Is it possible to show more than one drive?

Not with the current version.

mikeyosm · October 2, 2023

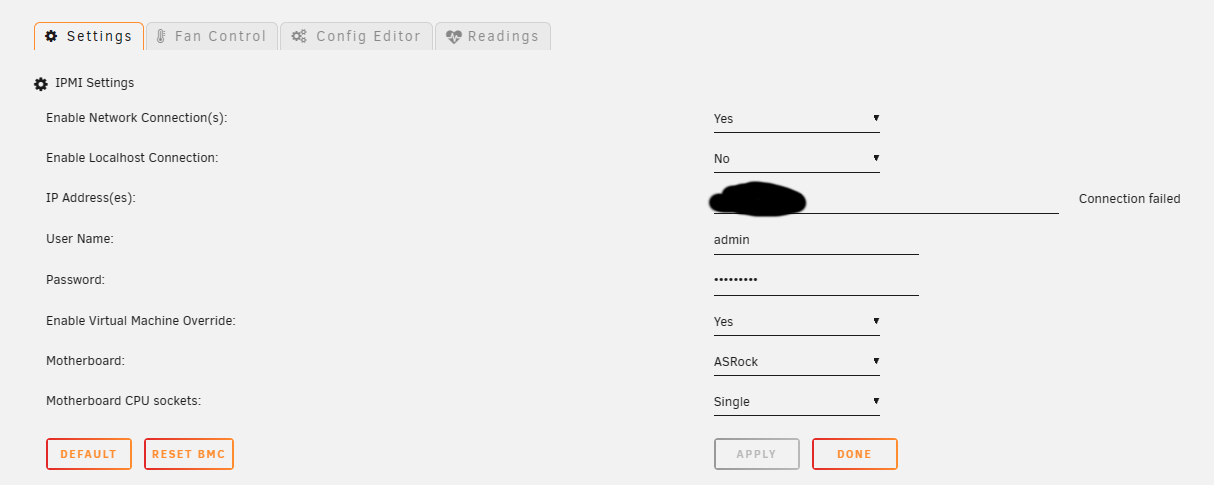

@SimonF I am getting connection failed with my Asrock Rack x570D5U mobo. I am running UNRAID inside a VM and wanting to display my Asrock IPMI stats in the dashboard. What am I doing wrong?

[PLUGIN] IPMI for 6.11+

Recommended Posts

Link to comment

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

SimonF

garrett hamonic

SimonF

Posted Images

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Link to comment

Join the conversation
