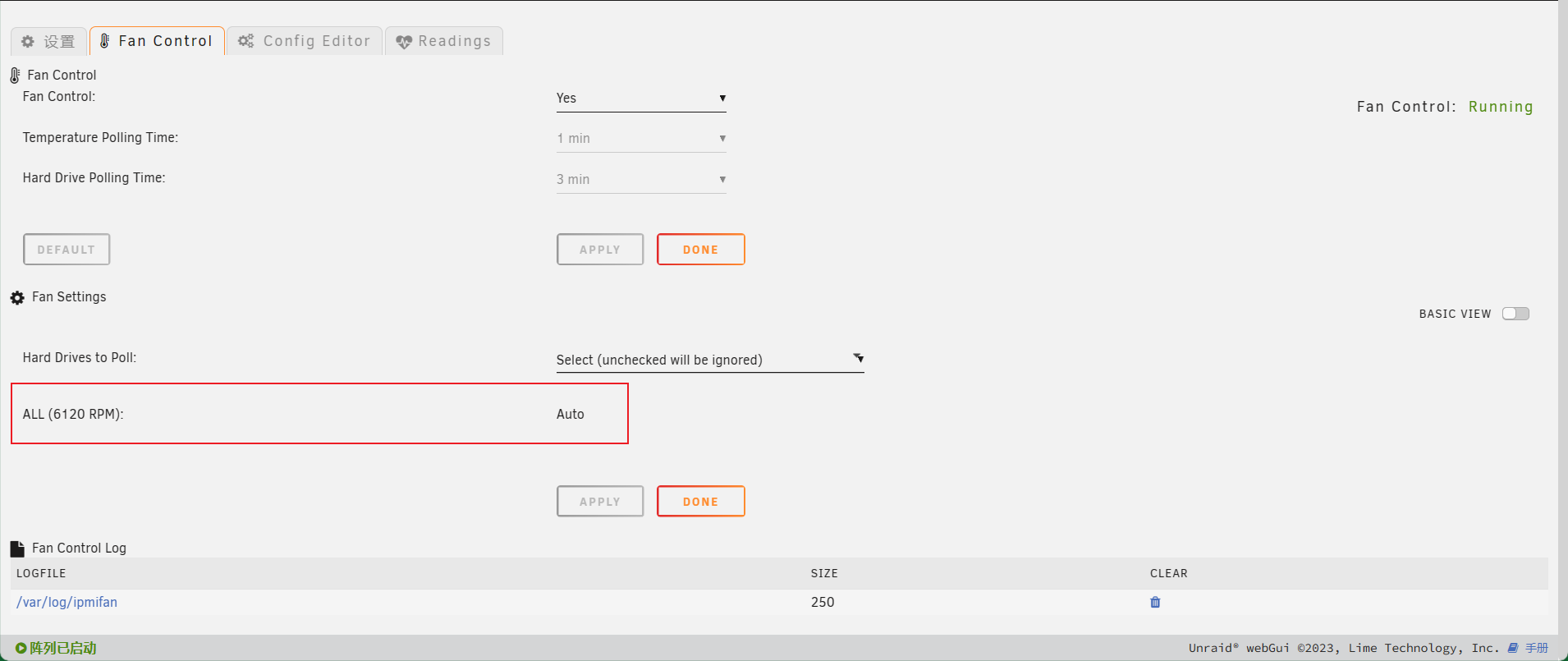

December 2, 20232 yr 4 minutes ago, spl147 said: Why are you using a ip it’s local control Thank you for reminding me，but seems to be different？ it shows “Auto” ？

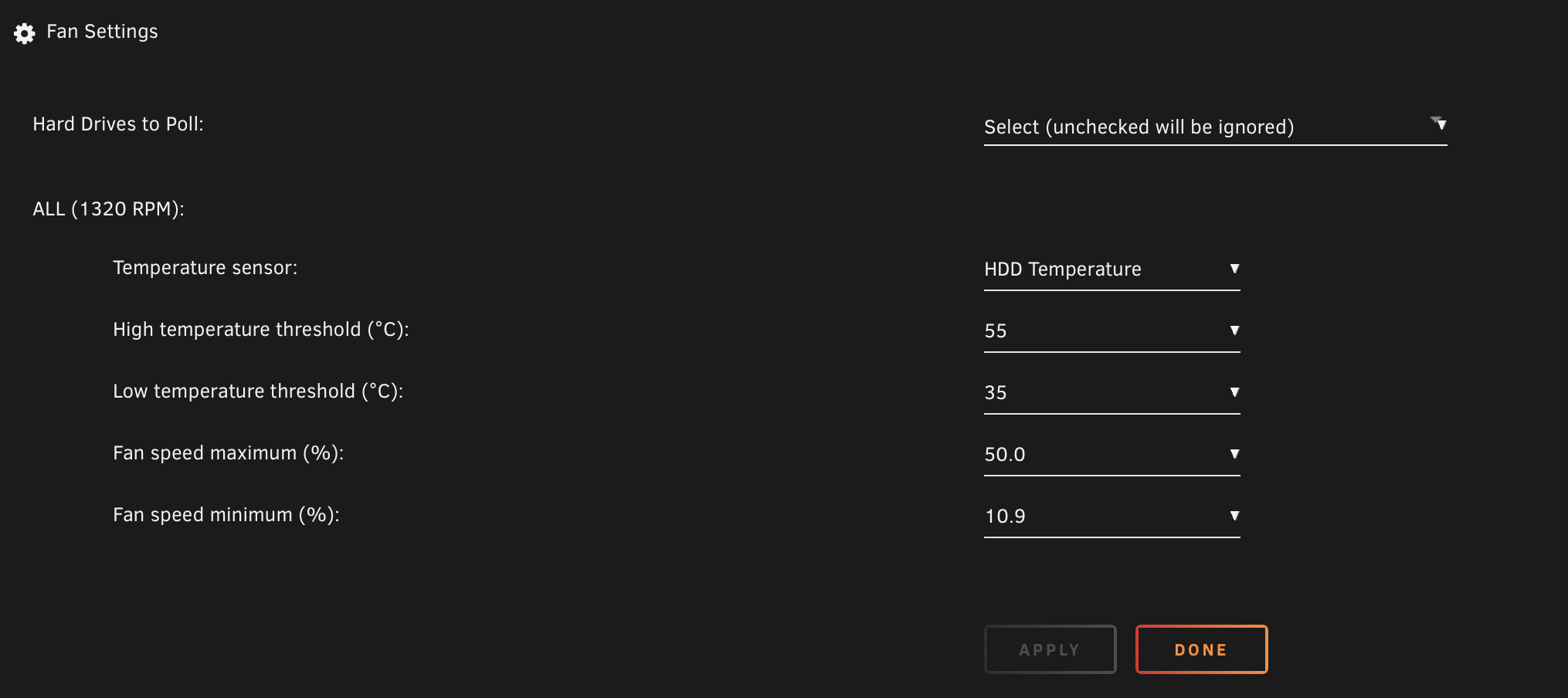

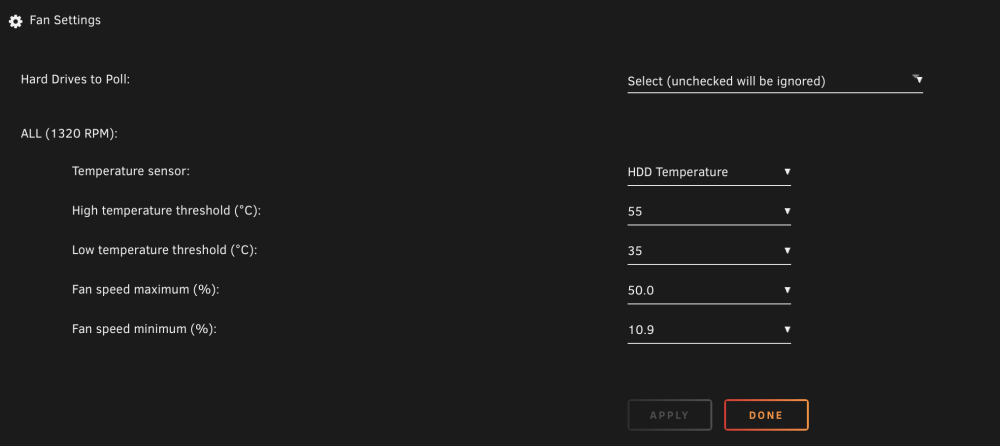

December 2, 20232 yr 10 minutes ago, coded-patter8004 said: Thank you for reminding me，but seems to be different？ it shows “Auto” ？ set fan control to no and hit apply, the change auto to hdd temp and set you hi and low. you can not change settings while it is running Edited December 2, 20232 yr by spl147

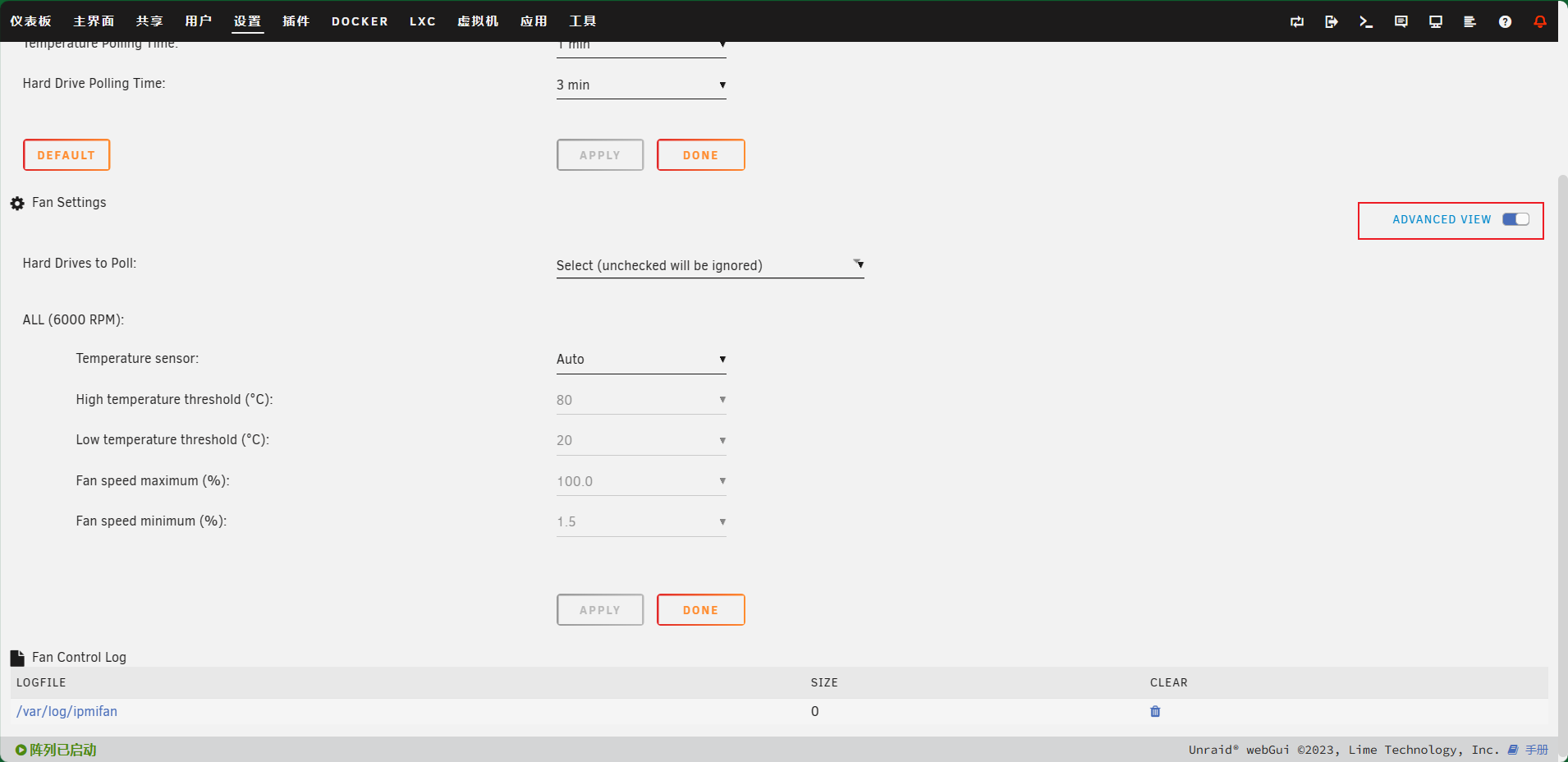

December 2, 20232 yr 6 minutes ago, spl147 said: set fan control to no and hit apply, the change auto to hdd temp and set you hi and low. you can not change settings while it is running thanks . my mistake ，i found it in “ADVANCED VIEW MODE“
December 2, 20232 yr Author I have released 2023.12.02, If you have tested the Dev release you may need to update the Fans section as I have changed name to FAN123456 for All for Dell systems - Add FAN Control support for Dell systems. - Add Supermicro X12 options. Thanks to C4Wiz for PR. - Add ASRock EP2C612WS Support thanks to WillGunn for PR. - Set shift class in table sorter thanks to kcpants for PR. - Refactor code to allow easier models+boards to be added.
December 2, 20232 yr 3 hours ago, SimonF said: I have released 2023.12.02, If you have tested the Dev release you may need to update the Fans section as I have changed name to FAN123456 for All for Dell systems - Add FAN Control support for Dell systems. - Add Supermicro X12 options. Thanks to C4Wiz for PR. - Add ASRock EP2C612WS Support thanks to WillGunn for PR. - Set shift class in table sorter thanks to kcpants for PR. - Refactor code to allow easier models+boards to be added. Nice, but is there a possibility to add ASRockRack W680D4U-2L2T/G5 it works fine with the sensors but won't find the fans. Can i deliver anything to make it easier for you? Kind regards Kai Edited December 2, 20232 yr by Dave-Kay
December 2, 20232 yr Author 11 minutes ago, Dave-Kay said: Nice, but is there a possibility to add ASRockRack W680D4U-2L2T/G5 it works fine with the sensors but won't find the fans. Can i deliver anything to make it easier for you? Kind regards Kai Have you run the ipmi2json command to create the file for ASRock systems and can you supply the file. root@unraid:/boot/packages# ipmi2json --help Check ASRock IPMI fan locations using ipmi-raw command and create a json array for ipmifan script. Usage: ipmi2json [options] -f, --force force start --debug turn on debugging --help display this help and exit --version output version information and exit
December 2, 20232 yr 7 hours ago, SimonF said: I have released 2023.12.02, If you have tested the Dev release you may need to update the Fans section as I have changed name to FAN123456 for All for Dell systems - Add FAN Control support for Dell systems. - Add Supermicro X12 options. Thanks to C4Wiz for PR. - Add ASRock EP2C612WS Support thanks to WillGunn for PR. - Set shift class in table sorter thanks to kcpants for PR. - Refactor code to allow easier models+boards to be added. log is showing this: 2023-12-02 11:43:56 Fan:Temp, FAN1234(19%):HDD Temp(39°C), FAN123456(22%):HDD Temp(39°C)
December 2, 20232 yr Author 34 minutes ago, spl147 said: log is showing this: 2023-12-02 11:43:56 Fan:Temp, FAN1234(19%):HDD Temp(39°C), FAN123456(22%):HDD Temp(39°C) What is defined in here -> cat /boot/config/plugins/ipmi/fan.cfg
December 2, 20232 yr 48 minutes ago, SimonF said: What is defined in here -> cat /boot/config/plugins/ipmi/fan.cfg root@Server:~# cat /boot/config/plugins/ipmi/fan.cfg FANCONTROL="enable" FANPOLL="1" FANIP="" HDDPOLL="6" HDDIGNORE="Samsung_SSD_990_PRO_2TB_S73WNJ0W808832E" HARDDRIVES="enable" FAN_FAN1234="39" TEMP_FAN1234="99" TEMPHI_FAN1234="55" TEMPLO_FAN1234="35" FANMAX_FAN1234="32" FANMIN_FAN1234="7" FAN_FAN123456="39" TEMP_FAN123456="99" TEMPHI_FAN123456="55" TEMPLO_FAN123456="30" FANMAX_FAN123456="32" FANMIN_FAN123456="4"
December 2, 20232 yr Author Just now, spl147 said: root@Server:~# cat /boot/config/plugins/ipmi/fan.cfg FANCONTROL="enable" FANPOLL="1" FANIP="" HDDPOLL="6" HDDIGNORE="Samsung_SSD_990_PRO_2TB_S73WNJ0W808832E" HARDDRIVES="enable" FAN_FAN1234="39" TEMP_FAN1234="99" TEMPHI_FAN1234="55" TEMPLO_FAN1234="35" FANMAX_FAN1234="32" FANMIN_FAN1234="7" FAN_FAN123456="39" TEMP_FAN123456="99" TEMPHI_FAN123456="55" TEMPLO_FAN123456="30" FANMAX_FAN123456="32" FANMIN_FAN123456="4" Can you remove the fan1234 entries then restart fanctl it should only report fan123456 in log
December 2, 20232 yr Just now, SimonF said: Can you remove the fan1234 entries then restart fanctl it should only report fan123456 in log just did that and yes it is fixed. i guess the config was not overwritten, but appended

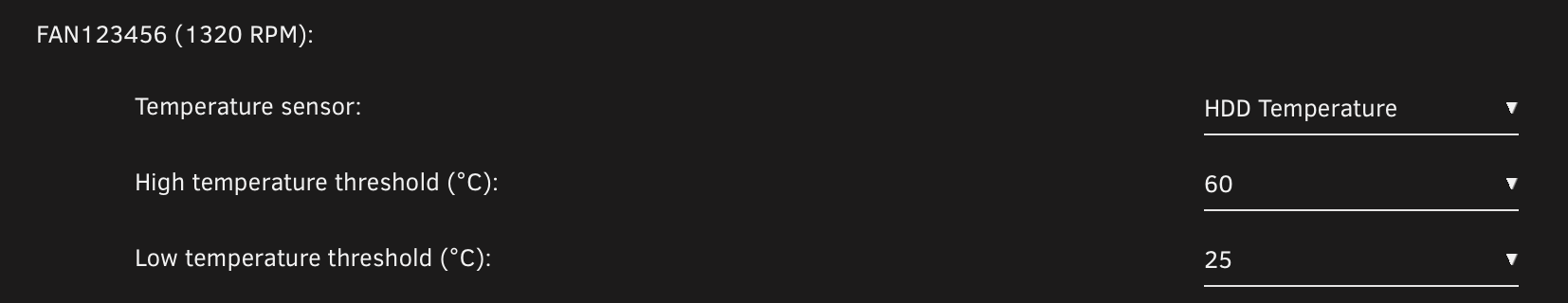

December 2, 20232 yr any chance you can add the ability to follow the Temperature setting of unraid? UnRAID Setting: FanControl: Log: Edited December 2, 20232 yr by spl147
December 2, 20232 yr Author 3 hours ago, spl147 said: any chance you can add the ability to follow the Temperature setting of unraid? UnRAID Setting: FanControl: Log: Will look into it.
December 3, 20232 yr I don't think my patch got incorporated correctly, updating causes the fans to not be controlled correctly because its inserting an extra 01 in the ipmi-raw command between the "raw" prefix and the fan section (8 tuples), so ipmi-raw receives back "rcvd: 01 c7", when it should be getting back "rcvd: 01 00" Correct command (sets fans to auto): ipmi-raw 00 3a 01 00 00 00 00 00 00 00 00 Incorrect command (tries to set fan speed): ipmi-raw 00 3a 01 01 16 16 17 00 12 00 00 00 And potentially related, the board.json file that was saved causes the ipmi settings page to fail in an interesting way, the basic/advanced toggle switch shows as a check box, and clicking apply just opens a new window/tab and doesn't actually apply anything. Deleting my board.json file allows the page to load again. board.json { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FAN_POS4": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } }
December 3, 20232 yr Ok, I got the settings page to load correctly by renaming some of the entries to match the ipmi sensor name that the plugin picks up: { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FAN_POS4": "01", "FRNT_FAN1": "01", "FRNT_FAN2": "01", "FRNT_FAN3": "01", "FRNT_FAN4": "01" } } } I only have CPU1 CPU2 REAR and FRNT_FAN1 plugged in FYI
December 3, 20232 yr I was able to get the ipmi2json to work by updating the ipmi_settings_fan.php ASRockRack case to be: switch($board) { case 'ASRock': case 'ASRockRack': //if board is ASRock //check number of physical CPUs if( $override == 'disable') { $board_model = rtrim(ltrim(shell_exec("dmidecode -qt2|awk -F: '/^\tProduct Name:/ {print $2}'"))); if ($board_model == "EP2C612 WS") { $cmd_count = 0; } else { $cmd_count = (intval(trim(shell_exec("/usr/bin/lscpu | grep 'Socket(s):' | awk '{print $2}'"))) < 2) ? 0 : 1; } } else $cmd_count = $ocount; $board_file = "$plg_path/board.json"; $board_file_status = (file_exists($board_file)); $board_json = ($board_file_status) ? json_decode((file_get_contents($board_file)), true) : []; break; ..... The board's ipmi isn't configued like other boards that are dual socket asrock/asrockrack it seems, so while those need $cmd_count = 1, this one needs $cmd_count = 0; Edited December 3, 20232 yr by Gunny
December 3, 20232 yr With the above change, it outputs this for the board.json { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } } But that causes the ipmifan script run output this ipmi-raw command ipmi-raw 00 3a 0116 16 17 12 00 00 00 2>&1; which is missing the space between 3a 01 and the fan section, and only has 7 elements instead of the necessary 8. running that ipmi-raw command manually (without the redirect of output) yields: root@UnraidHost:~# ipmi-raw 00 3a 0116 16 17 12 00 00 00 invalid hex byte argument adding the needed space yields: root@UnraidHost:~# ipmi-raw 00 3a 01 16 16 17 12 00 00 00 rcvd: 01 C7 which is an error code turning off fan control runs this ipmi-raw command: ipmi-raw 00 3a 01 00 00 00 00 00 00 00 00 2>&1 >/dev/null & which does have the correct layout and 8 00's in the data section of the command The reason why its missing a space between the raw and hex section is because the $cmd_str concatentation line for asrock/asrockrack is missing a space switch($board) { case "ASRock": case "ASRockRack": //compare last value to new value for Asrock boards if($board_model == "EP2C612 WS"){ $hex = ltrim($hex); } $cmd_str = "ipmi-raw $raw$hex $fanopts 2>&1; "; it should be $raw $hex not $raw$hex Edited December 3, 20232 yr by Gunny
December 3, 20232 yr Through testing the ipmi data section for this motherboard goes to: 00 00 00 00 00 00 00 00 ^CPU1_FAN1 ^CPU2_FAN1 ^REAR_FAN1 ^N/A ^FRNT_FAN1 ^FRNT_FAN2 ^FRNT_FAN3 ^FRNT_FAN4 00 00 00 00 00 00 00 00 ^CPU1_FAN1 ^CPU2_FAN1 ^REAR_FAN1 ^N/A ^FRNT_FAN1 ^FRNT_FAN2 ^FRNT_FAN3 ^FRNT_FAN4 Manually re-adding in "FAN_POS4": "01" to my board.json representing the N/A word yields a ipmi-raw command with the correct number of fan words in the ipmi data section { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FAN_POS4": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } } Edited December 3, 20232 yr by Gunny
December 3, 20232 yr when the array is spun down hdd temps are not read properly: 2023-12-02 22:55:15 Fan:Temp, FAN123456(14%):HDD Temp(0°C)
December 3, 20232 yr Author 2 hours ago, spl147 said: when the array is spun down hdd temps are not read properly: 2023-12-02 22:55:15 Fan:Temp, FAN123456(14%):HDD Temp(0°C) Are you talking about the 0% Getting the temps via Smartctl will spun up the disks. So this would be expected.
December 3, 20232 yr Author 4 hours ago, Gunny said: With the above change, it outputs this for the board.json { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } } But that causes the ipmifan script run output this ipmi-raw command ipmi-raw 00 3a 0116 16 17 12 00 00 00 2>&1; which is missing the space between 3a 01 and the fan section, and only has 7 elements instead of the necessary 8. running that ipmi-raw command manually (without the redirect of output) yields: root@UnraidHost:~# ipmi-raw 00 3a 0116 16 17 12 00 00 00 invalid hex byte argument adding the needed space yields: root@UnraidHost:~# ipmi-raw 00 3a 01 16 16 17 12 00 00 00 rcvd: 01 C7 which is an error code turning off fan control runs this ipmi-raw command: ipmi-raw 00 3a 01 00 00 00 00 00 00 00 00 2>&1 >/dev/null & which does have the correct layout and 8 00's in the data section of the command The reason why its missing a space between the raw and hex section is because the $cmd_str concatentation line for asrock/asrockrack is missing a space switch($board) { case "ASRock": case "ASRockRack": //compare last value to new value for Asrock boards if($board_model == "EP2C612 WS"){ $hex = ltrim($hex); } $cmd_str = "ipmi-raw $raw$hex $fanopts 2>&1; "; it should be $raw $hex not $raw$hex The ltrim removes the space so should not be needed.
December 3, 20232 yr Author 5 hours ago, Gunny said: I was able to get the ipmi2json to work by updating the ipmi_settings_fan.php ASRockRack case to be: switch($board) { case 'ASRock': case 'ASRockRack': //if board is ASRock //check number of physical CPUs if( $override == 'disable') { $board_model = rtrim(ltrim(shell_exec("dmidecode -qt2|awk -F: '/^\tProduct Name:/ {print $2}'"))); if ($board_model == "EP2C612 WS") { $cmd_count = 0; } else { $cmd_count = (intval(trim(shell_exec("/usr/bin/lscpu | grep 'Socket(s):' | awk '{print $2}'"))) < 2) ? 0 : 1; } } else $cmd_count = $ocount; $board_file = "$plg_path/board.json"; $board_file_status = (file_exists($board_file)); $board_json = ($board_file_status) ? json_decode((file_get_contents($board_file)), true) : []; break; ..... The board's ipmi isn't configued like other boards that are dual socket asrock/asrockrack it seems, so while those need $cmd_count = 1, this one needs $cmd_count = 0; Yes missed the lines add board_model $board_model = rtrim(ltrim(shell_exec("dmidecode -qt2|awk -F: '/^\tProduct Name:/ {print $2}'"))); fanlog("Board Model: $board_model"); I have created a PR to address the ltrim and board_model. https://patch-diff.githubusercontent.com/raw/SimonFair/IPMI-unRAID/pull/9.diff Will have to look at ipmi2json next. Can you send me your working json fille?
December 3, 20232 yr 7 hours ago, SimonF said: Are you talking about the 0% Getting the temps via Smartctl will spun up the disks. So this would be expected.
December 3, 20232 yr would it be possible to add the ability to use cpu temp as well since dell server fans cool the cpu(s) as well with the same fans? my T430 has 1 fan that cools everything IE: doing a cpu intensive task in a VM will heat up the cpu but fans stay at the min value. or perhaps set fan control back to auto if hdds are spun down? Edited December 3, 20232 yr by spl147
