December 9, 20232 yr Motherboard and Model on my dell server is displaying: Dell 0KX11M and not Dell PowerEdge T430 0KX11M is actually the Mainboard Part Number root@Server:~# dmidecode # dmidecode 3.4 Getting SMBIOS data from sysfs. SMBIOS 2.8 present. 67 structures occupying 2870 bytes. Table at 0x7AF09000. Handle 0xDA00, DMI type 218, 11 bytes OEM-specific Type Header and Data: DA 0B 00 DA B2 00 17 20 0E 10 03 Handle 0x0000, DMI type 0, 24 bytes BIOS Information Vendor: Dell Inc. Version: 2.18.2 Release Date: 10/18/2023 Address: 0xF0000 Runtime Size: 64 kB ROM Size: 16 MB Characteristics: ISA is supported PCI is supported PNP is supported BIOS is upgradeable BIOS shadowing is allowed Boot from CD is supported Selectable boot is supported EDD is supported Japanese floppy for Toshiba 1.2 MB is supported (int 13h) 5.25"/360 kB floppy services are supported (int 13h) 5.25"/1.2 MB floppy services are supported (int 13h) 3.5"/720 kB floppy services are supported (int 13h) 8042 keyboard services are supported (int 9h) Serial services are supported (int 14h) CGA/mono video services are supported (int 10h) ACPI is supported USB legacy is supported BIOS boot specification is supported Function key-initiated network boot is supported Targeted content distribution is supported UEFI is supported BIOS Revision: 2.18 Handle 0x0100, DMI type 1, 27 bytes System Information Manufacturer: Dell Inc. Product Name: PowerEdge T430 Version: Not Specified Serial Number: CXPLHL2 UUID: 4c4c4544-0058-5010-804c-c3c04f484c32 Wake-up Type: Power Switch SKU Number: SKU=NotProvided;ModelName=PowerEdge T430 Family: Not Specified Handle 0x0200, DMI type 2, 8 bytes Base Board Information Manufacturer: Dell Inc. Product Name: 0KX11M Version: A05 Serial Number: .CXPLHL2.CNFCP0078L0077. changing 'dmidecode -qt2' to 'dmidecode -qt1' returns the proper Product name dmidecode -qt2|awk -F: '/^\tProduct Name:/ {print $2}' 0KX11M dmidecode -qt1|awk -F: '/^\tProduct Name:/ {print $2}' PowerEdge T430
December 10, 20232 yr Author 20 hours ago, spl147 said: Motherboard and Model on my dell server is displaying: Dell 0KX11M and not Dell PowerEdge T430 0KX11M is actually the Mainboard Part Number root@Server:~# dmidecode # dmidecode 3.4 Getting SMBIOS data from sysfs. SMBIOS 2.8 present. 67 structures occupying 2870 bytes. Table at 0x7AF09000. Handle 0xDA00, DMI type 218, 11 bytes OEM-specific Type Header and Data: DA 0B 00 DA B2 00 17 20 0E 10 03 Handle 0x0000, DMI type 0, 24 bytes BIOS Information Vendor: Dell Inc. Version: 2.18.2 Release Date: 10/18/2023 Address: 0xF0000 Runtime Size: 64 kB ROM Size: 16 MB Characteristics: ISA is supported PCI is supported PNP is supported BIOS is upgradeable BIOS shadowing is allowed Boot from CD is supported Selectable boot is supported EDD is supported Japanese floppy for Toshiba 1.2 MB is supported (int 13h) 5.25"/360 kB floppy services are supported (int 13h) 5.25"/1.2 MB floppy services are supported (int 13h) 3.5"/720 kB floppy services are supported (int 13h) 8042 keyboard services are supported (int 9h) Serial services are supported (int 14h) CGA/mono video services are supported (int 10h) ACPI is supported USB legacy is supported BIOS boot specification is supported Function key-initiated network boot is supported Targeted content distribution is supported UEFI is supported BIOS Revision: 2.18 Handle 0x0100, DMI type 1, 27 bytes System Information Manufacturer: Dell Inc. Product Name: PowerEdge T430 Version: Not Specified Serial Number: CXPLHL2 UUID: 4c4c4544-0058-5010-804c-c3c04f484c32 Wake-up Type: Power Switch SKU Number: SKU=NotProvided;ModelName=PowerEdge T430 Family: Not Specified Handle 0x0200, DMI type 2, 8 bytes Base Board Information Manufacturer: Dell Inc. Product Name: 0KX11M Version: A05 Serial Number: .CXPLHL2.CNFCP0078L0077. changing 'dmidecode -qt2' to 'dmidecode -qt1' returns the proper Product name dmidecode -qt2|awk -F: '/^\tProduct Name:/ {print $2}' 0KX11M dmidecode -qt1|awk -F: '/^\tProduct Name:/ {print $2}' PowerEdge T430 Will take a look, the original dev used that for some reason.
December 12, 20232 yr On 12/10/2023 at 8:24 AM, SimonF said: Will take a look, the original dev used that for some reason. i have submitted a pull request with the fix: ipmi_check.php <? /* board info */ $boards = ['ASRock'=>'','ASRockRack'=>'', 'Dell' =>'','Supermicro'=>'']; $board = ( $override == 'disable') ? trim(shell_exec("dmidecode -t 2 | grep 'Manufacturer' | awk -F 'r:' '{print $2}' | awk '{print $1}'")) : $oboard; $board_model = ( $override == 'disable') ? rtrim(ltrim(shell_exec("dmidecode -qt2|awk -F: '/^\tProduct Name:/ {print $2}'"))) : $omodel; $board_status = array_key_exists($board, $boards); $sm_gen=""; if ($board == "Supermicro") { $smboard_model = ( $override == 'disable') ? intval(shell_exec("dmidecode -qt2|awk -F: '/^\tProduct Name:/{p=\$2} END{print substr(p,3,1)}'")) : $omodel; if ($smboard_model == '1') $smboard_model = ( $override == 'disable') ? intval(shell_exec("dmidecode -qt2|awk -F: '/^\tProduct Name:/{p=\$2} END{print substr(p,3,2)}'")) : $omodel; $sm_gen="Gen:$smboard_model"; } if ($board == "Dell") { $board_model = ( $override == 'disable') ? rtrim(ltrim(shell_exec("dmidecode -qt1|awk -F: '/^\tProduct Name:/ {print $2}'"))) : $omodel; } ?>
December 12, 20232 yr Author 5 hours ago, spl147 said: i have submitted a pull request with the fix: ipmi_check.php <? /* board info */ $boards = ['ASRock'=>'','ASRockRack'=>'', 'Dell' =>'','Supermicro'=>'']; $board = ( $override == 'disable') ? trim(shell_exec("dmidecode -t 2 | grep 'Manufacturer' | awk -F 'r:' '{print $2}' | awk '{print $1}'")) : $oboard; $board_model = ( $override == 'disable') ? rtrim(ltrim(shell_exec("dmidecode -qt2|awk -F: '/^\tProduct Name:/ {print $2}'"))) : $omodel; $board_status = array_key_exists($board, $boards); $sm_gen=""; if ($board == "Supermicro") { $smboard_model = ( $override == 'disable') ? intval(shell_exec("dmidecode -qt2|awk -F: '/^\tProduct Name:/{p=\$2} END{print substr(p,3,1)}'")) : $omodel; if ($smboard_model == '1') $smboard_model = ( $override == 'disable') ? intval(shell_exec("dmidecode -qt2|awk -F: '/^\tProduct Name:/{p=\$2} END{print substr(p,3,2)}'")) : $omodel; $sm_gen="Gen:$smboard_model"; } if ($board == "Dell") { $board_model = ( $override == 'disable') ? rtrim(ltrim(shell_exec("dmidecode -qt1|awk -F: '/^\tProduct Name:/ {print $2}'"))) : $omodel; } ?> Release 2023.12.12 Thanks for PR.
December 12, 20232 yr Release 2023.12.12 Thanks for PR. http://upload.forums.unraid.net/live/monthly_2023_12/image.thumb.png.d206d2895e9cedf644b649344d32faa2.pngNo Problem, thanks for the quick release
December 13, 20232 yr i was thinking of adding a Dell Server section to the dashboard to show info, firmware versions, service tag, etc. have it only show if it's a dell server. any chance you could whip up a template? maybe an example or 2? For Service Tag dmidecode -t 1 | grep 'Serial Number' | awk -F 'r:' '{print $2}' | awk '{print $1}' MainBoard Firmware dmidecode -t 0 | grep 'Version' | awk -F ':' '{print $2}' | awk '{print $1}' Firmware Release Date dmidecode -t 0 | grep 'Release Date' | awk -F ':' '{print $2}' | awk '{print $1}' Serial Number dmidecode -t 2 | grep 'Serial Number' | awk -F '.' '{print $3}'
December 15, 20232 yr Author On 12/13/2023 at 5:28 PM, spl147 said: i was thinking of adding a Dell Server section to the dashboard to show info, firmware versions, service tag, etc. have it only show if it's a dell server. any chance you could whip up a template? maybe an example or 2? For Service Tag dmidecode -t 1 | grep 'Serial Number' | awk -F 'r:' '{print $2}' | awk '{print $1}' MainBoard Firmware dmidecode -t 0 | grep 'Version' | awk -F ':' '{print $2}' | awk '{print $1}' Firmware Release Date dmidecode -t 0 | grep 'Release Date' | awk -F ':' '{print $2}' | awk '{print $1}' Serial Number dmidecode -t 2 | grep 'Serial Number' | awk -F '.' '{print $3}' as part as the ipmi panel or somewhere else?

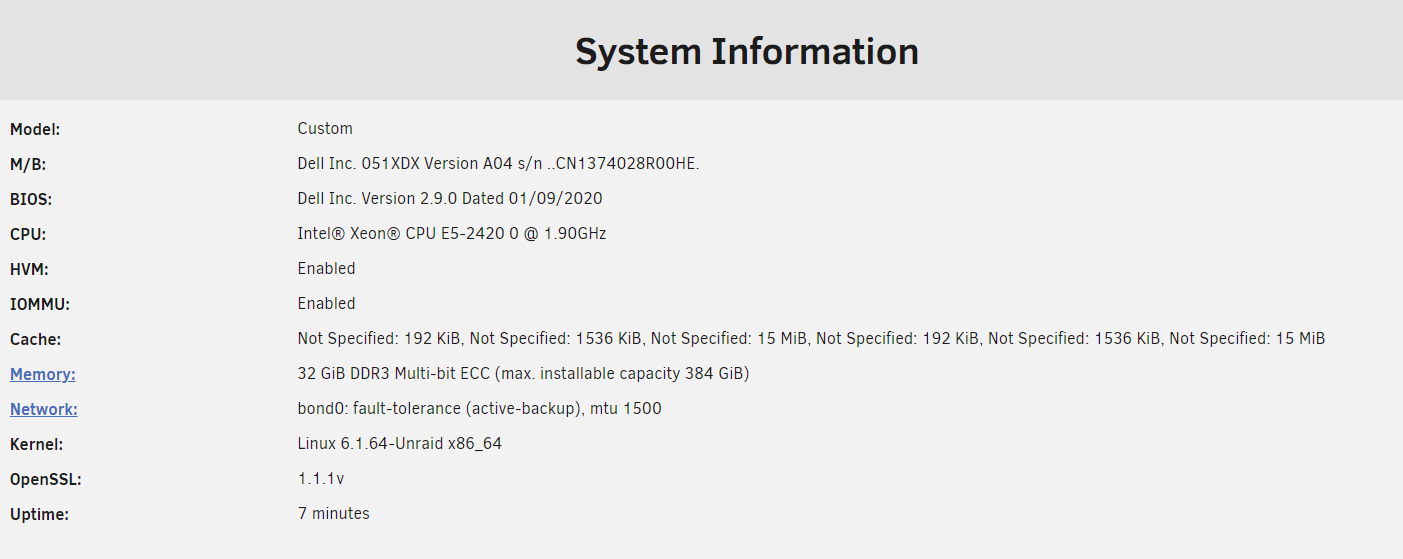

December 16, 20232 yr Author 15 hours ago, spl147 said: Seperate panel system info provides that info already click on i in motherboard or near top right of tool bar.
December 16, 20232 yr On 12/2/2023 at 2:12 PM, SimonF said: Have you run the ipmi2json command to create the file for ASRock systems and can you supply the file. root@unraid:/boot/packages# ipmi2json --help Check ASRock IPMI fan locations using ipmi-raw command and create a json array for ipmifan script. Usage: ipmi2json [options] -f, --force force start --debug turn on debugging --help display this help and exit --version output version information and exit Hello, thanks for your support. The ipmi raw command leads to exactly nothing. It gives no return whatsoever. ipmi2json is attached: kind regards Kai Quote ipmi2json Checking IPMI fan Locations... Location 0-1: none Location 0-2: none Location 0-3: none Location 0-4: none Location 0-5: none Location 0-6: none Location 0-7: none Location 0-8: none Saving board configuration... Edited December 16, 20232 yr by Dave-Kay
December 16, 20232 yr 1 hour ago, SimonF said: system info provides that info already click on i in motherboard or near top right of tool bar. thats not very detailed nor is it dell specific
December 16, 20232 yr Author 6 hours ago, Dave-Kay said: Hello, thanks for your support. The ipmi raw command leads to exactly nothing. It gives no return whatsoever. ipmi2json is attached: kind regards Kai does ipmi-raw 00 3a d7 and ipmi-raw 00 3a da provide any output?
December 17, 20232 yr When I turn on the fan control, all the fans turn to MAX and stay there. If I then turn it off again, it will still remain at MAX Can anyone help me ? System : Supermicro X10DRU-I+ , Version 1.02B American Megatrends Inc., Version 3.5 BIOS Datum: Mittwoch, 27-04-2022 There are 8 fans installed I now have the fans via a script drove more smoothly Edited December 17, 20232 yr by Denis06061986

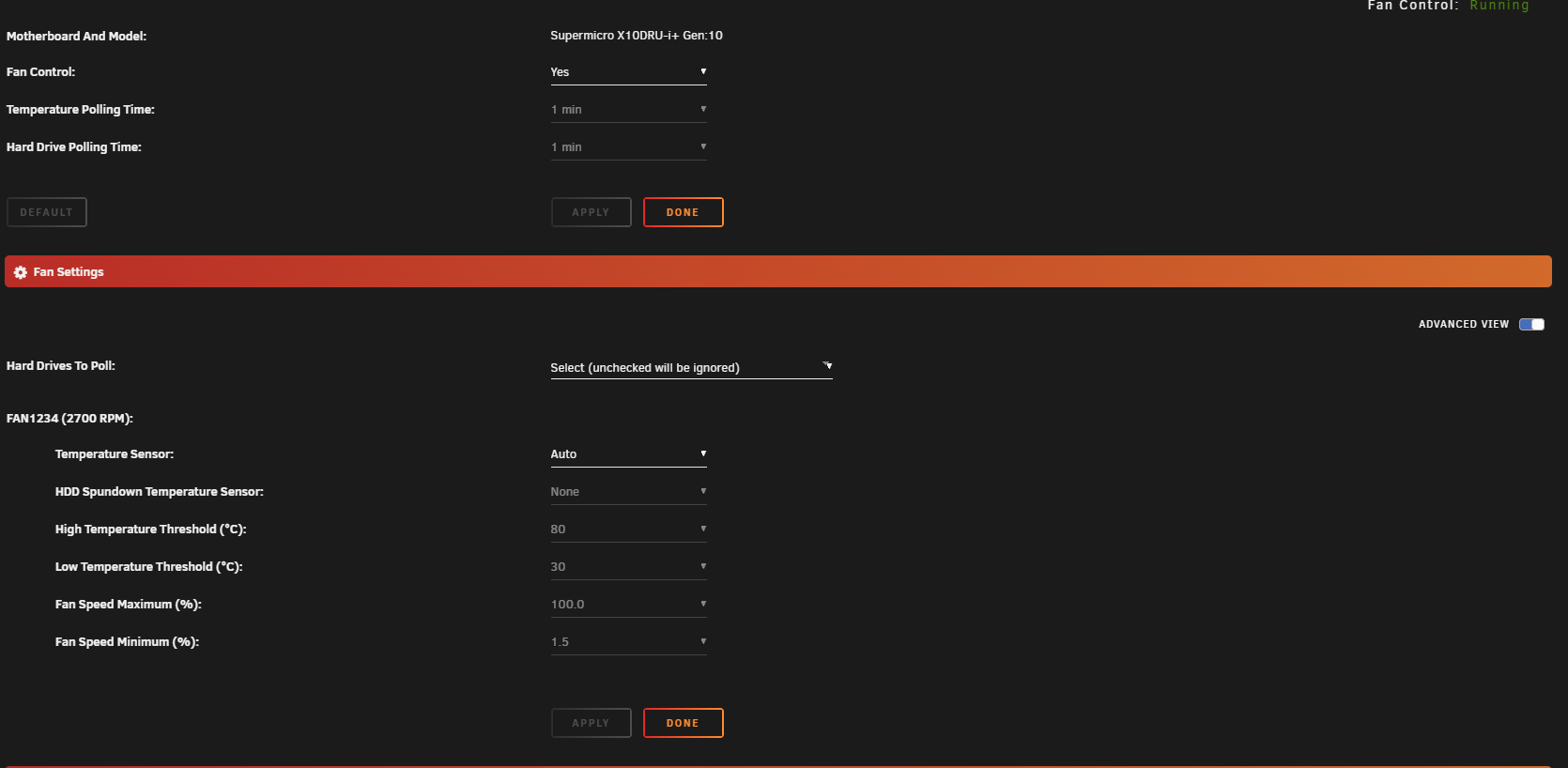

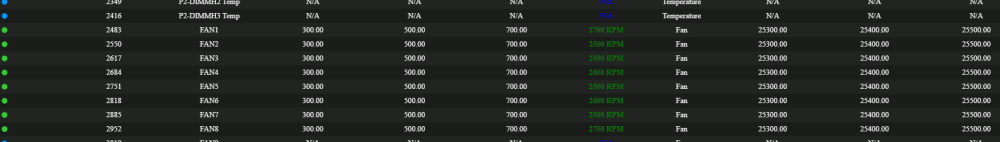

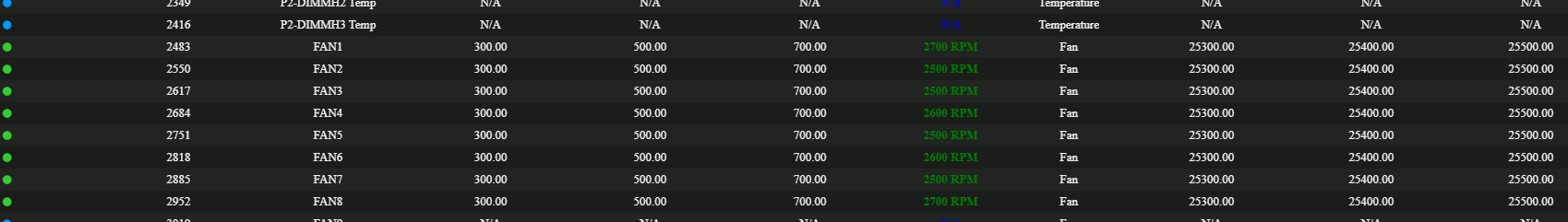

December 17, 20232 yr Author 8 hours ago, Denis06061986 said: When I turn on the fan control, all the fans turn to MAX and stay there. If I then turn it off again, it will still remain at MAX Can anyone help me ? System : Supermicro X10DRU-I+ , Version 1.02B American Megatrends Inc., Version 3.5 BIOS Datum: Mittwoch, 27-04-2022 There are 8 fans installed I now have the fans via a script drove more smoothly Can you provide a screen print of the fans page? Fans go to full when fan control is started. also you can run from cmdline in debug to see if that shows any additional info. root@Tower:~# ipmifan --help Process settings in ipmi plugin fan config. Control fans based on config values and [options]. Usage: ipmifan [options] -a, --auto set fans to auto --full set fans to full speed -q, --quiet suppress all messages --debug turn on debugging --daemon run in the background --help display this help and exit --quit stop daemon if running --version output version information and exit root@Tower:~#

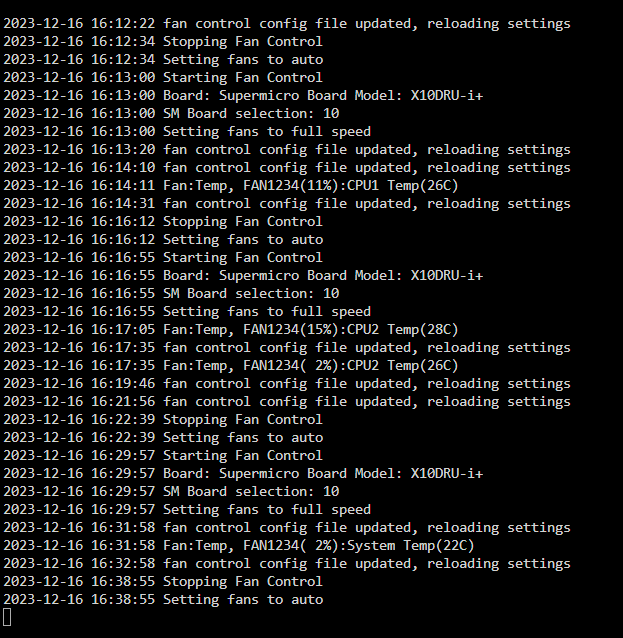

December 17, 20232 yr 1 hour ago, SimonF said: Can you provide a screen print of the fans page? Fans go to full when fan control is started. also you can run from cmdline in debug to see if that shows any additional info. root@Tower:~# ipmifan --help Process settings in ipmi plugin fan config. Control fans based on config values and [options]. Usage: ipmifan [options] -a, --auto set fans to auto --full set fans to full speed -q, --quiet suppress all messages --debug turn on debugging --daemon run in the background --help display this help and exit --quit stop daemon if running --version output version information and exit root@Tower:~# do you mean this?
December 17, 20232 yr Author 3 minutes ago, Denis06061986 said: do you mean this? Did you have a temp sensor set as auto will just use motherboard auto mode.
December 17, 20232 yr 14 hours ago, SimonF said: does ipmi-raw 00 3a d7 and ipmi-raw 00 3a da provide any output? Quote ipmi-raw 00 3a d7 rcvd: D7 C1 Quote ipmi-raw 00 3a da rcvd: DA C1
December 20, 20232 yr On 12/9/2023 at 6:35 AM, SimonF said: Can you tell me what the output of this is for your machine? /usr/bin/lscpu | grep 'Socket(s):' | awk '{print $2}' root@UnraidHost:~# /usr/bin/lscpu | grep 'Socket(s):' | awk '{print $2}' 2 Which is expected since its a dual socket motherboard. Just the IPMI fan setup for the board only needs 1 IPMI command to set all fans. I guess other boards split the fans by socket?
December 20, 20232 yr On 12/17/2023 at 8:10 AM, Dave-Kay said: https://blog.chaospixel.com/linux/2016/09/Fan-control-on-Asrock-C2750D4I-C2550D4I-board.html seems to have ipmi-raw commands for your motherboard. based on that, this json file might work for you: { "ASRock": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 00 00", "fans": { "CPU_FAN1": "01", "CPU_FAN2": "01", "REAR_FAN1": "01", "REAR_FAN2": "01", "FRNT_FAN1": "01", "FRNT_FAN2": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } } Just in case that blog article ever gets removed, here is the pertinent information: ipmitool raw 0x3a 0x01 AA BB CC DD EE FF 0x00 0x00 Each block must be replaced with the requested fan control value. AA : CPU_FAN1 BB : CPU_FAN2 CC : REAR_FAN1 DD : REAR_FAN2 EE : FRNT_FAN1 FF : FRNT_FAN2 The control value is one of the following: 0x00 Smart fan (Duty cycle setting from BIOS) 0x04 min. RPM value …. increase RPM value 0x64 max. RPM value Edited December 20, 20232 yr by Gunny
December 21, 20232 yr 23 hours ago, Gunny said: https://blog.chaospixel.com/linux/2016/09/Fan-control-on-Asrock-C2750D4I-C2550D4I-board.html seems to have ipmi-raw commands for your motherboard. based on that, this json file might work for you: { "ASRock": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 00 00", "fans": { "CPU_FAN1": "01", "CPU_FAN2": "01", "REAR_FAN1": "01", "REAR_FAN2": "01", "FRNT_FAN1": "01", "FRNT_FAN2": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } } Just in case that blog article ever gets removed, here is the pertinent information: ipmitool raw 0x3a 0x01 AA BB CC DD EE FF 0x00 0x00 Each block must be replaced with the requested fan control value. AA : CPU_FAN1 BB : CPU_FAN2 CC : REAR_FAN1 DD : REAR_FAN2 EE : FRNT_FAN1 FF : FRNT_FAN2 The control value is one of the following: 0x00 Smart fan (Duty cycle setting from BIOS) 0x04 min. RPM value …. increase RPM value 0x64 max. RPM value That, actually mnakes me wonder. I changed from 2550DI4 to the actual board. Also, on the 2550 the script to get the values worked wel.. Will try it later on, anyway.
January 1, 20242 yr I have a Supermicro X8DT3 with a BMC IPMI. I am running Unraid 6.12.6. Since installing the IPMI Tools plugin (new install from scratch), I keep getting constant "Critical Low" or "Critical High" warning until the log file is 100% full. I had to turn off notifications. I am running a fan wall (x3) of Noctua NF-P12 (with PWM) and 2 NF-R8 fans at the back of the case. My son and I have adjusted the IPMI Tools config file to the closest values the X8DT3 will take for the Noctua fans and yet Unraid log is still getting overwhelmed unless I turn off notifications. Thoughts? IPMI Tools Config below: Quote Section 9_System_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 75.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 77.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 79.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 10_CPU1_Vcore ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 0.672000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 0.664000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.656000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.352000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.360000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.368000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.016000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.016000 EndSection Section 11_CPU2_Vcore ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 0.672000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 0.664000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.656000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.352000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.360000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.368000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.016000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.016000 EndSection Section 12_CPU1_DIMM ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.200000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.192000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 1.184000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.648000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.656000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.664000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.016000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.016000 EndSection Section 13_CPU2_DIMM ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.200000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.192000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 1.184000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.648000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.656000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.664000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.016000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.016000 EndSection Section 14_+1.5V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.336000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.328000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 1.320000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.656000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.664000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.672000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.016000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.016000 EndSection Section 15_+3.3V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 2.928000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 2.904000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 2.880000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 3.648000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 3.672000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 3.696000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.048000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.048000 EndSection Section 16_+3.3VSB ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 2.928000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 2.904000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 2.880000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 3.648000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 3.672000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 3.696000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.048000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.048000 EndSection Section 17_+5V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 4.480000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 4.448000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 4.416000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 5.536000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 5.568000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 5.600000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.064000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.064000 EndSection Section 18_+12V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 10.706000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 10.653000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 10.600000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 13.250000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 13.303000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 13.356000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.106000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.106000 EndSection Section 19_VBAT ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 2.928000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 2.904000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 2.880000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 3.648000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 3.672000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 3.696000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 0.048000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 0.048000 EndSection Section 20_Fan1 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 405.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Critical_Threshold 270.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Recoverable_Threshold 135.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Critical_Threshold 2025.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Critical_Threshold 2160.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Recoverable_Threshold 2295.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 21_Fan2 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 405.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Critical_Threshold 270.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Recoverable_Threshold 135.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Critical_Threshold 2025.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Critical_Threshold 2160.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Recoverable_Threshold 2295.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 22_Fan3 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 405.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Critical_Threshold 270.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Recoverable_Threshold 135.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Critical_Threshold 2025.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Critical_Threshold 2160.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Recoverable_Threshold 2295.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 23_Fan4 ## Possible values: Yes/No Enable_All_Event_Messages No ## Possible values: Yes/No Enable_Scanning_On_This_Sensor No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High No ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Critical_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Recoverable_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Critical_Threshold 29970.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Critical_Threshold 29970.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Recoverable_Threshold 29970.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 24_Fan5 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 270.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Critical_Threshold 135.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Recoverable_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Critical_Threshold 2295.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Critical_Threshold 2430.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Recoverable_Threshold 2565.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 25_Fan6 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 270.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Critical_Threshold 135.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Recoverable_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Critical_Threshold 2295.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Critical_Threshold 2430.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Recoverable_Threshold 2565.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 26_Fan7 ## Possible values: Yes/No Enable_All_Event_Messages No ## Possible values: Yes/No Enable_Scanning_On_This_Sensor No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High No ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Critical_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Recoverable_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Critical_Threshold 29970.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Critical_Threshold 29970.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Recoverable_Threshold 29970.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 27_Fan8 ## Possible values: Yes/No Enable_All_Event_Messages No ## Possible values: Yes/No Enable_Scanning_On_This_Sensor No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High No ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Critical_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Recoverable_Threshold 0.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Critical_Threshold 29970.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Critical_Threshold 29970.000000 ## Give valid input for sensor type = Fan; units = RPM Upper_Non_Recoverable_Threshold 29970.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 28_P1-DIMM1A_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 29_P1-DIMM1B_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 30_P1-DIMM2A_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 31_P1-DIMM2B_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 32_P1-DIMM3A_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 33_P1-DIMM3B_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 34_P2-DIMM1A_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 35_P2-DIMM1B_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 36_P2-DIMM2A_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 37_P2-DIMM2B_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 38_P2-DIMM3A_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 39_P2-DIMM3B_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High No ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Critical_Threshold -5.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Critical_Threshold -7.000000 ## Give valid input for sensor type = Temperature; units = degrees C Lower_Non_Recoverable_Threshold -9.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Critical_Threshold 85.000000 ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Recoverable_Threshold 90.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 2.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 2.000000 EndSection Section 40_Intrusion ## Possible values: Yes/No Enable_All_Event_Messages No ## Possible values: Yes/No Enable_Scanning_On_This_Sensor No ## Possible values: Yes/No Enable_Assertion_Event_General_Chassis_Intrusion No ## Possible values: Yes/No Enable_Deassertion_Event_General_Chassis_Intrusion No EndSection Section 41_PS_Status ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Power_Supply_Failure_Detected No ## Possible values: Yes/No Enable_Deassertion_Event_Power_Supply_Failure_Detected Yes EndSection
January 7, 20242 yr I have a R730XD. IPMI works on the idrac port, not locally. After I get it set up with the idrac ip, user/pass I can see the data from ipmi, but all the fan control stuff is just wrong. The json defaults to "ASRockRack". How can I get the fan control stuff working with my setup?
January 7, 20242 yr I have a R730XD. IPMI works on the idrac port, not locally. After I get it set up with the idrac ip, user/pass I can see the data from ipmi, but all the fan control stuff is just wrong. The json defaults to "ASRockRack". How can I get the fan control stuff working with my setup?You do not need to use ip, your local on the device, ip control is for a remote machine. You need to modprobe ipmi-si ipmi-devintf
January 7, 20242 yr 43 minutes ago, spl147 said: You do not need to use ip, your local on the device, ip control is for a remote machine. You need to modprobe ipmi-si ipmi-devintf Neat! The json still says asrockrack but it does control fans now
January 7, 20242 yr Neat! The json still says asrockrack but it does control fans nowYea mine says asrock as well, i have a T430
