December 6, 20232 yr Author 2 hours ago, mikeyosm said: @SimonF can you please look in to why fan control is not detecting my fan (7) properly on my Asrock Z490D4U-2L2T? debug.txt 7.52 kB · 2 downloads Did it create board.json in /boot/config/plugins/ipmi/ ? May take me some time to look into options for your Board as I dont have any ASRock hardware.
December 6, 20232 yr 46 minutes ago, SimonF said: Did it create board.json in /boot/config/plugins/ipmi/ ? May take me some time to look into options for your Board as I dont have any ASRock hardware. Yep, here's the content of the file... /boot/config/plugins/ipmi# cat board.json { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "FAN_POS1": "01", "FAN_POS2": "01", "FAN_POS3": "01", "FAN_POS4": "01", "FAN_POS5": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } }
December 6, 20232 yr Author 3 hours ago, spl147 said: Very Nice! looking forward to the update Release 2023.12.06 Add secondary Temp check if HDD is primary and disk have spundown. Add JSON to config page. Also shows F in fans page.
December 6, 20232 yr Author 44 minutes ago, mikeyosm said: Yep, here's the content of the file... /boot/config/plugins/ipmi# cat board.json { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "64 64 64 64 64 64 64 64", "fans": { "FAN_POS1": "01", "FAN_POS2": "01", "FAN_POS3": "01", "FAN_POS4": "01", "FAN_POS5": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } If you run ipmi-raw 00 3a 01 21 64 64 64 64 64 64 64 in the command line do you get a response code?
December 6, 20232 yr Author On 12/3/2023 at 9:17 PM, Gunny said: @SimonFonly thing I can think of would be to add the json files to the config editor dropdown so people less technically inclined can still see/adjust those files if necessary. Added option for JSON in the editor page.
December 6, 20232 yr 59 minutes ago, SimonF said: If you run ipmi-raw 00 3a 01 21 64 64 64 64 64 64 64 in the command line do you get a response code? Yep - ipmi-raw 00 3a 01 21 64 64 64 64 64 64 64 rcvd: 01 C1

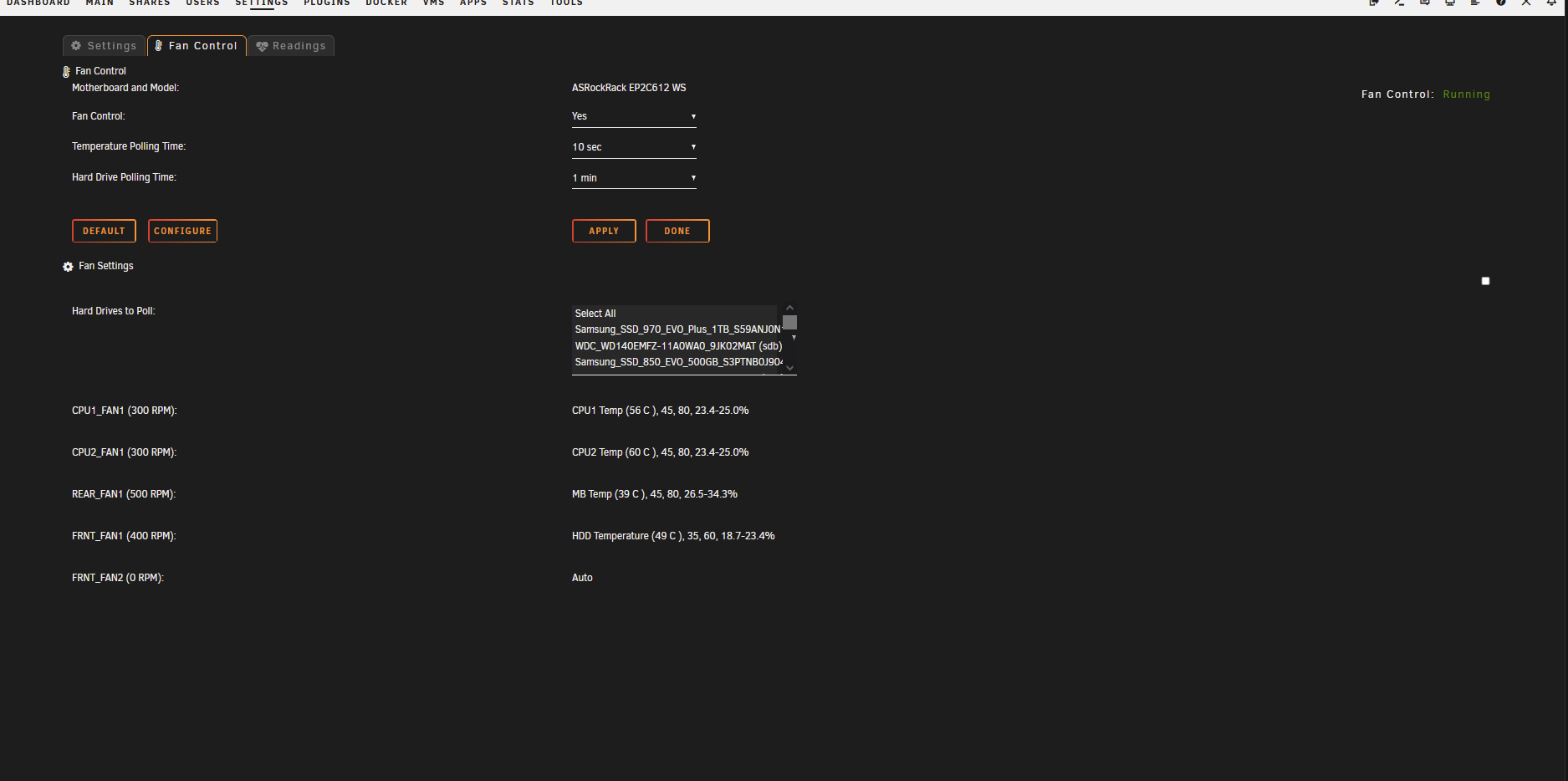

December 6, 20232 yr hmm, I updated to 12.06 and the fan control still works with my existing config files, but the settings page is broken now and I can't see or modify anything. Clicking on the buttons causes a new tab to be opened. If I remove my board.json config, the settings page starts to work again, but restoring it causes it to break { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "01 64 64 64 64 64 00 00", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FAN_POS4": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } } Edited December 6, 20232 yr by Gunny
December 6, 20232 yr Author 34 minutes ago, Gunny said: hmm, I updated to 12.06 and the fan control still works with my existing config files, but the settings page is broken now and I can't see or modify anything. Clicking on the buttons causes a new tab to be opened. If I remove my board.json config, the settings page starts to work again, but restoring it causes it to break { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "01 64 64 64 64 64 00 00", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FAN_POS4": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } } } Would you be able to send me copy of ipmi-sensors also Also if running 6.12 can you look to see if any PHP errors. via tools->php settings view log.
December 6, 20232 yr 5 hours ago, SimonF said: Release 2023.12.06 Add secondary Temp check if HDD is primary and disk have spundown. Add JSON to config page. Also shows F in fans page. looks great, would it be possible to seperate the hdd hi/low temp/speed and the CPU hi/low temp/speed? as cpu runs hotter then hdds, so the settings for the hdds don't work well for cpu. IE fans are alway spinning more when hdds spin down vs when hdds are spun up

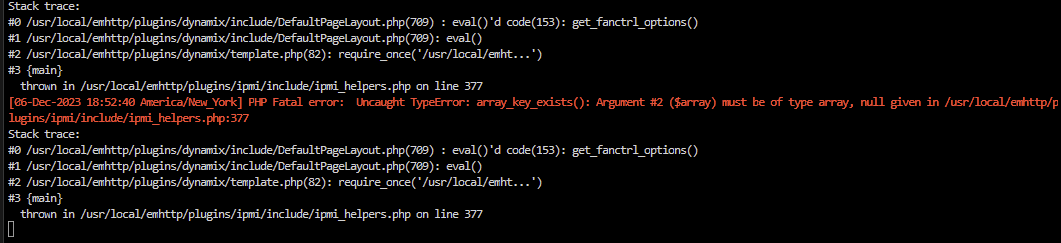

December 6, 20232 yr 4 hours ago, SimonF said: Would you be able to send me copy of ipmi-sensors also Also if running 6.12 can you look to see if any PHP errors. via tools->php settings view log. Ah, I was wondering if there was a place for php logs thanks for the tip [06-Dec-2023 18:52:40 America/New_York] PHP Fatal error: Uncaught TypeError: array_key_exists(): Argument #2 ($array) must be of type array, null given in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php:377 Stack trace: #0 /usr/local/emhttp/plugins/dynamix/include/DefaultPageLayout.php(709) : eval()'d code(153): get_fanctrl_options() #1 /usr/local/emhttp/plugins/dynamix/include/DefaultPageLayout.php(709): eval() #2 /usr/local/emhttp/plugins/dynamix/template.php(82): require_once('/usr/local/emht...') #3 {main} thrown in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 377 Section 2_ATX+5VSB ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 4.710000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 4.230000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 5.550000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 5.610000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 3_+3.3VSB ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 2.820000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 2.780000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 3.660000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 3.680000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 4_CPU1_VIN ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.260000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 1.240000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 2.090000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 2.100000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 5_VCCM_AB ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.080000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.020000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.960000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.320000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.440000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 6_+1.05_PCH ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 0.900000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.870000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.220000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.250000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 7_+1.50_PCH ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.350000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.270000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 1.200000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.650000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.720000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.800000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 8_BAT ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 2.500000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 2.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 3.580000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 3.680000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 9_CPU1_FAN1 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 10_CPU2_FAN1 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 11_REAR_FAN1 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 12_FRNT_FAN1 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 13_FRNT_FAN2 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 14_FRNT_FAN3 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 15_FRNT_FAN4 ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Give valid input for sensor type = Fan; units = RPM Lower_Non_Critical_Threshold 100.000000 ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Fan; units = RPM; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 16_+3.3V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 2.820000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 2.780000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 3.660000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 3.680000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 17_+12V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 10.300000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 10.100000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 13.300000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 13.400000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 18_+5V ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 4.710000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 4.230000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 5.550000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 5.610000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 20_CPU1_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 91.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 21_CPU2_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 91.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 22_CPU2_VIN ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.260000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 1.240000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 2.090000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 2.100000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 23_VCCM_CD ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.080000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.020000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.960000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.320000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.440000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 24_VCCM_EF ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.080000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.020000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.960000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.320000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.440000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 25_VCCM_GH ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Recoverable_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Critical_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Lower_Non_Recoverable_Going_Low Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Recoverable_Going_High Yes ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Critical_Threshold 1.080000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Critical_Threshold 1.020000 ## Give valid input for sensor type = Voltage; units = Volts Lower_Non_Recoverable_Threshold 0.960000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Critical_Threshold 1.320000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Critical_Threshold 1.380000 ## Give valid input for sensor type = Voltage; units = Volts Upper_Non_Recoverable_Threshold 1.440000 ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Voltage; units = Volts; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 26_Case_Open ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_General_Chassis_Intrusion Yes ## Possible values: Yes/No Enable_Deassertion_Event_General_Chassis_Intrusion Yes EndSection Section 27_CPU1_PROCHOT ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 28_CPU2_PROCHOT ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 29_CPU1_THERMTRIP ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_FRB1_BIST_failure Yes ## Possible values: Yes/No Enable_Assertion_Event_FRB3_Processor_Startup_Initialization_Failure Yes ## Possible values: Yes/No Enable_Assertion_Event_Configuration_Error Yes EndSection Section 30_CPU2_THERMTRIP ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_FRB1_BIST_failure Yes ## Possible values: Yes/No Enable_Assertion_Event_FRB3_Processor_Startup_Initialization_Failure Yes ## Possible values: Yes/No Enable_Assertion_Event_Configuration_Error Yes EndSection Section 31_MB_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 50.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 32_Card_Side_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 33_TR1_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Possible values: Yes/No Enable_Assertion_Event_Upper_Non_Critical_Going_High Yes ## Possible values: Yes/No Enable_Deassertion_Event_Upper_Non_Critical_Going_High Yes ## Give valid input for sensor type = Temperature; units = degrees C Upper_Non_Critical_Threshold 80.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis None ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis None EndSection Section 34_PS1_Status ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 35_PS2_Status ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 44_DDR4_E_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 45_DDR4_C_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 46_DDR4_D_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 47_DDR4_H_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 48_DDR4_A_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 49_DDR4_G_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 50_DDR4_B_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 51_DDR4_F_Temp ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Positive_Going_Threshold_Hysteresis 1.000000 ## Give valid input for sensor type = Temperature; units = degrees C; 'None' to not use hysteresis Negative_Going_Threshold_Hysteresis 1.000000 EndSection Section 52_PSU1_AC_Lost ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection Section 53_PSU2_AC_Lost ## Possible values: Yes/No Enable_All_Event_Messages Yes ## Possible values: Yes/No Enable_Scanning_On_This_Sensor Yes EndSection
December 7, 20232 yr Looking at the line that threw the error, I was able to fake it out by adding a 2nd board with no fans on it: { "ASRockRack": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "01 64 64 64 64 64 00 00", "fans": { "CPU1_FAN1": "01", "CPU2_FAN1": "01", "REAR_FAN1": "01", "FAN_POS4": "01", "FRNT_FAN1": "01", "FAN_POS6": "01", "FAN_POS7": "01", "FAN_POS8": "01" } }, "fake": { "raw": "00 3a 01", "auto": "00 00 00 00 00 00 00 00", "full": "01 64 64 64 64 64 00 00", "fans": { } } } I think the issue is fundamentally the code makes assumptions about board functionality in the code itself, and doesn't utilize the config files as the source of truth for what to do. Like in the ipmi_settings_fan.php where $cmd_count gets set, instead of counting the sections in the board.json to determine how many ipmi commands need to get run, it assumes it needs to send a command for each cpu socket on ASRock boards.
December 7, 20232 yr this is in my php logs: [06-Dec-2023 18:40:22 America/Chicago] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:22 America/Chicago] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:23 America/Chicago] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:23 America/Chicago] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:27 America/Chicago] PHP Deprecated: preg_match(): Passing null to parameter #2 ($subject) of type string is deprecated in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 80 [06-Dec-2023 18:40:27 America/Chicago] PHP Warning: Undefined variable $conn in /usr/local/emhttp/plugins/dynamix/include/DefaultPageLayout.php(709) : eval()'d code on line 48 [06-Dec-2023 18:40:27 America/Chicago] PHP Warning: Undefined variable $options in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 223 [06-Dec-2023 18:40:27 America/Chicago] PHP Warning: Undefined variable $options in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 223 [06-Dec-2023 18:40:27 America/Chicago] PHP Warning: Undefined variable $options in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 517 [06-Dec-2023 18:40:27 America/Chicago] PHP Warning: Undefined variable $options in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 517 [06-Dec-2023 18:40:27 America/Chicago] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:27 America/Chicago] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:47 America/Chicago] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:47 America/Chicago] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:55 America/Chicago] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:55 America/Chicago] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:57 America/Chicago] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:40:57 America/Chicago] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:41:17 America/Chicago] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:41:17 America/Chicago] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:41:38 America/Chicago] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:41:38 America/Chicago] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:41:58 America/Chicago] PHP Warning: Undefined variable $display in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8 [06-Dec-2023 18:41:58 America/Chicago] PHP Warning: Trying to access array offset on value of type null in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 8
December 8, 20232 yr On 12/6/2023 at 7:10 PM, mikeyosm said: Yep - ipmi-raw 00 3a 01 21 64 64 64 64 64 64 64 rcvd: 01 C1 @SimonF any ideas on what could be wrong, need some more logs from me?
December 8, 20232 yr Author 6 hours ago, mikeyosm said: @SimonF any ideas on what could be wrong, need some more logs from me? Can you provide the output of this. ipmi-raw 00 3a 02 do you have pwm fans in your system? https://git.deck.sh/shark/asrock-pwm-ipmi
December 8, 20232 yr 3 hours ago, SimonF said: Can you provide the output of this. ipmi-raw 00 3a 02 do you have pwm fans in your system? https://git.deck.sh/shark/asrock-pwm-ipmi Yes I do have PWM fan. ~# ipmi-raw 00 3a 02 rcvd: 02 C1
December 8, 20232 yr Author 3 minutes ago, mikeyosm said: Yes I do have PWM fan. ~# ipmi-raw 00 3a 02 rcvd: 02 C1 can you try with just 3a 02
December 8, 20232 yr 3 minutes ago, SimonF said: can you try with just 3a 02 ~# ipmi-raw 3a 02 Invalid number of hex bytes
December 8, 20232 yr Author I am out of ideas at present as they should be working for your board I think.
December 8, 20232 yr Author 2 hours ago, SimonF said: I am out of ideas at present as they should be working for your board I think. can you provide configs from /boot/config/plugins/ipmi/
December 9, 20232 yr Author 15 hours ago, mikeyosm said: ~# ipmi-raw 3a 02 Invalid number of hex bytes Maybe the values for X570 may work, are you on the latest BMC firmware. Also saw post stating you need smartfans for you Motherboard set in the bios. set auto mode ipmi-raw 00 3a d8 00 00 00 00 00 00 00 set manual mode ipmi-raw 00 3a d8 01 01 01 01 01 01 01 01 Set full ipmi-raw 00 3a d8 64 64 64 64 64 64 64 Set fan to 20% ipmi-raw 00 3a d6 64 14 14 14 14 14 14 14 get fan speeds ipmi-raw 00 3a d7 get mode ipmi-raw 00 3a db
December 9, 20232 yr Author On 12/6/2023 at 11:54 PM, Gunny said: [06-Dec-2023 18:52:40 America/New_York] PHP Fatal error: Uncaught TypeError: array_key_exists(): Argument #2 ($array) must be of type array, null given in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php:377 Stack trace: #0 /usr/local/emhttp/plugins/dynamix/include/DefaultPageLayout.php(709) : eval()'d code(153): get_fanctrl_options() #1 /usr/local/emhttp/plugins/dynamix/include/DefaultPageLayout.php(709): eval() #2 /usr/local/emhttp/plugins/dynamix/template.php(82): require_once('/usr/local/emht...') #3 {main} thrown in /usr/local/emhttp/plugins/ipmi/include/ipmi_helpers.php on line 377 Can you tell me what the output of this is for your machine? /usr/bin/lscpu | grep 'Socket(s):' | awk '{print $2}'
December 9, 20232 yr 14 hours ago, SimonF said: can you provide configs from /boot/config/plugins/ipmi/ here you go. fan.cfg ipmi.cfg ipmi.config ipmi-sensors.config
December 9, 20232 yr 1 hour ago, SimonF said: Maybe the values for X570 may work, are you on the latest BMC firmware. Also saw post stating you need smartfans for you Motherboard set in the bios. set auto mode ipmi-raw 00 3a d8 00 00 00 00 00 00 00 set manual mode ipmi-raw 00 3a d8 01 01 01 01 01 01 01 01 Set full ipmi-raw 00 3a d8 64 64 64 64 64 64 64 Set fan to 20% ipmi-raw 00 3a d6 64 14 14 14 14 14 14 14 get fan speeds ipmi-raw 00 3a d7 get mode ipmi-raw 00 3a db on the latest bmc and set all fans to auto (Default) in BMC fan settings. I only have one pwm fan connected to header (fan 7).
December 9, 20232 yr Author 13 minutes ago, mikeyosm said: on the latest bmc and set all fans to auto (Default) in BMC fan settings. I only have one pwm fan connected to header (fan 7). is there not an option for smartfan in the bios? https://forums.servethehome.com/index.php?threads/asrock-rack-bmc-fan-control.26941/page-2
December 9, 20232 yr 2 hours ago, SimonF said: is there not an option for smartfan in the bios? https://forums.servethehome.com/index.php?threads/asrock-rack-bmc-fan-control.26941/page-2 No, not on the Z490D4U-2l2T motherboard.
