@TheLinuxGuyThere isn't one really but there are newer HBA cards like above that reach C7. You would need cable adapters and its expensive card to start with so... P.S - I'm running 2x of those boxes. Awesome kit from aliexpress. Average 60-90w with drives spun down.
-
9w seems excessive for 2.5GB. Do you think it is worth it? How does it compared to running a primary Gigabit Lan with 2nd 10GB DAC or fibre link?
-
Try using them in the usb2 port rather than usb3 port. Alternatively try a industrial usb key. There is an automated process for transferring new keys plus email support usually reply within 24hours. Would have same key issues no matter what the device is. i.e usb, HD, SSD etc. A solution could be to have to login via internet to authenticate an installation. But then people would say it has to connect to internet.
-

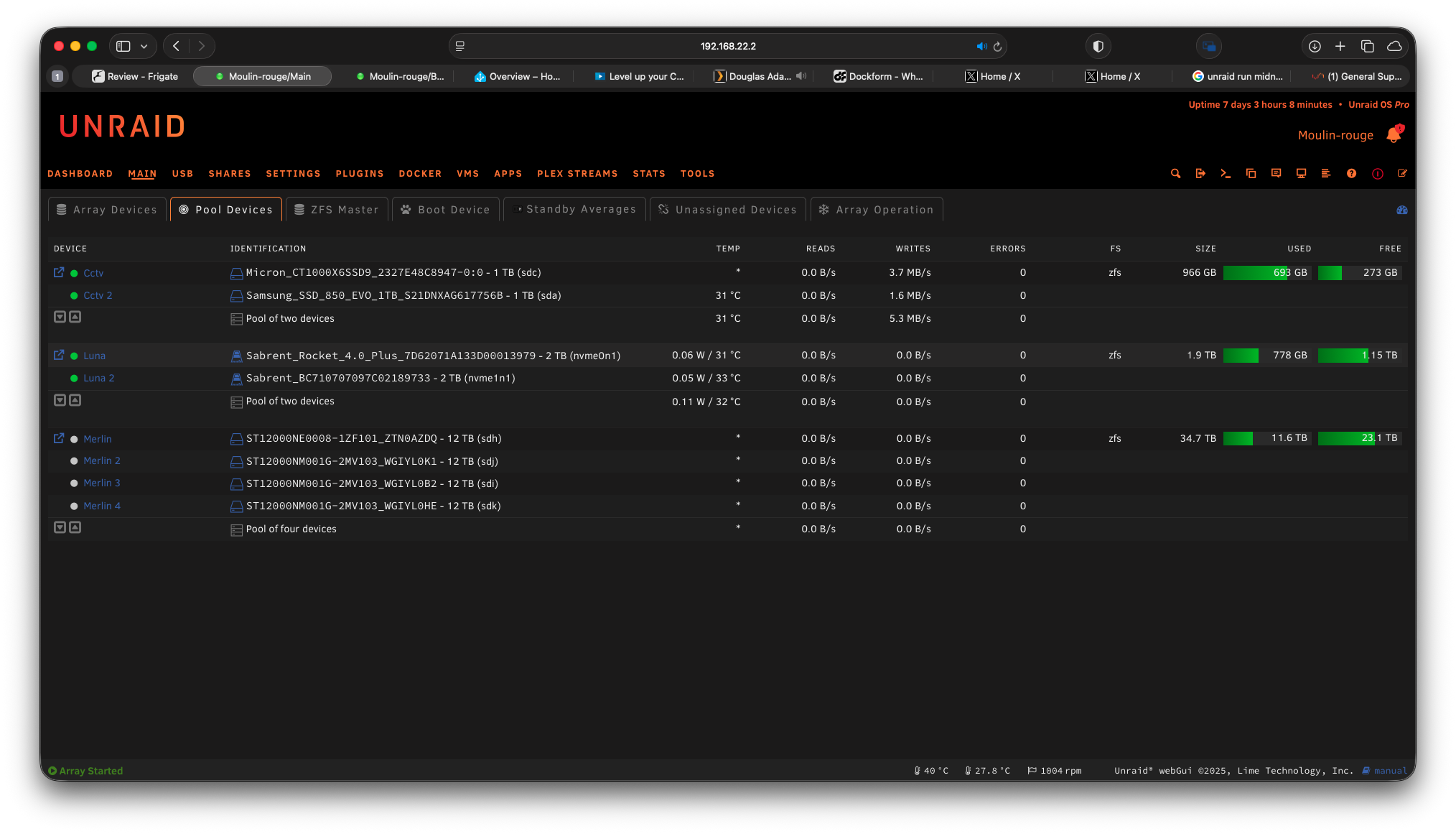

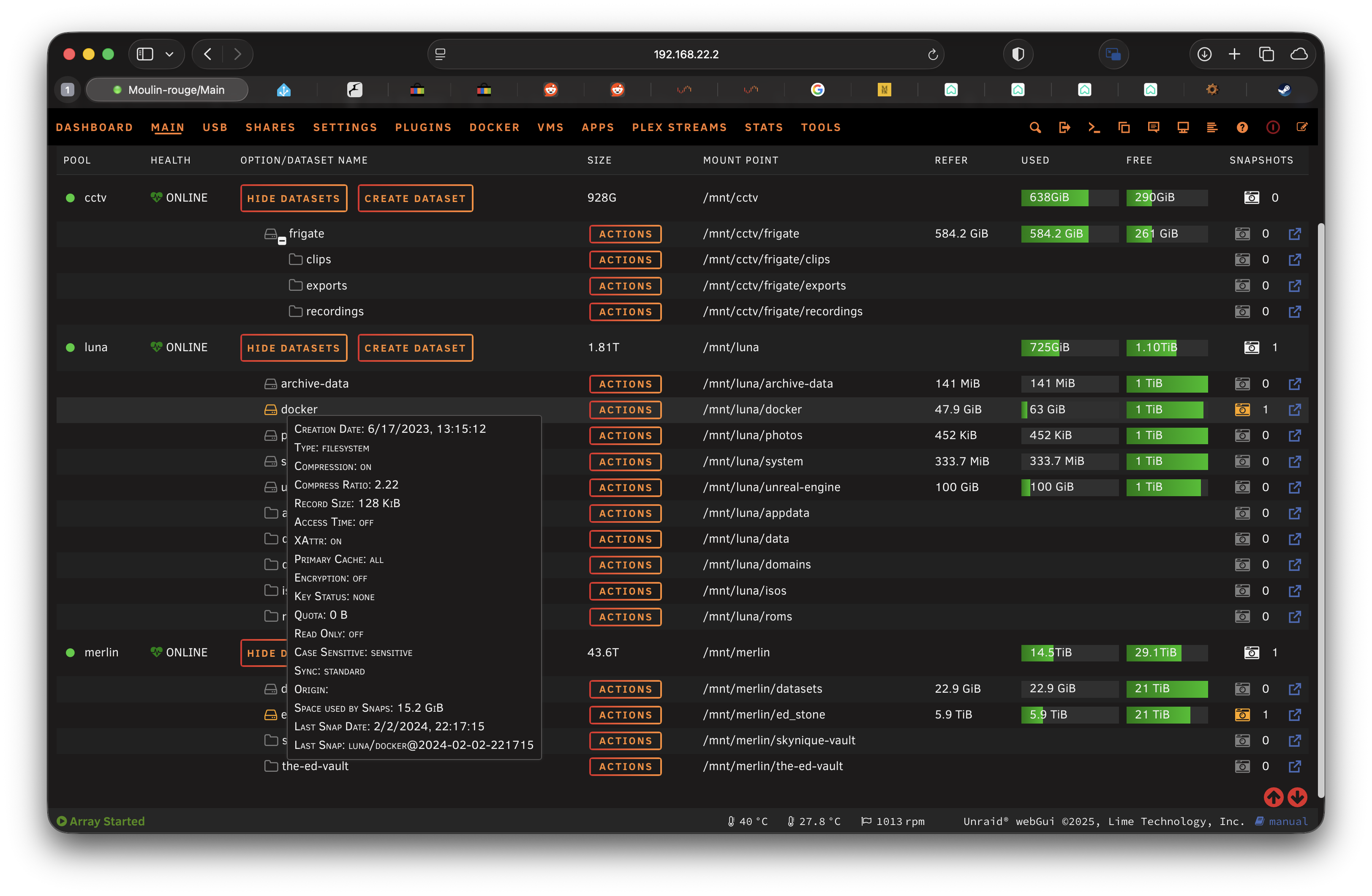

Attached my setup for an example. - Normal Array at the top. - 3x ZFS pools below a mixture of spinners & SSDs. - Consisting of: - 2x mirror pools using SSDs (note cctv is connected via USB) - 1x ZFS-1 pool using 4x 12TB drives. Gives SSD type speeds using RAID on Spinners.
-
Wonder if its because of the i3-12100T? In a previous build I had a 11900T and the base clock was 1.1Ghz which is too slow so always boosting. My current build is a B760M-ATX ERYING with i5-13500H with base @ 2.5 GHz Boost up to 4.7Ghz Performance-cores - 4 Efficient-cores - 8 Total Threads - 16 anyway enjoy 9w - 13w seems very good. How many drives do you have? I have 2x 16bay chassis but all spin down when not in use. Use the server with coral card & frigate for CCTV so on 24/7 now avg around 60w from previous 120w.
-
Trying to troubleshoot a system lockup during backup... Would it be possible to improve the logging? Make it save to the SSD app folder rather than TMP folder? Also if possible make the syslog name each docker as it is restarted? The share debug log doesn't seem to DO anything...
-
I keep the go config tweaks just remove cpu boost if that is where you control boost on / off. (it can be done in software rather than bios). BIOS: EIST/C-States enabled, Turbo boost, Speedstep & XMP enabled Only Remove turbo tweaks from /boot/config/go (keep all other settings) Use AutoTweak plugin to set powersave cpu governor and other tweaks reboot Share how you get on, does it help?
-
XMP usually increases voltage BUT you can usually manually undervolt this. Is it worth worrying about? Anyway regarding your objective of performance - You don't really need to disable turbo just use one of the settings in unraid plugins so that it throttles down faster. For example when I do usenet downloads & or plex video analysis I want to use turbo to CPU to the max, then once task finished idle down to avoid boost. Works great on my INTEL Raptor Lake PCH B760M-ATX ERYING (i7-13700H) I use the 'Autotweak' plugin set to 'powersave' which is my dynamic but most people use the old fashioned 'tips & tweaks' plugin which has a turbo scheduler.
-
Yeah it is odd. How far along is it getting? Is it detecting the screen via HDMI and thus resolution of the display?
-
Not an expert but would explore these questions. If HDMI out isn't working how are you able to view the VM? Are you using VNC to remote connect? Is the VM set to use the Nvidia card? or a virtual card?
-
Rock solid since rolling back to 6.12.11
-
Running unraid 6.12.11
-
So you'd need to compare the kernel with the steamdeck OS image kernel here: https://store.steampowered.com/steamos/download/?ver=steamdeck&snr
-
Unlikely to be memory as did memtest when I built this system a few months ago. -
August 29th Had some kind of full lockup - maybe CPU kernel error at 4am ish eventually the machine locked up around 6/7am with all drives spinning so had to do a forced reboot. Worth noting there is no scheduled tasks for that time. Anyone had similar on .13 vs .11 ? Could be anything but have downgraded to .11 to be safe. Aug 29 04:00:25 Moulin-rouge kernel: general protection fault, probably for non-canonical address 0xfbffea00417fcd80: 0000 [#1] PREEMPT SMP NOPTI Aug 29 04:00:25 Moulin-rouge kernel: CPU: 2 PID: 16817 Comm: sed Tainted: P O 6.1.106-Unraid #1 Aug 29 04:00:25 Moulin-rouge kernel: Hardware name: INTEL /INTEL Raptor Lake PCH B760M-ATX ERYING, BIOS 5.27 10/21/2023 Aug 29 04:00:25 Moulin-rouge kernel: RIP: 0010:next_uptodate_page+0x48/0xee Aug 29 04:00:25 Moulin-rouge kernel: Code: 89 cd 48 81 fb 06 04 00 00 0f 84 9a 00 00 00 48 81 fb 02 04 00 00 75 0d 48 c7 45 18 03 00 00 00 e9 84 00 00 00 f6 c3 01 75 7f <48> 8b 03 a8 01 75 78 48 89 df e8 e2 e1 ff ff 84 c0 74 6c 48 89 ef Aug 29 04:00:25 Moulin-rouge kernel: RSP: 0000:ffffc9000f343d08 EFLAGS: 00010246 Aug 29 04:00:25 Moulin-rouge kernel: RAX: fbffea00417fcd80 RBX: fbffea00417fcd80 RCX: 000000000000007d Aug 29 04:00:25 Moulin-rouge kernel: RDX: ffffc9000f343d60 RSI: ffff888108a2e9e8 RDI: fbffea00417fcd80 Aug 29 04:00:25 Moulin-rouge kernel: RBP: ffffc9000f343d60 R08: fbffea00417fcd80 R09: 0000000000000000 Aug 29 04:00:25 Moulin-rouge kernel: R10: 0000000000000402 R11: ffffc9000f343d60 R12: ffff888108a2e9e8 Aug 29 04:00:25 Moulin-rouge kernel: R13: 000000000000007d R14: 0000000000000000 R15: ffff888135a7cf00 Aug 29 04:00:25 Moulin-rouge kernel: FS: 000014e2173b7740(0000) GS:ffff889070080000(0000) knlGS:0000000000000000 Aug 29 04:00:25 Moulin-rouge kernel: CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033 Aug 29 04:00:25 Moulin-rouge kernel: CR2: 000014e217437810 CR3: 000000067b112006 CR4: 0000000000770ee0 Aug 29 04:00:25 Moulin-rouge kernel: PKRU: 55555554 Aug 29 04:00:25 Moulin-rouge kernel: Call Trace: Aug 29 04:00:25 Moulin-rouge kernel: <TASK> Aug 29 04:00:25 Moulin-rouge kernel: ? __die_body+0x1a/0x5c Aug 29 04:00:25 Moulin-rouge kernel: ? die_addr+0x38/0x51 Aug 29 04:00:25 Moulin-rouge kernel: ? exc_general_protection+0x30f/0x345 Aug 29 04:00:25 Moulin-rouge kernel: ? asm_exc_general_protection+0x22/0x30 Aug 29 04:00:25 Moulin-rouge kernel: ? next_uptodate_page+0x48/0xee Aug 29 04:00:25 Moulin-rouge kernel: filemap_map_pages+0x3bd/0x40d Aug 29 04:00:25 Moulin-rouge kernel: __handle_mm_fault+0xae1/0xcf9 Aug 29 04:00:25 Moulin-rouge kernel: handle_mm_fault+0x13d/0x20f Aug 29 04:00:25 Moulin-rouge kernel: do_user_addr_fault+0x2c3/0x465 Aug 29 04:00:25 Moulin-rouge kernel: exc_page_fault+0xfb/0x11d Aug 29 04:00:25 Moulin-rouge kernel: asm_exc_page_fault+0x22/0x30 Aug 29 04:00:25 Moulin-rouge kernel: RIP: 0033:0x14e217437810 Aug 29 04:00:25 Moulin-rouge kernel: Code: Unable to access opcode bytes at 0x14e2174377e6. Aug 29 04:00:25 Moulin-rouge kernel: RSP: 002b:00007ffc83f32c48 EFLAGS: 00010206 Aug 29 04:00:25 Moulin-rouge kernel: RAX: 000000000041d438 RBX: 0000000000000000 RCX: 0000000000000000 Aug 29 04:00:25 Moulin-rouge kernel: RDX: 0000000000000000 RSI: 0000000000417ed7 RDI: 00007ffc83f34f1e Aug 29 04:00:25 Moulin-rouge kernel: RBP: 00007ffc83f34f1e R08: 000014e2175aac80 R09: 000000000041f9d0 Aug 29 04:00:25 Moulin-rouge kernel: R10: 000014e2173cc9b8 R11: 000014e217437810 R12: 00007ffc83f34f1e Aug 29 04:00:25 Moulin-rouge kernel: R13: 000000000041d700 R14: 0000000000416bd7 R15: 00007ffc83f34f0d Aug 29 04:00:25 Moulin-rouge kernel: </TASK> Aug 29 04:00:25 Moulin-rouge kernel: Modules linked in: af_packet xt_connmark xt_mark xt_comment iptable_raw wireguard curve25519_x86_64 libcurve25519_generic libchacha20poly1305 chacha_x86_64 poly1305_x86_64 ip6_udp_tunnel udp_tunnel libchacha xt_CHECKSUM ipt_REJECT nf_reject_ipv4 ip6table_mangle ip6table_nat iptable_mangle vhost_net tun vhost vhost_iotlb tap xt_nat xt_tcpudp veth xt_conntrack xt_MASQUERADE nf_conntrack_netlink nfnetlink xfrm_user xfrm_algo iptable_nat nf_nat nf_conntrack nf_defrag_ipv6 nf_defrag_ipv4 xt_addrtype br_netfilter xfs md_mod bluetooth ecdh_generic ecc tcp_diag inet_diag it87(O) hwmon_vid ip6table_filter ip6_tables iptable_filter ip_tables x_tables efivarfs bridge stp llc i915 zfs(PO) intel_rapl_msr intel_rapl_common x86_pkg_temp_thermal intel_powerclamp coretemp kvm_intel iosf_mbi drm_buddy i2c_algo_bit ttm zunicode(PO) drm_display_helper zzstd(O) drm_kms_helper kvm drm zlua(O) zavl(PO) icp(PO) crct10dif_pclmul crc32_pclmul crc32c_intel ghash_clmulni_intel sha512_ssse3 intel_gtt Aug 29 04:00:25 Moulin-rouge kernel: mei_hdcp mei_pxp sha256_ssse3 sha1_ssse3 zcommon(PO) wmi_bmof aesni_intel znvpair(PO) crypto_simd cryptd rapl intel_cstate intel_uncore i2c_i801 spl(O) mei_me nvme agpgart mpt3sas i2c_smbus ahci cp210x r8169 mei i2c_core nvme_core usbserial libahci raid_class syscopyarea realtek sysfillrect scsi_transport_sas sysimgblt fb_sys_fops thermal fan video tpm_crb tpm_tis wmi tpm_tis_core backlight tpm intel_pmc_core acpi_pad acpi_tad button unix Aug 29 04:00:25 Moulin-rouge kernel: ---[ end trace 0000000000000000 ]--- Aug 29 04:00:25 Moulin-rouge kernel: RIP: 0010:next_uptodate_page+0x48/0xee Aug 29 04:00:25 Moulin-rouge kernel: Code: 89 cd 48 81 fb 06 04 00 00 0f 84 9a 00 00 00 48 81 fb 02 04 00 00 75 0d 48 c7 45 18 03 00 00 00 e9 84 00 00 00 f6 c3 01 75 7f <48> 8b 03 a8 01 75 78 48 89 df e8 e2 e1 ff ff 84 c0 74 6c 48 89 ef Aug 29 04:00:25 Moulin-rouge kernel: RSP: 0000:ffffc9000f343d08 EFLAGS: 00010246 Aug 29 04:00:25 Moulin-rouge kernel: RAX: fbffea00417fcd80 RBX: fbffea00417fcd80 RCX: 000000000000007d Aug 29 04:00:25 Moulin-rouge kernel: RDX: ffffc9000f343d60 RSI: ffff888108a2e9e8 RDI: fbffea00417fcd80 Aug 29 04:00:25 Moulin-rouge kernel: RBP: ffffc9000f343d60 R08: fbffea00417fcd80 R09: 0000000000000000 Aug 29 04:00:25 Moulin-rouge kernel: R10: 0000000000000402 R11: ffffc9000f343d60 R12: ffff888108a2e9e8 Aug 29 04:00:25 Moulin-rouge kernel: R13: 000000000000007d R14: 0000000000000000 R15: ffff888135a7cf00 Aug 29 04:00:25 Moulin-rouge kernel: FS: 000014e2173b7740(0000) GS:ffff889070080000(0000) knlGS:0000000000000000 Aug 29 04:00:25 Moulin-rouge kernel: CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033 Aug 29 04:00:25 Moulin-rouge kernel: CR2: 000014e2174377e6 CR3: 000000067b112006 CR4: 0000000000770ee0 Aug 29 04:00:25 Moulin-rouge kernel: PKRU: 55555554 Aug 29 04:00:25 Moulin-rouge kernel: note: sed[16817] exited with preempt_count 1 Aug 29 04:00:51 Moulin-rouge kernel: rcu: INFO: rcu_preempt detected expedited stalls on CPUs/tasks: { P16817 2-.... } 21063 jiffies s: 87281 root: 0x4/T Aug 29 04:00:51 Moulin-rouge kernel: rcu: blocking rcu_node structures (internal RCU debug): Aug 29 04:00:51 Moulin-rouge kernel: Sending NMI from CPU 6 to CPUs 2: Aug 29 04:00:51 Moulin-rouge kernel: NMI backtrace for cpu 2 Aug 29 04:00:51 Moulin-rouge kernel: CPU: 2 PID: 16817 Comm: sed Tainted: P D O 6.1.106-Unraid #1 Aug 29 04:00:51 Moulin-rouge kernel: Hardware name: INTEL /INTEL Raptor Lake PCH B760M-ATX ERYING, BIOS 5.27 10/21/2023 Aug 29 04:00:51 Moulin-rouge kernel: RIP: 0010:native_queued_spin_lock_slowpath+0x86/0x1cf Aug 29 04:00:51 Moulin-rouge kernel: Code: c2 0f b6 d2 c1 e2 08 30 e4 09 d0 3d ff 00 00 00 76 0c 0f ba e0 08 72 1e c6 43 01 00 eb 18 85 c0 74 0a 8b 03 84 c0 74 04 f3 90 <eb> f6 66 c7 03 01 00 e9 32 01 00 00 e8 ea 3b ff ff 49 c7 c4 80 ed Aug 29 04:00:51 Moulin-rouge kernel: RSP: 0000:ffffc9000f343c40 EFLAGS: 00000202 Aug 29 04:00:51 Moulin-rouge kernel: RAX: 0000000000000101 RBX: ffffea000d809ae8 RCX: ffff888000000000 Aug 29 04:00:51 Moulin-rouge kernel: RDX: 0000000000000000 RSI: 0000000000000001 RDI: ffffea000d809ae8 Aug 29 04:00:51 Moulin-rouge kernel: RBP: ffffc9000f343e20 R08: ffffc9000f343d30 R09: ffff8881d5c6b600 Aug 29 04:00:51 Moulin-rouge kernel: R10: 0000000000000001 R11: ffff8881d5c6b608 R12: ffff8884cc1e75d0 Aug 29 04:00:51 Moulin-rouge kernel: R13: 000000105ff03025 R14: 000014e21754d000 R15: ffff8883533c31b0 Aug 29 04:00:51 Moulin-rouge kernel: FS: 0000000000000000(0000) GS:ffff889070080000(0000) knlGS:0000000000000000 Aug 29 04:00:51 Moulin-rouge kernel: CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033 Aug 29 04:00:51 Moulin-rouge kernel: CR2: 000014e2174377e6 CR3: 000000067b112006 CR4: 0000000000770ee0 Aug 29 04:00:51 Moulin-rouge kernel: PKRU: 55555554 Aug 29 04:00:51 Moulin-rouge kernel: Call Trace: Aug 29 04:00:51 Moulin-rouge kernel: <NMI> Aug 29 04:00:51 Moulin-rouge kernel: ? nmi_cpu_backtrace+0xd3/0x104 Aug 29 04:00:51 Moulin-rouge kernel: ? nmi_cpu_backtrace_handler+0xd/0x15 Aug 29 04:00:51 Moulin-rouge kernel: ? nmi_handle+0x54/0x131 Aug 29 04:00:51 Moulin-rouge kernel: ? native_queued_spin_lock_slowpath+0x86/0x1cf Aug 29 04:00:51 Moulin-rouge kernel: ? default_do_nmi+0x66/0x15b Aug 29 04:00:51 Moulin-rouge kernel: ? exc_nmi+0xbf/0x11c Aug 29 04:00:51 Moulin-rouge kernel: ? end_repeat_nmi+0x16/0x67 Aug 29 04:00:51 Moulin-rouge kernel: ? native_queued_spin_lock_slowpath+0x86/0x1cf Aug 29 04:00:51 Moulin-rouge kernel: ? native_queued_spin_lock_slowpath+0x86/0x1cf Aug 29 04:00:51 Moulin-rouge kernel: ? native_queued_spin_lock_slowpath+0x86/0x1cf Aug 29 04:00:51 Moulin-rouge kernel: </NMI> Aug 29 04:00:51 Moulin-rouge kernel: <TASK> moulin-rouge-syslog-192.168.22.2-20240829-0747.zip
