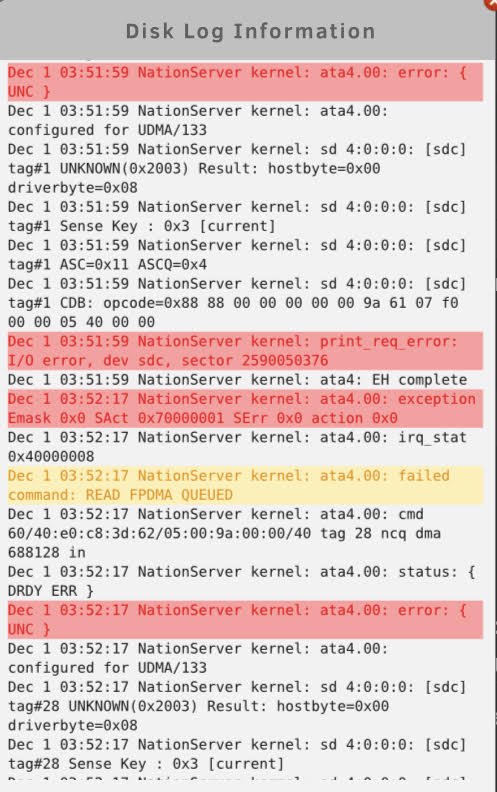

nationapn Posted December 25, 2020 Share Posted December 25, 2020 (edited) Happy Holidays fellow UnRAIDers, Does anyone happen to know if there’s a quick reference or secret decoder ring for understanding various disk errors on parity checks and/or SMART tests? I run a parity check every month and have had read errors on one of my drives the past two months. I am ready to replace it with a new drive, but before tossing out what could be a good drive (but with a bad cable), I thought I’d check with the collective knowledge of folks who know a whole lot more than me. Attached are the results of an extended SMART test and a screenshot of the errors I get with the parity check. Thanks for the help, and Merry Christmas! Andy WDC_WD60EFRX-68L0BN1_WD-WX21DC5J2Y6J-20201224-1855.txt Edited December 25, 2020 by nationapn clarification Quote Link to comment
trurl Posted December 25, 2020 Share Posted December 25, 2020 Do any of your disks have SMART warning on Dashboard page? Quote Link to comment
nationapn Posted December 25, 2020 Author Share Posted December 25, 2020 All of the disks say “healthy” on the dashboard page. When I run a quick SMART test on the drive in question, it passes. However, it failed the extended SMART test (with the previously attached log). Quote Link to comment
trurl Posted December 25, 2020 Share Posted December 25, 2020 You need to also monitor attributes 1 and 200 on WD Reds. Click on each to get to its settings. That disk wouldn't say healthy if you added those. Quote Link to comment
nationapn Posted December 25, 2020 Author Share Posted December 25, 2020 Thank you for the time and help! So I presume you mean I should add “1,200” to the custom attributes field? As suggested, it then says “failed” for that drive on the dashboard. Reading between the lines, it sounds like I do, in fact, have a bad drive, then. Out of curiosity, though, from those errors are you able to explain what is failing in the disk? Any reason for me to worry about what has been written to the parity drive? Also, I take it that I should start monitoring attributes 1 and 200 on my other 4 WD reds? Again, I really appreciate your help Quote Link to comment
JorgeB Posted December 25, 2020 Share Posted December 25, 2020 8 hours ago, nationapn said: in fact, have a bad drive, then It failed the extended SMART, so it is a failing disk. 8 hours ago, nationapn said: Also, I take it that I should start monitoring attributes 1 and 200 on my other 4 WD reds? Yes, any WD drive. Quote Link to comment
ChatNoir Posted December 25, 2020 Share Posted December 25, 2020 1 hour ago, JorgeB said: Yes, any WD drive. I though it was for RED drives, are all WD concerned ? Quote Link to comment
nationapn Posted December 25, 2020 Author Share Posted December 25, 2020 Thank you for all the info...I’ll be keeping a better eye on attributes 1 and 200 meow. Think I’m ok to just replace and repair from parity, then? Merry Christmas! Quote Link to comment
JorgeB Posted December 26, 2020 Share Posted December 26, 2020 21 hours ago, ChatNoir said: are all WD concerned ? Yes (all that have those attributes). 1 Quote Link to comment
