After 6.11 No longer can access SMB via Network

[dlandon]

Are you using AD?

[dlandon]

It appears this might be from clients on a domain accessing Unraid that is not part of the domain.

[Uplinkpro]

4 hours ago, dlandon said:

Are you using AD?

I used to run a domain however i decommissioned the AD and only run a homegroup now.

[Uplinkpro]

17 hours ago, dlandon said:

It appears this might be from clients on a domain accessing Unraid that is not part of the domain.

So playing with it all day i got it working on a new pc also on the network just not mine, so i think it has to be something on my windows machine but checking the workgroup is not on a domain so im not sure what else to do on it.

[MAM59]

My current assumption is that one or more GPOs on windows prevent the communication due to security restrictions. But there are dozens of them, and it takes always an hour or more just to try out one of them. This can take ages....



[Steffen1156]

On 9/26/2022 at 6:48 AM, MAM59 said:

My current assumption is that one or more GPOs on windows prevent the communication due to security restrictions. But there are dozens of them, and it takes always an hour or more just to try out one of them. This can take ages....





Hi,

I had the same problem as described at the beginning.



Edit my local GPO settings have solved the problem for me.
In Unraid 6.11 NTLMv1 was disabled, in connection with the new Linux kernel. But this was still stored as default authentication in the local GPOs of my computer.



Open your local GPOs and Find "Network Security: LAN Manager authentication level", which is located in Security Settings, Local Policies, Security Options.

I have set it to "Send NTLMv2 response only"



Description to find the Setting: https://kb.iu.edu/d/atcb

Level Overview by Microsoft: https://learn.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/jj852207(v=ws.11)?redirectedfrom=MSDN



[MAM59]

1 minute ago, Steffen1156 said:

I have set it to "Send NTLMv2 response only"

Lucky you are.. Here it was als NTLMv2 for years already, No V1 installed anymore. Also V1 used port 139 whereas V2 (and newer) use port 445.



But the effect vanished here too after 2 days of fiddling. mayby there was a formerly valid access token stored somewhere that needed to timeout to become invalid?

Anyway, after about 3 days the mist lifted and everything worked again.

Still strange...



[Uplinkpro]

38 minutes ago, Steffen1156 said:



Hi,

I had the same problem as described at the beginning.



Edit my local GPO settings have solved the problem for me.
In Unraid 6.11 NTLMv1 was disabled, in connection with the new Linux kernel. But this was still stored as default authentication in the local GPOs of my computer.



Open your local GPOs and Find "Network Security: LAN Manager authentication level", which is located in Security Settings, Local Policies, Security Options.

I have set it to "Send NTLMv2 response only"



Description to find the Setting: https://kb.iu.edu/d/atcb

Level Overview by Microsoft: https://learn.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/jj852207(v=ws.11)?redirectedfrom=MSDN





Changed that, and immediately was able to login, thanks I was about to reinstall windows >.<

Scratch that it worked once then stopped completely again

Edited September 28, 2022 by Uplinkpro

[D.Romeleitis]

On 9/28/2022 at 9:57 PM, Steffen1156 said:



Hi,

I had the same problem as described at the beginning.



Edit my local GPO settings have solved the problem for me.
In Unraid 6.11 NTLMv1 was disabled, in connection with the new Linux kernel. But this was still stored as default authentication in the local GPOs of my computer.



Open your local GPOs and Find "Network Security: LAN Manager authentication level", which is located in Security Settings, Local Policies, Security Options.

I have set it to "Send NTLMv2 response only"



Description to find the Setting: https://kb.iu.edu/d/atcb

Level Overview by Microsoft: https://learn.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2012-R2-and-2012/jj852207(v=ws.11)?redirectedfrom=MSDN





That didn't work for me. Still can't connect. I have the same problem with Android mobile in Total Commander. And there is SMB2 or SMB3 selected...

[limetech]

Add this to "Settings/SMB/SMB Extras/Samba extra configuration"



ntlm auth = Yes



Please report back if this solves connectivity issues.

[Uplinkpro]

1 hour ago, limetech said:

Add this to "Settings/SMB/SMB Extras/Samba extra configuration"



ntlm auth = Yes



Please report back if this solves connectivity issues.

Im not able to test that sorry, I fully reinstalled windows 11 and now it works just fine. Hopefully that fix helps someone.

[limetech]

1 minute ago, Uplinkpro said:

Im not able to test that sorry, I fully reinstalled windows 11 and now it works just fine. Hopefully that fix helps someone.



Probably win11 comes configured out of the box to not support NTLMv1 which is insecure.

[Frank1940]

2 minutes ago, limetech said:



Probably win11 comes configured out of the box to not support NTLMv1 which is insecure.

Absolutely True!  It can be turned on in Win10 but not sure if this is the case with Win11.

[Bodzio0]

On 10/5/2022 at 12:55 AM, limetech said:

Add this to "Settings/SMB/SMB Extras/Samba extra configuration"



ntlm auth = Yes



Please report back if this solves connectivity issues.

Worked for me! THX! I can now access shares on windows 10 and android

[takkkkkkk]

On 10/4/2022 at 7:55 PM, limetech said:

Add this to "Settings/SMB/SMB Extras/Samba extra configuration"



ntlm auth = Yes



Please report back if this solves connectivity issues.

Thank you for this! it solved my problem!

[Shane01638]

I haven't been able to try ntlm auth = Yes yet as too many people streaming.  Plex is working so no one is complaining except blue iris as it can't move files.  I cannot access any shares from any windows pc or my iPhone.  Thought I would drop my diag.



Edit:

ntlm auth = Yes

fixed my issues.  I can now access all unraid shares from windows and my iPhone as before.



zunraid-diagnostics-20221112-1833.zip

Edited November 13, 2022 by Shane01638

[jenga201]

I'm having this same issue with the 6.11.3 upgrade.  I'm not using AD.

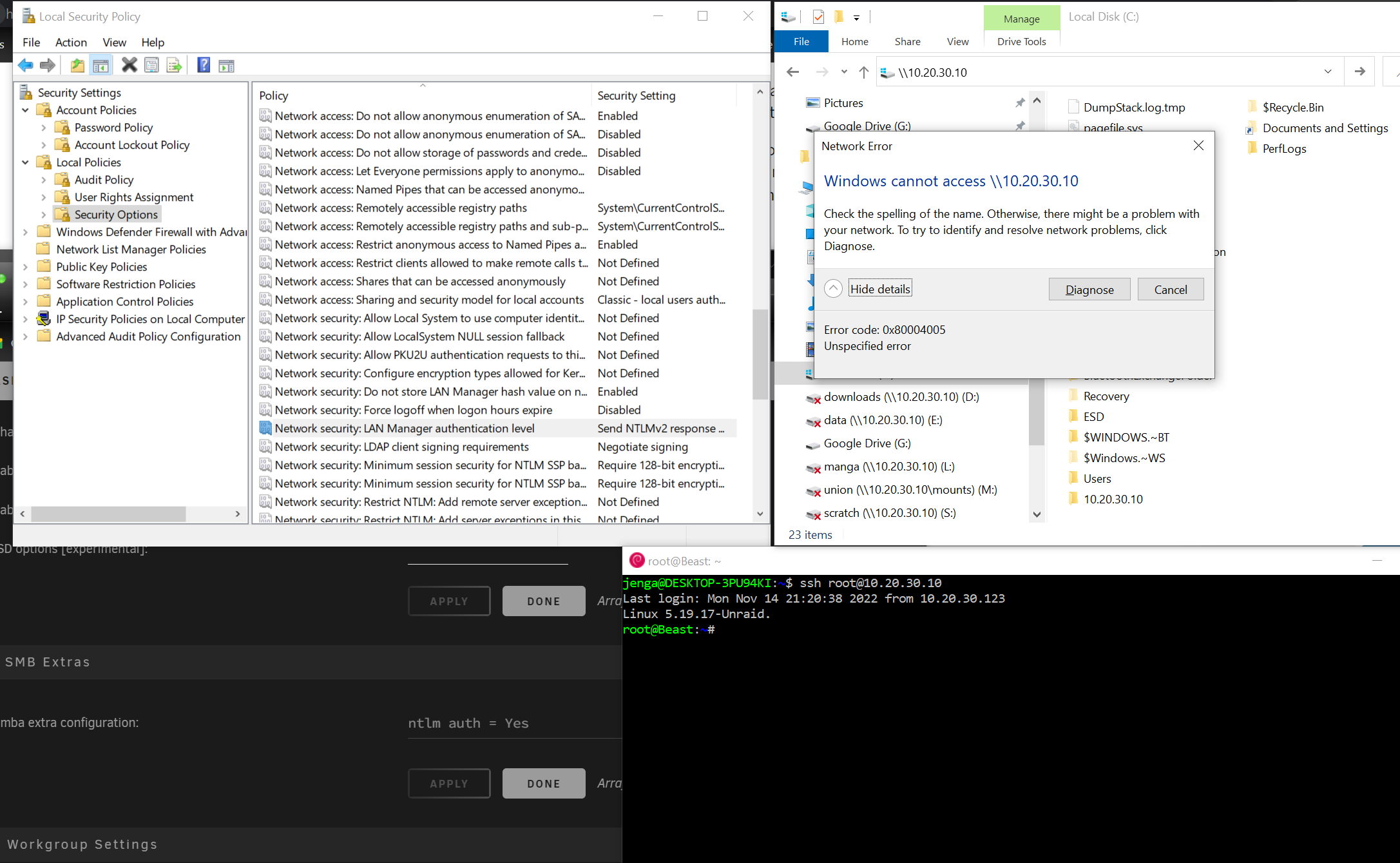

I've set "ntlm auth = Yes" in SMB Extras and set the network security GPO to NTLMv2 only (and combinations of either/or).



Are there any other diagnostics or solutions I could do to fix this issue?



[dlandon]

26 minutes ago, jenga201 said:

I'm having this same issue with the 6.11.3 upgrade.  I'm not using AD.

I've set "ntlm auth = Yes" in SMB Extras and set the network security GPO to NTLMv2 only (and combinations of either/or).



Are there any other diagnostics or solutions I could do to fix this issue?



Post your diagnostics file.

[jenga201]

44 minutes ago, dlandon said:

Post your diagnostics file.

beast-diagnostics-20221115-1655.zip



Here you go.  Thanks for taking a look

[dlandon]

Why are you using thep ip address to referecne the server?  Use the name and see if that works.

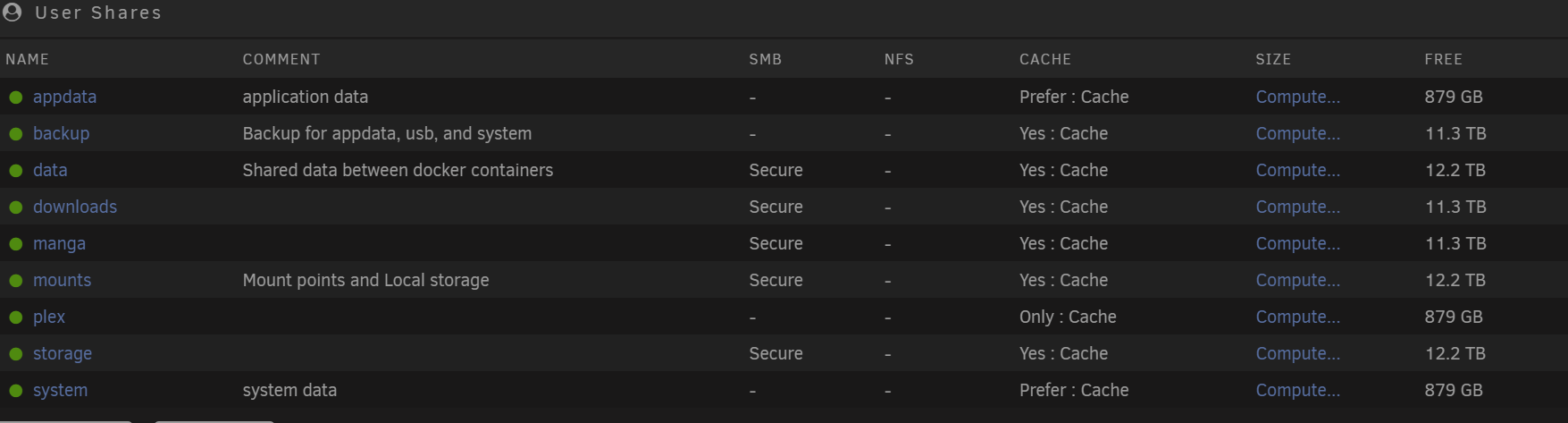

It looks like all your shares are set up public.  Is that what you intended?

[jenga201]

3 minutes ago, dlandon said:

Why are you using thep ip address to referecne the server?  Use the name and see if that works.



It looks like all your shares are set up public.  Is that what you intended?

I wasn't aware accessing the shares using the IP was a problem.



None of my shares are public.

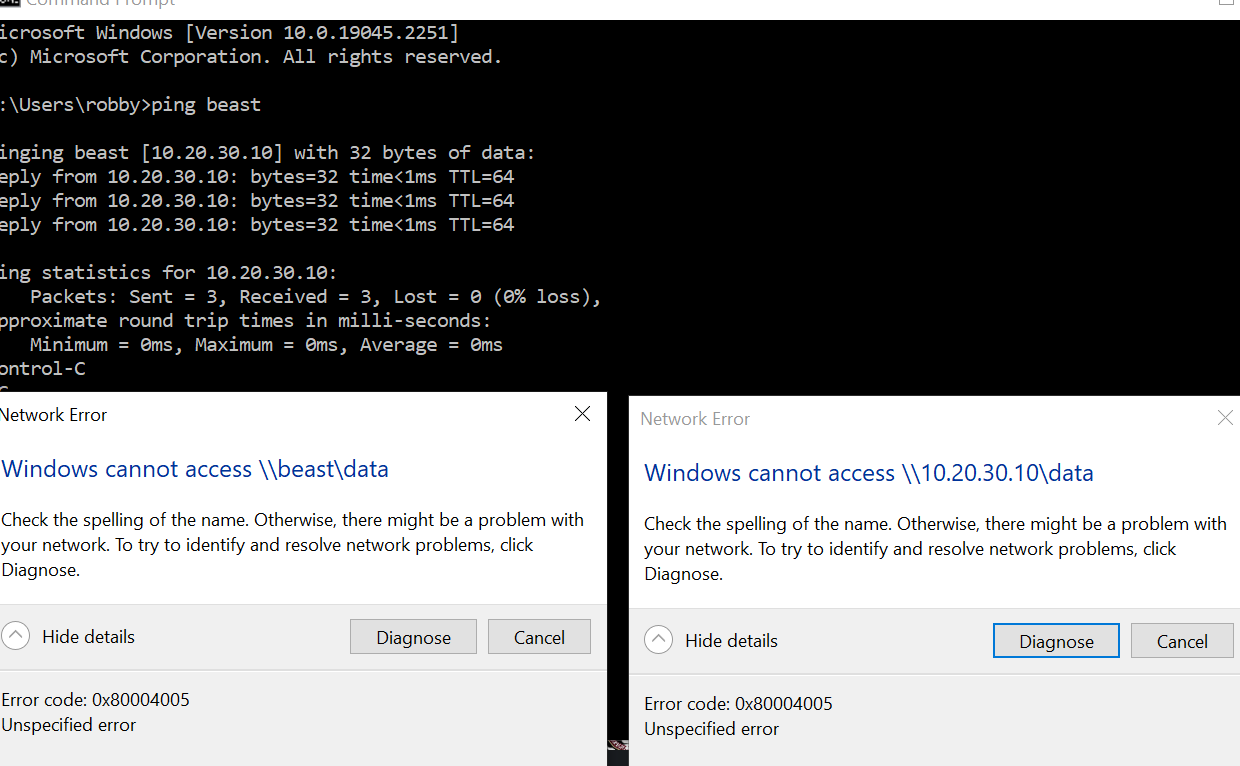

I can resolve the server name, but cannot access it through windows file explorer.  It's the same error using the name or ip.



As a side note, I've had this share configuration for probably 10 years without any issues.

[dlandon]

What happens if you downgrade?

[Frank1940]

Microsoft has changed the default and Windows 10/11 now refuse to connect to a server as a 'Guest'.  IF you insist on using a Guest login, I would suggest that you got to the first post in this thread and download the PDF file in that post.  Then read pages 15 and 16 about how to change that behavior.



    https://forums.unraid.net/topic/110580-security-is-not-a-dirty-word-unraid-windows-10-smb-setup/



[jenga201]

My issue was due to a PIA update to their 'Split Tunnel' feature.



I added in an explicit rule to bypass the vpn for my local network.



Thanks for the help looking into this unrelated issue

[madtom84]

On 11/17/2022 at 9:36 PM, jenga201 said:

My issue was due to a PIA update to their 'Split Tunnel' feature.



I added in an explicit rule to bypass the vpn for my local network.



Thanks for the help looking into this unrelated issue



I'm also having this PIA update issue, how did you add that rule?
