Omid Posted December 9, 2023 Share Posted December 9, 2023 Resolved! CSM and legacy mode PCIe did it. Will post again later... Quote Link to comment
maydaytek Posted December 9, 2023 Share Posted December 9, 2023 2 minutes ago, Omid said: Resolved! CSM and legacy mode PCIe did it. Will post again later... Did you have to throw a GPU in to get to CSM? It's greyed out for me on iGPU so wanted to confirm. Quote Link to comment
JimmyGerms Posted December 11, 2023 Share Posted December 11, 2023 On 12/9/2023 at 3:12 PM, Omid said: Resolved! CSM and legacy mode PCIe did it. Will post again later... Just tested it out on my system with my 9207-8i in the PCI-E x16 top slot and I didn't have to mess with CSM, just disabling fast boot and I can see all drives in unRAID. Wonder why it's different for you? Quote Link to comment
ParkerFlyGuy Posted December 12, 2023 Share Posted December 12, 2023 On 9/13/2023 at 4:03 PM, firstTimer said: Hi guys, After a long afternoon of experimenting, if you have a discrete GPU, along with IPMI and IGPU you can follow this step to use the IPMI card as your main adapter: Advanced -> System Agent (SA) Configuration -> Graphics Configuration --> Primary Display you have to set the primary display to PCIE in order to have the IPMI card as "main" display. Also set IGPU-Multi-Monitor to Enabled Explanation: Before rebooting the first time, check that no cables or dummies are attached to both IGPU and Ext. GPU. If you forget this step, one of the two will be set as the primary adapter and when Unraid starts up it will output the first logs (in the remote window of the IPMI software) until any GPU driver is loaded. After that, any further output will be redirected to either IGPU or discrete GPU so you still have output but no refresh is sent to the IPMI card, e.g when Unraid is up and running any new output won't be displayed. So immediate after saving the bios changes to primary display to PCIE, unplug all the display cables? Quote Link to comment
jlarmstr Posted December 19, 2023 Share Posted December 19, 2023 On 12/10/2023 at 7:02 PM, JimmyGerms said: Just tested it out on my system with my 9207-8i in the PCI-E x16 top slot and I didn't have to mess with CSM, just disabling fast boot and I can see all drives in unRAID. Wonder why it's different for you? I had to disable fast boot and add the 6 pin PCIe supplemental power and then had no problems. Quote Link to comment
Omid Posted December 26, 2023 Share Posted December 26, 2023 (edited) On 12/9/2023 at 9:06 PM, JimmyGerms said: I'll hook up my LSI 9207-8i HBA a little later today and see if I get any abnormalities. For now though, did you disable "fast boot" in bios? Also, try out enabling CSM. I can't remember if this helped on my current server or not. Need to play around and see. On 12/11/2023 at 3:02 AM, JimmyGerms said: Just tested it out on my system with my 9207-8i in the PCI-E x16 top slot and I didn't have to mess with CSM, just disabling fast boot and I can see all drives in unRAID. Wonder why it's different for you? @JimmyGerms Thank you so much for trying this out for me. I'm super confused at the different result but appreciate the effort nonetheless. On 12/9/2023 at 10:12 PM, maydaytek said: Similar issue for me with lsi 9205-8i If I disable "fast boot" it will boot fine from the USB drive but the HBA card won't be detected. My next steps to try are: - Install discrete GPU to get CSM enabled source: https://www.asus.com/us/support/FAQ/1045467 - Enable Interrupt 19 Capture in BIOS. Source: https://hardforum.com/threads/hba-cards-for-modern-motherboards-and-os.2030137/ for now, if I go into Bios and manually pick the USB drive it will boot with Fast Boot enable which also strangely enough picks up my HBA card. I already had Fast Boot disabled 🙂 but thanks for the inputs, @maydaytek! I've actually shared all of my BIOS changes in an earlier post on this thread (in case anyone is interested). On 12/9/2023 at 11:15 PM, maydaytek said: Did you have to throw a GPU in to get to CSM? It's greyed out for me on iGPU so wanted to confirm. Nope, I've never put a dGPU in this build. Only using the 13700K's iGPU. On 12/19/2023 at 5:22 PM, jlarmstr said: I had to disable fast boot and add the 6 pin PCIe supplemental power and then had no problems. @jlarmstr Wait, what? Supplemental power for the 9207-8i? Edited December 26, 2023 by Omid Quote Link to comment

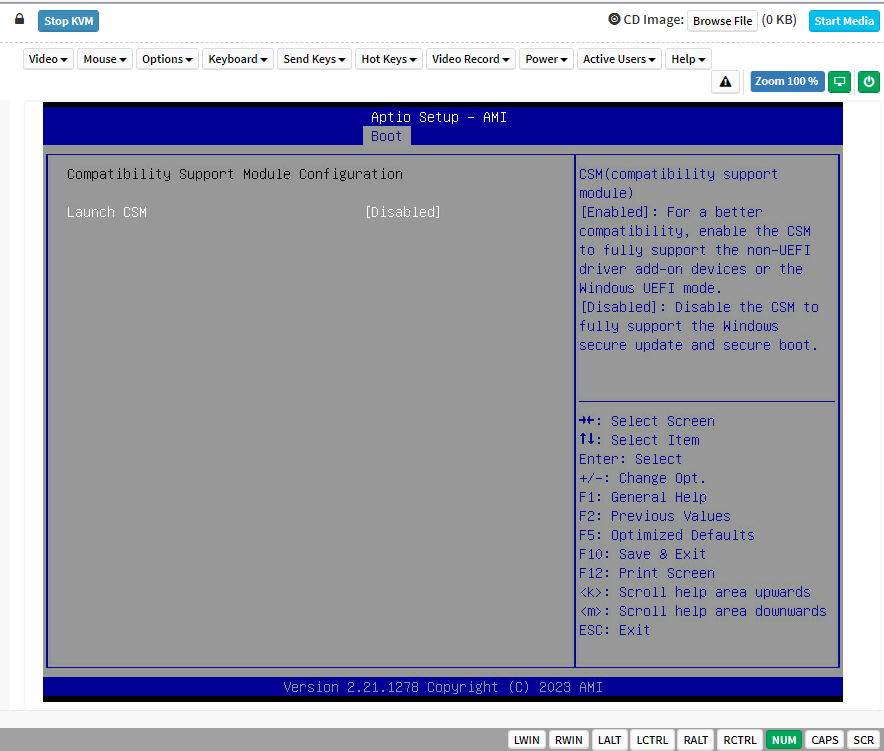

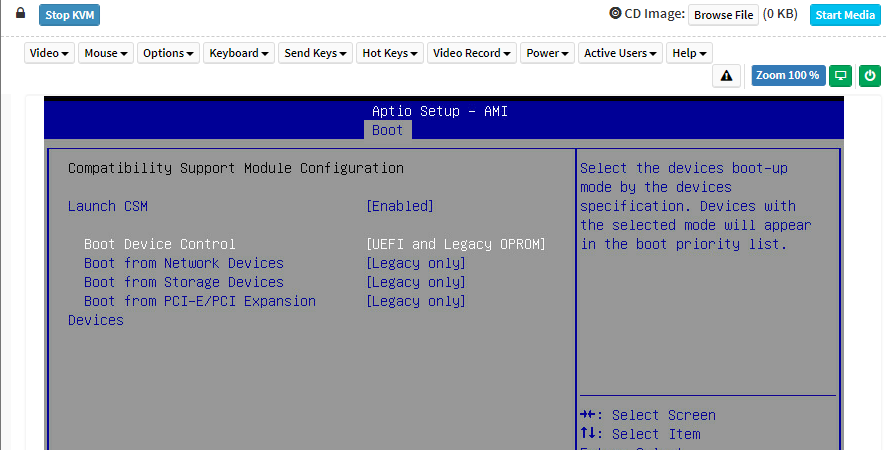

Omid Posted December 26, 2023 Share Posted December 26, 2023 (edited) On 12/9/2023 at 11:12 PM, Omid said: Resolved! CSM and legacy mode PCIe did it. Will post again later... Before: After: This was the solution and I got everything up and running back then, but I learned of a problem after a few days that was difficult to notice at first... My iGPU isn't detected/active/working anymore. I've not rebooted, checked BIOS settings or tried anything yet but I know it's not working because the GPU Statistics plugin now just shows "Vendor command returned no data." and the output from the intel_gpu_top command aligns with this. root@unRAID:~# intel_gpu_top No device filter specified and no discrete/integrated i915 devices found root@unRAID:~# ls -ltrah /dev/dri/ total 0 drwxrwxrwx 2 root root 60 Dec 16 02:15 by-path/ drwxrwxrwx 3 root root 80 Dec 16 02:15 ./ crwxrwxrwx 1 root video 226, 0 Dec 16 02:15 card0 drwxr-xr-x 16 root root 4.6K Dec 17 14:37 ../ I know it was working for many months until I installed the LSI HBA card, so it's either the presence of the card or enabling CSM (or both?). I'm going to try the following: Just a simple reboot (not expecting this to fix it) Unplug VGA cable from the IPMI card and reboot Plug something in to the motherboard's VGA/HDMI port and reboot Play with BIOS settings (?) Any thoughts/ideas from people here? Edited December 26, 2023 by Omid Quote Link to comment
Zerax Posted December 30, 2023 Share Posted December 30, 2023 (edited) On 12/12/2023 at 3:36 AM, ParkerFlyGuy said: So immediate after saving the bios changes to primary display to PCIE, unplug all the display cables? On 12/26/2023 at 6:01 PM, Omid said: Before: After: This was the solution and I got everything up and running back then, but I learned of a problem after a few days that was difficult to notice at first... My iGPU isn't detected/active/working anymore. I've not rebooted, checked BIOS settings or tried anything yet but I know it's not working because the GPU Statistics plugin now just shows "Vendor command returned no data." and the output from the intel_gpu_top command aligns with this. root@unRAID:~# intel_gpu_top No device filter specified and no discrete/integrated i915 devices found root@unRAID:~# ls -ltrah /dev/dri/ total 0 drwxrwxrwx 2 root root 60 Dec 16 02:15 by-path/ drwxrwxrwx 3 root root 80 Dec 16 02:15 ./ crwxrwxrwx 1 root video 226, 0 Dec 16 02:15 card0 drwxr-xr-x 16 root root 4.6K Dec 17 14:37 ../ I know it was working for many months until I installed the LSI HBA card, so it's either the presence of the card or enabling CSM (or both?). I'm going to try the following: Just a simple reboot (not expecting this to fix it) Unplug VGA cable from the IPMI card and reboot Plug something in to the motherboard's VGA/HDMI port and reboot Play with BIOS settings (?) Any thoughts/ideas from people here? @OmidDoes your HBA show up under the Advanced tab in the bios. Try the following (use the remote window of the IPMI software) for easy monitoring at reboot. Before "Save configuration and reboot" remove any connection to all the graphics cards, Let Unraid boot and plug in VGA to IMPI card after Unraid is started, this solved the iGPU issue for me. Edited December 30, 2023 by Zerax Quote Link to comment
firstTimer Posted January 1 Share Posted January 1 HI guys, happy new year everyone. Does anyone has a similar issue like me? Basically when I start the NAS, IF I don't enter the bios, then the usb key (Unraid) does not start (from the IPMI I see only a black screen). If I enter the bios, even if I don't change anything and just exit then Unraid starts as normal. Any idea? Quote Link to comment
Daniel15 Posted January 1 Share Posted January 1 6 hours ago, firstTimer said: HI guys, happy new year everyone. Does anyone has a similar issue like me? Basically when I start the NAS, IF I don't enter the bios, then the usb key (Unraid) does not start (from the IPMI I see only a black screen). If I enter the bios, even if I don't change anything and just exit then Unraid starts as normal. Any idea? That's caused by "fast boot". Disable that option and it'll work fine. For some reason, fast boot breaks booting from USB. This is a common problem across many different motherboards. 1 1 Quote Link to comment
Sofcso Posted January 5 Share Posted January 5 For anyone interested I just updated Intel ME from 16.1.25.2020 to 16.1.30.2307 and Bios from 2305 to 3101 because of the LogoFAIL exploit. I had to reset ipmi dhcp settings ( defaulted to static with no info), completely remove power to the server and reboot for card to be recognized. But everything has been running solid for a couple of days. Quote Link to comment
Neo78 Posted January 5 Share Posted January 5 Hi, can you say something about the power consumption (idel mode) of this board? I'm planning my first unraid server with 2 possible versions: first with ECC support (ASUS W680) and the other without ECC support (Gigabyte B760M) kind regards Quote Link to comment
preepe Posted January 6 Share Posted January 6 Hello, I’m also thinking about buying this Mainboard as mATX Version. Whats the Power Consumption? Greetings Quote Link to comment
Zerax Posted January 6 Share Posted January 6 On 1/5/2024 at 7:45 AM, Sofcso said: For anyone interested I just updated Intel ME from 16.1.25.2020 to 16.1.30.2307 and Bios from 2305 to 3101 because of the LogoFAIL exploit. I had to reset ipmi dhcp settings ( defaulted to static with no info), completely remove power to the server and reboot for card to be recognized. But everything has been running solid for a couple of days. @SofcsoHow did you update the Intel ME version, last time i had to boot into bare-metal windows. Do you have another update method. Quote Link to comment
Sofcso Posted January 7 Share Posted January 7 10 hours ago, Zerax said: @SofcsoHow did you update the Intel ME version, last time i had to boot into bare-metal windows. Do you have another update method. I used Rufus to create a Windows to Go Flash drive, and updated from that. 1 Quote Link to comment
FirbyKirby Posted January 8 Share Posted January 8 On 1/1/2024 at 6:02 AM, firstTimer said: HI guys, happy new year everyone. Does anyone has a similar issue like me? Basically when I start the NAS, IF I don't enter the bios, then the usb key (Unraid) does not start (from the IPMI I see only a black screen). If I enter the bios, even if I don't change anything and just exit then Unraid starts as normal. Any idea? I'll join you in the "unraid drive won't boot" boat. I just completed a major server upgrade using this motherboard and this is the only remaining hardware issue I have. My experience is similar to yours @firstTimer, but I'll add that it's more intermittent, and it's getting worse. When I first booted after assembly, the drive booted without any issue. But as I've been adjusting BIOS setting (based on previous posts in this thread, for example,) and updating firmware, the issue seems to have gotten worse. But it's been intermittent and gradual enough that I can't pinpoint what I did to break things. But, at this point, after a cold boot, it almost never boots the Unraid drive and instead falls back to the BIOS. I then need to cycle anywhere between roughly 1 and 10 times before the drive will properly boot. I think soft resets are better then hard resets (CTRL+ALT+DEL vs reset switch,) but again, I can't be sure. "Discard and Exit" actions from the BIOS almost never work. One trick that often works for me is to try and catch the boot menu, rather then let if fall into BIOS on a cold start or power cycle. This took me a little while to figure out, but F8 works on the logo screen to pull up the boot menu. Sometimes, the unraid disk will be in the menu and you can bypass the BIOS. In terms of "things I've tried" I can say that I've fiddled quite a bit with the CSM (Compatability Support Module.) Turning this on gets Unraid to boot pretty reliably (maybe 100% of the time) but always in legacy mode, and I need UEFI for GPU pass-through, so it's a no-go for me. I've also fiddled with plenty of boot settings in the BIOS such as extending the delay on logo screen, turning on/off USB Legacy Support, and Enabling/Disabling Fast Boot (thanks @Daniel15 for your advice here as I know others in the thread have suggested this to make Unraid boot, but it's not working for me, unfortunately.) I've also tried every USB port on the motherboard without any change in behavior. Let's compare notes a bit more on setups. For example, what USB drive are you using @firstTimer? Maybe it's specific to the drive. I'm using a SanDisk Cruzer Blade 64GB (started with an 8GB, but I purchased a replacement and migrated as a troubleshooting step because I was worried the drive was failing.) What BIOS version are you on? I've updated to the latest (3101). Quote Link to comment

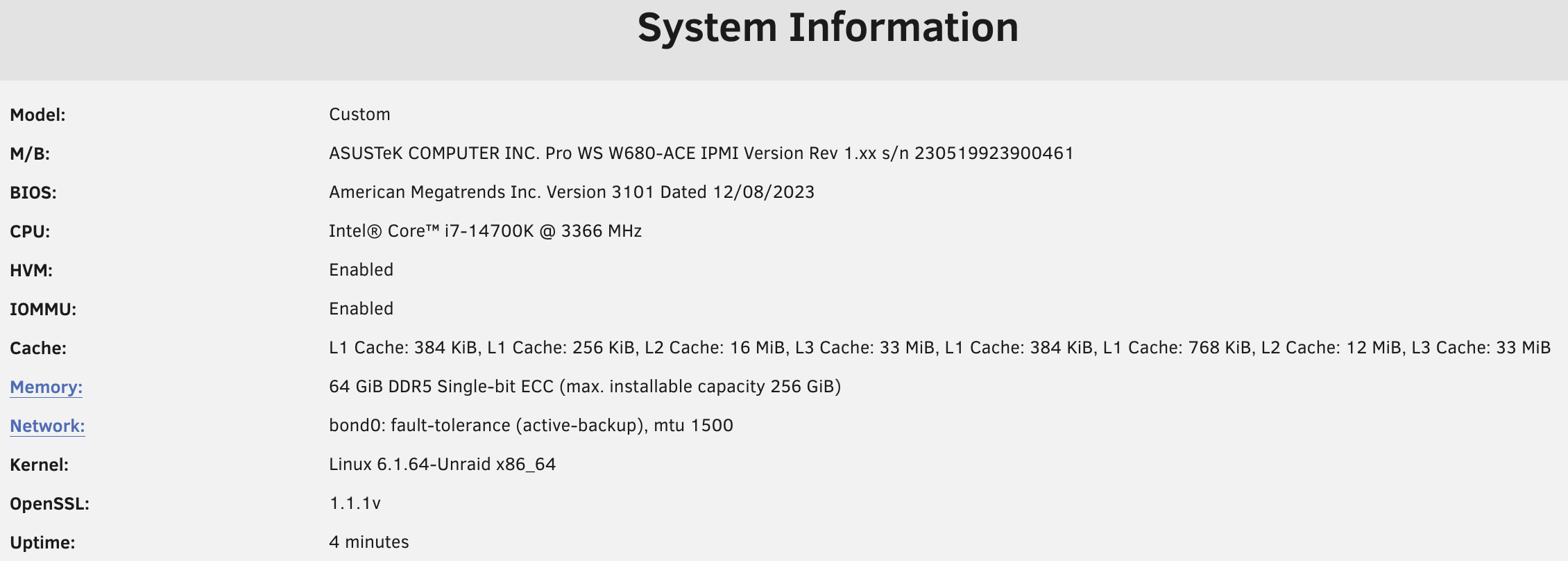

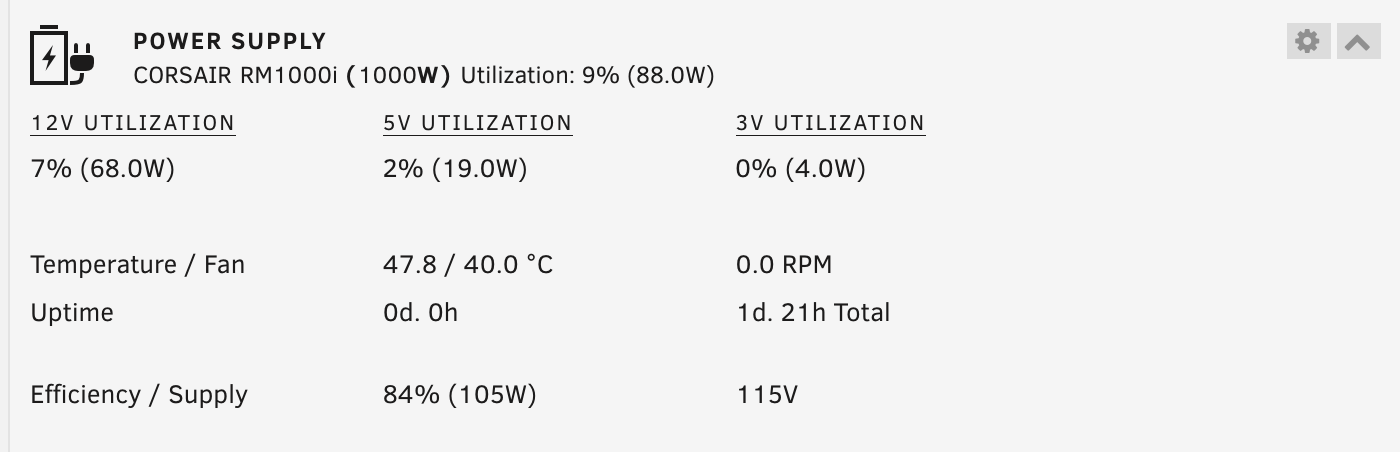

FirbyKirby Posted January 8 Share Posted January 8 (edited) @Neo78 and @preepe, here's a look at my power consumption reported in Unraid after boot. The array is down and thus docker and VM services down as well. Nothing else significant is running. And here's system info for reference. Edited January 8 by FirbyKirby 1 Quote Link to comment
Neo78 Posted January 8 Share Posted January 8 (edited) 18 minutes ago, FirbyKirby said: The array is down and thus docker and VM services down as well. Nothing else significant is running. Hi, thanks for the information! The utilization (9%, 88W) seems to be very high in idle mode (array, docker an VM services down ...) do you have installed other pci cards (LSI controller, GPU card ...)? Edited January 8 by Neo78 Quote Link to comment
FirbyKirby Posted January 8 Share Posted January 8 Good point, I do indeed: 3x M.2 NVMe 1x NVIDIA GTX 4060 1x Mellanox 2-port QSFP+ (with DAC for 10 GbE.) Additionally, though they're not spun up, I've got 5x SATA drives (3x HDD and 2x SSD). Quote Link to comment
NAS-newbie Posted January 8 Author Share Posted January 8 (edited) I have 63W (at 7% with a T-series i9 CPU) but then I run two enterprise SSD for cache (U.2 NVMe), 3xPCIe sticks (idle at this point) and 4x20TB WD Enterprise HDDs (powered down right now). No GPU as I rely on the one in the CPU for my plex needs. Edited January 8 by NAS-newbie 1 Quote Link to comment
Neo78 Posted January 8 Share Posted January 8 2 hours ago, NAS-newbie said: I have 63W (at 7% with a T-series i9 CPU) but then I run two enterprise SSD for cache (U.2 NVMe), 3xPCIe sticks (idle at this point) and 4x20TB WD Enterprise HDDs (powered down right now). No GPU as I rely on the one in the CPU for my plex needs. thanks for the information! Seems that this mainboard consumes more power than others (for example B670 chipset). Quote Link to comment
Lolight Posted January 8 Share Posted January 8 2 hours ago, Neo78 said: Seems that this mainboard consumes more power than others (for example B670 chipset). Yeah, and in general, if you're after idle efficiency, then stay away from any W680 board, not just the one discussed in this thread. Quote Link to comment
golfsands7 Posted January 9 Share Posted January 9 15 hours ago, Lolight said: Yeah, and in general, if you're after idle efficiency, then stay away from any W680 board, not just the one discussed in this thread. Not that I disagree if power consumption is the primary objective but apparently STH got their X13SAE to idle at 31W. It leads me to wonder if the difference being observed here is partly due to the configurations as well. Quote Link to comment
Neo78 Posted January 9 Share Posted January 9 1 hour ago, golfsands7 said: Not that I disagree if power consumption is the primary objective but apparently STH got their X13SAE to idle at 31W. It leads me to wonder if the difference being observed here is partly due to the configurations as well. another user (german forum) reported an idle of 25,1W which is pretty good 1 Quote Link to comment
Daniel15 Posted January 9 Share Posted January 9 (edited) 1 hour ago, Neo78 said: another user (german forum) reported an idle of 25,1W which is pretty good They're using a 400W PSU which would help a bit. PSUs are pretty inefficient if you're only using a very small percentage of their capacity. 80 Plus Gold requires 87% efficiency at 20% load, but has no requirements at lower loads so it's not uncommon to only see 50-60% efficiency at 5-10% load. Properly size your PSU based on how much power you expect to use. They perform best around 50-60% load. I've got a similar PSU (Be Quiet Pure Power 12 M) but the lowest wattage I could find here was 550W, which is really oversized for what I need. I'll try get some power measurements when I get some free time. Right now the CPU isn't properly entering idle states (powertop shows 0% for all the idle states) even though I have everything configured properly in the BIOS, so I have to figure that out too. I think my 10Gbps network card is causing issues with idle states. Edited January 9 by Daniel15 Quote Link to comment
