December 2, 201312 yr confirm that you have created a share called [anything you want] and that you have set it to "cache only". Can I get something straight in my head first. 1. do i have to have a cache drive to run PMS? 2. if not , do i have to have the pro version as I only have the basic version of unraid and it does not offer me the option of cache only when creating a share. thanks all for your efforts, really appreciated.
December 2, 201312 yr confirm that you have created a share called [anything you want] and that you have set it to "cache only". Can I get something straight in my head first. 1. do i have to have a cache drive to run PMS? 2. if not , do i have to have the pro version as I only have the basic version of unraid and it does not offer me the option of cache only when creating a share. thanks all for your efforts, really appreciated. 1) No you do not. But at least one array disk and parity will never spin down because of plex writing to its logs. 2) No cache required, and thus no PRO needed. On top of that, if you want to not get PRO and you don't want to story your Plex library on your array, then you can mount a drive outside the array (and not as cache) to act as your "app drive". I detailed how to do that earlier and in a new thread I made. I specificly talk about using an SSD (for obvious non-spinning reasons) but the instructions are 95% the same for an HDD So as to the line you quoted from me ... yes technically you just have to be sure you have created a real share somewhere and are pointed at that. IIRC for people using the array for their library database, you need to create the share on a single disk, and then point Plex at THE DISK (i.e. /mnt/diskX/[share name)]. Do not point plex at /mnt/user. I seem to recall somewhere in this thread folks having trouble with that; but don't ask me to back that up.
December 2, 201312 yr Ok thanks for all that. I started from scratch. created the share https://www.dropbox.com/s/lsbwdorozsz61dd/Screenshot%202013-12-02%2016.12.56.png added the share to the plex setup page https://www.dropbox.com/s/ss4miyogkyb94un/Screenshot%202013-12-02%2016.14.09.png ran plex and pointed it at the media folders. https://www.dropbox.com/s/f9dm18o2srruz21/Screenshot%202013-12-02%2016.15.11.png nothing shows except this when i run a deep scan, and this is almost instant. https://www.dropbox.com/s/nuaaqgrrbzyoeox/Screenshot%202013-12-02%2016.15.59.png I must be missing a trick here somewhere..

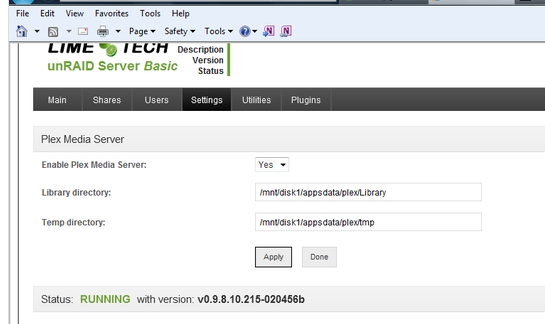

December 2, 201312 yr links no worky Only tried one link but it worked for me. Got a graphic of which I posted a partial below.
December 2, 201312 yr links no worky Only tried one link but it worked for me. Got a graphic of which I posted a partial below. @russlock: So I assume, without pics, that you have created a share called "appsdata" and exactly that. Not "appdata" or "Appsdata" Correct. And it is limited to disk1? And you can see that it actually exists on disk1?
December 2, 201312 yr Yikes! I use a link that I found somewhere in the forums...I thought it was the correct link! I'm pretty sure it was the link in post #1 of this thread. Henris, do you have a link to better instructions? Then I'll shut up and go read the official guide to see what else I missed! I managed to put an empty link to my previous post, it's now modified. It should have pointed to the pinned thread on Plex forums and to it's third message which in my mind contains the easiest unRAID/PMS setup guide: https://forums.plexapp.com/index.php/topic/66930-helpful-unraid-links/#entry387455 As JumperAlex pointed out you can definitely use (almost) whatever folders you wish but I always recommend to use the ones on guides unless you now what you are doing. The guide contains installation on both cache and data disks. nothing shows except this when i run a deep scan, and this is almost instant. https://www.dropbox.com/s/nuaaqgrrbzyoeox/Screenshot%202013-12-02%2016.15.59.png I must be missing a trick here somewhere.. I think we need the PMS logs. Since it is scanning, though only with the deep option, the folder definitions seems now correct. The logs are located under the library folder in "Application Support/Plex Media Server/Logs/". You are running the latest unRAID or at least anything after the 5.0 Final? There used to be problems with unRAID 4.7 related to last access times but this doesn't sound like the same problem.
December 2, 201312 yr Ok, started from scratch again using this walkthrough https://www.dropbox.com/s/ezouj1sttx0e93s/Screenshot%202013-12-02%2022.51.55.png plex media setting are as below https://www.dropbox.com/s/f00g8gq8f4w4l2i/Screenshot%202013-12-02%2022.53.37.png share made called apps as per instructions and is listed as disk1 only https://www.dropbox.com/s/dzqty7lay750bz2/Screenshot%202013-12-02%2022.54.59.png https://www.dropbox.com/s/pvhh7p103j1sqd7/Screenshot%202013-12-02%2022.56.49.png pointed plex towards folders ( this bit I am unsure about as this confuses me) https://www.dropbox.com/s/yf899mwxibkei80/Screenshot%202013-12-02%2022.58.46.png the only thing that happens is it takes me to a main screen and says library scan complete https://www.dropbox.com/s/z17oyhn4mvcnawe/Screenshot%202013-12-02%2022.59.46.png no logs for any scans https://www.dropbox.com/s/iz3i3et27qlqngj/Screenshot%202013-12-02%2023.02.32.png sorry about all the images, it is my only way to try to explain my issues, and I definitely think I have issues...
December 2, 201312 yr pointed plex towards folders ( this bit I am unsure about as this confuses me) https://www.dropbox.com/s/yf899mwxibkei80/Screenshot%202013-12-02%2022.58.46.png From console or telnet, post the results of ls -al /mnt/disk1/tv
December 2, 201312 yr When adding /mnt/disk1/tv into the plex web library .... can you see sub folders under /mnt/disk1/tv? I just want to be sure plex is seeing the same thing you expect it to see.
December 3, 201312 yr I moved PMS to a windows server. How do I uninstall the PMS plugin on unraid and remove all the related directories?
December 3, 201312 yr pointed plex towards folders ( this bit I am unsure about as this confuses me) https://www.dropbox.com/s/yf899mwxibkei80/Screenshot%202013-12-02%2022.58.46.png From console or telnet, post the results of ls -al /mnt/disk1/tv Server login: root Password: Linux 3.0.35-unRAID. root@Server:~# ls -al /mnt/disk1/tv total 11 drwxrwxrwx 27 nobody users 856 Sep 20 2012 ./ drwxrwx--- 17 nobody users 424 Dec 2 22:13 ../ drwxrwxrwx 3 nobody users 1200 Aug 26 2012 Ashes\ To\ Ashes/ drwxrwxrwx 3 nobody users 360 Aug 26 2012 Blue\ Bloods/ drwxrwxrwx 5 nobody users 1368 Aug 26 2012 Breaking\ Bad/ drwxrwxrwx 5 nobody users 472 Aug 26 2012 Cracker/ drwxrwxrwx 5 nobody users 632 Aug 26 2012 Deadwood/ drwxrwxrwx 2 nobody users 1456 Jun 18 12:09 Dexter/ drwxrwxrwx 3 nobody users 80 Jun 18 12:02 Dirty\ Sexy\ Money/ drwxrwxrwx 4 nobody users 544 Aug 26 2012 Fawlty\ Towers/ drwxrwxrwx 7 nobody users 1040 Aug 26 2012 Friends/ drwxrwxrwx 3 nobody users 552 Aug 26 2012 Homeland/ drwxrwxrwx 3 nobody users 680 Aug 26 2012 Justified/ drwxrwxrwx 3 nobody users 328 Aug 26 2012 Max\ &\ Paddy's\ Road\ to\ Nowhere/ drwxrwxrwx 4 nobody users 328 Aug 26 2012 Mrs\ Browns\ Boys/ drwxrwxrwx 10 nobody users 736 Aug 26 2012 Only\ Fools\ Horses/ drwxrwxrwx 4 nobody users 344 Aug 26 2012 Phoenix\ Nights/ dr-xr-xr-x 3 nobody users 752 Aug 26 2012 Planet\ Earth/ drwxrwxrwx 4 nobody users 392 Aug 26 2012 Ripping\ Yarns/ drwxrwxrwx 4 nobody users 568 Aug 26 2012 Rome/ drwxrwxrwx 9 nobody users 472 Aug 26 2012 Shameless/ drwxrwxrwx 4 nobody users 816 Aug 26 2012 Spartacus/ drwxrwxrwx 3 nobody users 312 Aug 26 2012 That\ Peter\ Kay\ Thing/ drwxrwxrwx 4 nobody users 424 Aug 26 2012 The\ Inbetweeners/ drwxrwxrwx 3 nobody users 328 Jan 21 2013 The\ Pacific/ drwxrwxrwx 8 nobody users 608 Aug 26 2012 The\ Sopranos/ dr-xr-xr-x 2 nobody users 512 Aug 26 2012 The\ Worlds\ Most\ Dangerous\ Anima ls\ (1996)/ root@Server:~# I have no idea what all the information is, but they are the series I have in the tv folder on Unraid thanks russ
December 3, 201312 yr When adding /mnt/disk1/tv into the plex web library .... can you see sub folders under /mnt/disk1/tv? I just want to be sure plex is seeing the same thing you expect it to see. Yes, I can see the folder that the tv series are in. https://www.dropbox.com/s/lgfa7hots2ntfq4/Screenshot%202013-12-03%2020.50.21.png thanks
December 3, 201312 yr Russ, I'm not familiar with the web interface you're using, so I"m not quite sure how to read it. I'm looking at your screenshot here: https://www.dropbox.com/s/dzqty7lay750bz2/Screenshot%202013-12-02%2022.54.59.png Did you define and setup a SHARE named 'disk1'? Put another way, do you have both a logical share named 'disk1' as well as the physical harddrive automatically named 'disk1' by unRAID?
December 3, 201312 yr Russ, I'm not familiar with the web interface you're using, so I"m not quite sure how to read it. I'm looking at your screenshot here: https://www.dropbox.com/s/dzqty7lay750bz2/Screenshot%202013-12-02%2022.54.59.png Did you define and setup a SHARE named 'disk1'? Put another way, do you have both a logical share named 'disk1' as well as the physical harddrive automatically named 'disk1' by unRAID? I didn't set up disk1 as a share it was set up by unraid. https://www.dropbox.com/s/42qrq3g6bf69zri/Screenshot%202013-12-03%2022.28.24.png I did set up the share "apps" and told it to run from disk1 only. is this info of any use ? russ

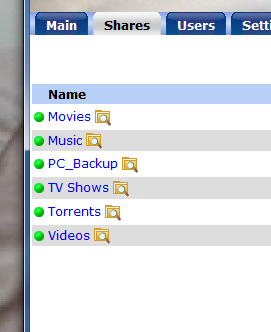

December 4, 201312 yr ok this is all very confused now because in the shares tab of unraid you should not be seeing disk1 and disk2 listed. At least mine isn't shown even after i have exported a disk unhidden. see attached for my example. What is the result of ls -al /mnt/user Mine looks like this root@Tower:~# ls -al /mnt/user total 16 drwxrwxrwx 1 nobody users 80 2013-12-03 04:15 ./ drwxr-xr-x 9 root root 0 2013-12-01 09:52 ../ drwxrwxrwx 1 nobody users 1872 2013-11-30 22:52 Movies/ drwxr-xr-x 1 nobody users 14200 2013-11-26 04:00 Music/ drwxrwxrwx 1 nobody users 120 2013-11-30 20:46 PC_Backup/ drwxrwxrwx 1 nobody users 560 2013-11-26 04:45 TV\ Shows/ drwxrwxrwx 1 nobody users 728 2013-12-01 04:00 Torrents/ drwxrwxrwx 1 nobody users 336 2013-10-30 19:58 Videos/ That said I usually point plex at a user share, in addition i also can't tell from this pic https://www.dropbox.com/s/lgfa7hots2ntfq4/Screenshot%202013-12-03%2020.50.21.png if all your tv folders are on /mnt/disk1 or /mnt/disk1/tv Which is doubly confusing since you do also seem to have folders under ../tv as evidenced by the results of your "ls..." command. I guess my first question is why aren't you pointing PMS towards /mnt/user/tv It shouldn't make a difference UNLESS [thinking] ... is there a chance you made a share called TV, and using the high-water allocation method all your actual tv shows are stored on disk2? because it WILL do that. More importantly, if you are dealing with a user share that spans disks you NEED to point to /mnt/user/[share] anyway or you'll miss stuff from one disk or the other.
December 4, 201312 yr On a side note, my programming skills are useless, but is there any way someone can combine both plex and the updater in one pkg? seems silly to have 2 icons when (if possible) it could be in the same tab for neatness. +1 This would be helpful in keeping the Settings Page in SF or Plugin Page on WebGui clean and maximize screen real estate. Is there a possibility of this happening?
December 4, 201312 yr Russlock... I think jumperalex is on the right track...confusion about 'disk1'. As well as the response to his suggested unix command: ls -al /mnt/user Can you tell us how you get that web interface? Do you have the SimpleFeatures web interface installed, by chance? Did you install the optional version 5 'advanced' web interface? (and just for comparison, here's my ls -al /mnt/user output: root@Tower:~# ls -al /mnt/user total 13 drwxrwxrwx 1 nobody users 136 2013-12-03 02:01 ./ drwxr-xr-x 10 root root 0 2013-11-28 11:51 ../ drwxrwxrwx 1 nobody users 96 2013-11-29 10:43 PLEX/ drwxrwxrwx 1 nobody users 48 2013-11-27 11:32 SYSLOG/ drwxrwxrwx 1 nobody users 232 2013-08-17 20:04 applications/ drwxrwxrwx 1 nobody users 960 2013-12-02 02:09 dale_data/ drwxrwxrwx 1 nobody users 208 2013-12-03 19:37 dale_timemachine/ drwxrwxrwx 1 nobody users 480 2013-11-30 02:02 itunes/ drwxrwxrwx 1 nobody users 48 2013-11-16 11:46 susan_timemachine/ drwxrwxrwx 1 nobody users 112 2013-11-10 17:20 temp_space/ root@Tower:~# (The PLEX program is in the share 'applications'. I store all my media within my share named 'PLEX'. And it looks like this: root@Tower:~# ls -al /mnt/user/PLEX total 0 drwxrwxrwx 1 nobody users 96 2013-11-29 10:43 ./ drwxrwxrwx 1 nobody users 136 2013-12-03 02:01 ../ drwxrwxrwx 1 dale users 96 2013-12-01 02:00 Movies/ drwxrwsrwx 1 dale users 80 2013-09-01 13:55 Music/ drwxrwxrwx 1 dale users 256 2013-11-17 02:03 TV\ Shows/ root@Tower:~# Its not important that your media directory looks like mine...its just that I don't show 'disk1' anywhere. And when I run the Plex program, the corresponding version of the TV library section looks like the attached:
December 4, 201312 yr Russlock... I think jumperalex is on the right track...confusion about 'disk1'. As well as the response to his suggested unix command: ls -al /mnt/user Can you tell us how you get that web interface? Do you have the SimpleFeatures web interface installed, by chance? Did you install the optional version 5 'advanced' web interface? From the look of it I'm guessing it is the new gui on github. But I do doubt that is his problem 1) based on how it works and 2) because I used to have it and had no trouble with plex itself. I removed it because it was locking up the gui. Ironically while locked up plex still worked.
December 4, 201312 yr ok this is all very confused now because in the shares tab of unraid you should not be seeing disk1 and disk2 listed. At least mine isn't shown even after i have exported a disk unhidden. see attached for my example. What is the result of ls -al /mnt/user Mine looks like this root@Tower:~# ls -al /mnt/user total 16 drwxrwxrwx 1 nobody users 80 2013-12-03 04:15 ./ drwxr-xr-x 9 root root 0 2013-12-01 09:52 ../ drwxrwxrwx 1 nobody users 1872 2013-11-30 22:52 Movies/ drwxr-xr-x 1 nobody users 14200 2013-11-26 04:00 Music/ drwxrwxrwx 1 nobody users 120 2013-11-30 20:46 PC_Backup/ drwxrwxrwx 1 nobody users 560 2013-11-26 04:45 TV\ Shows/ drwxrwxrwx 1 nobody users 728 2013-12-01 04:00 Torrents/ drwxrwxrwx 1 nobody users 336 2013-10-30 19:58 Videos/ That said I usually point plex at a user share, in addition i also can't tell from this pic https://www.dropbox.com/s/lgfa7hots2ntfq4/Screenshot%202013-12-03%2020.50.21.png if all your tv folders are on /mnt/disk1 or /mnt/disk1/tv Which is doubly confusing since you do also seem to have folders under ../tv as evidenced by the results of your "ls..." command. I guess my first question is why aren't you pointing PMS towards /mnt/user/tv It shouldn't make a difference UNLESS [thinking] ... is there a chance you made a share called TV, and using the high-water allocation method all your actual tv shows are stored on disk2? because it WILL do that. More importantly, if you are dealing with a user share that spans disks you NEED to point to /mnt/user/[share] anyway or you'll miss stuff from one disk or the other. did this command and this is the output root@Server:~# ls -al /mnt/user total 4198451 drwxrwx--- 1 nobody users 424 Dec 2 22:13 ./ drwxr-xr-x 5 root root 0 Dec 2 22:18 ../ drwxrwxrwx 1 nobody users 120 Aug 27 2012 .crashplan/ -rw-rw-rw- 1 nobody users 4294967296 Aug 29 2012 .unraid.swapfile drwxrwxrwx 1 nobody users 816 Dec 4 20:39 Adele/ drwxrwxrwx 1 nobody users 112 Nov 26 2012 Audio\ Books/ drwxrwxrwx 1 nobody users 48 Jun 22 15:44 Back\ Ups/ drwxrwxrwx 1 nobody users 800 May 26 2013 Camcorder/ drwxrwxrwx 1 nobody users 20288 Nov 15 12:37 Movies/ drwxrwxrwx 1 nobody users 14048 Sep 20 09:11 Music/ drwxrwxrwx 1 nobody users 184 Mar 28 2013 Netgear\ data/ drwxrwxrwx 1 nobody users 776 Jun 23 18:00 Photography/ drwxrwxrwx 1 nobody users 4440 Nov 11 21:27 Photos/ drwxrwxrwx 1 nobody users 1840 Dec 3 22:00 Russ/ drwxrwxrwx 1 nobody users 5136 Nov 3 22:22 Software/ drwxr-xr-x 1 root root 96 Dec 2 22:13 apps/ drwxrwxrwx 1 nobody users 48 Dec 2 14:35 disk1/ drwxrwxrwx 1 nobody users 48 Dec 2 21:29 disk2/ drwxrwx--- 1 nobody users 5944 Dec 3 20:47 mysql/ drwxrwxrwx 1 nobody users 104 Jan 6 2013 raspbmc/ drwxrwxrwx 1 nobody users 856 Jul 8 11:34 tv/ drwxrwxrwx 1 nobody users 72 Feb 7 2013 xbmc_playlists/ drwxrwxrwx 1 nobody users 48 Jan 13 2013 xbmc_thumbnails/ root@Server:~# never had simple features installed and the web interface is the newest of the unraid & plex websites I do have separate shares set up for tv, movies, music, photos etc and these are set to high water. could this be the problem ?? https://www.dropbox.com/s/wb0cdcal0sj4cdn/Screenshot%202013-12-04%2021.50.33.png but in the past I have pointed PMS to /mnt/user/tv and it still makes no difference. there is nothing in the shares for disk1 or disk2. weird 1 step forward or 1 step back. What do you all think ?? thanks russ

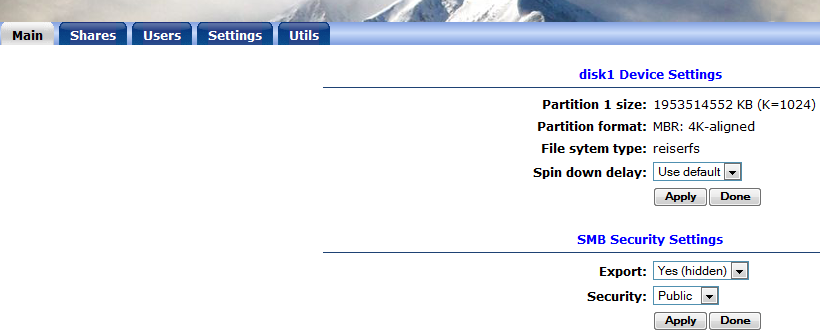

December 5, 201312 yr No the problem is possibly that you seem to have shares actually called disk1 and disk2. Unraid did not create those. You did. You had to. The nuance i think you've missed is that unraid can EXPORT your disks (see attached) but doesn't do it by default. Which is not the same as creating shares called diskX which it seems you have done. Before you go through trying to do what I say below, what is the output of: ls -al /mnt/user/tv and ls -al /mnt/user/disk1 and ls -al /mnt/user/disk2 Post those here, but i'm betting you're got data in one "disk1" but are pointing your plex gui at another "disk1" ... at this point it is the only thing that makes sense, especially since your permissions seem to be correct as well. ============================== Assuming I'm right you'll need to move you tv shows folders: out of /mnt/user/diskX into /mnt/user/tv and out of /mnt/diskX/tv to /mnt/user/tv Then delete your plex library locations (from the plex gui) and re-add them pointing towards /mnt/user/tv
December 5, 201312 yr ok just looked closer at your screen shot. All your data is in: /mnt/user/tv (252 GB) and is stored physically on /mnt/disk1/tv (208GB) and /mnt/disk2/tv (43.7Gb) HOWEVER, you are pointing plexgui at: /mnt/disk1/tv (0 GB) See the difference? You need to point it at: /mnt/user/tv I'm not going to address the fact yet that technically plex SHOULD be seeing at least the data I can tell is in /mnt/disk1/tv because lets get everything right. That means, you also need to use the Unraid Share's tab to delete your "disk1" and "disk2" SHARE that i can clearly see in your screen shot and from the results of the last "ls" command. shit this might just be easier via hangouts ...
December 5, 201312 yr ...shit this might just be easier via hangouts ... This 'disk1' thing is an easy mistake. There are several other threads with the same issue. True Confessions: And when i first set up my unraid server, I mistakenly defined a 'disk1' share and set it to 'include' just 'disk1'! Perhaps the names 'disk1', 'disk2', 'diskX', etc. should be reserved and be not allowed as SHARE names.
December 6, 201312 yr On a side note, my programming skills are useless, but is there any way someone can combine both plex and the updater in one pkg? seems silly to have 2 icons when (if possible) it could be in the same tab for neatness. +1 This would be helpful in keeping the Settings Page in SF or Plugin Page on WebGui clean and maximize screen real estate. Is there a possibility of this happening? I hate to bump this, but is there any chance of this being combined into one plugin?
