xyzeratul Posted April 29 Share Posted April 29 2 minutes ago, ich777 said: Can be a bit more specific? What did auto uninstall the driver? Are you sure that you don't have a new tab in the Plugins tab that is named "Plugins Error"? Did you wait until your server sent you a notification that it is safe to reboot when doing the upgrade? If you don't have any issues with the built in driver then the answer is: no. during the upgrade to 6.12.10, unraid shows it failed to install new version of this plugin(which I am sure it was already the lastest version), then it shows the uninstallation of this plugin somehow? Then I wait for the notice about upgrade finishing, reboot, the driver is gone, and everything still working. Quote Link to comment
ich777 Posted April 29 Share Posted April 29 8 minutes ago, xyzeratul said: during the upgrade to 6.12.10, unraid shows it failed to install new version of this plugin(which I am sure it was already the lastest version), then it shows the uninstallation of this plugin somehow? Through a notification in the top right corner correct? Are you sure that you don't have a "Plugins Error" tab in the Plugins section from Unraid? 9 minutes ago, xyzeratul said: Then I wait for the notice about upgrade finishing, reboot, the driver is gone, and everything still working. If everything is working then leave it as it is, if you got issues then I would recommend installing this plugin again. Quote Link to comment
xyzeratul Posted April 29 Share Posted April 29 1 minute ago, ich777 said: Through a notification in the top right corner correct? Are you sure that you don't have a "Plugins Error" tab in the Plugins section from Unraid? If everything is working then leave it as it is, if you got issues then I would recommend installing this plugin again. Yes I am sure, I don't have "Plugins Error", only notifications. OK I will test the new version for a few days see how it goes, Thank you Quote Link to comment
jacobbraeutigam Posted June 8 Share Posted June 8 Is it possible to add the Realtek 8126 drivers to this driver plugin? The source is available on the realtek page. Quote Link to comment
jinlife Posted June 13 Author Share Posted June 13 (edited) On 6/8/2024 at 8:59 PM, jacobbraeutigam said: Is it possible to add the Realtek 8126 drivers to this driver plugin? The source is available on the realtek page. Yes, it should be able to be supported, looks like a good 5G NIC. Hopefully the r8157 USB NIC will come out soon so it can be paired. The r8157 driver code is already there in r8152 plugin. @ich777 I have updated the source code for r8126, can you please add it to the build. Thank you. Edited June 13 by jinlife Quote Link to comment
ich777 Posted June 13 Share Posted June 13 1 minute ago, jinlife said: @ich777 I have updated the source code for r8126, can you please add it to the build. Thank you. This will take me probably one or two days since I'm not at home but I will do it ASAP and let you know! (Maybe I can free up some time later today) Quote Link to comment
jinlife Posted June 13 Author Share Posted June 13 1 minute ago, ich777 said: This will take me probably one or two days since I'm not at home but I will do it ASAP and let you know! (Maybe I can free up some time later today) Oh, no rush. Please enjoy your personal time. Quote Link to comment
ich777 Posted June 13 Share Posted June 13 Just now, jinlife said: Oh, no rush. Please enjoy your personal time. I changed your .plg files, you have to escape & with & Quote Link to comment
jinlife Posted June 13 Author Share Posted June 13 1 minute ago, ich777 said: I changed your .plg files, you have to escape & with & Thank you. You are the expert. Please feel free to change it. 1 Quote Link to comment
jinlife Posted June 13 Author Share Posted June 13 @ich777 I apologize for the additional request, but when you are performing the build, could you please trigger the compilation for version Unraid 6.12.10 with both r8126 and r8152. I have updated the r8152 version to 2.18.1 while integrating the r8126 code, which supports the r8157 5G network card. This update will enable support for both 5G PCI and USB network cards in the 6.12.10 release. Quote Link to comment
ich777 Posted June 13 Share Posted June 13 4 hours ago, jinlife said: I apologize for the additional request No worries, sure thing. EDIT: All updated and built! Quote Link to comment
jacobbraeutigam Posted June 15 Share Posted June 15 Thank's a lot! My first impressions after one day of usage: it runs stable package C-states can be reached power draw of the NIC approx. 0.6W above RTL8125 (as expected) for the most part the speed is as expected when transmitting many small packets, the RTL8126 is slower than an RTL8125 (without any noticeable impact of the MTU) 2 Quote Link to comment
Szene Posted June 19 Share Posted June 19 (edited) Hi, it there currently an issue with r8125 and 6.12.10? If I install it I'm only seeing half the speed of an GbE connection even if I'm connected to an 2.5GbE connection. It doen't matter if I turn ASPM on or leave it off. When I uninstall the driver it defaults back to the r8169 and I get my 2.5GbE connections speeds just fine, but then I can't enable ASPM. I can see the last version for r8125 is from the 4th of April 2024, is there a potential newer version? Currently I can decide between 2 option: No Plugin: C3 but 2.5GbE speeds With Plugin: C8 but around 300-450Mb/s Both aren't great. I also tried to disable EEE, but that didn't change anything. Edited June 19 by Szene Added information Quote Link to comment

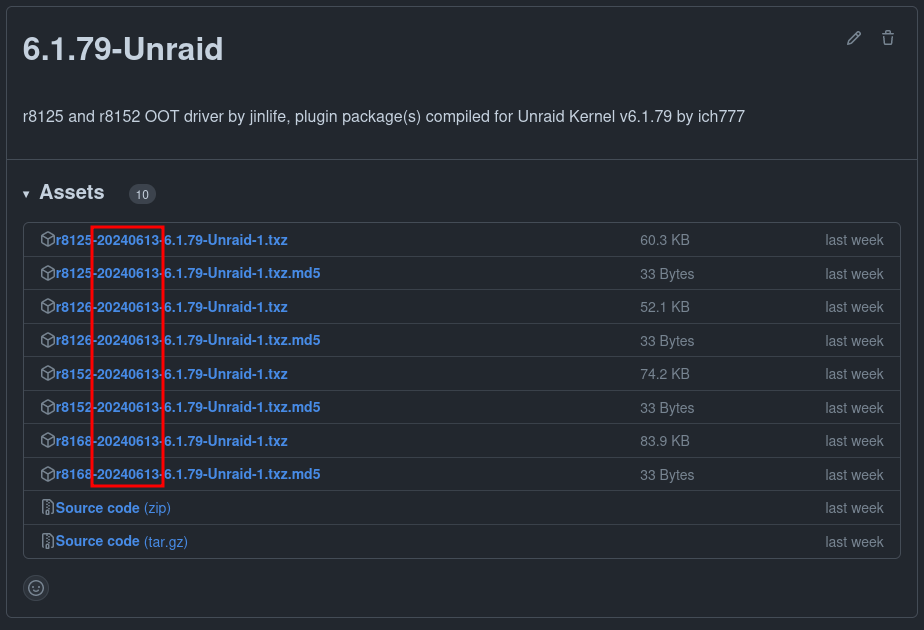

ich777 Posted June 19 Share Posted June 19 6 minutes ago, Szene said: I can see the last version for r8125 is from the 4th of April 2024, is there a potential newer version? Please note that the plugin version does not reflect the driver version! The drivers for Unraid 6.12.10 (Kernel version 6.1.79) are actually from 2024-06-13: 6 minutes ago, Szene said: With Plugin: C8 but around 300-450Mb/s I think you mean 300-450Mbit/s...? 300MB/s would be about 2.5Gbit/s Quote Link to comment
Szene Posted June 19 Share Posted June 19 (edited) 19 minutes ago, ich777 said: Please note that the plugin version does not reflect the driver version! The drivers for Unraid 6.12.10 (Kernel version 6.1.79) are actually from 2024-06-13: Sorry, I didn't knew that. Thanks for the clarification. Sadly my issue still persist. Any idea what could cause the significant speed drop when the drivers are installed? My goal would be for the speed not to drop and to keep the higher C-states. Or is this just not possible? 19 minutes ago, ich777 said: I think you mean 300-450Mbit/s...? 300MB/s would be about 2.5Gbit/s Yeah, Mbit/s With (C8) [ 4] 0.00-1.00 sec 45.6 MBytes 383 Mbits/sec [ 4] 1.00-2.00 sec 46.5 MBytes 390 Mbits/sec [ 4] 2.00-3.00 sec 45.9 MBytes 385 Mbits/sec [ 4] 3.00-4.00 sec 47.8 MBytes 401 Mbits/sec [ 4] 4.00-5.00 sec 49.8 MBytes 417 Mbits/sec [ 4] 5.00-6.00 sec 46.4 MBytes 389 Mbits/sec [ 4] 6.00-7.00 sec 47.4 MBytes 397 Mbits/sec [ 4] 7.00-8.00 sec 47.2 MBytes 396 Mbits/sec [ 4] 8.00-9.00 sec 45.5 MBytes 382 Mbits/sec [ 4] 9.00-10.00 sec 47.8 MBytes 401 Mbits/sec Without (C3) [ 4] 0.00-1.00 sec 269 MBytes 2.26 Gbits/sec [ 4] 1.00-2.00 sec 278 MBytes 2.33 Gbits/sec [ 4] 2.00-3.00 sec 281 MBytes 2.36 Gbits/sec [ 4] 3.00-4.00 sec 280 MBytes 2.35 Gbits/sec [ 4] 4.00-5.00 sec 282 MBytes 2.36 Gbits/sec [ 4] 5.00-6.00 sec 282 MBytes 2.37 Gbits/sec [ 4] 6.00-7.00 sec 281 MBytes 2.36 Gbits/sec [ 4] 7.00-7.71 sec 199 MBytes 2.37 Gbits/sec Same connection, just with and without drivers. Edit: I just saw that 6.12.10 reverted the kernel back to v6.1.79 and the newest release from this plugin was compiled for version v6.8.12. Could that be the issue? Edited June 19 by Szene Quote Link to comment
jinlife Posted June 23 Author Share Posted June 23 (edited) On 6/20/2024 at 1:56 AM, Szene said: Sorry, I didn't knew that. Thanks for the clarification. Sadly my issue still persist. Any idea what could cause the significant speed drop when the drivers are installed? My goal would be for the speed not to drop and to keep the higher C-states. Or is this just not possible? Yeah, Mbit/s With (C8) [ 4] 0.00-1.00 sec 45.6 MBytes 383 Mbits/sec [ 4] 1.00-2.00 sec 46.5 MBytes 390 Mbits/sec [ 4] 2.00-3.00 sec 45.9 MBytes 385 Mbits/sec [ 4] 3.00-4.00 sec 47.8 MBytes 401 Mbits/sec [ 4] 4.00-5.00 sec 49.8 MBytes 417 Mbits/sec [ 4] 5.00-6.00 sec 46.4 MBytes 389 Mbits/sec [ 4] 6.00-7.00 sec 47.4 MBytes 397 Mbits/sec [ 4] 7.00-8.00 sec 47.2 MBytes 396 Mbits/sec [ 4] 8.00-9.00 sec 45.5 MBytes 382 Mbits/sec [ 4] 9.00-10.00 sec 47.8 MBytes 401 Mbits/sec Without (C3) [ 4] 0.00-1.00 sec 269 MBytes 2.26 Gbits/sec [ 4] 1.00-2.00 sec 278 MBytes 2.33 Gbits/sec [ 4] 2.00-3.00 sec 281 MBytes 2.36 Gbits/sec [ 4] 3.00-4.00 sec 280 MBytes 2.35 Gbits/sec [ 4] 4.00-5.00 sec 282 MBytes 2.36 Gbits/sec [ 4] 5.00-6.00 sec 282 MBytes 2.37 Gbits/sec [ 4] 6.00-7.00 sec 281 MBytes 2.36 Gbits/sec [ 4] 7.00-7.71 sec 199 MBytes 2.37 Gbits/sec Same connection, just with and without drivers. Edit: I just saw that 6.12.10 reverted the kernel back to v6.1.79 and the newest release from this plugin was compiled for version v6.8.12. Could that be the issue? This is the latest driver from realtek, we just compiled it for unraid. I may not know the reason for the performance problem, maybe it is related to the CPU or ASPM, maybe it is related to the hardware. It is recommended to use the r8169 driver directly, at least the speed is full. Edited June 23 by jinlife 1 Quote Link to comment
