Unmountable device, wrong or no file system

[Decay]

Hi, I've been using Unraid for several years now and I've encountered an issue I can't resolve. After restarting the server, one of the HDDs couldn't be mounted, and it was marked as "wrong or no file system."

I did some searching online and eventually landed on this link: https://docs.unraid.net/unraid-os/manual/storage-management/#checking-a-file-system

The Storage Management section contains instructions on how to repair the file system. So, I initiated the check through the web GUI. The system operates on BTRFS, and it found a few errors during the check.

I couldn't execute the "Test" command, so I proceeded to the repair phase. Repair started, but it requires confirmation with 'y' to begin the repair process. I'm stuck at this point, where can I input 'y' to commence the repair process?



Perhaps I am completly wrong and should do something different.



In advance, thank you very much for any tips.

[trurl]

Attach diagnostics to your NEXT post in this thread.

[Decay]

Sry, totally forgot to post the diagnostic files, here they are.

unraid-diagnostics-20240106-1233.zip

[JorgeB]

If the log tree is the only problem this may help:



btrfs rescue zero-log /dev/md1p1



Then re-start the array

[Decay]

Thx for the fast reply. Should I do it in maintenance mode or normal mode?

[Decay]

It worked but all dockers are gone, how could I fix that?

unraid-diagnostics-20240106-1500.zip

[trurl]

First, your appdata, domains, and system shares have some files on the array. And your domains share is set to get moved to the array.



Ideally, these shares would have all their files on fast pool such as cache, so Dockers/VMs can perform better and so array disks can spin down since these files are always open.



Set domains Mover action: array->cache



Nothing can move open files, so you have to disable Docker and VM Manager in Settings so these shares can be moved.



Then, run Mover, wait for it to finish, and post new Diagnostics so we can check if everything got moved.

[Decay]

I have done all steps and restartet VM and dockers.

unraid-diagnostics-20240106-1549.zip

[itimpi]

Shares such as ‘appdata’ and ‘system’ still have files on the array so that still needs resolving.

[Decay]

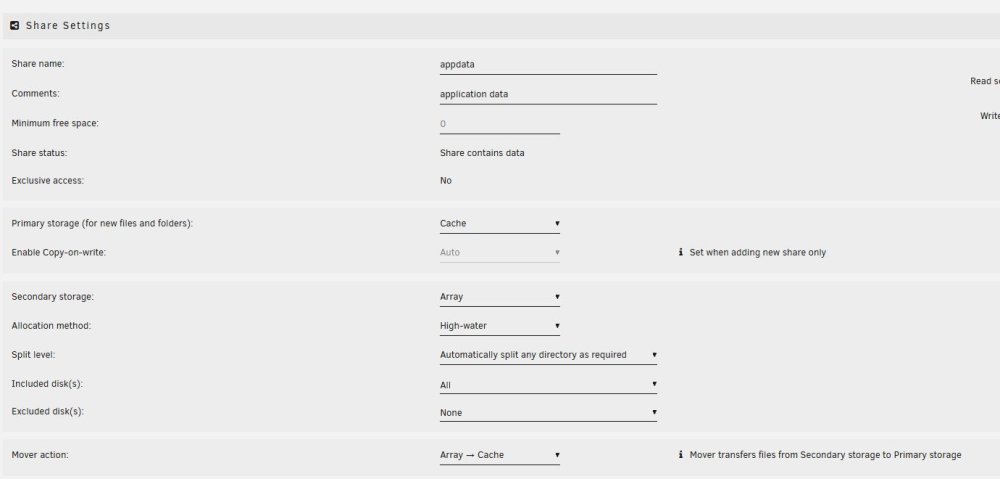

I checked that and it is set to: array->cache

How could I resolve that problem? Could it be possible, that that are files from an old and wrong configuration?

[itimpi]

1 minute ago, Decay said:

How could I resolve that problem? Could it be possible, that that are files from an old and wrong configuration?

It could.   The mover will not overwrite existing files so if you have duplicate files from previous actions you need to tidy this up manually and decide which copy to keep.    You can use the Dynamix File Manager plugin to examine the drives and manually carry out the desired actions.

[trurl]

Mover won't replace files, so if a file exists in both places you will have to decide which to keep.



Dynamix File Manager plugin will let you work with files directly on the server.



Since we are going to recreate docker.img anyway we could start with the system share.



What do you get from command line with these?

ls -lah /mnt/cache/system/libvirt

ls -lah /mnt/disk1/system/libvirt



and these?

ls -lah /mnt/cache/system/docker

ls -lah /mnt/disk1/system/docker



[Decay]

Here are the results:

ls -lah /mnt/cache/system/libvirt

total 1.8M
drwxrwxrwx 1 root   root    22 Jan  2 18:10 ./
drwxrwxrwx 1 nobody users   26 Aug 20  2020 ../
-rw-r--r-- 1 nobody users 1.0G Jan  6 16:00 libvirt.img



ls -lah /mnt/disk1/system/libvirt

total 1.0G
drwxrwxrwx 1 root   root    22 Aug 20  2020 ./
drwxrwxrwx 1 nobody users   26 Aug 20  2020 ../
-rw-rw-rw- 1 nobody users 1.0G Jan  2 17:41 libvirt.img



ls -lah /mnt/cache/system/docker

total 1.4G
drwxrwxrwx 1 root   root   20 Jan  2 18:10 ./
drwxrwxrwx 1 nobody users  26 Aug 20  2020 ../
-rw-r--r-- 1 nobody users 20G Jan  6 16:07 docker.img



ls -lah /mnt/disk1/system/docker

total 20G
drwxrwxrwx 1 root   root   20 Aug 20  2020 ./
drwxrwxrwx 1 nobody users  26 Aug 20  2020 ../
-rw-rw-rw- 1 nobody users 30G Jan  2 18:00 docker.img



[trurl]

As I said, we are going to recreate docker.img anyway, so you can just delete both copies of that.



Not sure about your libvirt though. The one on disk1 is older. Do you actually have any VMs?

[trurl]

2 minutes ago, trurl said:

As I said, we are going to recreate docker.img anyway, so you can just delete both copies of that.

Install Dynamix File Manager plugin and see if you can figure out how to do that.

[Decay]

No, I deleted all VMs because my server is to old to handle it properly and at the moment I am good with only dockers. New hardware is planned soon but my money says that I have to wait

I shall delete the docker images?

These ones?

/mnt/disk1/system/docker

/mnt/cache/system/docker

I am just a bit afraid to do that



Just installed Dynamix File Manager.

I understand how the File Manager works, do I have to stop Docker and VM again?

Edited January 6 by Decay

[trurl]



3 minutes ago, Decay said:

No, I deleted all VMs

Then we can also delete both copies of your libvirt and just leave VM Manager disabled until you think you might want to try again with that.





1 minute ago, Decay said:

I am just a bit afraid to do that

9 minutes ago, trurl said:

we are going to recreate docker.img anyway

It is always safe to delete docker.img. It is just the executable code of your containers, which can be downloaded again.



Here is where we are going with this:



https://docs.unraid.net/unraid-os/manual/docker-management/#re-create-the-docker-image-file



https://docs.unraid.net/unraid-os/manual/docker-management/#re-installing-docker-applications

[trurl]

Just now, trurl said:

Here is where we are going with this:

But don't recreate docker.img until we also take a look at your appdata and get it all on cache.

[trurl]

11 minutes ago, Decay said:

I understand how the File Manager works, do I have to stop Docker and VM again?

Nobody ever told you to enable them again.

[Decay]

I am not going to create it without your go.



So, I deleted docker and libvirt.

unraid-diagnostics-20240106-1634.zip

Edited January 6 by Decay

[trurl]

So I assume Docker and VM Manager must be disabled now or it wouldn't have let you delete those.



This time I'll let you get the answers from Dynamix File Manager.

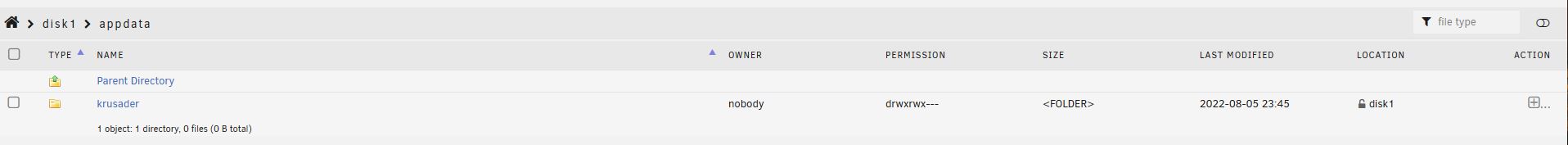

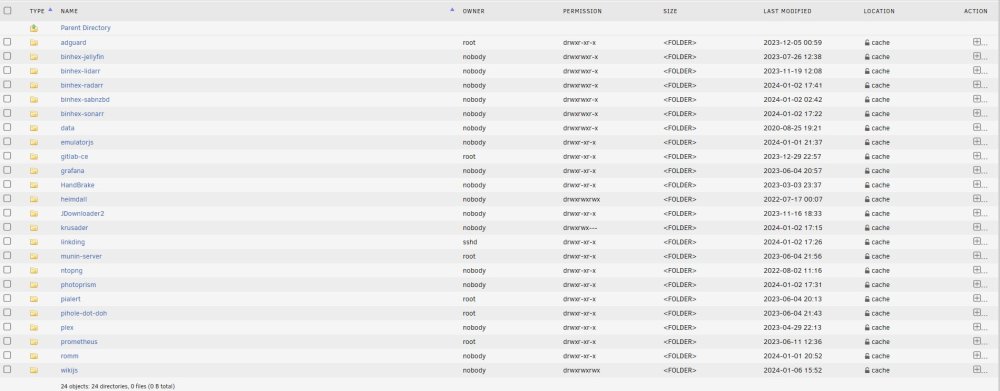

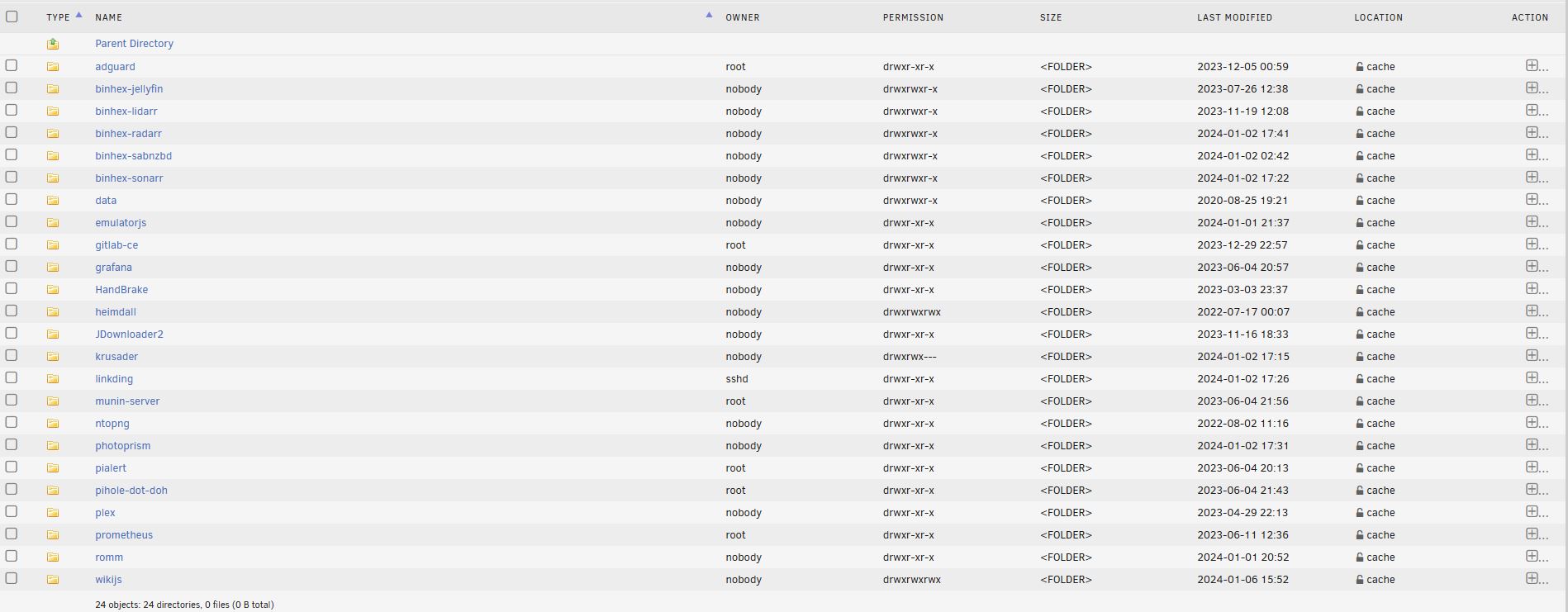

What is in the appdata folder on cache and on disk1? Screenshots will be fine.

[Decay]

Here are the screenshots. Yes, VM and Docker are disabled.

Edited January 6 by Decay

[trurl]

Looks like the only duplicate is krusader. Personally I would just forget all about krusader and use Dynamix File Manager.



If you do want to keep it for some reason you have to decide which copy of the krusader appdata to delete. Probably doesn't matter all that much for that particular docker. The stuff on disk1 was probably created when you started that container without a cache drive.

[Decay]

Yeah, I added the cach drive a bit later. I would like to keep it, but I just can reinstall it later.  So I think I can just delete it on the cach drive and disk1.

[trurl]

OK, refer to my previous post for the links to recreate and reinstall. Previous Apps will let you install everything it finds a template for on your flash drive, which is probably everything you have ever tried out, so you might want to pick and choose.
