rizzyc Posted February 10 Share Posted February 10 I moved my unraid to a new machine and then I accidentally formatted my actual data drive in windows... I now have my unraid server back up, but i want to make sure it rebuilds my data drive (disk 1) using parity since i'm sure i messed up the disk my formatting it in windows. I don't want to start my array cuz i'm afraid that i will lose my data... What is the correct way to go about this and also is there a way for me to explore the contents of the hard drive without starting the array. (Disk 2 and Disk 3) are just older hd's I found lying around so will add them to the array as well. Quote Link to comment
JonathanM Posted February 10 Share Posted February 10 If everything in the original array is exactly as you describe, i.e. 1 data disk (corrupted) and 1 parity disk, then you need to disconnect all the disks except for parity and start the array. That will force Unraid to show you the emulated contents of disk1 so you can see if it's correct. Before you do that, download diagnostics and post them here so we can see what the state of things is right now. Adding drives to the array before you get your data recovered is a very bad idea, and will likely end up with data loss if you aren't careful. Also, remember all drives in the parity array must be in perfect condition, the way you described "older hd's I found lying around" doesn't give me the warm and fuzzies about their condition. Diagnostics collected with them connected should at least show SMART reports for them, so we can see any obvious issues. Do you have current backups of any important data on the array? Doing the wrong thing right now will definitely cause data loss. Quote Link to comment
itimpi Posted February 10 Share Posted February 10 1 hour ago, JonathanM said: If everything in the original array is exactly as you describe, i.e. 1 data disk (corrupted) and 1 parity disk, then you need to disconnect all the disks except for parity and start the array. That will force Unraid to show you the emulated contents of disk1 so you can see if it's correct. That is no quite right - you need to have all disks except the disk that was accidentally formatted connected and then start the array so we can see if Unraid can emulate the missing disk using the combination of parity plus the other data drives. If so then the standard Unraid rebuild process can be used to restore its contents. Quote Link to comment
rizzyc Posted February 10 Author Share Posted February 10 When you say disconnected, you mean like physically disconnected from the motherboard? Or just not selected before starting array. I did at one point only have the parity hard drive connected and unraid does say it's in good health. But without the data hard disk in, I think it wouldn't let me start the array and I was also afraid of messing up so I have not yet tried to start the array. Quote Link to comment
itimpi Posted February 10 Share Posted February 10 5 minutes ago, rizzyc said: Or just not selected before starting array. If you are referring to the disk that was accidentally formatted, then just not currently assigned to the array. Quote Link to comment

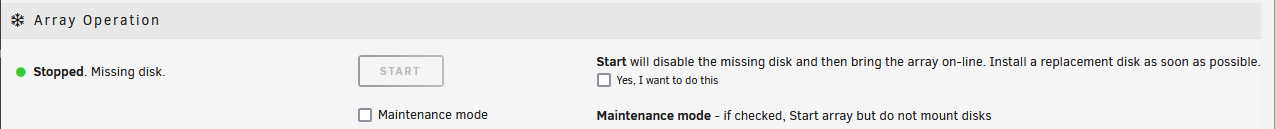

rizzyc Posted February 10 Author Share Posted February 10 (edited) When I unselect the data drive (that I messed up) I have selected my parity drive but it doesn't let me start unless I do it in Maintenance mode and select both checkboxes. Edited February 10 by rizzyc Quote Link to comment
rizzyc Posted February 10 Author Share Posted February 10 Here are the diagnostics (without starting the array) tower-diagnostics-20240210-0841.zip Quote Link to comment
itimpi Posted February 10 Share Posted February 10 You need to have all disks selected EXCEPT the one that was accidentally formatted. Just having parity is not sufficient. Quote Link to comment
rizzyc Posted February 10 Author Share Posted February 10 Yeah, I only had one parity and one data disk. The only other device had was a cache drive? Do I have to have this connected as well? Quote Link to comment
trurl Posted February 10 Share Posted February 10 26 minutes ago, rizzyc said: it doesn't let me start unless I do it in Maintenance mode and select both checkboxes. Are you sure? You shouldn't need Maintenance mode checked to enable the Start button. Just check the "Yes, I want to do this" box. Quote Link to comment
rizzyc Posted February 10 Author Share Posted February 10 Oh yes, I was able to bring it up and it looks like it says its emulating the data disk and I was able to see some of my files. Quote Link to comment
rizzyc Posted February 10 Author Share Posted February 10 tower-diagnostics-20240210-0954.zip Quote Link to comment

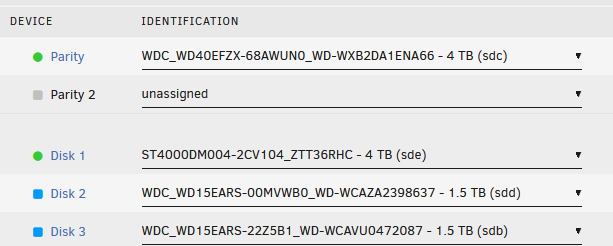

JonathanM Posted February 10 Share Posted February 10 4 hours ago, itimpi said: hat is no quite right - you need to have all disks except the disk that was accidentally formatted Yeah, his screenshot of one parity, one data, and two new disks made it unclear. In this specific case, only the parity was needed, because the original array was only one parity and one data. Quote Link to comment
rizzyc Posted February 10 Author Share Posted February 10 So parity seems to be fine, how do I go about adding my actual drive to the array? I can just select it and start the array? I was worried if I just start it like this the parity would get messed up trying sync with the disk I accidentally formatted. Quote Link to comment
itimpi Posted February 10 Share Posted February 10 The last diagnostics you posted showed that it appeared that disk1 is being emulated correctly. It should now be possible to simply stop the array; assign the accidentally formatted disk to the disk1 slot; and then Unraid will tell you that will cause the disk to be rebuilt with the contents of the emulated disk1 when you start the array. When rebuilding it is irrelevant what format the target disk is currently in as every sector gets overwritten by the rebuild process. 1 Quote Link to comment
rizzyc Posted February 12 Author Share Posted February 12 Thanks, I rebuild my data disk last night. It took about 8 hours and everything went smoothly! It was almost too easy! This is kinda why I love unraid actually was experimenting with truenas and it was a pain to even get plex working properly. Quote Link to comment
