July 2, 201214 yr I dont have a floppy disk drive in my unraid box of coarse so I was wondering if its possible to just get a spare usb flash and run their exe tool on the flash drive and boot from the usb flash and update the bios to version 2?
July 2, 201214 yr Yes. I just did this on the same board earlier today. Unzip the bios file and copy to a dos bootable USB drive. Boot up and type "ami.bat biosfilename.xxx". Follow the instructions in the readme for the board and version of bios. Good luck
July 2, 201214 yr Google how to setup freedos or others on usb stick. Sent from my SGH-I727R using Tapatalk 2
July 2, 201214 yr Did it last week. Download the HP format utility, download the bootable win 98 files, format the usb drive, and then add the bios update to the flash drive and boot. Just follow the read me file for actual step to apply the bios update.
July 5, 201213 yr Just as an FYI. I bricked my X9SCM-F. I updated the bios just fine but then ESXi no longer recognized my AVerMedia AVerTVHD Duet at all. I tried to downgrade my bios back to 1.0C and that is how I bricked it. Should have paid attention to the warning.
July 26, 201213 yr Same here And exactly the same sequence. Emailed Supermicro, received the recovery instructions but none of them worked, including serial port recovery. Will see if they honor the warranty and flash it. Meantime I have to buy a new board. And this time it won't be Supermicro...
July 26, 201213 yr Same here And exactly the same sequence. Emailed Supermicro, received the recovery instructions but none of them worked, including serial port recovery. Will see if they honor the warranty and flash it. Meantime I have to buy a new board. And this time it won't be Supermicro... Care to share those instructions? I filled out a support email but it must not have posted because I never received a response. Every other time they have been very responsive.
July 27, 201213 yr Here is the link: http://www.supermicro.com/about/policies/disclaimer.cfm?url=/manuals/other/AMI_BIOS_Recovery.pdf They emailed me RMA form today. Just email [email protected].
July 27, 201213 yr Here is the link: http://www.supermicro.com/about/policies/disclaimer.cfm?url=/manuals/other/AMI_BIOS_Recovery.pdf They emailed me RMA form today. Just email [email protected]. Thanks for the info. I'm probably going to have to RMA mine as well but I thought I would try the recovery first.
July 27, 201213 yr Here is the link: http://www.supermicro.com/about/policies/disclaimer.cfm?url=/manuals/other/AMI_BIOS_Recovery.pdf They emailed me RMA form today. Just email [email protected]. Thanks for the info. I'm probably going to have to RMA mine as well but I thought I would try the recovery first. I've bricked and recovered mine the same way, downgrading the bios plus using the super.rom usb stick method.
August 20, 201213 yr I just did mine also.. same steps. Are you on 2.0a now? Some people around say they can't get the dedicated ipmi lan port working. I wondered if this is a 2.0a "feature" I created a bootable usb stick with the hp utility and win 98 files, put the bios 2.0a files on it. it boots in my laptop just fine but not on the x9scm. Either the internal usb port or on the back. Setting it as the first boot option or through the override option on the bios. i try this remotely through ipmi.
August 20, 201213 yr My board came with bios 1.0... few weeks ago. I cant find if its 1.0a, b or c, it just says 1.0. The dedicated IPMI port is NOT enabled standard on my board. For updating bios, you should be able to mount an ISO through IPMI, the problem is that the ISO can not exceed 1.44MB in size. Now, ive tried formatting an USB stick to 1.44MB, which seems impossible, diskpart also does not allow sizes under 100MB as it seems, and resizing a partition also does not work. So there is no way for me te create a 1.44MB partition on a usb stick so i can convert that stick into an ISO... I guess i will have to plug in the stick in the board then. So far for IPMI...
August 20, 201213 yr I just did mine also.. same steps. Are you on 2.0a now? Some people around say they can't get the dedicated ipmi lan port working. I wondered if this is a 2.0a "feature" I created a bootable usb stick with the hp utility and win 98 files, put the bios 2.0a files on it. it boots in my laptop just fine but not on the x9scm. Either the internal usb port or on the back. Setting it as the first boot option or through the override option on the bios. i try this remotely through ipmi. My replacement board came with 2.0a. I am using the dedicated IPMI port on it.
August 20, 201213 yr I've upgraded to bios 2.0a as well in the meantime ( was 1.0) just using an USB stick, oldskool style... and IPMI 01.64 ( was 01.01)... gonna switch to the dedicated IPMI port later.
August 22, 201213 yr I am thinking about getting this board and a E3-1230V2. From what I've read, you need the 2.x BIOS to be able to run that processor in this board. Can you flash before POST? If my board comes with a 1.x BIOS will I be able to flash it without having a compatible CPU?
August 22, 201213 yr I am thinking about getting this board and a E3-1230V2. From what I've read, you need the 2.x BIOS to be able to run that processor in this board. Can you flash before POST? If my board comes with a 1.x BIOS will I be able to flash it without having a compatible CPU? If yours comes with 1.x I would be willing to trade my replacement 2.0a board that is currently running in an ESXi setup for your 1.x bios version. I still haven't tried to unbrick my existing board but this would be an incentive if I was trading a working board away.
August 22, 201213 yr I am thinking about getting this board and a E3-1230V2. From what I've read, you need the 2.x BIOS to be able to run that processor in this board. Can you flash before POST? If my board comes with a 1.x BIOS will I be able to flash it without having a compatible CPU? No you can't flash it with a v2 chip installed. Sent from my SGH-I727R using Tapatalk 2
August 23, 201213 yr BobPhoenix - Why do you want a 1.x board? marcusone - Thanks for the info. That's what I was afraid of. I was thinking of getting the IIF but I read a couple reports of people not getting multiple HBAs all working in them. I have three IBM M5105s I need to run in it. I've read of people doing that in the older F version.
August 23, 201213 yr BobPhoenix - Why do you want a 1.x board?OK here is the tale: My AVer Media Duet TV tuner is not recognized with a 2.0a bios on a X9SCM-F in ESXi 5.0. I have a bricked board that I upgraded to 2.0a from 1.0 (something). The tuner card was working wonderfully in my SageTV Windows 7 x64 VM but I was having a few problems with my unRAID VM that I thought a bios upgrade might fix. After the upgrade to 2.0a without changing anything else the card was not available for passthrough in ESXi anymore. As far as ESXi was concerned the card didn't exist no matter what combination of cards and slots tried. So I tried to downgrade my bios back to 1.0 to get the card back. But that bricked my X9SCM-F. So then I emergency next day aired a new MB from Newegg. Moved the Xeon to it - installed it - and found that it also had 2.0a installed and it TOO was unable to recognize the Duet tuner card in ESXi. I just haven't had time to try (or have a compatible V1 CPU free) to try the recovery procedure. Also if I end up RMA'ing it I figure I'll just get the 2.0a bios again. So if I can find someone to trade with I will down a ESXi server and ship the MB out - put the V1 Xeon on the bricked board and try the recovery procedure while I wait for the swap to arrive. I figured I might have to recover to 2.0a for the recovery procedure to work.
August 23, 201213 yr Sorry to make you rehash that all again. Actually, I now remember reading that, but I didn't associate a screen name to the story. Yah, I'd be willing to do that. That makes me wonder though if it's the 2.0 BIOS that made the IIF not work with multiple HBA's for some people? This sucks trying to make sure you get exactly what will work since everything seems to have little potential issues with ESXi.
August 23, 201213 yr My board came with bios 1.0... few weeks ago. I cant find if its 1.0a, b or c, it just says 1.0. The dedicated IPMI port is NOT enabled standard on my board. For updating bios, you should be able to mount an ISO through IPMI, the problem is that the ISO can not exceed 1.44MB in size. Now, ive tried formatting an USB stick to 1.44MB, which seems impossible, diskpart also does not allow sizes under 100MB as it seems, and resizing a partition also does not work. So there is no way for me te create a 1.44MB partition on a usb stick so i can convert that stick into an ISO... I guess i will have to plug in the stick in the board then. So far for IPMI... We have over a hundred of these boards at work. Ours shipped with every different Ver 1 Bios there is (we did not get any with 2.x yet). we even have 2 sample boards, everyone of them has a working, enabled ipmi port. if it didnt work we'd kick it out as defective. we had only one defective for the x9scm's it had a bad ram slot. That is how we build these servers.We rack the servers and put the IPMI network all on its own subnet and we then find it via the IPMI tool from SM and name the server and give it a static IPMI IP. Then install the OS via an ISO through the IPMI. to contradict what you said.. Our ISO's are several hundred megs in size. we also have no monitors or KVM's for our racks. we only use management tools or IPMI to remote these if there is an issue. If the ipmi is unresponsive,. then we have to use a triage cart or unrack it. so far, that rare with boards. I can only think of one or 2 that needed a monitor at any point... I also would not try to flash a board via ipmi mounted disk, im pretty sure it is not possible, but if you could, you're asking to brick the board when it disconnects while flashing.

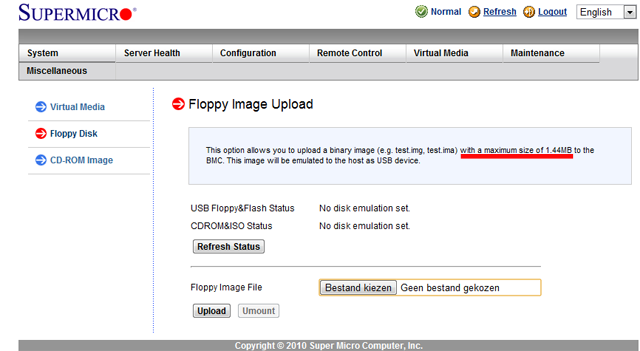

August 23, 201213 yr We have over a hundred of these boards at work. everyone of them has a working, enabled ipmi port. if it didnt work we'd kick it out as defective to contradict what you said.. Our ISO's are several hundred megs in size. MY board, did NOT use the dedicated IPMI port from scratch. NEITHER was it defective. I never claimed it was defective. It was, for some reason, set up so that IPMI was using the lan1 port. So did other X9SCM boards from others users here. After switching it to the dedicated port using the IPMIView tool, i'm now using the dedicated IPMI port. Furthermore, the IPMI webgui is very clear about the size of a mounted floppy iso. It may NOT exceed 1.44MB. It even fails mounting if you do so...
August 23, 201213 yr i'm just saying. it "should be on" out of the box. we just rack them and and power them up. our servers are in a major e-tailers datacenter. we don't have time to deal with misbehaving hardware. we just toss it out or make the vendor come get it. We dont use the web gui. We use the ipmi tool for management. that might be the difference. Also, we mount it as a bootable CD. not floppy. that might be another difference.
August 23, 201213 yr We dont use the web gui. We use the ipmi tool for management. So did i. The IPMI tool could only connect if i used lan1... Maybe i got one of the boards you rejected
