February 5, 20188 yr Author And we're not even touching the advanced format SAS drives that change their sector sizes based on how far out from the spindle the spot is.... Be interesting to see some benchmarks with one of those.
February 5, 20188 yr Author It would be safe to say that at first let's try to get max drive read speeds within a small margin of error. Later, we'll work on trying to ink out every byte. I'll allow a manual override of block size to be entered if it is evenly divisible by the logical sector size.
February 5, 20188 yr Is it expected behavior that when testing parity it shows 10-100% but the size indication stays at 0%? FYI my parity disk is in fact a RAID0 volume.
February 6, 20188 yr Author 10 hours ago, dikkiedirk said: Is it expected behavior that when testing parity it shows 10-100% but the size indication stays at 0%? FYI my parity disk is in fact a RAID0 volume. I don't quite follow.
March 2, 20188 yr Author I've got the code ported to Docker and reworked a lot of the controller & drive detection & optimization as my knowledge of such things increased. The foundation is set for finally adding the drive benchmarking now that the controller & drive optimization is done. I'm coding it to support testing multiple drives on the same controller at the same time after testing how many drives the controller can actually handle at the same time (exceeding bandwidth/etc). So if you have two controllers with 4 drives attached to each and bandwidth is not maxed out on either or the system bus, you'll be able to run a benchmark on all 8 drives at once. If the controller bandwidth is maxed out reading all drives at once (such as loaded up with SSD's), it'll test no more than x drives at once, testing additional drives once other drives on the controller are done testing. All done via an auto-generated bash script. That's gonna be fun to develop. haha So what I need now is people to do a sanity alpha test with controller & drive detection & testing before I go public alpha. Send me a PM if you are interested.

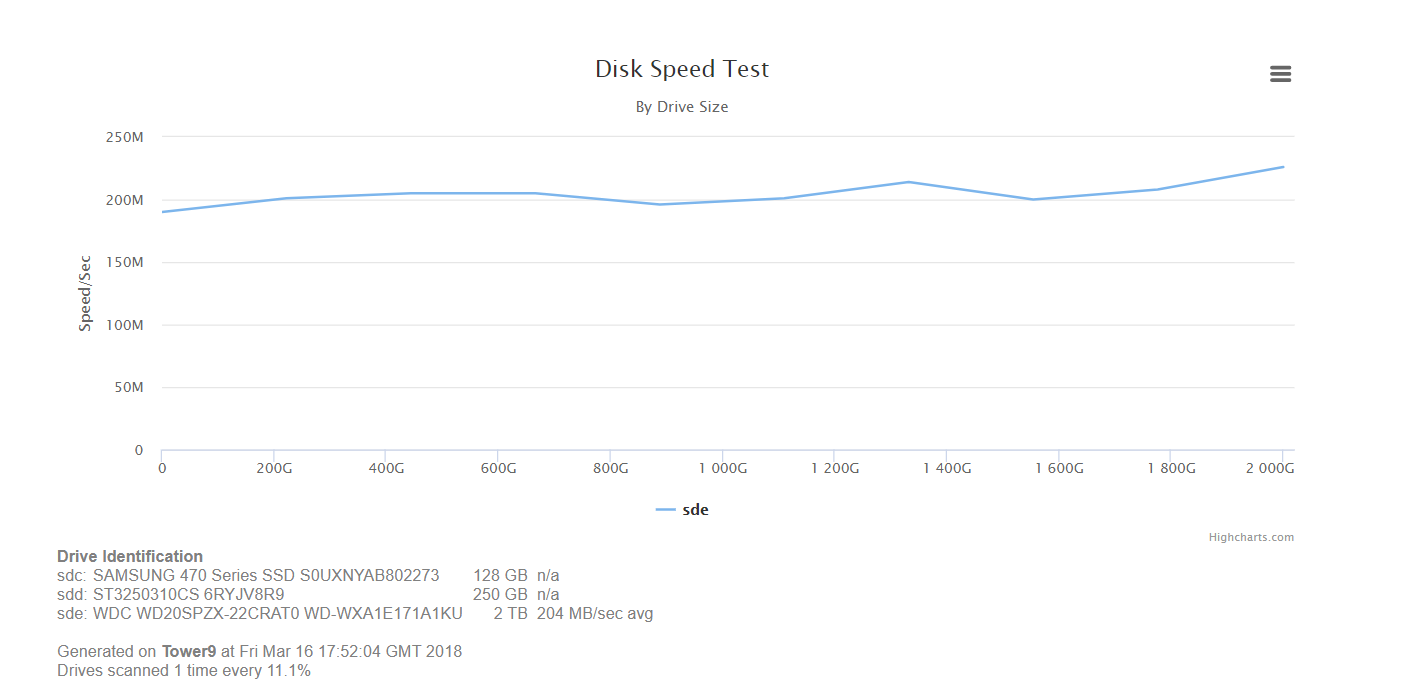

March 16, 20188 yr WTF? How is this possible? This is a WD 2TB blue mobile 2.5", and it's not the plugin as I confirmed the results with other utils.
March 16, 20188 yr 10 minutes ago, johnnie.black said: WTF? How is this possible? This is a WD 2TB blue mobile 2.5", and it's not the plugin as I confirmed the results with other utils. Very nice transfer speed. But 2.5" drives can use higher data density because the platters are smaller and so introduces better mechanical tolerances, less vibrations etc. At the same time, a 3.5" drive has the head optimized for the middle part of the media so they need to reduce the data density on the outside tracks or the bit rate (frequency) becomes too high compared to what the drive heads are designed for. That's also why they killed off the 5.25" drives - they couldn't keep up with the data densities of the 3.5" drives. The main issue with 2.5" drives is that they are so thin that they can't have as many surfaces as 3.5" drives - one of the reasons why lots of 2.5" USB drives uses extra-thick drives. Anyway - it will not take too many years before the 2.5" drives will leave the 3.5" drives in the dust. The best 2.5" drives are 5TB and have been for about two years now so soon time for a new high score. So they are right now about half the size of the best 3.5" drives.
March 16, 20188 yr 10 minutes ago, pwm said: Very nice transfer speed. But 2.5" drives can use higher data density because the platters are smaller and so introduces better mechanical tolerances, less vibrations etc. At the same time, a 3.5" drive has the head optimized for the middle part of the media so they need to reduce the data density on the outside tracks or the bit rate (frequency) becomes too high compared to what the drive heads are designed for. Yeah, but I still don't get how it's possible to the speed to remain constant as it goes through the inner cylinders, I believe this disk uses SMR, so there's a faster PMR zone, still all SMR disks I've tested before act like a normal disks, i.e. if the transfer speed starts at 200MB/s it should end at around 100MB/s, not stay constant, I need to make more tests.
March 16, 20188 yr Just now, johnnie.black said: Yeah, but I still don't get how it's possible to the speed to remain constant as it goes through the inner cylinders, I believe this disk uses SMR, so there's a faster PMR zone, still all SMR disks I've tested before act like a normal disks, i.e. if the transfer speed starts at 200MB/s it should end at around 100MB/s, not stay constant, I need to make more tests. Yes, the inner tracks should drop off. I tried to find any benchmarks but failed to get any matches on WD20SPZX, WD20NPVZ and WD15NPVZ. Just sales talk or references to much older WD drives. And WD only shows the interface bandwidth (6Gbit/s) in their datasheet. Maybe the SMR means you fail to store data on the inner track because you haven't filled the drive full and whatever address you specify for your transfers ends up being mapped to an outside track?
March 16, 20188 yr 1 minute ago, pwm said: Maybe the SMR means you fail to store data on the inner track because you haven't filled the drive full and whatever address you specify for your transfers ends up being mapped to an outside track? That's what I was thinking since the disk was has never been written to.
March 16, 20188 yr Just now, johnnie.black said: That's what I was thinking since the disk was has never been written to. I'm interested in the outcome of this. That would then mean we can't easily plan where to locate our critical data to optimize for bandwidth. If they use mapping logic, then it wouldn't even be sure that we can create four 500 GB partitions to force fast and slow regions. Or maybe the unshingled region is large enough that the drive hasn't spilled over to the main storage region yet (while WD might have decided to take a bit of advantage of their unshingled region to "unintentionally" boost benchmarks).

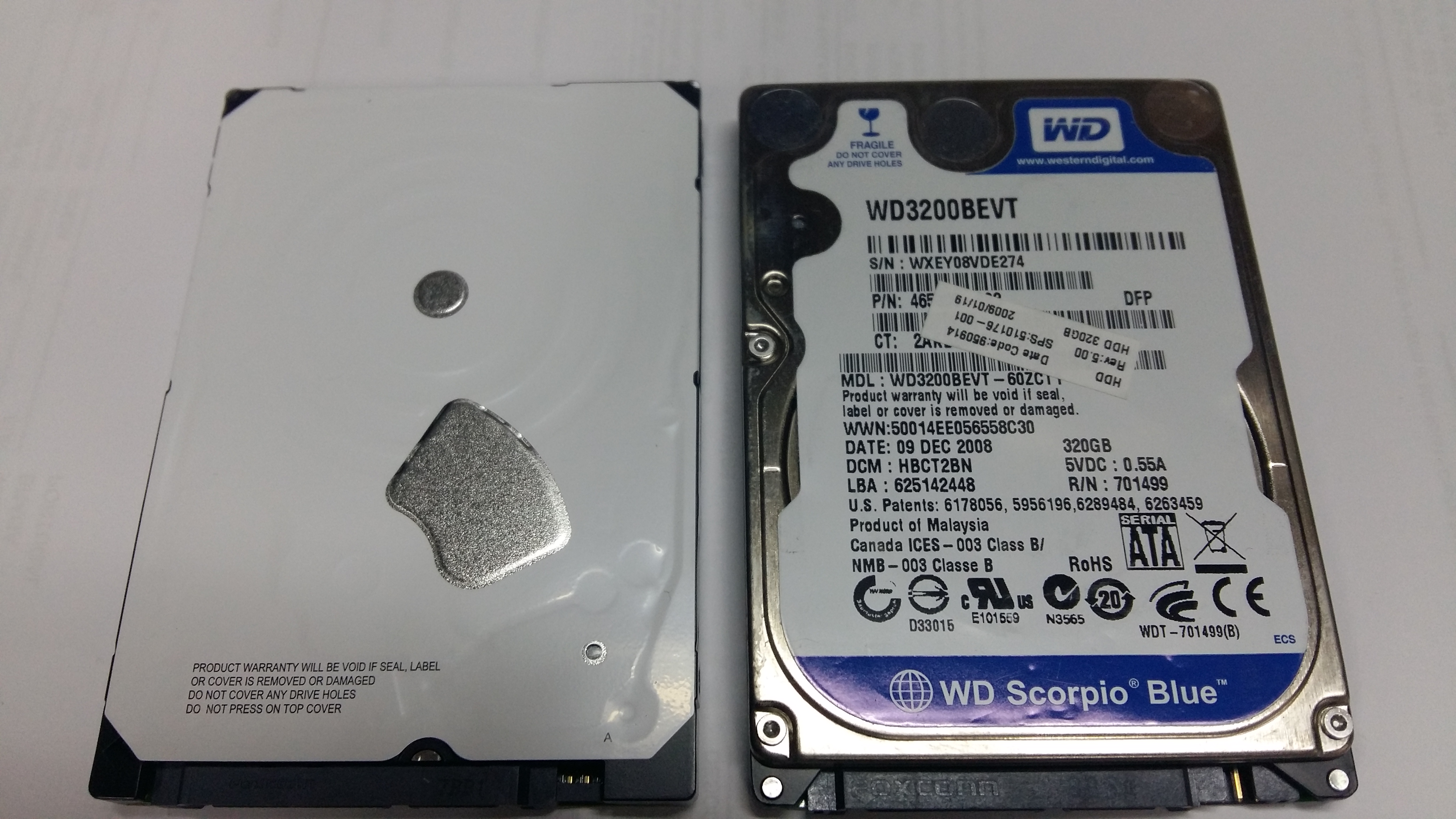

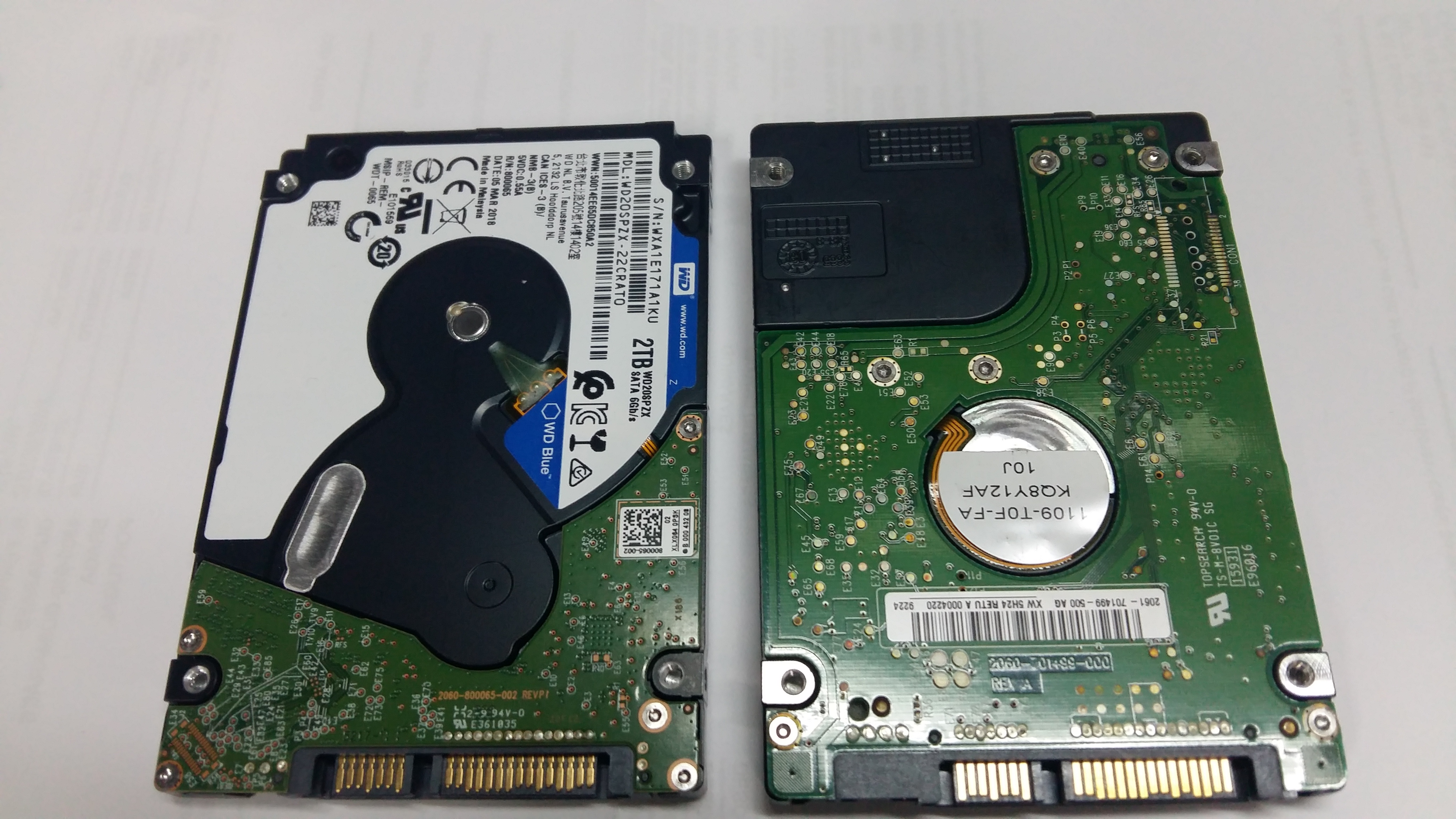

March 16, 20188 yr I do more testing after writing to full capacity, the disk does look weird, the platters are not on the usual place, but they are still round
March 16, 20188 yr Interesting. Looks like it's using smaller platters suitable for a 1.8" drive. Similar to how lots of high-end 3.5" drives have used 2.5" platters for a long time now. Maybe my guess that it isn't too far until 2.5" drives will replace the 3.5" drives was wrong. Maybe they jump all the way to 1.8" drives.

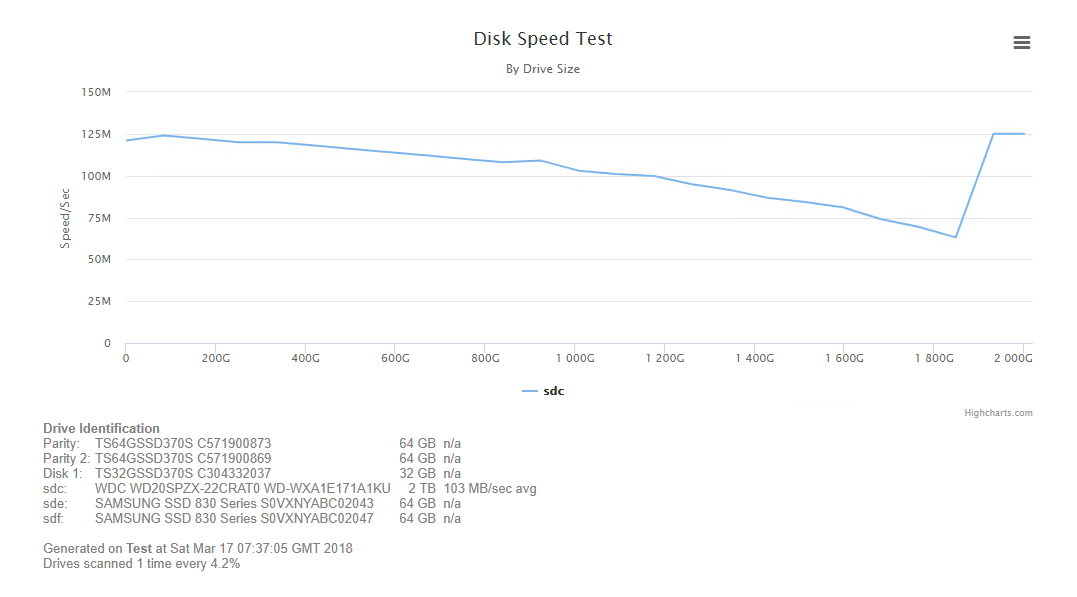

March 17, 20188 yr Another run after filling the disk up, disk looks more in line with what I was expecting, still a weird uptick in the end: WD is doing some kind of weird sector mapping, and it's not just because SMR, as Seagate Archive drives behave like a normal disk in this test since new, even before they are written to.
March 17, 20188 yr Author Interesting. The only other reason I can think of is somehow the drive's bandwidth is being capped but the drive can still exceed it from end to end. This mapping logic doesn't make any sense.
March 17, 20188 yr I'm really under the weather, so maybe I am missing something, but I can not get diskspeed_2.6.5 to do anything correctly under unRAID 6.4. I want to upgrade to 6.5, but I really want to check the speeds of all my discs first because I think one is slowing down my parity check. My hardware config is in my signature. All drives are spun up, but when i type diskspeed.sh or diskspeed.sh -s 11 -i 1 this is the output I get: Quote root@Tower:/boot# diskspeed.sh -s 11 -i 1 diskspeed.sh for UNRAID, version 2.4 By John Bartlett. Support board @ limetech: http://goo.gl/ysJeYV cp: error reading '/proc/mdcmd': Input/output error awk: cmd. line:2: BEGIN{printf("%0.0f",7716864 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ awk: cmd. line:2: BEGIN{printf("%0.0f",7716864 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ awk: cmd. line:2: BEGIN{printf("%0.0f",7716864 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ awk: cmd. line:2: BEGIN{printf("%0.0f",4000753426432 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ awk: cmd. line:2: BEGIN{printf("%0.0f",4000753426432 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ awk: cmd. line:2: BEGIN{printf("%0.0f",4000753426432 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ awk: cmd. line:2: BEGIN{printf("%0.0f",4000753426432 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ awk: cmd. line:2: BEGIN{printf("%0.0f",4000753426432 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ awk: cmd. line:2: BEGIN{printf("%0.0f",4000753426432 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ awk: cmd. line:2: BEGIN{printf("%0.0f",4000753426432 awk: cmd. line:2: ^ unexpected newline or end of string awk: cmd. line:1: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:1: ^ unterminated regexp awk: cmd. line:2: BEGIN{printf("%0.0f", / 4)} awk: cmd. line:2: ^ unexpected newline or end of string shuf: invalid input range: ââ ./diskspeed.sh: line 397: / 1024: syntax error: operand expected (error token is "/ 1024") All drives were excluded, nothing to report. root@Tower:/boot# What stupid thing am I doing wrong? Also John, do you think you will need to make any changes for 6.5? It seems that it may not need any updates. Thanks for the hard work. I've been using your script for several years and it is very helpful. Best regards, craigr Edited March 17, 20188 yr by craigr
March 17, 20188 yr 9 minutes ago, craigr said: What stupid thing am I doing wrong? Did you maybe open the script in a non-linux editor and save it?
March 17, 20188 yr 1 minute ago, trurl said: Did you maybe open the script in a non-linux editor and save it? I extracted it from Windows using PeaZip directly to the unRAID flash drive over the network. Thanks, craigr
March 17, 20188 yr 1 hour ago, craigr said: I'm really under the weather, so maybe I am missing something, but I can not get diskspeed_2.6.5 to do anything correctly under unRAID 6.4 Script currently only works on v6.3.5 or older.
March 17, 20188 yr 1 hour ago, johnnie.black said: Script currently only works on v6.3.5 or older. On 2/3/2018 at 3:39 PM, bonienl said: I've made a small modification which allows your script to run on unRAID 6.4. Perhaps useful? diskspeed.sh Ah yes, thank you. Grabbed the modified script from bonienl's post... working now! craigr
March 18, 20188 yr 2 hours ago, jbartlett said: Bonienl’s modification is in the first post as well. If your talking about the link for 2.6.5 in your first post of this thread, that is the one that does not work for me. bonienl's link to his edited script does work. So I think there is either something wrong with your script link or maybe something with PeaZip that doesn't extract properly... I just started trying PeaZip so it's new to me. Either way, I got it running with bonienl's unzipped link. Again, thanks John for maintaining this script. It just helped me again and proved all my drives of the same model are running at about the same speed so I will stop worrying Kind regards, craigr
March 18, 20188 yr On 2/3/2018 at 3:39 PM, bonienl said: I've made a small modification which allows your script to run on unRAID 6.4. Perhaps useful? diskspeed.sh Just wanted to let everyone know that I tested this script on 6.5.0 today and it does work perfectly. Thanks again, craigr
March 19, 20188 yr Ran a controller test and got this: Quote SiI 3124 PCI-X Serial ATA Controller Silicon Image, Inc. RAID bus controller Bandwidth Utilizationsdcsdcsdbsdbsdbsdb2 Drives010M20M30M40M50M60M70M80M90M100M Test Status: 37.61 GB read reading 2 drives simultaneously. 31.54 GB read reading 1 drives simultaneously, bandwidth was 100% of max data rate.0 bytes read reading 0 drives simultaneously, bandwidth is potentially optimized at 0% of max data rate. Reading -1 drives on the controller for human eyeball evaluation Lucee 5.2.5.20 Error (expression) Message invalid call of the function listGetAt, second Argument (posNumber) is invalid, invalid string list index [0] pattern listgetat(list:string, position:number, [delimiters:string, [includeEmptyFields:boolean]]):string Stacktrace The Error Occurred in /var/www/TestControllerBandwidth.cfm: line 284 282: </CFLOOP> 283: <CFLOOP index="i" from="#DriveCount+1#" to="#ListLen(DriveList)#">284: <CFSET DriveID=ListGetAt(DriveList,i)> 285: <CFSET Speed[DriveID]=ListAppend(Speed[DriveID],"null")> 286: </CFLOOP> Java Stacktrace lucee.runtime.exp.FunctionException: invalid call of the function listGetAt, second Argument (posNumber) is invalid, invalid string list index [0] at lucee.runtime.functions.list.ListGetAt.call(ListGetAt.java:46) at lucee.runtime.functions.list.ListGetAt.call(ListGetAt.java:36) at testcontrollerbandwidth_cfm$cf.call(/TestControllerBandwidth.cfm:284) at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:939) at lucee.runtime.PageContextImpl._doInclude(PageContextImpl.java:833) at lucee.runtime.listener.ClassicAppListener._onRequest(ClassicAppListener.java:63) at lucee.runtime.listener.MixedAppListener.onRequest(MixedAppListener.java:44) at lucee.runtime.PageContextImpl.execute(PageContextImpl.java:2405) at lucee.runtime.PageContextImpl._execute(PageContextImpl.java:2395) at lucee.runtime.PageContextImpl.executeCFML(PageContextImpl.java:2363) at lucee.runtime.engine.Request.exe(Request.java:44) at lucee.runtime.engine.CFMLEngineImpl._service(CFMLEngineImpl.java:1091) at lucee.runtime.engine.CFMLEngineImpl.serviceCFML(CFMLEngineImpl.java:1039) at lucee.loader.engine.CFMLEngineWrapper.serviceCFML(CFMLEngineWrapper.java:102) at lucee.loader.servlet.CFMLServlet.service(CFMLServlet.java:51) at javax.servlet.http.HttpServlet.service(HttpServlet.java:729) at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:292) at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:207) at org.apache.tomcat.websocket.server.WsFilter.doFilter(WsFilter.java:52) at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:240) at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:207) at org.apache.catalina.core.StandardWrapperValve.invoke(StandardWrapperValve.java:212) at org.apache.catalina.core.StandardContextValve.invoke(StandardContextValve.java:94) at org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:504) at org.apache.catalina.core.StandardHostValve.invoke(StandardHostValve.java:141) at org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:79) at org.apache.catalina.valves.AbstractAccessLogValve.invoke(AbstractAccessLogValve.java:620) at org.apache.catalina.valves.RemoteIpValve.invoke(RemoteIpValve.java:676) at org.apache.catalina.core.StandardEngineValve.invoke(StandardEngineValve.java:88) at org.apache.catalina.connector.CoyoteAdapter.service(CoyoteAdapter.java:502) at org.apache.coyote.http11.AbstractHttp11Processor.process(AbstractHttp11Processor.java:1132) at org.apache.coyote.AbstractProtocol$AbstractConnectionHandler.process(AbstractProtocol.java:684) at org.apache.tomcat.util.net.AprEndpoint$SocketProcessor.doRun(AprEndpoint.java:2527) at org.apache.tomcat.util.net.AprEndpoint$SocketProcessor.run(AprEndpoint.java:2516) at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) at org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61) at java.lang.Thread.run(Thread.java:748) Timestamp 3/19/18 6:50:56 PM EDT It's a 4-port controller with only 2 drives attached, so it looks like there needs to be some logic to quit testing if all the ports aren't occupied.
March 27, 20188 yr Author Status Update: I'm about ready for open Alpha testing. Drive benchmark testing with pre-alpha team is happening now - will scan one drive per controller at the same time. Working on support to add multiple drives per controller but didn't want that to keep delaying the release.
