These are not 5TB WD REDs, they are 5.6TB.



That brings them in at just over $30 per T at the $169 price.



A search for 5.6T drives brings up only one that was ever announced - an HGST 5.6TB Helium filled drive.



Is that what these are? I am not sure. But seems very possible. If anyone has any ideas how to tell, please let me know.



Mine are preclearing away.

Link to post

These are not 5TB WD REDs, they are 5.6TB.



That brings them in at just over $30 per T at the $169 price.



A search for 5.6T drives brings up only one that was ever announced - an HGST 5.6TB Helium filled drive.



Is that what these are? I am not sure. But seems very possible. If anyone has any ideas how to tell, please let me know.



Mine are preclearing away.

If the firmware is still stock and not customized, smartctl should tell you the actual manufacturer and model #

Link to post

Here is the smart report ...



I couldn't find any clues except the firmware resembles WD naming.



smartctl 6.2 2013-07-26 r3841 [i686-linux-3.9.11p-unRAID] (local build)

Copyright © 2002-13, Bruce Allen, Christian Franke, www.smartmontools.org



=== START OF INFORMATION SECTION ===

Device Model:    WL5000GSA6457

Serial Number:    WOL24028xxxx

LU WWN Device Id: 0 000000 000000000

Firmware Version: 01.00F.0

User Capacity:    5,601,346,781,184 bytes [5.60 TB]

Sector Sizes:    512 bytes logical, 4096 bytes physical

Device is:        Not in smartctl database [for details use: -P showall]

ATA Version is:  ATA8-ACS (minor revision not indicated)

Local Time is:    Fri Jan 23 12:27:34 2015 PST

SMART support is: Available - device has SMART capability.

SMART support is: Enabled



=== START OF READ SMART DATA SECTION ===

SMART overall-health self-assessment test result: PASSED



General SMART Values:

Offline data collection status:  (0x00) Offline data collection activity

was never started.

Auto Offline Data Collection: Disabled.

Self-test execution status:      (  0) The previous self-test routine completed

without error or no self-test has ever

been run.

Total time to complete Offline

data collection: ( 2144) seconds.

Offline data collection

capabilities: (0x5b) SMART execute Offline immediate.

Auto Offline data collection on/off support.

Suspend Offline collection upon new

command.

Offline surface scan supported.

Self-test supported.

No Conveyance Self-test supported.

Selective Self-test supported.

SMART capabilities:            (0x0003) Saves SMART data before entering

power-saving mode.

Supports SMART auto save timer.

Error logging capability:        (0x01) Error logging supported.

General Purpose Logging supported.

Short self-test routine

recommended polling time: (  2) minutes.

Extended self-test routine

recommended polling time: ( 675) minutes.

SCT capabilities:       (0x3035) SCT Status supported.

SCT Feature Control supported.

SCT Data Table supported.



SMART Attributes Data Structure revision number: 16

Vendor Specific SMART Attributes with Thresholds:

ID# ATTRIBUTE_NAME          FLAG    VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE

  1 Raw_Read_Error_Rate    0x002f  100  253  051    Pre-fail  Always      -      0

  3 Spin_Up_Time            0x0027  100  253  021    Pre-fail  Always      -      0

  4 Start_Stop_Count        0x0032  100  100  000    Old_age  Always      -      3

  5 Reallocated_Sector_Ct  0x0033  200  200  140    Pre-fail  Always      -      0

  7 Seek_Error_Rate        0x002f  100  253  051    Pre-fail  Always      -      0

  9 Power_On_Hours          0x0032  100  100  000    Old_age  Always      -      0

10 Spin_Retry_Count        0x0033  100  253  051    Pre-fail  Always      -      0

11 Calibration_Retry_Count 0x0032  100  253  051    Old_age  Always      -      0

12 Power_Cycle_Count      0x0032  100  100  000    Old_age  Always      -      3

184 End-to-End_Error        0x0033  100  100  097    Pre-fail  Always      -      0

187 Reported_Uncorrect      0x0032  100  100  000    Old_age  Always      -      0

188 Command_Timeout        0x0032  100  100  000    Old_age  Always      -      0

190 Airflow_Temperature_Cel 0x0022  079  078  000    Old_age  Always      -      21

192 Power-Off_Retract_Count 0x0032  200  200  000    Old_age  Always      -      2

193 Load_Cycle_Count        0x0032  200  200  000    Old_age  Always      -      0

194 Temperature_Celsius    0x0022  131  130  000    Old_age  Always      -      21

195 Hardware_ECC_Recovered  0x0036  100  253  000    Old_age  Always      -      0

196 Reallocated_Event_Count 0x0032  200  200  000    Old_age  Always      -      0

197 Current_Pending_Sector  0x0032  200  200  000    Old_age  Always      -      0

198 Offline_Uncorrectable  0x0030  100  253  000    Old_age  Offline      -      0

199 UDMA_CRC_Error_Count    0x0032  200  200  000    Old_age  Always      -      0

200 Multi_Zone_Error_Rate  0x0009  100  253  051    Pre-fail  Offline      -      0



SMART Error Log Version: 1

No Errors Logged



SMART Self-test log structure revision number 1

No self-tests have been logged.  [To run self-tests, use: smartctl -t]





SMART Selective self-test log data structure revision number 1

SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS

    1        0        0  Not_testing

    2        0        0  Not_testing

    3        0        0  Not_testing

    4        0        0  Not_testing

    5        0        0  Not_testing

Selective self-test flags (0x0):

  After scanning selected spans, do NOT read-scan remainder of disk.

If Selective self-test is pending on power-up, resume after 0 minute delay.

Link to post

For comparison purposes.

If someone could check some WD drive models for conveyance test support.



=== START OF INFORMATION SECTION ===

Device Model:    HGST HDN726060ALE610

No Conveyance Self-test supported.



=== START OF INFORMATION SECTION ===

Device Model:    ST6000DX000-1H217Z

Conveyance Self-test supported.



Link to post

These are from smaller 2TB WD and 4TB Seagate drive and 4TB HGST drive.



=== START OF INFORMATION SECTION ===

Model Family:    Western Digital Caviar Green

Device Model:    WDC WD20EADS-00R6B0

Firmware Version: 01.00A01

Conveyance Self-test supported.



=== START OF INFORMATION SECTION ===

Model Family:    Seagate Desktop HDD.15

Device Model:    ST4000DM000-1F2168

Firmware Version: CC52

Conveyance Self-test supported.



=== START OF INFORMATION SECTION ===

Device Model:    HGST HDN724040ALE640

Firmware Version: MJAOA5E0

No Conveyance Self-test supported.



Link to post



=== START OF INFORMATION SECTION ===

Model Family:    Western Digital Caviar Green (AF, SATA 6Gb/s)

Device Model:    WDC WD30EZRX-00MMMB0

Firmware Version: 80.00A80

Conveyance Self-test supported

Link to post

The configuration of the circular stickers are just like the WD REDs. The little screws in the corners look a little different but basically in the same places.



Definitely not a flat top like the HGST HelioSeal pictured, and also not like the pictures of HGST non-helium 5T drive I found elsewhere. And not like Seagate.



The scant drive info on Newegg for the drive says it has the features "Data Lifeguard, Shock Guard", which are WD terms.



But I suppose it is possible that the platters themselves might be HGST platters.



I wonder if HGST made a bunch of the lower density 7 platter 5.6TB assemblies, and it didn't make sense to make them into Helios with the 6T and higher capacities that are coming, so WD took them, fitted them with Red 5700RPM motors, and pushed them out the door on the wholesale market.



One thing of note, these drives DO have all three screw holes on each side. I know at least some 7 platter drives don't have the middle screw to squeeze in all of the platters.



If not 7x800G platters, what other platter configuration gets to 5.6TB?

Link to post

Ive seen some really odd ones coming from WD for use in dells and microsoft consoles.  Its possible that one side of the last platter is not in use and disabled.



If that is the case they could be 6 platter using 5.5 platters.  My HGST 6tb has 6 screw holes.  As far as i know HGST never came out with the 5.6tb, and went with HE6 and HE8 for 6-8tb.



Hmm...



6 800gig platters is 4800

6 1tb platters is 6 tb

5.5 1tb platters is 5.5tb unless its fuzzy math

7 800gig platters is 5.6tb, if they are using black magic to keep the center mount holes.





Link to post

If you look at the picture of the PCB board on Newegg, I get 2060-800001-000 REV P1.  Google turns up references associating that with 6TB Greens, specifically the WD60EZRX-00MVLB1.



While I am sure WD, like every other mfg, uses common parts when they can, the drives look the same.  Up to the same letters "3B1" stamped into the metal at the top of the drive.



http://www.amazon.com/WD60EZRX-00MVLB1-HBNNHVJMAB-Western-Digital-Drive/dp/B00Q4ZQ3J2

and

http://www.newegg.com/Product/Product.aspx?Item=9SIA5AD2ER7851



Also the smart report posted earlier points that this drive started life as a higher capacity drive than advertised.

User Capacity:    5,601,346,781,184 bytes [5.60 TB]





EDIT:

With an oddball capacity size, they could also taken drives, both Red/Green that had to many bad sectors and could not be sold as 6TB drives and hard mapped out the bad sectors and sold them to New Egg for sell as 5TB drives.  They would recoup their cost, New Egg gets sales they possibly would not have and the customer gets a "larger capacity drive" than they thought they had purchased.  Everybody wins.  This would be similar to the way AMD sold their 4 core CPUs with a a bad core as three core CPUs.

Link to post

Has anyone with the drive tried to see if "wdidle3" works on it?



I have not tried. I don't see the LCCs increasing. I think they are still zero.



I was more curious if it would recognize the drive, like if wdidle3 only works on WD drives.

Link to post

If you look at the picture of the PCB board on Newegg, I get 2060-800001-000 REV P1.  Google turns up references associating that with 6TB Greens, specifically the WD60EZRX-00MVLB1.



While I am sure WD, like every other mfg, uses common parts when they can, the drives look the same.  Up to the same letters "3B1" stamped into the metal at the top of the drive.



http://www.amazon.com/WD60EZRX-00MVLB1-HBNNHVJMAB-Western-Digital-Drive/dp/B00Q4ZQ3J2

and

http://www.newegg.com/Product/Product.aspx?Item=9SIA5AD2ER7851



Also the smart report posted earlier points that this drive started life as a higher capacity drive than advertised.

User Capacity:    5,601,346,781,184 bytes [5.60 TB]





EDIT:

With an oddball capacity size, they could also taken drives, both Red/Green that had to many bad sectors and could not be sold as 6TB drives and hard mapped out the bad sectors and sold them to New Egg for sell as 5TB drives.  They would recoup their cost, New Egg gets sales they possibly would not have and the customer gets a "larger capacity drive" than they thought they had purchased.  Everybody wins.  This would be similar to the way AMD sold their 4 core CPUs with a a bad core as three core CPUs.





I don't see where you got the "2060-800001-000 REV P1" designation from (I can't see it on any of the Newegg pictures) ... but assuming it's accurate, it certainly matches a WD Green 6TB unit.    And the pictures of the two drives look VERY similar (the cases aren't identical, but are certainly very close.



As for the capacity -- assuming this is indeed a re-badged 6TB WD Green -- there are several possibilities:



(a)  They may have simply not utilized the full capacity of the platters ... or perhaps assigned significantly more spare sectors than normal (perhaps due to the original OEM requirements for the drives).



(b)  They may be built using platters that failed initial testing, so were formatted with the failed areas mapped ... and marketed as 5TB so anything >= 5TB of good space would be okay.



©  They may simply be 933GB platters that were an intermediate step along the way to 1TB platters.  There have been other "oddball" platter sizes along the way to the current areal densities.



The similarity to the 6TB WD Greens may simply be because they used the same physical casing for these drives.





Link to post

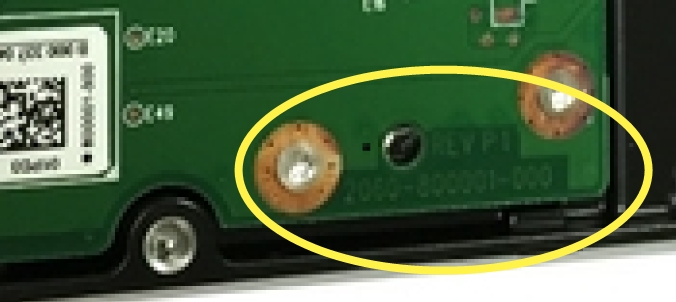

If you save the picture from New Egg that shows the PCB open it in a viewer, and rotate the picture clockwise, zoom in and you can see more detail.  Here is the area showing the base PCB P/N.



I can confirm this is correct. The sticker is different. Mine says "mediamax".

Link to post

I am getting some significant reallocated sectors.



Looks like they are going back.



Too bad.



Any indication on the relative performance of the drives? Did you finish out any read or write speed tests or even a full cycle of preclear (or faster preclear)?

Link to post

http://agapovahardware.en.ec21.com/Hard_Drive_Western_Digital_3Tb--6776427_6776446.html



Mediamax is an authorised Service Partner of Wester Digital. The Western Digital Hard Drives were professionally and generally repaired by Mediamax own brand and represented at the market. We are not dealing with No Name hard drives, but with generally repaired Western Digital HDD. Visually and technically HDDs looking like new, all HDDs aresealed in an antistatic tape.

Link to post

http://agapovahardware.en.ec21.com/Hard_Drive_Western_Digital_3Tb--6776427_6776446.html



Mediamax is an authorised Service Partner of Wester Digital. The Western Digital Hard Drives were professionally and generally repaired by Mediamax own brand and represented at the market. We are not dealing with No Name hard drives, but with generally repaired Western Digital HDD. Visually and technically HDDs looking like new, all HDDs aresealed in an antistatic tape.



That's not the only non OEM assembler of disk drives. To see such quantity of these so soon is a bit surprising.

Link to post
