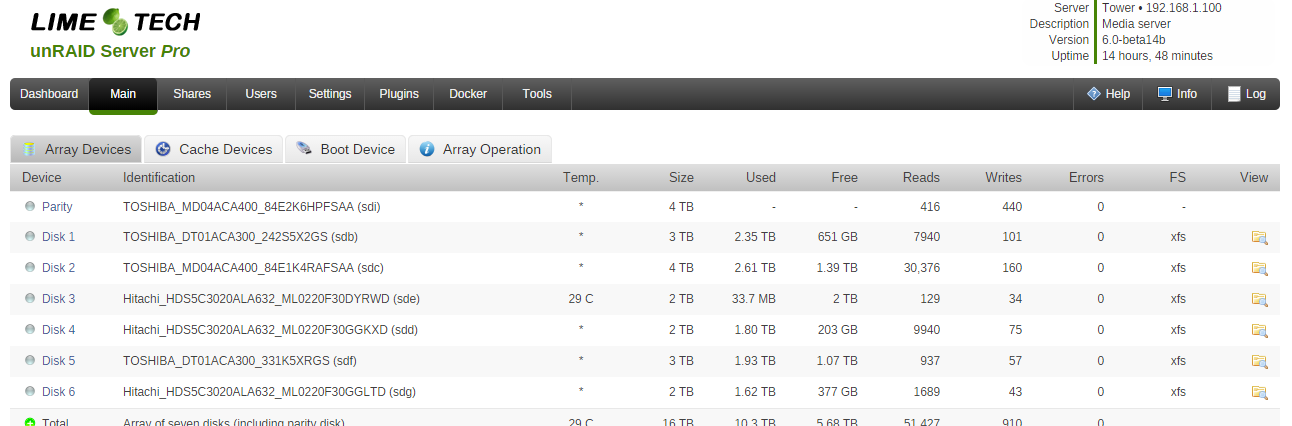

reggierat Posted April 5, 2015 Share Posted April 5, 2015 Last week i have finished my conversion of all ReiserFS drives over to XFS. Since doing that one of my drives, Disk 3 will sometimes continue to report it's temperature to the system long after it has been spun down. This same drive is also preventing my server from sleeping due to 'disk activity' [Edit] It definitely effects other drives, but this one seems more often syslog.zip Link to comment
garycase Posted April 5, 2015 Share Posted April 5, 2015 Not sure what's going on here, but it is clearly NOT associated with changing the file system Post a S.M.A.R.T. report for the drive. I would also shut the system down; unplug the drive and reseat it if it's in a caddy; or unplug the data cable and replug it if it's directly connected to a SATA port (or, better yet, use a new cable); and then boot back up and see if that resolves the issue. Link to comment
Squid Posted April 5, 2015 Share Posted April 5, 2015 With the default poll_attributes settings, it can take 14b up to 30 minutes to properly display the temperature of a drive http://lime-technology.com/forum/index.php?topic=38409.msg356665#msg356665 Link to comment
reggierat Posted April 5, 2015 Author Share Posted April 5, 2015 Disk 3 attached to port: sde Model Family: Hitachi Deskstar 5K3000 Device Model: Hitachi HDS5C3020ALA632 Serial Number: ML0220F30DYRWD LU WWN Device Id: 5 000cca 369c5e416 Firmware Version: ML6OA580 User Capacity: 2,000,398,934,016 bytes [2.00 TB] Sector Size: 512 bytes logical/physical Rotation Rate: 5940 rpm Device is: In smartctl database [for details use: -P show] ATA Version is: ATA8-ACS T13/1699-D revision 4 SATA Version is: SATA 2.6, 6.0 Gb/s (current: 3.0 Gb/s) Local Time is: Mon Apr 6 05:24:44 2015 AEST SMART support is: Available - device has SMART capability. SMART support is: Enabled SMART overall-health : PASSED ID# ATTRIBUTE NAME FLAG VALUE WORST THRESH TYPE UPDATED FAILED RAW VALUE 1 Raw Read Error Rate 0x000b 100 100 016 Pre-fail Always Never 0 2 Throughput Performance 0x0005 136 136 054 Pre-fail Offline Never 92 3 Spin Up Time 0x0007 135 135 024 Pre-fail Always Never 405 (Average 406) 4 Start Stop Count 0x0012 099 099 000 Old age Always Never 7915 5 Reallocated Sector Ct 0x0033 100 100 005 Pre-fail Always Never 0 7 Seek Error Rate 0x000b 100 100 067 Pre-fail Always Never 0 8 Seek Time Performance 0x0005 144 144 020 Pre-fail Offline Never 30 9 Power On Hours 0x0012 097 097 000 Old age Always Never 24314 10 Spin Retry Count 0x0013 100 100 060 Pre-fail Always Never 0 12 Power Cycle Count 0x0032 100 100 000 Old age Always Never 1350 192 Power-Off Retract Count 0x0032 094 094 000 Old age Always Never 7916 193 Load Cycle Count 0x0012 094 094 000 Old age Always Never 7916 194 Temperature Celsius 0x0002 222 222 000 Old age Always Never 27 (Min/Max 8/46) 196 Reallocated Event Count 0x0032 100 100 000 Old age Always Never 0 197 Current Pending Sector 0x0022 100 100 000 Old age Always Never 0 198 Offline Uncorrectable 0x0008 100 100 000 Old age Offline Never 0 199 UDMA CRC Error Count 0x000a 200 200 000 Old age Always Never 378 even though the default poling time is 30mins, this drive is still reporting temp several hour after everything has been spun down. Will reseat cable next Link to comment
BRiT Posted April 5, 2015 Share Posted April 5, 2015 I sort of recall having a discussion in the past how some drives are able to report temps even when spun down. This was possibly back in the version 5 beta series, so that could be anywhere from 27 to 52 months ago, since vwrsion 6 is in beta for 15 months now and I think version 5.0 was final for a year before v6 kicked off, but I could be mistaken. Link to comment
reggierat Posted April 5, 2015 Author Share Posted April 5, 2015 i find it strange that this has only popped up now though. I recently replaced my two oldest drives in the array, then decided it was a good time to migrate the file systems. Other then these two events things have been working flawlessly. I did have some issues with the server waking from sleep but that was fixed by purchasing an Intel NIC and not using my MB's onboard Realtek adaptor. Link to comment
garycase Posted April 5, 2015 Share Posted April 5, 2015 The SMART report looks okay. I initially thought your load cycle count was high, since you indicated you'd replaced a couple drives ... but looking more closely, this not a new drive at all (over 24,000 hours on it), so the count is fine. Like Brit, I have a vague memory of a discussion about this issue a year or so ago, but don't recall how (or even if) it was finally resolved. I THINK the drive with the issue was simply replaced ... but a few minutes of searching didn't help find that specific thread, so I can't be sure. Link to comment
SSD Posted April 5, 2015 Share Posted April 5, 2015 I sort of recall having a discussion in the past how some drives are able to report temps even when spun down. Western Digital drives (not HGST but WD branded drives) are able to report their SMART statistics without spinning up. I don't understand why other drives need to be spun up, but they do. Anyway, myMain "knows" that WD drives are special and reports temps of these drives when spun down. But I am quite certain that the unRAID GUI has never had this logic employed. I have had issues with newly added drives to arrays not spinning down properly, which is fixed with a reboot. I would try that and expect it will resolve the issue. But if it continues, try booting in safe mode with no plugins installed or Dockers running. Link to comment

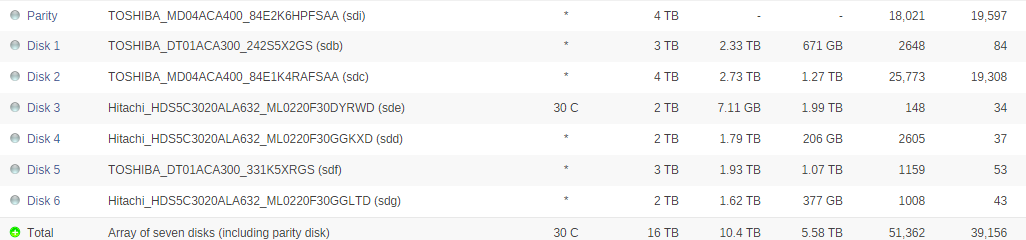

reggierat Posted April 8, 2015 Author Share Posted April 8, 2015 Hmm bit at a loss with this. Have rebooted several times, issue usually occurs with disk 3 but a couple of times it affected disk 2. Disk appears spun down in the GUI but temp is still being reported and s3_sleeps debug shows disk activity to the drive. Disk 3 has only one file on it so I doubt it is actual file access Link to comment
garycase Posted April 8, 2015 Share Posted April 8, 2015 Just had another thought -- are you running the most current Beta? There was a drive spindown issue that was, I believe, corrected in a later Beta ... don't recall exactly which versions had the bug and when it was corrected, but if you upgrade to 14b you'll at least know that's not your issue. Link to comment
reggierat Posted April 10, 2015 Author Share Posted April 10, 2015 I am running the latest Beta. Apr 11 07:43:44 Tower s3_sleep: Disk activity on going: sde Apr 11 07:43:44 Tower s3_sleep: Disk activity detected. Reset timers. Apr 11 07:44:44 Tower s3_sleep: Disk activity on going: sde Apr 11 07:44:44 Tower s3_sleep: Disk activity detected. Reset timers. anyway to tell what this Disk activity, the drive shows spun down whilst this message is being logged, but temperature still being reported. whether it's coincidence or not this drive is almost totally empty, except for the one file i copied to it to make sure i could write to it ok, at what point does the mover decide to start using the drive? all shares are set to high-water i believe [edit] and for the sake of thoroughness i have swapped my sata cable over Link to comment
reggierat Posted April 11, 2015 Author Share Posted April 11, 2015 Just had success spinning all drives up and back down again, seems to have reset something. On a whim I have also disabled cAdvisor as it's a recent install Link to comment
