Awesome script! Thank you.



Curious if anyone else is having the same issues that I am...That being, I'm only getting data for two drives. No matter what order I put them in the array, I only get temp data for sda & sdb.



edit: Want to add that SMART is enabled on all drives and when I run the command manually, I get data back.





root@Hollywood:~# smartctl -A /dev/sde
Temperature_Celsius     0x0022   020   040   000    Old_age   Always       -       20 (0 14 0 0 0)

root@Hollywood:~# smartctl -A /dev/sda
194 Temperature_Celsius     0x0022   128   119   000    Old_age   Always       -       22



Hey dude,



I had similar issues with another script, so managed to find why, I've quoted the important sections for you...



What's happening is that the script is looking for exactly two digits at the end of the temperature line, but seeing "0)", and this causes it to fail .. I tested and had a similar issue here; All of my non-WD drives report similarly. If I was running just WD, it looks like it'd be fine.



output from bash script
parity   40
disk1   40
disk2   40
disk3   39
disk4   41
disk5   39
disk6   40
disk7   38
cache   40

output from php script
39 /dev/sdc
/dev/sdd
/dev/sde
/dev/sdg
40 /dev/sdh
/dev/sdi
/dev/sdj
/dev/sdb
39 /dev/sdf



Unfortunately I don't know enough PHP to say how to actually fix it, although it does look like a regex issue..  maybe Viaduct can assist ..  For myself, I actually used RAINMAN's HDTemp script which can be found in this same thread, it uses a different method of parsing the smartctl output, so doesn't suffer the same issue ..







-Kharn

Share this post


Link to post

had a play while I was at work today ...



if you wish to still use this script, change the line:




preg_match("/Temperature.+(\d\d)$/im", $output, $match);

to




preg_match("/Temperature_Celsius.+-.+?(\d{2})/im", $output, $match);



This should make it work :)



Let me know how you get on ..

Share this post


Link to post

Latest one ..



This works on Cisco series 800 routers, and should work on others as well.. Things that are monitored include:

  • Interface Traffic, in/out & errors
  • CPU Usage
  • Memory Usage
  • Uptime as a string
  • Uptime in seconds
  • And much, much more*



Configuration is the same as the rest of my scripts. Just put in the necessary details at the top, and then run the script with cron :)



Pretty picture:






and the script:

### MIBS
# ifDesc .1.3.6.1.2.1.2.2.1.2.x
# ifOperStatus .1.3.6.1.2.1.2.2.1.8.x (interface up/down)
# ifInOctets .1.3.6.1.2.1.2.2.1.10.x
# ifOutOctets .1.3.6.1.2.1.2.2.1.16.x
# ifInErrors .1.3.6.1.2.1.2.2.1.14.x
# ifOutErrors .1.3.6.1.2.1.2.2.1.20.x
# Uptime .1.3.6.1.2.1.1.3.0
# Processor Used Mem 1.3.6.1.4.1.9.9.48.1.1.1.5.1
# I/O Used Mem 1.3.6.1.4.1.9.9.48.1.1.1.5.2
# Processor Free Mem 1.3.6.1.4.1.9.9.48.1.1.1.6.1
# I/O Free Mem 1.3.6.1.4.1.9.9.48.1.1.1.6.2
# CPU 5m .1.3.6.1.4.1.9.9.109.1.1.1.1.8
# CPU 1m .1.3.6.1.4.1.9.9.109.1.1.1.1.7
# CPU 5s .1.3.6.1.4.1.9.9.109.1.1.1.1.6

### DB Details
DBURL=http://localhost:8086
DBNAME=test
DEVICE="test"

### SNMP Details
VERSION=2c # 1, v2c
COMMUNITY=public #Community String
SNMPURL=test #Hostname or IP

### Time periods in seconds
SECONDS=316512321252
SECYEAR=31536000
SECMONTH=2592000
SECWEEK=604800
SECDAY=86400
SECHOUR=3600
SECMIN=60

## Main program
### Interface stats
INTERFACES=( `snmpwalk -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.2.1.2.2.1.2 | awk '{printf $2 " "}'` )
arrayLength=${#INTERFACES[@]}

for (( i = 1; i <= ${arrayLength}; i++))
  do
    snmpget -v 2c -c public firewall -Ov .1.3.6.1.2.1.2.2.1.2.$i | awk '{print $2}' | while read INTER
    do
      snmpget -v 2c -c public firewall -Ov .1.3.6.1.2.1.2.2.1.10.$i | awk '{print $2}' |sed 's/[^0-9]*//g' | while read INOCT
      do
        snmpget -v 2c -c public firewall -Ov .1.3.6.1.2.1.2.2.1.16.$i | awk '{print $2}' | sed 's/[^0-9]*//g' | while read OUTOCT
        do
          snmpget -v 2c -c public firewall -Ov .1.3.6.1.2.1.2.2.1.14.$i | awk '{print $2}' | sed 's/[^0-9]*//g' | while read INERROR
          do
            snmpget -v 2c -c public firewall -Ov .1.3.6.1.2.1.2.2.1.20.$i | awk '{print $2}' | sed 's/[^0-9]*//g' | while read OUTERROR
            do
              if [[ $INOCT == '' ]]; then
                INOCT=0
              fi
              if [[ $OUTOCT == '' ]]; then
                OUTOCT=0
              fi
              if [[ $INERROR == '' ]]; then
                INERROR=0
              fi
              if [[ $OUTERROR == '' ]]; then
                OUTERROR=0
              fi
              curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=Traffic,Interface=${INTER} Data_In=${INOCT},Data_Out=${OUTOCT},Errors_in=${INERROR},Errors_Out=${OUTERROR}" >/dev/null 2>&1
            done
          done
        done
      done
    done
  done

###Device Uptime
snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.2.1.1.3.0 | awk '{ print $2 }' | sed 's/[()]//g' | while read UPTIMENUM
  do
    UPTIME=$(($UPTIMENUM / 100)) # convert timeticks to seconds
    curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=UptimeSeconds Uptime_Seconds=${UPTIME}" >/dev/null 2>&1
  done

### Get Device Uptime as a string
snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.2.1.1.3.0 | awk '{ print $2 }' | sed 's/[()]//g' | while read UPTIMENUM
  do
    UPTIME=$(($UPTIMENUM / 100)) # convert timeticks to seconds
    #Convert seconds in to days/months/years etc..
    STRINGTIME=$(printf "\"%d Years, %d Months, %d Weeks, %d Days, %d Hours, %d Minutes, and %d Seconds\"" \
      $(( ${UPTIME} / ${SECYEAR} )) \
      $(( ${UPTIME} % ${SECYEAR} / ${SECMONTH} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} / ${SECWEEK} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} % ${SECWEEK} / ${SECDAY} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} % ${SECWEEK} % ${SECDAY} / ${SECHOUR} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} % ${SECWEEK} % ${SECDAY} % ${SECHOUR} / ${SECMIN} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} % ${SECWEEK} % ${SECDAY} % ${SECHOUR} % ${SECMIN} % 60 )))
    curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=UptimeString Uptime_String=${STRINGTIME}" >/dev/null 2>&1
  done


### Get CPU usage percentage
snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 | awk '{ print $2 }' | while read FIVESEC
do
  snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.4.1.9.9.109.1.1.1.1.7.1 | awk '{ print $2 }' | while read ONEMIN
  do
    snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.4.1.9.9.109.1.1.1.1.8.1 | awk '{ print $2 }' | while read FIVEMIN
    do
      curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=CPU 5Sec_Average=${FIVESEC},1Min_Average=${ONEMIN},5Min_Average=${FIVEMIN}" >/dev/null 2>&1
    done
  done
done

### Get Memory usage
PROCUSED=( `snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov 1.3.6.1.4.1.9.9.48.1.1.1.5.1 | awk '{printf $2}'` )
PROCFREE=( `snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov 1.3.6.1.4.1.9.9.48.1.1.1.6.1 | awk '{printf $2}'` )
IOUSED=( `snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov 1.3.6.1.4.1.9.9.48.1.1.1.5.2 | awk '{printf $2}'` )
IOFREE=( `snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov 1.3.6.1.4.1.9.9.48.1.1.1.6.2 | awk '{printf $2}'` )
curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=Memory Processor_Used=${PROCUSED},Processor_Free=${PROCFREE},IO_Used=${IOUSED},IO_Free=${IOFREE}" >/dev/null 2>&1








Enjoy :)











*There isn't actually any more.



Share this post


Link to post

Ran into an odd problem.  I've had to rebuild my Grafana server and since I built it on Ubuntu 16.04, I followed the guidance and install the Grafana 3.0 beta and the latest version of InfluxDB.  I updated the Unraid script for the new DB.  Something is unhappy with the setup though and I suspect it has to do with how the scripts are writing data to InfluxDB.



All of the Unraid metrics are doing the same thing.  They will not display by default.  I have to change them to points instead of lines.  Then, they only work for 5 metrics at a time.  If I add a 6th metric, such as for drive temps, it won't display it unless I hide one of the others.  This is the case for any of the Unraid reported stats using these scripts.



Telegraf gathered stats work fine and don't behave in the same way.  Anyone run into this and know a fix?  Is this a problem with how the scripts write to InfluxDB?

Share this post


Link to post

As soon as I posted this, I figured it out.  Change the "Fill" from null to none.  Working well now.

Share this post


Link to post

Does anyone have any suggestions for monitoring VM CPU/memory usage similar to dockers?

I'd like to break down how much each VM uses.

Share this post


Link to post

Does anyone have any suggestions for monitoring VM CPU/memory usage similar to dockers?

I'd like to break down how much each VM uses.



Is it something that is viewable externally via a command? if so it's easy .. if not, you could probably do it via SNMP, or have the script run on the VM itself that pushes to the DB ..





Share this post


Link to post

Hey all,



I was having some trouble with RAINMAN's cpu script, for an hour each day, I was noticing that I was getting no stats ... A bit of digging found that it was the first hour each day from when I booted the server..



I don't know if it's because I have a weird processor or not, but if anyone else is having similar issues, my (very slightly) edited version of RAINMAN's script may help you out.





DBURL=http://localhost:8086
DBNAME=test
DEVICE="test"
CURDATE=`date +%s`

# Had to increase to 10 samples because I was getting a spike each time I read it.  This seems to smooth it out more
top -b -n 10 -d.2 | grep "Cpu" |  tail -n 1 | awk '{print $2,$4,$6,$8,$10,$12,$14,$16}' | while read CPUusr CPUsys CPUnic CPUidle CPUio CPUirq CPUsirq CPUst
do
  top -bn1 | head -3 | sed -e 's/.*load//g' | awk '/average/ {print $2" " $3" " $4}' | sed -e 's/,//g'| while read LAVG1 LAVG5 LAVG15
  do
    curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "cpuStats,Device=${DEVICE} CPUusr=${CPUusr},CPUsys=${CPUsys},CPUnic=${CPUnic},CPUidle=${CPUidle},CPUio=${CPUio},CPUirq=${CPUirq},CPUsirq=${CPUsirq},CPUst=${CPUst},CPULoadAvg1m=${LAVG1},CPULoadAvg5m=${LAVG5},CPULoadAvg15m=${LAVG15} ${CURDATE}000000000"  >/dev/null 2>&1
  done
done



I was having the same problem, and your edit seems to have fixed the problem.  Thanks!

Share this post


Link to post

You can access the docker stats using:



docker stats --no-stream



Right now this outputs the dockers container IDs.  There is a --format option that was implemented until version 1.8 of docker and i have 1.10 as part of unraid 6.2.4.  With --format you can specify to use name instead which would probably be easier long term as the ID changes when you rebuild or change it.  However, I dont see this option as existing for some reason.  Not sure.



Add formatting options to docker ps with --format

https://github.com/docker/docker/blob/master/CHANGELOG.md#180-2015-08-11





What you can do is then run docker ps | grep ContainerID to and grab the container name from there.  Something like that.  I havent put together a script but its on my list so if someone else gets one going please share ;)



Share this post


Link to post

Haha, ok so it perked my interest.  Here you go.  Its almost done. Just need to parse it into a script.



docker stats --no-stream $(docker ps --format={{.Names}})



Edit: Even better



docker stats --no-stream $(docker ps --format={{.Names}}) | sed 's/%//g' | grep -v "CONTAINER" | awk '{print $1,$2,$3}'



Just throw that into a while read and send to influx.



Table:

Name CPU Memory

Share this post


Link to post

Haha, ok so it perked my interest.  Here you go.  Its almost done. Just need to parse it into a script.



docker stats --no-stream $(docker ps --format={{.Names}})



Edit: Even better



docker stats --no-stream $(docker ps --format={{.Names}}) | sed 's/%//g' | grep -v "CONTAINER" | awk '{print $1,$2,$3}'



Just throw that into a while read and send to influx.



Table:

Name CPU Memory



Was this for me? Thanks if so but I'm looking for VM stats (I already have docker setup with telegraf).

Share this post


Link to post
On 19/02/2017 at 6:48 PM, AllanMar said:



Was this for me? Thanks if so but I'm looking for VM stats (I already have docker setup with telegraf).

Opps, it was but I miss-read.  For virtual machines you are a bit more limited.  You can try:

virsh domstats

CPU usage is measured in ticks or ns so you would have to do some math on the calculation.  Looks a bit complicated.

I think memory just records what is available for the VM not actually used but I could be wrong.



I measure the stats within each of my VMs (actually just 1 at the moment). But it would be nice to get the total usage of the entire CPU from outside the container.

Edited by RAINMAN

Share this post


Link to post
On 11/2/2016 at 2:29 PM, RAINMAN said:

If anyone wants the grafana json just let me know I can post it as well.





I would absolutely love that!  I've spent a good chunk of the day getting something not near as pretty made.

Share this post


Link to post

Hi!



First of all, a huge thanks Viaduct for your scripts! It motivated to start scripting again in php (i made a script to control my case fans depending on the drive, mobo and CPU temps, with various thresholds) and the result in grafana looks awesome.



I recently bought a WD Red 8tb drive. Unfortunately it always reports "active/idle" (even though the unraid GUI indicates the drive is spun down) with "hdparm -C", which renders the spinup script useless to identify whether the drive is spun up or down:



Quote

root@Tower:~# hdparm -C /dev/sdf

/dev/sdf:
 drive state is:  active/idle



I've been looking for other means to get the spin status, but didn't find anything useful.



Any ideas?

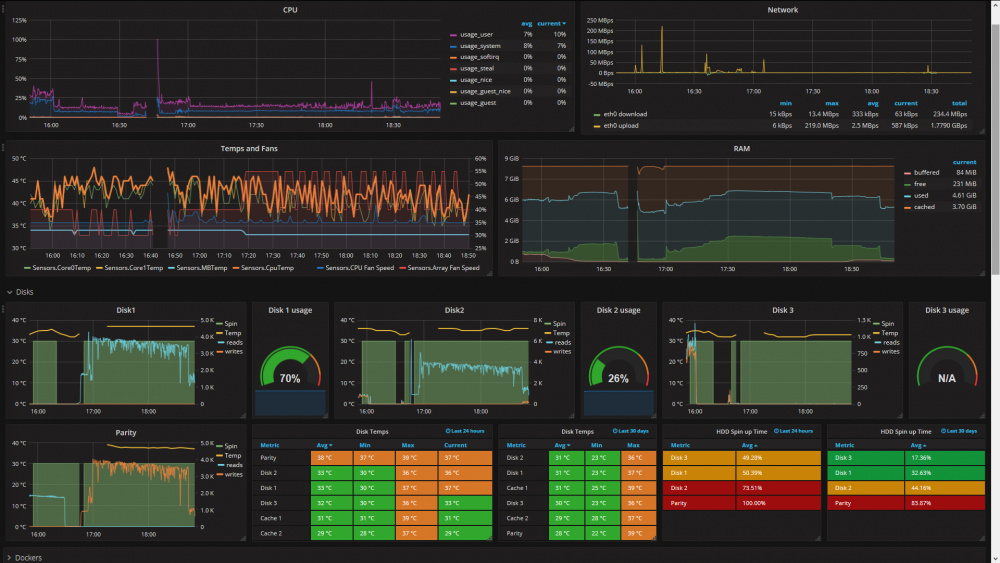

In attachement, a preview of a part of my grafana dashboard. It doesn't illustrate my problem, i just post it as eye candy.






EDIT: Ok, i figured that the problem is that my drive is actually never spinning down, even when unRAID tells it to. When i give the command (via Putty hdparm -y or via unraid web ui), it spins down, and about 5 seconds later, it spins back  up.

I tried setting hdparm -B 127 /dev/sdXXX (https://wiki.archlinux.org/index.php/Hdparm), as well as hdparm -S 180 /dev/sdXXX, but it didn't help. As it is the parity drive, and i have cache drives (with mover), I don't understand what happens. It seems to me that it has something to do with the drives power management, but i can't figure out what.



EDIT2: I posted in the Storage device forum about that:



Edited by Lynxphp

Share this post


Link to post

I looked in to this a while back, seems that there's an issue between hdparm/wd drives ...



Here's one guy's solution ...



http://withblue.ink/2016/07/15/what-i-learnt-from-using-wd-red-disks-to-build-a-home-nas.html



About half way down the page, uses a program called "HD Idle" .. but it's not really what you're after ..









On 6/2/2017 at 9:02 PM, Lynxphp said:

I recently bought a WD Red 8tb drive. Unfortunately it always reports "active/idle" (even though the unraid GUI indicates the drive is spun down) with "hdparm -C", which renders the spinup script useless to identify whether the drive is spun up or down:





I've been looking for other means to get the spin status, but didn't find anything useful.



Any ideas?





EDIT: Ok, i figured that the problem is that my drive is actually never spinning down, even when unRAID tells it to. When i give the command (via Putty hdparm -y or via unraid web ui), it spins down, and about 5 seconds later, it spins back  up.

I tried setting hdparm -B 127 /dev/sdXXX (https://wiki.archlinux.org/index.php/Hdparm), as well as hdparm -S 180 /dev/sdXXX, but it didn't help. As it is the parity drive, and i have cache drives (with mover), I don't understand what happens. It seems to me that it has something to do with the drives power management, but i can't figure out what.



EDIT2: I posted in the Storage device forum about that:





Share this post


Link to post
On 02/06/2017 at 3:02 PM, Lynxphp said:

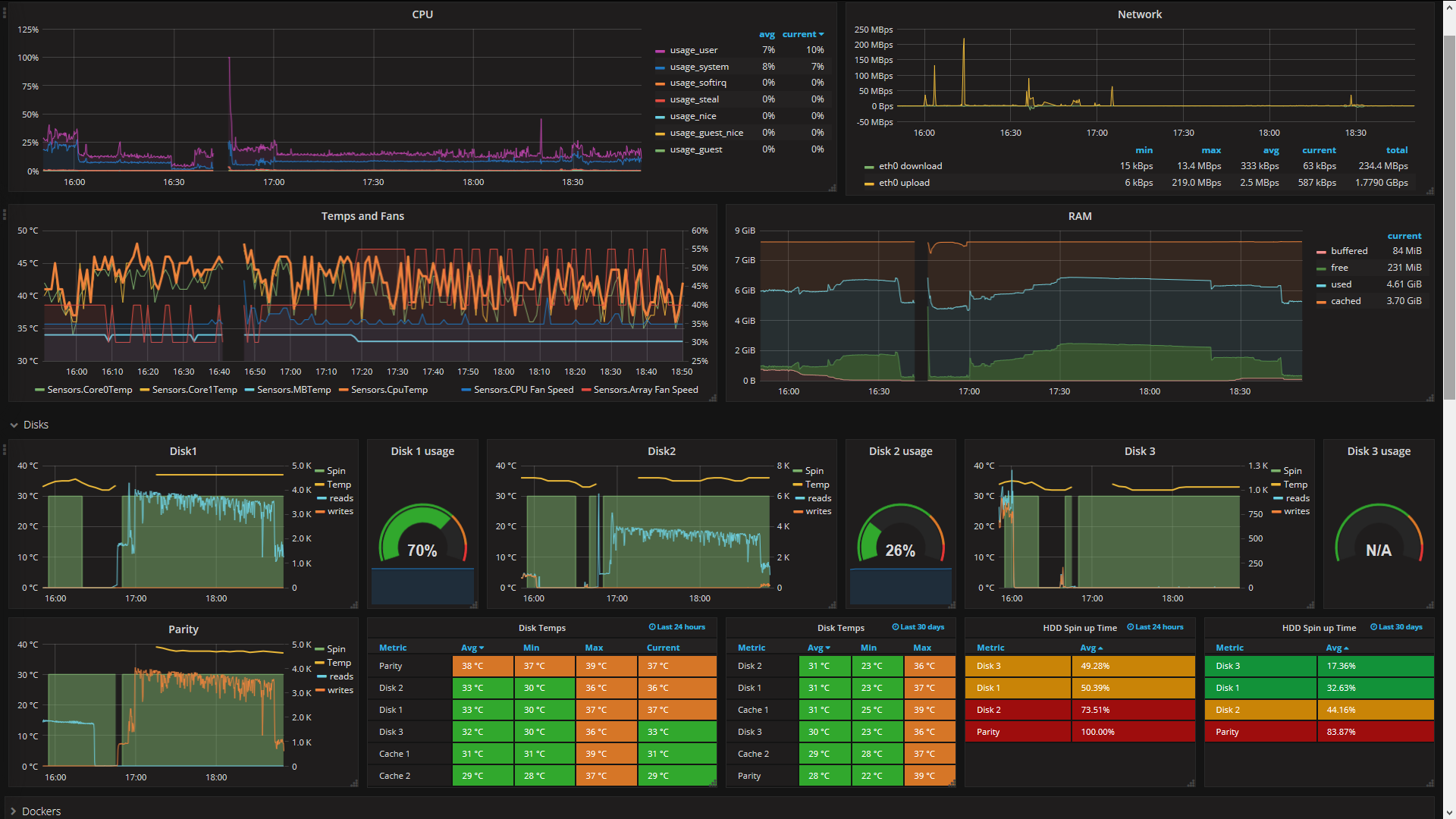

n attachement, a preview of a part of my grafana dashboard. It doesn't illustrate my problem, i just post it as eye candy.




How do you get the disk spin state to plot like this? Seems like you have three Y-axis?



I'm trying to plot a thermostat like this where temp/humidity are Y1 and Y2, but I want the on/off state of heater to be plotted like your spin state here :)

Share this post


Link to post

Hi,

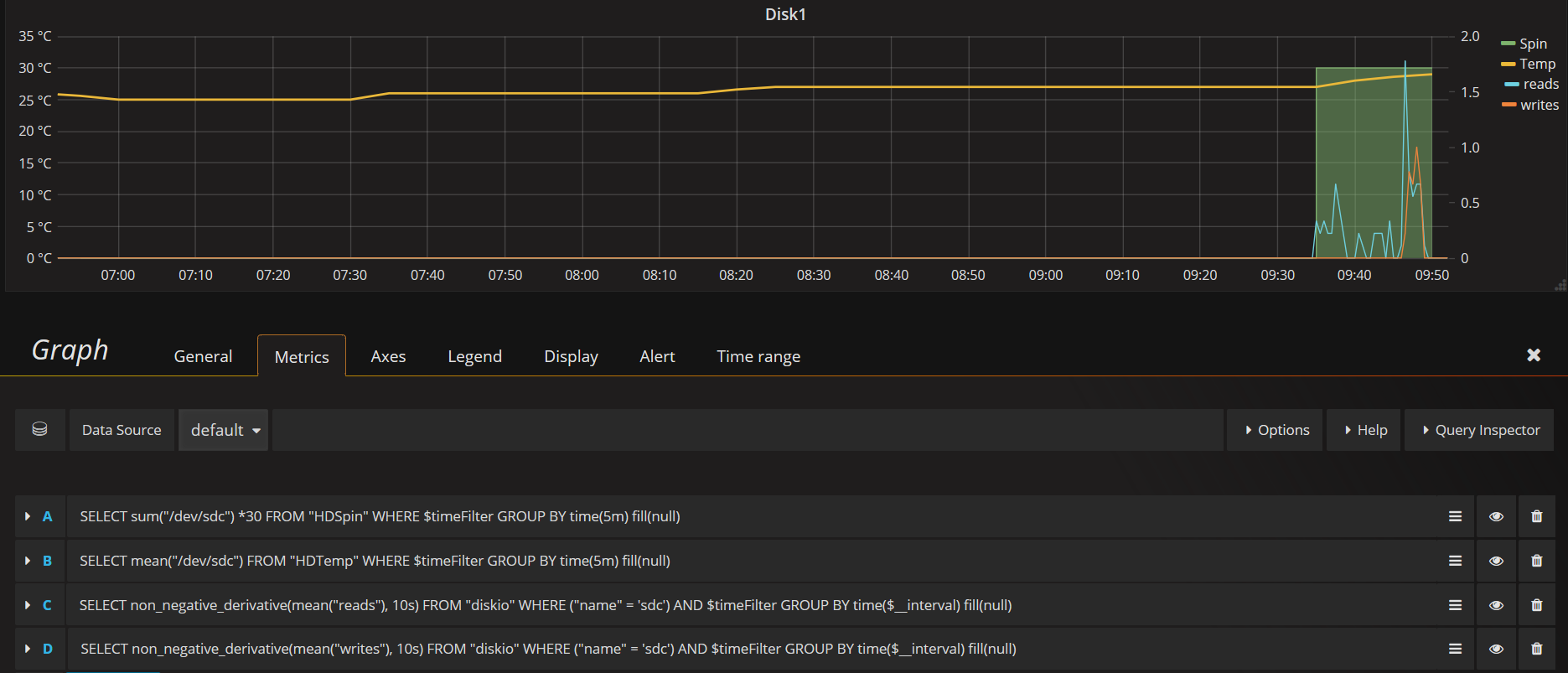

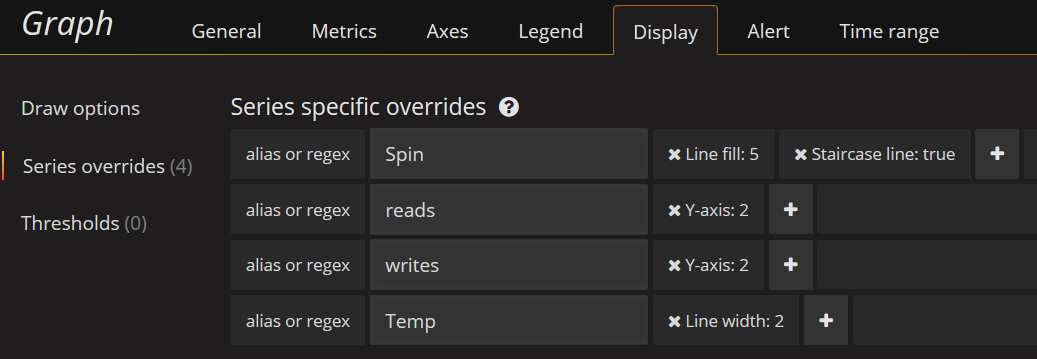

I think that what you are looking for is the "staircase" display type combined with "line fill" (see attached screenshots). I have it in the series override, because I only wanted the HDD spin to be displayed like this, but you can also specify it in the draw options -> Staircase checkbox & FIll.



I hope that helps!







Edited by Lynxphp

Share this post


Link to post

But that means you have it on Y-axis 1, how does that work when its using temperature? Spin seems to be "30" when its spinning, did you just multiply it to make it look like this?

Share this post


Link to post
On 2/1/2017 at 9:00 PM, kharntiitar said:

Latest one ..



This works on Cisco series 800 routers, and should work on others as well.. Things that are monitored include:



  • Interface Traffic, in/out & errors
  • CPU Usage
  • Memory Usage
  • Uptime as a string
  • Uptime in seconds
  • And much, much more*





Configuration is the same as the rest of my scripts. Just put in the necessary details at the top, and then run the script with cron :)





Hey kharntiitar, thanks for the scripts! I'm trying to run this latest one through user.scripts and I keep getting the response:

Unknown host (firewall) (Device or resource busy)

However, when I run "snmpwalk -v 2c -c public 192.168.1.1" from unRAID CLI I get the feedback I'm expecting. Any idea what the problem might be?

Share this post


Link to post
1 hour ago, zandrsn said:



Hey kharntiitar, thanks for the scripts! I'm trying to run this latest one through user.scripts and I keep getting the response:


Unknown host (firewall) (Device or resource busy)

However, when I run "snmpwalk -v 2c -c public 192.168.1.1" from unRAID CLI I get the feedback I'm expecting. Any idea what the problem might be?



Yup, firewall was my testing hostname .. hostname and I didn't sanitize my script, try this:



### MIBS
# ifDesc .1.3.6.1.2.1.2.2.1.2.x
# ifOperStatus .1.3.6.1.2.1.2.2.1.8.x (interface up/down)
# ifInOctets .1.3.6.1.2.1.2.2.1.10.x
# ifOutOctets .1.3.6.1.2.1.2.2.1.16.x
# ifInErrors .1.3.6.1.2.1.2.2.1.14.x
# ifOutErrors .1.3.6.1.2.1.2.2.1.20.x
# Uptime .1.3.6.1.2.1.1.3.0
# Processor Used Mem 1.3.6.1.4.1.9.9.48.1.1.1.5.1
# I/O Used Mem 1.3.6.1.4.1.9.9.48.1.1.1.5.2
# Processor Free Mem 1.3.6.1.4.1.9.9.48.1.1.1.6.1
# I/O Free Mem 1.3.6.1.4.1.9.9.48.1.1.1.6.2
# CPU 5m .1.3.6.1.4.1.9.9.109.1.1.1.1.8
# CPU 1m .1.3.6.1.4.1.9.9.109.1.1.1.1.7
# CPU 5s .1.3.6.1.4.1.9.9.109.1.1.1.1.6

### DB Details
DBURL=http://localhost:8086
DBNAME=test
DEVICE="test"

### SNMP Details
VERSION=2c # 1, v2c
COMMUNITY=public #Community String
SNMPURL=test #Hostname or IP

### Time periods in seconds
SECONDS=316512321252
SECYEAR=31536000
SECMONTH=2592000
SECWEEK=604800
SECDAY=86400
SECHOUR=3600
SECMIN=60

## Main program
### Interface stats
INTERFACES=( `snmpwalk -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.2.1.2.2.1.2 | awk '{printf $2 " "}'` )
arrayLength=${#INTERFACES[@]}

for (( i = 1; i <= ${arrayLength}; i++))
  do
    snmpget -v 2c -c public ${SNMPURL} -Ov .1.3.6.1.2.1.2.2.1.2.$i | awk '{print $2}' | while read INTER
    do
      snmpget -v 2c -c public ${SNMPURL} -Ov .1.3.6.1.2.1.2.2.1.10.$i | awk '{print $2}' |sed 's/[^0-9]*//g' | while read INOCT
      do
        snmpget -v 2c -c public ${SNMPURL} -Ov .1.3.6.1.2.1.2.2.1.16.$i | awk '{print $2}' | sed 's/[^0-9]*//g' | while read OUTOCT
        do
          snmpget -v 2c -c public ${SNMPURL} -Ov .1.3.6.1.2.1.2.2.1.14.$i | awk '{print $2}' | sed 's/[^0-9]*//g' | while read INERROR
          do
            snmpget -v 2c -c public ${SNMPURL} -Ov .1.3.6.1.2.1.2.2.1.20.$i | awk '{print $2}' | sed 's/[^0-9]*//g' | while read OUTERROR
            do
              if [[ $INOCT == '' ]]; then
                INOCT=0
              fi
              if [[ $OUTOCT == '' ]]; then
                OUTOCT=0
              fi
              if [[ $INERROR == '' ]]; then
                INERROR=0
              fi
              if [[ $OUTERROR == '' ]]; then
                OUTERROR=0
              fi
              curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=Traffic,Interface=${INTER} Data_In=${INOCT},Data_Out=${OUTOCT},Errors_in=${INERROR},Errors_Out=${OUTERROR}" >/dev/null 2>&1
            done
          done
        done
      done
    done
  done

###Device Uptime
snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.2.1.1.3.0 | awk '{ print $2 }' | sed 's/[()]//g' | while read UPTIMENUM
  do
    UPTIME=$(($UPTIMENUM / 100)) # convert timeticks to seconds
    curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=UptimeSeconds Uptime_Seconds=${UPTIME}" >/dev/null 2>&1
  done

### Get Device Uptime as a string
snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.2.1.1.3.0 | awk '{ print $2 }' | sed 's/[()]//g' | while read UPTIMENUM
  do
    UPTIME=$(($UPTIMENUM / 100)) # convert timeticks to seconds
    #Convert seconds in to days/months/years etc..
    STRINGTIME=$(printf "\"%d Years, %d Months, %d Weeks, %d Days, %d Hours, %d Minutes, and %d Seconds\"" \
      $(( ${UPTIME} / ${SECYEAR} )) \
      $(( ${UPTIME} % ${SECYEAR} / ${SECMONTH} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} / ${SECWEEK} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} % ${SECWEEK} / ${SECDAY} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} % ${SECWEEK} % ${SECDAY} / ${SECHOUR} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} % ${SECWEEK} % ${SECDAY} % ${SECHOUR} / ${SECMIN} )) \
      $(( ${UPTIME} % ${SECYEAR} % ${SECMONTH} % ${SECWEEK} % ${SECDAY} % ${SECHOUR} % ${SECMIN} % 60 )))
    curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=UptimeString Uptime_String=${STRINGTIME}" >/dev/null 2>&1
  done


### Get CPU usage percentage
snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.4.1.9.9.109.1.1.1.1.6.1 | awk '{ print $2 }' | while read FIVESEC
do
  snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.4.1.9.9.109.1.1.1.1.7.1 | awk '{ print $2 }' | while read ONEMIN
  do
    snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov .1.3.6.1.4.1.9.9.109.1.1.1.1.8.1 | awk '{ print $2 }' | while read FIVEMIN
    do
      curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=CPU 5Sec_Average=${FIVESEC},1Min_Average=${ONEMIN},5Min_Average=${FIVEMIN}" >/dev/null 2>&1
    done
  done
done

### Get Memory usage
PROCUSED=( `snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov 1.3.6.1.4.1.9.9.48.1.1.1.5.1 | awk '{printf $2}'` )
PROCFREE=( `snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov 1.3.6.1.4.1.9.9.48.1.1.1.6.1 | awk '{printf $2}'` )
IOUSED=( `snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov 1.3.6.1.4.1.9.9.48.1.1.1.5.2 | awk '{printf $2}'` )
IOFREE=( `snmpget -v ${VERSION} -c ${COMMUNITY} ${SNMPURL} -Ov 1.3.6.1.4.1.9.9.48.1.1.1.6.2 | awk '{printf $2}'` )
curl -is -XPOST "$DBURL/write?db=$DBNAME" --data-binary "${DEVICE}_Stats,Type=Memory Processor_Used=${PROCUSED},Processor_Free=${PROCFREE},IO_Used=${IOUSED},IO_Free=${IOFREE}" >/dev/null 2>&1

If you look at the start of the main program, there is "snmpget -v 2c -c public firewall..." that was looking for a host named "firewall" .. now it will look for whatever you put in the SNMP URL ... sorry about that :) let me know if that fixes the issue..



Share this post


Link to post
13 hours ago, kharntiitar said:

If you look at the start of the main program, there is "snmpget -v 2c -c public firewall..." that was looking for a host named "firewall" .. now it will look for whatever you put in the SNMP URL ... sorry about that :) let me know if that fixes the issue..



Thanks a lot! Runs without an error now. For some reason I'm still not getting any information written to my influxdb though. I tried both a new database within my existing influxdb container (@ SERVERIP:8086/write?db=router) and creating a new influxdb container (@ http://SERVERIP:8087/write?db=router) and neither worked... Any idea what I've done wrong?



This is the only part of the script I changed:

### DB Details
DBURL=http://192.168.1.107:8086
DBNAME=router
DEVICE="asuswrt"

### SNMP Details
VERSION=2c # 1, v2c
COMMUNITY=public #Community String
SNMPURL=192.168.1.1 #Hostname or IP



Share this post


Link to post
39 minutes ago, zandrsn said:

Thanks a lot! Runs without an error now. For some reason I'm still not getting any information written to my influxdb though. I tried both a new database within my existing influxdb container (@ SERVERIP:8086/write?db=router) and creating a new influxdb container (@ http://SERVERIP:8087/write?db=router) and neither worked... Any idea what I've done wrong?



This is the only part of the script I changed:


### DB Details
DBURL=http://192.168.1.107:8086
DBNAME=router
DEVICE="asuswrt"

### SNMP Details
VERSION=2c # 1, v2c
COMMUNITY=public #Community String
SNMPURL=192.168.1.1 #Hostname or IP







That should be all you need to change ..



what happens if you try something like:



curl -i -XPOST http://192.168.1.107:8087/write?db=test --data-binary "TESTING,test1=test1,test2=test2"test3=test3,test4=test4"



from the same machine that you're running my script on... You'll need to create a db called 'test' first ..

Share this post


Link to post
6 hours ago, kharntiitar said:

That should be all you need to change ..



what happens if you try something like:



curl -i -XPOST http://192.168.1.107:8087/write?db=test --data-binary "TESTING,test1=test1,test2=test2"test3=test3,test4=test4"



from the same machine that you're running my script on... You'll need to create a db called 'test' first .



Ugh, sorry - I'm sure this is some problem on my end. I appreciate your help.



When I try:



"curl -i -XPOST http://192.168.1.107:8087/write?db=test --data-binary "TESTING,test1=test1,test2=test2"test3=test3,test4=test4"



or (since the two instances are different versions of influxdb)



"curl -i -XPOST http://192.168.1.107:8086/write?db=test --data-binary "TESTING,test1=test1,test2=test2"test3=test3,test4=test4"



I get nothing in either test database and just get one of these > in my terminal.



Edited by zandrsn

Share this post


Link to post
3 hours ago, zandrsn said:



"curl -i -XPOST http://192.168.1.107:8087/write?db=test --data-binary "TESTING,test1=test1,test2=test2"test3=test3,test4=test4"



or (since the two instances are different versions of influxdb)



"curl -i -XPOST http://192.168.1.107:8086/write?db=test --data-binary "TESTING,test1=test1,test2=test2"test3=test3,test4=test4"



I get nothing in either test database and just get one of these > in my terminal.





Ok, so there's something going on with your influx, both of those should have errored out, as there was an extra quote in the middle there ...



kharn@ts1:~$ curl -i -XPOST http://192.168.1.1:8086/write?db=test --data-binary "TESTING,test1=test1,test2=test2"test3=test3,test4=test4
HTTP/1.1 400 Bad Request
Content-Type: application/json
Request-Id: 77dfb6b1-4747-11e8-9a98-000000000000
X-Influxdb-Build: OSS
X-Influxdb-Error: unable to parse 'TESTING,test1=test1,test2=test2test3=test3,test4=test4': invalid tag format
X-Influxdb-Version: 1.5.2
X-Request-Id: 77dfb6b1-4747-11e8-9a98-000000000000
Date: Mon, 23 Apr 2018 22:41:31 GMT
Content-Length: 105

I then used the example out of the manual http://docs.influxdata.com/influxdb/v0.9/guides/writing_data/

kharn@ts1:~$ curl -i -XPOST 'http://192.168.1.1:8086/write?db=mydb' --data-binary 'cpu_load_short,host=server01,region=us-west value=0.64 1434055562000000000'
HTTP/1.1 404 Not Found
Content-Type: application/json
Request-Id: b6c3f421-4747-11e8-9ab8-000000000000
X-Influxdb-Build: OSS
X-Influxdb-Error: database not found: "mydb"
X-Influxdb-Version: 1.5.2
X-Request-Id: b6c3f421-4747-11e8-9ab8-000000000000
Date: Mon, 23 Apr 2018 22:43:16 GMT
Content-Length: 41

{"error":"database not found: \"mydb\""}



basically, it should be spitting some sort of error back at you ..



Using the example on the website:

kharn@ts1:~$ curl -i -XPOST 'http://192.168.1.1:8086/write?db=mydb' --data-binary 'cpu_load_short,host=server01,region=us-west value=0.64 1434055562000000000'
HTTP/1.1 204 No Content
Content-Type: application/json
Request-Id: c49e30df-474a-11e8-9cdb-000000000000
X-Influxdb-Build: OSS
X-Influxdb-Version: 1.5.2
X-Request-Id: c49e30df-474a-11e8-9cdb-000000000000
Date: Mon, 23 Apr 2018 23:05:08 GMT

-------- influx db commands ---------
> create database mydb
**********I ran the curl command here**************
> use mydb
Using database mydb
> show measurements
name: measurements
name
----
cpu_load_short
> select * from "cpu_load_short"
name: cpu_load_short
time                host     region  value
----                ----     ------  -----
1434055562000000000 server01 us-west 0.64





Hopefully this can shed some light, as you can see what you should/shouldn't be seeing ..



Share this post


Link to post
13 minutes ago, kharntiitar said:

Hopefully this can shed some light, as you can see what you should/shouldn't be seeing ..



Strangely enough all of a sudden your script seems to be working for me... And the examples from the manual work as they did for you. I didn't change anything else in the script, so I'm not sure what was going on, but I appreciate the help!

Share this post


Link to post

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
