[RESOLVED] Error creating OXS VM

[VelcroBP]

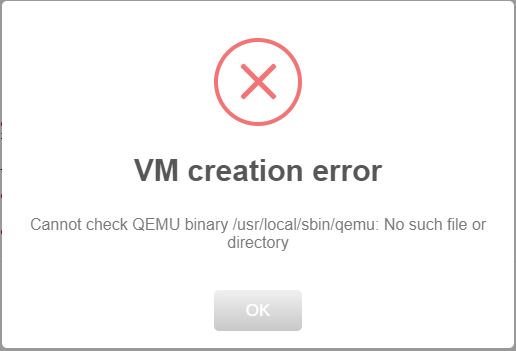

I'm attempting to create an OSX Yosemite VM using the tutorial provided by SpaceinvaderONE on Youtube. I'm receiving an error when trying to edit the .XML stating "VM creation error - Cannot check QEMU binaary /usr/local/sbin/qemu: No such file or directory". I've attached the .XML.

<domain type='kvm'>
  <name>mooMACedit</name>
  <uuid>f5190441-f361-f786-3c88-f8fd367d207a</uuid>
  <description>OSX Yosemite</description>
  <metadata>
    <vmtemplate name="Custom" icon="linux.png" os="linux"/>
  </metadata>
  <memory unit='KiB'>12582912</memory>
  <currentMemory unit='KiB'>12582912</currentMemory>
  <memoryBacking>
    <nosharepages/>
    <locked/>
  </memoryBacking>
  <vcpu placement='static'>8</vcpu>
  <cputune>
    <vcpupin vcpu='0' cpuset='0'/>
    <vcpupin vcpu='1' cpuset='1'/>
    <vcpupin vcpu='2' cpuset='2'/>
    <vcpupin vcpu='3' cpuset='3'/>
    <vcpupin vcpu='4' cpuset='4'/>
    <vcpupin vcpu='5' cpuset='5'/>
    <vcpupin vcpu='6' cpuset='6'/>
    <vcpupin vcpu='7' cpuset='7'/>
  </cputune>
  <os>
    <type arch='x86_64' machine='pc-q35-2.3'>hvm</type>
    <loader type='pflash'>/usr/share/qemu/ovmf-x64/OVMF-pure-efi.fd</loader>
  </os>
  <features>
    <acpi/>
    <apic/>
  </features>
  <cpu mode='host-passthrough'>
    <topology sockets='1' cores='8' threads='1'/>
  </cpu>
  <clock offset='utc'>
     <timer name='rtc' tickpolicy='catchup'/>
     <timer name='pit' tickpolicy='delay'/>
     <timer name='hpet' present='no'/>
   </clock>
   <on_poweroff>destroy</on_poweroff>
   <on_reboot>restart</on_reboot>
   <on_crash>restart</on_crash>
   <devices>
     <emulator>/usr/local/sbin/qemu</emulator>
     <disk type='file' device='disk'>
       <driver name='qemu' type='raw' cache='writeback'/>
       <source file='/mnt/user0/vmISO/Yosemite/yosemite.img'/>
       <target dev='hdc' bus='sata'/>
       <boot order='1'/>
       <address type='drive' controller='0' bus='0' target='0' unit='2'/>
     </disk>
     <controller type='usb' index='0' model='ich9-ehci1'>
       <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
     </controller>
     <controller type='usb' index='0' model='ich9-uhci1'>
       <master startport='0'/>
       <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
     </controller>
     <controller type='usb' index='0' model='ich9-uhci2'>
       <master startport='2'/>
       <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
     </controller>
     <controller type='usb' index='0' model='ich9-uhci3'>
       <master startport='4'/>
       <address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
     </controller>
     <controller type='sata' index='0'>
       <address type='pci' domain='0x0000' bus='0x00' slot='0x1f' function='0x2'/>
     </controller>
     <controller type='pci' index='0' model='pcie-root'/>
     <controller type='pci' index='1' model='dmi-to-pci-bridge'>
       <model name='i82801b11-bridge'/>
       <address type='pci' domain='0x0000' bus='0x00' slot='0x1e' function='0x0'/>
     </controller>
     <controller type='pci' index='2' model='pci-bridge'>
       <model name='pci-bridge'/>
       <target chassisNr='2'/>
       <address type='pci' domain='0x0000' bus='0x01' slot='0x00' function='0x0'/>
     </controller>
     <controller type='virtio-serial' index='0'>
       <address type='pci' domain='0x0000' bus='0x02' slot='0x02' function='0x0'/>
     </controller>
     <interface type='bridge'>
       <mac address='52:54:00:51:66:48'/>
       <source bridge='br0'/>
       <model type='e1000-82545em'/>
       <address type='pci' domain='0x0000' bus='0x02' slot='0x03' function='0x0'/>
     </interface>
     <input type='mouse' bus='ps2'/>
     <input type='keyboard' bus='ps2'/>
     <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0' keymap='en-us'>
       <listen type='address' address='0.0.0.0'/>
     </graphics>
     <video>
       <model type='qxl' ram='65536' vram='65536' vgamem='16384' heads='1' primary='yes'/>
       <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x0'/>
     </video>
     <memballoon model='none'/>
   </devices>
   <seclabel type='none' model='none'/>
   <qemu:commandline>
     <qemu:arg value='-device'/>
     <qemu:arg value='usb-kbd'/>
     <qemu:arg value='-device'/>
     <qemu:arg value='usb-mouse'/>
     <qemu:arg value='-device'/>
     <qemu:arg value='isa-applesmc,osk=xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx'/>
     <qemu:arg value='-smbios'/>
     <qemu:arg value='type=2'/>
     <qemu:arg value='-cpu'/>
     <qemu:arg value='Penryn,vendor=GenuineIntel'/>
   </qemu:commandline>
 </domain>

[VelcroBP]

Any input?

[1812]

what version of unRaid are you running?



have you verified that folder exists?



may need to reinstall unRaid.

[VelcroBP]

v6.1.3. I don't see a /user/sbin/qemu folder.

I'm not sure what this is trying to do:

<emulator>/usr/local/sbin/qemu</emulator>



[Squid]

What is the output of this command?

ls /usr/local/sbin/qemu



[VelcroBP]

"No such file or directory"

[itimpi]

30 minutes ago, VelcroBP said:

"No such file or directory"

That is strange - that is standard in the unRAID release so it is difficult to understand how it could be missing.

[VelcroBP]

Well I upgraded to unRaid 6.3.5 and that seems to have resolved the first issue. I can now boot the VM!

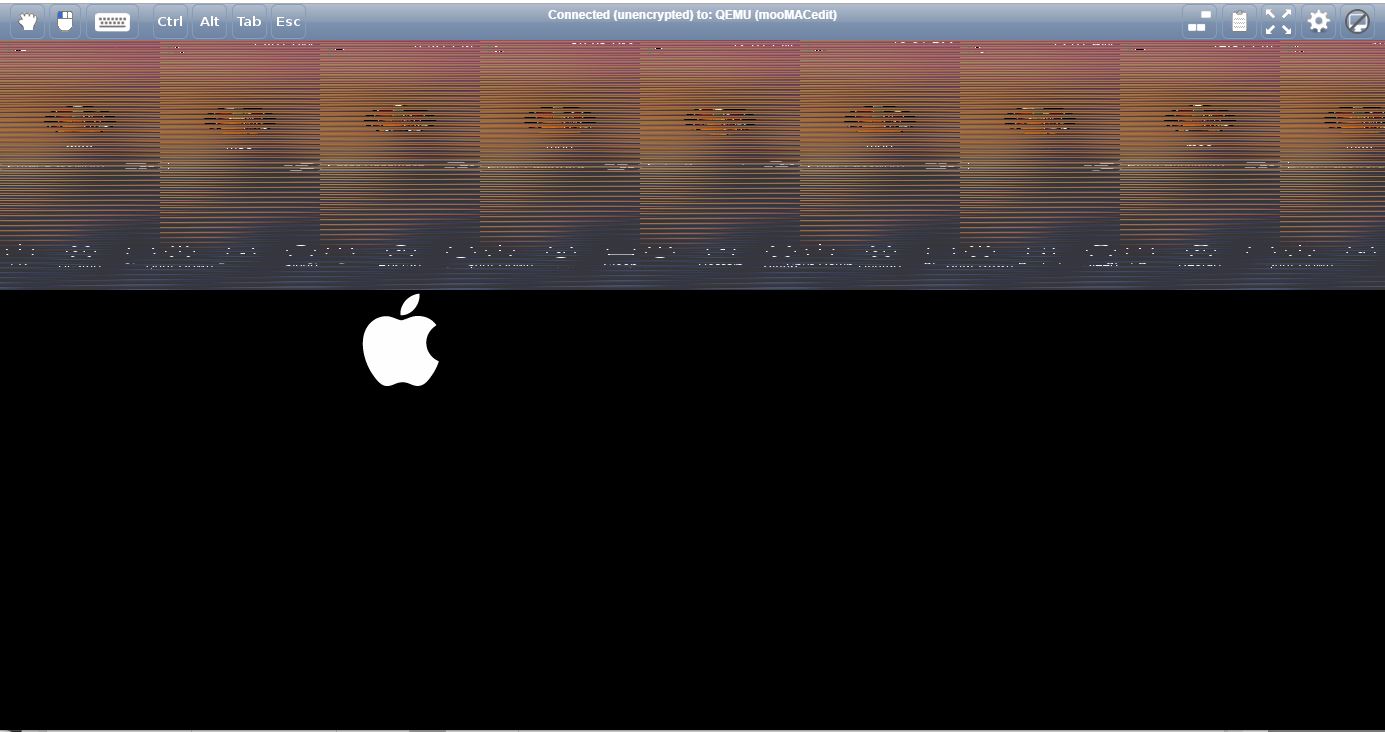

However, when connecting via VNC the screen is tiled and distorted, making any further configuration (or launching of Splashtop or NoMachine) impossible.





[1812]

1 hour ago, VelcroBP said:

Well I upgraded to unRaid 6.3.5 and that seems to have resolved the first issue. I can now boot the VM!



However, when connecting via VNC the screen is tiled and distorted, making any further configuration (or launching of Splashtop or NoMachine) impossible.









change the video resolution in the bios back to like 800x600 or something.

[VelcroBP]

I played around with it and got it running. Now I'm finally connected via NoMachine and can work on getting iMessage/AppStore working.
