Hey @Cael817, do you mind sharing your config info with me, i am stumped. I have got SFP+ fiber transceivers now because of the check cable statement and still no communication. Greatly appreciated if i could know if there is anything special configured on your eth1 before bonding to eth0.

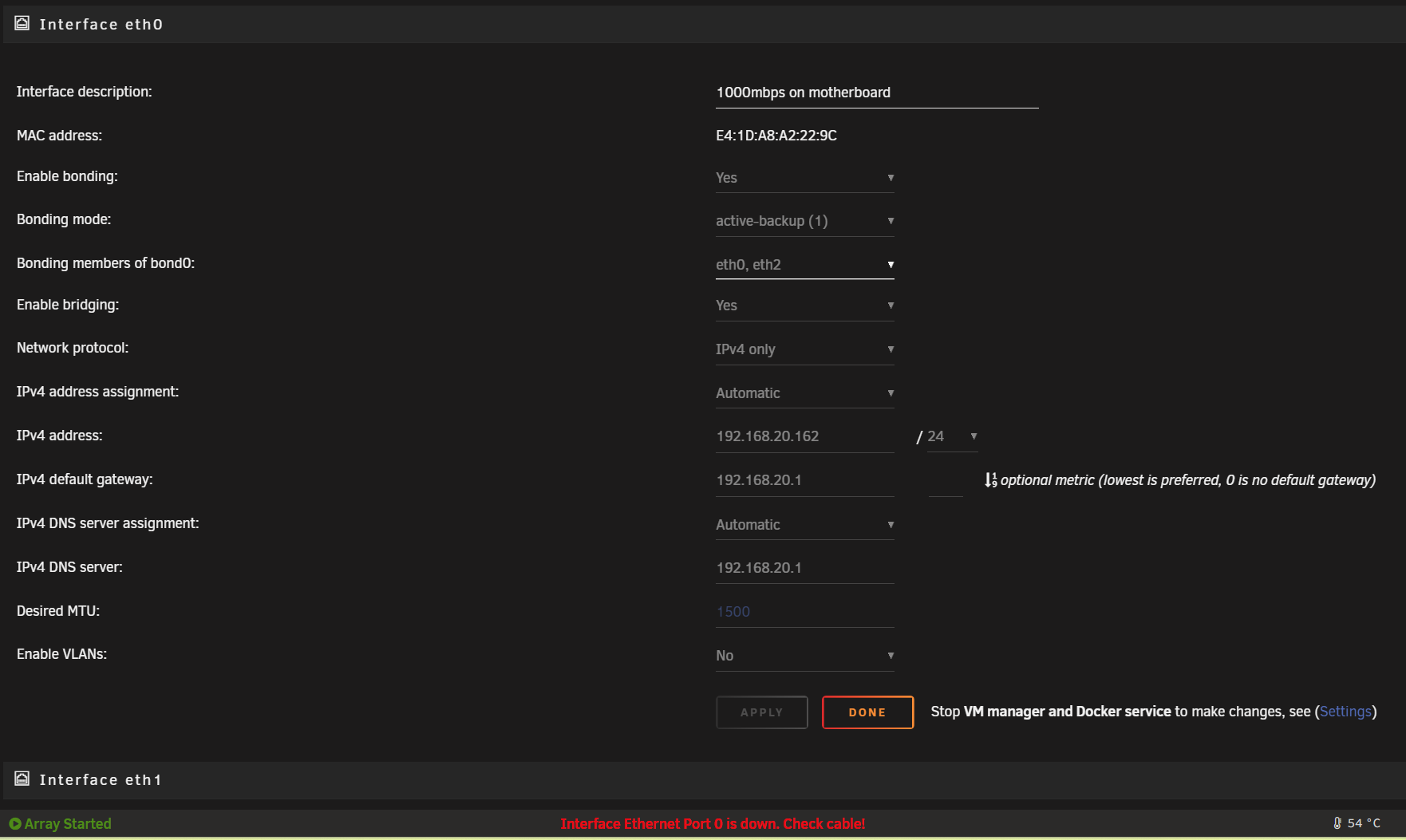

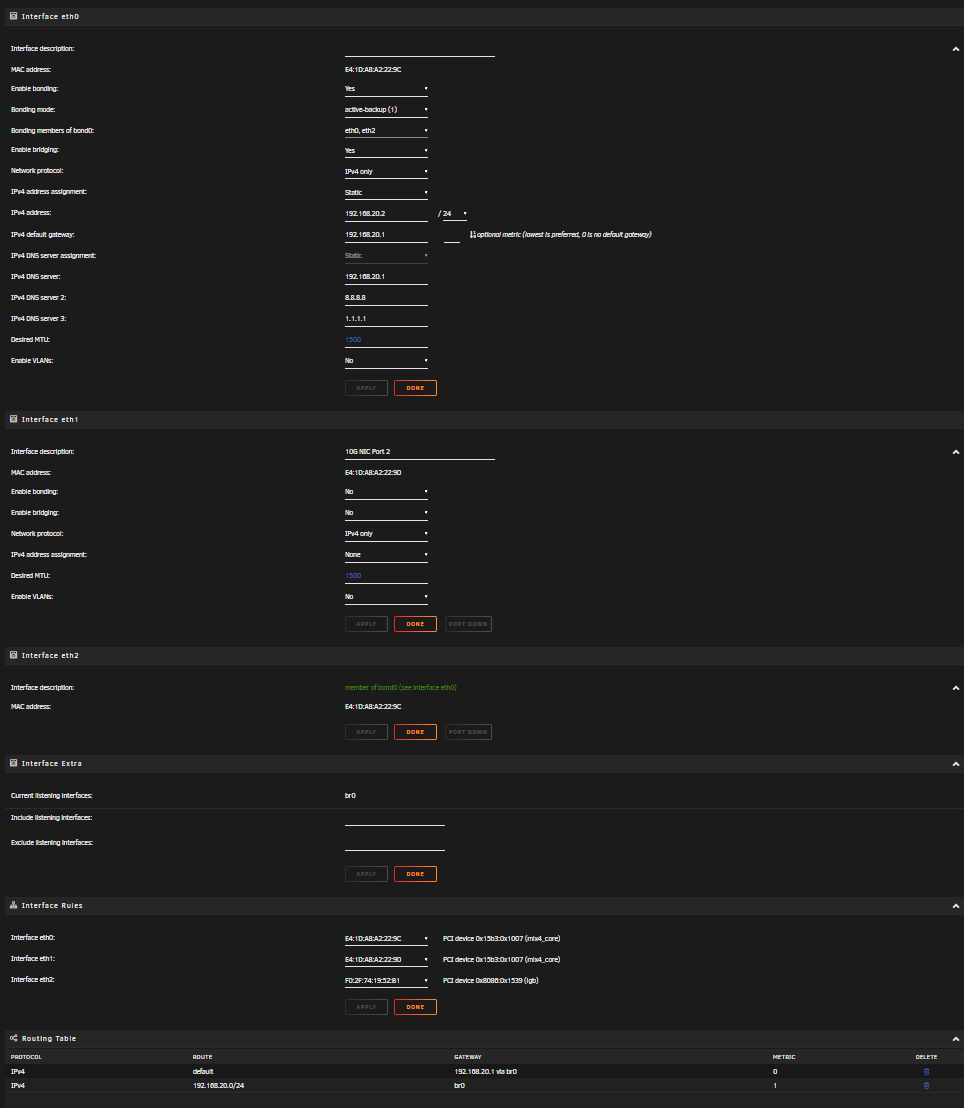

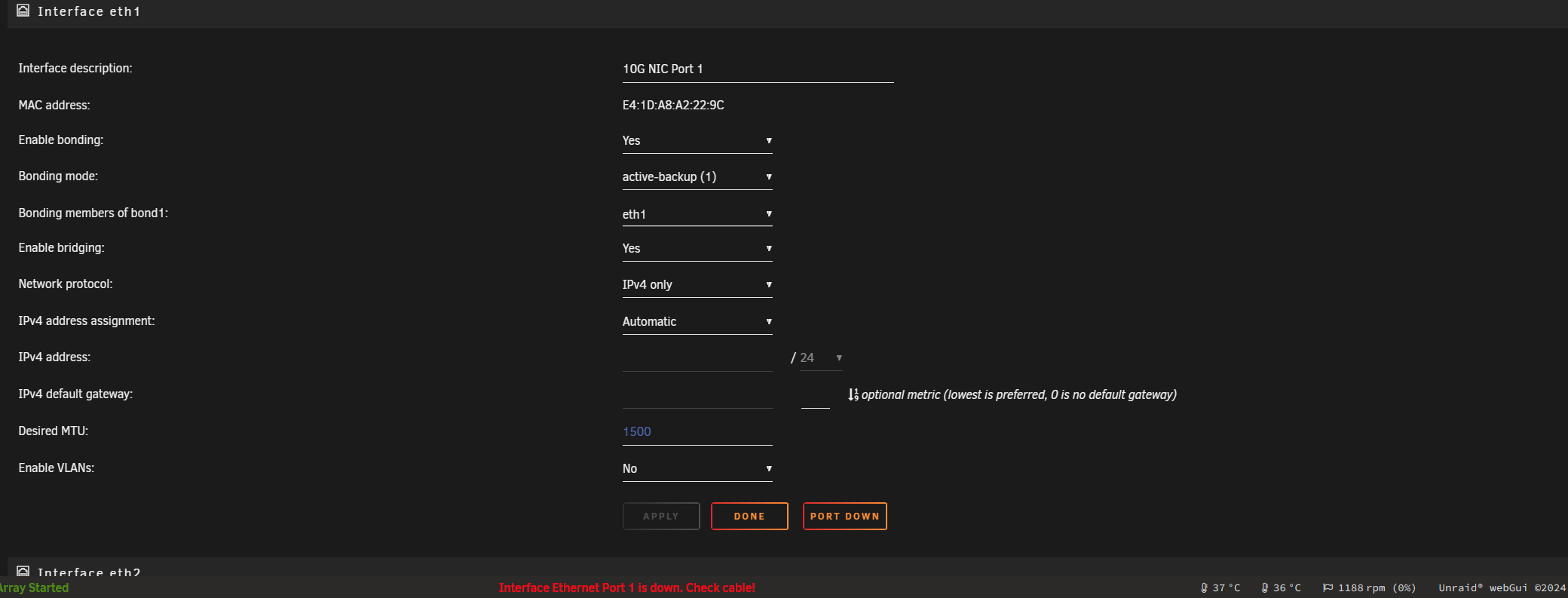

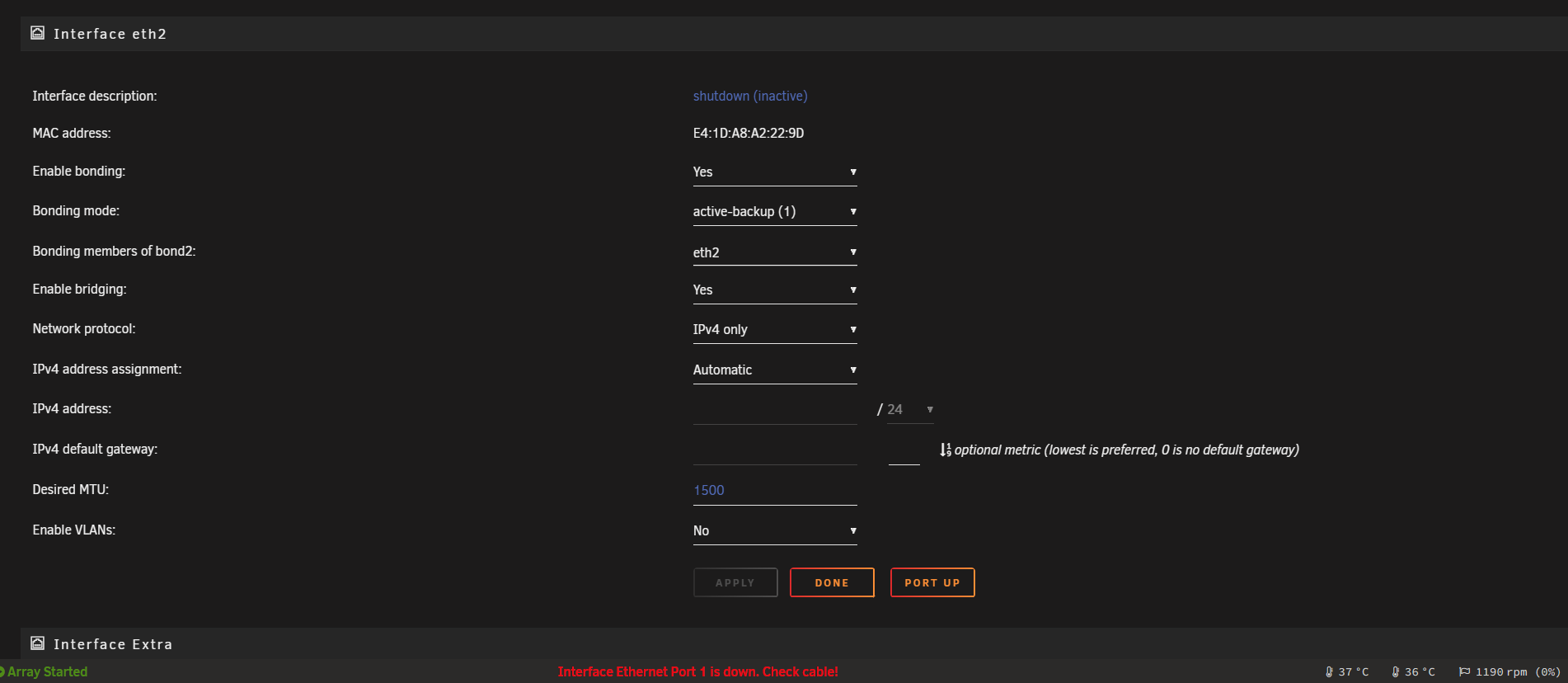

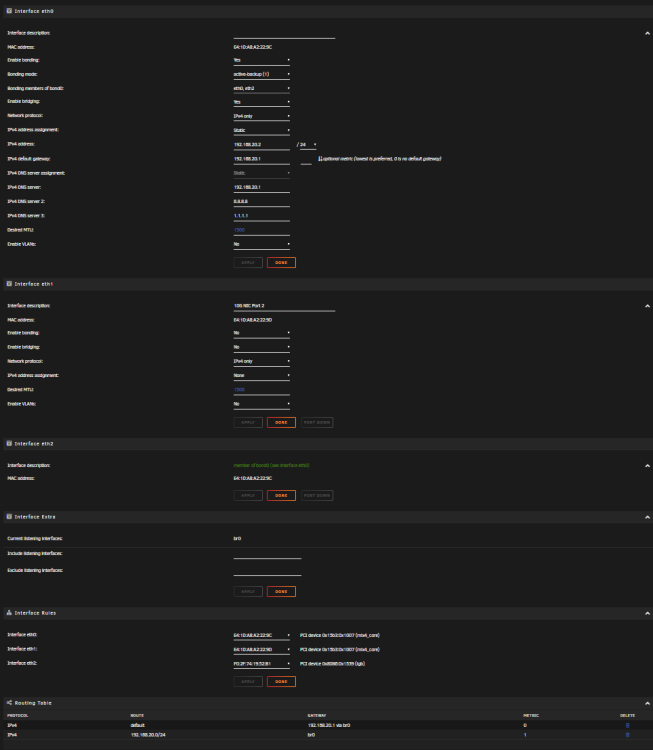

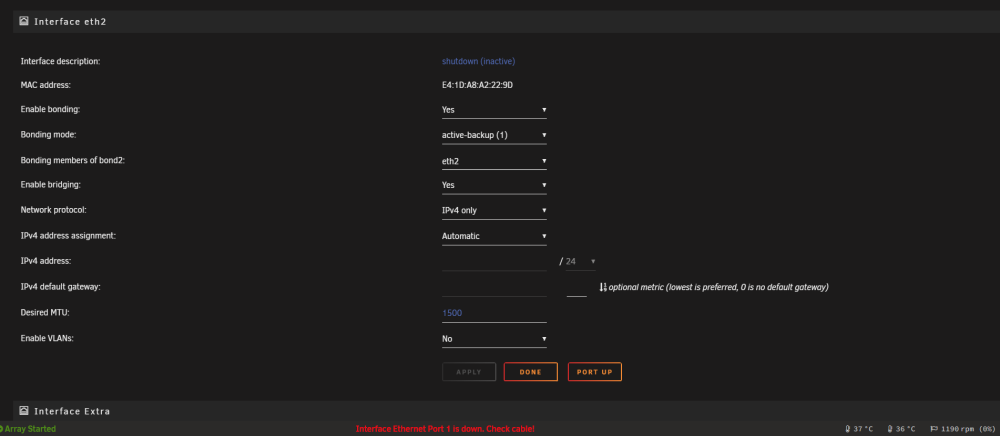

Thanks for the support @Cael817, taking the time to look out the information to help me is very kind of you. Through some experimentation I think you made the 10g port the eth0 using the "Interface Rules" and the 1GBE your eth1. I have replicated making NIC p1 = eth0, NIC p2 = eth1, GBE = eth2. I have bonded eth0 and eth2. eth0 picks up a ip from DHCP on UDM and Unraid is accessible by this DHCP provided address in addition to the static address assigned by the UDM router to the GBE /eth2 port. If i pull eth2 Unraid is inaccessible. In addition i have the warning "interface ethernet port 0 is down. check cable!" I'm still uncertain if it is a config or cable issue. perhaps you could share your config of your eth1. Perhaps there is something i am overlooking with my inexperience with sfp and NIC. EDIT: to include the interface dashboard view. It will alternate on/off eth0.

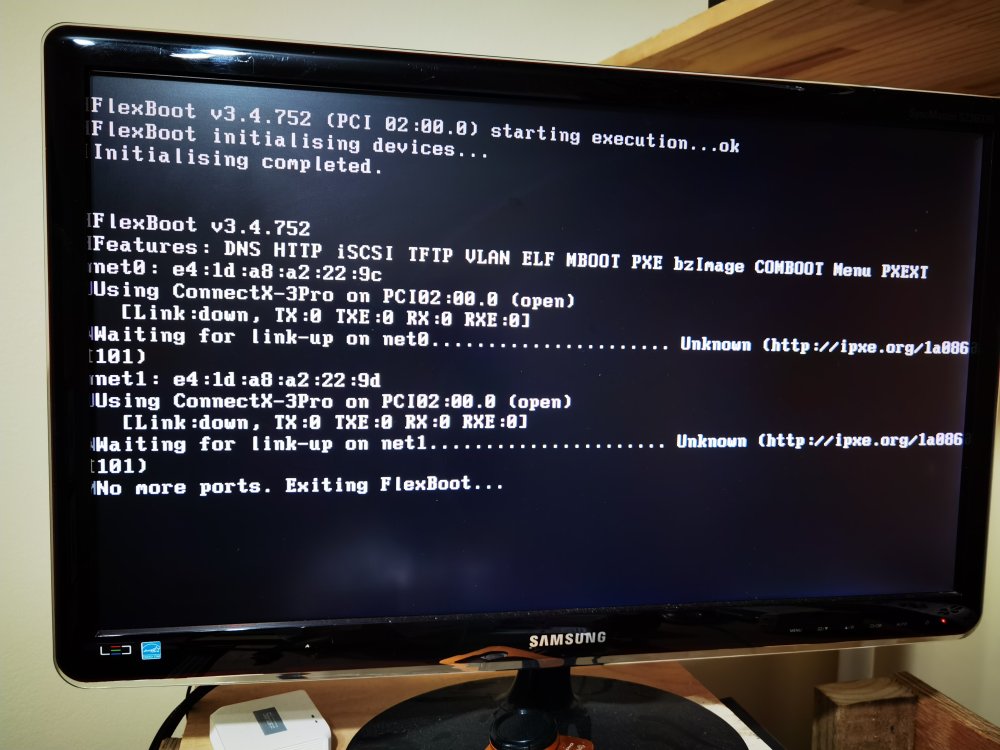

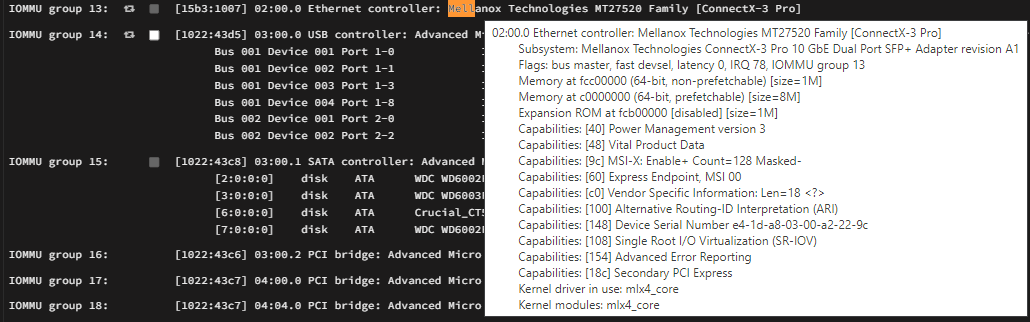

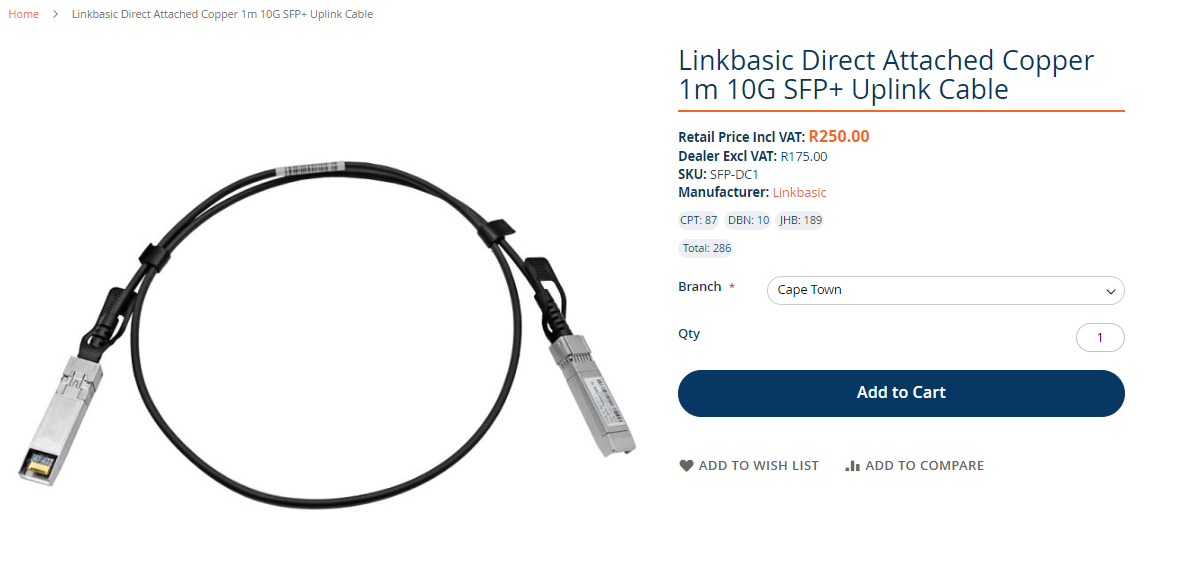

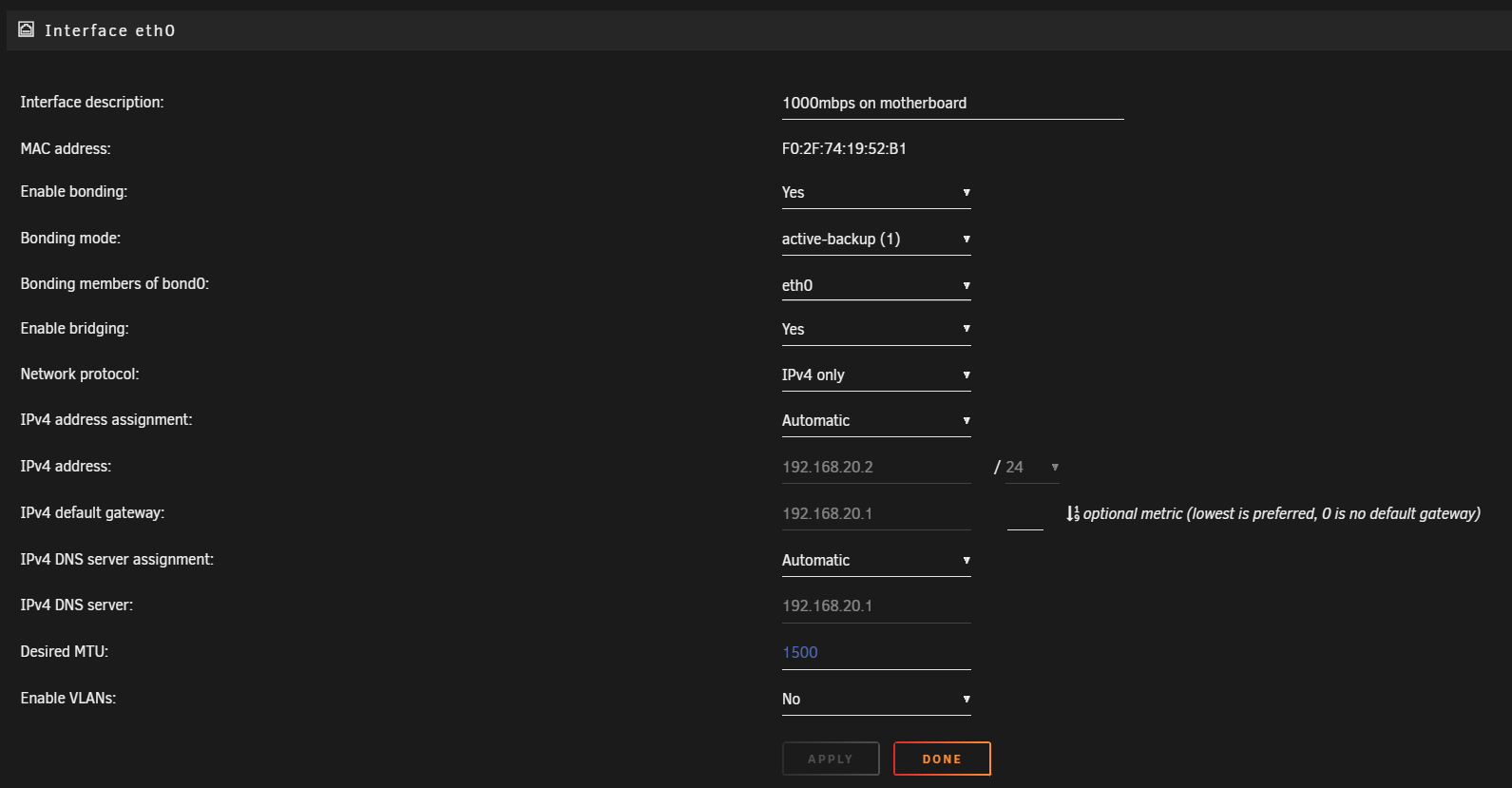

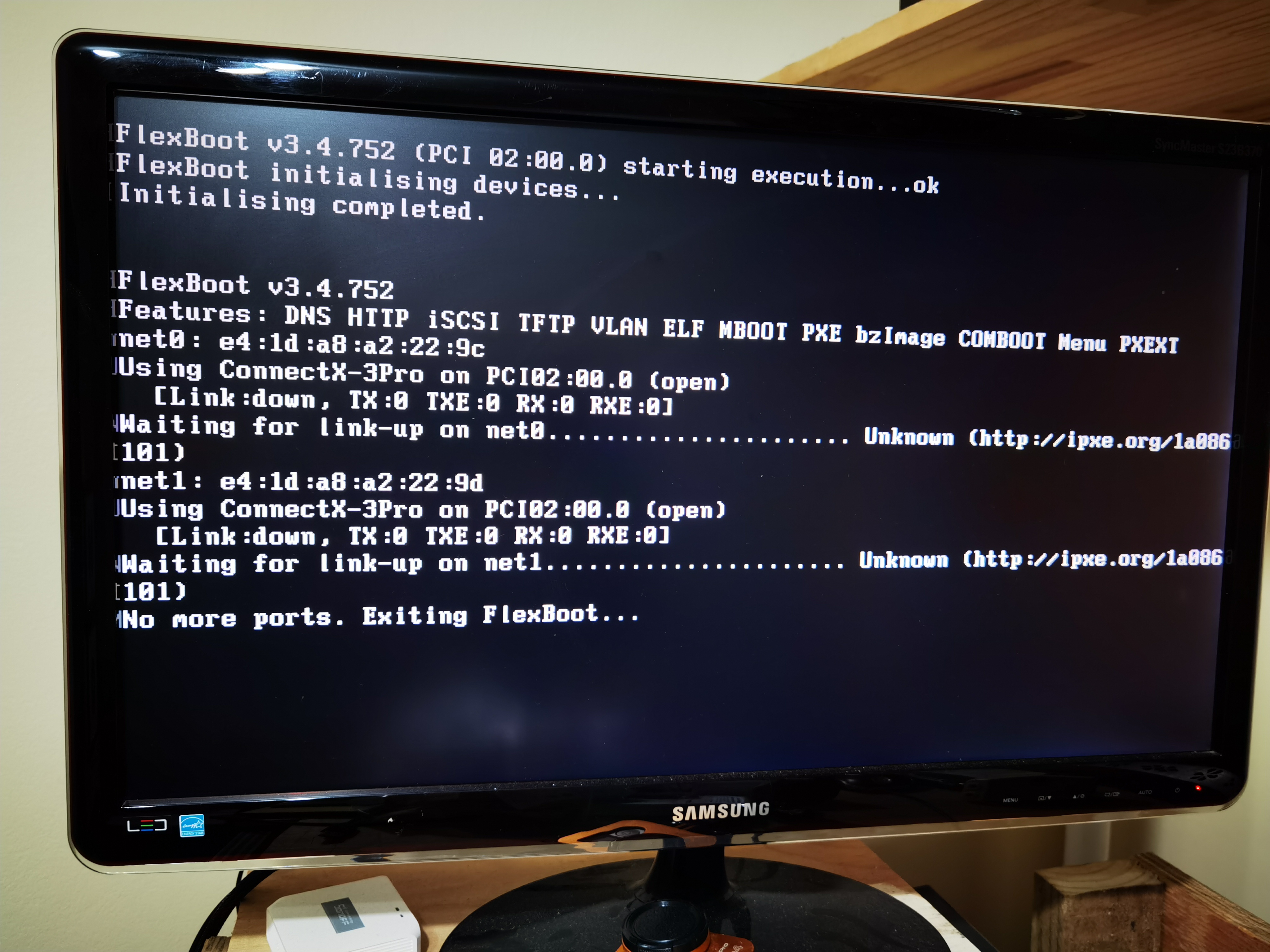

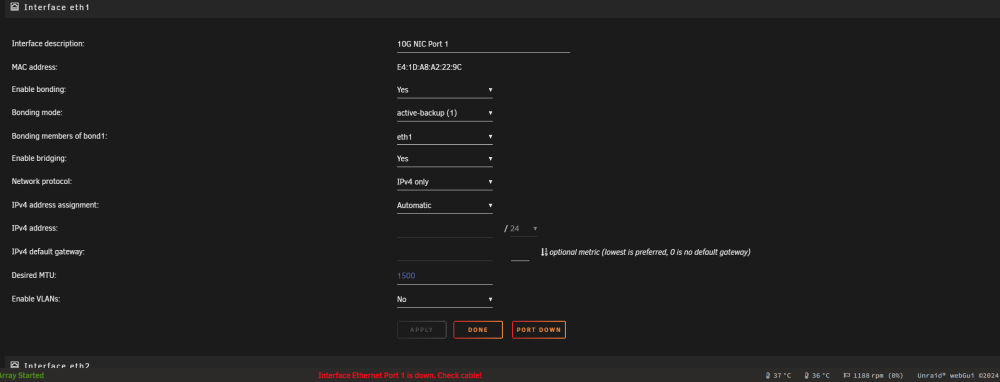

Hey, I am trying to use this same card as above. One SFP+ port on the Mellanox card via Linkbasic Direct Attached Copper 1m 10G SFP+ Uplink Cable to SFP+ port 11 on UDM Pro. The card shows in the unraid network settings setup. However when i try configure the device shows online for a few seconds then drops. eth0 is existing 1000mbps port. I am not sure if this is a configuration thing of hardware is cable or pcie slot. i also had a short lived issue with getting stuck in the flexboot initialisation as the USB was not reading. Port one was connected to the UDM at the start. @Cael817 how did you configure? I have set rules for the port to go to the same vlan as the existing GBE. I have set the SFP to a new ip address manually with ETH1 mac address so when it joins the network it will be at an ip i know. then i can replace it with the existing static one services call to.

Hi @KluthR, There is a debug log sent to your server '7741fdb5-c2b4-4df0-b4d8-b95d5420612c' the error states "Cannot create destination folder". The automation of the backup has not run since 21/11/2023, backup on 28/11/2023 is noted as 'failed' on the directory.

Hey @LeoRX , No i am not running authentik.

So after some days of shutting down various vm's and testing only for the 100% usage to return, i found a RAM chip to be not showing in the system, after 1. re-seating the ram and 2. finding this comment on a thread speaking of a similar issue with CPU, i de-activated integrity plugin for 2 days. The issue did not return. I have no re-activated integrity plugin and will monitor further. but so far the issue has resolved. HA VM is running along with 4 other ubuntu vm's. @joshsalvimaybe this can assist with your issue?

@joshsalviI have this same issue. I do not use Radarr/Sonarr. I have rebooted and shutdown with power cycles a number of times. The system will occasionally run ok for a short time but return to maxing out the cpu, causing other applications to hang and crash. The system was fine and stable before the install in a vm per Home Assistant forum instructions: https://community.home-assistant.io/t/install-home-assistant-as-a-vm-on-unraid/270195 The issue of CPU 100% usage resolves and returned to normal the second the home assistant vm is quit. Two CPU cores are pinned per the instructions, i did alternate one, issue still persists. Diagnostics removed after resolution.

Yes, i ran the update when i was having other issue over here

Hi Unraid Community, Having some problems with a looping boot up after moving a m.2 from a pcie adapter to the second m.2 port on my new mobo. Recently moved Mobo from: Asus P8Z77-V PRO with intel i7 3770 to: Rog Strix B450-F Gaming II Ryzen 4500 Moving some hardware around i removed the second parity disk for a short time as its a 10tb in an array no larger than 4tb individual drives. So ordered a replacement 4tb drive for the parity 2 and 10tb being moved with the original mobo and cpu to build a backup unraid server. This transfer was easy enough and the above serves as extra info on stuff happening at the time of another issue with NVME move. The new Mobo has dual m.2 sockets. So i decided to try use them both. Old Nvme SkHynix 512gb from laptop and the existing SkHynix 256gb that runs on a m.2 pcie adapter unsure of the model as there are little identifying marks, i will add an image in a day or two when the pre-clear is finished on the 4tb above. Why the move? the m.2_1 on the mobo will achieve +/-1300MBps transfers the pcie on the adapter gets +/-370MBps. I performed a hardware move of the both above. when restarting the server would boot loop, giving me a few final statement in the image attached about the nvidia module not being present. I commented on the Nvidia thread @ich777 was troubleshooting with me The best i could do to get out of the boot loop was change the 'M.2_2' & 'PCIe x16_1' from 'Auto' to Gen 2 in the bios. This solved boot loop but i still could not access the UI through ip or .local. unraid ui the ip address and .local address would return '404' 'page not found'. Eventually the ui was accessible on windows edge browser not brave browser. Further strange was the renaming of the server to default 'Tower'. Then the following morning both browsers would access fine. The manual states m.2 socket 'm.2_2' on the Rox Strix B450-F Gaming II is used then 'PCIe x16_1' will run at x8 mode. Is there anyone with input? is this dns lookup on the browser issue and something else on the hardware. I'm unsure of the application of the 'Gen' 1,2 or 3 in the bios as auto should have enabled the applicable version, is this my misunderstanding. Should i be looking at other bios settings for this hardware. In terms of diagnostics, due to the server name change all the previous logs that were visible on the USB under logs are not visible.

After attempting this with no joy. i found info that if the second m.2 socket 'm.2_2' on the Rox Strix B450-F Gaming II is used then 'PCIe x16_1' will run at x8 mode. Eventually gave up making adjustments in the bios trying to get the system to accept the nvme on the mobo and put it back to the pcie card. It was still tricky to get into the UI after as i received 'page not found 404' error. I'm not super experienced with all aspects of the pcie's. Any thoughts, The monitor would output the boot processes including hardware checks and in the bios would see both nvme drives.

tried the above, now get this issue. Server still auto restarting after this tower login ad os version screen.

I was not busy with nvidia manually. as mentioned above. I needed to add a sata drive and move m.2 from pcie to MOBO. The Nvidia updates are automated to run think at 9am (i am pretty sure) with the rest of the docker updates. The system was shutdown, hardward changes done and booted up again, now cannot access UI. Have removed Nerdpack manually as i noted it stated incompatible on the diagnostics.

I am getting Error: FATAL: Module nvidia not found in directory /lib/modules/5.19.14-unraid Yet on the unraid USB in the path pictured a package exists. I took the server offline, moved an NVME from a pcie to the motherboard m.2 slot and added a hard drive via SATA awaiting preclear. Once this error shows it shuts down and reboots doing the same process the second time.

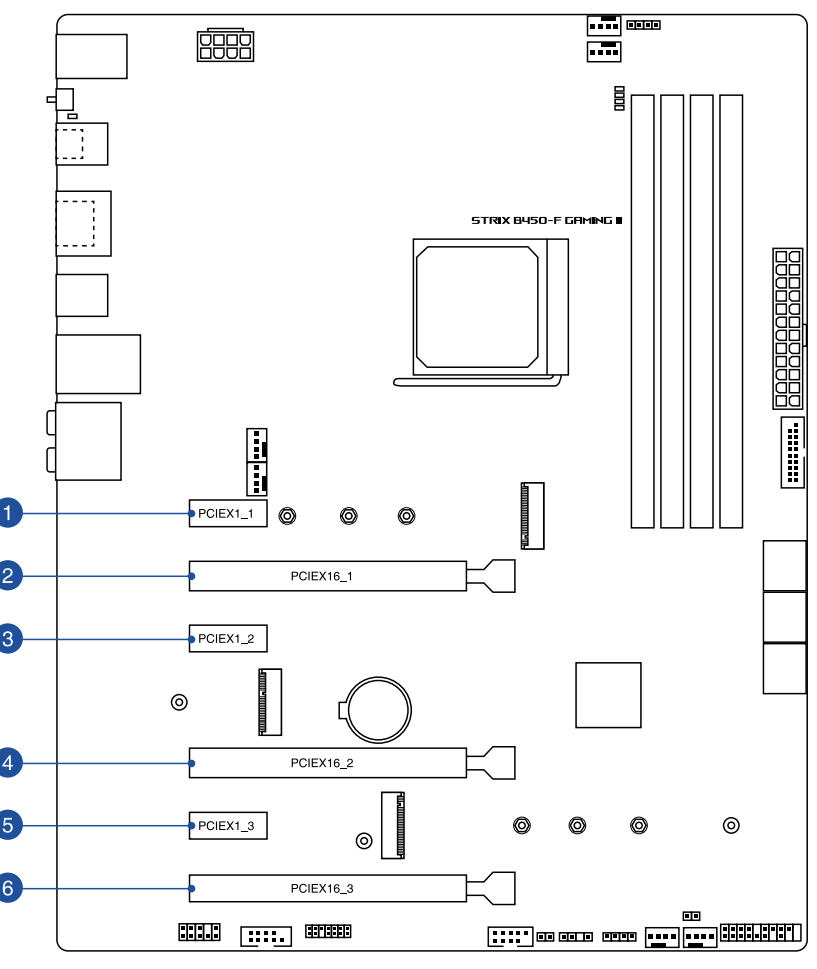

Solved, for searchability maybe it helps someone else. Motherboard: Rog Strix B450-F Gaming II CPU: Ryzen 5 4500 SATA Ports 5 & 6 turn off when m.2_1 is operating in sata or pcie mode. Solution setM.2_1 to "sata56" My second external SATA controller is a PCIEx1 and the PCIEx16_3 controller needed to be set from Auto to "x1 Mode". See screenshot. still having issues with Ryzen 5 4500 onboard graphics wont output on the HDMI, i want to remove the gpu eventually to conserve power. I do not find an option for graphics in the bios like i did with Intel board. my First ryzen Cpu. EDIT: seems ryzen 5 4500 does not include a CPU graphics, so i have to keep the card.

bios is now updated to latest. Unplugged 4 disks (6,7,8,9) that were showing in the bios and unraid but the initial disks,3,4,5 still missing. Guess either cable which i can replace quick or ports on the board. are these the only possibilities?
