Managed to solve this issue
Turns out that its a problem with the wd m.2 drive

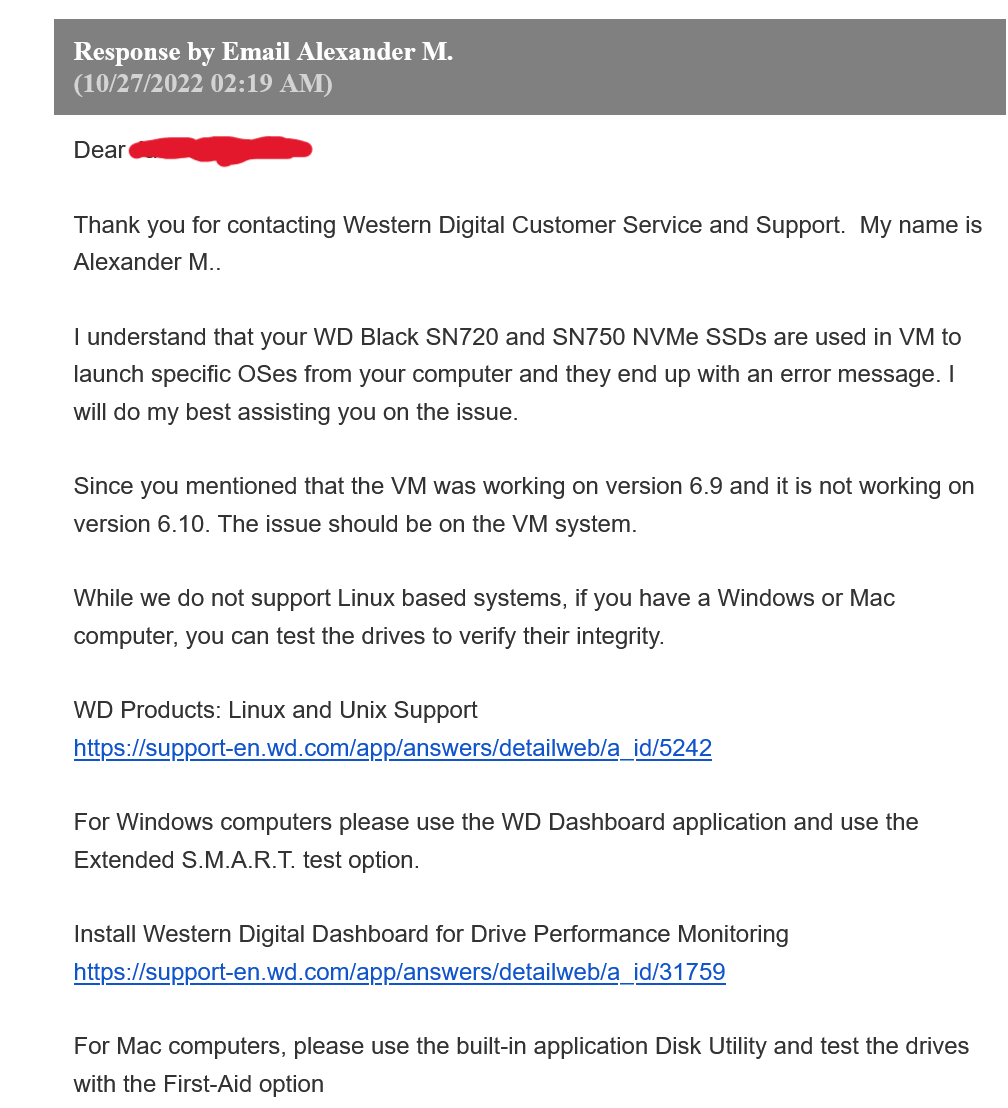

I did email Western Digital for advice, and basically the issue stems from WD not testing hard drives in Linux.
So after swapping app data round, reverting to docker img based rather than folder, I have pretty much sorted. Just need to reinstall programs, but that's about it. If anyone is looking at pass though hardware and find it suddenly doesn't work like this, then that might be a similar reason. I will leave the original post up below.
Hi there, I had setup a working dual boot of windows 11 on unraid 6.9 and would work fine except for the ocational freeze up.
I have a gt 710 gpu passed though, and used a m.2 drive for booting off. So I can boot in bere metal, like a normal pc or as a vm in unraid. After 6.10, the vm now doesnt boot, but just starts then pause, getting stuck at the tanocore logo and no windows loading icon.
this is the xml settings
<?xml version='1.0' encoding='UTF-8'?>
<domain type='kvm'>
<name>Windows 11 dual boot</name>
<uuid>986c0163-34fc-a197-0b59-fc3497b10b59</uuid>
<metadata>
<vmtemplate xmlns="unraid" name="Windows 10" icon="windows11.png" os="windows10"/>
</metadata>
<memory unit='KiB'>8388608</memory>
<currentMemory unit='KiB'>8388608</currentMemory>
<memoryBacking>
<nosharepages/>
</memoryBacking>
<vcpu placement='static'>8</vcpu>
<cputune>
<vcpupin vcpu='0' cpuset='0'/>
<vcpupin vcpu='1' cpuset='16'/>
<vcpupin vcpu='2' cpuset='2'/>
<vcpupin vcpu='3' cpuset='18'/>
<vcpupin vcpu='4' cpuset='4'/>
<vcpupin vcpu='5' cpuset='20'/>
<vcpupin vcpu='6' cpuset='6'/>
<vcpupin vcpu='7' cpuset='22'/>
</cputune>
<resource>
<partition>/machine</partition>
</resource>
<os>
<type arch='x86_64' machine='pc-i440fx-5.1'>hvm</type>
<loader readonly='yes' type='pflash'>/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd</loader>
<nvram>/etc/libvirt/qemu/nvram/986c0163-34fc-a197-0b59-fc3497a10b58_VARS-pure-efi.fd</nvram>
<boot dev='hd'/>
</os>
<features>
<acpi/>
<apic/>
<hyperv mode='custom'>
<relaxed state='on'/>
<vapic state='on'/>
<spinlocks state='on' retries='8191'/>
<vendor_id state='on' value='none'/>
</hyperv>
</features>
<cpu mode='host-passthrough' check='none' migratable='on'>
<topology sockets='1' dies='1' cores='4' threads='2'/>
<cache mode='passthrough'/>
<feature policy='require' name='topoext'/>
</cpu>
<clock offset='localtime'>
<timer name='hypervclock' present='yes'/>
<timer name='hpet' present='no'/>
</clock>
<on_poweroff>destroy</on_poweroff>
<on_reboot>restart</on_reboot>
<on_crash>restart</on_crash>
<devices>
<emulator>/usr/local/sbin/qemu</emulator>
<controller type='usb' index='0' model='ich9-ehci1'>
<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x7'/>
</controller>
<controller type='usb' index='0' model='ich9-uhci1'>
<master startport='0'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x0' multifunction='on'/>
</controller>
<controller type='usb' index='0' model='ich9-uhci2'>
<master startport='2'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x1'/>
</controller>
<controller type='usb' index='0' model='ich9-uhci3'>
<master startport='4'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x07' function='0x2'/>
</controller>
<controller type='pci' index='0' model='pci-root'/>
<controller type='virtio-serial' index='0'>
<address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/>
</controller>
<interface type='bridge'>
<mac address='52:54:00:ce:87:e6'/>
<source bridge='br0'/>
<model type='virtio-net'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/>
</interface>
<serial type='pty'>
<target type='isa-serial' port='0'>
<model name='isa-serial'/>
</target>
</serial>
<console type='pty'>
<target type='serial' port='0'/>
</console>
<channel type='unix'>
<target type='virtio' name='org.qemu.guest_agent.0'/>
<address type='virtio-serial' controller='0' bus='0' port='1'/>
</channel>
<input type='tablet' bus='usb'>
<address type='usb' bus='0' port='1'/>
</input>
<input type='mouse' bus='ps2'/>
<input type='keyboard' bus='ps2'/>
<audio id='1' type='none'/>
<hostdev mode='subsystem' type='pci' managed='yes'>
<driver name='vfio'/>
<source>
<address domain='0x0000' bus='0x2f' slot='0x00' function='0x0'/>
</source>
<rom file='/mnt/user/isos/vbios/GeForce GT 710.rom'/>
<address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/>
</hostdev>
<hostdev mode='subsystem' type='pci' managed='yes'>
<driver name='vfio'/>
<source>
<address domain='0x0000' bus='0x2f' slot='0x00' function='0x1'/>
</source>
<address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/>
</hostdev>
<hostdev mode='subsystem' type='pci' managed='yes'>
<driver name='vfio'/>
<source>
<address domain='0x0000' bus='0x2d' slot='0x00' function='0x0'/>
</source>
<address type='pci' domain='0x0000' bus='0x00' slot='0x06' function='0x0'/>
</hostdev>
<memballoon model='none'/>
</devices>
<seclabel type='dynamic' model='dac' relabel='yes'/>
</domain>
When trying to boot, 2 times. this is what I get in the log window
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x3 \
-netdev tap,fd=35,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:ce:87:e6,bus=pci.0,addr=0x2 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0,index=0 \
-chardev socket,id=charchannel0,fd=33,server=on,wait=off \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-audiodev '{"id":"audio1","driver":"none"}' \
-device 'vfio-pci,host=0000:2f:00.0,id=hostdev0,bus=pci.0,addr=0x4,romfile=/mnt/user/isos/vbios/GeForce GT 710.rom' \
-device vfio-pci,host=0000:2f:00.1,id=hostdev1,bus=pci.0,addr=0x5 \
-device vfio-pci,host=0000:2d:00.0,id=hostdev2,bus=pci.0,addr=0x6 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
char device redirected to /dev/pts/0 (label charserial0)
2022-06-11T09:40:57.090130Z qemu-system-x86_64: vfio_err_notifier_handler(0000:2d:00.0) Unrecoverable error detected. Please collect any data possible and then kill the guest
2022-06-11T13:53:49.073923Z qemu-system-x86_64: terminating on signal 15 from pid 17120 (/usr/sbin/libvirtd)
2022-06-11 13:53:50.474+0000: shutting down, reason=destroyed
2022-06-11 13:55:36.093+0000: starting up libvirt version: 8.2.0, qemu version: 6.2.0, kernel: 5.15.43-Unraid, hostname: Hammerthread
LC_ALL=C \
PATH=/bin:/sbin:/usr/bin:/usr/sbin \
HOME='/var/lib/libvirt/qemu/domain-2-Windows 11 dual boot' \
XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-2-Windows 11 dual boot/.local/share' \
XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-2-Windows 11 dual boot/.cache' \
XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-2-Windows 11 dual boot/.config' \
/usr/local/sbin/qemu \
-name 'guest=Windows 11 dual boot,debug-threads=on' \
-S \
-object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-2-Windows 11 dual boot/master-key.aes"}' \
-blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
-blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/986c0163-34fc-a197-0b59-fc3497a10b58_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \
-machine pc-i440fx-5.1,usb=off,dump-guest-core=off,mem-merge=off,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format,memory-backend=pc.ram \
-accel kvm \
-cpu host,migratable=on,topoext=on,hv-time=on,hv-relaxed=on,hv-vapic=on,hv-spinlocks=0x1fff,hv-vendor-id=none,host-cache-info=on,l3-cache=off \
-m 8192 \
-object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":8589934592}' \
-overcommit mem-lock=off \
-smp 8,sockets=1,dies=1,cores=4,threads=2 \
-uuid 986c0163-34fc-a197-0b59-fc3497a10b58 \
-display none \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=36,server=on,wait=off \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x3 \
-netdev tap,fd=37,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:ce:87:e6,bus=pci.0,addr=0x2 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0,index=0 \
-chardev socket,id=charchannel0,fd=35,server=on,wait=off \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-audiodev '{"id":"audio1","driver":"none"}' \
-device 'vfio-pci,host=0000:2f:00.0,id=hostdev0,bus=pci.0,addr=0x4,romfile=/mnt/user/isos/vbios/GeForce GT 710.rom' \
-device vfio-pci,host=0000:2f:00.1,id=hostdev1,bus=pci.0,addr=0x5 \
-device vfio-pci,host=0000:2d:00.0,id=hostdev2,bus=pci.0,addr=0x6 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
char device redirected to /dev/pts/0 (label charserial0)
2022-06-11T13:55:41.825439Z qemu-system-x86_64: vfio_err_notifier_handler(0000:2d:00.0) Unrecoverable error detected. Please collect any data possible and then kill the guest
2022-06-11T13:56:45.026047Z qemu-system-x86_64: terminating on signal 15 from pid 17120 (/usr/sbin/libvirtd)
2022-06-11 13:56:46.426+0000: shutting down, reason=destroyed
-nodefaults \
-chardev socket,id=charmonitor,fd=36,server=on,wait=off \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x3 \
-netdev tap,fd=37,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:ce:87:e6,bus=pci.0,addr=0x2 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0,index=0 \
-chardev socket,id=charchannel0,fd=35,server=on,wait=off \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-audiodev '{"id":"audio1","driver":"none"}' \
-device 'vfio-pci,host=0000:2f:00.0,id=hostdev0,bus=pci.0,addr=0x4,romfile=/mnt/user/isos/vbios/GeForce GT 710.rom' \
-device vfio-pci,host=0000:2f:00.1,id=hostdev1,bus=pci.0,addr=0x5 \
-device vfio-pci,host=0000:2d:00.0,id=hostdev2,bus=pci.0,addr=0x6 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
char device redirected to /dev/pts/0 (label charserial0)
2022-06-11T13:55:41.825439Z qemu-system-x86_64: vfio_err_notifier_handler(0000:2d:00.0) Unrecoverable error detected. Please collect any data possible and then kill the guest
2022-06-11T13:56:45.026047Z qemu-system-x86_64: terminating on signal 15 from pid 17120 (/usr/sbin/libvirtd)
2022-06-11 13:56:46.426+0000: shutting down, reason=destroyed
2022-06-11 14:05:05.485+0000: starting up libvirt version: 8.2.0, qemu version: 6.2.0, kernel: 5.15.43-Unraid, hostname: Hammerthread
LC_ALL=C \
PATH=/bin:/sbin:/usr/bin:/usr/sbin \
HOME='/var/lib/libvirt/qemu/domain-3-Windows 11 dual boot' \
XDG_DATA_HOME='/var/lib/libvirt/qemu/domain-3-Windows 11 dual boot/.local/share' \
XDG_CACHE_HOME='/var/lib/libvirt/qemu/domain-3-Windows 11 dual boot/.cache' \
XDG_CONFIG_HOME='/var/lib/libvirt/qemu/domain-3-Windows 11 dual boot/.config' \
/usr/local/sbin/qemu \
-name 'guest=Windows 11 dual boot,debug-threads=on' \
-S \
-object '{"qom-type":"secret","id":"masterKey0","format":"raw","file":"/var/lib/libvirt/qemu/domain-3-Windows 11 dual boot/master-key.aes"}' \
-blockdev '{"driver":"file","filename":"/usr/share/qemu/ovmf-x64/OVMF_CODE-pure-efi.fd","node-name":"libvirt-pflash0-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash0-format","read-only":true,"driver":"raw","file":"libvirt-pflash0-storage"}' \
-blockdev '{"driver":"file","filename":"/etc/libvirt/qemu/nvram/986c0163-34fc-a197-0b59-fc3497a10b58_VARS-pure-efi.fd","node-name":"libvirt-pflash1-storage","auto-read-only":true,"discard":"unmap"}' \
-blockdev '{"node-name":"libvirt-pflash1-format","read-only":false,"driver":"raw","file":"libvirt-pflash1-storage"}' \
-machine pc-i440fx-5.1,usb=off,dump-guest-core=off,mem-merge=off,pflash0=libvirt-pflash0-format,pflash1=libvirt-pflash1-format,memory-backend=pc.ram \
-accel kvm \
-cpu host,migratable=on,topoext=on,hv-time=on,hv-relaxed=on,hv-vapic=on,hv-spinlocks=0x1fff,hv-vendor-id=none,host-cache-info=on,l3-cache=off \
-m 8192 \
-object '{"qom-type":"memory-backend-ram","id":"pc.ram","size":8589934592}' \
-overcommit mem-lock=off \
-smp 8,sockets=1,dies=1,cores=4,threads=2 \
-uuid 986c0163-34fc-a197-0b59-fc3497a10b58 \
-display none \
-no-user-config \
-nodefaults \
-chardev socket,id=charmonitor,fd=36,server=on,wait=off \
-mon chardev=charmonitor,id=monitor,mode=control \
-rtc base=localtime \
-no-hpet \
-no-shutdown \
-boot strict=on \
-device ich9-usb-ehci1,id=usb,bus=pci.0,addr=0x7.0x7 \
-device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pci.0,multifunction=on,addr=0x7 \
-device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pci.0,addr=0x7.0x1 \
-device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pci.0,addr=0x7.0x2 \
-device virtio-serial-pci,id=virtio-serial0,bus=pci.0,addr=0x3 \
-netdev tap,fd=37,id=hostnet0 \
-device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:ce:87:e6,bus=pci.0,addr=0x2 \
-chardev pty,id=charserial0 \
-device isa-serial,chardev=charserial0,id=serial0,index=0 \
-chardev socket,id=charchannel0,fd=35,server=on,wait=off \
-device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \
-device usb-tablet,id=input0,bus=usb.0,port=1 \
-audiodev '{"id":"audio1","driver":"none"}' \
-device 'vfio-pci,host=0000:2f:00.0,id=hostdev0,bus=pci.0,addr=0x4,romfile=/mnt/user/isos/vbios/GeForce GT 710.rom' \
-device vfio-pci,host=0000:2f:00.1,id=hostdev1,bus=pci.0,addr=0x5 \
-device vfio-pci,host=0000:2d:00.0,id=hostdev2,bus=pci.0,addr=0x6 \
-sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \
-msg timestamp=on
char device redirected to /dev/pts/24 (label charserial0)
2022-06-11T14:05:20.898479Z qemu-system-x86_64: vfio_err_notifier_handler(0000:2d:00.0) Unrecoverable error detected. Please collect any data possible and then kill the guest
Any ideas why the exact vm that works fine on 6.9 now doesn't work on 6.10? My system specs are in my signature below. I will add that I have tried recreating the vm with what I know works and I still get the same issues.
Looking at the log, it appears to be the m.2 drive. I Wonder if the latest version Isn't compatible with my m.2 or something?
Thank you
hammerthread-diagnostics-20221011-1309.zip
