Keichi

Hello, Last week, I explained that an ASM1061 controller was not working in UNRAID, for my configuration: https://forums.unraid.net/topic/102010-recommended-controllers-for-unraid/?do=findComment&comment=1267945 Unfortunately, I didn't keep the diagnosis. I acquired this other controller, based on the ASM1062 with 4 ports: https://www.amazon.fr/dp/B07TD57RGZ I made a mistake (in my opinion, with 4 ports, it multiplies the SATA ports, but on this trial, only one disk was connected). I had the same problem: - the disks on my HBA got nothing (my array -last time, disk1 was disable because connected to the motherboard, so i move it to the hba to avoid another reconstruct-) - on the other hand, the disks connected to my motherboard (ASRock X570S PG Riptide) were duplicated (in this case, the cache pools). I've ordered a third card (https://www.amazon.fr/dp/B0BNCHQBK8, 4 ports, ASM 1064) recommended by JorgeB (here: https://forums.unraid.net/topic/102010-recommended-controllers-for-unraid/) and I'm getting it tomorrow, so I'll see what happens (the aim being to plug in 3 SATA doisks for cold backup, so speed doesn't really matter to me). But in my opinion, the problem will be the same.... Would you have a good card that plugs into a PCIe 1x 3.0 port to recommend? Thanks a lot! I add the diagnosis and a screenshot. K. ASM1062 - 4 ports - yggdrasil-diagnostics-20230605-1850.zip

Ok, thanks! Still 8hours in rebuild, i will see after. Or maybe try to replug the card after a full backup, if i can reproduce it and help the commonity. K.

Hello JorgeB, I did not start a new thread, because i knew you will ask for that. I forget to download the diagnostic before rebooting, so i don't know, sorry. Problems with unraid are unsual, I didn't have the reflex to download the diagnostics K.

Hello JorgeB, I bought this card : https://www.amazon.fr/BEYIMEI-contrôleur-dextension-Adaptateur-Ordinateur/dp/B07PRRQ41J/ref=cm_cr_arp_d_product_top?ie=UTF8 It is a ASM1061, which is supposed to work with Unraid. After plug-in it (with one SSD attached), four drives (connected to the motherboard) went in error state, and one of these (non-pool drives) were "disabled" (following your advice, i ran a filesystem check and it is now rebuilding). I don't undertand why. I have 2 CGs (PCIe 3.0 x8 and x4) and one HBA LSI 9200-8i (PCIe 3.0 x2, if i understand well my ASRock X570S PG Riptide motherboard), and two PCIe 1x port are masked (because of CG), so only have one PCI 1x availaible. I thought it was a good option. Do you think i can try your "4 ports: Asmedia ASM1064 (PCIe 3.0 x1)" (like this one : https://www.amazon.fr/IO-Crest-ASMedia-Non-Raid-Support/dp/B08J2PK1HF), or i will have the same issue ? Thanks for your time, K.

Hello, As everyone, i was seeing some warnings in the syslog. Thanks to this thread, i updaded my 9211-8i from : Num Ctlr FW Ver NVDATA x86-BIOS PCI Addr ---------------------------------------------------------------------------- 0 SAS2008(B2) 10.00.05.00 0a.02.00.18 07.19.00.00 00:04:00:00 To : Num Ctlr FW Ver NVDATA x86-BIOS PCI Addr ---------------------------------------------------------------------------- 0 SAS2008(B2) 20.00.07.00 14.01.00.08 07.39.02.00 00:04:00:00 Without any issue. Thanks to the author! K.

Hello Jorge, It is in fact what i try to do : eth0 : 192.168.0.7, member og br0 eth1 : 192.168.1.1, member of br1 And my Windows VM use br0 with virtio. I can access in the VM the webGUI with 192.168.0.7 but Files Explorer is unable to browse shares. It there any differences bet ween .1 and .10 ? Thanks

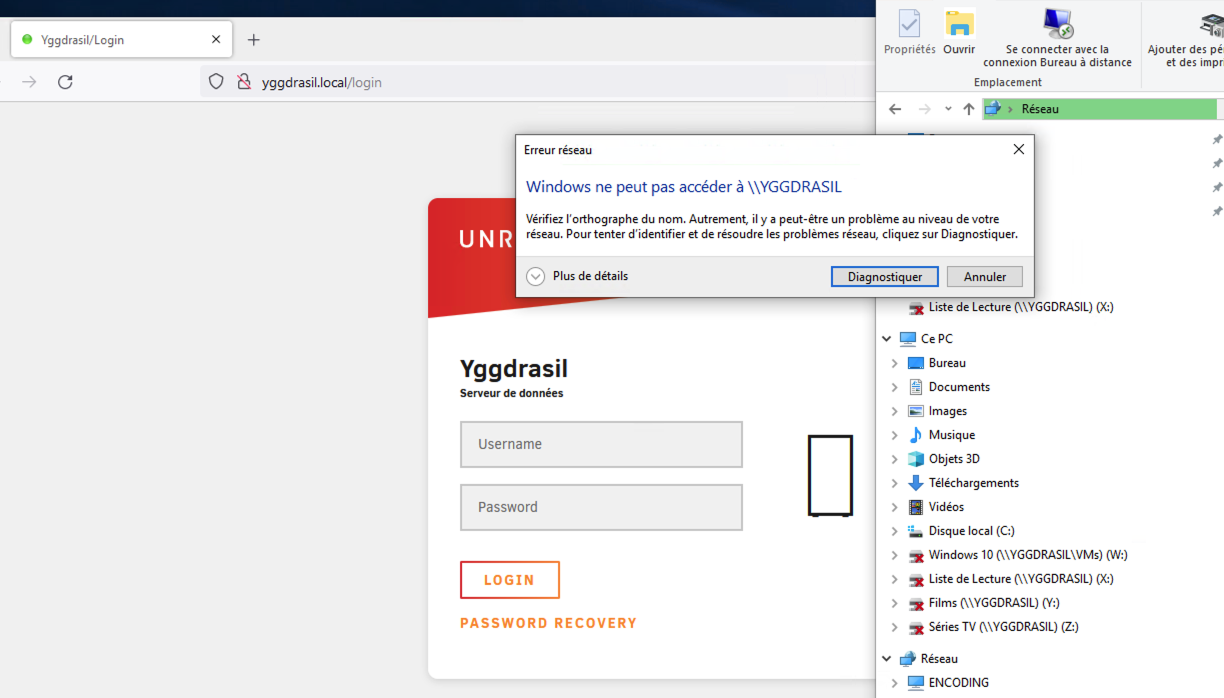

Dear community, My Unraid server is connected to my 1Gb wifi router. Recently, i bought a 2.5GbE card and an 2.5GbE USB adapter for the computer, in order to make direct connection and have better speed. I configure the 1Gb wifi with eth0 and the 2.5GbE with eth1. As expected (i guess...), Fix Common problem is unhappy with the error : Even if my computer correctly use the 2.5GbE, and others devices on the network the 1Gb Wifi, my VM are now unable to access the Unraid server files but can access the webGUI with no issue. I know it is not well configure, but i don't know how to do it. Can you provide me some help ? yggdrasil-diagnostics-20220911-1146.zip Thanks, K.

Hello, no one for help ? Thanks

Hello, I am trying to do a simple thing : copy my Google Drive in /mnt/user/GoogleDrive. But i missed something... Here the details if you can help, thanks. I successfully installed this Docker with that : I can navigate from the docker to my /media path I can see my Google Drive on the WebGUI : But in the log, i have : I try a lot of things for RCLONE_MEDIA_SHARES, but i think i don't understand what it is. Thank you for your assitance, K.

Hello everyone, I understand that we can get the running status of UserScripts inside Unassigned Device. But do you now if it is possible to automatically launch a userscript when a device is connected ? I backup all my NAS with spare hard drives and create a few userscripts to launch some rsync. Thanks !

Same issue for months now....

Same issue for months now....

Same issue for months now....

Ok, thanks Itimpl, still have the warnings, even with "0" in the field, which should disable it. I put the emails in spam and waiting for an UNRAID update then

No one to help me ?

Thanks, i edited my post with the diagnotic !

Hello everyone, For the last ten days, Unraid sends me two warnings/mails per day (x10 drives !!!) because of disks on high usage, which is incorrect. And the next minute, another warning saying that everything return to normal utilization. It seems to started unexpectedly, everything was working good, and i don't think i made any change. Do you know how can i avoid it ? Thanks ! yggdrasil-diagnostics-20210817-1337.zip

Hello all, I use Unraid 6.9.1. On a 4Tb drive, i setup a Time Machine share for my mac : Then, i configured the Share as follow : In Krusader, my TimeMachine folder excess the 2Tb limit : On my mac, i have another values, but still above 2Tb : Notice also that macOS reported 2.1 To available instead of 400Go as reported by Unraid. Does the TimeMachine limit isn't respected ? Did i miss something, like between Tb and Tib and maybe To ? I know that for years, when you bought a 4Tb drive, you only usually get 3.6Tb of space. I understand that recently, macOS shows a 4Tb drive as a "real 4Tb" drive, and consequently, report larger file than in Windows to compensate. Is that the same case here ? Did i miss something ? Thank you ! K.

Hello JorgeB, Thanks for the quick reply ! Ok, then i cannot add 2 pools of 2 SSDs with my Plus licence (already have 2 partity + 8 disks). I knew i needed to take the Pro licence directly haha ! Nevermind, UNRAID deserve my money, it is so great ! Thank you

Hello everyone, I discover the "Pool" feature of UNRAID, and i would like to be sure of its functionning. I think i have no need of a Cache Pool (Parity : two mechanical drives with 1Gbps local network), but i may use Pool feature for : - UNRAID docker (appdata, domains, isos and system folders) - VMs I was thinking of two Pools (for Docker and for VMs) then, with each time two 256gb SSDs. 1/ To be sure : if my pool contains two SSDs, it will use a sort of "mirror raid", so if one SSD fails, i can still manage to rebuild the data ? Right now, i use "VM Backup" to backup my VMs (on a single SSD Pool) in the array, and my Docker files are inside the array. 2/ Each disk inside a pool did not count in the array limit ? (12 drives in my case). Thanks !

Hello Squid and thanks for the quick answer. 1/ SSD : i didn't know about VM backup plugin, and i guess it can do the job. 2/ Cache Pool : I understand that it is the best choice. Only interrogation i have left is about Mover. From what i read, it is said that the mover do not "move" the file in use, and i guess the vdisk will always be in use. So, it seems good in you have 2 SSD in cache pool with protection, but not so good if you use only one SSD, so without protection. Or i use one SSD in Cache Pool along side with VM backup plugin ? That seems to be the good solution ? Thanks !

Hello, I have a UNRAID server with 10 mechanical drives (and different "quality", replace the old ones one by one). As noticed, the write on the array rarely exceed 80Mb/s, so my 1Gb/s network is never the bottleneck. Right now, my VM is inside the array and i would like to move it to a spare SSD i have. I don't really know what is the best pratice : - Unassigned device with rsync backuping it every night on the array - Cache pool only for VMs (did it move everynight inside the array ?) - The new "pool" feature i don't really fully understand yet ? I don't want to lose the array protection, even if it is only every 24h, like daily backup without shuting down the VM. Thanks. Thanks !

Ok, so i manage to solve all of that. For record : - the main problem was indeed IOMMU not enable in the bios. - i then needed to set "PCIe ACS override:" (Settings > VMs Manager) to "Both" (previously "Multi-function" was enough). - i noticed that i have a user-script (Plugin : "User Scripts") to unplug my CG from UNRAID which launch when i start the array : #!/bin/bash echo 0 > /sys/class/vtconsole/vtcon0/bind echo 0 > /sys/class/vtconsole/vtcon1/bind echo efi-framebuffer.0 > /sys/bus/platform/drivers/efi-framebuffer/unbind Do not know if it help but... - Then, when i started VMs, Unraid crashes ("flash device error" & Parity 1 disable). After searching a while, i ended up deleting libvirt.img and recreate it as i suspect some comflict between my previous hardware (intel based) and my new hardware (AMD based). - Finally, i need to recreate my VMs using the old virtual drive and everything was good. Thank you all for your help !! Keichi

Yes, i did that. Have some trouble to boot the bios after, did a CMOS reset, maybe that is when the IOMMU setting was reset. I wil try again. VM passtrough with GPU is one of my favorite feature in UNRAID, i definitely need to fix that ^^' Well, docker too. Unraid in global in fact.
