Sparky678911 Posted December 20, 2020 Share Posted December 20, 2020 (edited) Hi everyone a week ago i have put 2 more Hard Drive in my system which were new and i have been getting this error below on disk 5 and 6 can anyone help please Edited December 27, 2020 by Sparky678911 Quote Link to comment
JorgeB Posted December 20, 2020 Share Posted December 20, 2020 That's usually a bad SATA cable, replace but if it doesn't fix it please post the diagnostics, could also be a different issue, like a bad LSI firmware. Quote Link to comment
Sparky678911 Posted December 22, 2020 Author Share Posted December 22, 2020 Hi thanks for help i have changed the cables now the a better one so far so good 1 Quote Link to comment
Sparky678911 Posted December 27, 2020 Author Share Posted December 27, 2020 ok sorry but i have changed the cables but still getting the same error ?????? Quote Link to comment
trurl Posted December 27, 2020 Share Posted December 27, 2020 On 12/20/2020 at 7:44 AM, JorgeB said: if it doesn't fix it please post the diagnostics Quote Link to comment

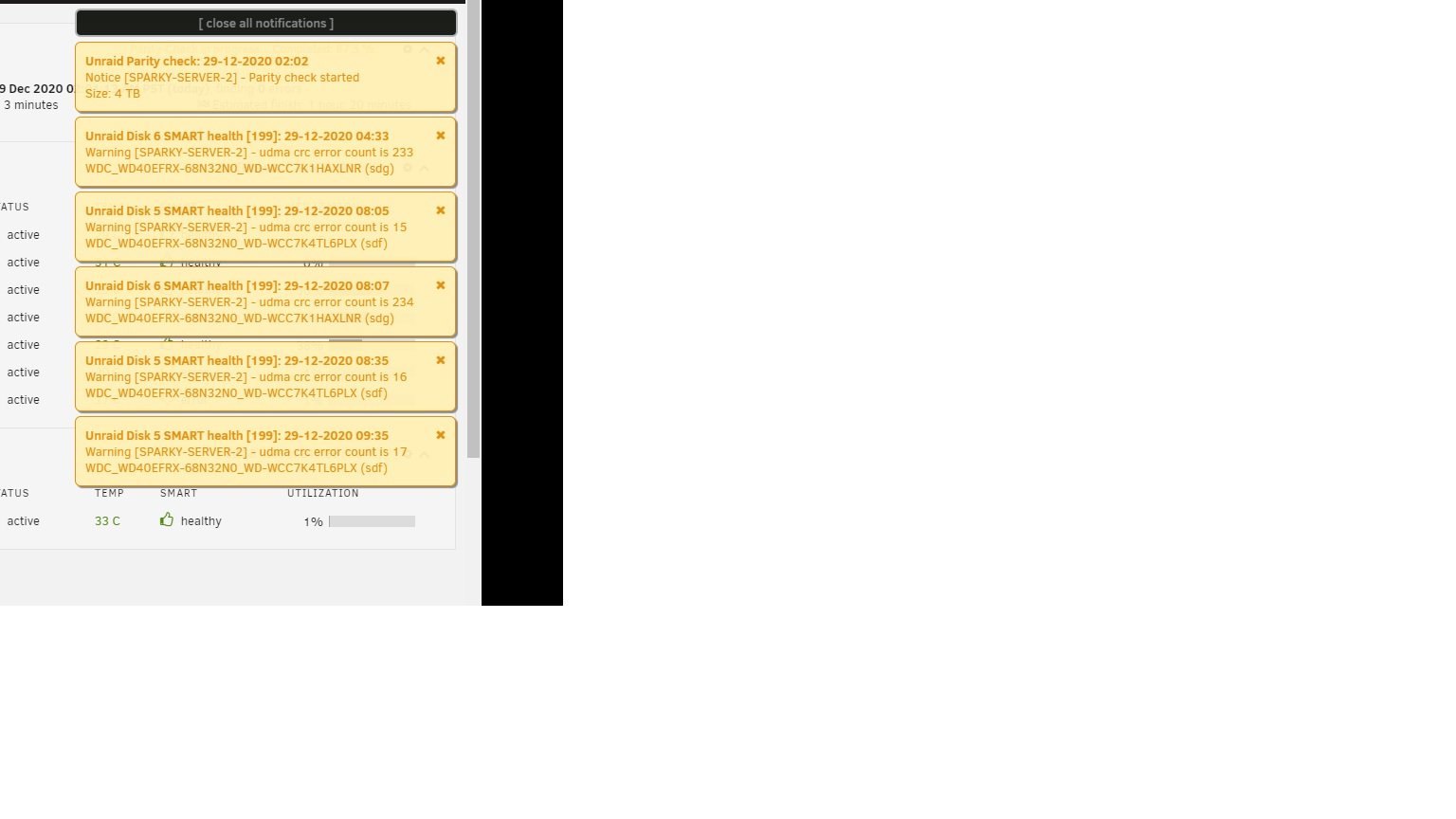

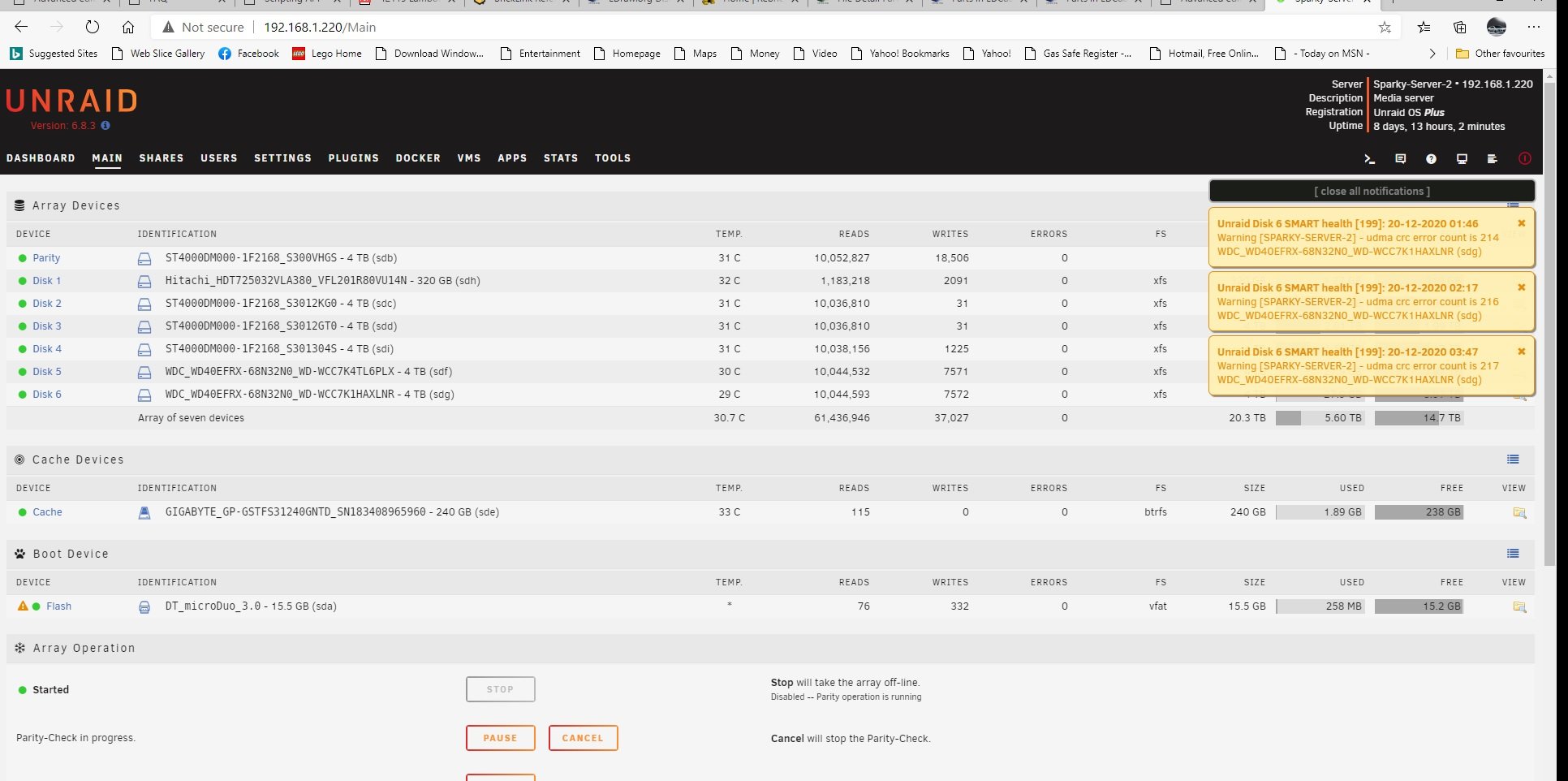

Sparky678911 Posted December 29, 2020 Author Share Posted December 29, 2020 This is what i am getting thanks for help Quote Link to comment
JorgeB Posted December 29, 2020 Share Posted December 29, 2020 Please post the diagnostics zip: Tools -> Diagnostics Quote Link to comment
trurl Posted December 29, 2020 Share Posted December 29, 2020 On 12/20/2020 at 7:44 AM, JorgeB said: if it doesn't fix it please post the diagnostics 45 minutes ago, JorgeB said: Please post the diagnostics zip: Tools -> Diagnostics If possible before rebooting and preferably with the array started Go to Tools - Diagnostics and attach the complete Diagnostics ZIP file to your NEXT post in this thread. Quote Link to comment
Sparky678911 Posted December 29, 2020 Author Share Posted December 29, 2020 2 hours ago, JorgeB said: Please post the diagnostics zip: Tools -> Diagnostics sparky-server-2-diagnostics-20201229-2021.zip Quote Link to comment
JorgeB Posted December 30, 2020 Share Posted December 30, 2020 If you already replaced the SATA cables and since both disks are on the same controller that would be the most likely culprit, you can swap one or both of them to another controller to confirm. Quote Link to comment
Sparky678911 Posted December 30, 2020 Author Share Posted December 30, 2020 (edited) both of the hard drives are on this card below which i needed to get and some one on here recommanded to get sata card maybe the card is in there is rubbish if so what should i get please Edited December 30, 2020 by Sparky678911 Quote Link to comment
JorgeB Posted December 30, 2020 Share Posted December 30, 2020 JMB585 chipset is good, but not all controllers are the same, it might be bad quality, or just a problem with that one, this is a good quality JMB585 controller: https://www.sybausa.com/index.php?route=product/product&path=64_181_85&product_id=1027 Quote Link to comment
Sparky678911 Posted December 30, 2020 Author Share Posted December 30, 2020 25 minutes ago, JorgeB said: JMB585 chipset is good, but not all controllers are the same, it might be bad quality, or just a problem with that one, this is a good quality JMB585 controller: https://www.sybausa.com/index.php?route=product/product&path=64_181_85&product_id=1027 do you knoiw where i can buy one i am in UK Quote Link to comment
JorgeB Posted December 30, 2020 Share Posted December 30, 2020 https://www.amazon.co.uk/Internal-Non-Raid-Controller-Desktop-Bracket/dp/B07ST9CPND/ref=sr_1_1?dchild=1&keywords=SI-PEX40139&qid=1609347892&s=computers&sr=1-1 Quote Link to comment
Sparky678911 Posted December 30, 2020 Author Share Posted December 30, 2020 53 minutes ago, JorgeB said: https://www.amazon.co.uk/Internal-Non-Raid-Controller-Desktop-Bracket/dp/B07ST9CPND/ref=sr_1_1?dchild=1&keywords=SI-PEX40139&qid=1609347892&s=computers&sr=1-1 Thanks i have just ordered it thanks for help Quote Link to comment
Sparky678911 Posted January 3, 2021 Author Share Posted January 3, 2021 Hi ok so i have brought and added the new card and still get the same error sparky-server-2-diagnostics-20210103-2250.zip Quote Link to comment
JorgeB Posted January 4, 2021 Share Posted January 4, 2021 CRC errors don't reset, but if you're getting more it's likely a cable problem, or those disks don't like that controller, you can swap them with the other model you have an test. Quote Link to comment
S80_UK Posted January 4, 2021 Share Posted January 4, 2021 One other possibility... Make sure that your SATA cables are not bound together with cable ties. It looks neat and helps airflow, but it can also allow crosstalk between the cables to cause signal quality problems. Quote Link to comment
Sparky678911 Posted January 4, 2021 Author Share Posted January 4, 2021 I have replaced the cables and the card is there a program i can repair and scan Hard drive to repair the CRC error thanks Quote Link to comment
JorgeB Posted January 4, 2021 Share Posted January 4, 2021 You don't repair CRC errors, they don't reset, are they still increasing? Quote Link to comment
trurl Posted January 4, 2021 Share Posted January 4, 2021 2 hours ago, Sparky678911 said: I have replaced the cables and the card is there a program i can repair and scan Hard drive to repair the CRC error thanks You can click on the SMART warning on the Dashboard page and it will let you Acknowledge the current count, then it will warn you again if it increases. Quote Link to comment
Sparky678911 Posted January 4, 2021 Author Share Posted January 4, 2021 8 hours ago, JorgeB said: You don't repair CRC errors, they don't reset, are they still increasing? i think it is going up i dont know what happening the drives are good and cables are i am lost🤔 How do i remove the drives in a safe way so that windows 10 can read them or do i just take out cheers Quote Link to comment
trurl Posted January 4, 2021 Share Posted January 4, 2021 Windows can't read Unraid filesystems. Are you sure you don't have a power problem such as bad splitters or cables or maybe a failing power supply? Quote Link to comment
Sparky678911 Posted January 5, 2021 Author Share Posted January 5, 2021 The power supply in there is a corsair cx 650 which i do not know how old it is but seams to works fine no noises no cut out and if i decide to take them out of the unraid system i want to put into my windows 10 PC will i need to do anything or unmount from unraid or somthing thanks for help Quote Link to comment
trurl Posted January 5, 2021 Share Posted January 5, 2021 Earlier you said 16 hours ago, Sparky678911 said: remove the drives in a safe way so that windows 10 can read them to which I replied 15 hours ago, trurl said: Windows can't read Unraid filesystems Now you ask again but without saying anything about reading them 3 hours ago, Sparky678911 said: out of the unraid system i want to put into my windows 10 PC Do you mean you want to reuse the disks in Windows and don't care about any data that might be on them? Quote Link to comment
