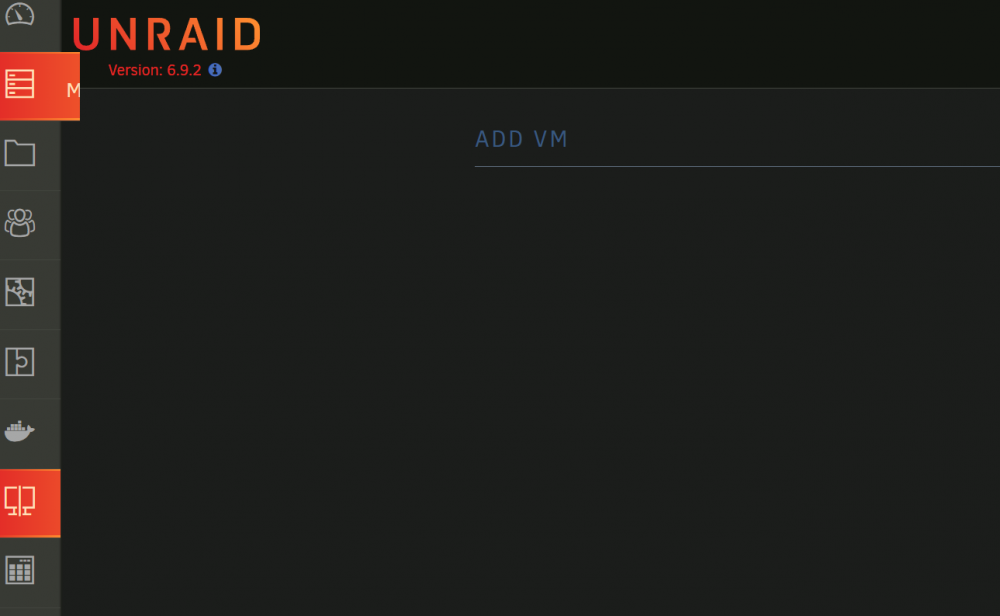

Mrobert Posted January 3, 2022 Share Posted January 3, 2022 Hi I had problem with libvert before, I recreated it (changed path in settings) and that one was solved, but I still can't create any VM, when I go to ADD VM and select template, I can see only bland page, with nothing on it. What should I do? unraid-diagnostics-20220103-1750.zip Quote Link to comment
Mrobert Posted January 5, 2022 Author Share Posted January 5, 2022 Is it because everyone is on vacation right now, or just there is nothing we can do? ;] Quote Link to comment
JorgeB Posted January 5, 2022 Share Posted January 5, 2022 Not seeing any issue in the logs, try rebooting in safe mode and post new diags if it still doesn't work. Quote Link to comment
Mrobert Posted January 11, 2022 Author Share Posted January 11, 2022 Hi, New diagnostics and new problem, twice during last week kernel panic happens, what the hell... I have this server and this configuration for the last two years almost, and everything was ok. Now it's far from being ok... unraid-diagnostics-20220111-1033.zip Quote Link to comment
JorgeB Posted January 11, 2022 Share Posted January 11, 2022 Jan 11 03:38:06 unRaid kernel: macvlan_broadcast+0x10e/0x13c [macvlan] Jan 11 03:38:06 unRaid kernel: macvlan_process_broadcast+0xf8/0x143 [macvlan] Macvlan call traces are usually the result of having dockers with a custom IP address, upgrading to v6.10 and switching to ipvlan might fix it (Settings -> Docker Settings -> Docker custom network type -> ipvlan (advanced view must be enable, top right)), or see below for more info. https://forums.unraid.net/topic/70529-650-call-traces-when-assigning-ip-address-to-docker-containers/ See also here: https://forums.unraid.net/bug-reports/stable-releases/690691-kernel-panic-due-to-netfilter-nf_nat_setup_info-docker-static-ip-macvlan-r1356/ Quote Link to comment
Mrobert Posted January 25, 2022 Author Share Posted January 25, 2022 Thanks for pointing the direction I did exactly that, updated, changed to ipvlan restart didn't do anything, tab VM was still not loading new VM template after couple of restarts (winter power outages in the area ) it magically started to work... but if the new VM is now showing what it should none of the VMs are nothing is starting (the green arrow says it is but it's not)... VNC is not working, logs shows the same for all of the machines Spoiler ErrorWarningSystemArrayLogin -uuid 4913dcaf-c849-9787-a605-050a50926da9 \ -no-user-config \ -nodefaults \ -chardev socket,id=charmonitor,fd=34,server=on,wait=off \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=utc,driftfix=slew \ -global kvm-pit.lost_tick_policy=delay \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device pcie-root-port,port=0x10,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2 \ -device pcie-root-port,port=0x15,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x5 \ -device pcie-root-port,port=0x11,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x1 \ -device pcie-root-port,port=0x12,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x2 \ -device pcie-root-port,port=0x13,chassis=5,id=pci.5,bus=pcie.0,addr=0x2.0x3 \ -device pcie-root-port,port=0x14,chassis=6,id=pci.6,bus=pcie.0,addr=0x2.0x4 \ -device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.3,addr=0x0 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/home_assistant/haos_ova-7.2.vmdk","node-name":"libvirt-1-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-1-storage"}' \ -device virtio-blk-pci,bus=pci.2,addr=0x0,drive=libvirt-1-format,id=virtio-disk2,bootindex=1,write-cache=on \ -netdev tap,fd=36,id=hostnet0 \ -device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:9d:8c:58,bus=pci.1,addr=0x0 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0 \ -chardev socket,id=charchannel0,fd=37,server=on,wait=off \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -audiodev id=audio1,driver=none \ -vnc 0.0.0.0:0,websocket=5700,audiodev=audio1 \ -k en-us \ -device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pcie.0,addr=0x1 \ -device virtio-balloon-pci,id=balloon0,bus=pci.5,addr=0x0 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/2 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring unraid-diagnostics-20220125-1422.zip Quote Link to comment
JorgeB Posted January 25, 2022 Share Posted January 25, 2022 1 hour ago, Mrobert said: I did exactly that, updated, changed to ipvlan restart didn't do anything, tab VM was still not loading new VM template That's expected, the change above it to avoid Unraid crashing, nothing to do with VMs working or not. Quote Link to comment
Mrobert Posted January 25, 2022 Author Share Posted January 25, 2022 6 minutes ago, JorgeB said: That's expected, the change above it to avoid Unraid crashing, nothing to do with VMs working or not. ;)) oh, ok, nice to have one of them then Ok, do we (and by we I mean You ) have any solution to the VM problem? I most definitely do need them Quote Link to comment
JorgeB Posted January 25, 2022 Share Posted January 25, 2022 6 minutes ago, Mrobert said: You ) have any solution to the VM problem? Not really, but someone else might have. Quote Link to comment
Squid Posted January 25, 2022 Share Posted January 25, 2022 Is that how your VM page actually looks? With cutoff text on "Main" (and still highlighted) while you're on the VM tab? Try it in safe mode from the boot menu Quote Link to comment
Mrobert Posted January 28, 2022 Author Share Posted January 28, 2022 Ni @Squid sorry for created confusion So the cut Menu is because of print-screen delay I think I may moved mouse up to Main when the screen shot app kicked. My VM tab is working (meaning I can create new VM) but I can not start any of my VMs (old or new ones) Quote Link to comment
Mrobert Posted February 1, 2022 Author Share Posted February 1, 2022 On 1/25/2022 at 2:27 PM, Mrobert said: Thanks for pointing the direction I did exactly that, updated, changed to ipvlan restart didn't do anything, tab VM was still not loading new VM template after couple of restarts (winter power outages in the area ) it magically started to work... but if the new VM is now showing what it should none of the VMs are nothing is starting (the green arrow says it is but it's not)... VNC is not working, logs shows the same for all of the machines Hide contents ErrorWarningSystemArrayLogin -uuid 4913dcaf-c849-9787-a605-050a50926da9 \ -no-user-config \ -nodefaults \ -chardev socket,id=charmonitor,fd=34,server=on,wait=off \ -mon chardev=charmonitor,id=monitor,mode=control \ -rtc base=utc,driftfix=slew \ -global kvm-pit.lost_tick_policy=delay \ -no-hpet \ -no-shutdown \ -boot strict=on \ -device pcie-root-port,port=0x10,chassis=1,id=pci.1,bus=pcie.0,multifunction=on,addr=0x2 \ -device pcie-root-port,port=0x15,chassis=2,id=pci.2,bus=pcie.0,addr=0x2.0x5 \ -device pcie-root-port,port=0x11,chassis=3,id=pci.3,bus=pcie.0,addr=0x2.0x1 \ -device pcie-root-port,port=0x12,chassis=4,id=pci.4,bus=pcie.0,addr=0x2.0x2 \ -device pcie-root-port,port=0x13,chassis=5,id=pci.5,bus=pcie.0,addr=0x2.0x3 \ -device pcie-root-port,port=0x14,chassis=6,id=pci.6,bus=pcie.0,addr=0x2.0x4 \ -device ich9-usb-ehci1,id=usb,bus=pcie.0,addr=0x7.0x7 \ -device ich9-usb-uhci1,masterbus=usb.0,firstport=0,bus=pcie.0,multifunction=on,addr=0x7 \ -device ich9-usb-uhci2,masterbus=usb.0,firstport=2,bus=pcie.0,addr=0x7.0x1 \ -device ich9-usb-uhci3,masterbus=usb.0,firstport=4,bus=pcie.0,addr=0x7.0x2 \ -device virtio-serial-pci,id=virtio-serial0,bus=pci.3,addr=0x0 \ -blockdev '{"driver":"file","filename":"/mnt/user/domains/home_assistant/haos_ova-7.2.vmdk","node-name":"libvirt-1-storage","cache":{"direct":false,"no-flush":false},"auto-read-only":true,"discard":"unmap"}' \ -blockdev '{"node-name":"libvirt-1-format","read-only":false,"cache":{"direct":false,"no-flush":false},"driver":"raw","file":"libvirt-1-storage"}' \ -device virtio-blk-pci,bus=pci.2,addr=0x0,drive=libvirt-1-format,id=virtio-disk2,bootindex=1,write-cache=on \ -netdev tap,fd=36,id=hostnet0 \ -device virtio-net,netdev=hostnet0,id=net0,mac=52:54:00:9d:8c:58,bus=pci.1,addr=0x0 \ -chardev pty,id=charserial0 \ -device isa-serial,chardev=charserial0,id=serial0 \ -chardev socket,id=charchannel0,fd=37,server=on,wait=off \ -device virtserialport,bus=virtio-serial0.0,nr=1,chardev=charchannel0,id=channel0,name=org.qemu.guest_agent.0 \ -device usb-tablet,id=input0,bus=usb.0,port=1 \ -audiodev id=audio1,driver=none \ -vnc 0.0.0.0:0,websocket=5700,audiodev=audio1 \ -k en-us \ -device qxl-vga,id=video0,ram_size=67108864,vram_size=67108864,vram64_size_mb=0,vgamem_mb=16,max_outputs=1,bus=pcie.0,addr=0x1 \ -device virtio-balloon-pci,id=balloon0,bus=pci.5,addr=0x0 \ -sandbox on,obsolete=deny,elevateprivileges=deny,spawn=deny,resourcecontrol=deny \ -msg timestamp=on char device redirected to /dev/pts/2 (label charserial0) qxl_send_events: spice-server bug: guest stopped, ignoring unraid-diagnostics-20220125-1422.zip 225.29 kB · 1 download Quote Link to comment
Mrobert Posted February 10, 2022 Author Share Posted February 10, 2022 Nothing? Quote Link to comment
AndrewZ Posted February 11, 2022 Share Posted February 11, 2022 I wonder if you can try something. Can you stop the VM service via Settings - VM Manager. Once it's stopped, switch to Advanced View and change the name of the libvirt.img file (ie: call it test.img instead) Restart the service and see if you can't add a VM now (NOTE that none of your existing VMs will appear because we've set the libvirt image to be something else) It's not going to solve you problem, but it will narrow it down. A Quote Link to comment
Mrobert Posted February 11, 2022 Author Share Posted February 11, 2022 Hi AndrewZ I'm not sure if I got it right, stop the VM Manager, and just type different name in the libvirt location? It marks it red and I can not save it (apply button is not doing anything) Quote Link to comment
AndrewZ Posted February 11, 2022 Share Posted February 11, 2022 Huh. Try just leaving the name alone and switch the share that it's in. (It seems to work changing the name occasionally. I have to investigate why on that one) Quote Link to comment
Squid Posted February 12, 2022 Share Posted February 12, 2022 OK. So the net result of the test was that the VM tab worked and you could actually add a VM? Quote Link to comment
Mrobert Posted February 13, 2022 Author Share Posted February 13, 2022 18 hours ago, Squid said: OK. So the net result of the test was that the VM tab worked and you could actually add a VM? so VM tab work, I can add/edit/remove VMs but they are not starting (the green triangle icon says Started, but it's not...) (messages above) Quote Link to comment
AndrewZ Posted February 14, 2022 Share Posted February 14, 2022 Was the new VM pointed to the original VDisks or created by copying and pasting an xml or was it basically a stock VM as a test? Quote Link to comment
jonp Posted February 14, 2022 Share Posted February 14, 2022 Ok, something may be seriously wrong with your gear or setup. VMs "just work" especially when there is no pass through of PCI device involved. I would be very suspicious of your USB flash device (could be corrupted) or the memory (might be bad). That said, let's try starting from scratch and having you take screenshots along the way. First, let's delete your existing libvirt image and create a new one. Navigate to the VM Manager Settings page (Settings > VM Manager). Stop the VM service (Enable VMs > No > Apply). Make sure the path for libvirt image file is /mnt/user/system/libvirt/libvirt.img. Delete the libvirt image file (VM Manger Settings > libvirt storage location > click "delete" checkbox and click "apply") Start the VM manager service again (Enable VMs > Yes > Apply). Now if you go to the VMs tab, you should see no VMs defined there. Go ahead and try to create one. Before creating, take a screenshot of the settings you have configured for the VM. Once you click create, if any error message pops up, screenshot that as well. If no errors show up but the VM doesn't start, navigate to the Tools > Diagnostics page and download the diagnostics zip from there and attach it to a new forum post reply here. We can then try to figure out what's going on. 1 Quote Link to comment
Mrobert Posted March 1, 2022 Author Share Posted March 1, 2022 (edited) For starters, thank you so much for helping, sorry I left you hanging for so long, I had a business trip and was out of the country for the last two weeks. I'm back and really want to make this work again, will be here twice a day to keep it moving now. Sorry again. On 2/14/2022 at 10:21 AM, AndrewZ said: Was the new VM pointed to the original VDisks or created by copying and pasting an xml or was it basically a stock VM as a test? The VM is a qcow disk downloaded from the HomeAssistant web page On 2/14/2022 at 7:01 PM, jonp said: Ok, something may be seriously wrong with your gear or setup. VMs "just work" especially when there is no pass through of PCI device involved. I would be very suspicious of your USB flash device (could be corrupted) or the memory (might be bad). That said, let's try starting from scratch and having you take screenshots along the way. First, let's delete your existing libvirt image and create a new one. Navigate to the VM Manager Settings page (Settings > VM Manager). Stop the VM service (Enable VMs > No > Apply). Make sure the path for libvirt image file is /mnt/user/system/libvirt/libvirt.img. Delete the libvirt image file (VM Manger Settings > libvirt storage location > click "delete" checkbox and click "apply") Start the VM manager service again (Enable VMs > Yes > Apply). Now if you go to the VMs tab, you should see no VMs defined there. Go ahead and try to create one. Before creating, take a screenshot of the settings you have configured for the VM. Once you click create, if any error message pops up, screenshot that as well. If no errors show up but the VM doesn't start, navigate to the Tools > Diagnostics page and download the diagnostics zip from there and attach it to a new forum post reply here. We can then try to figure out what's going on. Done, Mission Failed Successfully diagnostics: unraid-diagnostics-20220301-2309.zip Edited March 1, 2022 by Mrobert Quote Link to comment
