October 6, 201411 yr I'm looking for a little help, i have 2 VM's both with things passed through that i'm trying to register them in virtman. I've selected new instance from xml and pasted the config in but i get the following error. (domain_definition):66: Unescaped '<' not allowed in attributes values <qemu:arg value='-device'/> ----^ this is the section of my xml that the error relates too. <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='ioh3420,bus=pcie.0,addr=1c.0,multifunction=on,port=1,chass$ <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=07:00.0,bus=pcie.0'/> </qemu:commandline> </domain> Any pointers?
October 6, 201411 yr Hi dmacias, I am experiencing a problem related to access the files after using webvirtmgr. When I start unraid and then start webvirtmgr I successfully can access the files (my w8.xml, w8.qcow2, etc..) and start the VM. But if I stop the VM and try again to start it...I shows me an error (files are read only or you do not have pemissions to access files). I tried to change from nobody to root and back .. with no success. I tried the same thing outside of webvirtmgr and same thing happens...any idea why is this happening? Rgds.
October 6, 201411 yr Author I'm looking for a little help, i have 2 VM's both with things passed through that i'm trying to register them in virtman. I've selected new instance from xml and pasted the config in but i get the following error. (domain_definition):66: Unescaped '<' not allowed in attributes values <qemu:arg value='-device'/> ----^ this is the section of my xml that the error relates too. <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='ioh3420,bus=pcie.0,addr=1c.0,multifunction=on,port=1,chass$ <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=07:00.0,bus=pcie.0'/> </qemu:commandline> </domain> Any pointers? You're missing a /> after chass$
October 6, 201411 yr Author Hi dmacias, I am experiencing a problem related to access the files after using webvirtmgr. When I start unraid and then start webvirtmgr I successfully can access the files (my w8.xml, w8.qcow2, etc..) and start the VM. But if I stop the VM and try again to start it...I shows me an error (files are read only or you do not have pemissions to access files). I tried to change from nobody to root and back .. with no success. I tried the same thing outside of webvirtmgr and same thing happens...any idea why is this happening? Rgds. The root/nobody only applies to the webvirtmgr directory where the program is installed. Where are you storing your vm images?
October 6, 201411 yr The root/nobody only applies to the webvirtmgr directory where the program is installed. Where are you storing your vm images? Hi dmacias my images (w8.qcow2 and virtio.iso/windows8.iso) are located in /mnt/disk1/images directory. I had them before in /mnt/vm (mounted in an SSD outside of the array). This SSD is the same disk where webvirtmgr is located (/mnt/vm/webvirtmgr). Rgds.
October 6, 201411 yr I'm looking for a little help, i have 2 VM's both with things passed through that i'm trying to register them in virtman. I've selected new instance from xml and pasted the config in but i get the following error. (domain_definition):66: Unescaped '<' not allowed in attributes values <qemu:arg value='-device'/> ----^ this is the section of my xml that the error relates too. <qemu:commandline> <qemu:arg value='-device'/> <qemu:arg value='ioh3420,bus=pcie.0,addr=1c.0,multifunction=on,port=1,chass$ <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=07:00.0,bus=pcie.0'/> </qemu:commandline> </domain> Any pointers? You're missing a /> after chass$ Well I feel a bit stupid, i didn't have my window wide enough and chopped the end of the line of when i copied it Thanks for spotting it.
October 6, 201411 yr Author The root/nobody only applies to the webvirtmgr directory where the program is installed. Where are you storing your vm images? Hi dmacias my images (w8.qcow2 and virtio.iso/windows8.iso) are located in /mnt/disk1/images directory. I had them before in /mnt/vm (mounted in an SSD outside of the array). This SSD is the same disk where webvirtmgr is located (/mnt/vm/webvirtmgr). Rgds. I'm not sure how you moved them but it likely is a permissions problem. Might move them back and see if that works.
October 6, 201411 yr I'm not sure how you moved them but it likely is a permissions problem. Might move them back and see if that works. I checked my syslog and I am getting some btrfs and reseirfs errors...this somehow must be interfering with it. I will solve this first. Thx anyway for support.
October 7, 201411 yr My first time messing with all of this. The test machine I am using is vt-x capable but not vt-d (should not be needed since I am not using passthrough). As far as I can tell, everything is running correctly. Status RUNNING with version: v4.8.8-29-g72a4544 Web Virtual Manager is up to date. Total Storage Usage: 7 MB Install Directory: 7 MB Your config data will persist after a reboot I created a vanilla Ubuntu 14.04 instance using the "small" template in webvirtman. When I try and start the VM, I get he following message: unsupported configuration: Domain requires KVM, but it is not available. Check that virtualization is enabled in the host BIOS, and host configuration is setup to load the kvm modules. Nothing is written to the syslog. Here is my XML: <domain type='kvm'> <name>ubuntu</name> <uuid>8d5d259c-f821-d11b-4379-9001f8a06ac0</uuid> <description>None</description> <memory unit='KiB'>1048576</memory> <currentMemory unit='KiB'>1048576</currentMemory> <vcpu placement='static'>2</vcpu> <os> <type arch='x86_64' machine='pc-i440fx-2.1'>hvm</type> <boot dev='hd'/> <boot dev='cdrom'/> <bootmenu enable='yes'/> </os> <features> <acpi/> <apic/> <pae/> </features> <cpu mode='host-model'> <model fallback='allow'/> </cpu> <clock offset='utc'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>restart</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='disk'> <driver name='qemu' type='qcow2'/> <source file='/mnt/cache/VMs/ubuntu.img'/> <target dev='vda' bus='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0'/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/user/Images/ubuntu-14.04.1-desktop-amd64.iso'/> <target dev='hda' bus='ide'/> <readonly/> <address type='drive' controller='0' bus='1' target='0' unit='1'/> </disk> <controller type='usb' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x2'/> </controller> <controller type='pci' index='0' model='pci-root'/> <controller type='ide' index='0'> <address type='pci' domain='0x0000' bus='0x00' slot='0x01' function='0x1'/> </controller> <interface type='network'> <mac address='52:54:00:c7:52:bf'/> <source network='virbr0'/> <model type='virtio'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x03' function='0x0'/> </interface> <serial type='pty'> <target port='0'/> </serial> <console type='pty'> <target type='serial' port='0'/> </console> <input type='tablet' bus='usb'/> <input type='mouse' bus='ps2'/> <input type='keyboard' bus='ps2'/> <graphics type='vnc' port='-1' autoport='yes' listen='0.0.0.0'> <listen type='address' address='0.0.0.0'/> </graphics> <video> <model type='cirrus' vram='9216' heads='1'/> <address type='pci' domain='0x0000' bus='0x00' slot='0x02' function='0x0'/> </video> <memballoon model='virtio'> <address type='pci' domain='0x0000' bus='0x00' slot='0x05' function='0x0'/> </memballoon> </devices> </domain> I'm guessing I missed a required step along the way. John
October 7, 201411 yr Author I wouldn't use those default templates. You could try custom instance. Then edit the vnc like the first page says. Then edit the network to use the network bridge you create in unraid settings. My unraid bridge is br0. <interface type='bridge'> <mac address='00:16:3e:01:01:04'/> <source bridge='br0'/> <target dev='vnet0'/> <model type='virtio'/> <alias name='net0'/> Or you could paste an xml in the "From XML" I think there are some in this thread. I used peter's ubuntu xml from another thread. You still need the vnc settings from the first page of the thread.
October 7, 201411 yr OK, I tried using peter's XML and got the same result. I then restarted libvirtd and see this in the syslog: Oct 7 07:24:36 Tower php: /etc/rc.d/rc.libvirt restart Oct 7 07:24:36 Tower php: Waiting machines Oct 7 07:24:36 Tower php: Oct 7 07:24:36 Tower php: Stopping libvirtd... Oct 7 07:24:36 Tower php: Oct 7 07:24:40 Tower php: Starting libvirtd... Oct 7 07:24:40 Tower kernel: tun: Universal TUN/TAP device driver, 1.6 Oct 7 07:24:40 Tower kernel: tun: © 1999-2004 Max Krasnyansky Oct 7 07:24:40 Tower kernel: kvm: disabled by bios Oct 7 07:24:41 Tower kernel: kvm: disabled by bios Oct 7 07:24:41 Tower php: Yeah so Virtualization was not enabled in the BIOS. My bad. John
October 10, 201411 yr Hi dmacias, everything up and working! thx for your help and time developing the GUI. Rgds. EDIT: Just curious, do you have the same graphical performance when connected to a VM using webvirtmgr built-in VNC as compared to accessing to the VM using directly the TightVNC Viewer?
October 11, 201411 yr Just updated to the latest version of webvirtmgr via the plugins ->update gui and this is the first time that it has successfully updated! Normally I have to remove all the webvirtmgr data files and start from scratch. Not sure what has changed but I just wanted to thank you again Dmacias for all your time keeping this updated! EDIT: Also I really like the new "KVM" tab!
October 11, 201411 yr Hi dmacias, What is the best way to uninstall Webwirtmgr and Virtman. I tried the remove option with no success. Rgds.
October 12, 201411 yr Hi dmacias, What is the best way to uninstall Webwirtmgr and Virtman. I tried the remove option with no success. Rgds. Try specifying a different install path in the plugin control panel...
October 12, 201411 yr Author Hi dmacias, What is the best way to uninstall Webwirtmgr and Virtman. I tried the remove option with no success. Rgds. You can remove the webvirtmgr and vitMan plg files and corresponding folders from your flash drive. In /config/plugins. Then reboot unraid

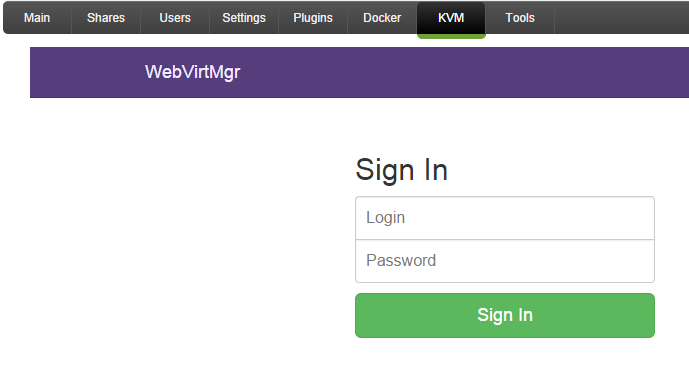

October 12, 201411 yr With the latest plug-in update it's not allowing me to log in. If I goto unraid:8000/servers/ I can log in and it works.
October 12, 201411 yr Author With the latest plug-in update it's not allowing me to log in. If I goto unraid:8000/servers/ I can log in and it works. I changed it to use ip from unraid network cfg. If you try ip:8000 does that not work for you?

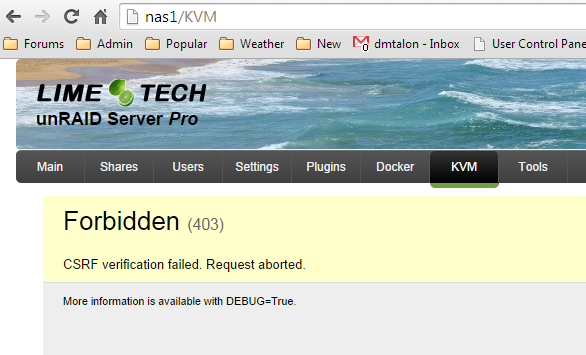

October 12, 201411 yr If I click on the running green icon in settings/kvm Manager it works which takes me to http://192.168.0.100:8000/servers/ If I click on the link in unraid gui (KVM across the top) it won't allow me to log in. edit: If I use http://192.168.0.100/KVM it does work. But everything i do in unraid is with my dns name nas1
October 12, 201411 yr I've had this issue recently as well and it had to do with network.cfg on the boot device having an IP address defined even though it was set to using dhcp.
October 12, 201411 yr Author I've had this issue recently as well and it had to do with network.cfg on the boot device having an IP address defined even though it was set to using dhcp. I'll change it back to get hostname. Was just trying to help with osx. Also thought I'd tease something I've been working on.
October 12, 201411 yr WOW! That is incredible! Is there a way for you to add a restart button next to the shutdown button?
October 12, 201411 yr Author WOW! That is incredible! Is there a way for you to add a restart button next to the shutdown button? Thanks and added restart, pause & resume had to change to icons though
