Dmtalon Posted October 12, 2014 Share Posted October 12, 2014 That is very slick looking... And the change you made today fixed my issue. Quote Link to comment
archedraft Posted October 12, 2014 Share Posted October 12, 2014 That's pretty slick! Quote Link to comment
dmacias Posted October 12, 2014 Author Share Posted October 12, 2014 That is very slick looking... And the change you made today fixed my issue. Thanks. I prefer hostname anyway too. That's pretty slick! Thanks I hope to have create, add, delete, vnc done soon. But most everything else works. And it's all php based so it runs natively on emhttp in unraid. No more python, ports and webvirtmgr Quote Link to comment
soana Posted October 12, 2014 Share Posted October 12, 2014 Thanks! Can't wait to get back to my unraid and try it out. Quote Link to comment
jonp Posted October 13, 2014 Share Posted October 13, 2014 Derek, as I said earlier when we spoke, this is outstanding work! Thank you for your contributions here and assistance in making it easier and easier to manage virtual machines with KVM in unRAID! Quote Link to comment
luca2 Posted October 16, 2014 Share Posted October 16, 2014 Great work! your work helped me to start my vm, man! command was too hard for me! Quote Link to comment
luca2 Posted October 17, 2014 Share Posted October 17, 2014 Hi dmacias, Pls can you briefly explain what the "metadata" check box while cloning a vm actually does? Rgds. Quote Link to comment
dmacias Posted October 17, 2014 Author Share Posted October 17, 2014 Hi dmacias, Pls can you briefly explain what the "metadata" check box while cloning a vm actually does? Rgds. I'm not sure but I think I refers to snapshots and other data related to the vm. Quote Link to comment
GreeffJl Posted October 19, 2014 Share Posted October 19, 2014 Hi, getting the following error on instances - webvirtmgr Failed to connect socket to '/var/run/libvirt/libvirt-sock': No such file or directory any idea perhaps? Quote Link to comment
dmacias Posted October 19, 2014 Author Share Posted October 19, 2014 Hi, getting the following error on instances - webvirtmgr Failed to connect socket to '/var/run/libvirt/libvirt-sock': No such file or directory any idea perhaps? You need to start libvirt or install virtMan.plg. Also check out my other thread in the kvm section. I made my own vm manager. http://lime-technology.com/forum/index.php?topic=35858.0 Quote Link to comment
GreeffJl Posted October 20, 2014 Share Posted October 20, 2014 All working, but my mouse is not working in the vnc console, any ideas? Quote Link to comment
GreeffJl Posted October 20, 2014 Share Posted October 20, 2014 I got the VM and running the install part, But there is no install disk? <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>windows_8.1</name> <uuid>cc411d70-4463-4db7-bf36-d364c0cdaa9d</uuid> <memory unit='GB'>4</memory> <currentMemory unit='GB'>4</currentMemory> <vcpu placement='static'>4</vcpu> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='q35'>hvm</type> <boot dev='cdrom'/> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> </cpu> <clock offset='localtime'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/cache/VM/Win81/win81.iso'/> <target dev='sdc' bus='sata'/> <readonly/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/cache/VM/Win81/virtio-win-0.1-81.iso'/> <target dev='sdd' bus='sata'/> <readonly/> </disk> <disk type="file" device="disk"> <driver name="qemu" type="qcow2" /> <source file="/mnt/cache/VM/Win81/Win81.qcow2" /> <target dev="vda" bus="virtio" /> </disk> <controller type='sata' index='0'> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> </controller> <controller type='pci' index='2' model='pci-bridge'> </controller> <controller type='usb' index='0' model='none'> </controller> <interface type='bridge'> <source bridge='docker0'/> <model type='virtio'/> </interface> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0'> <listen type='address' address='0.0.0.0'/> </graphics> <input type='mouse' bus='ps2'/> <memballoon model='virtio'/> </devices> </domain> Quote Link to comment
dmacias Posted October 20, 2014 Author Share Posted October 20, 2014 I got the VM and running the install part, But there is no install disk? <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>windows_8.1</name> <uuid>cc411d70-4463-4db7-bf36-d364c0cdaa9d</uuid> <memory unit='GB'>4</memory> <currentMemory unit='GB'>4</currentMemory> <vcpu placement='static'>4</vcpu> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='q35'>hvm</type> <boot dev='cdrom'/> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> </cpu> <clock offset='localtime'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/cache/VM/Win81/win81.iso'/> <target dev='sdc' bus='sata'/> <readonly/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/cache/VM/Win81/virtio-win-0.1-81.iso'/> <target dev='sdd' bus='sata'/> <readonly/> </disk> <disk type="file" device="disk"> <driver name="qemu" type="qcow2" /> <source file="/mnt/cache/VM/Win81/Win81.qcow2" /> <target dev="vda" bus="virtio" /> </disk> <controller type='sata' index='0'> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> </controller> <controller type='pci' index='2' model='pci-bridge'> </controller> <controller type='usb' index='0' model='none'> </controller> <interface type='bridge'> <source bridge='docker0'/> <model type='virtio'/> </interface> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0'> <listen type='address' address='0.0.0.0'/> </graphics> <input type='mouse' bus='ps2'/> <memballoon model='virtio'/> </devices> </domain> During install did you install the windows virtio drivers? If not, that may explain the missing drive and mouse. I haven't installed a windows vm yet. Quote Link to comment
dmacias Posted October 20, 2014 Author Share Posted October 20, 2014 I got the VM and running the install part, But there is no install disk? <domain type='kvm' xmlns:qemu='http://libvirt.org/schemas/domain/qemu/1.0'> <name>windows_8.1</name> <uuid>cc411d70-4463-4db7-bf36-d364c0cdaa9d</uuid> <memory unit='GB'>4</memory> <currentMemory unit='GB'>4</currentMemory> <vcpu placement='static'>4</vcpu> <resource> <partition>/machine</partition> </resource> <os> <type arch='x86_64' machine='q35'>hvm</type> <boot dev='cdrom'/> </os> <features> <acpi/> <apic/> </features> <cpu mode='host-passthrough'> </cpu> <clock offset='localtime'/> <on_poweroff>destroy</on_poweroff> <on_reboot>restart</on_reboot> <on_crash>destroy</on_crash> <devices> <emulator>/usr/bin/qemu-system-x86_64</emulator> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/cache/VM/Win81/win81.iso'/> <target dev='sdc' bus='sata'/> <readonly/> </disk> <disk type='file' device='cdrom'> <driver name='qemu' type='raw'/> <source file='/mnt/cache/VM/Win81/virtio-win-0.1-81.iso'/> <target dev='sdd' bus='sata'/> <readonly/> </disk> <disk type="file" device="disk"> <driver name="qemu" type="qcow2" /> <source file="/mnt/cache/VM/Win81/Win81.qcow2" /> <target dev="vda" bus="virtio" /> </disk> <controller type='sata' index='0'> </controller> <controller type='pci' index='0' model='pcie-root'/> <controller type='pci' index='1' model='dmi-to-pci-bridge'> </controller> <controller type='pci' index='2' model='pci-bridge'> </controller> <controller type='usb' index='0' model='none'> </controller> <interface type='bridge'> <source bridge='docker0'/> <model type='virtio'/> </interface> <graphics type='vnc' port='-1' autoport='yes' websocket='-1' listen='0.0.0.0'> <listen type='address' address='0.0.0.0'/> </graphics> <input type='mouse' bus='ps2'/> <memballoon model='virtio'/> </devices> </domain> See here for virtio drivers http://lime-technology.com/forum/index.php?topic=35609.msg331751.msg#331751 Quote Link to comment
luca2 Posted October 21, 2014 Share Posted October 21, 2014 Hi dmacias, i need your help. I am getting this error when I try to passthrough one usb port (00:12.2): Error while starting domain: internal error: early end of file from monitor: possible problem: 2014-10-21T19:26:52.295122Z qemu-system-x86_64: -device vfio-pci,host=00:12.2,bus=pcie.0: vfio: error, group 6 is not viable, please ensure all devices within the iommu_group are bound to their vfio bus driver. 2014-10-21T19:26:52.295187Z qemu-system-x86_64: -device vfio-pci,host=00:12.2,bus=pcie.0: vfio: failed to get group 6 2014-10-21T19:26:52.295219Z qemu-system-x86_64: -device vfio-pci,host=00:12.2,bus=pcie.0: Device initialization failed. 2014-10-21T19:26:52.295254Z qemu-system-x86_64: -device vfio-pci,host=00:12.2,bus=pcie.0: Device 'vfio-pci' could not be initialized Vmmgr Device Node Information "usb_device" shows: Device Identification Driver Vendor Product XML usb_usb4 0x1d6b:0x0001 usb Linux 3.16.3-unRAID ohci_hcd OHCI PCI host controller usb_usb5 0x1d6b:0x0001 usb Linux 3.16.3-unRAID ohci_hcd OHCI PCI host controller usb_usb2 0x1d6b:0x0002 usb Linux 3.16.3-unRAID ehci_hcd EHCI Host Controller usb_usb6 0x1d6b:0x0001 usb Linux 3.16.3-unRAID ohci_hcd OHCI PCI host controller usb_usb8 0x1d6b:0x0002 usb Linux 3.16.3-unRAID xhci_hcd xHCI Host Controller usb_usb9 0x1d6b:0x0003 usb Linux 3.16.3-unRAID xhci_hcd xHCI Host Controller usb_usb10 0x1d6b:0x0002 usb Linux 3.16.3-unRAID xhci_hcd xHCI Host Controller usb_usb11 0x1d6b:0x0003 usb Linux 3.16.3-unRAID xhci_hcd xHCI Host Controller usb_usb7 0x1d6b:0x0001 usb Linux 3.16.3-unRAID ohci_hcd OHCI PCI host controller usb_usb3 0x1d6b:0x0002 usb Linux 3.16.3-unRAID ehci_hcd EHCI Host Controller usb_3_3 0x1976:0x6025 usb 2.0 Flash Disk usb_4_1 0x0603:0x00f2 usb NOVATEK USB Keyboard usb_5_1 0x046d:0xc050 usb Logitech USB-PS/2 Optical Mouse I attach more info: root@Tower2:~# readlink /sys/bus/pci/devices/0000:00:12.2/iommu_group ../../../kernel/iommu_groups/6 root@Tower2:~# ls /sys/bus/pci/devices/0000:00:12.2/iommu_group/devices/ 0000:00:12.0@ 0000:00:12.2@ root@Tower2:~# ls /dev/vfio 18 6 vfio ..18 is GPU which was succesfully passed through. And my xml: <qemu:arg value='ioh3420,bus=pcie.0,addr=1c.0,multifunction=on,port=1,chassis=1,id=root.1'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=01:00.0,bus=root.1,addr=00.0,multifunction=on,x-vga=on'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=00:12.2,bus=pcie.0'/> </qemu:commandline> Rgds. Quote Link to comment
jonp Posted October 21, 2014 Share Posted October 21, 2014 Hi dmacias, i need your help. I am getting this error when I try to passthrough one usb port (00:12.2): Error while starting domain: internal error: early end of file from monitor: possible problem: 2014-10-21T19:26:52.295122Z qemu-system-x86_64: -device vfio-pci,host=00:12.2,bus=pcie.0: vfio: error, group 6 is not viable, please ensure all devices within the iommu_group are bound to their vfio bus driver. 2014-10-21T19:26:52.295187Z qemu-system-x86_64: -device vfio-pci,host=00:12.2,bus=pcie.0: vfio: failed to get group 6 2014-10-21T19:26:52.295219Z qemu-system-x86_64: -device vfio-pci,host=00:12.2,bus=pcie.0: Device initialization failed. 2014-10-21T19:26:52.295254Z qemu-system-x86_64: -device vfio-pci,host=00:12.2,bus=pcie.0: Device 'vfio-pci' could not be initialized Vmmgr Device Node Information "usb_device" shows: Device Identification Driver Vendor Product XML usb_usb4 0x1d6b:0x0001 usb Linux 3.16.3-unRAID ohci_hcd OHCI PCI host controller usb_usb5 0x1d6b:0x0001 usb Linux 3.16.3-unRAID ohci_hcd OHCI PCI host controller usb_usb2 0x1d6b:0x0002 usb Linux 3.16.3-unRAID ehci_hcd EHCI Host Controller usb_usb6 0x1d6b:0x0001 usb Linux 3.16.3-unRAID ohci_hcd OHCI PCI host controller usb_usb8 0x1d6b:0x0002 usb Linux 3.16.3-unRAID xhci_hcd xHCI Host Controller usb_usb9 0x1d6b:0x0003 usb Linux 3.16.3-unRAID xhci_hcd xHCI Host Controller usb_usb10 0x1d6b:0x0002 usb Linux 3.16.3-unRAID xhci_hcd xHCI Host Controller usb_usb11 0x1d6b:0x0003 usb Linux 3.16.3-unRAID xhci_hcd xHCI Host Controller usb_usb7 0x1d6b:0x0001 usb Linux 3.16.3-unRAID ohci_hcd OHCI PCI host controller usb_usb3 0x1d6b:0x0002 usb Linux 3.16.3-unRAID ehci_hcd EHCI Host Controller usb_3_3 0x1976:0x6025 usb 2.0 Flash Disk usb_4_1 0x0603:0x00f2 usb NOVATEK USB Keyboard usb_5_1 0x046d:0xc050 usb Logitech USB-PS/2 Optical Mouse I attach more info: root@Tower2:~# readlink /sys/bus/pci/devices/0000:00:12.2/iommu_group ../../../kernel/iommu_groups/6 root@Tower2:~# ls /sys/bus/pci/devices/0000:00:12.2/iommu_group/devices/ 0000:00:12.0@ 0000:00:12.2@ root@Tower2:~# ls /dev/vfio 18 6 vfio ..18 is GPU which was succesfully passed through. And my xml: <qemu:arg value='ioh3420,bus=pcie.0,addr=1c.0,multifunction=on,port=1,chassis=1,id=root.1'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=01:00.0,bus=root.1,addr=00.0,multifunction=on,x-vga=on'/> <qemu:arg value='-device'/> <qemu:arg value='vfio-pci,host=00:12.2,bus=pcie.0'/> </qemu:commandline> Rgds. You don't pass through a single USB port or device using the qemu:commandline arguments. You can do that with a host dev. XML code: <hostdev mode='subsystem' type='usb' managed='no'> <source> <vendor id='0x####'/> <product id='0x####'/> </source> </hostdev> To find vendor/product ID, click on the "system devices" tab of the unRAID web gui. The first four characters are the vendor ID, then a colon, then the next four characters are the product ID. And that code goes between <devices> and </devices>. Quote Link to comment

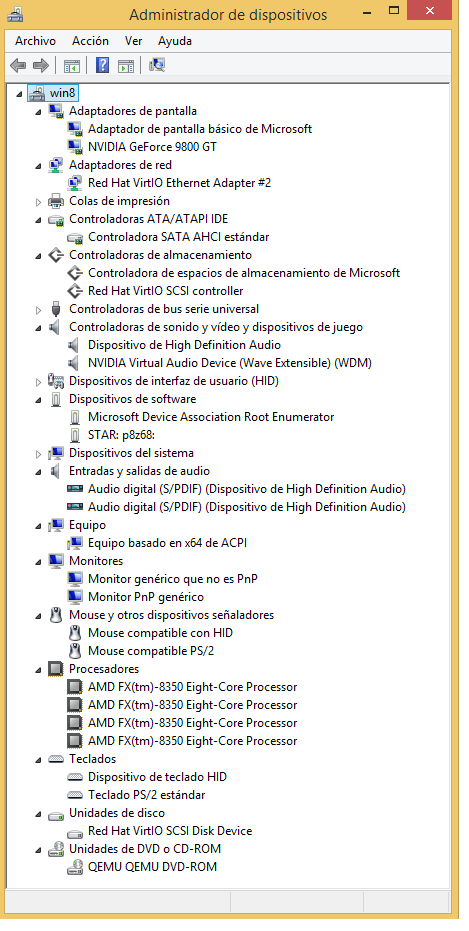

luca2 Posted October 22, 2014 Share Posted October 22, 2014 Hi Jon, Thank you for sharing this little trick to me and also your windows8.xml file. I tried both with my setup and I can confirm hostdev does the job for usb passthrough. Also, GPU passthrough worked too. Only issue is after I restart windows 8 my vm does not recognize the installed nvidia drivers for my gpu. Is there a way to solve it? It seems as the nvidia drivers are not properly saved. I attach my devices config before restarting windows (after I already installed the drivers). Rgds. Edit: again "vodoo magic" ... your xml looks soo different compared to the one I was working with (Peter´s) Quote Link to comment
jonp Posted October 23, 2014 Share Posted October 23, 2014 Show me the error code your getting after you reboot. Also, is your current solution to reinstall drivers on each reboot? Quote Link to comment

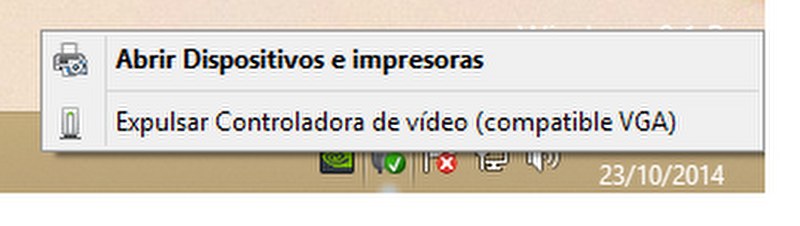

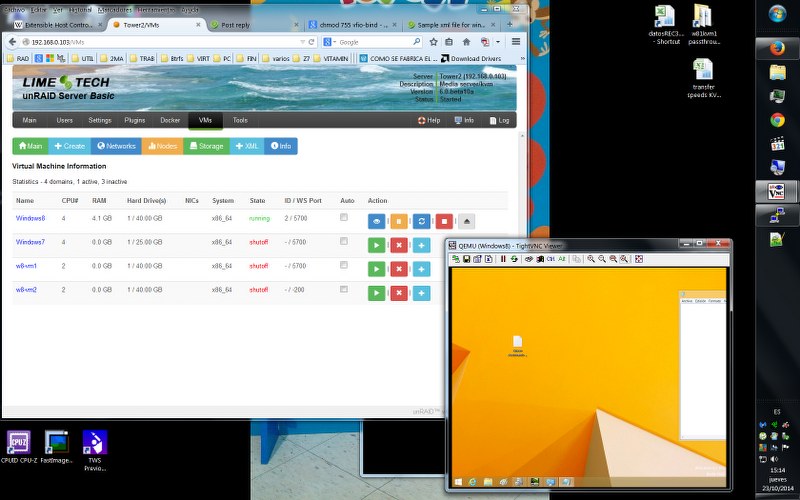

luca2 Posted October 23, 2014 Share Posted October 23, 2014 Show me the error code your getting after you reboot. Also, is your current solution to reinstall drivers on each reboot? I will resume the steps done before starting my vm: 1. start array 2. type this in command line: root@Tower2:/boot# chmod 755 vfio-bind root@Tower2:/boot# vfio-bind 0000:01:00.0 0000:00:14.2 3. start vm in vmmgr (thx again dmacias .. really a helpfull tool) 1st)So today I tried again. I started my vm. I connected to it using VNC till gpu passthrough was activated when loading windows (actually passthrough is activated when login in windows 8 with my user/password). When passthrough enters I lost the VNCsession-screen...I got a black screen in VNC). My vm was up and running in my external monitor. So now passthrough is working. I am not getting any error code at all! 2nd)So I decided to restart my vm... doing it from windows8. Voodoo magic again...I suddenly had a dual monitor set-up: my gpu was passthroughed and also my VNCsession-screen was recognized as another screen! 3)So I decided now to stop my vm from windows and start it again from vmmgr. More voodoo magic. Now only one screen is recognized: my VNCsession-screen...passthrough is not working now. I checked device mgr and nvidia drivers are missing! Any thoughts Jon? Also, why is -in the lower right corner of my windows 8 vm- the gpu showing up as a usb that can be ejected? see pic. I still need to test the previous last step ... but trying to reboot the array or start/stop to see if this changes anything. Anyway, I love this kvm setup...when everything is up and working performance (first impressions) is on par with my other pc. Also Jon, i have 2 gpu´s in unraid server, is it possible to tell unraid which one it should use? Only one of them shows me the boot of unraid. The other one is recognized but won´t show anything. Rgds. Quote Link to comment
JustinChase Posted October 29, 2014 Share Posted October 29, 2014 which plugins of yours should I be using to get a windows VM running? This one (https://raw.githubusercontent.com/dmacias72/webvirtmgr/master/webvirtmgr.plg) Or this one (https://raw.githubusercontent.com/dmacias72/vmMan/master/vmMan.plg) and/or this one (https://raw.githubusercontent.com/dmacias72/virtMan/master/virtMan.plg) I currently have webvrtmgr and virtMan installed, and my server dies/becomes totally unresponsive after a few minutes, and I have to hard boot. Also, I changed my syslinux.cfg to add this "pcie_acs_override=downstream" per a suggestion from jonp, like so... default /syslinux/menu.c32 menu title Lime Technology prompt 0 timeout 50 label unRAID OS menu default kernel /bzimage append pcie_acs_override=downstream initrd=/bzroot label unRAID OS Safe Mode (no plugins) kernel /bzimage append initrd=/bzroot unraidsafemode label Memtest86+ kernel /memtest label Xen/unRAID OS kernel /syslinux/mboot.c32 append /xen --- /bzimage --- /bzroot label Xen/unRAID OS Safe Mode (no plugins) kernel /syslinux/mboot.c32 append /xen --- /bzimage --- /bzroot unraidsafemode Is this necessary with your plugins, or is it maybe causing my issues? this all started after installing the 2 plugins above, so I suspect it's an issue, but am certainly not pointing fingers, or placing blame. it could be anything. I'm just trying to find out what is the 'right' way for me to be doing this. thanks in advance. Quote Link to comment
archedraft Posted October 29, 2014 Share Posted October 29, 2014 I currently have webvrtmgr and virtMan installed, and my server dies/becomes totally unresponsive after a few minutes, and I have to hard boot. If you remove the plugins does your server work fine? which plugins of yours should I be using to get a windows VM running? This one (https://raw.githubusercontent.com/dmacias72/webvirtmgr/master/webvirtmgr.plg) Or this one (https://raw.githubusercontent.com/dmacias72/vmMan/master/vmMan.plg) and/or this one (https://raw.githubusercontent.com/dmacias72/virtMan/master/virtMan.plg) You should have virtMan installed no matter what and you can choose webvirtmgr or vmMan. I am using vmMan currenlty with virtMan Quote Link to comment
JustinChase Posted October 29, 2014 Share Posted October 29, 2014 thanks. I'm going to remove both plugins and restart the machine again, and see if it keeps running, but last time it took about 2 hours before it died, so I'm not sure when I'll "know" it's working again. I just wondered if there were any known conflicts/issues with running webvirtman with virtman and the extra bit in the syslinux.cfg I'll make the changes now and see what happens. Quote Link to comment
dmacias Posted October 29, 2014 Author Share Posted October 29, 2014 Virtman doesn't really install anything and it's necessary for both. It just mounts a small 1.5MB image so your vm's survive reboot and enables libvirt. vmMan is probably the least intrusive in that it's just php/java/html that interacts with libvirt through php-libvirt. There is no program running. It just uses unraid's emhttp. Webvirtmgr is a python based plugin that is running in the background. It does have a few dependencies. So something could go wrong. Try to get a log or console screenshot when it happens I would use vmMan myself. I have only had it freeze up emhttp once a long while ago. But ssh to server still worked and used powerdown to shut down. But that was under heavy testing. Quote Link to comment
JustinChase Posted October 29, 2014 Share Posted October 29, 2014 Webvirtmgr is a python based plugin that is running in the background. It does have a few dependencies. So something could go wrong. Try to get a log or console screenshot when it happens Sadly, I've not been successful in capturing anything when it dies. I have a defect report filed about it, with details of what I've seen and tried, but LT has not responded, so I'm not sure where I stand with it. I'll make the switch to vmMan and see how that goes. thanks again for all your help and support. Quote Link to comment
dmacias Posted October 29, 2014 Author Share Posted October 29, 2014 You really needed a console open or monitor with the login screen. I had lots of success with xen and then switched to kvm. But until I tried some dockers and heavy kvm vm's my memory either went bad or was exposed under those conditions. It would lock up randomly. I replaced it with ecc. It also may be with your passthrough. Quote Link to comment
