[Support] Linuxserver.io - Nginx

124 posts in this topic Last Reply

Recommended Posts




Application Name: Nginx

Application Site: https://www.nginx.com/

Docker Hub: https://hub.docker.com/r/linuxserver/nginx/

Github: https://github.com/linuxserver/docker-nginx



Please post any questions/issues relating to this docker you have in this thread.



If you are not using Unraid (and you should be!) then please do not post here, instead head to linuxserver.io to see how to get support.

Edited by linuxserver.io

Share this post


Link to post

Something is not right. I downloaded the docker and although nginx is advertised apache2 was deployed... LOL



The nginx.xml files looks like this:



<?xml version="1.0" encoding="utf-8"?>
<Container>
<Beta>False</Beta>
<Category>Network:Web Network:Proxy</Category>
<Date>2015-12-05</Date>
  <Name>Nginx</Name>
  <Support>http://lime-technology.com/forum/index.php?topic=44481.0</Support>
  <Overview>is a web server with a strong focus on high concurrency, performance and low memory usage. It can also act as a reverse proxy server for HTTP, HTTPS, SMTP, POP3, and IMAP protocols, as well as a load balancer and an HTTP cache.</Overview>
  <Changes>
[center][img width='300px' src='https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/linuxserver_small.png'][/center]



[center][font size=4]Nginx Change Log[/font][/center]

[b]06.12.2015:[/b] Initial Release</Changes>
  <Description>is a web server with a strong focus on high concurrency, performance and low memory usage. It can also act as a reverse proxy server for HTTP, HTTPS, SMTP, POP3, and IMAP protocols, as well as a load balancer and an HTTP cache..[br]
  [b][u][span style='color: #E80000;']Configuration[/span][/u][/b][br]
  [b]80[/b] Standard HTTP Port [br]
  [b]443[/b] Standard HTTPS Port [br]
  [b]/config[/b]Storing Configuration and the www folder[br]
  </Description>
  <Project>https://www.nginx.com/</Project>
  <Registry>https://registry.hub.docker.com/u/linuxserver/nginx/</Registry>
  <Repository>linuxserver/apache</Repository>
  <BindTime>true</BindTime>
  <Privileged>false</Privileged>
  <Environment>
    <Variable>
      <Name>PUID</Name>
      <Value>99</Value>
    </Variable>
    <Variable>
      <Name>PGID</Name>
      <Value>100</Value>
    </Variable>
  </Environment>
  <Networking>
    <Mode>bridge</Mode>
    <Publish>
      <Port>
        <HostPort>80</HostPort>
        <ContainerPort>80</ContainerPort>
        <Protocol>tcp</Protocol>
      </Port>
      <Port>
        <HostPort>443</HostPort>
        <ContainerPort>443</ContainerPort>
        <Protocol>tcp</Protocol>
      </Port>
    </Publish>
  </Networking>
  <Data>
    <Volume>
      <HostDir>/mnt/user/appdata/nginx</HostDir>
      <ContainerDir>/config</ContainerDir>
      <Mode>rw</Mode>
    </Volume>
  </Data>
  <Version></Version>
  <WebUI>http://[iP]:[PORT:80]/</WebUI>
  <Banner>https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/nginx-banner.png</Banner>
  <Icon>https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/nginx-icon.png</Icon>
  <ExtraParams></ExtraParams>
</Container>



I think the wrong repository is listed

Share this post


Link to post

Something is not right. I downloaded the docker and although nginx is advertised apache2 was deployed... LOL



The nginx.xml files looks like this:



<?xml version="1.0" encoding="utf-8"?>
<Container>
<Beta>False</Beta>
<Category>Network:Web Network:Proxy</Category>
<Date>2015-12-05</Date>
  <Name>Nginx</Name>
  <Support>http://lime-technology.com/forum/index.php?topic=44481.0</Support>
  <Overview>is a web server with a strong focus on high concurrency, performance and low memory usage. It can also act as a reverse proxy server for HTTP, HTTPS, SMTP, POP3, and IMAP protocols, as well as a load balancer and an HTTP cache.</Overview>
  <Changes>
[center][img width='300px' src='https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/linuxserver_small.png'][/center]



[center][font size=4]Nginx Change Log[/font][/center]

[b]06.12.2015:[/b] Initial Release</Changes>
  <Description>is a web server with a strong focus on high concurrency, performance and low memory usage. It can also act as a reverse proxy server for HTTP, HTTPS, SMTP, POP3, and IMAP protocols, as well as a load balancer and an HTTP cache..[br]
  [b][u][span style='color: #E80000;']Configuration[/span][/u][/b][br]
  [b]80[/b] Standard HTTP Port [br]
  [b]443[/b] Standard HTTPS Port [br]
  [b]/config[/b]Storing Configuration and the www folder[br]
  </Description>
  <Project>https://www.nginx.com/</Project>
  <Registry>https://registry.hub.docker.com/u/linuxserver/nginx/</Registry>
  <Repository>linuxserver/apache</Repository>
  <BindTime>true</BindTime>
  <Privileged>false</Privileged>
  <Environment>
    <Variable>
      <Name>PUID</Name>
      <Value>99</Value>
    </Variable>
    <Variable>
      <Name>PGID</Name>
      <Value>100</Value>
    </Variable>
  </Environment>
  <Networking>
    <Mode>bridge</Mode>
    <Publish>
      <Port>
        <HostPort>80</HostPort>
        <ContainerPort>80</ContainerPort>
        <Protocol>tcp</Protocol>
      </Port>
      <Port>
        <HostPort>443</HostPort>
        <ContainerPort>443</ContainerPort>
        <Protocol>tcp</Protocol>
      </Port>
    </Publish>
  </Networking>
  <Data>
    <Volume>
      <HostDir>/mnt/user/appdata/nginx</HostDir>
      <ContainerDir>/config</ContainerDir>
      <Mode>rw</Mode>
    </Volume>
  </Data>
  <Version></Version>
  <WebUI>http://[iP]:[PORT:80]/</WebUI>
  <Banner>https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/nginx-banner.png</Banner>
  <Icon>https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/nginx-icon.png</Icon>
  <ExtraParams></ExtraParams>
</Container>



I think the wrong repository is listed





fixt, thanks for letting us know.

Share this post


Link to post

Something is not right. I downloaded the docker and although nginx is advertised apache2 was deployed... LOL



The nginx.xml files looks like this:



<?xml version="1.0" encoding="utf-8"?>
<Container>
<Beta>False</Beta>
<Category>Network:Web Network:Proxy</Category>
<Date>2015-12-05</Date>
  <Name>Nginx</Name>
  <Support>http://lime-technology.com/forum/index.php?topic=44481.0</Support>
  <Overview>is a web server with a strong focus on high concurrency, performance and low memory usage. It can also act as a reverse proxy server for HTTP, HTTPS, SMTP, POP3, and IMAP protocols, as well as a load balancer and an HTTP cache.</Overview>
  <Changes>
[center][img width='300px' src='https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/linuxserver_small.png'][/center]



[center][font size=4]Nginx Change Log[/font][/center]

[b]06.12.2015:[/b] Initial Release</Changes>
  <Description>is a web server with a strong focus on high concurrency, performance and low memory usage. It can also act as a reverse proxy server for HTTP, HTTPS, SMTP, POP3, and IMAP protocols, as well as a load balancer and an HTTP cache..[br]
  [b][u][span style='color: #E80000;']Configuration[/span][/u][/b][br]
  [b]80[/b] Standard HTTP Port [br]
  [b]443[/b] Standard HTTPS Port [br]
  [b]/config[/b]Storing Configuration and the www folder[br]
  </Description>
  <Project>https://www.nginx.com/</Project>
  <Registry>https://registry.hub.docker.com/u/linuxserver/nginx/</Registry>
  <Repository>linuxserver/apache</Repository>
  <BindTime>true</BindTime>
  <Privileged>false</Privileged>
  <Environment>
    <Variable>
      <Name>PUID</Name>
      <Value>99</Value>
    </Variable>
    <Variable>
      <Name>PGID</Name>
      <Value>100</Value>
    </Variable>
  </Environment>
  <Networking>
    <Mode>bridge</Mode>
    <Publish>
      <Port>
        <HostPort>80</HostPort>
        <ContainerPort>80</ContainerPort>
        <Protocol>tcp</Protocol>
      </Port>
      <Port>
        <HostPort>443</HostPort>
        <ContainerPort>443</ContainerPort>
        <Protocol>tcp</Protocol>
      </Port>
    </Publish>
  </Networking>
  <Data>
    <Volume>
      <HostDir>/mnt/user/appdata/nginx</HostDir>
      <ContainerDir>/config</ContainerDir>
      <Mode>rw</Mode>
    </Volume>
  </Data>
  <Version></Version>
  <WebUI>http://[iP]:[PORT:80]/</WebUI>
  <Banner>https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/nginx-banner.png</Banner>
  <Icon>https://raw.githubusercontent.com/linuxserver/docker-templates/master/linuxserver.io/img/nginx-icon.png</Icon>
  <ExtraParams></ExtraParams>
</Container>



I think the wrong repository is listed



I'd like to add that we will humiliate the member responsibly on your behalf...  ;D

Share this post


Link to post

Not sure if proper place to post but as a home user what benefit will I receive from using this? Will it "cache" information to pages/frequent downloads faster?



Thought I had read about people using nginx to cache steam / windows update etc not sure if I am mixing it up with something else tho... Thanks and sorry if in wrong location.

Share this post


Link to post

Is there a guide somewhere on how to get the reverse proxy working? I've always wanted to do this to make all the different services such as Sabnzbd and Sickrage easier to access. I've been messing with it for about 2 hours now and I'm completely lost...

  • Upvote 1

Share this post


Link to post

Is there a guide somewhere on how to get the reverse proxy working? I've always wanted to do this to make all the different services such as Sabnzbd and Sickrage easier to access. I've been messing with it for about 2 hours now and I'm completely lost...



Hey bb12489,



I wrote a guide a while back for Apache (https://www.linuxserver.io/index.php/overview-reverse-proxy-with-docker/). I just converted over to nginx and do not have a write up yet (i plan too, just been busy)



Here is my old apache config - https://www.seandion.com/owncloud/index.php/s/R4tJqfqb4opuOsp

Here is my new nginx config - https://www.seandion.com/owncloud/index.php/s/XpFigScMblZO2dJ



Those should help a bit more and I will be doing an nginx addition to that guide.

Share this post


Link to post

Is there a guide somewhere on how to get the reverse proxy working? I've always wanted to do this to make all the different services such as Sabnzbd and Sickrage easier to access. I've been messing with it for about 2 hours now and I'm completely lost...



Hey bb12489,



I wrote a guide a while back for Apache (https://www.linuxserver.io/index.php/overview-reverse-proxy-with-docker/). I just converted over to nginx and do not have a write up yet (i plan too, just been busy)



Here is my old apache config - https://www.seandion.com/owncloud/index.php/s/R4tJqfqb4opuOsp

Here is my new nginx config - https://www.seandion.com/owncloud/index.php/s/XpFigScMblZO2dJ



Those should help a bit more and I will be doing an nginx addition to that guide.



Thank you! This will be a weekend project for sure.

Share this post


Link to post

So I have been having a play with this docker for a websites I host and it is working amazing pairs with your mysql docker.



One question I have is; is there a way to upgrade the php version if needed? It is currently running a version that is around a year old now.



I'm aware it is most likely something that would need to be changed in the docker itself but it's worth an ask :)



Regards,

Jamie

Share this post


Link to post

Hi can I just check is there any reason why my nginx server has issues with serving up css files? I am trying to serve static sites generated by Hugo. I have an apache server that is behind nginx, and nginx is used as a reverse proxy.



When I visit apache directly, the site displays correctly. But when I attempt to access it through nginx however, the site comes out completely unstyled. I tested the .css links inside the page's source and there are no issues, as in I am able to see the css directly. Its just for some reason the css does not render out.



For the avoidance of doubt, I mainly use this nginx server just as a reverse proxy and for ssl encryption.



This is the config i have for nginx:

server {
server_name xxx.me www.xxx.me;
listen 443 ssl;
root /config/www;
index index.html index.htm index.php;

### Set Certificates ###
ssl_certificate /certs/live/junxuan.me/fullchain.pem;
   	ssl_certificate_key /certs/live/junxuan.me/privkey.pem;

### Add Diffie–Hellman key exchange ###
ssl_dhparam /etc/ssl/certs/dhparam.pem;

### Disable SSL by enforcing TLS ###
ssl_protocols TLSv1 TLSv1.1 TLSv1.2;

### Add some ciphers and reject weaker ones ###
ssl_ciphers "EECDH+AESGCM:EDH+AESGCM:ECDHE-RSA-AES128-GCM-SHA256:AES256+EECDH:DHE-RSA-AES128-GCM-SHA256:AES256+EDH:ECDHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-SHA384:ECDHE-RSA-AES128-SHA256:ECDHE-RSA-AES256-SHA:ECDHE-RSA-AES128-SHA:DHE-RSA-AES256-SHA256:DHE-RSA-AES128-SHA256:DHE-RSA-AES256-SHA:DHE-RSA-AES128-SHA:ECDHE-RSA-DES-CBC3-SHA:EDH-RSA-DES-CBC3-SHA:AES256-GCM-SHA384:AES128-GCM-SHA256:AES256-SHA256:AES128-SHA256:AES256-SHA:AES128-SHA:DES-CBC3-SHA:HIGH:!aNULL:!eNULL:!EXPORT:!DES:!MD5:!PSK:!RC4";
ssl_prefer_server_ciphers on;
ssl_session_cache shared:SSL:10m;

### Add HTTP Strict Transport Security ###
add_header Strict-Transport-Security "max-age=63072000; includeSubdomains; preload";
add_header Front-End-Https on;

###Other Settings ###
client_max_body_size 0m;

location / {
	### Proxy Pass Info ###
	proxy_pass http://192.168.0.101:8082/; <-- this is my apache server
}
}

server {
listen 80;
server_name www.xxx.me;
return 301 https://$server_name$request_uri;
}

Share this post


Link to post

I am having the same issue as Keepitshut. Nginx is working, but css files are not.



hey man, i figured out the problem for mine. Mine was because my assets were being loaded over normal http and thus was being blocked by the browser. Not sure if it is the same for you, but should be worth checking out.

Share this post


Link to post

How would I use this container on port 80 if Unraid's WebGUI is already bound to port 80?  Can I change the emhttp port somewhere in the unraid config?

Share this post


Link to post

I set it to port 81, then my router translates external port 80 to internal 81

Share this post


Link to post

I actually only open port 443 on my router. I just want port 80 accessible internally.

Share this post


Link to post

Is it on a single computer you need to access it from?

You can open it on another port and use it. Its the easiest option, alternatively you can edit your host file on a Windows pc

Share this post


Link to post

Nope, I would like it accessible from multiple hosts.  I'm actually already running nginx on another VM, but would like to eliminate it if possible. So the question is, is it possible to change the port that the UNRAID webGUI is running on? I could easily reverse proxy it after the fact.

Share this post


Link to post

Nope, I would like it accessible from multiple hosts.  I'm actually already running nginx on another VM, but would like to eliminate it if possible. So the question is, is it possible to change the port that the UNRAID webGUI is running on? I could easily reverse proxy it after the fact.



It is possible to change the default port for Unraid.  However, the other way of doing it is what I do, I run my webserver on port 81 and forward port 80 on my router to port 81 on Unraid.  So any requests to my domain name still work and I get to leave Unraid where it is...



To change the Unraid port though, look here.

Share this post


Link to post

Thank you! I actually want port 80 available internally so the thread you linked is very helpful.

Share this post


Link to post

How can I update the version of nginx to one which supports HTTP2?



The version in the docker is 1.4.6. HTTP2 has been supported since 1.9.5. I see that the docker automatically updates when starting, but from ubuntu trusty repos which have an old version of nginx.



A newer version is available in:



deb http://nginx.org/packages/mainline/ubuntu/ trusty nginx
deb-src http://nginx.org/packages/mainline/ubuntu/ trusty nginx

Share this post


Link to post

Steps to upgrade to nginx mainline (currently 1.9.10):



docker exec -it Nginx bash
add-apt-repository ppa:nginx/development
apt-get update
apt-get -y dist-upgrade



To check your config is correct before restarting, you can run:



nginx -tc /config/nginx/nginx.conf

Share this post


Link to post

That may not survive a reboot or container restart.

Share this post


Link to post

That may not survive a reboot or container restart.

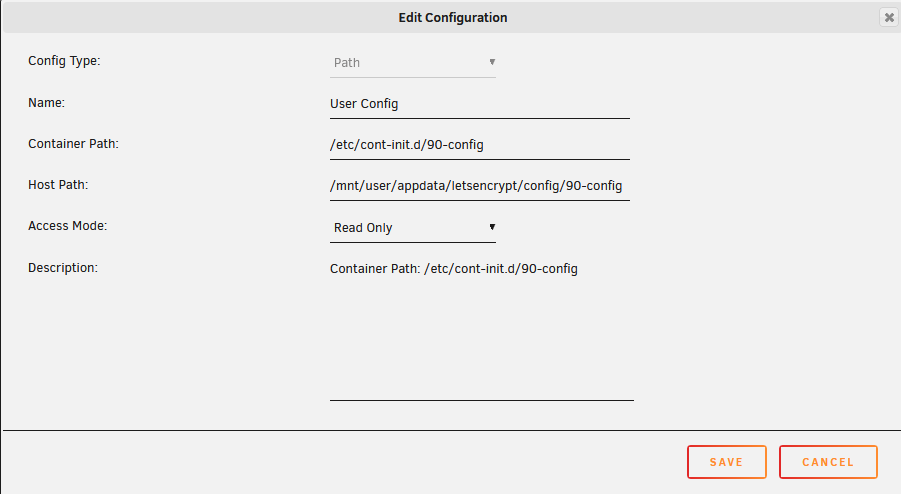

It survives rebooting, doesn't survive editing the container or updating the container.



Any chance of getting the container to include repositories with a more recent version of nginx by default? The current version (1.4+backported security fixes) is nearly two years old.

Share this post


Link to post

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
