Watch the entire video, there's other interesting stuff in there too. ;-) *wink wink, nudge nudge* Real opportunity coming I think.

Edited by phbigred

Share this post


Link to post
On 5/19/2017 at 6:13 AM, Pauven said:



Awesome, another success story makes the hard work worth it.  I'm at 45 days up-time and counting.



A couple noteworthy items:



In an interview with Forbes, AMD confirmed that it is working to improve Ryzen DDR4 support, and has an AGESA update for May (probably the 1.0.0.6 already mentioned in this thread).  AMD also stressed on the need for motherboard manufacturers to improve their board designs in the future, with more PCB layers and better copper traces between the DIMM slots and the processor socket.



Is that AMD throwing shade?  Looks like AMD is starting to lay the blame on low memory speeds back on the manufacturers.  Pure speculation, but this might mean that our first gen Ryzen motherboards have design limitations holding back memory speeds, and that AMD is not going to waste too much time trying to improve memory support for poorly designed motherboards.



https://www.techpowerup.com/233476/amd-talks-improved-ryzen-memory-support-ryzen-3-and-game-optimization





Also, I see unRAID 6.3.4 landed a few days ago.  I looked at the release notes, but didn't see anything Ryzen related.  Also, the kernel only got upgraded to 4.9.28.  Very disappointing.



Anybody upgrade yet?  Any stability improvements?



-Paul



I've been checking every few days, but so far there's no new BIOS for the ASUS Prime X370-PRO motherboard.  Last update was on April 10th.



Otherwise, I was away for the weekend, but upgraded to unRAID 6.3.4 this morning.  So far, no problems.  Can't comment on stability, I'm leaving my Windows 10 VM because that was my original use case.  This effectively prevents me from testing stability without a VM running.  Again, the C-States setting doesn't appear to make a difference on this board, so it's currently at the default setting.



- Bill





Share this post


Link to post
On 5/14/2017 at 1:55 PM, mikeyosm said:

Can anyone confirm which x370 boards have their sensors detected in Unraid? I believe the asrock fatality pro works with the sensor plugin but the Asus prime does not. How about msi, gigabyte etc? Please list your board here if sensors work. Thanks



Okay, so I took another stab at this today.  For the record, my board is the ASUS Prime X370-PRO.



If I open a putty window and run "sensors-detect", here's what I get (skipping 'No" items):

Trying family `ITE'...                                      Yes
Found unknown chip with ID 0x8665
    (logical device 4 has address 0x290, could be sensors)

Unfortunately, the ITE 0x8665 driver is not included in the unRAID 6.3.4 build ... however, this led me to this thread:



https://github.com/groeck/it87/issues/10



Following their instructions, I tried this command:



modprobe it87 force_id=0x8620



and then ran 'sensors', which now produced this output:

it8620-isa-0290
Adapter: ISA adapter
in0:          +0.88 V  (min =  +2.22 V, max =  +2.42 V)
in1:          +2.74 V  (min =  +0.97 V, max =  +1.39 V)
in2:          +2.20 V  (min =  +2.06 V, max =  +1.81 V)
in3:          +2.18 V  (min =  +1.34 V, max =  +2.27 V)
in4:          +0.04 V  (min =  +1.57 V, max =  +0.49 V)
in5:          +0.04 V  (min =  +1.46 V, max =  +2.76 V)
in6:          +0.04 V  (min =  +2.11 V, max =  +0.16 V)
3VSB:         +3.60 V  (min =  +3.24 V, max =  +4.51 V)
Vbat:         +3.46 V
in11:         +0.41 V
Array Fan:   1053 RPM  (min =   11 RPM)
fan3:         795 RPM  (min =   40 RPM)
CPU Temp:     +44.0°C  (low  = -31.0°C, high = +78.0°C)  sensor = thermistor
MB Temp:      +32.0°C  (low  = +84.0°C, high = +13.0°C)  sensor = thermistor
temp3:        +34.0°C  (low  = -13.0°C, high = -14.0°C)  sensor = thermistor
temp4:        +34.0°C
temp6:        +34.0°C
intrusion0:  ALARM

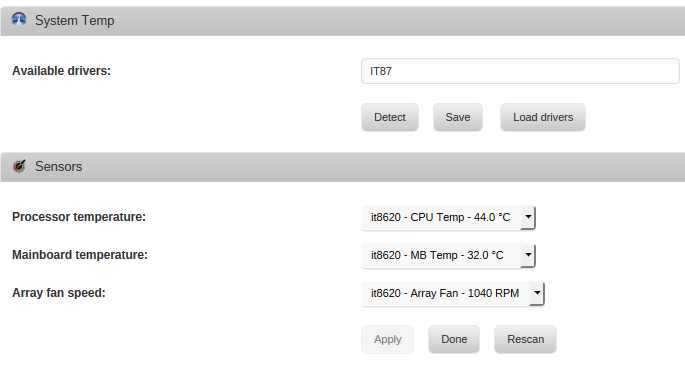

Since we don't have the proper driver, we're using a 'compatible' driver, so the above information has some issues.  Notably the min/max values are incorrect ... however for my purposes, I am only interested in obtaining enough data to populate the Dynamix System Temperature plugin.  This works as follows:






To complete the setup, I added the command "modprobe it87 force_id=0x8620" to my 'go' file and rebooted.  The system loads the drivers at boot time, and the plugin now displays the CPU/MB temperature and the CPU fan speed on the status line.



Hopefully in unRAID 6.4, they'll include the necessary sensors packages to support the ITE 0x8665 chipset.



If someone has one of the other ASUS motherboards and find that this also works for you, let us know?



- Bill



PS:  I did not test this with an earlier version of unRAID, so I don't know if version 6.3.4 (or later) is required.  You may wish to upgrade prior to attempting this.



Edited by ufopinball

Share this post


Link to post

Holy cow, i just remembered to check if this was going somewhere and looks like i can build a 2 in 1 gaming setup with Ryzen now :o

Share this post


Link to post

Good article on the Ryzen AGESA 1.0.0.6 firmware update, which includes much more flexibility (BIOS settings) when it comes to expanded memory support.



Surprise, there are also some details on expanded IOMMU/ACS support!  AMD must have listened when this was brought up in an earlier AMA meeting.  Glad to see them stepping up items for virtualization, as this will become more important moving forward into Naples/Epyc.



https://community.amd.com/community/gaming/blog/2017/05/25/community-update-4-lets-talk-dram



All that said, it looks like it's not out yet, just in beta test.  Actual finalized BIOS updates aren't expected till mid/late June.



Wonder what else will be included?



- Bill

Edited by ufopinball
Changed to a better link

Share this post


Link to post

I tossed a beta BIOS on my Crosshair VI Hero, disabled the ACS patch, and here are my groupings:

IOMMU group 0
	[1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 1
	[1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
IOMMU group 2
	[1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 3
	[1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 4
	[1022:1453] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
IOMMU group 5
	[1022:1453] 00:03.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
IOMMU group 6
	[1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 7
	[1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
	[1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
	[1022:145a] 2b:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a
	[1022:1456] 2b:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Device 1456
	[1022:145c] 2b:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Device 145c
IOMMU group 8
	[1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
	[1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
	[1022:1455] 2c:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455
	[1022:7901] 2c:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
	[1022:1457] 2c:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Device 1457
IOMMU group 9
	[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59)
	[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
IOMMU group 10
	[1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1460
	[1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1461
	[1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1462
	[1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1463
	[1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1464
	[1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1465
	[1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1466
	[1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1467
IOMMU group 11
	[1022:43b9] 03:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Device 43b9 (rev 02)
	[1022:43b5] 03:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] Device 43b5 (rev 02)
	[1022:43b0] 03:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b0 (rev 02)
	[1022:43b4] 1d:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
	[1022:43b4] 1d:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
	[1022:43b4] 1d:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
	[1022:43b4] 1d:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
	[1022:43b4] 1d:05.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
	[1022:43b4] 1d:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
	[1022:43b4] 1d:07.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
	[1b21:1343] 21:00.0 USB controller: ASMedia Technology Inc. Device 1343
	[8086:1539] 23:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
IOMMU group 12
	[10de:1380] 29:00.0 VGA compatible controller: NVIDIA Corporation GM107 [GeForce GTX 750 Ti] (rev a2)
	[10de:0fbc] 29:00.1 Audio device: NVIDIA Corporation Device 0fbc (rev a1)
IOMMU group 13
	[10de:13c0] 2a:00.0 VGA compatible controller: NVIDIA Corporation GM204 [GeForce GTX 980] (rev a1)
	[10de:0fbb] 2a:00.1 Audio device: NVIDIA Corporation GM204 High Definition Audio Controller (rev a1)

Looks like GPUs can readily be passed through without hacks, but USB, onboard audio, SATA, etc. are still off the table as-is.



EDIT: After trying on both an existing USB and a new one, I now cannot get Unraid to pass through a GPU for some reason. Ver. 6.3.4.

Going to try a normal linux again now that I don't need to compile a kernel for ACS patch and see how far I can get.

Edited by dkabot

Share this post


Link to post
1 hour ago, dkabot said:

Looks like GPUs can readily be passed through without hacks, but USB, onboard audio, SATA, etc. are still off the table as-is.



That's disappointing.  With the ACS patch on unRAID, I am able to pass in one of three USB controllers built into the motherboard.  I ended up returning my USB 3.0 PCIe card because it wasn't necessary anymore.  It was less than $10, so I suppose it's no big deal either way.  Still, it would be nice to be able to plug the USB 3.0 card into a PCIe x1 slot, than having to use one of the larger x16 slots ... that's just how the IOMMU groupings broke up.



- Bill

Share this post


Link to post

On my asus prime i'm passing through the USB 3.0 , onboard audio and 2 x GPUs. Brilliant board IMO.

Share this post


Link to post
29 minutes ago, ufopinball said:



That's disappointing.  With the ACS patch on unRAID, I am able to pass in one of three USB controllers built into the motherboard.  I ended up returning my USB 3.0 PCIe card because it wasn't necessary anymore.  It was less than $10, so I suppose it's no big deal either way.  Still, it would be nice to be able to plug the USB 3.0 card into a PCIe x1 slot, than having to use one of the larger x16 slots ... that's just how the IOMMU groupings broke up.



- Bill

With ACS on this board, one USB controller is exposed, which is for the two USB 3.1 (one of them Type-C) ports.

The rest are intermingled with other system components, even with the patch.

Share this post


Link to post

Aww you beat me to the news on new update coming.

Small video caught my attention regarding the gpu.





Share this post


Link to post

Alright, reverted my board back to latest stable.



While the GPUs were detected in their own group, neither Unraid nor Arch were able to actually pass it through.

Going into the VM externally with TeamViewer showed the resolution was 640x480 and there were no graphics adapters at all.



Also, the RGB light cycle was messed up, and it would show red instead of purple on my CPU fan.

Clearly the worst of tragedies.



Anyway, looks promising, be nice to see what happens on stable release.

Share this post


Link to post
7 hours ago, mikeyosm said:

On my asus prime i'm passing through the USB 3.0 , onboard audio and 2 x GPUs. Brilliant board IMO.



When you say "onboard audio", do you mean the audio off the motherboard, or off one of the GPUs?



I'm presently using a USB audio device.  Looking at my "System Devices", the only audio device is the HDMI audio output from my GPU.



I'd love to reduce another device and work with the motherboard audio chip.



Would you share the necessary details?



Thanks!



- Bill



Share this post


Link to post
8 hours ago, ufopinball said:



When you say "onboard audio", do you mean the audio off the motherboard, or off one of the GPUs?



I'm presently using a USB audio device.  Looking at my "System Devices", the only audio device is the HDMI audio output from my GPU.



I'd love to reduce another device and work with the motherboard audio chip.



Would you share the necessary details?



Thanks!



- Bill





I'm passing through the audio off the motherboard, absolutely no issues using the asus audio drivers.



append pci-stub.ids=1022:145c,144d:a802 isolcpus=2-9 pcie_acs_override=downstream,multifunction vfio_iommu_type1.allow_unsafe_interrupts=1 initrd=/bzroot



IOMMU group 0
	[1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 1
	[1022:1453] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
IOMMU group 2
	[1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
IOMMU group 3
	[1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 4
	[1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 5
	[1022:1453] 00:03.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
IOMMU group 6
	[1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 7
	[1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 8
	[1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
IOMMU group 9
	[1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 10
	[1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
IOMMU group 11
	[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59)
	[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
IOMMU group 12
	[1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1460
	[1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1461
	[1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1462
	[1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1463
	[1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1464
	[1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1465
	[1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1466
	[1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1467
IOMMU group 13
	[144d:a802] 01:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM951/PM951 (rev 01)
IOMMU group 14
	[1022:43b9] 03:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Device 43b9 (rev 02)
IOMMU group 15
	[1022:43b5] 03:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] Device 43b5 (rev 02)
IOMMU group 16
	[1022:43b0] 03:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b0 (rev 02)
IOMMU group 17
	[1022:43b4] 1d:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
IOMMU group 18
	[1022:43b4] 1d:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
IOMMU group 19
	[1022:43b4] 1d:06.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
IOMMU group 20
	[1022:43b4] 1d:07.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
IOMMU group 21
	[10de:128b] 21:00.0 VGA compatible controller: NVIDIA Corporation GK208 [GeForce GT 710B] (rev a1)
IOMMU group 22
	[10de:0e0f] 21:00.1 Audio device: NVIDIA Corporation GK208 HDMI/DP Audio Controller (rev a1)
IOMMU group 23
	[1b21:1343] 25:00.0 USB controller: ASMedia Technology Inc. Device 1343
IOMMU group 24
	[8086:1539] 26:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
IOMMU group 25
	[1002:67ef] 28:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Baffin [Radeon RX 460] (rev cf)
IOMMU group 26
	[1002:aae0] 28:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Device aae0
IOMMU group 27
	[1022:145a] 29:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a
IOMMU group 28
	[1022:1456] 29:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Device 1456
IOMMU group 29
	[1022:145c] 29:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Device 145c
IOMMU group 30
	[1022:1455] 2a:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455
IOMMU group 31
	[1022:7901] 2a:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 32
	[1022:1457] 2a:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Device 1457

Share this post


Link to post

Hello everybody,

I'm following this thread for a while now.
I'm new to Unraid, but thought i'd give it a shot.
Here's the setup
- Ryzen R5 1600@3,85GHz
- Asus Prime X370-pro
- Crucial Balistix Tactical 16GB@2,66GHz
- Gigabyte RX550
- Sapphire RX460

I'm Running the latest BIOS, v 0612.
It was released this week. Improvements towards the iommu-issue were told to be made, thought i saw it on the level1-forum.

But still need the ACS patch to split the GPU-grouping up.

That done, started to play arround, and was able to pass the 460 to a Win10-VM.
I was even able to pass the RX550, wich is my primary GPU, to the VM and run Unraid headless. But when I stop the VM, Unraid doesn't get the GPU back. Guess it has to do with reinitialising, or something. Gonna scoop the forum a little further.

Verstuurd vanaf mijn ALE-L21 met Tapatalk

Share this post


Link to post
8 hours ago, mikeyosm said:



I'm passing through the audio off the motherboard, absolutely no issues using the asus audio drivers.



append pci-stub.ids=1022:145c,144d:a802 isolcpus=2-9 pcie_acs_override=downstream,multifunction vfio_iommu_type1.allow_unsafe_interrupts=1 initrd=/bzroot

Quote




IOMMU group 21
	[10de:128b] 21:00.0 VGA compatible controller: NVIDIA Corporation GK208 [GeForce GT 710B] (rev a1)
IOMMU group 22
	[10de:0e0f] 21:00.1 Audio device: NVIDIA Corporation GK208 HDMI/DP Audio Controller (rev a1)

IOMMU group 25
	[1002:67ef] 28:00.0 VGA compatible controller: Advanced Micro Devices, Inc. [AMD/ATI] Baffin [Radeon RX 460] (rev cf)
IOMMU group 26
	[1002:aae0] 28:00.1 Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Device aae0







was full of hopes for propper isolation when I read about the new AMD release, but lost a bit of faith upon seeing your post. I hope I am wrong and more people will report back soem improvements.



very interesting in your grouping is;  this is the first time I see iommu groups breaking up right in between the GPU and its very own audio device.
I wonder do these split groups, and especially the GPUs properly work as they should - and with minimal performance losses inside the VMs ?

afaik when using ACS override patches one can expect occasionally some odd system behaviour. due to the "illegally" shared ressources maybe ?





Share this post


Link to post
9 minutes ago, unrateable said:

was full of hopes for propper isolation when I read about the new AMD release, but lost a bit of faith upon seeing your post. I hope I am wrong and more people will report back soem improvements.



very interesting in your grouping is;  this is the first time I see iommu groups breaking up right in between the GPU and its very own audio device.
I wonder do these split groups, and especially the GPUs properly work as they should - and with minimal performance losses inside the VMs ?

afaik when using ACS override patches one can expect occasionally some odd system behaviour. due to the "illegally" shared ressources maybe ?





Maybe I'm just lucky but I seem to go days without issues with a bit of light Minecraft gaming, Plex 4k streaming and osx usage. Looking forward to the new agesa to see what impact it has on memory overclocking, I'm on a disappointing 2133mhz atm

Share this post


Link to post

Anybody having trouble with Ryzen and Nzbget/Sabnzbd? I don't know if it's my CPU or my SSD. The speeds starts at 50-55MB/s and drops to 25-30 MB/s after my first download is finished.



X-thread:



Share this post


Link to post

These are my IOMMU groups after updating a Gigabyte AX370-Gaming K7 to the latest beta bios with the AGESA 1.0.0.6 code.



I had to do the ACS Override Enabled (downstream,multifunction) for them to appear like this, with nothing enabled they look even worse than the previous bios lol.

My performance in gaming tanked though, don't know why i'm getting 50-60fps average in the Rise of the Tomb Raider benchmark when i had around 180-200 on bare metal.

IOMMU group 0
	[1022:1452] 00:01.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 1
	[1022:1453] 00:01.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
IOMMU group 2
	[1022:1453] 00:01.3 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
IOMMU group 3
	[1022:1452] 00:02.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 4
	[1022:1452] 00:03.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 5
	[1022:1453] 00:03.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1453
IOMMU group 6
	[1022:1452] 00:04.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 7
	[1022:1452] 00:07.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 8
	[1022:1454] 00:07.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
IOMMU group 9
	[1022:1452] 00:08.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1452
IOMMU group 10
	[1022:1454] 00:08.1 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 1454
IOMMU group 11
	[1022:790b] 00:14.0 SMBus: Advanced Micro Devices, Inc. [AMD] FCH SMBus Controller (rev 59)
	[1022:790e] 00:14.3 ISA bridge: Advanced Micro Devices, Inc. [AMD] FCH LPC Bridge (rev 51)
IOMMU group 12
	[1022:1460] 00:18.0 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1460
	[1022:1461] 00:18.1 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1461
	[1022:1462] 00:18.2 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1462
	[1022:1463] 00:18.3 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1463
	[1022:1464] 00:18.4 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1464
	[1022:1465] 00:18.5 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1465
	[1022:1466] 00:18.6 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1466
	[1022:1467] 00:18.7 Host bridge: Advanced Micro Devices, Inc. [AMD] Device 1467
IOMMU group 13
	[144d:a804] 01:00.0 Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961
IOMMU group 14
	[1022:43b9] 03:00.0 USB controller: Advanced Micro Devices, Inc. [AMD] Device 43b9 (rev 02)
IOMMU group 15
	[1022:43b5] 03:00.1 SATA controller: Advanced Micro Devices, Inc. [AMD] Device 43b5 (rev 02)
IOMMU group 16
	[1022:43b0] 03:00.2 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b0 (rev 02)
IOMMU group 17
	[1022:43b4] 04:00.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
IOMMU group 18
	[1022:43b4] 04:02.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
IOMMU group 19
	[1022:43b4] 04:03.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
IOMMU group 20
	[1022:43b4] 04:04.0 PCI bridge: Advanced Micro Devices, Inc. [AMD] Device 43b4 (rev 02)
IOMMU group 21
	[1b21:1343] 05:00.0 USB controller: ASMedia Technology Inc. Device 1343
IOMMU group 22
	[8086:1539] 06:00.0 Ethernet controller: Intel Corporation I211 Gigabit Network Connection (rev 03)
IOMMU group 23
	[1969:e0b1] 07:00.0 Ethernet controller: Qualcomm Atheros Device e0b1 (rev 10)
IOMMU group 24
	[10de:1b06] 09:00.0 VGA compatible controller: NVIDIA Corporation GP102 [GeForce GTX 1080 Ti] (rev a1)
IOMMU group 25
	[10de:10ef] 09:00.1 Audio device: NVIDIA Corporation GP102 HDMI Audio Controller (rev a1)
IOMMU group 26
	[1022:145a] 11:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 145a
IOMMU group 27
	[1022:1456] 11:00.2 Encryption controller: Advanced Micro Devices, Inc. [AMD] Device 1456
IOMMU group 28
	[1022:145c] 11:00.3 USB controller: Advanced Micro Devices, Inc. [AMD] Device 145c
IOMMU group 29
	[1022:1455] 12:00.0 Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 1455
IOMMU group 30
	[1022:7901] 12:00.2 SATA controller: Advanced Micro Devices, Inc. [AMD] FCH SATA Controller [AHCI mode] (rev 51)
IOMMU group 31
	[1022:1457] 12:00.3 Audio device: Advanced Micro Devices, Inc. [AMD] Device 1457



Share this post


Link to post
50 minutes ago, Josecitox said:

These are my IOMMU groups after updating a Gigabyte AX370-Gaming K7 to the latest beta bios with the AGESA 1.0.0.6 code.



I had to do the ACS Override Enabled (downstream,multifunction) for them to appear like this, with nothing enabled they look even worse than the previous bios lol.

My performance in gaming tanked though, don't know why i'm getting 50-60fps average in the Rise of the Tomb Raider benchmark when i had around 180-200 on bare metal.



NPT is still busted as ever from what I can tell; it murders GPU performance, but turning it off hurts CPU performance a good deal.

Share this post


Link to post
31 minutes ago, dkabot said:



NPT is still busted as ever from what I can tell; it murders GPU performance, but turning it off hurts CPU performance a good deal.

How do i enable/disable that??

Share this post


Link to post

I will check out the Beta bios for Gaming 5 when I get chance.



One thing I did notice with my current setup, if I disable ACS override the performance in VM's seems to take a hit. Within games I'll often see slowdowns and FPS drops but with ACS override on this is not an issue.

Share this post


Link to post

I feel like a separate tread should be started just for posting successful ryzen builds. This thread is a bit hard to follow and im thinking about upgrading from the FX-8350 to Ryzen 1800 but i want to make sure i dont have compatibility issues.

Share this post


Link to post

Skyline..... It's hard to say what compatibility issues you will have other than this chip really hasn't been out long.



It's working, but hard to say anything other than its a work in progress. I started my own build thread for Ryzen just because I wanted to document what did and didn't work.



Share this post


Link to post

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.
Note: Your post will require moderator approval before it will be visible.

Guest
Reply to this topic...

×   Pasted as rich text.   Restore formatting

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
