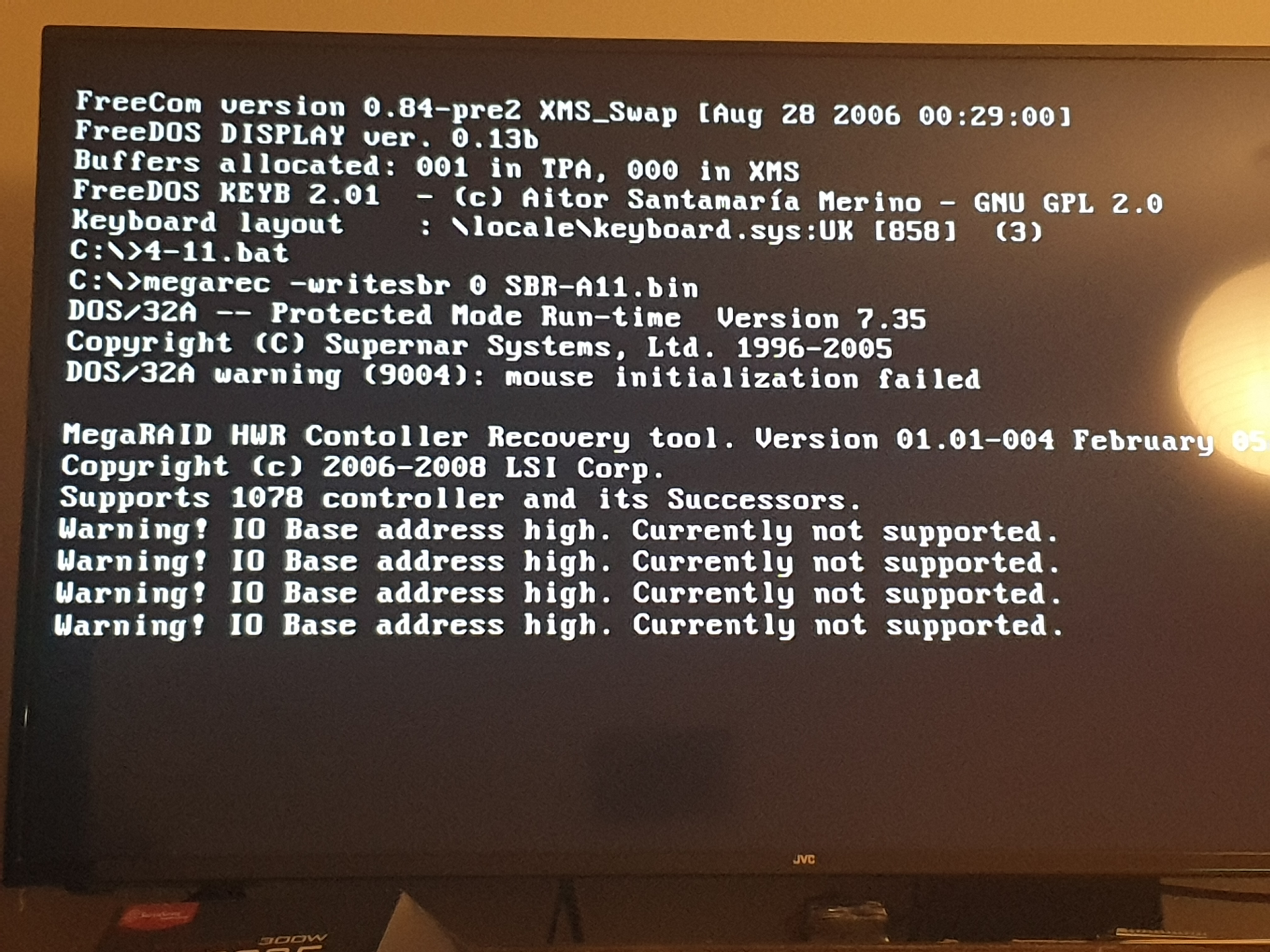

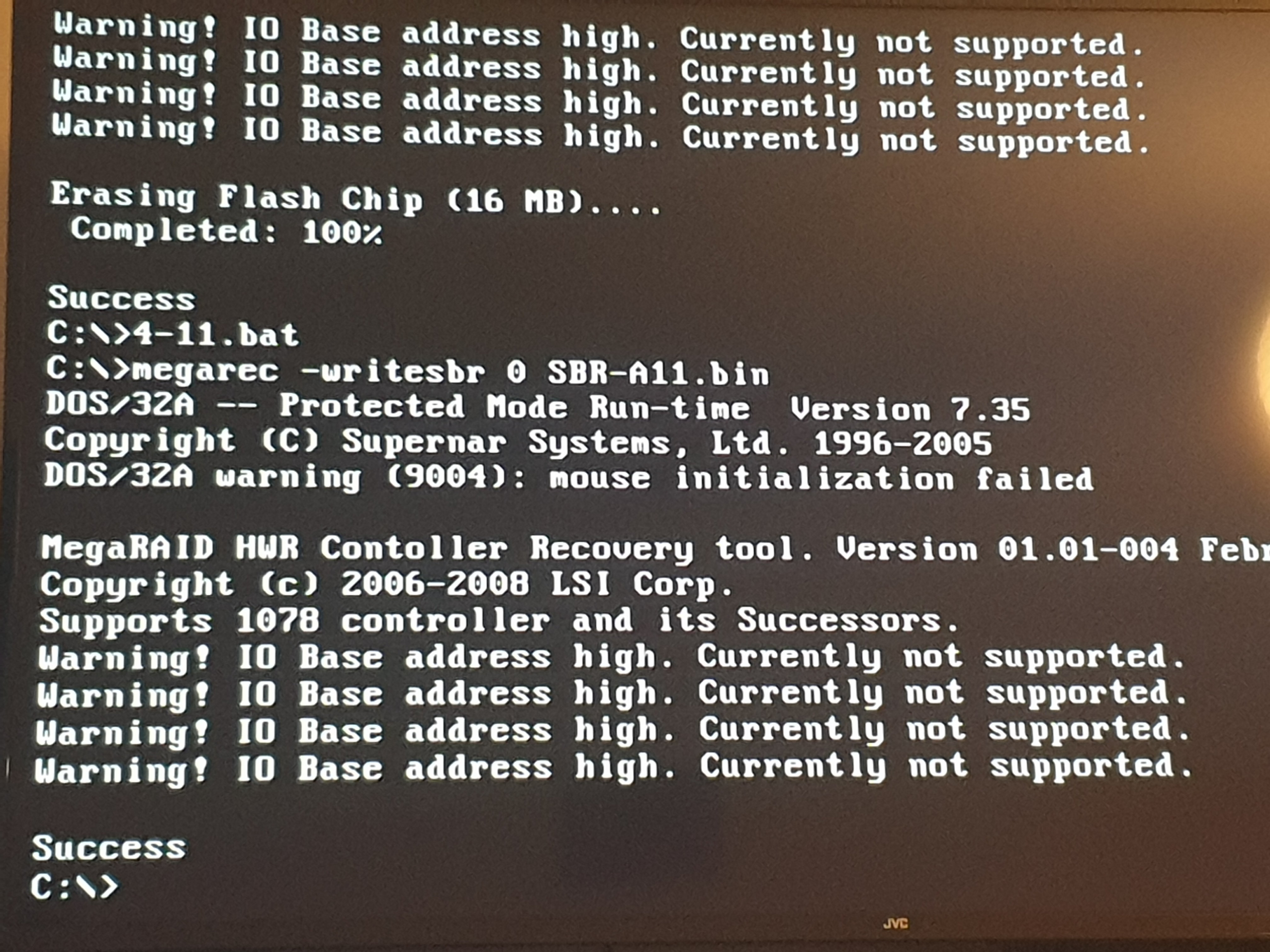

March 18, 20215 yr When in dos and flashing i get "Warning! IO Base address high. Currently not supported." I was getting that originally aswell but each section finished with "success" Is that okay?

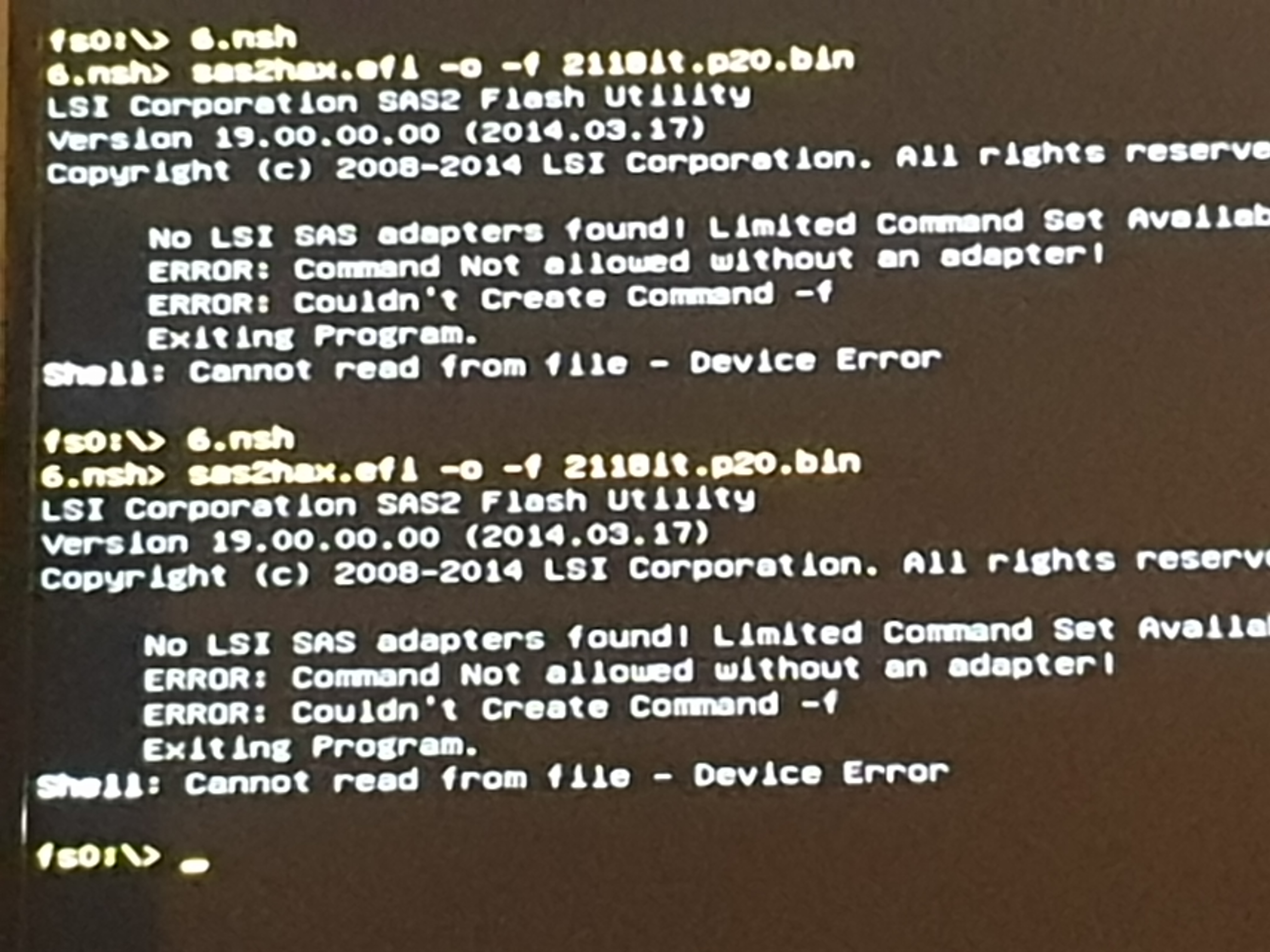

March 18, 20215 yr And that was the last time it was seen alive. 20 minutes trying to get the pc to boot and i get this Oh wait... It's still detected in dos. Wtf. Edited March 18, 20215 yr by mdrodge
March 18, 20215 yr Then dos started to hang on 2.bat or 4-11.bat. I guess it died. This makes no sense.
March 18, 20215 yr Have you got the card in the right PCI slot? Usually needs to be the one closest to the CPU
March 19, 20215 yr Thank you for the guide. The flashing process went buttery smooth on an a21 model.
September 28, 20214 yr Hi! After successfully flashing the A21 controller, I get a message ("mpt2sas_cm0 overriding nvdata eedptagmode setting") when debian 10 is loading. My mdadm raid-1 does not work with this. What can be done? Edited September 28, 20214 yr by kerby
September 29, 20214 yr On 9/28/2021 at 3:36 PM, kerby said: Hi! After successfully flashing the A21 controller, I get a message ("mpt2sas_cm0 overriding nvdata eedptagmode setting") when debian 10 is loading. My mdadm raid-1 does not work with this. What can be done? I'm not sure, do your disks show at all? Edited October 25, 20214 yr by Jonny
October 21, 20214 yr On 9/28/2021 at 4:36 PM, kerby said: Hi! After successfully flashing the A21 controller, I get a message ("mpt2sas_cm0 overriding nvdata eedptagmode setting") when debian 10 is loading. My mdadm raid-1 does not work with this. What can be done? Was this resolved?
November 3, 20223 yr Hi (literally created an account to ask about this) I followed all the instructions and managed to get as far as completing the EFI stage but once I completed that and rebooted to switch back to BIOS to complete the process it has just been hanging on the blinking underscore screen and not doing much if anything, on either of the D2607s I ran through (they're 21s and I used the 21 version, and second time through I wiped it twice before running the rest. No difference). What's gone wrong here? I can't imagine it's hardware related when both those devices aren't booting Thanks Edited November 3, 20223 yr by C30nn4
July 9, 20251 yr On 6/10/2017 at 1:58 PM, FingerlessGloves said:The sas2hax creator has now created new tool for doing this process from within Linux itself. I haven't tested this but maybe an easier solution.https://github.com/marcan/lsirec Original Post Below I've add some script files to the method speed up the process. Updated Files - https://mega.nz/#!bp1lwAwZ!qrQics2qslPxCRFSI7pCaL-JECCauM_xqp00GQPloSgMIRROR - https://drive.google.com/file/d/18aULGYQEyMJcW7rUAk8sddUDX_Rozq68/view?usp=sharing StepsCreate DOS USB using RUFUS and copy these files to the USB. GUIDE link Each task has 2 commands you can do. The first one saves you typing the commands by using script/bat files. RecommendationsUnplug all drives but the USB, helps with the EFI shell bitPlug D2607 in to the first x16 slot, even if it means unplugging another card, had systems where you could only flash it if it was in the first slot.Make sure you have SAS to SATA breakout cable not SATA to SAS reverse breakout cable. (Thanks johnnie.black for pointing this out.) Boot the USB in non UEFI mode. (DOS)Then do the following commands Get SAS Address of the card1.BATormegacli -adpallinfo -aall | find /i "sas address" > sas_addr.txt Backup SBR incase we need it. We probably wont though. might need this if you get stuck for support. (Only run this once per card otherise you'll lose the original, before flashing the patched one below)2.BATormegarec -readsbr 0 O-SBR.bin Clean Flash the card. If the command fails to flash, just keep trying it until it completes. Can take 10+ attempts3.BATormegarec -cleanflash 0 Flash SBR for A11 or A21 - Just change the number in the command for the card you doing.4-21.BATormegarec -writesbr 0 SBR-A21.bin Clean Flash the card5.BATormegarec -cleanflash 0 Reboot in to UEFI shell on the usbSome motherboards you can go into the boot menu and do the UEFI option for the USB stick, best to check out in the manual or online. Your mount point for your USB might not be FS0, could be FS1, FS2 and so on. Either unplug all drives so it's just the USB drive or, when the EFI shell starts it prints the drives it see's in yellow, you might be able to work it out from there. Once booted in to EFI Shell, do the following commands Change to USBfs0: Flash IT Mode Firmware6.NSHorsas2hax -o -f 2118it.p20.bin It will error about it can't reset the adapter, don't worry its normal. Reboot and then boot the UEFI on the usb againDo the following commands fs0: Now we Flash IT Mode Firmware again7.NSHorsas2hax -o -f 2118it.p20.bin -b mptsas2.p20.rom Get SAS Address we saved8.NSHortype SAS_ADDR.TXT Set SAS Address of the card. Change the address to the one that got printed out. sas2hax -o -sasadd 5003005700dbf920 Reboot the USB in non UEFI mode. (DOS)Do the following commandsFlash SBR for A11 or A21 - Just change the number in the command for the card you doing.4-21.BATormegarec -writesbr 0 SBR-A21.bin Notes: Making up a SAS address is fine, just make sure you don't flash two cards with the same address. You can find more help cross flashing the D2607 card here. He made the sas2hax application.https://marcan.st/2016/05/crossflashing-the-fujitsu-d2607/ I add no -noreset when I was flashing some card but seems to cause issues, so I left it without. Had to reboot twice when ever I did it, not sure why though. Orignal post: https://forums.lime-technology.com/topic/12114-lsi-controller-fw-updates-irit-modes/?do=findComment&comment=522038 Flash Fujitsu - D2607.zipTHIS is EXACTLY what i scoured the internet for today. THANK YOU big respect for the very helpful guide and instructions. worked flawlessly
October 11, 2025Oct 11 On 6/10/2017 at 2:58 PM, FingerlessGloves said:unplugging another caOn 6/10/2017 at 2:58 PM, FingerlessGloves said:The sas2hax creator has now created new tool for doing this process from within Linux itself. I haven't tested this but maybe an easier solution.https://github.com/marcan/lsirec Original Post Below I've add some script files to the method speed up the process. Updated Files - https://mega.nz/#!bp1lwAwZ!qrQics2qslPxCRFSI7pCaL-JECCauM_xqp00GQPloSgMIRROR - https://drive.google.com/file/d/18aULGYQEyMJcW7rUAk8sddUDX_Rozq68/view?usp=sharing StepsCreate DOS USB using RUFUS and copy these files to the USB. GUIDE link Each task has 2 commands you can do. The first one saves you typing the commands by using script/bat files. RecommendationsUnplug all drives but the USB, helps with the EFI shell bitPlug D2607 in to the first x16 slot, even if it means unplugging another card, had systems where you could only flash it if it was in the first slot.Make sure you have SAS to SATA breakout cable not SATA to SAS reverse breakout cable. (Thanks johnnie.black for pointing this out.) Boot the USB in non UEFI mode. (DOS)Then do the following commands Get SAS Address of the card1.BATormegacli -adpallinfo -aall | find /i "sas address" > sas_addr.txt Backup SBR incase we need it. We probably wont though. might need this if you get stuck for support. (Only run this once per card otherise you'll lose the original, before flashing the patched one below)2.BATormegarec -readsbr 0 O-SBR.bin Clean Flash the card. If the command fails to flash, just keep trying it until it completes. Can take 10+ attempts3.BATormegarec -cleanflash 0 Flash SBR for A11 or A21 - Just change the number in the command for the card you doing.4-21.BATormegarec -writesbr 0 SBR-A21.bin Clean Flash the card5.BATormegarec -cleanflash 0 Reboot in to UEFI shell on the usbSome motherboards you can go into the boot menu and do the UEFI option for the USB stick, best to check out in the manual or online. Your mount point for your USB might not be FS0, could be FS1, FS2 and so on. Either unplug all drives so it's just the USB drive or, when the EFI shell starts it prints the drives it see's in yellow, you might be able to work it out from there. Once booted in to EFI Shell, do the following commands Change to USBfs0: Flash IT Mode Firmware6.NSHorsas2hax -o -f 2118it.p20.binIt will error about it can't reset the adapter, don't worry its normal. Reboot and then boot the UEFI on the usb againDo the following commands fs0: Now we Flash IT Mode Firmware again7.NSHorsas2hax -o -f 2118it.p20.bin -b mptsas2.p20.rom Get SAS Address we saved8.NSHortype SAS_ADDR.TXT Set SAS Address of the card. Change the address to the one that got printed out. sas2hax -o -sasadd 5003005700dbf920 Reboot the USB in non UEFI mode. (DOS)Do the following commandsFlash SBR for A11 or A21 - Just change the number in the command for the card you doing.4-21.BATormegarec -writesbr 0 SBR-A21.bin Notes:Making up a SAS address is fine, just make sure you don't flash two cards with the same address. You can find more help cross flashing the D2607 card here. He made the sas2hax application.https://marcan.st/2016/05/crossflashing-the-fujitsu-d2607/ I add no -noreset when I was flashing some card but seems to cause issues, so I left it without. Had to reboot twice when ever I did it, not sure why though. Orignal post: https://forums.lime-technology.com/topic/12114-lsi-controller-fw-updates-irit-modes/?do=findComment&comment=522038 Flash Fujitsu - D2607.zipOn 6/10/2017 at 2:58 PM, FingerlessGloves said:The sas2hax creator has now created new tool for doing this process from within Linux itself. I haven't tested this but maybe an easier solution.https://github.com/marcan/lsirec Original Post Below I've add some script files to the method speed up the process. Updated Files - https://mega.nz/#!bp1lwAwZ!qrQics2qslPxCRFSI7pCaL-JECCauM_xqp00GQPloSgMIRROR - https://drive.google.com/file/d/18aULGYQEyMJcW7rUAk8sddUDX_Rozq68/view?usp=sharing StepsCreate DOS USB using RUFUS and copy these files to the USB. GUIDE link Each task has 2 commands you can do. The first one saves you typing the commands by using script/bat files. RecommendationsUnplug all drives but the USB, helps with the EFI shell bitPlug D2607 in to the first x16 slot, even if it means unplugging another card, had systems where you could only flash it if it was in the first slot.Make sure you have SAS to SATA breakout cable not SATA to SAS reverse breakout cable. (Thanks johnnie.black for pointing this out.) Boot the USB in non UEFI mode. (DOS)Then do the following commands Get SAS Address of the card1.BATormegacli -adpallinfo -aall | find /i "sas address" > sas_addr.txt Backup SBR incase we need it. We probably wont though. might need this if you get stuck for support. (Only run this once per card otherise you'll lose the original, before flashing the patched one below)2.BATormegarec -readsbr 0 O-SBR.bin Clean Flash the card. If the command fails to flash, just keep trying it until it completes. Can take 10+ attempts3.BATormegarec -cleanflash 0 Flash SBR for A11 or A21 - Just change the number in the command for the card you doing.4-21.BATormegarec -writesbr 0 SBR-A21.bin Clean Flash the card5.BATormegarec -cleanflash 0 Reboot in to UEFI shell on the usbSome motherboards you can go into the boot menu and do the UEFI option for the USB stick, best to check out in the manual or online. Your mount point for your USB might not be FS0, could be FS1, FS2 and so on. Either unplug all drives so it's just the USB drive or, when the EFI shell starts it prints the drives it see's in yellow, you might be able to work it out from there. Once booted in to EFI Shell, do the following commands Change to USBfs0: Flash IT Mode Firmware6.NSHorsas2hax -o -f 2118it.p20.bin It will error about it can't reset the adapter, don't worry its normal. Reboot and then boot the UEFI on the usb againDo the following commands fs0: Now we Flash IT Mode Firmware again7.NSHorsas2hax -o -f 2118it.p20.bin -b mptsas2.p20.rom Get SAS Address we saved8.NSHortype SAS_ADDR.TXT Set SAS Address of the card. Change the address to the one that got printed out. sas2hax -o -sasadd 5003005700dbf920 Reboot the USB in non UEFI mode. (DOS)Do the following commandsFlash SBR for A11 or A21 - Just change the number in the command for the card you doing.4-21.BATormegarec -writesbr 0 SBR-A21.bin Notes: Making up a SAS address is fine, just make sure you don't flash two cards with the same address. You can find more help cross flashing the D2607 card here. He made the sas2hax application.https://marcan.st/2016/05/crossflashing-the-fujitsu-d2607/ I add no -noreset when I was flashing some card but seems to cause issues, so I left it without. Had to reboot twice when ever I did it, not sure why though. Orignal post: https://forums.lime-technology.com/topic/12114-lsi-controller-fw-updates-irit-modes/?do=findComment&comment=522038 Flash Fujitsu - D2607.zipHi, pretty old tutorial I know - but still works. Thanks for that!The only problem I have - after flashing the controller only 1, the top, port works. I have flashed two controllers (A21), both the same. I can switch the cables, allways only the top port is recognizing disks. Unforunally I did not test both boards in IR Mode before.I bought the same controller already flashed, here both ports are working fine. Someone may have the same issue and a solution for that? Thank you
March 26Mar 26 I do have the same issue that only the top port works and this is not a cable issue tested with several cables.Any solution here ?
