[GUIDE] Fix Nvidia Code 43 Issue on Nvidia GPU

83 posts in this topic Last Reply

Recommended Posts

TLDR : This issue is caused by Nvidia driver refusing to be loaded when a virtural enviroment is detected.

The Easy Work Around

For most scarinos, setting the Hyper-V option to No

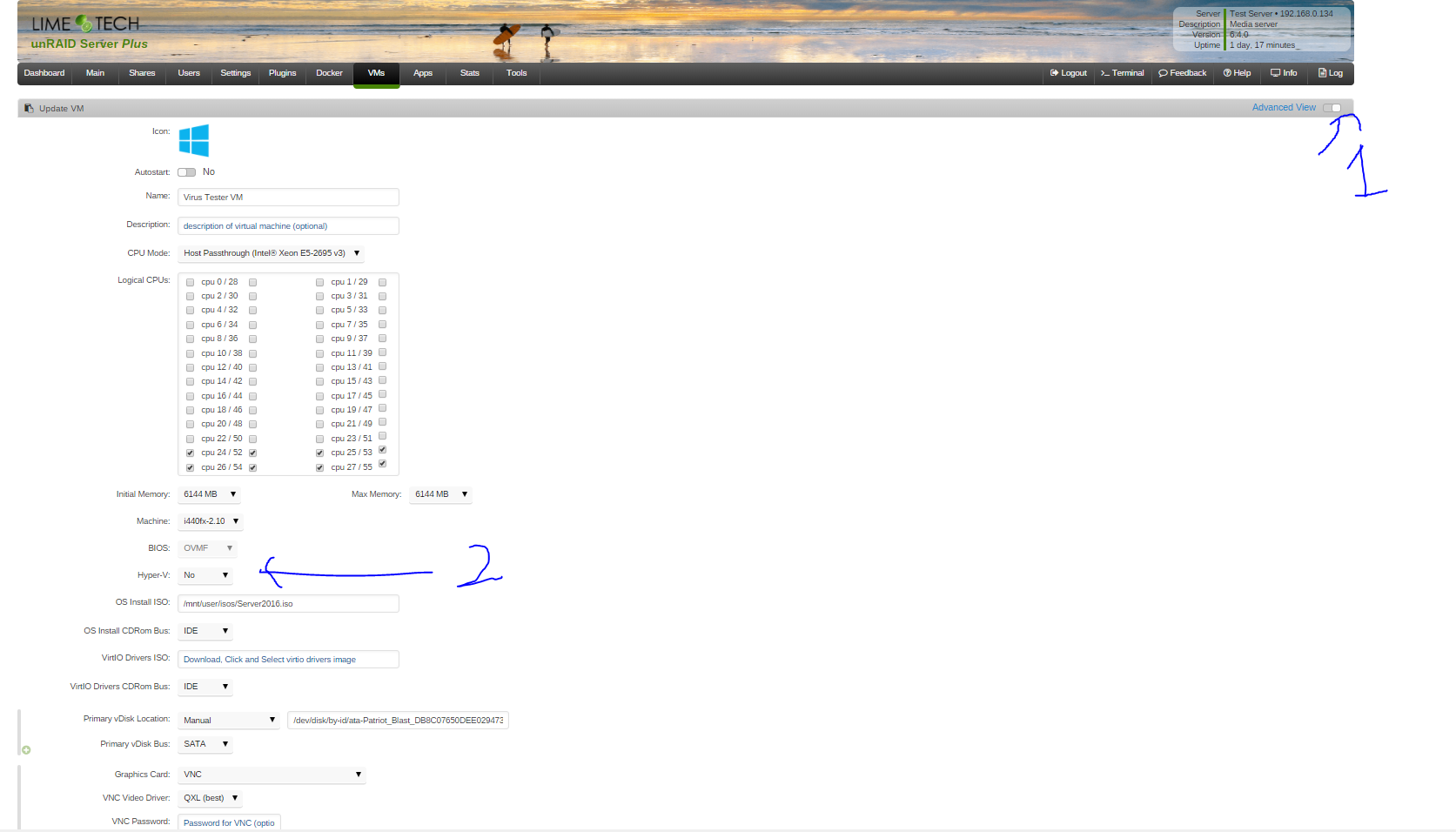

1. Go to VMs tab

2. Go to edit VM's Configuration

3. Switch to "Advance Mode"

4. Disable Hyper-V

The More "Advanced Work Around"

This method is for one's that turning hyper-v off does not help, In this method We'll be patching the nvidia drive.

Requirement:

  • Other Windows 10 Machine
  • Decent Internet Connection
  • Decent Disk Space Avaliable
  • OVMF VM (SeaBIOS Won't Work)
  • A USB Flash Drive

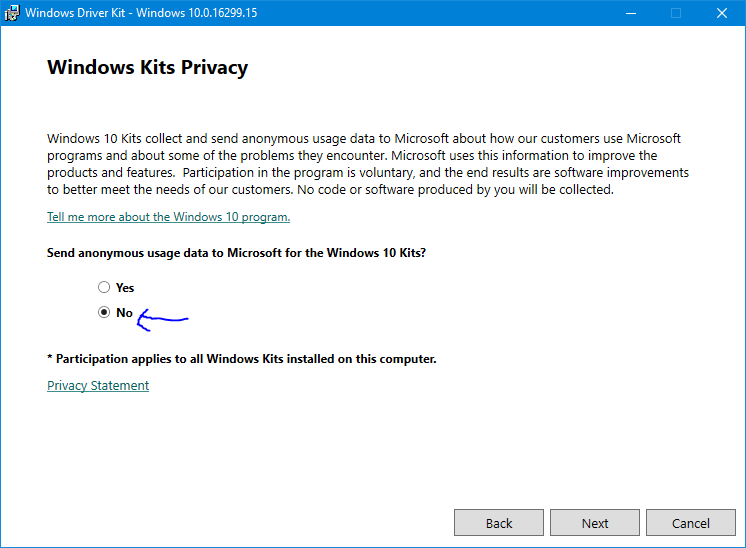

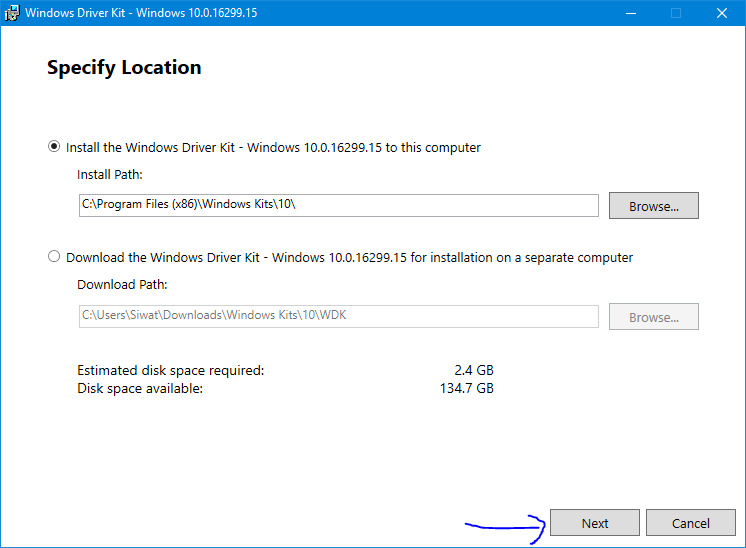

Step 1: [On External Machine] Install Windows Driver Kit

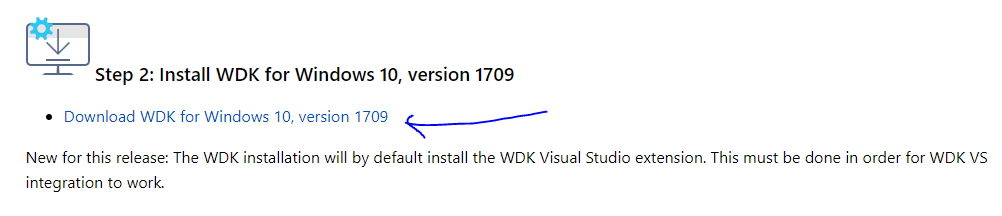

           Navigate to the following Link : https://docs.microsoft.com/en-us/windows-hardware/drivers/download-the-wdk


            Download WDK for Windows 10

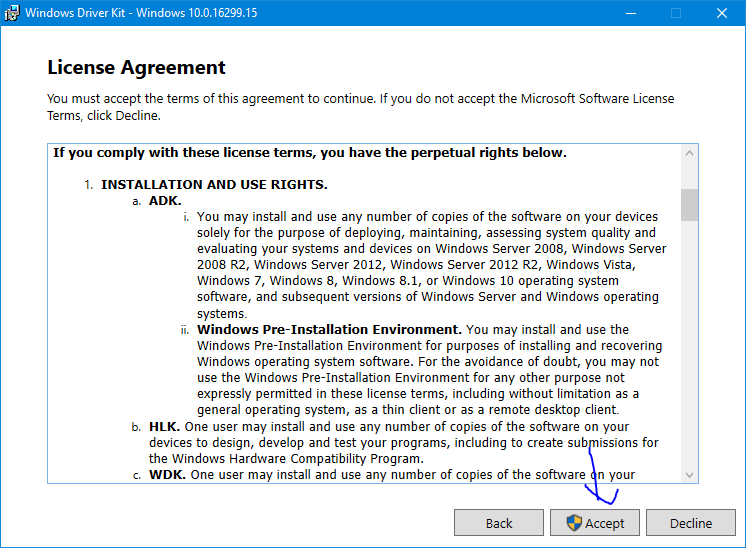

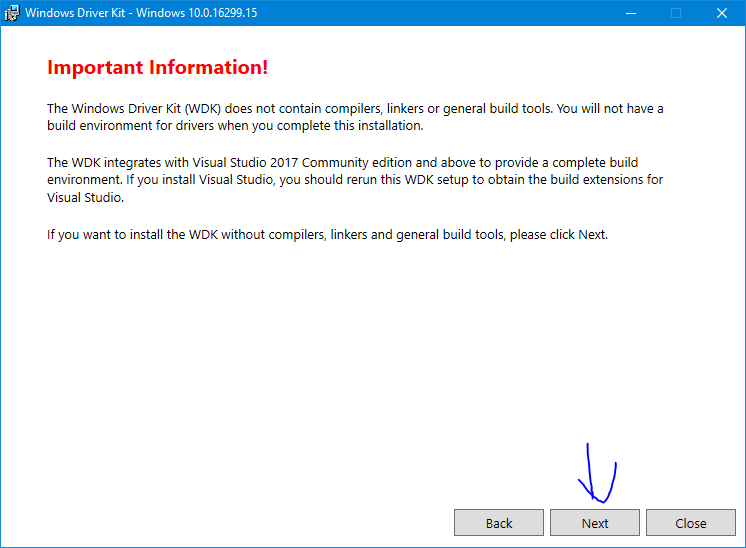

5a9276e3400c1_Acceptit.PNG.60e927c1512d0a8ee2ffaa8c744b3f15.PNGAccept it.PNG5a9276ef84131_NextAgain.PNG.703465f4d8f61fa08f47c987f2e0b62b.PNG

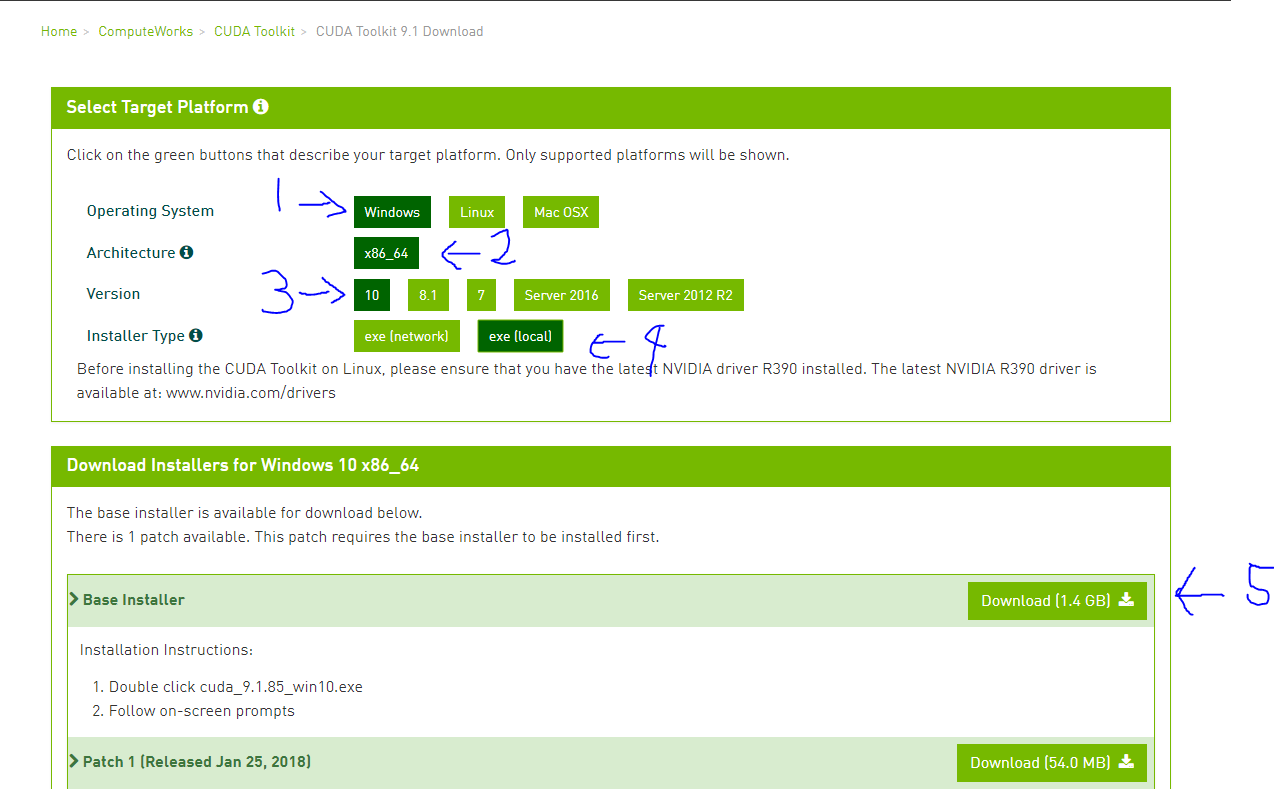

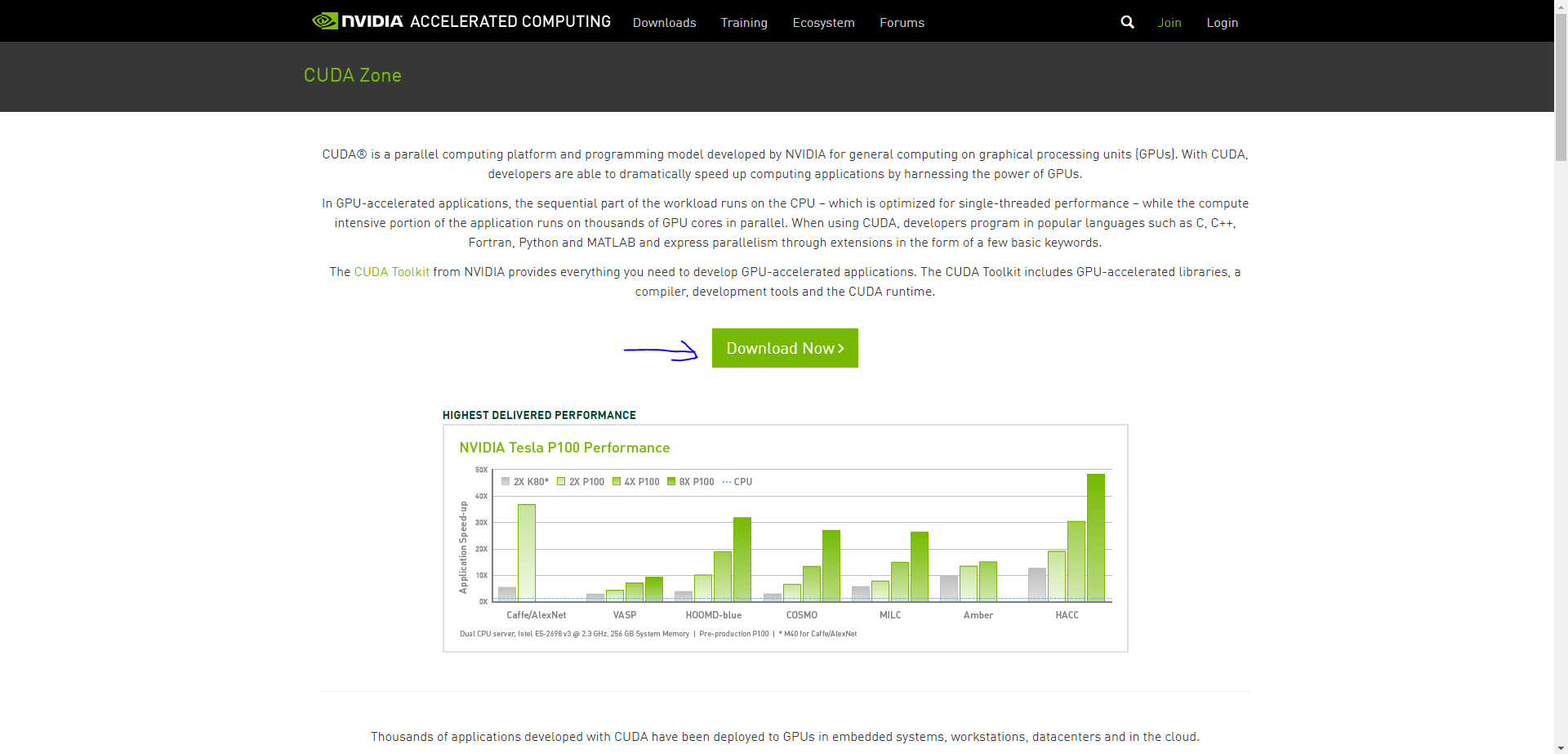

         Downloading Nvidia CUDA : Navigate to https://developer.nvidia.com/cuda-zone5a927760b26f5_DownloadCuda.thumb.PNG.a42aa71bfbdababe6aff28f50b7f0766.PNG5a927774c0d03_SelectCuda.thumb.PNG.4d6c5b57cb50977f934a0896c7c0313e.PNG

After It has been download, Run it But change the extraction Path to C:\NVIDIA

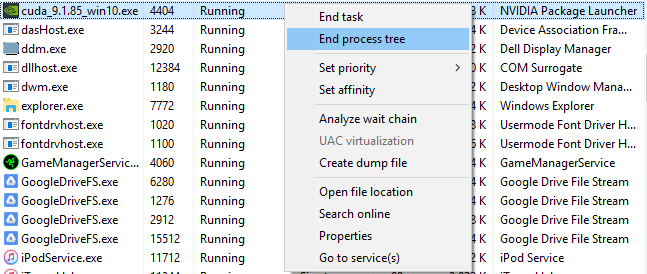

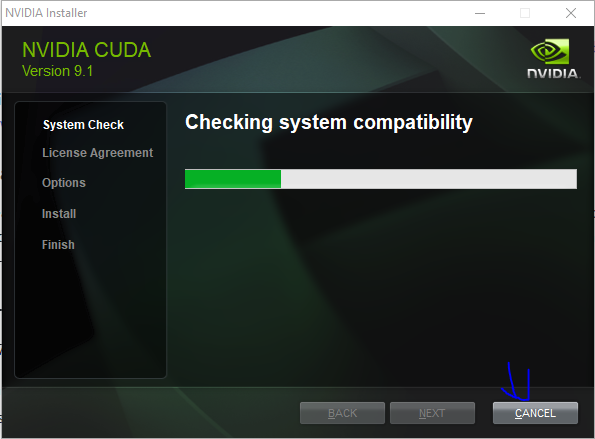

If the following windows are shown DO NOT CLICK CANCEL You must Quickly end It's process tree with task manager (Cancel Will result in the setup deleting the temp files)


Now Let's Enable Test Signing, Open A CMD windows as Administrator and type the following in and press enter "Bcdedit.exe -set TESTSIGNING ON"


It should Say "The operation completed successfully", Reboot Your Computer If the step is done  correctly , You will See the message "Test Mode" on the buttom left of the wallpaper

Next, Download nvidia-kvm-patcher by sk1080 from https://codeload.github.com/sk1080/nvidia-kvm-patcher/zip/master

extract "patcher.ps1" and "gencert.ps1" to C:\

then Open A Powershell Windows as Administrator

type in cd /

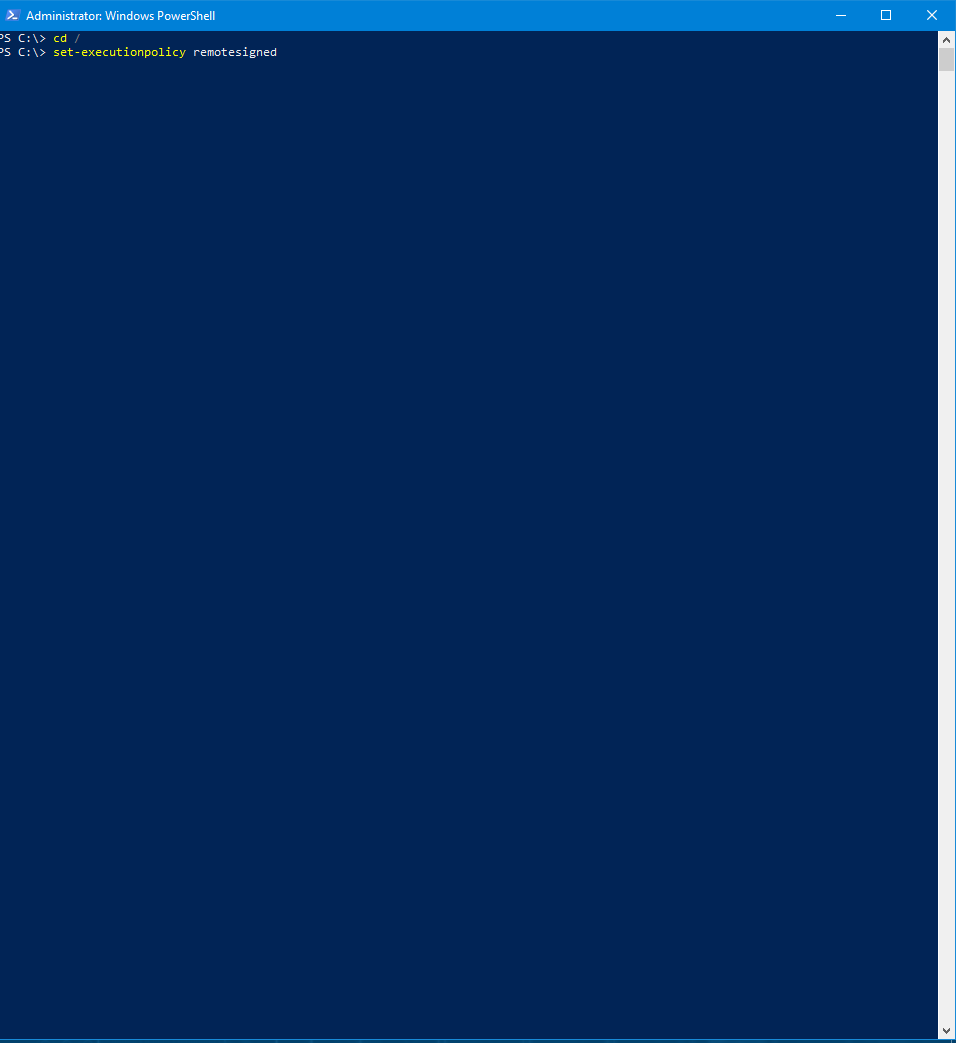

Set Execution Policy to Remote Sign with "set-executionpolicy remotesigned"


Press Y then Enter then type in ./patcher.ps1 C:\NVIDIA\Display.Driver

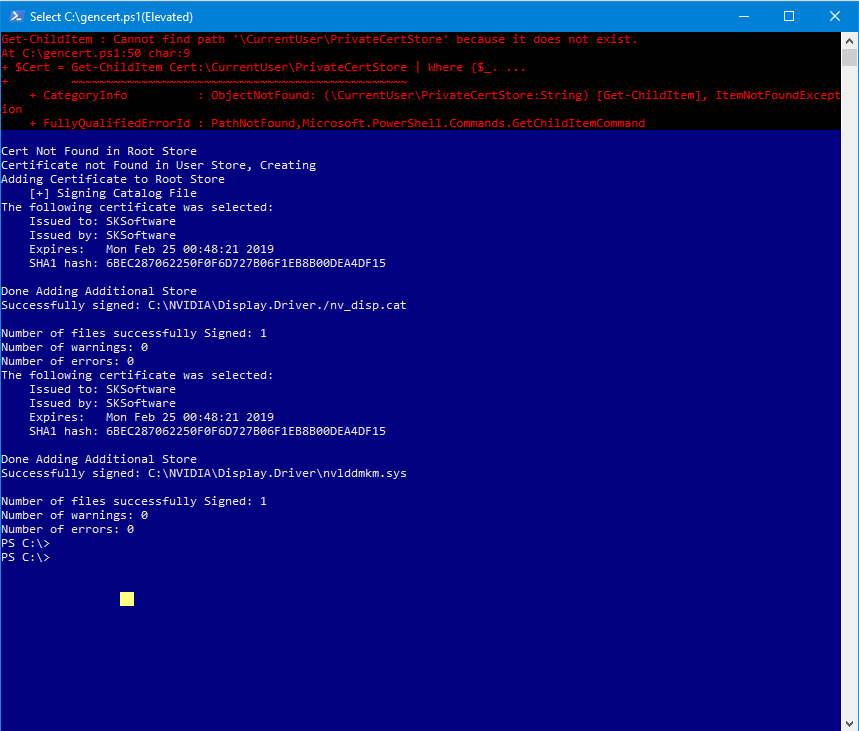

The following Should Happen :


Copy The NVIDIA Folder to your usb drive then unplug it and open CMD as administrator again

Type in Bcdedit.exe -set TESTSIGNING OFF

Open Powershell As Administrator, Type in "set-executionpolicy remotesigned" , This time answer N



NOW LET'S CREATE OUR VMS !

Attach the usb drive you just moved your driver in to the unraid system

Use Advance Mode Set Hyper-V to No,and Set BIOS to OVMF, attach your usb to the vm too

USE VNC as your graphic and Select NONE as Sound

Install windows as usual (DO NOT INSTALL THE NETWORK DRIVER)

Disable Windows 10 Auto driver installation by

[IN VM CONTROLLED USING VNC]

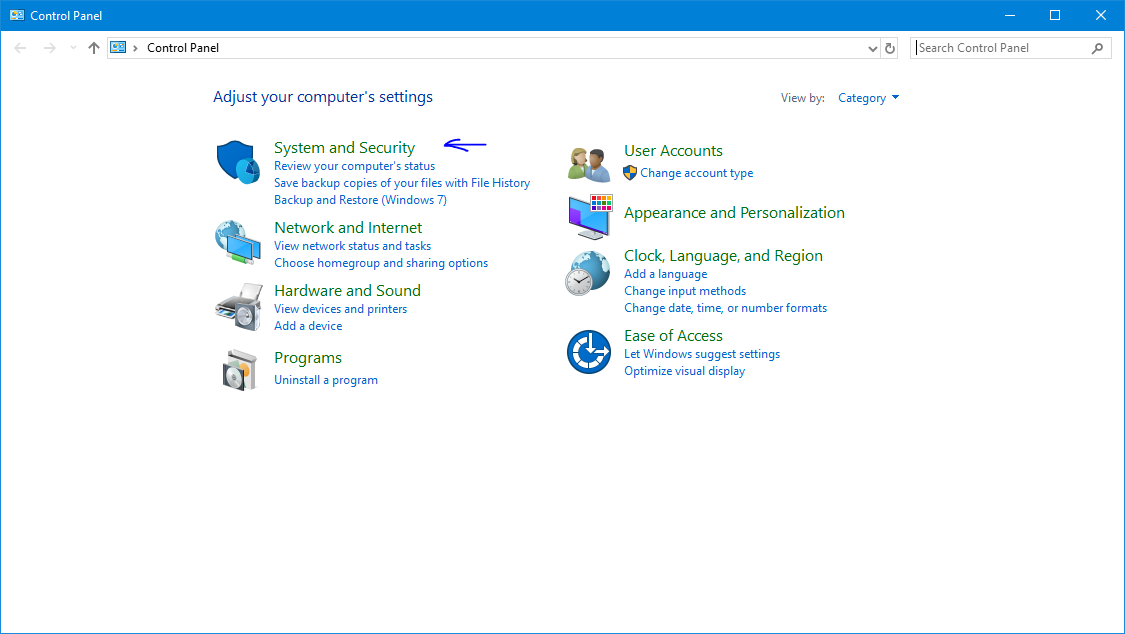

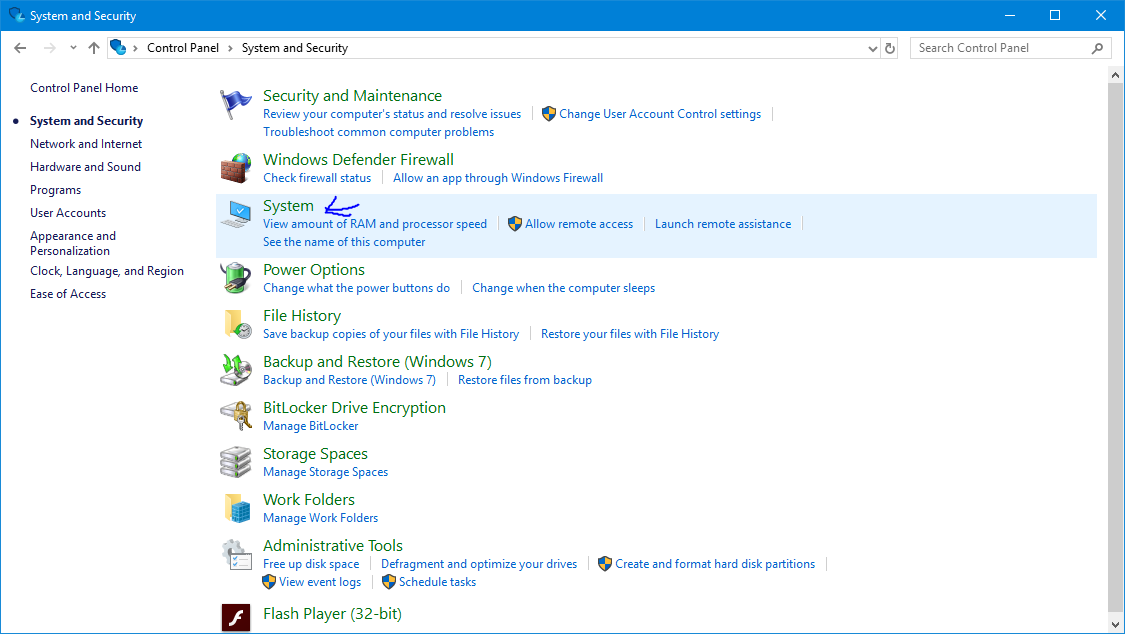

1. Open Control Panel

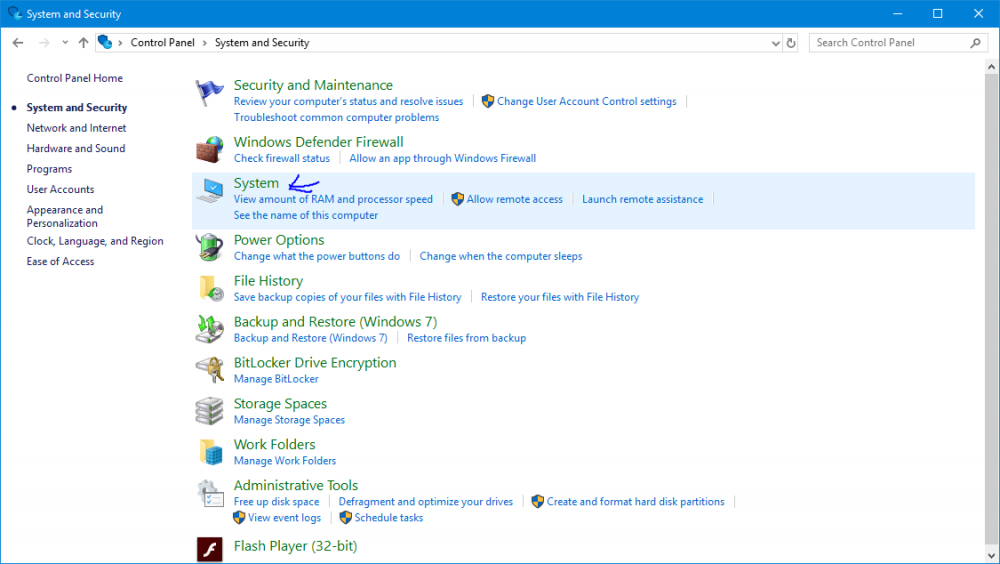

Navigate by following the picture




clicksys.thumb.PNG.4c72d87ef49892b7f56603711d1b2d43.PNGadvsys.PNG.5d24c9a721ae80bdc6ccb9a33fdac2fc.PNG




Click Save Changes

[STILL IN VM]

Next We need to disable driver signature enforcement by running cmd as administrator

type in "bcdedit.exe /set nointegritychecks on" then reboot

Next move the driver into your desktop

Shutdown the VMs

enable  ACS override patch, Reboot Unraid

attach the Graphic card and Sound Device

Install The driver, Install Network Card Driver

DO NOT UPDATE YOUR DRIVER

DONE !

If the step doesn't work try with driver version 372.54





******If all that doesn't work Here's a list of thing that It fixed client system (TLDR : System specific Fixes)

1. Changing the gpu slot to the second one and put another gpu in the first slot

2. vfio-pci the card

3. Disable Hyper-V

4. Dumping the bios (Work Quite Well)

5. Use VNC With The gpu

6. disable option rom on the gpu (Avaliable on some server board or workstation board, Rarely on consumer board)

7. use an older driver

Edited by Siwat2545

Share this post


Link to post

Thanks for taking the time to post this guide! I haven't tested it myself, but it looks detailed and comprehensive!



(#ssdindex - GPU Passthru Guide for overcoming Error 43)

Share this post


Link to post

I was having this issue, all I needed to do was dump the rom for the card from the local command line, then edit the VM xml to include the <rom file='/mnt/user/.....'/> code for it...  Card has worked perfectly for me ever since...



Does this solution resolve some issue I am unaware of?

Share this post


Link to post
On 3/10/2018 at 1:40 AM, Warrentheo said:

I was having this issue, all I needed to do was dump the rom for the card from the local command line, then edit the VM xml to include the <rom file='/mnt/user/.....'/> code for it...  Card has worked perfectly for me ever since...



Does this solution resolve some issue I am unaware of?

This issue will solve the issue when Nvidia somehow find out that the machine is a virtural one even when hyper-v is turned off

Share this post


Link to post
On 3/12/2018 at 2:38 AM, Siwat2545 said:

This issue will solve the issue when Nvidia somehow find out that the machine is a virtural one even when hyper-v is turned off

I am fairly new to this stuff...  Now you have me wondering if I have to look forward to nVidia randomly killing off my setup :(

Share this post


Link to post
On 3/13/2018 at 3:09 AM, Starlord said:

Is there a reason that you are using the quadro drivers and not the standard geforce ones?

There is some optimization on workstation uses but cuda IS NOT a quadro driver

Share this post


Link to post
On 3/13/2018 at 10:26 AM, Warrentheo said:

I am fairly new to this stuff...  Now you have me wondering if I have to look forward to nVidia randomly killing off my setup :(



This just happened to me. I was happily passing an Nvidia GPU thru to a Windows 10 VM when it began reporting error code 43 out of nowhere.  I'm not sure if it was an Nvidia driver update (I'm in the habit of updating GPU drivers) or if it coincided with a recent (planned) server shutdown.  It sucks and I'm not sure where to go from here.



If it is the driver, is it possible to uninstall it and roll back until I find the last one that works? I'm assuming that I can download older driver packages from Nvidia?

Share this post


Link to post

I have an EVGA GTX 1070 with current driver... Still working...  I have the boot menu blacklisting the opensource driver, and then passed the device ID to the vfio-pci driver instead...  I then have a ROM file I dumped from the actual card in unRaid listed in the XML file for the domain...



This seams to be working with no issues...



I have OVMF BIOS, i440fx-2.11, and Hyper-V extensions turned off...

Edited by Warrentheo

Share this post


Link to post

Thanks for the reply.  I got it working again by using an edited vbios from TechPowerUp per Spaceinvader's instruction.  I also left Hyper-V extensions turned off for good measure even though that alone didn't fix it.



I have no idea why it worked okay for some time without the bios dump but requires it now.  But I'm just glad to have my gaming vm functional again.

Share this post


Link to post

I think what I am about to say is becoming less of a concern, which is why nVidia SLI now works with some cards with different BIOS versions, however using a BIOS that didn't come from the card itself can have some pretty big consequences...  Some of the things a BIOS does is regulate fan speeds before windows, and before you think that is not an issue, I would point you here: https://www.evga.com/thermalmod/  This is a recall and BIOS update EVGA did for my card, because without them the card was cooking itself to death...  I am sure there are other examples of Bios updates being more than cosmetic or minor...



I personally would only EVER use Latest Current Bios written directly for my card, and since that should be the one installed on the card, I would only use a Bios dumped directly off the card in question...



That said, it is very unlikely that you will come across a card frying issue from using the wrong Bios...  But because the possibility is there, I would always recommend dumping the Bios from the card itself...

Share this post


Link to post
On 3/30/2018 at 8:59 AM, Warrentheo said:

I have an EVGA GTX 1070 with current driver... Still working...  I have the boot menu blacklisting the opensource driver, and then passed the device ID to the vfio-pci driver instead...  I then have a ROM file I dumped from the actual card in unRaid listed in the XML file for the domain...



I also face the infamous error 43 for my primary GPU. Interesting enough, it is working well for my secondary card. I am looking for a solution as I'd like to remove my secondary GPU from my server to free up a slot.



I'd like to look into both solutions shared here. Two questions:



1) Bios dump: can you @Warrentheo help elaborate please? How to blacklist opensource drivers (which menu, which drivers)? How to pass the device ID to the vfio pci driver? I have successfully dumped the bios, but still seeing error 43.



2) Advanced option: does this require me to build a new VM? I have two existing WIn10 VMs and I'd prefer not to create a new one. Possible?

Edited by steve1977

Share this post


Link to post

Thanks for your help. His videos are indeed fantastic and I have watched many of them for many different Unraid things. Very well done!



I watched the second video twice again, but didn't find any reference to blacklisting or opensource drivers. You're sure that this has been in this videos?

Share this post


Link to post
Quote

attach the Graphic card and Sound Device

Install The driver, Install Network Card Driver

Dumb question but, with the card passed through, how are you remoting to the VM with the network driver not installed.

Share this post


Link to post
19 hours ago, dbeattie71 said:

Dumb question but, with the card passed through, how are you remoting to the VM with the network driver not installed.

He's not. He's connecting to the KVM VNC console for that VM hosted on unraid. If you watch the video closely, you'll see.

Share this post


Link to post

I am getting this as well. My Windows VM which has worked for months has recently stopped working with a code 43. Tried uninstalling the drivers and reinstalling them. I noticed that my VM config now said HyperV was on (no idea what it said previously, was this changed in a recent unRAID release?) so I turned that off but still not working. I am using a bios dump that I have used previously with no issues.

Share this post


Link to post
7 hours ago, planetwilson said:

I am getting this as well. My Windows VM which has worked for months has recently stopped working with a code 43. Tried uninstalling the drivers and reinstalling them. I noticed that my VM config now said HyperV was on (no idea what it said previously, was this changed in a recent unRAID release?) so I turned that off but still not working. I am using a bios dump that I have used previously with no issues.

That happened to me as well, about two weeks ago. Still don't know what I did to set it off. I had to make the VM all over, and used Windows build 1607 ISO then Windows Upgrades to current; if I used the 1709 build ISO I was right back to code 43. While I'm not certain I think it was the "Windows Upgrade Assistant" application which patched in 1709 that caused my headache.

Share this post


Link to post

Well mine is working again after I tried an earlier dumped bios instead of the more recent one I had. Now wondering if the more recent one was a patched one form the website GridRunner talks about in his videos and the proper dumped one is fine.

Share this post


Link to post
On 4/8/2018 at 9:03 AM, steve1977 said:

Thanks for your help. His videos are indeed fantastic and I have watched many of them for many different Unraid things. Very well done!



I watched the second video twice again, but didn't find any reference to blacklisting or opensource drivers. You're sure that this has been in this videos?



Any thoughts on the "blacklisting of open source drivers"? Would love to use just one GPU to free up one slot, but struggle to get the GPU to work in the primary slot (error 43).

Share this post


Link to post
On 2/25/2018 at 3:32 PM, Siwat2545 said:

******If all that doesn't work Here's a list of thing that It fixed client system (TLDR : System specific Fixes)

2. vfio-pci the card

Share this post


Link to post

I was having an issue with the code 43 i tried the hyper-visor on/off didn't make a difference, but i did read on a reddit post to check to see if the unraid OS boot usb was booting in uefi mode in the motherboard bios if so change to legacy mode or equivalent and that fixed my problem, card is all passed through now just had to do a driver reinstall



edit: unraid OS boot usb

Edited by fr05ty

Share this post


Link to post

I changed the GPU (from 1050 to 1060) and now it seems to work with the newly dumped dumped vbios. Even left hyper-v enabled.
