DJay Posted November 16, 2018 Share Posted November 16, 2018 Hi Community, This is my second time trying Unraid. First time I decided against, for time reasons. Since I have a little more time now, I decided to give it a shot again. But until now it has been a hard time. ---------------------------------- My System: M/B: ASRock - H270M-ITX/ac CPU: Intel® Pentium® CPU G4560 @ 3.50GHz HVM: Enabled IOMMU: Enabled Cache: 128 kB, 512 kB, 3072 kB Memory: 8 GB (max. installable capacity 32 GB) Network: bond0: fault-tolerance (active-backup), mtu 1500 eth0: 1000 Mb/s, full duplex, mtu 1500 eth1: not connected Kernel: Linux 4.18.17-unRAID x86_64 8 GB DDR4 RAM 3x HGST 4TB HDD (2x ext4, 1x XFS) 1x WD 4TB HDD (ext4) 1x 128GB intel nvme ssd 1x 500 GB Samsung 840 pro (current workaround) ----------------------------------- Before coming to my problem itself, a quick summary what I did. I created a unraid stick, like the normal procedure. Then I booted unraid, installed the community plugins, unassigned devices plugin and installed the plex docker container. I wanted to use the filled HDDs as unassigned devices until I know all works fine, before I migrate them to XFS. One HDD was free, which I placed into the first array slot. The intel SSD was the only ssd in the system at the start and was used as cache (newly formatted as XFS). So far so good, plex ran and worked. The problems begun after the first (intentional) reboot/ shutdown. After the next start up the intel ssd was not mounted. I saw the error message that a unkown FS was on the ssd. I thought, well i didnt too much yet, so I started again, formatted the ssd and it was running fine as cache. Re-setted up all. Sleep with the Dynamix plugin worked(s) fine. Until again, I shut the system down. And all was gone again. Next try, quick and fast setup but then I installed the backup plugin from Dynamix and made a backup. Of course it happened again. I was able to restore all, but it seemed to be a systematic problem. So I went ahead and placed the 500GB Samsung SSD into the system. As stated above as workaround, to test, since this SSD is planned for smth else. Restore didn't work, to be precise, physically it worked but the plex docker didn't start anymore. Now we come to my problem. I was seeing the exact same error message as I have now. So what I did, again formatted the cache drive (samsung ssd) and started from scratch. This time on the plus side, (fingers crossed) the ssd didn't "loose" it's FS. I was already suspecting a HW error on the ssd side. But before it worked fine with OpenMediaVault. Anyway, once all works I would take care of the intel ssd. I shut down the system at some point and after the reboot I see this log in the docker container: Quote ErrorWarningSystemArrayLogin [s6-init] making user provided files available at /var/run/s6/etc...exited 0. [s6-init] ensuring user provided files have correct perms...exited 0. [fix-attrs.d] applying ownership & permissions fixes... [fix-attrs.d] done. [cont-init.d] executing container initialization scripts... [cont-init.d] 40-plex-first-run: executing... Plex Media Server first run setup complete [cont-init.d] 40-plex-first-run: exited 0. [cont-init.d] 50-plex-update: executing... Attempting to upgrade to: 1.14.0.5465-425e4ac90 % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed Attempting to upgrade to: 1.14.0.5465-425e4ac90 % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed Selecting previously unselected package plexmediaserver. (Reading database ... 7553 files and directories currently installed.) Preparing to unpack /tmp/plexmediaserver.deb ... Selecting previously unselected package plexmediaserver. (Reading database ... 7553 files and directories currently installed.) Preparing to unpack /tmp/plexmediaserver.deb ... Unpacking plexmediaserver (1.14.0.5465-425e4ac90) ... Setting up plexmediaserver (1.14.0.5465-425e4ac90) ... Setting up plexmediaserver (1.14.0.5465-425e4ac90) ... ################################################################## # NOTE: Your system does not have udev installed. Without udev # # you won't be able to use DVBLogic's TVButler for DVR # # or for LiveTV # # # # Please install udev and reinstall Plex Media Server to # # to enable TV Butler support in Plex Media Server. # # # # To install udev run: sudo apt-get install udev # # # ################################################################## Processing triggers for systemd (229-4ubuntu21.4) ... [cont-init.d] 50-plex-update: exited 0. [cont-init.d] done. [services.d] starting services [services.d] done. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. ... Starting Plex Media Server. Starting Plex Media Server. Starting Plex Media Server. [cont-finish.d] executing container finish scripts... [cont-finish.d] done. [s6-finish] syncing disks. [s6-finish] sending all processes the TERM signal. [s6-finish] sending all processes the KILL signal and exiting. I have no idea how to fix this. The "Starting Plex Media Server." comes for several minutes until it end as displayed above. I tried adding into the plex preferences.xml EnableIPv6="0" Which I found here: https://github.com/linuxserver/docker-plex/issues/96 No change. I am out of ideas and I don't feel like setting up everything again. Interestingly the Handbrake and Krusader docker images continue to work. I like the unraid approach, I would really appreciate help to make this fly. I welcome any help. unraid-nas-diagnostics-20181116-1456.zip Link to comment
trurl Posted November 16, 2018 Share Posted November 16, 2018 Which plex container is this? There are a few different ones to choose from here. Link to comment
trurl Posted November 16, 2018 Share Posted November 16, 2018 Are you running any other containers? I suspect one or more are misconfigured since you are already using more space in docker image than is typical for correctly configured dockers. Link to comment
trurl Posted November 16, 2018 Share Posted November 16, 2018 And your docker image is corrupt. The usual fix is to delete, recreate it then reinstall containers from Apps - Previous Apps. But I am wondering if you don't have some hardware problem that is leading to these issues. Have you done a memtest? Link to comment
JorgeB Posted November 16, 2018 Share Posted November 16, 2018 4 minutes ago, trurl said: But I am wondering if you don't have some hardware problem that is leading to these issues. There is, one of the cache devices dropped offline: Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: removing handle(0x000f), sas_addr(0x4433221106000000) Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: enclosure logical id(0x5000000080000000), slot(1) Nov 14 00:34:02 Tower kernel: sd 3:0:6:0: [sdk] Synchronizing SCSI cache Nov 14 00:34:02 Tower kernel: sd 3:0:6:0: [sdk] Synchronize Cache(10) failed: Result: hostbyte=0x01 driverbyte=0x00 Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: removing handle(0x0010), sas_addr(0x4433221105000000) Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: enclosure logical id(0x5000000080000000), slot(2) Nov 14 00:34:02 Tower kernel: sd 3:0:7:0: [sdl] Synchronizing SCSI cache Nov 14 00:34:02 Tower kernel: sd 3:0:7:0: [sdl] Synchronize Cache(10) failed: Result: hostbyte=0x01 driverbyte=0x00 Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: removing handle(0x0011), sas_addr(0x4433221107000000) Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: enclosure logical id(0x5000000080000000), slot(0) Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: sending diag reset !! Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: diag reset: FAILED Nov 14 00:34:02 Tower kernel: iommu: Removing device 0000:02:00.0 from group 15 Nov 14 00:34:16 Tower kernel: BTRFS error (device sdg1): bdev /dev/sdf1 errs: wr 1, rd 0, flush 0, corrupt 0, gen 0 Nov 14 00:34:16 Tower kernel: BTRFS error (device sdg1): bdev /dev/sdg1 errs: wr 1, rd 0, flush 0, corrupt 0, gen 0 Nov 14 00:34:16 Tower kernel: BTRFS error (device sdg1): bdev /dev/sdg1 errs: wr 1, rd 1, flush 0, corrupt 0, gen 0 Nov 14 00:34:16 Tower kernel: BTRFS error (device sdg1): bdev /dev/sdf1 errs: wr 1, rd 1, flush 0, corrupt 0, gen 0 Nov 14 00:34:16 Tower kernel: BTRFS error (device sdg1): bdev /dev/sdg1 errs: wr 1, rd 2, flush 0, corrupt 0, gen 0 Nov 14 00:34:16 Tower kernel: BTRFS error (device sdg1): bdev /dev/sdf1 errs: wr 1, rd 2, flush 0, corrupt 0, gen 0 Link to comment
trurl Posted November 16, 2018 Share Posted November 16, 2018 Since he was having similar issues with nvme cache I didn't look further up the log for device problems. Link to comment
DJay Posted November 16, 2018 Author Share Posted November 16, 2018 Wow thanks for all that replies. The docker container, sorry for forgetting to mention that: plexinc/pms-docker:plexpass Additionally I installed yesterday evening Krusader and Handbrake. But I had the issues already while I had only plex as a container. I could delete the docker image and do it from scratch. But I suspected that this is what happened when i used a new cache drive. 32 minutes ago, trurl said: And your docker image is corrupt. The usual fix is to delete, recreate it then reinstall containers from Apps - Previous Apps. But I am wondering if you don't have some hardware problem that is leading to these issues. Have you done a memtest? Haven't done a memtest yet. But I could certainly do that. I didn't expect a RAM issue, since OMV was fine. With HW issues you talk about deffective RAM right? Since I will leave until tomorrow, i will let a memtest run. Just in case. 30 minutes ago, johnnie.black said: There is, one of the cache devices dropped offline: Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: removing handle(0x000f), sas_addr(0x4433221106000000) Nov 14 00:34:02 Tower kernel: mpt2sas_cm0: enclosure logical id(0x5000000080000000), slot(1) ... Nov 14 00:34:16 Tower kernel: BTRFS error (device sdg1): bdev /dev/sdf1 errs: wr 1, rd 2, flush 0, corrupt 0, gen 0 What does it mean? I have the intel ssd still inside, but not assigned. It was the cache drive before. Right now only the Samsung one is assigned. Btw. thanks guys, I had heared and read that the unraid community is strong. This was one of the things, why I wanted to give it a try. Cheers, Daniel Link to comment
JorgeB Posted November 16, 2018 Share Posted November 16, 2018 2 minutes ago, DJay said: What does it mean? In this case it appears to be the HBA stopped responding and since both cache devices are there problems with both, try reseating the controller, or using another slot if available, you should also update the firmware since it's very old: Nov 12 06:11:03 Tower kernel: mpt2sas_cm0: LSISAS2008: FWVersion(07.15.08.00), ChipRevision(0x03), BiosVersion(00.00.00.00) Current one is 20.00.007.00 Link to comment
DJay Posted November 16, 2018 Author Share Posted November 16, 2018 4 hours ago, johnnie.black said: In this case it appears to be the HBA stopped responding and since both cache devices are there problems with both, try reseating the controller, or using another slot if available, you should also update the firmware since it's very old: Nov 12 06:11:03 Tower kernel: mpt2sas_cm0: LSISAS2008: FWVersion(07.15.08.00), ChipRevision(0x03), BiosVersion(00.00.00.00) Current one is 20.00.007.00 FW of what? Bios i had just updated with the success of not finding the WoL settings anymore. And it stopped working too 😅 Anyway, if tell me of what, I'll do my best to do so. Currently the memtest is running until tomorrow late afternoon. Link to comment
Hoopster Posted November 16, 2018 Share Posted November 16, 2018 1 hour ago, DJay said: FW of what? The firmware of your LSI HBA. Latest revision is 20.00.07.00 as johnnie.black indicated Link to comment
DJay Posted November 17, 2018 Author Share Posted November 17, 2018 I was googling this topic a bit. Unfortunately I have to tell that I didn't even know that I can update smth on the LSI HBA. I found only this: https://kb.sandisk.com/app/answers/detail/a_id/11192/~/lsi-sas2008-firmware%2Fbios-download-for-lightning-pcie-enterprise-ssa Which looks also outdated? Where do I find the FW you guys mentioned? As mentioned I updated the BIOS in advance. But didn't know about any other FW. I'd appreciate a point into the right direction Link to comment
JorgeB Posted November 17, 2018 Share Posted November 17, 2018 You can find it on Broadcom's support site, under legacy Link to comment
DJay Posted November 17, 2018 Author Share Posted November 17, 2018 Hi again, i was searching for a new FW quite a while. Unfortunately I don't find any new one for a LSI SAS2008. With the version you mentioned I found only: Quote 9202-16e_Package_P20_IT_Firmware_BIOS_for_MSDOS_Windows Package_P20_Firmware_BIOS_for_MSDOS_Windows Version: 20.00.07.00 and Quote 9205-8e_Package_P20_IT_Firmware_BIOS_for_MSDOS_Windows Package_P20_Firmware_BIOS_for_MSDOS_Windows Version: 20.00.07.00 I even went through the manual of the MB and tried to find a hint on a model number or smth. I am not sure what to take here. I don't want to break stuff. If any of u has the time to guide me close through it, it would be very helpful. On 11/16/2018 at 4:13 PM, trurl said: And your docker image is corrupt. The usual fix is to delete, recreate it then reinstall containers from Apps - Previous Apps. But I am wondering if you don't have some hardware problem that is leading to these issues. Have you done a memtest? About this, the memtest86 is running now since over 26h and no error. I guess it's fine so far. picture attached upload not working on the phone. I will do it in a sec. Picture link: https://imgur.com/a/jQuXHd6 Link to comment

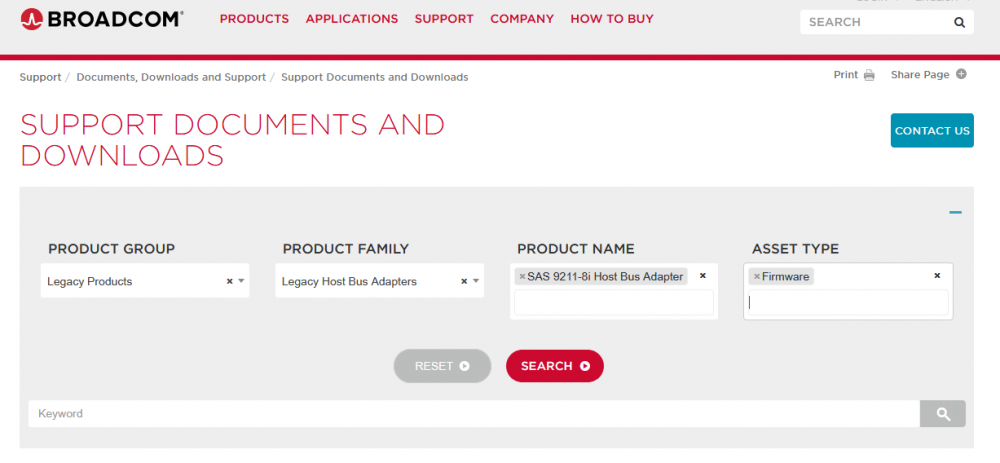

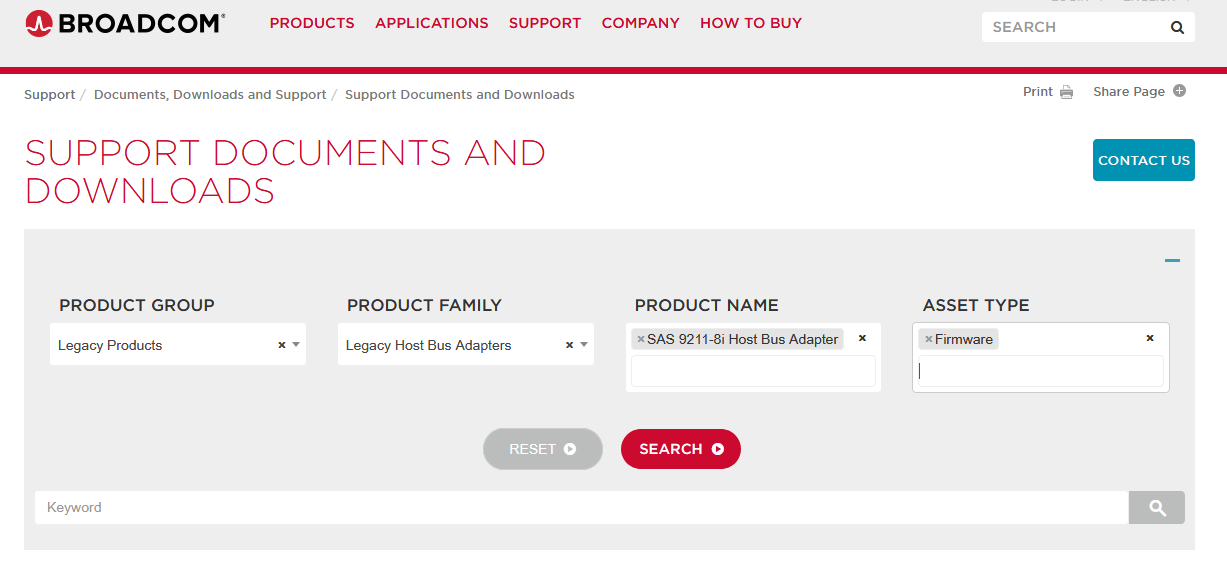

Hoopster Posted November 17, 2018 Share Posted November 17, 2018 46 minutes ago, DJay said: Hi again, i was searching for a new FW quite a while. Unfortunately I don't find any new one for a LSI SAS2008 LSI SAS2008 is the controller chipset. It is used on many HBAs from many manufacturers, such as LSI 9210-8i/9211-8i, IBM M2015, Dell Perc H200/H310 and others. You should look for the latest firmware for your make and model of HBA. Your motherboard manual will be no help since the HBA is a PCIe add-in card. Your cache drive(s) are apparently connected to it. What is it? As @johnnie.black mentioned, you need to search for legacy drivers on on the Broadcom site. For example I found the 9211-8i 20.00.07.00 firmware there. The 20.00.07.00 firmware is available for flashing in Windows or DOS 20.00.00.00 firmware is available for installation via UEFI, Linux and various other OSes You want to make sure you are flashing in IT mode. IT mode firmware flashing instructions are available in these forums and various other websites. Link to comment
DJay Posted November 17, 2018 Author Share Posted November 17, 2018 23 minutes ago, Hoopster said: LSI SAS2008 is the controller chipset. It is used on many HBAs from many manufacturers, such as LSI 9210-8i/9211-8i, IBM M2015, Dell Perc H200/H310 and others. You should look for the latest firmware for your make and model of HBA. ... 20.00.00.00 firmware is available for installation via UEFI, Linux and various other OSes You want to make sure you are flashing in IT mode. IT mode firmware flashing instructions are available in these forums and various other websites. I am sorry for all this questions, this is all very new to me. So what confuses me is this: "You should look for the latest firmware for your make and model of HBA." I am reading in parallel these two threads, just to understand a bit more: https://wiki.unraid.net/index.php/Crossflashing_Controllers#Tools But I still feel puzzled. This means, I can just download the "unbranded" broadcom FW and flash it to my SAS2008 chipset. Correct? The IT mode, if boot support is disabled, will disable looking for boot devices on my harddrives. But if I enable it, I can use it normally again with any other OS. correct? I found this: 00:17.0 SATA controller: Intel Corporation 200 Series PCH SATA controller [AHCI mode] (prog-if 01 [AHCI 1.0]) Subsystem: ASRock Incorporation 200 Series PCH SATA controller [AHCI mode] Control: I/O+ Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+ Status: Cap+ 66MHz+ UDF- FastB2B+ ParErr- DEVSEL=medium >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx- Latency: 0 Interrupt: pin A routed to IRQ 124 Region 0: Memory at df348000 (32-bit, non-prefetchable) [size=8K] Region 1: Memory at df34c000 (32-bit, non-prefetchable) [size=256] Region 2: I/O ports at f090 [size=8] Region 3: I/O ports at f080 [size=4] Region 4: I/O ports at f060 [size=32] Region 5: Memory at df34b000 (32-bit, non-prefetchable) [size=2K] Capabilities: [80] MSI: Enable+ Count=1/1 Maskable- 64bit- Address: fee00278 Data: 0000 Capabilities: [70] Power Management version 3 Flags: PMEClk- DSI- D1- D2- AuxCurrent=0mA PME(D0-,D1-,D2-,D3hot+,D3cold-) Status: D0 NoSoftRst+ PME-Enable- DSel=0 DScale=0 PME- Capabilities: [a8] SATA HBA v1.0 BAR4 Offset=00000004 Kernel driver in use: ahci Kernel modules: ahci If i look in the wiki page, under "SAS2008 chipsets" there is only one entry from intel. Quote This cards are rebranded LSI 9240-8i cards. They can be cross-flashed with the 9211-8i firmware. Applies to IBM ServeRAID M1015 Intel RS2WC080 Dell Perc H310 dedicated instructions will be included in the wiki later on Dell Perc H200 dedicated instructions will be included in the wiki later on Lenovo RAID 500 dedicated instructions will be included in the wiki later on This doesn't make things exactly clearer to me. I am wondering if I should just leave unraid, since i am not really understanding everything at this point. Again, thanks for the patience. Link to comment
DJay Posted November 17, 2018 Author Share Posted November 17, 2018 Another update: I deleted the docker image. Disabled it in the settings, deleted the image. Created a new one. Then I created a new plex container. Same result. It doesn't start and shows the same in the logs. Link to comment
JorgeB Posted November 18, 2018 Share Posted November 18, 2018 2 hours ago, DJay said: It doesn't start and shows the same in the logs. Post new diags. Link to comment
DJay Posted November 18, 2018 Author Share Posted November 18, 2018 10 hours ago, johnnie.black said: Post new diags. unraid-nas-diagnostics-20181118-1150.zip Plex Media Server.log Quote Nov 18, 2018 12:04:55.966 [0x15393a3ff700] INFO - Plex Media Server v1.14.0.5465-425e4ac90 - Docker Docker Container x86_64 - build: linux-ubuntu-x86_64 ubuntu - GMT 01:00 Nov 18, 2018 12:04:55.966 [0x15393a3ff700] INFO - Linux version: 4.18.17-unRAID, language: C Nov 18, 2018 12:04:55.966 [0x15393a3ff700] INFO - Processor Intel(R) Pentium(R) CPU G4560 @ 3.50GHz Nov 18, 2018 12:04:55.967 [0x15393a3ff700] INFO - /usr/lib/plexmediaserver/Plex Media Server Nov 18, 2018 12:04:55.966 [0x153945c98800] DEBUG - BPQ: [Idle] -> [Starting] Nov 18, 2018 12:04:55.967 [0x153945c98800] DEBUG - FeatureManager: Using cached data for features list Nov 18, 2018 12:04:55.967 [0x153945c98800] DEBUG - Opening 20 database sessions to library (com.plexapp.plugins.library), SQLite 3.13.0, threadsafe=1 Nov 18, 2018 12:04:55.969 [0x153945c98800] INFO - SQLITE3:0x10, 283, recovered 99 frames from WAL file /config/Library/Application Support/Plex Media Server/Plug-in Support/Databases/com.plexapp.plugins.library.db-wal Nov 18, 2018 12:04:55.969 [0x153945c98800] ERROR - SQLITE3:0x10, 11, database corruption at line 60663 of [fc49f556e4] Nov 18, 2018 12:04:55.969 [0x153945c98800] ERROR - SQLITE3:0x10, 11, database disk image is malformed Nov 18, 2018 12:04:55.969 [0x153945c98800] ERROR - Database corruption: sqlite3_statement_backend::prepare: database disk image is malformed for SQL: PRAGMA cache_size=2000 Nov 18, 2018 12:04:55.969 [0x153945c98800] ERROR - Error: Unable to set up server: sqlite3_statement_backend::prepare: database disk image is malformed for SQL: PRAGMA cache_size=2000 (N4soci10soci_errorE) Link to comment
JorgeB Posted November 18, 2018 Share Posted November 18, 2018 16 minutes ago, DJay said: unraid-nas-diagnostics-20181118-1150.zip Plex Media Server.log Docker service is starting correctly, if a docker isn't working you need to ask for support on that specific docker support thread. Link to comment
DJay Posted November 18, 2018 Author Share Posted November 18, 2018 6 minutes ago, johnnie.black said: Docker service is starting correctly, if a docker isn't working you need to ask for support on that specific docker support thread. hmm... alright thanks. About the HBA, should I update there anyway or just leave it? If yes, it wizld be helpful if someone could clarify my Qs from earlier. And in the end, I mark the thread just as closed? or solved anyway? Link to comment
JorgeB Posted November 18, 2018 Share Posted November 18, 2018 You should, but no LSI controller is being detected currently, if you didn't remove it try reseating it. Link to comment
DJay Posted November 18, 2018 Author Share Posted November 18, 2018 20 minutes ago, johnnie.black said: You should, but no LSI controller is being detected currently, if you didn't remove it try reseating it. How can I do that? It's all onboard on the mainboard. Link to comment
JorgeB Posted November 18, 2018 Share Posted November 18, 2018 OK..., some confusion going on here, maybe you posted the wrong diags on the first post? They are form a server with a Gigabyte X58A-UD3R/X58A-UD3R, with an LSI controller, not an Asrock H270M. Link to comment
DJay Posted November 18, 2018 Author Share Posted November 18, 2018 Ahm, no, i am using all the time the same machine. Wow you are right. I was comparing logs before with others i found in the forums to understand better. Maybe they stayed in the clipboard. I was convinced i had the right once. Sorry. WIll remove it right away. What should I do then? Edit: replaced the wrong logs, with the correct zip. Sorry again Link to comment
JorgeB Posted November 18, 2018 Share Posted November 18, 2018 OK, all previous observations were based on the wrong logs, and like mentioned after you posted the new diags the docker service looks fine so you'll need to ask for help on that docker support thread. Link to comment
