phat_cow Posted March 10, 2020 Share Posted March 10, 2020 Just replace our files with yours? And thats it? Quote Link to comment
Leoyzen Posted March 10, 2020 Author Share Posted March 10, 2020 @beemac No, I don't use slackware because the system is too stable also old for me. I compiled successfully both Ubuntu and Arch, any disribution will works. @phat_cowYes.Backup before replacing them. Quote Link to comment
subivoodoo Posted March 10, 2020 Share Posted March 10, 2020 6.8.3-5.5.8 works great for me, thanks!!! I need Navi Reset Patch + AMD onboard audio/usb controller flr patch on a B450 board... and all I need works like a charm!!! Quote Link to comment
beemac Posted March 12, 2020 Share Posted March 12, 2020 I am about to sleep on this one for the night, but I'm sure I'm doing something wrong with this. For sure with the bzmodules file anyway. Does it matter that the Ubuntu kernel is 5.0.0-32? I completely skip your "optional" step 10 and all sub steps, so I'm not sure if that has anything to do with it. I found the headers for the 5.0.0-32 kernel in /usr/src (as folders due to the Ubuntu kernel being that version) and moved them out of the folder before building this time around. I have compiled a few times now, so I've got my commands down to the point where I can copy/paste them in order. I don't get any network interfaces (and sometimes couldn't even get my USB keyboard to work locally) when booting with the bzmodules file that I compiled. I suspect it's something wrong with my building process, so I attached compiling logs if anyone has the time to take a look at them. If I only replace the bzimage file, and use the untouched bzmodules, I can get the system to boot and everything seems to start up in a normal boot mode. If I use the bzimagenohz kernel that I compile (with default bzmodules again) I can get the system to boot, but VM Manager doesn't boot. I tried with no command line arguments at first, then added one vfio device. This doesn't seem to matter though, as the VM Manager doesn't load to pass though this NIC and give me internet (yes my firewall goes through unRAID, so that's what all the network errors are in the logs). Other than network errors, the diagnostics zip (attached) shows some odd errors such as these: Mar 11 21:39:32 unRAID kernel: BUG: unable to handle kernel paging request at 0000000b0000000a ... Mar 11 21:39:36 unRAID kernel: BUG: unable to handle kernel paging request at 0000000000007428 Mar 11 21:39:36 unRAID kernel: PGD 0 P4D 0 Mar 11 21:39:36 unRAID kernel: Oops: 0000 [#2] SMP NOPTI Mar 11 21:39:36 unRAID kernel: CPU: 5 PID: 12818 Comm: libvirtd Tainted: G D O 4.19.107-Unraid #1 Mar 11 21:39:36 unRAID kernel: Hardware name: Gigabyte Technology Co., Ltd. X470 AORUS ULTRA GAMING/X470 AORUS ULTRA GAMING-CF, BIOS F6 01/25/2019 ... Other things: Do the sha256 files matter? I did re-calculate the hashes and replace them accordingly during one attempt, but it doesn't seem to make a difference to have the .sha256 files matching. I figured out how to add menu entries to the unRAID boot menu, by editing both /boot/syslinux/syslinux.cfg and /boot/syslinux.cfg- which results in another entry/menu option; this is shown in the screenshot I attached. I believe it was mentioned earlier in the thread. I'm going to try again fresh tomorrow troubleshooting with the nohz kernel. unraid-diagnostics-20200311-2158.zip uR4.19.107.compiling.NO_HZ.ssh.txt uR4.19.107.compiling.defaults.ssh.txt Quote Link to comment
Leoyzen Posted March 12, 2020 Author Share Posted March 12, 2020 @beemacYou did it wrong. You should use ** /usr/src from unraid ** instead of using the one from ubuntu.Copy the patches from /usr/src from your unraid server and try again. Quote Link to comment
beemac Posted March 12, 2020 Share Posted March 12, 2020 (edited) 1 hour ago, Leoyzen said: @beemacYou did it wrong. You should use ** /usr/src from unraid ** instead of using the one from ubuntu.Copy the patches from /usr/src from your unraid server and try again. I copy the files from unraid server which is 192.168.2.2, here: root@MinTester:/boot/packages# rsync -avhr [email protected]:/usr/src/ /usr/src/ [email protected]'s password: receiving incremental file list ./ linux-4.19.107-Unraid/ linux-4.19.107-Unraid/.config linux-4.19.107-Unraid/COPYING linux-4.19.107-Unraid/System.map linux-4.19.107-Unraid/acs_override.patch linux-4.19.107-Unraid/drivers_ata_libata-core.patch linux-4.19.107-Unraid/drivers_hpsa.patch linux-4.19.107-Unraid/drivers_mvsas_rr_2782.patch linux-4.19.107-Unraid/fs_reiserfs_resize.patch linux-4.19.107-Unraid/fs_reiserfs_super.patch linux-4.19.107-Unraid/ignore_unhandled_msrs.patch linux-4.19.107-Unraid/increase_BLK_MAX_REQUEST_COUNT.patch linux-4.19.107-Unraid/mozart_395S.patch linux-4.19.107-Unraid/raid6_choose_xor.patch linux-4.19.107-Unraid/wireguard-0.0.20200215.patch linux-4.19.107-Unraid/drivers/ linux-4.19.107-Unraid/drivers/md/ linux-4.19.107-Unraid/drivers/md/Kconfig linux-4.19.107-Unraid/drivers/md/Makefile linux-4.19.107-Unraid/drivers/md/md.c linux-4.19.107-Unraid/drivers/md/md_private.h linux-4.19.107-Unraid/drivers/md/unraid.c sent 408 bytes received 4.88M bytes 1.39M bytes/sec total size is 4.88M speedup is 1.00 root@MinTester:/boot/packages# tar -xvf linux-4.19.107.tar.xz -C /usr/src/ linux-4.19.107/ linux-4.19.107/.clang-format linux-4.19.107/.cocciconfig linux-4.19.107/.get_maintainer.ignore linux-4.19.107/.gitattributes linux-4.19.107/.gitignore linux-4.19.107/.mailmap linux-4.19.107/COPYING linux-4.19.107/CREDITS linux-4.19.107/Documentation/ ...lines removed to reduce file size... linux-4.19.107/virt/kvm/vfio.c linux-4.19.107/virt/kvm/vfio.h linux-4.19.107/virt/lib/ linux-4.19.107/virt/lib/Kconfig linux-4.19.107/virt/lib/Makefile linux-4.19.107/virt/lib/irqbypass.c root@MinTester:/boot/packages# ln -sf /usr/src/linux-4.19.107 /usr/src/linux root@MinTester:/boot/packages# mkdir -p /mnt/dev/ root@MinTester:/boot/packages# unzip /boot/packages/unRAIDServer-6.8.3-x86_64.zip -d /mnt/dev/ Archive: /boot/packages/unRAIDServer-6.8.3-x86_64.zip creating: /mnt/dev/EFI-/ creating: /mnt/dev/EFI-/boot/ inflating: /mnt/dev/EFI-/boot/bootx64.efi inflating: /mnt/dev/EFI-/boot/ldlinux.e64 inflating: /mnt/dev/EFI-/boot/libcom32.c32 inflating: /mnt/dev/EFI-/boot/libutil.c32 inflating: /mnt/dev/EFI-/boot/mboot.c32 inflating: /mnt/dev/EFI-/boot/menu.c32 inflating: /mnt/dev/EFI-/boot/syslinux.cfg inflating: /mnt/dev/bzfirmware inflating: /mnt/dev/bzfirmware.sha256 inflating: /mnt/dev/bzimage inflating: /mnt/dev/bzimage.sha256 inflating: /mnt/dev/bzmodules inflating: /mnt/dev/bzmodules.sha256 inflating: /mnt/dev/bzroot inflating: /mnt/dev/bzroot-gui inflating: /mnt/dev/bzroot-gui.sha256 inflating: /mnt/dev/bzroot.sha256 inflating: /mnt/dev/changes.txt creating: /mnt/dev/config/ inflating: /mnt/dev/config/ident.cfg inflating: /mnt/dev/config/network.cfg extracting: /mnt/dev/config/go creating: /mnt/dev/config/plugins/ creating: /mnt/dev/config/plugins/dockerMan/ extracting: /mnt/dev/config/plugins/dockerMan/template-repos extracting: /mnt/dev/config/docker.cfg extracting: /mnt/dev/config/domain.cfg inflating: /mnt/dev/license.txt inflating: /mnt/dev/make_bootable.bat inflating: /mnt/dev/make_bootable_linux inflating: /mnt/dev/make_bootable_mac inflating: /mnt/dev/memtest creating: /mnt/dev/syslinux/ inflating: /mnt/dev/syslinux/ldlinux.c32 inflating: /mnt/dev/syslinux/libcom32.c32 inflating: /mnt/dev/syslinux/libutil.c32 inflating: /mnt/dev/syslinux/make_bootable_mac.sh inflating: /mnt/dev/syslinux/mboot.c32 inflating: /mnt/dev/syslinux/mbr.bin inflating: /mnt/dev/syslinux/menu.c32 inflating: /mnt/dev/syslinux/syslinux inflating: /mnt/dev/syslinux/syslinux.exe inflating: /mnt/dev/syslinux/make_bootable_linux.sh inflating: /mnt/dev/syslinux/syslinux_linux inflating: /mnt/dev/syslinux/syslinux.cfg- inflating: /mnt/dev/syslinux/syslinux.cfg root@MinTester:/boot/packages# cp -vrf /usr/src/linux-4.19.107-Unraid/* /usr/src/linux/ '/usr/src/linux-4.19.107-Unraid/acs_override.patch' -> '/usr/src/linux/acs_override.patch' '/usr/src/linux-4.19.107-Unraid/COPYING' -> '/usr/src/linux/COPYING' '/usr/src/linux-4.19.107-Unraid/drivers/md/Kconfig' -> '/usr/src/linux/drivers/md/Kconfig' '/usr/src/linux-4.19.107-Unraid/drivers/md/Makefile' -> '/usr/src/linux/drivers/md/Makefile' '/usr/src/linux-4.19.107-Unraid/drivers/md/md.c' -> '/usr/src/linux/drivers/md/md.c' '/usr/src/linux-4.19.107-Unraid/drivers/md/md_private.h' -> '/usr/src/linux/drivers/md/md_private.h' '/usr/src/linux-4.19.107-Unraid/drivers/md/unraid.c' -> '/usr/src/linux/drivers/md/unraid.c' '/usr/src/linux-4.19.107-Unraid/drivers_ata_libata-core.patch' -> '/usr/src/linux/drivers_ata_libata-core.patch' '/usr/src/linux-4.19.107-Unraid/drivers_hpsa.patch' -> '/usr/src/linux/drivers_hpsa.patch' '/usr/src/linux-4.19.107-Unraid/drivers_mvsas_rr_2782.patch' -> '/usr/src/linux/drivers_mvsas_rr_2782.patch' '/usr/src/linux-4.19.107-Unraid/fs_reiserfs_resize.patch' -> '/usr/src/linux/fs_reiserfs_resize.patch' '/usr/src/linux-4.19.107-Unraid/fs_reiserfs_super.patch' -> '/usr/src/linux/fs_reiserfs_super.patch' '/usr/src/linux-4.19.107-Unraid/ignore_unhandled_msrs.patch' -> '/usr/src/linux/ignore_unhandled_msrs.patch' '/usr/src/linux-4.19.107-Unraid/increase_BLK_MAX_REQUEST_COUNT.patch' -> '/usr/src/linux/increase_BLK_MAX_REQUEST_COUNT.patch' '/usr/src/linux-4.19.107-Unraid/mozart_395S.patch' -> '/usr/src/linux/mozart_395S.patch' '/usr/src/linux-4.19.107-Unraid/raid6_choose_xor.patch' -> '/usr/src/linux/raid6_choose_xor.patch' '/usr/src/linux-4.19.107-Unraid/System.map' -> '/usr/src/linux/System.map' '/usr/src/linux-4.19.107-Unraid/wireguard-0.0.20200215.patch' -> '/usr/src/linux/wireguard-0.0.20200215.patch' root@MinTester:/boot/packages# cp -vf /usr/src/linux-4.19.107-Unraid/.config /usr/src/linux/ '/usr/src/linux-4.19.107-Unraid/.config' -> '/usr/src/linux/.config' root@MinTester:/boot/packages# cd /usr/src/linux root@MinTester:/usr/src/linux# find . -type f -iname '*.patch' -print0|xargs -n1 -0 patch -p 1 -i patching file drivers/scsi/hpsa.c patching file drivers/pci/quirks.c Hunk #1 succeeded at 3404 (offset 13 lines). patching file include/linux/pci_ids.h patching file drivers/scsi/mvsas/mv_init.c Hunk #1 succeeded at 684 (offset -2 lines). patching file fs/reiserfs/super.c patching file fs/reiserfs/resize.c patching file arch/x86/kvm/x86.c Hunk #1 succeeded at 113 with fuzz 1 (offset 4 lines). patching file include/linux/blkdev.h patching file drivers/pci/quirks.c Hunk #1 succeeded at 3782 with fuzz 2 (offset 40 lines). Hunk #2 succeeded at 4665 with fuzz 1 (offset 76 lines). patching file net/wireguard/allowedips.c patching file net/wireguard/compat/dst_cache/dst_cache.c patching file net/wireguard/compat/memneq/memneq.c patching file net/wireguard/compat/siphash/siphash.c patching file net/wireguard/compat/udp_tunnel/udp_tunnel.c patching file net/wireguard/cookie.c patching file net/wireguard/crypto/zinc/blake2s/blake2s-x86_64-glue.c patching file net/wireguard/crypto/zinc/blake2s/blake2s.c patching file net/wireguard/crypto/zinc/chacha20/chacha20-arm-glue.c patching file net/wireguard/crypto/zinc/chacha20/chacha20-mips-glue.c patching file net/wireguard/crypto/zinc/chacha20/chacha20-x86_64-glue.c patching file net/wireguard/crypto/zinc/chacha20/chacha20.c patching file net/wireguard/crypto/zinc/chacha20poly1305.c patching file net/wireguard/crypto/zinc/curve25519/curve25519-arm-glue.c patching file net/wireguard/crypto/zinc/curve25519/curve25519-fiat32.c patching file net/wireguard/crypto/zinc/curve25519/curve25519-hacl64.c patching file net/wireguard/crypto/zinc/curve25519/curve25519-x86_64-glue.c patching file net/wireguard/crypto/zinc/curve25519/curve25519-x86_64.c patching file net/wireguard/crypto/zinc/curve25519/curve25519.c patching file net/wireguard/crypto/zinc/poly1305/poly1305-arm-glue.c patching file net/wireguard/crypto/zinc/poly1305/poly1305-donna32.c patching file net/wireguard/crypto/zinc/poly1305/poly1305-donna64.c patching file net/wireguard/crypto/zinc/poly1305/poly1305-mips-glue.c patching file net/wireguard/crypto/zinc/poly1305/poly1305-x86_64-glue.c patching file net/wireguard/crypto/zinc/poly1305/poly1305.c patching file net/wireguard/crypto/zinc/selftest/blake2s.c patching file net/wireguard/crypto/zinc/selftest/chacha20.c patching file net/wireguard/crypto/zinc/selftest/chacha20poly1305.c patching file net/wireguard/crypto/zinc/selftest/curve25519.c patching file net/wireguard/crypto/zinc/selftest/poly1305.c patching file net/wireguard/device.c patching file net/wireguard/main.c patching file net/wireguard/netlink.c patching file net/wireguard/noise.c patching file net/wireguard/peer.c patching file net/wireguard/peerlookup.c patching file net/wireguard/queueing.c patching file net/wireguard/ratelimiter.c patching file net/wireguard/receive.c patching file net/wireguard/selftest/allowedips.c patching file net/wireguard/selftest/counter.c patching file net/wireguard/selftest/ratelimiter.c patching file net/wireguard/send.c patching file net/wireguard/socket.c patching file net/wireguard/timers.c patching file net/wireguard/allowedips.h patching file net/wireguard/compat/checksum/checksum_partial_compat.h patching file net/wireguard/compat/compat-asm.h patching file net/wireguard/compat/compat.h patching file net/wireguard/compat/dst_cache/include/net/dst_cache.h patching file net/wireguard/compat/fpu-x86/include/asm/fpu/api.h patching file net/wireguard/compat/intel-family-x86/include/asm/intel-family.h patching file net/wireguard/compat/memneq/include.h patching file net/wireguard/compat/neon-arm/include/asm/neon.h patching file net/wireguard/compat/ptr_ring/include/linux/ptr_ring.h patching file net/wireguard/compat/simd-asm/include/asm/simd.h patching file net/wireguard/compat/simd/include/linux/simd.h patching file net/wireguard/compat/siphash/include/linux/siphash.h patching file net/wireguard/compat/udp_tunnel/include/net/udp_tunnel.h patching file net/wireguard/compat/udp_tunnel/udp_tunnel_partial_compat.h patching file net/wireguard/cookie.h patching file net/wireguard/crypto/include/zinc/blake2s.h patching file net/wireguard/crypto/include/zinc/chacha20.h patching file net/wireguard/crypto/include/zinc/chacha20poly1305.h patching file net/wireguard/crypto/include/zinc/curve25519.h patching file net/wireguard/crypto/include/zinc/poly1305.h patching file net/wireguard/crypto/zinc.h patching file net/wireguard/crypto/zinc/selftest/run.h patching file net/wireguard/device.h patching file net/wireguard/messages.h patching file net/wireguard/netlink.h patching file net/wireguard/noise.h patching file net/wireguard/peer.h patching file net/wireguard/peerlookup.h patching file net/wireguard/queueing.h patching file net/wireguard/ratelimiter.h patching file net/wireguard/socket.h patching file net/wireguard/timers.h patching file net/wireguard/uapi/wireguard.h patching file net/wireguard/version.h patching file net/wireguard/crypto/zinc/blake2s/blake2s-x86_64.S patching file net/wireguard/crypto/zinc/chacha20/chacha20-mips.S patching file net/wireguard/crypto/zinc/chacha20/chacha20-unrolled-arm.S patching file net/wireguard/crypto/zinc/curve25519/curve25519-arm.S patching file net/wireguard/crypto/zinc/poly1305/poly1305-mips.S patching file net/wireguard/crypto/zinc/chacha20/chacha20-arm.pl patching file net/wireguard/crypto/zinc/chacha20/chacha20-arm64.pl patching file net/wireguard/crypto/zinc/chacha20/chacha20-x86_64.pl patching file net/wireguard/crypto/zinc/poly1305/poly1305-arm.pl patching file net/wireguard/crypto/zinc/poly1305/poly1305-arm64.pl patching file net/wireguard/crypto/zinc/poly1305/poly1305-mips64.pl patching file net/wireguard/crypto/zinc/poly1305/poly1305-x86_64.pl patching file net/wireguard/compat/Makefile.include patching file net/wireguard/crypto/Makefile.include patching file net/wireguard/Makefile patching file net/wireguard/Kconfig patching file net/Kconfig Hunk #1 succeeded at 88 (offset 3 lines). patching file net/Makefile Hunk #1 succeeded at 17 (offset 1 line). patching file lib/raid6/algos.c Hunk #2 succeeded at 229 (offset 4 lines). Hunk #3 succeeded at 308 (offset 4 lines). patching file drivers/ata/libata-core.c Hunk #1 succeeded at 2455 (offset 68 lines). Hunk #2 succeeded at 2548 (offset 71 lines). Hunk #3 succeeded at 2601 (offset 71 lines). Hunk #4 succeeded at 2626 (offset 71 lines). Hunk #5 succeeded at 2722 (offset 72 lines). root@MinTester:/usr/src/linux# make oldconfig HOSTCC scripts/basic/fixdep HOSTCC scripts/kconfig/conf.o YACC scripts/kconfig/zconf.tab.c LEX scripts/kconfig/zconf.lex.c HOSTCC scripts/kconfig/zconf.tab.o HOSTLD scripts/kconfig/conf scripts/kconfig/conf --oldconfig Kconfig # # configuration written to .config # root@MinTester:/usr/src/linux# make -j5 bzImage; make -j5; make -j5 modules ***removing due to output being in previous post attachment** root@MinTester:/usr/src/linux# mkdir -p /releases/6.8.3-4.19.107/ root@MinTester:/usr/src/linux# cp /usr/src/linux/arch/x86_64/boot/bzImage /releases/6.8.3-4.19.107/bzimage root@MinTester:/usr/src/linux# mksquashfs /lib/modules/4.19.107-Unraid/ /releases/6.8.3-4.19.107/bzmodules -keep-as-di irectory -noappend Parallel mksquashfs: Using 4 processors Creating 4.0 filesystem on /releases/6.8.3-4.19.107/bzmodules, block size 131072. [====================================================================================================|] 705/705 100% Exportable Squashfs 4.0 filesystem, gzip compressed, data block size 131072 compressed data, compressed metadata, compressed fragments, compressed xattrs duplicates are removed Filesystem size 8394.25 Kbytes (8.20 Mbytes) 98.78% of uncompressed filesystem size (8498.06 Kbytes) Inode table size 8408 bytes (8.21 Kbytes) 29.23% of uncompressed inode table size (28762 bytes) Directory table size 9382 bytes (9.16 Kbytes) 44.82% of uncompressed directory table size (20933 bytes) Number of duplicate files found 4 Number of inodes 895 Number of files 695 Number of fragments 61 Number of symbolic links 2 Number of device nodes 0 Number of fifo nodes 0 Number of socket nodes 0 Number of directories 198 Number of ids (unique uids + gids) 1 Number of uids 1 root (0) Number of gids 1 root (0) root@MinTester:/usr/src/linux# scp /releases/6.8.3-4.19.107/bz* [email protected]:/boot/ [email protected]'s password: bzimage 0% 0 0.0KB/s --:-- ETA bzimage 100% 4589KB 7.4MB/s 00:00 bzmodules 0% 0 0.0KB/s --:-- ETA bzmodules 100% 8396KB 11.7MB/s 00:00 root@MinTester:/usr/src/linux# Then they are copied into the /usr/src/ dir and patched in the steps after that. That part seemed to be working to me? EDITED to include the last part of the script with make output removed (since it's in my original attachments). I suspect the problem I'm having with bzmodules is due to my mksquashfs syntax, but not sure. Edited March 12, 2020 by beemac added patching code/removed un-tar output Quote Link to comment
Leoyzen Posted March 12, 2020 Author Share Posted March 12, 2020 @beemacYour procedure should be fine.By the way, the latest unRaid config is not the one from /usr/src. They missed some important things in .config( like ixgbe support).But I don't know what's wrong with your VM Manager.Can you boot with the kernel I posted? Quote Link to comment
J89eu Posted March 12, 2020 Share Posted March 12, 2020 Could anyone do some extra steps on the instructions for people that are not absolute idiots on Linux but close to? The steps are a little advanced for and I want to try this for an issue with my VM i've been suffering with since December... As in it not working at all Quote Link to comment
beemac Posted March 12, 2020 Share Posted March 12, 2020 (edited) 5 hours ago, Leoyzen said: @beemacYour procedure should be fine.By the way, the latest unRaid config is not the one from /usr/src. They missed some important things in .config( like ixgbe support).But I don't know what's wrong with your VM Manager.Can you boot with the kernel I posted? Where do I find the proper .config file, if it's not the one at /usr/src/linux-4.19.107-Unraid/.config on the unRAID flash drive? 9 hours ago, beemac said: If I only replace the bzimage file, and use the untouched bzmodules, I can get the system to boot and everything seems to start up in a normal boot mode. I was able to boot with the bzimage file that I built, however it only seems stable with default "make oldconfig" settings. Using my compiled bzmodules is what causes all kinds of issues for me such as no interfaces. Would that be related to the improper .config file? My bzmodules ends up 8396KB, while the default one is 9316KB. If I'm not changing anything, they should be very close if not exact, shouldn't they? There's got to be something wrong with how I'm doing the modules building part. I'm going to post my steps in order without all the log input at the end of this post for @J89euand maybe it will be more obvious to someone what I'm not doing right. The problem with the VM manager not loading is when I use "make menuconfig" after "make oldconfig" and I select the full tickless option (CONFIG_NO_HZ_FULL=y). I'm going to keep trying whatever I can think of to deal with this "libvirt tainted' issue that I have when booting with the tickless kernel. I'll keep using the default bzmodules for now. 2 hours ago, J89eu said: Could anyone do some extra steps on the instructions for people that are not absolute idiots on Linux but close to? The steps are a little advanced for and I want to try this for an issue with my VM i've been suffering with since December... As in it not working at all I'm going to post how I built the kernel. I'm guessing you have a version of unRAID where you can't just download the precompiled version that @Leoyzenhas already posted? For your VM issue, I would suggest trying to build the VM from scratch, and just keep the vdisk file and the original XML for reference. That, or look into emulating a CPU because I had an issue with my OPNsense not working after the update from 6.6.7 to 6.8.0; Ryzen passthrough no longer works on OPNsense or pfSense. Full log files of the output from my steps can be seen in my previous post, but below are the steps that you can just copy/paste in order. I used a Linux Mint 19.3 64bit VM for this but a recent Ubuntu distro should work just the same if you have one installed already. I allocated a bunch of cores to the VM so that the compiling time was quicker. Keep in mind this is for unRAID 6.8.3 with kernel version 4.19.107. I verified this with the command uname -a at the terminal of my unRAID server. Check this before using my steps exactly: root@unRAID:~# uname -a Linux unRAID 4.19.107-Unraid #1 SMP Wed Mar 11 20:38:14 EDT 2020 x86_64 AMD Ryzen 5 1600 Six-Core Processor AuthenticAMD GNU/Linux I did all of this from the PuTTY client over SSH to the Mint VM. Otherwise, opening a terminal directly on the Mint VM through VNC would work. I made some in-line notes starting with ##, and added a few line breaks, usually where input is required. All of this is use at your own risk. Anyway, here's what I have: sudo -i ## enter your Ubuntu account password then hit ENTER to get root prompt mkdir /boot/packages/ cd /boot/packages/ wget https://s3.amazonaws.com/dnld.lime-technology.com/stable/unRAIDServer-6.8.3-x86_64.zip wget https://cdn.kernel.org/pub/linux/kernel/v4.x/linux-4.19.107.tar.xz rsync -avhr [email protected]:/usr/src/ /usr/src/ ## REPLACE 192.168.2.2 ^ with your unRAID server IP or hostname, you will need to enter your unraid root password tar -xvf linux-4.19.107.tar.xz -C /usr/src/ ln -sf /usr/src/linux-4.19.107 /usr/src/linux mkdir -p /mnt/dev/ unzip /boot/packages/unRAIDServer-6.8.3-x86_64.zip -d /mnt/dev/ apt update apt install libelf-dev build-essential ncurses-dev ## press Y then ENTER to install these packages that you'll need cp -vrf /usr/src/linux-4.19.107-Unraid/* /usr/src/linux/ cp -vf /usr/src/linux-4.19.107-Unraid/.config /usr/src/linux/ cd /usr/src/linux find . -type f -iname '*.patch' -print0|xargs -n1 -0 patch -p 1 -i make oldconfig ## YOU CAN use "make menuconfig" at this step and select different options using arrows/space bar/enter then select Save and it'll update the .config file ## "grep HZ .config" this is my command I can optionally enter to see in the console that the option I selected was saved to the .config file before building the kernel in the following commands make -j5 bzImage; make -j5; make -j5 modules make modules_install mkdir -p /releases/6.8.3-4.19.107/ cp /usr/src/linux/arch/x86_64/boot/bzImage /releases/6.8.3-4.19.107/bzimage mksquashfs /lib/modules/4.19.107-Unraid/ /releases/6.8.3-4.19.107/bzmodules -keep-as-directory -noappend ## MAKE BACKUPS of /boot/bzimage and /boot/bzmodules on your unRAID server BEFORE the following step. A full backup of your unRAID USB is probably a better idea (I do this quite often) scp /releases/6.8.3-4.19.107/bz* [email protected]:/boot/ ## enter your unraid root password again and hit enter to overwrite the bzimage and bzmodules files. If you just want to copy bzimage and keep the default bzmodules then the command for that is here: ## scp /releases/6.8.3-4.19.107/bzimage [email protected]:/boot/bzimage Edited March 12, 2020 by beemac removed syntax highlighting Quote Link to comment
Leoyzen Posted March 12, 2020 Author Share Posted March 12, 2020 @beemacWhy don't you compiling the kernel without custom option but just the standard .config from unraid server to test the building prodecure? If it can boot without issues, then it must be something wrong with "CONFIG_NO_HZ_FULL" enabled. In my opinion, the procedure is right, I build it many times without problems. The only problem is limetech forget adding some necessary options in release .config sometimes. (In .config from 6.8.3, they forget add Intel 10Gbps NIC support/ixgbe in .config), I must diff the changes from previous version to see if everything is correct. Quote Link to comment
beemac Posted March 12, 2020 Share Posted March 12, 2020 2 hours ago, Leoyzen said: @beemacWhy don't you compiling the kernel without custom option but just the standard .config from unraid server to test the building prodecure? If it can boot without issues, then it must be something wrong with "CONFIG_NO_HZ_FULL" enabled. In short, yes, that worked fine. In my post above, I mentioned: 3 hours ago, beemac said: I was able to boot with the bzimage file that I built, however it only seems stable with default "make oldconfig" settings. As far as I understand, this is the "standard .config" by using "make oldconfig" and not changing anything else. Again, everything seems normal and VM Manager boots up OK when I compile the kernel with make oldconfig. Do you see any problem with me running the default bzmodules with a custom bzimage? For whatever reason I've just had no luck when I try to replace bzmodules. Maybe because I don't have the proper .config, and it's missing options, as you said? If I can just run the default bzmodules as I have been doing, then that leaves me to solve my ultimate problem that only occurs when I boot with the kernel that has the CONFIG_NO_HZ_FULL=y option set. I've been playing with boot options this morning with this bzimagenohz kernel, trying to enable arguments one at a time. Safe mode and everything, the system hangs and I can never get VM Manager to load. I can run virsh in terminal but any command I type into it just hangs. I have been Googling around but haven't found anything. I understand this is not exactly the focus of your thread, so I'm only posting in the hope that someone may come across it and know how to solve my problem. That being said, the below seems to be the problem that I think is preventing my VM Manager from working. Mar 12 11:15:05 unRAID root: Starting virtlockd... Mar 12 11:15:05 unRAID root: Starting virtlogd... Mar 12 11:15:05 unRAID root: Starting libvirtd... Mar 12 11:15:05 unRAID kernel: tun: Universal TUN/TAP device driver, 1.6 Mar 12 11:15:05 unRAID kernel: BUG: unable to handle kernel paging request at 0000000000007428 Mar 12 11:15:05 unRAID kernel: PGD 0 P4D 0 Mar 12 11:15:05 unRAID kernel: Oops: 0000 [#1] SMP NOPTI Mar 12 11:15:05 unRAID kernel: CPU: 7 PID: 15545 Comm: libvirtd Tainted: G W O 4.19.107-Unraid #1 Mar 12 11:15:05 unRAID kernel: Hardware name: Gigabyte Technology Co., Ltd. X470 AORUS ULTRA GAMING/X470 AORUS ULTRA GAMING-CF, BIOS F6 01/25/2019 Mar 12 11:15:05 unRAID kernel: RIP: 0010:tun_chr_open+0x28/0x152 [tun] Mar 12 11:15:05 unRAID kernel: Code: 5c c3 41 54 45 31 c0 ba c0 00 60 00 48 c7 c1 00 31 19 a0 55 65 48 8b 04 25 40 5c 01 00 53 48 8b 80 e0 05 00 00 48 89 f3 31 f6 <48> 8b 78 28 e8 1f 4d 39 e1 48 89 c5 b8 f4 ff ff ff 48 85 ed 0f 84 Mar 12 11:15:05 unRAID kernel: RSP: 0018:ffffc90001fe7c30 EFLAGS: 00010246 Mar 12 11:15:05 unRAID kernel: RAX: 0000000000007400 RBX: ffff888409ada500 RCX: ffffffffa0193100 Mar 12 11:15:05 unRAID kernel: RDX: 00000000006000c0 RSI: 0000000000000000 RDI: ffff888408e00318 Mar 12 11:15:05 unRAID kernel: RBP: 00000000000000c8 R08: 0000000000000000 R09: ffff888408d6c020 Mar 12 11:15:05 unRAID kernel: R10: ffff88840e031740 R11: fffffffffac608b1 R12: ffff888409ada500 Mar 12 11:15:05 unRAID kernel: R13: ffff888408e00318 R14: ffffffffa0191400 R15: ffff888409ada500 Mar 12 11:15:05 unRAID kernel: FS: 0000148d635fa700(0000) GS:ffff88840ebc0000(0000) knlGS:0000000000000000 Mar 12 11:15:05 unRAID kernel: CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033 Mar 12 11:15:05 unRAID kernel: CR2: 0000000000007428 CR3: 000000040b228000 CR4: 00000000003406e0 Mar 12 11:15:05 unRAID kernel: Call Trace: Mar 12 11:15:05 unRAID kernel: misc_open+0x11a/0x138 Mar 12 11:15:05 unRAID kernel: chrdev_open+0x151/0x189 Mar 12 11:15:05 unRAID kernel: ? cdev_put+0x19/0x19 Mar 12 11:15:05 unRAID kernel: do_dentry_open+0x223/0x2dd Mar 12 11:15:05 unRAID kernel: path_openat+0xaab/0xc8c Mar 12 11:15:05 unRAID kernel: ? _copy_to_user+0x22/0x28 Mar 12 11:15:05 unRAID kernel: do_filp_open+0x57/0xc1 Mar 12 11:15:05 unRAID kernel: ? __inode_wait_for_writeback+0x71/0xc6 Mar 12 11:15:05 unRAID kernel: ? __dentry_kill+0x127/0x130 Mar 12 11:15:05 unRAID kernel: ? __alloc_fd+0x95/0x14e Mar 12 11:15:05 unRAID kernel: ? do_sys_open+0x133/0x1cf Mar 12 11:15:05 unRAID kernel: do_sys_open+0x133/0x1cf Mar 12 11:15:05 unRAID kernel: do_syscall_64+0x92/0x167 Mar 12 11:15:05 unRAID kernel: entry_SYSCALL_64_after_hwframe+0x44/0xa9 Mar 12 11:15:05 unRAID kernel: RIP: 0033:0x148d8f1c6cf4 Mar 12 11:15:05 unRAID kernel: Code: 84 00 00 00 00 00 44 89 54 24 0c e8 e6 f4 ff ff 44 8b 54 24 0c 44 89 e2 48 89 ee 41 89 c0 bf 9c ff ff ff b8 01 01 00 00 0f 05 <48> 3d 00 f0 ff ff 77 32 44 89 c7 89 44 24 0c e8 18 f5 ff ff 8b 44 Mar 12 11:15:05 unRAID kernel: RSP: 002b:0000148d635f9850 EFLAGS: 00000293 ORIG_RAX: 0000000000000101 Mar 12 11:15:05 unRAID kernel: RAX: ffffffffffffffda RBX: 0000000000000000 RCX: 0000148d8f1c6cf4 Mar 12 11:15:05 unRAID kernel: RDX: 0000000000000002 RSI: 0000148d9031f891 RDI: 00000000ffffff9c Mar 12 11:15:05 unRAID kernel: RBP: 0000148d9031f891 R08: 0000000000000000 R09: 0000148d635f9a94 Mar 12 11:15:05 unRAID kernel: R10: 0000000000000000 R11: 0000000000000293 R12: 0000000000000002 Mar 12 11:15:05 unRAID kernel: R13: 000000000000000d R14: 0000148d635f9aa0 R15: 0000148d9031f891 Mar 12 11:15:05 unRAID kernel: Modules linked in: vhost_net tun vhost tap macvlan xt_nat veth ipt_MASQUERADE iptable_filter iptable_nat nf_nat_ipv4 nf_nat ip_tables xfs md_mod sr_mod cdrom edac_mce_amd kvm_amd hid_logitech_hidpp kvm crct10dif_pclmul crc32_pclmul crc32c_intel ghash_clmulni_intel pcbc bnx2x aesni_intel aes_x86_64 crypto_simd cryptd i2c_piix4 i2c_core mxm_wmi k10temp wmi_bmof glue_helper hid_logitech_dj ccp nvme igb(O) mdio ahci pcc_cpufreq nvme_core libahci wmi button acpi_cpufreq Mar 12 11:15:05 unRAID kernel: CR2: 0000000000007428 Mar 12 11:15:05 unRAID kernel: ---[ end trace 84cc620044acb508 ]--- Mar 12 11:15:05 unRAID kernel: RIP: 0010:tun_chr_open+0x28/0x152 [tun] Mar 12 11:15:05 unRAID kernel: Code: 5c c3 41 54 45 31 c0 ba c0 00 60 00 48 c7 c1 00 31 19 a0 55 65 48 8b 04 25 40 5c 01 00 53 48 8b 80 e0 05 00 00 48 89 f3 31 f6 <48> 8b 78 28 e8 1f 4d 39 e1 48 89 c5 b8 f4 ff ff ff 48 85 ed 0f 84 Mar 12 11:15:05 unRAID kernel: RSP: 0018:ffffc90001fe7c30 EFLAGS: 00010246 Mar 12 11:15:05 unRAID kernel: RAX: 0000000000007400 RBX: ffff888409ada500 RCX: ffffffffa0193100 Mar 12 11:15:05 unRAID kernel: RDX: 00000000006000c0 RSI: 0000000000000000 RDI: ffff888408e00318 Mar 12 11:15:05 unRAID kernel: RBP: 00000000000000c8 R08: 0000000000000000 R09: ffff888408d6c020 Mar 12 11:15:05 unRAID kernel: R10: ffff88840e031740 R11: fffffffffac608b1 R12: ffff888409ada500 Mar 12 11:15:05 unRAID kernel: R13: ffff888408e00318 R14: ffffffffa0191400 R15: ffff888409ada500 Mar 12 11:15:05 unRAID kernel: FS: 0000148d635fa700(0000) GS:ffff88840ebc0000(0000) knlGS:0000000000000000 Mar 12 11:15:05 unRAID kernel: CS: 0010 DS: 0000 ES: 0000 CR0: 0000000080050033 Mar 12 11:15:05 unRAID kernel: CR2: 0000000000007428 CR3: 000000040b228000 CR4: 00000000003406e0 Quote Link to comment

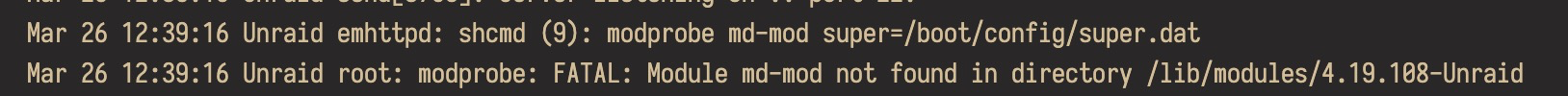

ED209 Posted March 26, 2020 Share Posted March 26, 2020 On 3/7/2020 at 8:37 AM, Leoyzen said: 6.8.3 is out, here is the new kernel and some tweaks: Add Vega Reset Patch Add Navi Reset Patch Enable NFSv4 in kernel(God damned, we finally get nfsv4 to work) Add R8125 out tree driver. AMD onboard audio/usb controller flr patch, you can now passthrough them. Provide two version (linux-5.5.8 and linux-4.19.108) in case of bug. Notice that the linux-4.19.108 version still don't have AMD Zen 2 suppport. For those who want to use NFSv4: NFSv4 have some change compared to v2/v3, it must have root share and the nfs-utils/unRaid can't handle it well for now.You must add this script to UserScript Plugin triggered when array start: #!/bin/bash # Add NFSv4 root echo '"/mnt/user/" -async,no_subtree_check,fsid=0 *(sec=sys,rw,insecure,anongid=100,anonuid=99,all_squash,crossmnt)' >> /etc/exports # Load configuration exportfs -ra # Tunning mkdir -p /var/lib/nfs/v4recovery sed -i 's@/usr/sbin/rpc.nfsd 8@/usr/sbin/rpc.nfsd 32@g' /etc/rc.d/rc.nfsd # Restart Services /etc/rc.d/rc.nfsd restart And if you have trouble mount nfsv4, you can specify mount vers=3 on client. 6.8.3-4.19.108.zip 13.03 MB · 24 downloads 6.8.3-5.5.8.zip 13.31 MB · 42 downloads Hello, I have loaded your compiled kernel onto my 6.8.3 server in an attempt to correct the Audio/USB pass through on my Asus Tuf X570 Gaming. Everything seems ok, computer boots and I get the console logon with the server IP displayed, however the web UI interface is not accessible. Not sure what is going on, I'm hoping someone can point me in the right direction. My System: Asus TUF Gaming X570-Plus / Rizen 3900x I have attached my syslog in the hopes someone can pin point why this thing wont work. Thank you in advance syslog-03-26.txt Quote Link to comment
Leoyzen Posted March 27, 2020 Author Share Posted March 27, 2020 @ED209 You still use 4.19.108 bzmodules.Did you replace it with the one of 5.5.8? Quote Link to comment
ED209 Posted March 27, 2020 Share Posted March 27, 2020 @Leoyzen that did the trick, thank you for pointing me in the right direction. I was under the impression since my build was running kernel 4.19.107 that I need to stay with the 4.19 kernel. I have loaded the 5.5.8 files and everything seems to be working as expected. Thank you very much. Quote Link to comment
Metallus Posted April 2, 2020 Share Posted April 2, 2020 (edited) Sooo... my setup: x570 strix e 3950x 5700xt 290x Restarting a VM now works without hangs. However I still can get the booted 5700xt or 290 with the terminal on it to come available in a VM. It looks like it tries to stat but hangs on the TianoCore image... Is there anything else I need to do? What I did: Dump VBIOS on windows, pass it through. Download the 5.5.8 files and placed them in my root directory. I am booting unraid in EFI mode Edited April 2, 2020 by Metallus Quote Link to comment
Leoyzen Posted April 3, 2020 Author Share Posted April 3, 2020 @MetallusTry add 'video=efifb:off' to your boot-args, also add your graphic to vfio-pci. Quote Link to comment
weeedos Posted April 5, 2020 Share Posted April 5, 2020 On 3/12/2020 at 12:54 PM, beemac said: Where do I find the proper .config file, if it's not the one at /usr/src/linux-4.19.107-Unraid/.config on the unRAID flash drive? I was able to boot with the bzimage file that I built, however it only seems stable with default "make oldconfig" settings. Using my compiled bzmodules is what causes all kinds of issues for me such as no interfaces. Would that be related to the improper .config file? My bzmodules ends up 8396KB, while the default one is 9316KB. If I'm not changing anything, they should be very close if not exact, shouldn't they? There's got to be something wrong with how I'm doing the modules building part. I'm going to post my steps in order without all the log input at the end of this post for @J89euand maybe it will be more obvious to someone what I'm not doing right. The problem with the VM manager not loading is when I use "make menuconfig" after "make oldconfig" and I select the full tickless option (CONFIG_NO_HZ_FULL=y). I'm going to keep trying whatever I can think of to deal with this "libvirt tainted' issue that I have when booting with the tickless kernel. I'll keep using the default bzmodules for now. I'm going to post how I built the kernel. I'm guessing you have a version of unRAID where you can't just download the precompiled version that @Leoyzenhas already posted? For your VM issue, I would suggest trying to build the VM from scratch, and just keep the vdisk file and the original XML for reference. That, or look into emulating a CPU because I had an issue with my OPNsense not working after the update from 6.6.7 to 6.8.0; Ryzen passthrough no longer works on OPNsense or pfSense. Full log files of the output from my steps can be seen in my previous post, but below are the steps that you can just copy/paste in order. I used a Linux Mint 19.3 64bit VM for this but a recent Ubuntu distro should work just the same if you have one installed already. I allocated a bunch of cores to the VM so that the compiling time was quicker. Keep in mind this is for unRAID 6.8.3 with kernel version 4.19.107. I verified this with the command uname -a at the terminal of my unRAID server. Check this before using my steps exactly: root@unRAID:~# uname -a Linux unRAID 4.19.107-Unraid #1 SMP Wed Mar 11 20:38:14 EDT 2020 x86_64 AMD Ryzen 5 1600 Six-Core Processor AuthenticAMD GNU/Linux I did all of this from the PuTTY client over SSH to the Mint VM. Otherwise, opening a terminal directly on the Mint VM through VNC would work. I made some in-line notes starting with ##, and added a few line breaks, usually where input is required. All of this is use at your own risk. Anyway, here's what I have: sudo -i ## enter your Ubuntu account password then hit ENTER to get root prompt mkdir /boot/packages/ cd /boot/packages/ wget https://s3.amazonaws.com/dnld.lime-technology.com/stable/unRAIDServer-6.8.3-x86_64.zip wget https://cdn.kernel.org/pub/linux/kernel/v4.x/linux-4.19.107.tar.xz rsync -avhr [email protected]:/usr/src/ /usr/src/ ## REPLACE 192.168.2.2 ^ with your unRAID server IP or hostname, you will need to enter your unraid root password tar -xvf linux-4.19.107.tar.xz -C /usr/src/ ln -sf /usr/src/linux-4.19.107 /usr/src/linux mkdir -p /mnt/dev/ unzip /boot/packages/unRAIDServer-6.8.3-x86_64.zip -d /mnt/dev/ apt update apt install libelf-dev build-essential ncurses-dev ## press Y then ENTER to install these packages that you'll need cp -vrf /usr/src/linux-4.19.107-Unraid/* /usr/src/linux/ cp -vf /usr/src/linux-4.19.107-Unraid/.config /usr/src/linux/ cd /usr/src/linux find . -type f -iname '*.patch' -print0|xargs -n1 -0 patch -p 1 -i make oldconfig ## YOU CAN use "make menuconfig" at this step and select different options using arrows/space bar/enter then select Save and it'll update the .config file ## "grep HZ .config" this is my command I can optionally enter to see in the console that the option I selected was saved to the .config file before building the kernel in the following commands make -j5 bzImage; make -j5; make -j5 modules make modules_install mkdir -p /releases/6.8.3-4.19.107/ cp /usr/src/linux/arch/x86_64/boot/bzImage /releases/6.8.3-4.19.107/bzimage mksquashfs /lib/modules/4.19.107-Unraid/ /releases/6.8.3-4.19.107/bzmodules -keep-as-directory -noappend ## MAKE BACKUPS of /boot/bzimage and /boot/bzmodules on your unRAID server BEFORE the following step. A full backup of your unRAID USB is probably a better idea (I do this quite often) scp /releases/6.8.3-4.19.107/bz* [email protected]:/boot/ ## enter your unraid root password again and hit enter to overwrite the bzimage and bzmodules files. If you just want to copy bzimage and keep the default bzmodules then the command for that is here: ## scp /releases/6.8.3-4.19.107/bzimage [email protected]:/boot/bzimage Thank you so much for this step by step procedure! Can confirm that its working. I had problem with passing through onboard audio device on B450 motherboard with 3900x CPU (unraid would freeze after several minutes vm started). I basically followed every step you wrote and added few lines as mentioned in this link before the step where you make bzImage . Quote Link to comment
Metallus Posted April 8, 2020 Share Posted April 8, 2020 On 4/3/2020 at 4:31 PM, Leoyzen said: @MetallusTry add 'video=efifb:off' to your boot-args, also add your graphic to vfio-pci. That did it! THANKS I was also able to sort of hack it with SpaceinvaderOnes reset AMD GPUs script. but yeha with those settings added it is much more convenient. Again: Huge thanks! Quote Link to comment
Critica1Err0r Posted April 12, 2020 Share Posted April 12, 2020 On 4/8/2020 at 11:28 AM, Metallus said: That did it! THANKS I was also able to sort of hack it with SpaceinvaderOnes reset AMD GPUs script. but yeha with those settings added it is much more convenient. Again: Huge thanks! Did you get audio and usb passed through? I have the same board and I'm struggling to get anything working. Quote Link to comment
Leoyzen Posted April 12, 2020 Author Share Posted April 12, 2020 2 hours ago, Critica1Err0r said: Did you get audio and usb passed through? I have the same board and I'm struggling to get anything working. This kernel will make it work too. Quote Link to comment
Critica1Err0r Posted April 13, 2020 Share Posted April 13, 2020 20 hours ago, Leoyzen said: This kernel will make it work too. can you offer some help? ive passed 2 usb controllers successfully but as soon as i try to pass the audio device it hangs at a flr even though i tried to append it out Quote Link to comment
Leoyzen Posted April 14, 2020 Author Share Posted April 14, 2020 @Critica1Err0rDo you use this kernel?Is your motherboard AMD? Quote Link to comment
Critica1Err0r Posted April 14, 2020 Share Posted April 14, 2020 4 hours ago, Leoyzen said: @Critica1Err0rDo you use this kernel?Is your motherboard AMD? I'm 6.8.3 with your 5.x kernel. I have a x570 strix e and a 3950x. Trying to pass the audio hangs on flr... I've made a separate post earlier when I was trying on 6.9 beta and that didn't work either. There's some more information in that thread which is right below this one in motherboards and cpus. Quote Link to comment
Leoyzen Posted April 16, 2020 Author Share Posted April 16, 2020 @Critica1Err0r Use this one instead. And add your audio id(for example:15b7:5002) to boot-args like this: append pcie_no_flr=15b7:5002 initrd=/bzroot 6.8.3-5.5.8-2.zip 1 Quote Link to comment
Critica1Err0r Posted April 16, 2020 Share Posted April 16, 2020 vfio-pci 0000:0c:00.4: not ready 1023ms after FLR; waiting ive had it appended like this and it still shows the same thing Quote Link to comment
