Bruno Posted November 29, 2019 Share Posted November 29, 2019 Any chance we could see support for QNAP QNA-UC5G1T USB 3.0 to 5GbE adapter? It's a reliable and cheap 5Gbe USB adapter that can be used in servers without PCIe. It uses the Aquantia drivers which Unraid already has some support apparently, I guess just not for this model which is Aquantia AQtion AQC111U driver. Product url: https://www.qnap.com/en/product/qna-uc5g1t 2 Quote Link to comment
mnemonicman Posted February 13, 2020 Share Posted February 13, 2020 I too am curious if/when that adapter would be supported. It shows up as a device but no network interface is added. Got an server with a Silverstone DS380 so that means mini-itx and very few if any has better than 1gbe. Quote Link to comment
midasmok Posted February 19, 2020 Share Posted February 19, 2020 On 2/14/2020 at 3:41 AM, mnemonicman said: I too am curious if/when that adapter would be supported. It shows up as a device but no network interface is added. Got an server with a Silverstone DS380 so that means mini-itx and very few if any has better than 1gbe. So currently it does not work with Unraid? was considering to purchase it. Sound like a perfect upgrade on paper for ITX system which PCIe slot is occupied by controller card. Hope Unraid will add support soon 1 Quote Link to comment
mr007 Posted May 26, 2020 Share Posted May 26, 2020 bump, I'm in the same boat. 1 Quote Link to comment
jtbtroon Posted October 31, 2020 Share Posted October 31, 2020 I'd like to bump this also. Support for the AQC111U drivers would be great for users like me who don't have any spare PCIe slots and are looking at USB Ethernet adapters. Quote Link to comment
tjb_altf4 Posted November 1, 2020 Share Posted November 1, 2020 (edited) 2 hours ago, jtbtroon said: I'd like to bump this also. Support for the AQC111U drivers would be great for users like me who don't have any spare PCIe slots and are looking at USB Ethernet adapters. Try the 6.9 beta, it has a newer kernel which I believe should have this driver as it landed in the kernel just after the intel/realtek 2.5G drivers (which are in the 6.9 beta). Edited November 1, 2020 by tjb_altf4 Quote Link to comment
snifex Posted November 10, 2020 Share Posted November 10, 2020 I tried with the Version 6.9.0-beta30 . [email protected]:~# modinfo aqc111 modinfo: ERROR: Module aqc111 not found. It does not work. AQC111 is not available. Would be great to include it. Sadly, i am also not able to pass it through to a Windows 10 VM. (Device cannot be startet: Code 10) Quote Link to comment
gause Posted November 11, 2020 Share Posted November 11, 2020 Hope Unraid will add support soon 2 Quote Link to comment
Lucanus Posted January 24, 2021 Share Posted January 24, 2021 This would also be nice for the QNAP QXG-5G1T-111C PCIe NIC as that also uses the Aquantia AQtion AQC111C Chipset. Quote Link to comment
cpu2k6 Posted March 28, 2021 Share Posted March 28, 2021 I'm also interested. I have the USB Adapter QNA-UC5G1T. It shows up in System Devices but is not assigned as a network interface. Unraid 6.9.1 Quote Link to comment
Golmak Posted April 17, 2021 Share Posted April 17, 2021 Hello i'm also interested ! Someone have test with the new version of Unraid 6.9.2 ? Thanks Quote Link to comment
Golmak Posted July 7, 2021 Share Posted July 7, 2021 I have tested on UnRaid 6.9.2 it is the same. It shows up in System Devices but is not assigned as a network interface ... Have a good day Quote Link to comment
ich777 Posted July 7, 2021 Share Posted July 7, 2021 Try to do: modprobe -v atlantic Can somebody attach the Diagnostics to this thread (Tools -> Diagnostics -> Download -> drop the downloaded zip file here in the text box). Quote Link to comment
SimonF Posted July 7, 2021 Share Posted July 7, 2021 (edited) 4 hours ago, ich777 said: Try to do: modprobe -v atlantic Can somebody attach the Diagnostics to this thread (Tools -> Diagnostics -> Download -> drop the downloaded zip file here in the text box). Hi @ich777 I think it may need # CONFIG_USB_NET_AQC111 is not set Edited July 7, 2021 by SimonF Quote Link to comment
ich777 Posted July 7, 2021 Share Posted July 7, 2021 6 minutes ago, SimonF said: Hi @ich777 I think it may need # CONFIG_USB_NET_AQC111 is not set On my server I have the atlantic drivers built with the Kernel, would be super nice to know which hardware ID's that those cards have. 1 Quote Link to comment
SimonF Posted July 7, 2021 Share Posted July 7, 2021 12 minutes ago, ich777 said: On my server I have the atlantic drivers built with the Kernel, would be super nice to know which hardware ID's that those cards have. Controller: AQC111U I/O: 1 x USB 3.2 Gen 1 Type-C; 1 x 5GbE/NBASE-T port Operating temperature: -5 - 45°C (23°F - 113°F) Package content: QNA- UC5G1T; 0.2M USB 3.2 Gen 1 Type-C to Type-A cable and installation guide Port and cable: RJ-45 Note: ● Windows 10, 8.1, 8, 7 requires a driver. Requires the Marvell® AQtion AQC111U driver. Click here to download the driver. ● QNAP NAS: QTS 4.3.6 (or later) or QuTS hero h4.5.0 (or later) is required. ● QNAP has ended official support for MacOS and Linux since 2021/01. Users can download the Marvell® AQtion AQC111U driver from Marvell®’s official website. Click here to download the driver. 1 Quote Link to comment

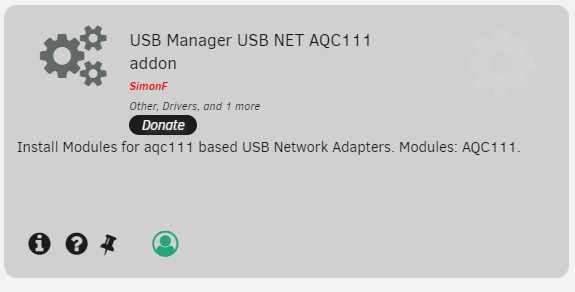

SimonF Posted August 22, 2021 Share Posted August 22, 2021 (edited) On 7/7/2021 at 1:23 PM, Golmak said: I have tested on UnRaid 6.9.2 it is the same. It shows up in System Devices but is not assigned as a network interface ... Have a good day ich777 has created a package for me and I have create a plugin to install that should appear in CA to install the module. I have not been able to test if it works with an adapter or if you can use with Unraid network settings. Edited August 22, 2021 by SimonF 3 Quote Link to comment

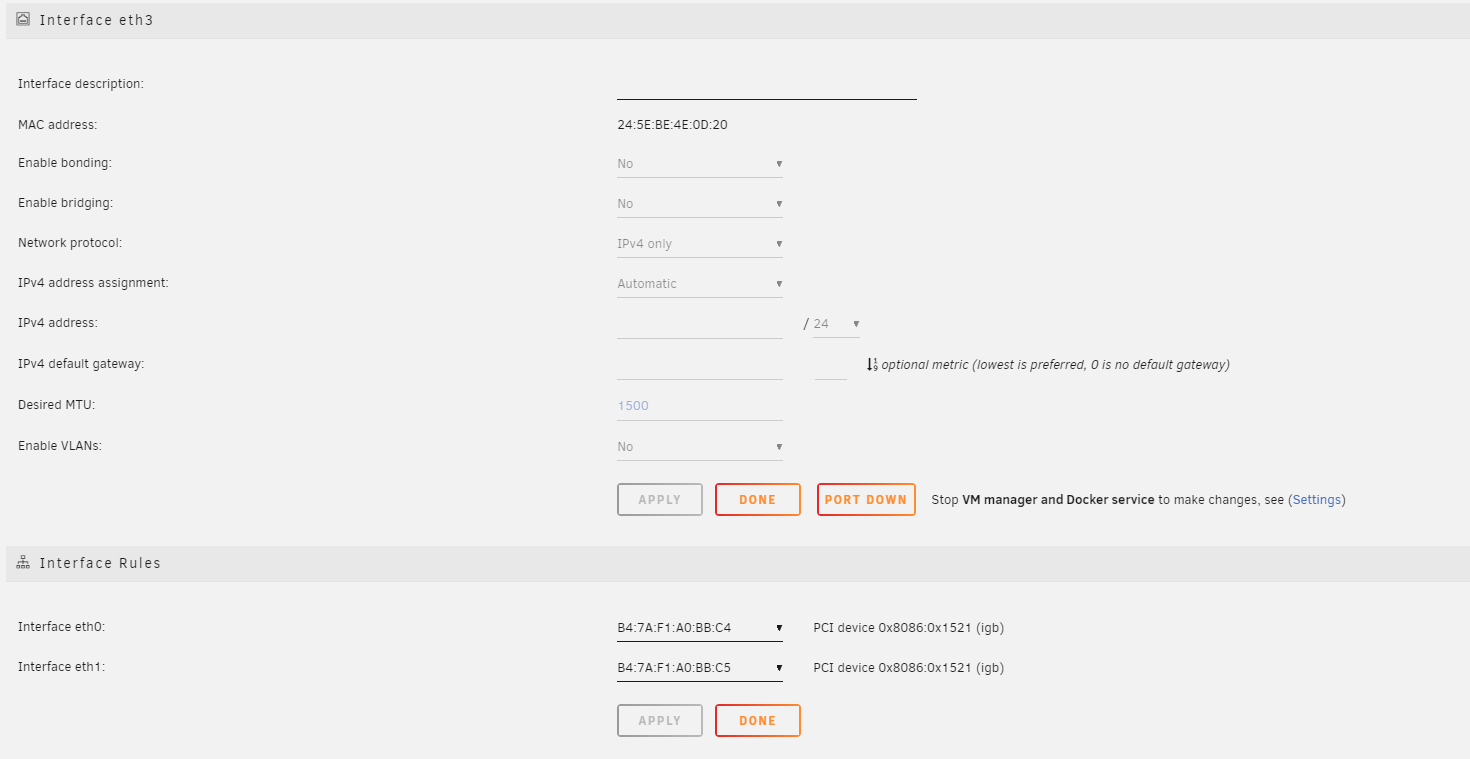

gzelvis Posted August 24, 2021 Share Posted August 24, 2021 (edited) On 8/22/2021 at 3:18 PM, SimonF said: ich777 has created a package for me and I have create a plugin to install that should appear in CA to install the module. I have not been able to test if it works with an adapter or if you can use with Unraid network settings. thanks for your works, but when i install this module in Unraid 6.9.2 , The OS add this Qnap AQC111 usb ethernet card, but in [ Interface Rules ] Coloum i can't see this usb ethernet card info, so i can't chanage eth0 to Qnap aqc usb ethernet card, which i want to replace the system original 1Gbps i350 nic to boot and for unraid main use. is there need to change /boot/config/network-rules.cfg to add this usb aqc111 card info? Edited August 24, 2021 by gzelvis Quote Link to comment
bonienl Posted August 24, 2021 Share Posted August 24, 2021 To work with Unraid the interface has to report itself as ethernet type, i.e. ethX. Quote Link to comment
SimonF Posted August 24, 2021 Share Posted August 24, 2021 1 hour ago, gzelvis said: thanks for your works, but when i install this module in Unraid 6.9.2 , The OS add this Qnap AQC111 usb ethernet card, but in [ Interface Rules ] Coloum i can't see this usb ethernet card info, so i can't chanage eth0 to Qnap aqc usb ethernet card, which i want to replace the system original 1Gbps i350 nic to boot and for unraid main use. is there need to change /boot/config/network-rules.cfg to add this usb aqc111 card info? what do you get from ifconfig. Quote Link to comment
gzelvis Posted August 25, 2021 Share Posted August 25, 2021 19 hours ago, SimonF said: what do you get from ifconfig. [email protected]:~# ifconfig docker0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 172.17.0.1 netmask 255.255.0.0 broadcast 172.17.255.255 inet6 fe80::42:9fff:fe03:8684 prefixlen 64 scopeid 0x20<link> ether 02:42:9f:03:86:84 txqueuelen 0 (Ethernet) RX packets 769736 bytes 503056618 (479.7 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 731398 bytes 568106147 (541.7 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet 10.0.0.88 netmask 255.255.255.0 broadcast 0.0.0.0 ether b4:7a:f1:a0:bb:c4 txqueuelen 2000 (Ethernet) RX packets 150754356 bytes 177547905334 (165.3 GiB) RX errors 0 dropped 4148724 overruns 0 frame 0 TX packets 189578572 bytes 275264539550 (256.3 GiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 device memory 0x87400000-874fffff eth3: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fd27:f9d1:9a96:1:265e:beff:fe4e:d20 prefixlen 64 scopeid 0x0<global> inet6 fe80::265e:beff:fe4e:d20 prefixlen 64 scopeid 0x20<link> ether 24:5e:be:4e:0d:20 txqueuelen 1000 (Ethernet) RX packets 167 bytes 40214 (39.2 KiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 35 bytes 7376 (7.2 KiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536 inet 127.0.0.1 netmask 255.0.0.0 inet6 ::1 prefixlen 128 scopeid 0x10<host> loop txqueuelen 1000 (Local Loopback) RX packets 293689 bytes 357824408 (341.2 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 293689 bytes 357824408 (341.2 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 veth2f7ce7d: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::d8bd:a9ff:fe56:d8fb prefixlen 64 scopeid 0x20<link> ether da:bd:a9:56:d8:fb txqueuelen 0 (Ethernet) RX packets 260551 bytes 333788126 (318.3 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 377938 bytes 128551510 (122.5 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 veth4690b2c: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::287f:c1ff:fed6:85ad prefixlen 64 scopeid 0x20<link> ether 2a:7f:c1:d6:85:ad txqueuelen 0 (Ethernet) RX packets 35817 bytes 10980138 (10.4 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 1643 bytes 1377443 (1.3 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 veth83343a5: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::64df:dbff:fe0b:7199 prefixlen 64 scopeid 0x20<link> ether 66:df:db:0b:71:99 txqueuelen 0 (Ethernet) RX packets 346240 bytes 135829660 (129.5 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 298284 bytes 352301682 (335.9 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 veth978f18c: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::c82e:56ff:feaf:17d6 prefixlen 64 scopeid 0x20<link> ether ca:2e:56:af:17:d6 txqueuelen 0 (Ethernet) RX packets 5028 bytes 1589778 (1.5 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 40363 bytes 31394156 (29.9 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 vethbf14116: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500 inet6 fe80::68d2:7dff:fe18:8b5 prefixlen 64 scopeid 0x20<link> ether 6a:d2:7d:18:08:b5 txqueuelen 0 (Ethernet) RX packets 87685 bytes 22856750 (21.7 MiB) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 118597 bytes 22230503 (21.2 MiB) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 virbr0: flags=4099<UP,BROADCAST,MULTICAST> mtu 1500 inet 192.168.122.1 netmask 255.255.255.0 broadcast 192.168.122.255 ether 52:54:00:47:39:b2 txqueuelen 1000 (Ethernet) RX packets 0 bytes 0 (0.0 B) RX errors 0 dropped 0 overruns 0 frame 0 TX packets 0 bytes 0 (0.0 B) TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0 --------------------------------------------------- eth3 is the usb aqc111 usb ethernet card . and i found it will not auto get ipv4 adresss Quote Link to comment
gzelvis Posted August 25, 2021 Share Posted August 25, 2021 IOMMU group 3:[8086:a36d] 00:14.0 USB controller: Intel Corporation Cannon Lake PCH USB 3.1 xHCI Host Controller (rev 10) Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 002 Device 002: ID 0424:2660 Standard Microsystems Corp. Hub Bus 002 Device 004: ID 1c04:0015 QNAP System Inc. QNAP QNA-UC5G1T USB to 5GbE Adapter Bus 003 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub Bus 003 Device 003: ID 090c:1000 Silicon Motion, Inc. - Taiwan (formerly Feiya Technology Corp.) Flash Drive Quote Link to comment
gzelvis Posted August 25, 2021 Share Posted August 25, 2021 if any more information u need, plz let me know。 eth3 can't be found in [Interface Rules] so i cant chage unraid to use it as eth0 for main network use Quote Link to comment
SimonF Posted August 25, 2021 Share Posted August 25, 2021 1 hour ago, gzelvis said: if any more information u need, plz let me know。 eth3 can't be found in [Interface Rules] so i cant chage unraid to use it as eth0 for main network use Have you tried a reboot following install of the plugin? I have one of these on the way. So cant do my own testing at present. It may need a rule adding to udev rules as I think this only gets build at boot time. [email protected]:/etc/udev/rules.d# cat 70-persistent-net.rules # PCI device 0x10ec:0x8168 (r8169) SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="2c:f0:5d:d7:2a:11", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth0" -- # PCI device 0x15b3:0x1003 (mlx4_core) SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="f4:52:14:0e:b5:c1", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth2" # PCI device 0x15b3:0x1003 (mlx4_core) SUBSYSTEM=="net", ACTION=="add", DRIVERS=="?*", ATTR{address}=="f4:52:14:0e:b5:c0", ATTR{dev_id}=="0x0", ATTR{type}=="1", KERNEL=="eth*", NAME="eth1" [email protected]:/etc/udev/rules.d# Quote Link to comment
