How to upgrade an LSI HBA firmware using Unraid

JorgeB

By JorgeB
in Storage Devices and Controllers

Recommended Posts

Recommended

Posted by ChatNoir,

Nice video from Art of Server on how to find the various roms, bios, firmwares on the Broadcom website.
Recommended by JorgeB
  • Like

2 reactions

Go to this post
Recommended

Posted by Faceman,

just a reminder/heads up to people trying to upgrade the FW on the 9300-16i, it has 2 separate SAS3008 controllers on board so you need to flash both of them!   if that is the only card in the system you can use sas3flash -o -fwall SAS9300-16i_IT.bin to flash each controller, there is also a command to update certain controllers but this is easier if its the only card you have.
Recommended by JorgeB
  • Like

1 reaction

Go to this post
  • Replies 100
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

JorgeB
JorgeB

Best to use the DOS or UEFI tools to do any crossflashing and/or other more advanced options, e.g., for some reason erasing the BIOS doesn't work with the Linux version, but if you just need to update

Keichi
Keichi

Hello,   As everyone, i was seeing some warnings in the syslog. Thanks to this thread, i updaded my 9211-8i from :   Num Ctlr FW Ver NVDATA x86-BIOS

ChatNoir
ChatNoir

Nice video from Art of Server on how to find the various roms, bios, firmwares on the Broadcom website.

Posted Images

  • 4 weeks later...
Masterwishx Collaborator

Masterwishx

Posted
Posted

@JorgeB

The last version for 9207-8i is

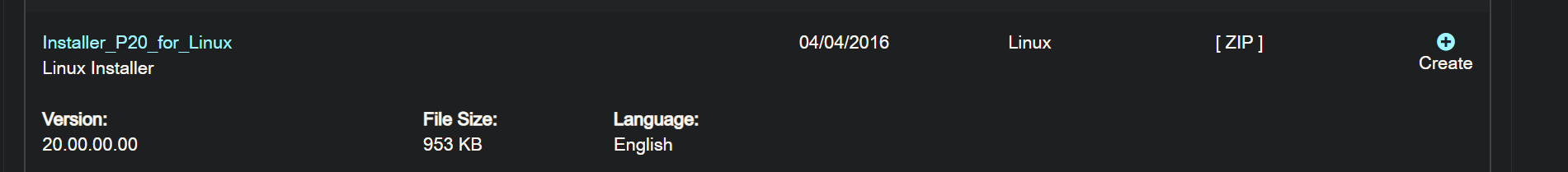

Installer_P20_for_Linux  Version: 20.00.00.00 04/04/2016?

some how Installer_P16_for_Linux Version: 17.00.00.00 having 11/13/2019 newver date ?!?

i buyed the card with v 20.00.07.00 flashed that is the lasted version right ?

Masterwishx Collaborator

Masterwishx

Posted
Posted
2 hours ago, JorgeB said:

No, it's 20.00.07.00



you mean installer or firmware?

i already got  flash v20.00.07.00 on my card

but wanted installer for linux to see flash2sas -list command

and finded only Installer_P20_for_Linux  Version: 20.00.00.00 04/04/2016

JorgeB Grand Master

JorgeB

Posted
  • Author
Posted
3 minutes ago, Masterwishx said:

i already got  flash v20.00.07.00 on my card

but wanted installer for linux to see flash2sas -list command

and finded only Installer_P20_for_Linux  Version: 20.00.00.00 04/04/2016

Sorry, misread, yes that's the latest one, and it's whatever is on the LSI site.

  • 1 month later...
  • 2 months later...
Fuggin Contributor

Fuggin

Posted
Posted

Quick question on this...great guide btw...



I have read these are the steps one should follow. It mentions to flash the mpt3x64.rom and the controller address as well...



sas3flash -list

sas3flash -o -e 7

sas3flash -f SAS9300XXX_IT.bin -b mptsas3.rom -b mpt3x64.rom

sas3flash -o -sasadd 50060XXXXXXXXXXXX



Can you confirm if these need to be done?

JorgeB Grand Master

JorgeB

Posted
  • Author
Posted
3 minutes ago, Fuggin said:

sas3flash -o -e 7

You don't need to erase anything to update an existing firmware, and at least the erase BIOS command doesn't work with Linux, didn't test others, and if you don't erase no need to reprogram the SAS address.

Fuggin Contributor

Fuggin

Posted
Posted
17 minutes ago, JorgeB said:

You don't need to erase anything to update an existing firmware, and at least the erase BIOS command doesn't work with Linux, didn't test others, and if you don't erase no need to reprogram the SAS address.

Makes sense...thank you!

  • 2 months later...
Command Noob

Command

Posted
Posted

I have an LSI 9305-16i installed and `sas3flash -listall` results in the following:

```

Avago Technologies SAS3 Flash Utility
Version 16.00.00.00 (2017.05.02)
Copyright 2008-2017 Avago Technologies. All rights reserved.

        No Avago SAS adapters found! Limited Command Set Available!
        ERROR: Command Not allowed without an adapter!
        ERROR: Couldn't Create Command -listall
        Exiting Program.

```

I can't for the life of me figure out why.  It is a sas3 card. I do see the card recognized in iommu groups (though it does occur to me that I do have another LSI card for external disk shelf, it is also recognized but I haven't tried using that card yet).  Both cards are recognized but no drives can be seen.



diagnostics attached.





diagnostics-20220430-0738.zip

JorgeB Grand Master

JorgeB

Posted
  • Author
Posted
20 hours ago, Command said:

Both cards are recognized but no drives can be seen.



Both are bound to vfio-pci:



04:00.0 Serial Attached SCSI controller [0107]: Broadcom / LSI SAS2308 PCI-Express Fusion-MPT SAS-2 [1000:0087] (rev 05)
    Subsystem: Broadcom / LSI 9207-8e SAS2.1 HBA [1000:3040]
    Kernel driver in use: vfio-pci
    Kernel modules: mpt3sas



0c:00.0 Serial Attached SCSI controller [0107]: Broadcom / LSI SAS3224 PCI-Express Fusion-MPT SAS-3 [1000:00c4] (rev 01)
    Subsystem: Broadcom / LSI SAS3224 PCI-Express Fusion-MPT SAS-3 [1000:3190]
    Kernel driver in use: vfio-pci
    Kernel modules: mpt3sas



You need to unbind them before use.





Command Noob

Command

Posted
Posted

I'm confused, how will unraid see the hardware? so unbind (I assume that means uncheck their iommu groups), then in console run sas3flash and it should see.  OK will try . And JorgeB; thank you so much for taking any of your time to help me.  I appreciate you greatly.

JorgeB Grand Master

JorgeB

Posted
  • Author
Posted
26 minutes ago, Command said:

I'm confused, how will unraid see the hardware?

You only bind a device when you want to use it in a VM, Unraid won't see it when bound to vfio-pci.

Command Noob

Command

Posted
Posted

So one more question: I guess it never makes sense to bind an HBA card? that should be done on the Unraid level and drives and shares are the mechanism for pass to VMs?

JorgeB Grand Master

JorgeB

Posted
  • Author
Posted
2 minutes ago, Command said:

I guess it never makes sense to bind an HBA card?

It does if you want to use it in a VM, e.g. a TrueNAS VM, if it's for use with Unraid assigned disks it can't be bound.

  • 2 months later...
opentoe Rising Star

opentoe

Posted
Posted

Is there a step by step someone can package up for me with all the necessary firmware files and BIOS files? I really forgot all that I learned years ago when I was doing the DELL PERC cards. 52 years old here and my memory does NOT retain what it use to, plus I'm starting to have issues with my eyes and it makes it that much difficult.



The card I have is:

Broadcom 9400-16I Tri-Mode 12Gb/s SAS HBA - 05-50008-00



Right now it's in a scrap windows box but can move it to my Linux Mint machine if easier.



opentoe Rising Star

opentoe

Posted
Posted (edited)

I took out my 3 Dell percs and just installed my LSI 9400 and video card and the machine never posted. I waited quite a long time. I'm positive it is not not one of those Chinese knock offs because I spoke to the owner and they get them right from Broadcom/LSI. This really blows.

Edited by opentoe
