Latest (super easy) method for automated flash zip backup!


Recommended Posts

In my previous post found here, i outlined a multi-step process with 2 different scripts and 2 cron jobs for automating the unraid flash zip backup process using the User Scripts Plugin. Thanks to @nitewolfgtr and @sreknob i've refined it down to one simple "fill in the blanks" script. I've also added an optional UI notification.



This script backs up a zipped copy of your unraid flash disk to a location of your choice, removes old backups after specified number of days, as well as the optional notification upon completion



Due to the changes, i've marked the other OP outdated and now refer to this script. While i have tested (version 6.8.3 only) and currently run this on all 3 of my unraid servers with reasonable confidence, i stress for anyone that decides to try, MANUALLY BACKUP YOUR FLASH DRIVE FIRST BEFORE TRYING. if you are at all nervous or unfamiliar, please don't try this - i don't assume any liability here for data loss. Use at your own risk, this is still a work in progress.



Here's the script, with explanation underneath currently for unraid version 6.8.3 AND 6.9.0-rc2 (version 6.9b30 see below)

#!/bin/bash

#### SECTION 1 ####------------------------------------------------------------------------------------------------------
#dir = WHATEVER FOLDER PATH YOU WANT TO SAVE TO
dir="/insert/your/path/here"

echo 'Executing native unraid backup script'
/usr/local/emhttp/webGui/scripts/flash_backup

#### SECTION 2 ####------------------------------------------------------------------------------------------------------
echo 'Remove symlink from emhttp'
find /usr/local/emhttp/ -maxdepth 1 -name '*flash-backup-*.zip' -delete

sleep 5

#### SECTION 3 ####------------------------------------------------------------------------------------------------------
if [ ! -d "$dir" ] ; then

			echo "making directory as it does not yet exist"

			# make the directory as it doesnt exist
			mkdir -vp "$dir"
		else
			echo "As $dir exists continuing."
			fi


#### SECTION 4 ####------------------------------------------------------------------------------------------------------
echo 'Move Flash Zip Backup from Root to Backup Destination'
mv /*-flash-backup-*.zip "$dir"

sleep 5

#### SECTION 5 ####------------------------------------------------------------------------------------------------------
echo 'Deleting Old Backups'

#ENTER NUMERIC VALUE OF DAYS AFTER "-MTIME +"
find "$dir"* -mtime +10 -exec rm -rfv {} \;

echo 'All Done'

#### SECTION 6 ####------------------------------------------------------------------------------------------------------

#UNCOMMENT THE NEXT LINE TO ENABLE GUI NOTIFICATION UPON COMPLETION
#/usr/local/emhttp/webGui/scripts/notify -e "Unraid Server Notice" -s "Flash Zip Backup" -d "A copy of the YOURTOWERNAME unraid flash disk has been backed up" -i "normal"

exit



Here's the slightly modified script if you're running unraid version 6.9b30:



Copy and paste the appropriate version above into a new blank script in the User Scripts Plugin, then proceed to edit per below.



Some final changes on your end to implement the script. I broke the script down into sections for an easier explanation here:



  • Section 1 - you need enter the path to where you want to save your zipped flash copy (local or remote).
  • Section 5 - be sure to enter the number of days you want to keep old flash backups, default is 10 days.
  • Section 6 - optional, to enable notifications, uncomment the bottom line and replace "YOURTOWERNAME" with your actual tower name (this is for notification only)



And that's it, all there is to it. Just copy/paste the script into the user scripts plugin, set how often you want it to run, and you're done. If you have any questions or suggestions, let me know. Enjoy.





EDIT 1: 12/21/20 - Merged two previous scripts into one script for aforementioned versions



EDIT 2: 12/21/20 - Added quotes to $dir in Section 4 that could cause directories with spaces to get lost



EDIT 3: 2/5/21 - Step by step instructions found on my youtube channel here



Edit 4: 2/8/21 - Inserted new Section 3 with mkdir command to prevent errors if directory does not yet exist, bumped subsequent sections down. No user interaction required

                     - Added quotes to primary directory path to help prevent syntax errors





Edited by Cpt. Chaz
improvements
  • Like 5
  • Thanks 1
Link to comment
  • 1 month later...

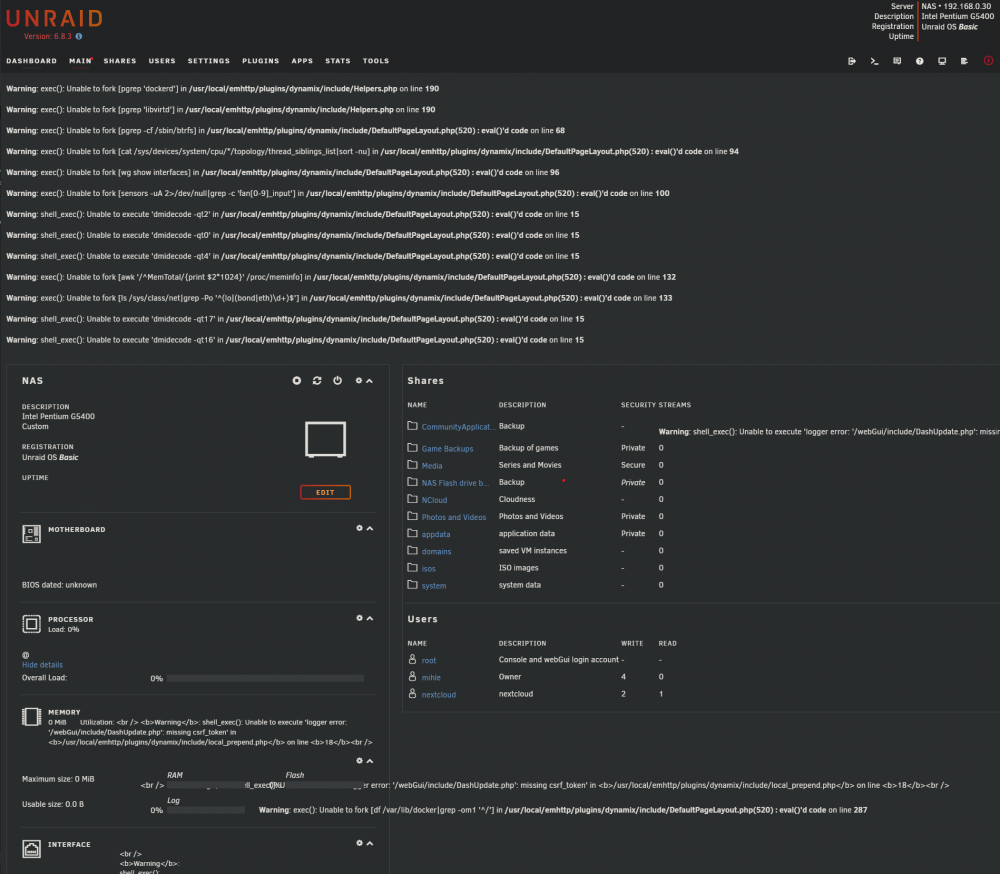

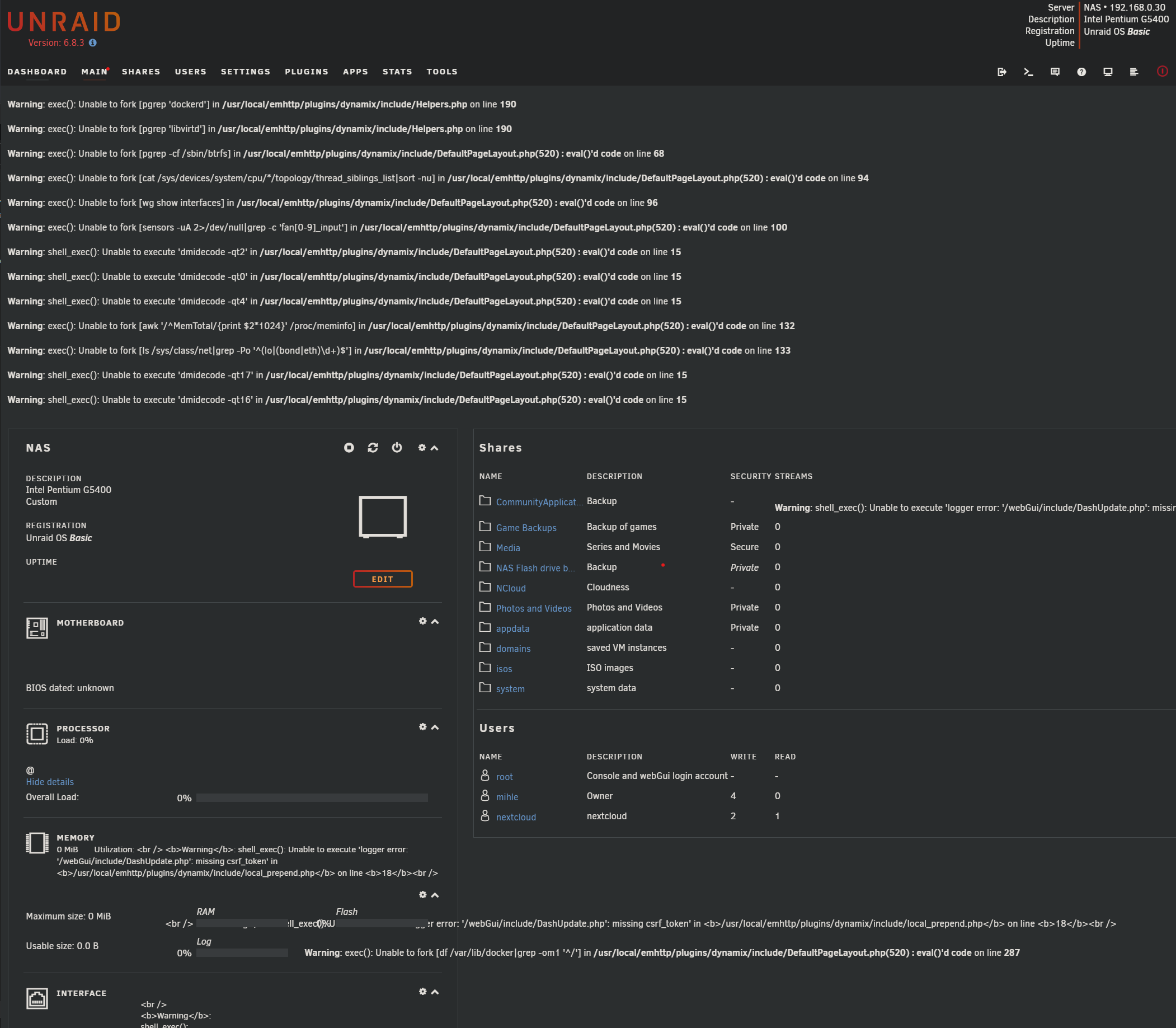

So I did run this and this happened:


I think it somehow deleted more things than it should have done

EDIT:
Reboot fixed it, so I think it caused a memory leak or what its called that made unRAID itself not able to run from memory anymore as it usually do. Had to turn it off by the power button.

(I do have a manual flash backup already btw)



This is what the script looks like for me right now:



#!/bin/bash

#### SECTION 1 ####------------------------------------------------------------------------------------------------------
#dir = WHATEVER FOLDER PATH YOU WANT TO SAVE TO
dir=/mnt/user/NCloud/Mihle/files/Filer/Backup/NAS Flash Backup/

echo 'Executing native unraid backup script'
/usr/local/emhttp/webGui/scripts/flash_backup

#### SECTION 2 ####------------------------------------------------------------------------------------------------------
echo 'Remove symlink from emhttp'
find /usr/local/emhttp/ -maxdepth 1 -name '*flash-backup-*.zip' -delete

sleep 5

#### SECTION 3 ####------------------------------------------------------------------------------------------------------
echo 'Move Flash Zip Backup from Root to Backup Destination'
mv /*-flash-backup-*.zip "$dir"

sleep 5

#### SECTION 4 ####------------------------------------------------------------------------------------------------------
echo 'Deleting Old Backups'

#ENTER NUMERIC VALUE OF DAYS AFTER "-MTIME +"
find "$dir"* -mtime +90 -exec rm -rfv {} \;

echo 'All Done'

#### SECTION 5 ####------------------------------------------------------------------------------------------------------

#UNCOMMENT THE NEXT LINE TO ENABLE GUI NOTIFICATION UPON COMPLETION
/usr/local/emhttp/webGui/scripts/notify -e "Unraid Server Notice" -s "Flash Zip Backup" -d "A copy of the NAS unraid flash disk has been backed up" -i "normal"

exit



When I run it, it did say something about it could not find directory " " over and over and over I think? dont quite remember



Did I write something in to the script wrongly?

Edited by Mihle
Link to comment

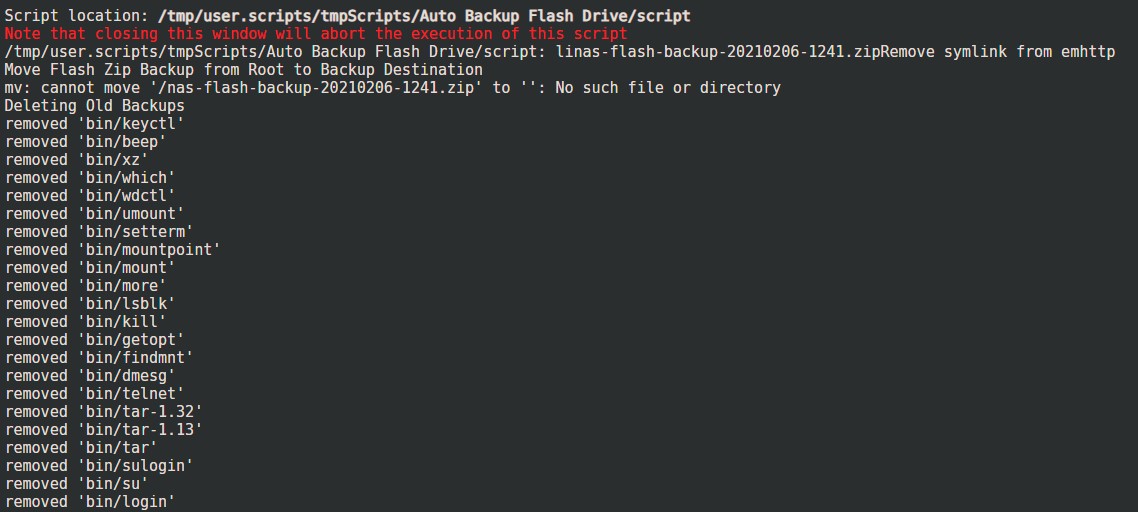

Tested again, but I removed the / at the end of the directory, it says this:

1635072809_Skjermbilde2021-02-06124337.thumb.jpg.abb439277bc0b2d25a225ea8f55ac02a.jpg

Then remove some other things

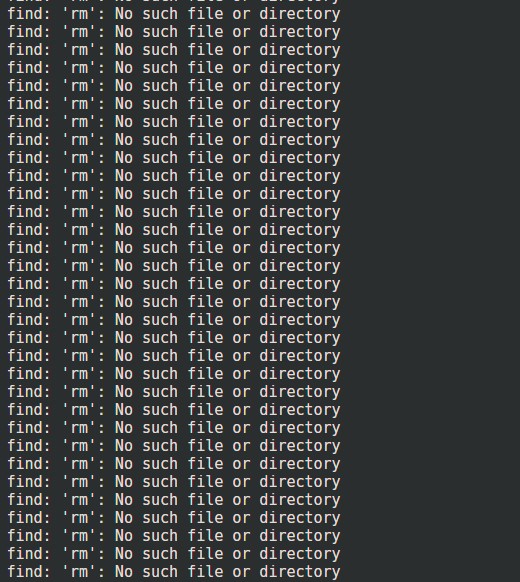

then continues like this, probably until the NAS runs out of memory and crashes?

(I run it manually)




Is there something I have done that causes it?

Edited by Mihle
Link to comment

Does your backup directory (/mnt/user/NCloud/Mihle/files/Filer/Backup/NAS Flash Backup/) already exist?



If not, it needs to be created before the script runs.  I learned this making my Plex script that you cannot move a file to a destination that does not exist.



Also, I'm not clear on whether it's actually needed or not, but it's good practice to enclose your backup path in quotes since it has spaces in the path:

dir="/mnt/user/NCloud/Mihle/files/Filer/Backup/NAS Flash Backup/"



The error message on the mv command indicates that one or both of these are the problem.



It's probably also why the rm is failing as well.  During the creation of my Plex script I had this rm command mis-formed and had the same errors as you, and the GUI was totally unresponsive due to it.. had to pull the power plug to reset the server since I couldn't restart it any other way... was not a good time!



So I'd change your section 1 to this and see if it helps:



#dir = WHATEVER FOLDER PATH YOU WANT TO SAVE TO

dir="/mnt/user/NCloud/Mihle/files/Filer/Backup/NAS Flash Backup/"

mkdir -p "$dir"





The mkdir -p just ensures that if the path does not exist that it is created.



  • Thanks 1
Link to comment
1 hour ago, Energen said:

Does your backup directory (/mnt/user/NCloud/Mihle/files/Filer/Backup/NAS Flash Backup/) already exist?

Yes.

Quote

If not, it needs to be created before the script runs.  I learned this making my Plex script that you cannot move a file to a destination that does not exist.



Also, I'm not clear on whether it's actually needed or not, but it's good practice to enclose your backup path in quotes since it has spaces in the path:

dir="/mnt/user/NCloud/Mihle/files/Filer/Backup/NAS Flash Backup/"

I did not know that

Quote

The error message on the mv command indicates that one or both of these are the problem.



It's probably also why the rm is failing as well.  During the creation of my Plex script I had this rm command mis-formed and had the same errors as you, and the GUI was totally unresponsive due to it.. had to pull the power plug to reset the server since I couldn't restart it any other way... was not a good time!



So I'd change your section 1 to this and see if it helps:



#dir = WHATEVER FOLDER PATH YOU WANT TO SAVE TO

dir="/mnt/user/NCloud/Mihle/files/Filer/Backup/NAS Flash Backup/"

mkdir -p "$dir"





The mkdir -p just ensures that if the path does not exist that it is created.

Ah, ok, only adding the quotes seem to have fixed it!

Well, It does not show up in Nextcloud as I ideally want, but that might be Nextcloud. At least it doesnt make the folder it is moved to uneditable for Nextcloud as the appdata backup do.

Edited by Mihle
Link to comment
19 hours ago, Mihle said:

Well, It does not show up in Nextcloud as I ideally want, but that might be Nextcloud. At least it doesnt make the folder it is moved to uneditable  and unsyncable for Nextcloud as the appdata backup plugin do.

Probably Nextcloud fault, maybe it dont like putting files to its database without being through its GUI or its own code.


Work around of having a own share just to store the backup and adding it as external storage worked, it then shows up in Nextcloud and syncs to other devices just fine.
Not ideal but it works. Thanks.

Edited by Mihle
Link to comment
  • 9 months later...

Thanks! That’s a good question… might be worth adding a check for that…



I’ve got a few irons in the fire at the moment, but I’ll try to write something up for it over the coming weekend if schedule permits. Anyone is free to take a stab at it as well and I’ll add it.

Edited by Cpt. Chaz
Link to comment
