Hello, I have installed the 500GB NVMe but the issue with the x On the disk 7 its still there/here.


Any suggestions on how to fix it are welcome always.
I have changed my cables and remove most of the splitters and now i mainly using the psu cables.
i have checked and I can see the disk in BIOS. so i am a bit stuck there! Thanks in advance!

4 minutes ago, piratx said:

the x On the disk 7 its still there/here.

Of course the only way to get rid of that is to rebuild the disk.



It's been a while.



Attach NEW diagnostics to your NEXT post in this thread.

4 minutes ago, trurl said:

Of course the only way to get rid of that is to rebuild the disk.

My last post before that:

On 11/29/2021 at 11:49 AM, trurl said:

By disconnected, I mean Unraid lost its connection to the disk for some reason. Could be some connector, SATA or power, either end, including splitters, could be cable, could be power. You have to fix whatever caused that and rebuild the disk.



Thank you for your instant answer. Can I do that when the array has started or anything?



eleven-diagnostics-20211209-1643.zip

Edited December 9, 20214 yr by piratx

Just now, piratx said:

Can I do that when the array has started or anything?

There is no way to rebuild a disk without the array started. Sounds like you don't know how to rebuild a disk.



6 minutes ago, trurl said:

Attach NEW diagnostics to your NEXT post in this thread.



Didnt uploaded it then i did after 10 seconds

3 minutes ago, trurl said:

Sounds like you don't know how to rebuild a disk.

Yes, I was trying to find a way actually.. cause right now and for 2 weeks this disk is working as emulated..

13 minutes ago, piratx said:

for 2 weeks this disk is working as emulated..

You only have single parity so you have been running unprotected all that time.



Those diagnostics were taken with the array stopped, so can't see if anything mounted. In particular, we need to know if the emulated disk mounts.



Start the array and attach NEW diagnostics to your NEXT post in this thread.

I'm sorry.



eleven-diagnostics-20211209-1717.zip

OK, that looks good. Some things about your docker setup still needs work but we can deal with that later.



I took the time to reread all of this thread. Since this was a connection problem, and the SMART attributes for the disk look OK (though there hasn't been an extended test run in a long time), it should be OK to rebuild to the same disk.

But, it is always safer to rebuild to a spare if you have one and so keep the original disk as is in case there is any problem with rebuilding.



Do you have a spare?

Ι have some 4TB spares yes. I need to move some files from one of those but it's not big deal.

Let me know what you want me to do. Also I have the 500GB new NVMe on, I've tried to add it to Sys pool but something doesnt go well on this.

2 minutes ago, piratx said:

some 4TB spares

Do you know if any are good enough to trust in your server?

Was on unraid before, I've replaced those with the new 8tb ones.

7 minutes ago, piratx said:

I need to move some files from one of those

Are any empty or have files you don't need?

Just trying to help decide which to plug in so we can get a SMART report.

No worries and thank you for all your help. I am moving some files from an old 4tb wd red now!

I am removing from that 4tb a photo library archive. Please let me know what I do next

Replace the one I have on unraid with this one and rebuild parity or disk somehow?

plug in the spare disk you want to use and post new diagnostics or at least a SMART report for that disk

make sure you have good connections and don't disturb other connections

Adding the disk now!

Here is the log, I havent added the disk to the array, should I?

eleven-diagnostics-20211210-0004.zip

That disk might be OK, but it is a WD RED with nonzero for SMART attribute 1. You should add attributes 1 and 200 to be monitored on WD disks.



And it hasn't had an extended test run on it recently.



Run an extended SMART test on the disk.

Or we can take a look at another disk since you seemed to imply you had more than one spare.

I am running an extended SMART test on that disk. Almost all my disks was WD RED in the unraid.
its just the one on external enclosures I am buying lately are white labeled anyway.
and from what I read all those disks are same with the red ones and the only thing is missing is the red label.
Should I changed the attribute like you said to all those?

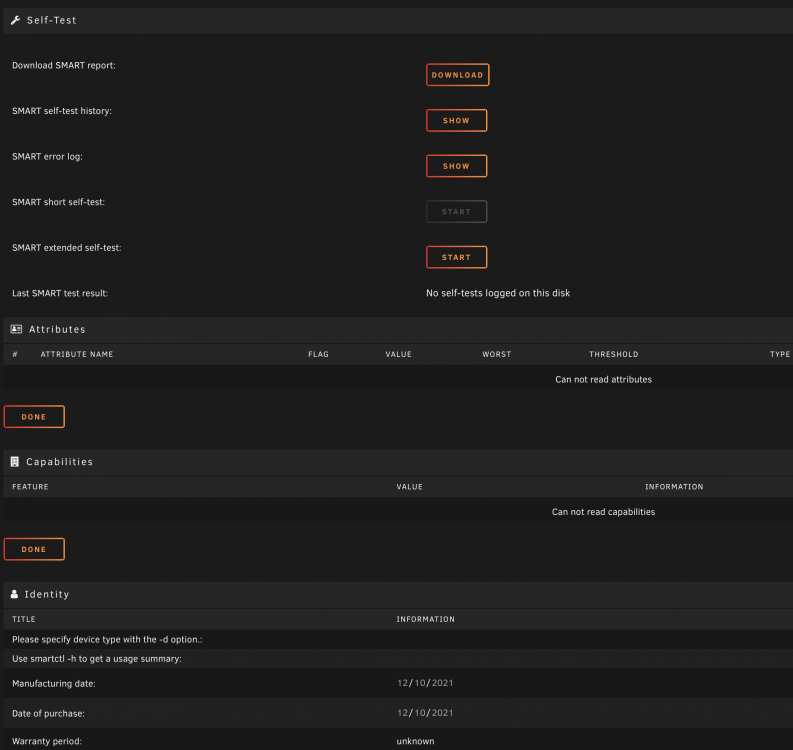

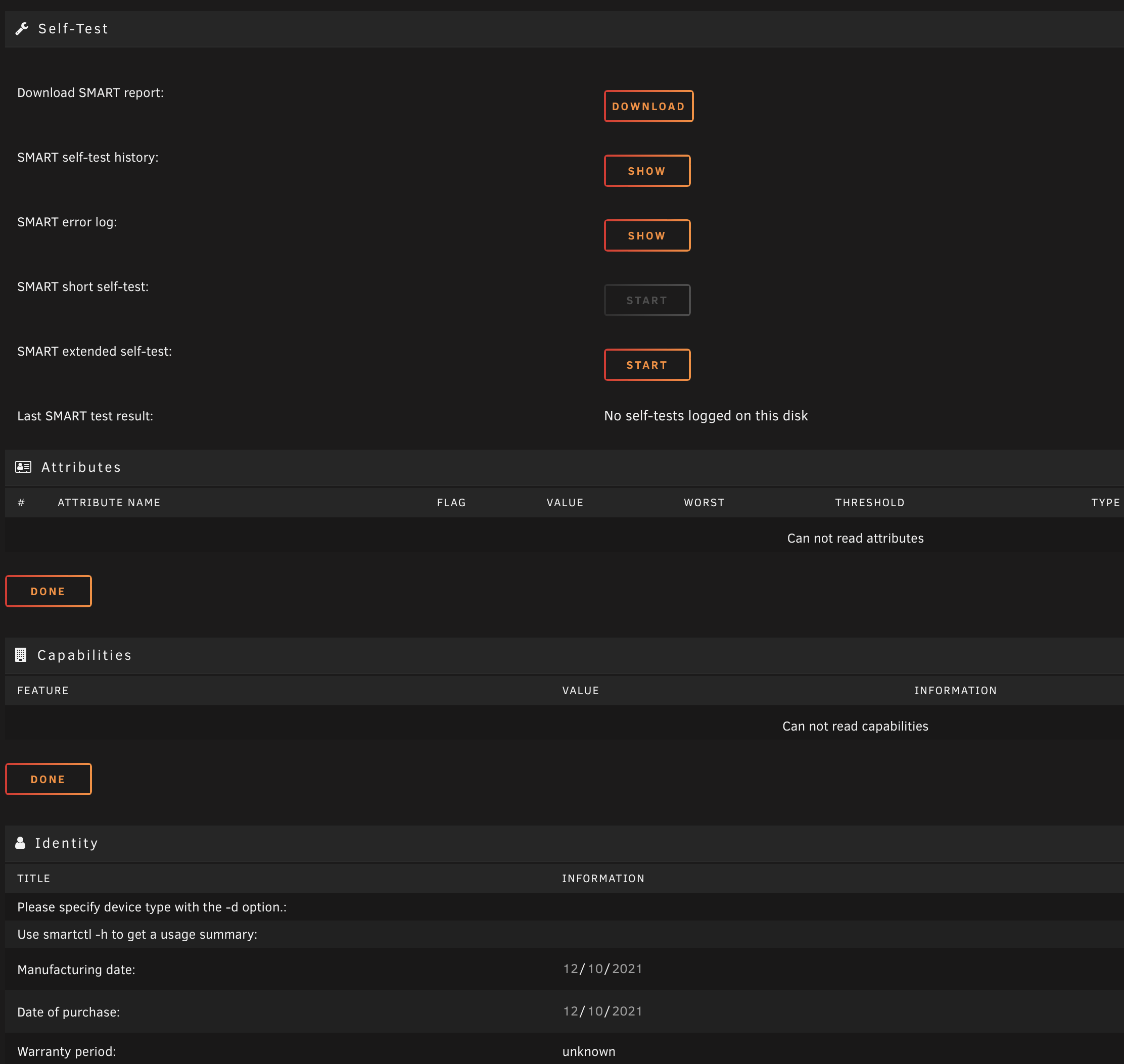

I am at Tools > Preclear Disk and this is all I get.. it's like the test isnt running?
