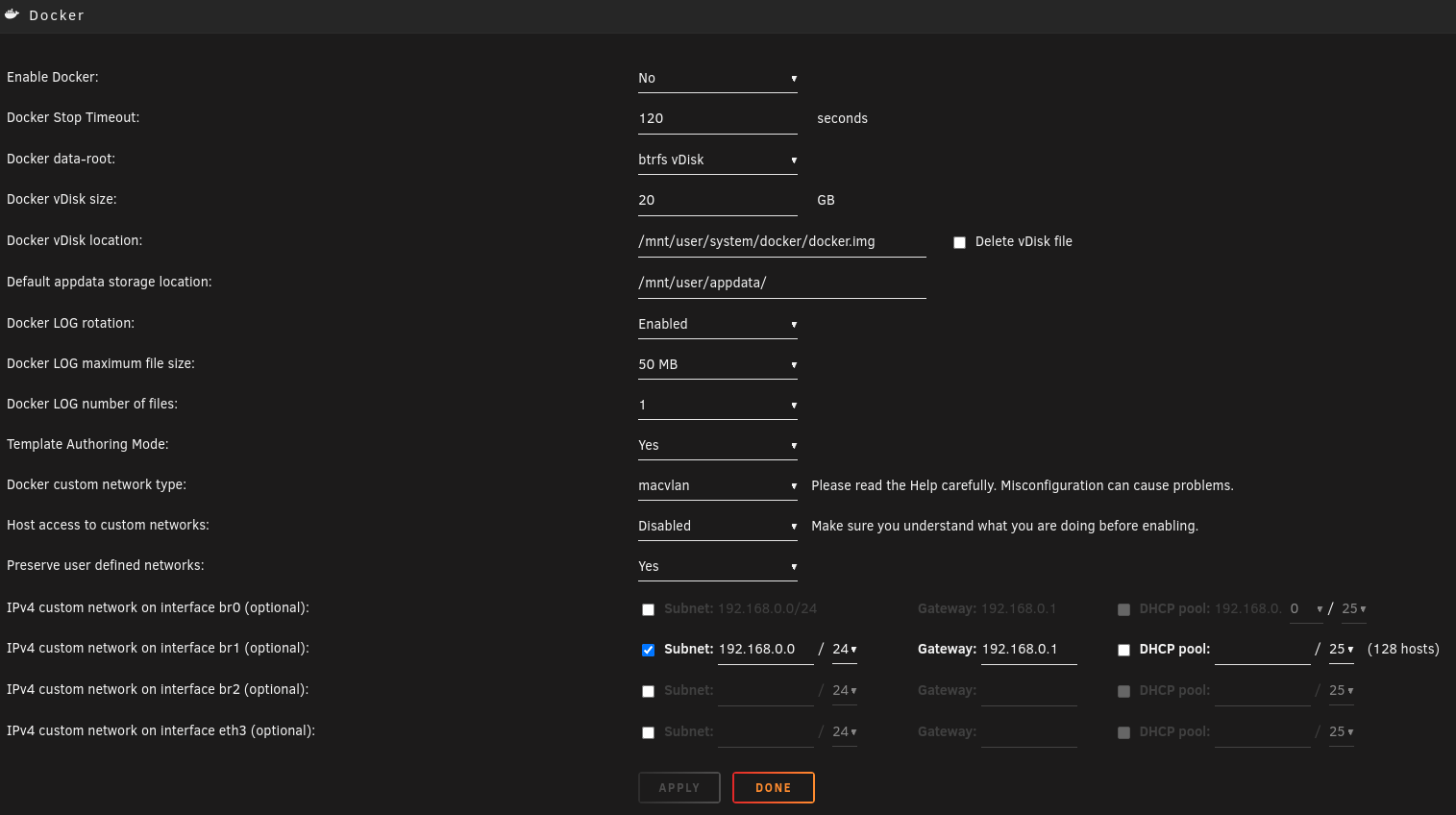

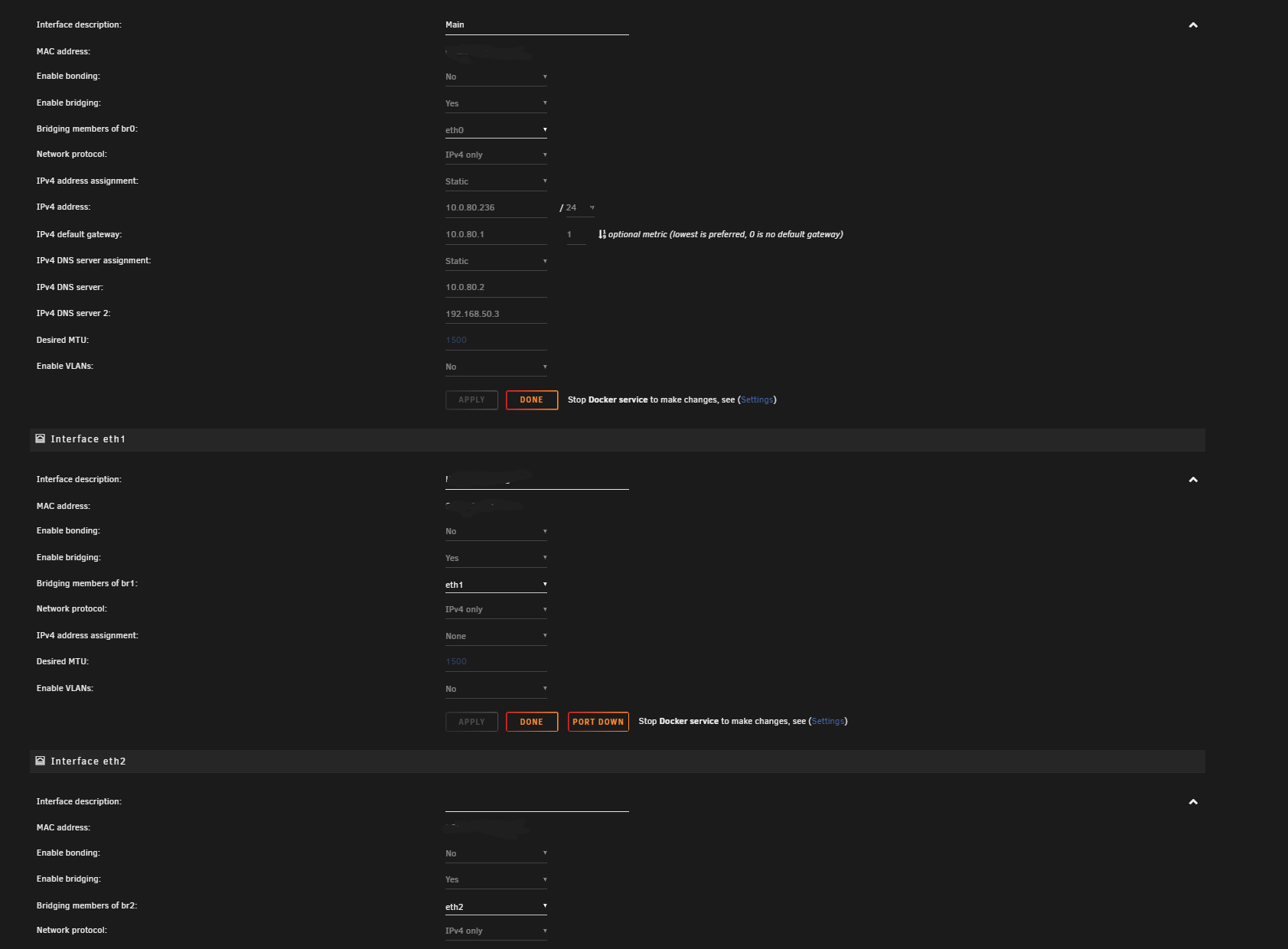

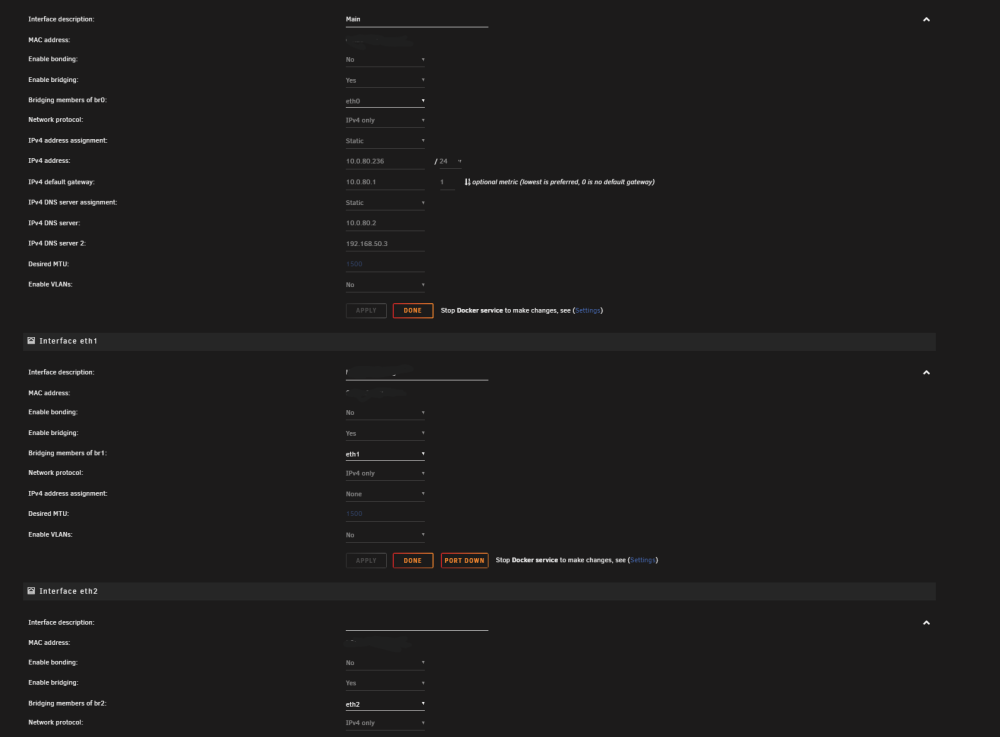

This are the settings I used

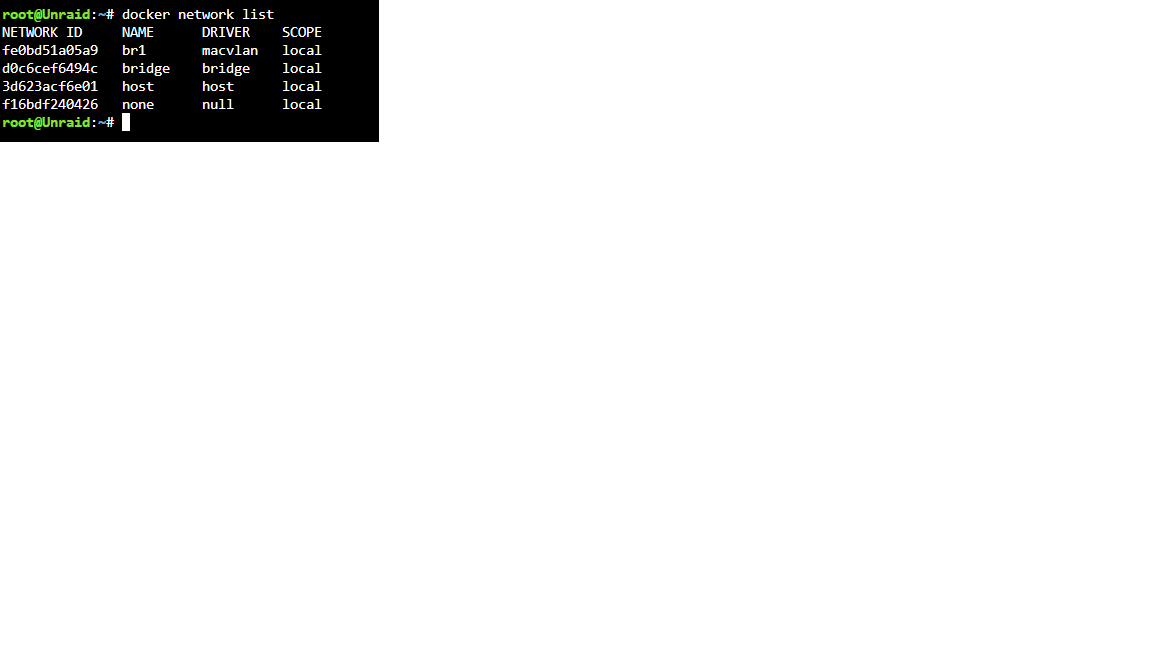

br1 working, all containers using it

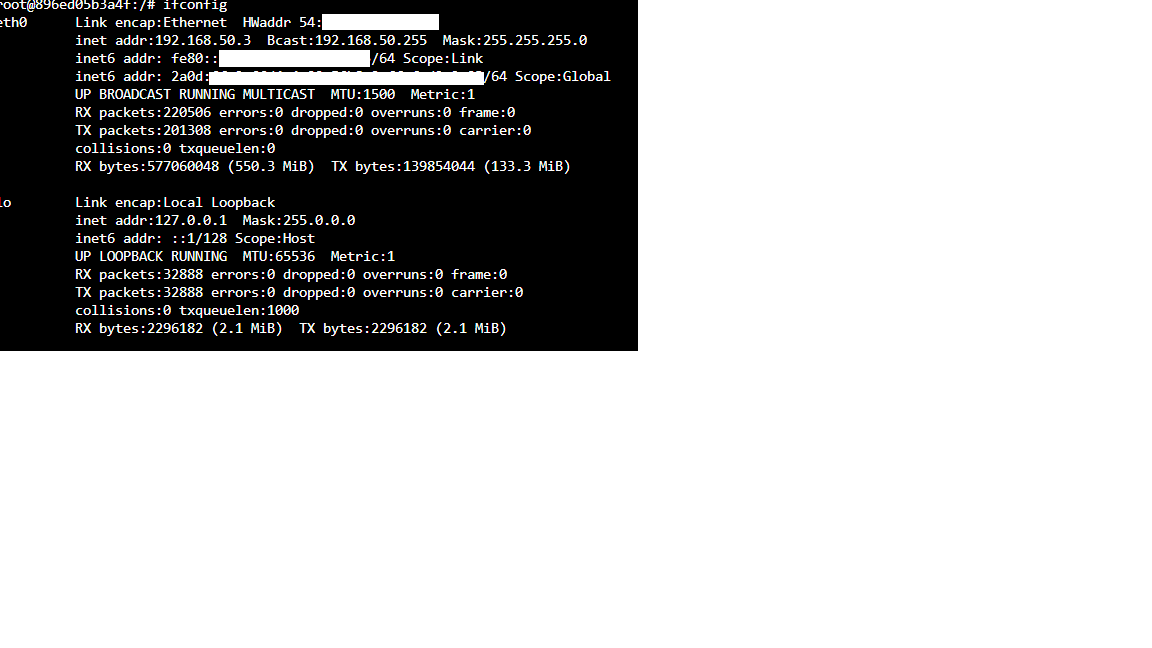

ipv6 on containers working using "--sysctl net.ipv6.conf.all.disable_ipv6=0" in extra paramaters of each container

so far, no macvlan traces (finger crossed)

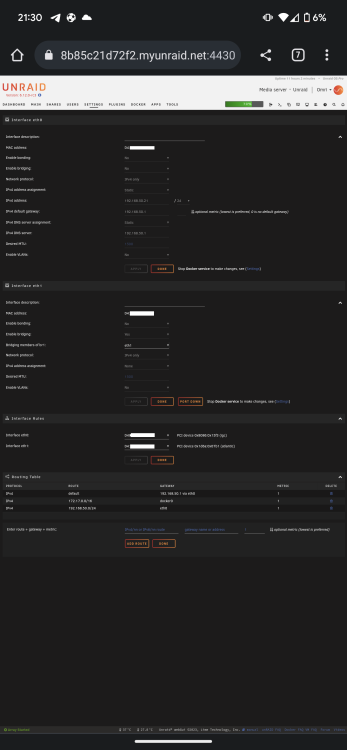

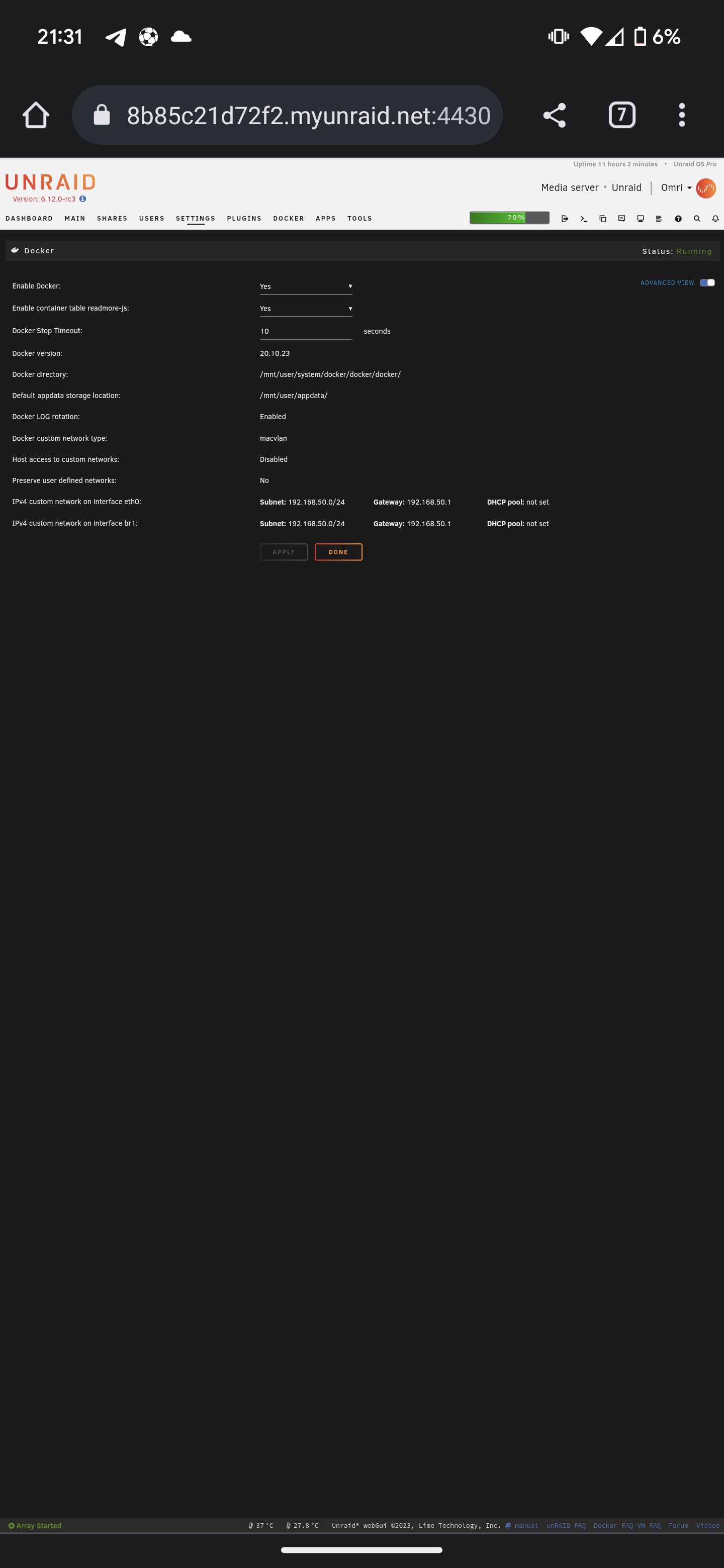

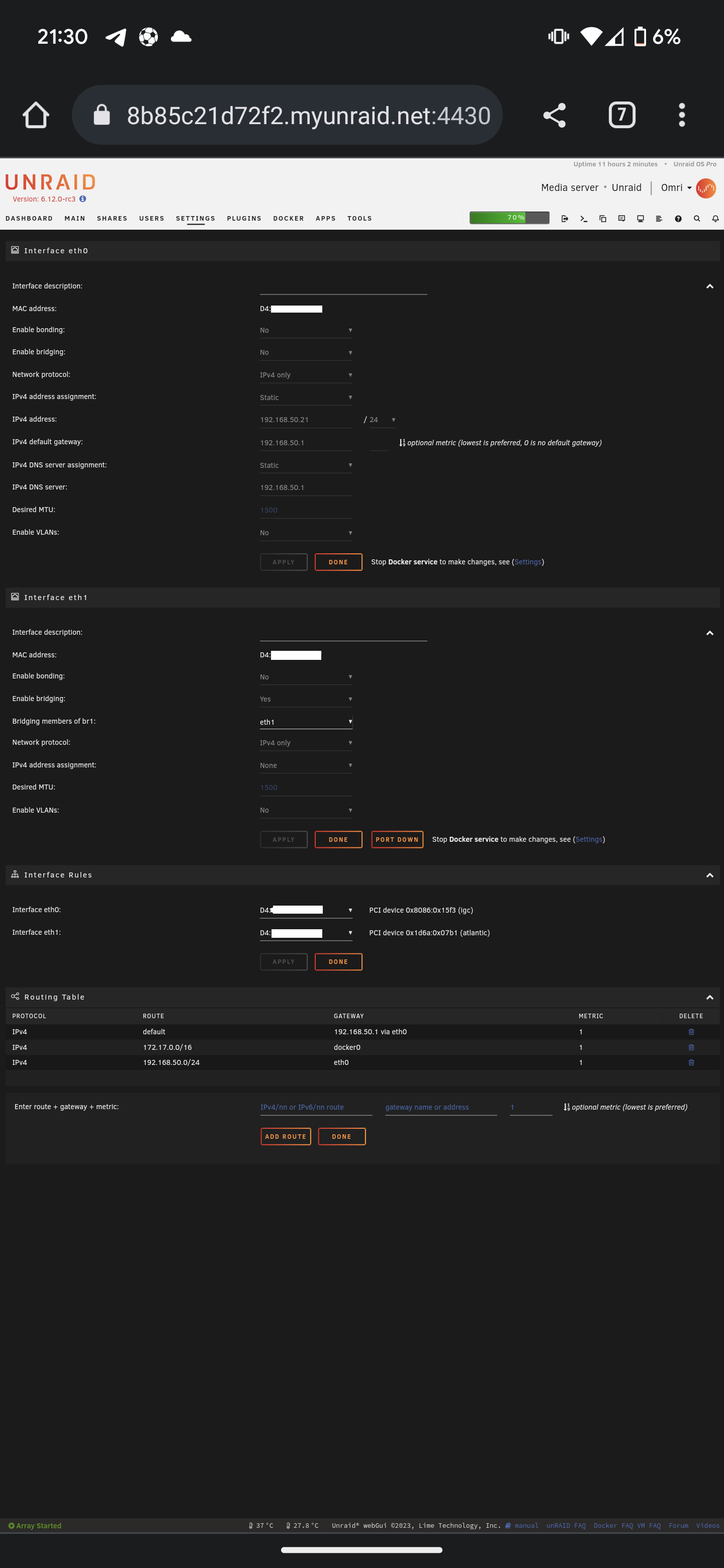

I have been using this setup for idk 2 months? I have not had any issues. I am running 6.11.5 Using Unifi UDMP pointing to pihole just for dns. Docker DHCP allows for labels

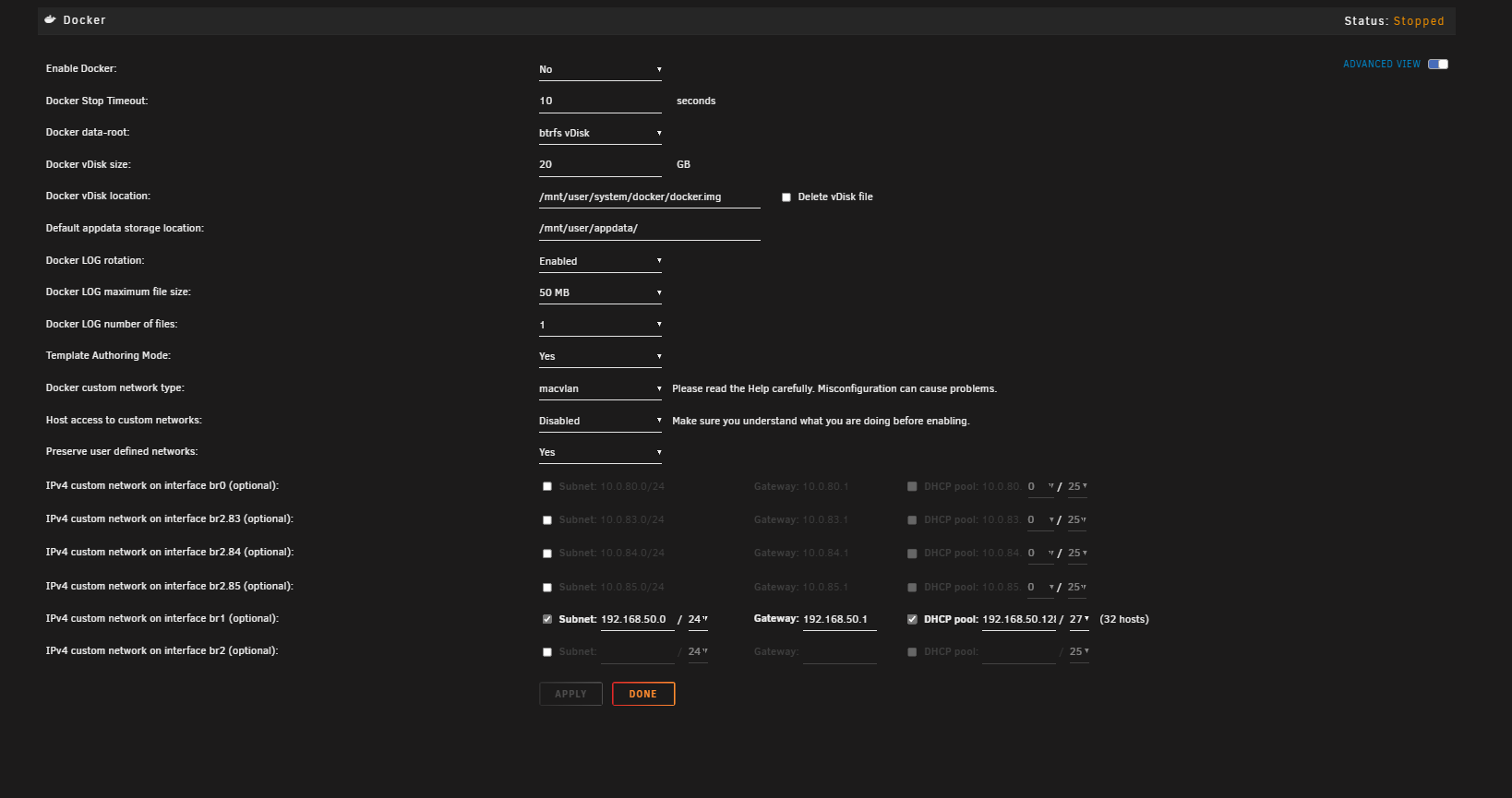

NIC on unraid and UDMP are in promiscuous mode. I add the flag --mac-address <mac address> to every container under Extra Parameters: I also add --dns. I let docker DHCP add the IP address, then i add that to pihole DNS and make it a fixed address in UDMP. Also set the DHCP that UDMP hands out really low like 10 ip's 192.168.x.20 to 30.

I'm on 6.11.5. and the br1 did not show up in the Docker containers as an option.

I think it's still using whatever networks I had configured originally so I'll just leave it alone until someone provides suggestions on how to make br1 show up.

what does "Docker DHCP allows for labels" mean?

and why do you need --dns in every container?



Thanks

I am running JUST br1 network on a UDMP router all other networks are behind a different router. I remember reading that "unraid docker" uses the host netwok (br0) configured DNS server to resolve (I confirmed this by removing br1 dns entry from br0 and it left br1 in the dark) So I started adding --dns



Labels are a way docker containers can reach each other using host names (vs IP addresses) when on same network in my case running "Traefik" and "Authentik" containers

Docker DHCP allows docker to know which container is on the network thus "hostnames" = labels vs IP addresses.

Just an easier way to configure containers that need to talk to each other

Well, hostnames work automaticly by docker name if no other host defined.

In my case, DNS working fine without br0 (eth0 bridging set to no) but I'll verify.



Thanks for the response

Edited April 23, 20233 yr by Omri

Quote

until someone provides suggestions on how to make br1 show up.

I had that same problem i just remembered it reading your post. IIRC it has to do how br0 is configured you have to enable bridging? It has to do with how your networks are set up and i also think i had to reboot the server after configured. It seems most of "Unraid Docker" underpinning is tied to br0.



It has been a frustrating ordeal to figure it out and make it play nice (docker) with UDMP on something other then br0 and then UDMP changes OS but thats another story  PS. UDMP changing OS is a good thing!

Quote

n my case, DNS working fine without br0 (eth bridging set to no)

Ya I am trying to remember I had to bridge something inorder to get it to show up as docker custom network and then it was definitely tied to br0.

We are talking about a separate network port controled by a separate router

4 hours ago, thorzeen said:

I had that same problem i just remembered it reading your post. IIRC it has to do how br0 is configured you have to enable bridging? It has to do with how your networks are set up and i also think i had to reboot the server after configured. It seems most of "Unraid Docker" underpinning is tied to br0.



It has been a frustrating ordeal to figure it out and make it play nice (docker) with UDMP on something other then br0 and then UDMP changes OS but thats another story  PS. UDMP changing OS is a good thing!

Thanks, but at this point I'm at a loss for what to do. This is above my pay grade! I just don't understand how setting up another ethernet port (I have 4 NICs on my R710) can still use macvlan and still work. Seems to have something to do with MAC addresses.
Haven't had a warning/crash since the last reboot last night using macvlan. And when I get syslog entries on a possible macvlan issue, my server continues to operate.

I'll see how it goes.



Does anyone lknow what the overall plan is for this issue? Is this separate NIC thing a workaround or a permanent fix? Thought I saw somewhere that the macvlan issue was deemed a bug of some sort.

So far this method seems to work

Two days+ and no macvlan traces

Before, it would take few hours to get the first error (although it never crashed my server I think)

Thanks

First up, I tried looking at the Unraid docs to try and figure it out myself but there is nothing there!



I followed along, like everyone else. But, I ran into something that confuses the heck out of me.



I have a second NIC, always have and on that NIC I had bridging turned off. Each container assigned to eth1 would be on network 168.202.x defined as vlan2 on my UDMProSE, and assigned an IP manually to each container. This would be the situation for any container that I want to expose to the internet via NPM. But, some containers are not exposed and don't need to have a dedicated IP so for those I stuck on the bridge for local and VPN access only (Radarr, Sonarr etc).



But once I turned on bridging for eth1, br1 showed up and eth1 disappeared! All the containers I had setup on eth1 were offline.



On a sidenote; 'Bridge' is still listed in the networks but choosing that is using the eth0 NIC network 168.200.x even though bridging is disabled for eth0. Why isn't that bridge using the eth1 NIC for the bridge mode since it IS enabled? Same for 'Host'





Quote

I ran into something that confuses the heck out of me

One thing I have run into with unraid networking is it has a memory. I have not researched this, it might be a bug or it might be a safe guard. I have deleted networks that still call out for dhcp untill I literally shutdown not reboot but shutdown.



Clearing arp might help

ip -s -s neigh flush all



Edited April 26, 20233 yr by thorzeen

Well, it took longer than usual (~4 days)

But I got macvlan call traces again.

all containers are one br1.

bummer

9 hours ago, Omri said:

Well, it took longer than usual (~4 days)

But I got macvlan call traces again.

all containers are one br1.

bummer

Are your NIC's configured for promiscuous mode ?

Yes, of course



Do these settings might be related to the problem?

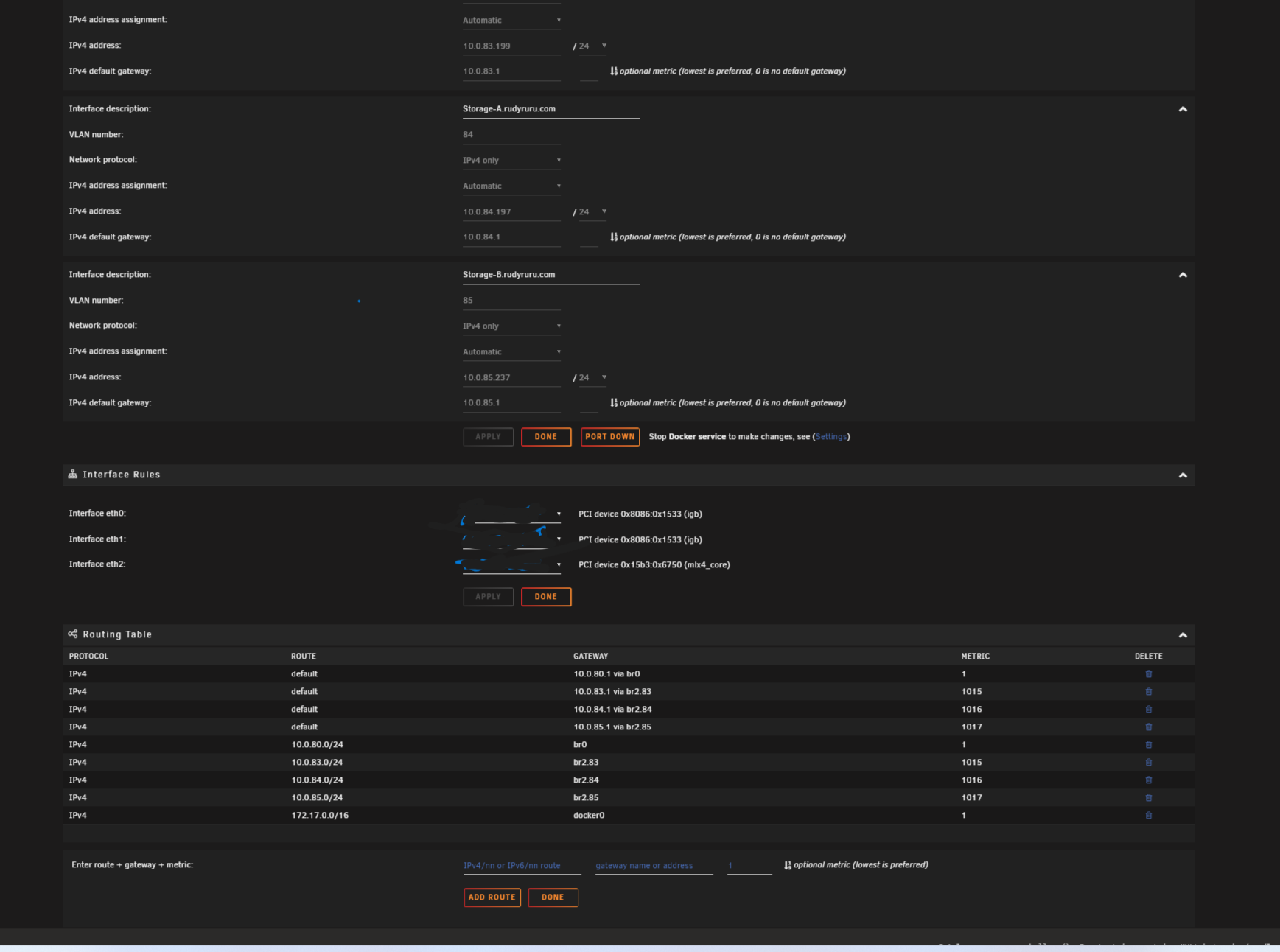

I always had this setup and has been working great, single 2.5G nic + vlans, Docker network as IPvlan. Putting it here if anyone having issue or similar setup.




" Docker network as IPvlan..."

There's a interesting discussion going on over here about this

bugreports>prereleases  6.12.0-rc4 "macvlan call traces found", but not on <=6.11.x - Prereleases - Unraid



Quote

There is a suspicion that there occurs a conflict situation between bridge function and macvlan function



Basically if your not using bridge (VM's) turn it off on br0 and br1 and eth1 shows up in docker for a custom network  on v6.12.0-rc5

Edited May 4, 20233 yr by thorzeen

Been trying this method since his post, so far no macvlan traces

Thanks for the Tutorial.



After reading it I finally bit the bullet and tried this and I activated the Onboard 2.5gb Nic and assigned it to dockers only.



The problem is that this does not solve any of the issues, with this solution Host access to custom networks does not work at all, neither in Mcvlan or with Ipvlan.



Even if this is stable is does not solve the issue and I can achieve the exact same "stable" system using IPVLAN on 1 nic and share it with unraids "normal" system.

The problem still stands, you either have Mcvland with Host access to custom networks which allows you to assign dockers like Guacamole or Unifi a dedicated IP and they can talk to other dockers, which allows you to setup and use NGINIX reverse proxy, BUT and it is a big freaking but, It crashes all the time.

OR you have ipvlan or this dedicated NIC solution which cause no crashes but you have no Host access to custom networks.



As such I don't see how this "solution" helps vs just using IPVLAN?

27 minutes ago, nik82 said:

OR you have ipvlan or this dedicated NIC solution which cause no crashes but you have no Host access to custom networks

Just to be clear "Host access" meaning unraid host?

3 hours ago, thorzeen said:

Just to be clear "Host access" meaning unraid host?

Its for the dockers to be able to communicate if one docker is using a custom IP.


5 hours ago, nik82 said:

Its for the dockers to be able to communicate if one docker is using a custom IP.

I am just curious are you using a custom docker network on a vlan off br0, or on a separate ethernet port ?

Edited May 5, 20233 yr by thorzeen

The only solution that worked for me is:

Disable bridging

Docker use macvlan through eth0

Optional:

Second network interface is passthrough to VM

Thanks to @bonienl
