[Plugin] IPMI for unRAID 6.1+

1092 posts in this topic Last Reply

Recommended Posts

i have one question, can i get turn off chassis intrusion detection, something in this plugin i can set to ignore it.

Could you try this command

ipmitool raw 0x30 0x03



no output and no change in the webui page.



http://www.supermicro.com/support/faqs/faq.cfm?faq=10307



was it supposed to return a reservation code or something akin to that post i linked.

It was supposed reset the chassis intrusion like here

http://www.supermicro.com/Aplus/support/faqs/faq.cfm?faq=11894



But I was looking at the link you posted too. You could try disabling it if that's what you wanted.



yes please....

I was looking at this link

http://www.supermicro.com/support/faqs/faq.cfm?faq=10307

But I'm not sure what the sensor's record address would be for your board.  I was looking at the sdr.txt with a hex editor and at offset 4b8 there's the info for your chassis sensor but I'm not sure if the 01 immediately following the 17 is what you want but maybe their tech support can help.

The aa is the address from ipmitool sdr elist.



just fired off email to them, thank you for your assistance, and once again thanks for the plugin.

Share this post


Link to post

i have one question, can i get turn off chassis intrusion detection, something in this plugin i can set to ignore it.

Could you try this command

ipmitool raw 0x30 0x03



no output and no change in the webui page.



http://www.supermicro.com/support/faqs/faq.cfm?faq=10307



was it supposed to return a reservation code or something akin to that post i linked.

It was supposed reset the chassis intrusion like here

http://www.supermicro.com/Aplus/support/faqs/faq.cfm?faq=11894



But I was looking at the link you posted too. You could try disabling it if that's what you wanted.



yes please....

I was looking at this link

http://www.supermicro.com/support/faqs/faq.cfm?faq=10307

But I'm not sure what the sensor's record address would be for your board.  I was looking at the sdr.txt with a hex editor and at offset 4b8 there's the info for your chassis sensor but I'm not sure if the 01 immediately following the 17 is what you want but maybe their tech support can help.

The aa is the address from ipmitool sdr elist.



just fired off email to them, thank you for your assistance, and once again thanks for the plugin.

No problem. I'd be interested in what values you use.

Share this post


Link to post

Thank you for this plugin. Just installed it with my new Asrock C2750D4I and can confirm it works out the box with no configuration required.



Some of my sensors are showing as yellow (the voltages mainly) though.



Nice work!

Share this post


Link to post

Thank you for this plugin. Just installed it with my new Asrock C2750D4I and can confirm it works out the box with no configuration required.



Some of my sensors are showing as yellow (the voltages mainly) though.



Nice work!

No problem. One of these days I'll get to fan control. Are the sensors in yellow above or below non critical value?

Share this post


Link to post

Thank you for this plugin. Just installed it with my new Asrock C2750D4I and can confirm it works out the box with no configuration required.



Some of my sensors are showing as yellow (the voltages mainly) though.



Nice work!

No problem. One of these days I'll get to fan control. Are the sensors in yellow above or below non critical value?

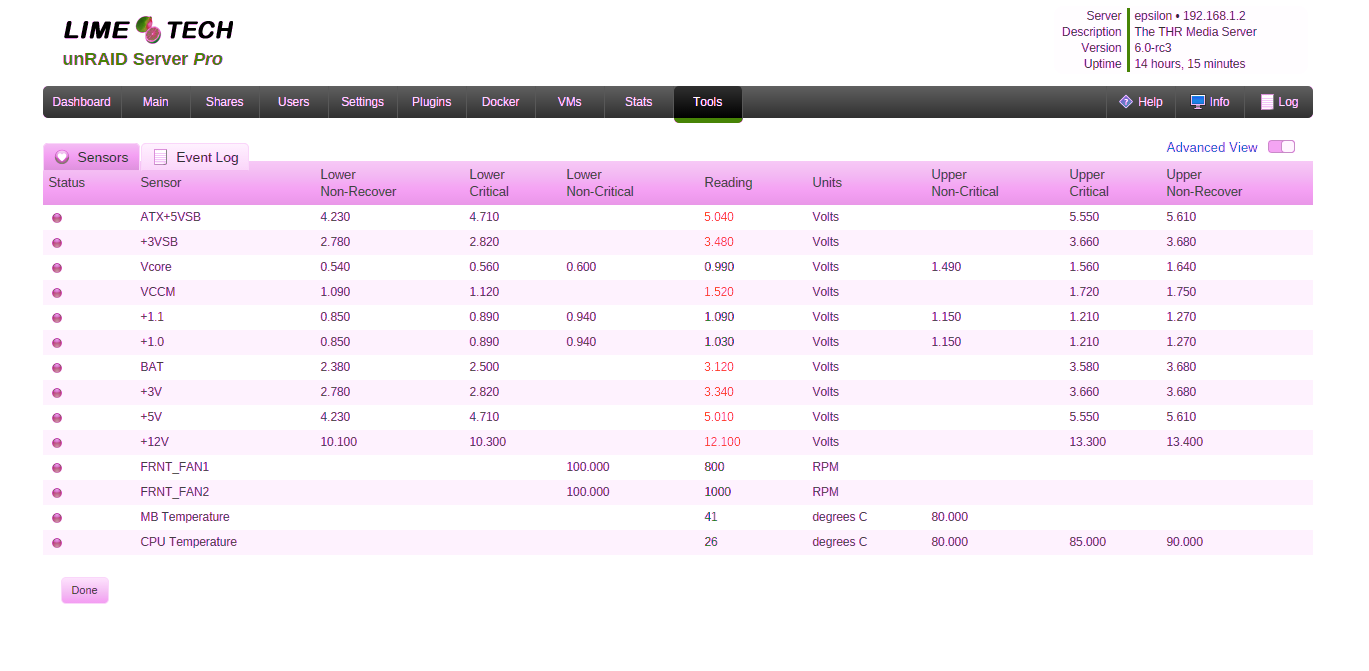

See pic. I had to modify the colours so that the yellow was readable! Red = yellow btw.


Share this post


Link to post

Thank you for this plugin. Just installed it with my new Asrock C2750D4I and can confirm it works out the box with no configuration required.



Some of my sensors are showing as yellow (the voltages mainly) though.



Nice work!

No problem. One of these days I'll get to fan control. Are the sensors in yellow above or below non critical value?



See pic. I had to modify the colours so that the yellow was readable! Red = yellow btw.

Ok I see you don't have any non critical for those sensors. I'll fix that.

Share this post


Link to post

Thank you for this plugin. Just installed it with my new Asrock C2750D4I and can confirm it works out the box with no configuration required.



Some of my sensors are showing as yellow (the voltages mainly) though.



Nice work!

No problem. One of these days I'll get to fan control. Are the sensors in yellow above or below non critical value?



See pic. I had to modify the colours so that the yellow was readable! Red = yellow btw.

Also did you update the bios and bmc? There's also an update for the sata controller.  The bmc had to be updated through the bmc web page. I say that cause I tried through the bios first. There are quite a few fixes in both.

Share this post


Link to post

Just a question, I'm assuming this plugin is for bare metal installs?



I'd like to pull IPMI data from my supermicro IPMI board (via IP) and react on events, as I'm running unRAID in a virtualizated manner.

Share this post


Link to post

Just a question, I'm assuming this plugin is for bare metal installs?



I'd like to pull IPMI data from my supermicro IPMI board (via IP) and react on events, as I'm running unRAID in a virtualizated manner.

Yes it uses the built in ipmi driver but I can add remote support which should work.

Share this post


Link to post

Is there any configuration needed after installing this plugin?  I have the IPMI Tool listed under tools but there are no sensors/fans listed under sensors and nothing is in the event log.

Share this post


Link to post





Is there any configuration needed after installing this plugin?  I have the IPMI Tool listed under tools but there are no sensors/fans listed under sensors and nothing is in the event log.



What does "ipmitool sensor" show from the command line? Also try "ipmitool sdr" and "ipmitool -vc sdr" if that works.



Share this post


Link to post





Is there any configuration needed after installing this plugin?  I have the IPMI Tool listed under tools but there are no sensors/fans listed under sensors and nothing is in the event log.



What does "ipmitool sensor" show from the command line? Also try "ipmitool sdr" and "ipmitool -vc sdr" if that works.



I realized my issue is that my unRAID server is a VM inside ESXi so it's not going to read my IPMI sensors.  The plugin works fine on my baremetal backup unRAID server.

Share this post


Link to post

I will add a settings page for remote ipmi with ip address, username and password. That should allow those with unRAID as a vm to use this or you could monitor any other server. I also have been testing event monitoring and notifications.



Share this post


Link to post

I will add a settings page for remote ipmi with ip address, username and password. That should allow those with unRAID as a vm to use this or you could monitor any other server. I also have been testing event monitoring and notifications.



Awesome!

Share this post


Link to post

I will add a settings page for remote ipmi with ip address, username and password. That should allow those with unRAID as a vm to use this or you could monitor any other server. I also have been testing event monitoring and notifications.



Awesome!



Just a question, I'm assuming this plugin is for bare metal installs?



I'd like to pull IPMI data from my supermicro IPMI board (via IP) and react on events, as I'm running unRAID in a virtualizated manner.

Finally added support for ipmi lan access and event notifications. I created a settings page under Settings/IPMI tool. Let me know how it works for you.

Share this post


Link to post

Working perfectly for setup below. Thanks!

Your welcome. Glad it works for you.

Share this post


Link to post

Finally added support for ipmi lan access and event notifications. I created a settings page under Settings/IPMI tool. Let me know how it works for you.



Working great.  Thanks so much!

Share this post


Link to post

Finally added support for ipmi lan access and event notifications. I created a settings page under Settings/IPMI tool. Let me know how it works for you.



Working great.  Thanks so much!

Great. Thanks for testing it out. Remote access may not work for systems with ipmi 1.5. So if someone needs that I'll have to add another option.

Share this post


Link to post

After upgrading, I went to the settings page, and noticed it lists status as stopped, and I don't see a way to start it.  I tried changing the settings and clicking apply for both of the options, and neither changed the status from stopped.

Share this post


Link to post

After upgrading, I went to the settings page, and noticed it lists status as stopped, and I don't see a way to start it.  I tried changing the settings and clicking apply for both of the options, and neither changed the status from stopped.

Are you able to see sensor readings in Tools/IPMI tool? Unless you need remote access you should leave that set to No and the sensors will show using the kernel ipmi driver. The real time event notifications can be set to Yes then hit Apply. If the status didn't change to a green Running then try running "ipmievd sel" from the command line and let me know what happens and if the log shows anything.

Share this post


Link to post

The only way I could get the ip/user/pass to be editable is set both to no, apply, then set 2nd to yes, the ip/user/pass is editable until you hit apply.  one apply is hit you can no longer change them.  have to set to no, apply, then yes and start over....  bug?



Myk



Share this post


Link to post

The only way I could get the ip/user/pass to be editable is set both to no, apply, then set 2nd to yes, the ip/user/pass is editable until you hit apply.  one apply is hit you can no longer change them.  have to set to no, apply, then yes and start over....  bug?



Myk

Partly a bug. The Apply should be enabled on page refresh and notifications set to No, it is not. I'll check the logic and fix it. All settings should be disabled if the notification is Running.  Basically so you can't change or apply settings if it's active. Also If  you actually change a field like ip address and go to the next input the Apply button will be enabled. But that won't work with the password input and I don't know if I can fix that but if Apply is visible it shouldn't matter.
