[Support] DVBLink, Kerio Connect, Apache-php, TVHProxy, Webgrabplus

162 posts in this topic Last Reply

Recommended Posts

Support thread for:



Docker Container:

-DVBLink

-Kerio Connect

-Apache-PHP

-Webgrabplus

-TVHProxy



Template:

-Collabora/Code





Repository:

https://github.com/chvb/docker-templates




Docker Hub: https://hub.docker.com/u/chvb/

GitHub: https://github.com/chvb

Edited by chvb
added new Docker Container

Share this post


Link to post

Some things have to be done to use the DVBLink:



1. Install your DVBDriver with the Plugin of CHMB:

http://lime-technology.com/forum/index.php?topic=47899.0

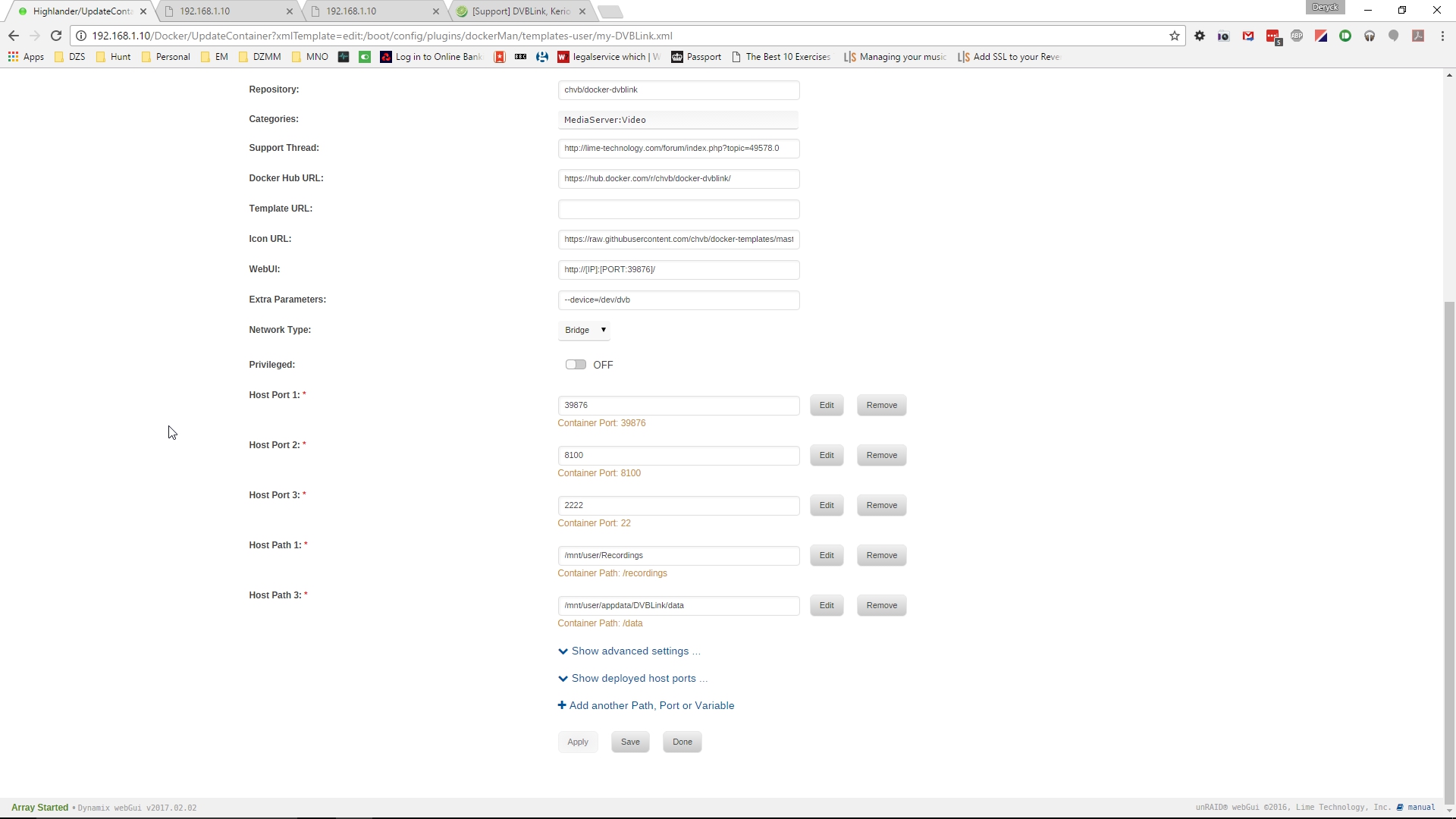

Edit the DVBLInk Docker with Advanced Display and add these Extra Parameters:

--device=/dev/dvb


Remember: don't forget to reboot your System:





If you are using SATIP you have to set the Docker to "Host" mode

Network Type:	Host



Remember: Set the Recording path inside the DVBLink configuration

Recording path:	/recordings/



DVBLink - DVBAPI - Softcam

Starting from build 14061/14072/14073 DVBLink TVSource supports new plugin interface, called mdjapi. The plugins are only supported on intel-based platforms - e.g. Windows, Ubuntu, MacOS, all intel-based NAS models.

The plugin spec comes from the original acamd author and was recently published here (spec is in English, site is in Dutch):
https://www.sat4all.com/forums/topic/23 ... &p=2430476

Another group of developers was working on the implementation of mdjapi for DVBLink. I have seen the pre-built binaries on a filedrop site at the following link (I do not know how long they will stay there):
http://dropmefiles.com/B47VM

The plugins have to be put into <dvblink share directory>/mirror/sources/<your tvsource source>/plugins.




Some things to the Kerio Connect Docker:



If you want to manage the Docker, you can connect to the Docker with Putty / WinSCP



Username: Docker

PW:          test123



//Change your Path for Mailstore inside the Docker / initial setup

change it to: /kerio_store


// How to update Kerio Docker



You have to remove kerio files/folders in your volume but keep this follow files/folder: (The docker will copy the missing Files)

*.cfg
mailserver/store
mailserver/dbSSL
mailserver/license
mailserver/settings
mailserver/sslca
mailserver/sslcert
mailserver/ldapmap



// How can i Replace a Backup?

// Log into SSH and Replace Backup

sudo service kerio-connect stop
sudo /opt/kerio/mailserver/kmsrecover /backup
sudo service kerio-connect start

Edited by chvb

Share this post


Link to post

Hi,



Thanks for the DVBlink docker :) I've used dvblink successfully on windows with my hardware but the docker isn't recognising my tuner. It's an external tuner connected by USB. Any advice?

Share this post


Link to post

Hi,



Thanks for the DVBlink docker :) I've used dvblink successfully on windows with my hardware but the docker isn't recognising my tuner. It's an external tuner connected by USB. Any advice?



Are drivers installed for your tuner?  See my sig for Unraid DVB..

Share this post


Link to post

of course.. drivers.. It's a technotrend TT-connect 4600.. i'll go and look for them



**edit**

found the correct driver files here... anyonw fancy giving me a heads up on how to install them?





https://bitbucket.org/liplianin/s2-liplianin-v37/get/67ce08afdbe7.tar.bz2



Hi,



Thanks for the DVBlink docker :) I've used dvblink successfully on windows with my hardware but the docker isn't recognising my tuner. It's an external tuner connected by USB. Any advice?



Are drivers installed for your tuner?  See my sig for Unraid DVB..

Share this post


Link to post

of course.. drivers.. It's a technotrend TT-connect 4600.. i'll go and look for them



**edit**

found the correct driver files here... anyonw fancy giving me a heads up on how to install them?





https://bitbucket.org/liplianin/s2-liplianin-v37/get/67ce08afdbe7.tar.bz2



please sure you make these steps:



1. Install your DVBDriver with the Plugin of CHMB:

http://lime-technology.com/forum/index.php?topic=47899.0



Edit the DVBLInk Docker with Advanced Display and add these Extra Parameters:

--device=/dev/dvb



Edit your /boot/config/go file and add these line:

chown -R nobody:users /dev/dvb &

Remember: don't forget to reboot your System:

Share this post


Link to post

of course.. drivers.. It's a technotrend TT-connect 4600.. i'll go and look for them



**edit**

found the correct driver files here... anyonw fancy giving me a heads up on how to install them?





https://bitbucket.org/liplianin/s2-liplianin-v37/get/67ce08afdbe7.tar.bz2



please sure you make these steps:



1. Install your DVBDriver with the Plugin of CHMB:

http://lime-technology.com/forum/index.php?topic=47899.0



Edit the DVBLInk Docker with Advanced Display and add these Extra Parameters:

--device=/dev/dvb



Edit your /boot/config/go file and add these line:

chown -R nobody:users /dev/dvb &

Remember: don't forget to reboot your System:

I'm pretty sure the chown in the go file isn't needed as it's done by the unraid dvb plugin. I'm sure mister dvb can confirm it  :)

Share this post


Link to post

Yep the chown is done by the plugin.  Not necessary.

Share this post


Link to post

OK..thanks.. but following the instructions i'm getting



""

root@localhost:# /usr/local/emhttp/plugins/dynamix.docker.manager/scripts/docker run -d --name="DVBLink" --net="bridge" -e TZ="Europe/London" -p 39876:39876/tcp -p 8100:8100/tcp -p 2222:22/tcp -v "/mnt/user/Recordings":"/recordings":rw --device=/dev/dvb chvb/docker-dvblink

18f28a73ca18c618ca61d8e3b001bd92023eca3c4a98ea5c0ce61cf99448f07a

Error response from daemon: Cannot start container 18f28a73ca18c618ca61d8e3b001bd92023eca3c4a98ea5c0ce61cf99448f07a: error gathering device information while adding custom device "/dev/dvb": lstat /dev/dvb: no such file or directory



The command finished successfully!

Share this post


Link to post

OK..thanks.. but following the instructions i'm getting



""

root@localhost:# /usr/local/emhttp/plugins/dynamix.docker.manager/scripts/docker run -d --name="DVBLink" --net="bridge" -e TZ="Europe/London" -p 39876:39876/tcp -p 8100:8100/tcp -p 2222:22/tcp -v "/mnt/user/Recordings":"/recordings":rw --device=/dev/dvb chvb/docker-dvblink

18f28a73ca18c618ca61d8e3b001bd92023eca3c4a98ea5c0ce61cf99448f07a

Error response from daemon: Cannot start container 18f28a73ca18c618ca61d8e3b001bd92023eca3c4a98ea5c0ce61cf99448f07a: error gathering device information while adding custom device "/dev/dvb": lstat /dev/dvb: no such file or directory



The command finished successfully!



This makes me think there aren't drivers installed for your device, look at the DVB Plugins screen and tell me what you see in the bottom left column....




Share this post


Link to post

Attached... Can't see my technotrend 4600 tuner.



Well the drivers are included in kernel according to this.  But V6.1.9 runs on 4.1.18 and seems there were some fixes after that in the 4.2 kernel.  As much as I don't like recommending beta versions, you may want to try the V6 Beta 23 release, which is kernel 4.4.13.

Share this post


Link to post

You could also try the Digital Devices Mediabuild and see if the drivers are in there.

Share this post


Link to post

Thank you - i'll try DD as i can't see any beta options.



There are beta options available but you need to read my plugin post to see how to upgrade to the beta stream.

Share this post


Link to post

OK.. thank you for your help. I'm very new to unraid and still finding my feet - so i do appreciate your patience. I don't quite understand "you must first upgrade via the LimeTech plugin or manually" ?

Share this post


Link to post

OK.. thank you for your help. I'm very new to unraid and still finding my feet - so i do appreciate your patience. I don't quite understand "you must first upgrade via the LimeTech plugin or manually" ?



I won't let my plugin update people to beta without them already having done so first via the official LT Beta.  There are other changes the beta upgrade does that doesn't get replicated by my plugin.  So to use a beta DVB build you first have to update via the LT plugin.  Here's the latest one for Beta 23.

Share this post


Link to post

Thanks. Updated to beta, tried OE and DD builds - no joy.



removed all plugins /apps and downgraded to beta 22.



Reinstalled plex/dvblink/ OE 6.2.0-beta22. Still no joy. "DVB Adapter Drivers: Not Detected"



output from dmesg upon removal/insert of  TechnoTrend TT-connect S2-4600



[  676.668768] usb 1-1.6: USB disconnect, device number 4

[ 1861.951305] usb 4-1: new high-speed USB device number 2 using xhci_hcd

[ 1862.072835] dw2102: su3000_identify_state



[ 1862.072838] dvb-usb: found a 'TechnoTrend TT-connect S2-4600' in warm state.

[ 1862.072843] dw2102: su3000_power_ctrl: 1, initialized 0



[ 1862.072992] dvb-usb: will pass the complete MPEG2 transport stream to the software demuxer.

[ 1862.073265] DVB: registering new adapter (TechnoTrend TT-connect S2-4600)

[ 1862.078402] dvb-usb: MAC address: bc:ea:2b:46:12:85

[ 1862.383774] i2c i2c-1: Added multiplexed i2c bus 2

[ 1862.397265] ts2020 2-0060: Montage Technology TS2022 successfully identified

[ 1862.397282] usb 4-1: DVB: registering adapter 1 frontend 0 (Montage Technology M88DS3103)...

[ 1862.419326] Registered IR keymap rc-tt-1500

[ 1862.419459] input: IR-receiver inside an USB DVB receiver as /devices/pci0000:00/0000:00:1c.6/0000:04:00.0/usb4/4-1/rc/rc0/input7

[ 1862.419582] rc0: IR-receiver inside an USB DVB receiver as /devices/pci0000:00/0000:00:1c.6/0000:04:00.0/usb4/4-1/rc/rc0

[ 1862.419585] dvb-usb: schedule remote query interval to 250 msecs.

[ 1862.419588] dw2102: su3000_power_ctrl: 0, initialized 1



[ 1862.419590] dvb-usb: TechnoTrend TT-connect S2-4600 successfully initialized and connected.

[ 1864.670347] dvb-usb: recv bulk message failed: -110

[ 1864.670350] dw2102: i2c transfer failed.



Any ideas?

Share this post


Link to post

Yep the chown is done by the plugin.  Not necessary.



Nice to know. Thanks.

Share this post


Link to post

Support thread for DVBLink, Kerio Connect & Apache-PHP Docker



So I started using this Docker which looks really cool, but I had a couple of questions as I don't think its working quite right?



1. Initial install works great - but if I stop the Docker and Start again I never get the WebUI back again?  It works great all the way up to me needing to stop/or restart then it never comes back.



2. Where is the config saved?  Any updates to the Docker such as changing between Host/Bridge mode reset the Dvblink config.



Realise this is still very early - but would appreciate help with this as its working great with my DVB drivers build of Unraid.



Thanks,

Share this post


Link to post

hi  I can't get this docker to load with the default settings - help please.  I can't get the webui to load so I'm at stage 1....





I've had a few frustrating hours with tvheadend and I want to give this a go as I've used DVBlink in the past








Share this post


Link to post

can anyone help please?  I've got it running perfectly in a VM, but I'd rather run in the docker for obvious reasons.

Share this post


Link to post

No activity on this thread since June, Docker last updated in June and your question is unanswered, looking like this is dead project :-(



Just thought I would have a go with this as I am suffering a pixelation issue when cpu is stressed but cannot get the WEBUI either

Share this post
